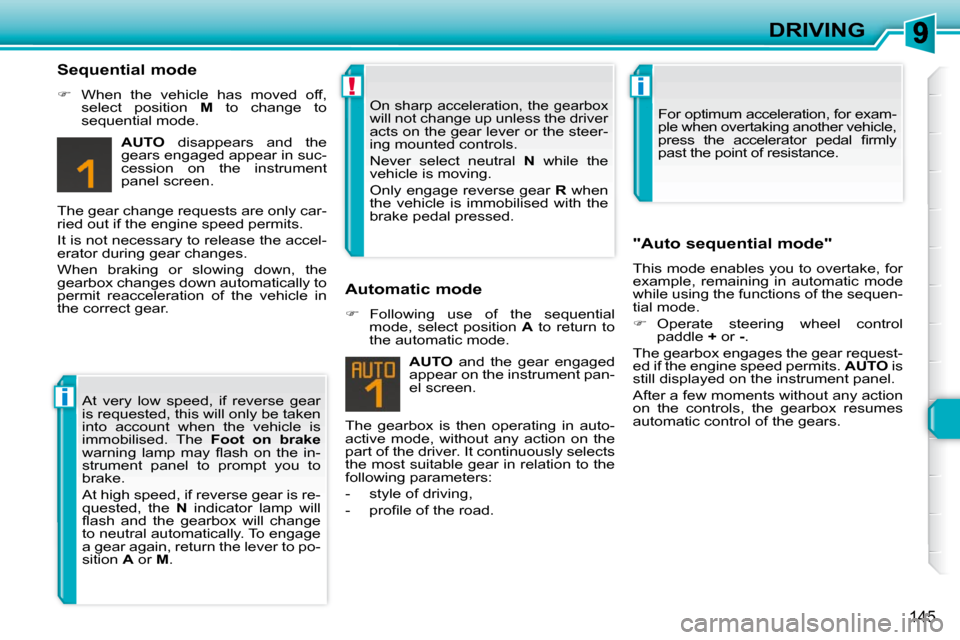

Sequential mode
When the vehicle has moved off,
select position M to change to
sequential mode.
AUTO disappears and the
gears engaged appear in suc-
cession on the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y t o
permit reacceleration of the vehicle in
the correct gear.
T h e g e a r b o x i s t h e n o p e r a t i n g i n a u t o -
active mode, without any action on the
part of the driver. It continuously selects
the most suitable gear in relation to the
following parameters:
- style of driving,
- p r o fi l e o f t h e r o a d .
AUTO and the gear engaged
appear on the instrument pan-
el screen.
Automatic mode
Following use of the sequential
mode, select position A to return to
the automatic mode. "Auto sequential mode"
This mode enables you to overtake, for
e x a m p l e , r e m a i n i n g i n a u t o m a t i c m o d e
while using the functions of the sequen-
tial mode.
Operate steering wheel control
paddle + or - .
T h e g e a r b o x e n g a g e s t h e g e a r r e q u e s t -
ed if the engine speed permits. AUTO is
still displayed on the instrument panel.
After a few moments without any action
o n t h e c o n t r o l s , t h e g e a r b o x r e s u m e s
automatic control of the gears.
At very low speed, if reverse gear
is requested, this will only be taken
into account when the vehicle is
immobilised. The
Foot on brake
w a r n i n g l a m p m a y fl a s h o n t h e i n -
strument panel to prompt you to
brake.
At high speed, if reverse gear is re-
quested, the N indicator lamp will
fl a s h a n d t h e g e a r b o x w i l l c h a n g e
to neutral automatically. To engage
a gear again, return the lever to po-
sition A or M .
O n s h a r p a c c e l e r a t i o n , t h e g e a r b o x will not change up unless the driver
acts on the gear lever or the steer-
ing mounted controls.
Never select neutral N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised with the
brake pedal pressed. F o r o p t i m u m a c c e l e r a t i o n , f o r e x a m -
ple when overtaking another vehicle,
p r e s s t h e a c c e l e r a t o r p e d a l fi r m l y
past the point of resistance.
Page 142 of 313
!!
i
146
DRIVING Stopping the vehicle Operating fault With the ignition on, if this warn-
ing lamp comes on and AUTO
fl a s h e s , a c c o m p a n i e d b y a n a u -
dible signal and a message on
the multifunction screen, this indicates
a m a l f u n c t i o n o f t h e g e a r b o x .
Have it checked by a PEUGEOT dealer.
It is essential to press the brake
pedal when starting the engine.
When parking, is it essential to ap-
ply the parking brake to immobilise
the vehicle, whatever the circum-
stances.
When immobilising the vehicle,
with the engine running, it is es-
sential to place the gear lever in
neutral
N .
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N and
that the parking brake is applied. With the ignition on, if the warn-
ing lamp above and this warning
lamp come on, accompanied
by an audible signal and a mes-
sage on the multifunction screen, this
indicates a malfunction of the hill start
assist system.
Have it checked by a PEUGEOT dealer.

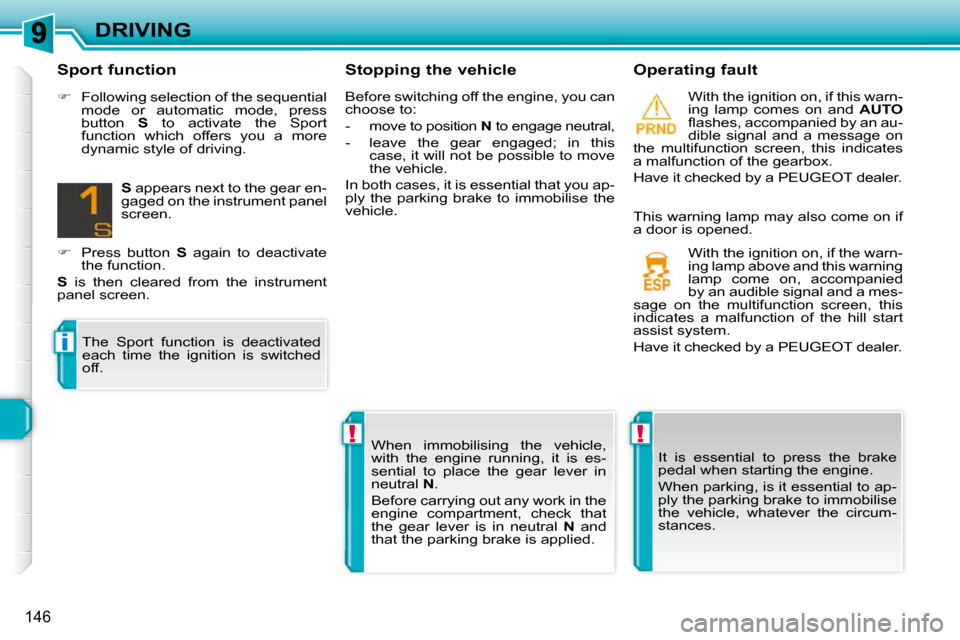

Sport function
Following selection of the sequential
mode or automatic mode, press
button S to activate the Sport
function which offers you a more
dynamic style of driving.
S a p p e a r s n e x t t o t h e g e a r e n -
gaged on the instrument panel
screen.
Press button S again to deactivate
the function.
S is then cleared from the instrument
panel screen.
The Sport function is deactivated
each time the ignition is switched
off. Before switching off the engine, you can
choose to:
- move to position
N to engage neutral,
- leave the gear engaged; in this case, it will not be possible to move
the vehicle.
In both cases, it is essential that you ap-
ply the parking brake to immobilise the
vehicle. This warning lamp may also come on if
a door is opened.
Page 143 of 313
147
DRIVING

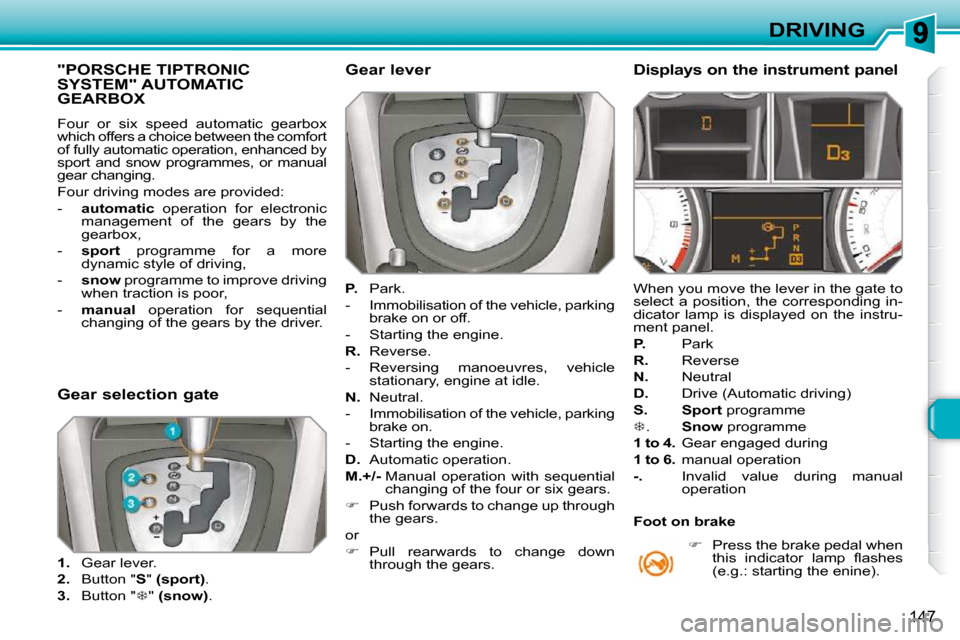

"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
F o u r o r s i x s p e e d a u t o m a t i c g e a r b o x
which offers a choice between the comfort
of fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Four driving modes are provided:
- automatic operation for electronic
management of the gears by the
g e a r b o x ,
- sport programme for a more
dynamic style of driving,
- snow programme to improve driving
when traction is poor,
- manual operation for sequential
changing of the gears by the driver. Gear lever
P. Park.
- Immobilisation of the vehicle, parking brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle stationary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, parking brake on.
- Starting the engine.
D. Automatic operation.
M.+/- Manual operation with sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Push forwards to change up through
the gears.
or
Pull rearwards to change down
through the gears. Displays on the instrument panel
When you move the lever in the gate to
select a position, the corresponding in-
dicator lamp is displayed on the instru-
ment panel.
P. Park
R. Reverse
N. Neutral
D. D r i v e ( A u t o m a t i c d r i v i n g )
S. Sport programme
. Snow programme
1 to 4. Gear engaged during
1 to 6. manual operation
-. Invalid value during manual
operation
Press the brake pedal when
t h i s i n d i c a t o r l a m p fl a s h e s
( e . g . : s t a r t i n g t h e e n i n e ) .
Gear selection gate
1. Gear lever.
2. Button " S " (sport) .
3. Button " " (snow) . Foot on brake
Page 144 of 313
!
!
i
148
DRIVING

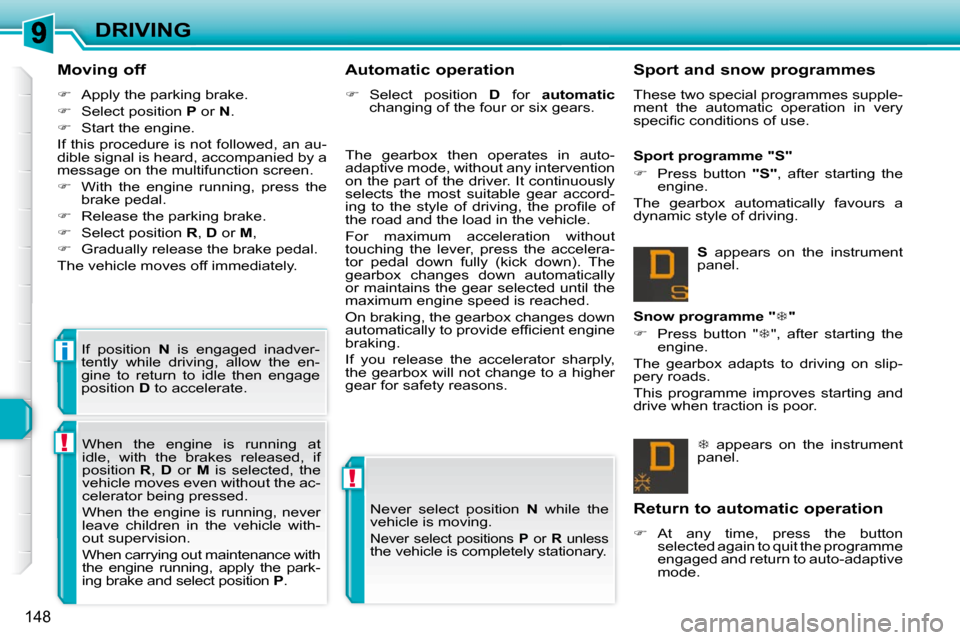

Moving off
Apply the parking brake.
Select position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction screen.
With the engine running, press the
brake pedal.
Release the parking brake.
Select position R , D or M ,
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadver-
tently while driving, allow the en-
gine to return to idle then engage
position D to accelerate. T h e g e a r b o x t h e n o p e r a t e s i n a u t o -
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
F o r m a x i m u m a c c e l e r a t i o n w i t h o u t
touching the lever, press the accelera-
t o r p e d a l d o w n f u l l y ( k i c k d o w n ) . T h e
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y
or maintains the gear selected until the
m a x i m u m e n g i n e s p e e d i s r e a c h e d .
O n b r a k i n g , t h e g e a r b o x c h a n g e s d o w n
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
t h e g e a r b o x w i l l n o t c h a n g e t o a h i g h e r
gear for safety reasons.
Automatic operation
Select position D for automatic
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
T h e g e a r b o x a d a p t s t o d r i v i n g o n s l i p -
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
T h e g e a r b o x a u t o m a t i c a l l y f a v o u r s a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless the vehicle is completely stationary.
When the engine is running at
idle, with the brakes released, if
position
R , D or M is selected, the
vehicle moves even without the ac-
celerator being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance with
the engine running, apply the park-
ing brake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button
selected again to quit the programme
engaged and return to auto-adaptive
mode.
Page 145 of 313
!
i
149
DRIVING
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
g e a r b o x i n n e u t r a l .
In both cases, apply the parking brake
to immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible sig-
nal and a message on the multi-
f u n c t i o n s c r e e n , i n d i c a t e s a g e a r b o x
malfunction.
I n t h i s c a s e , t h e g e a r b o x s w i t c h e s t o
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
t h e g e a r b o x .
D o n o t e x c e e d a s p e e d o f 6 0 m p h
( 1 0 0 k m / h ) , l o c a l s p e e d r e s t r i c t i o n s p e r -
mitting.
Have it checked by a PEUGEOT dealer.
This warning lamp may also come on if
a door is opened.
There is a risk of damage to the
g e a r b o x :
- if you press the accelerator and brake pedals at the same time,
- if you force the lever from position P to another position
w h e n t h e b a t t e r y i s fl a t .

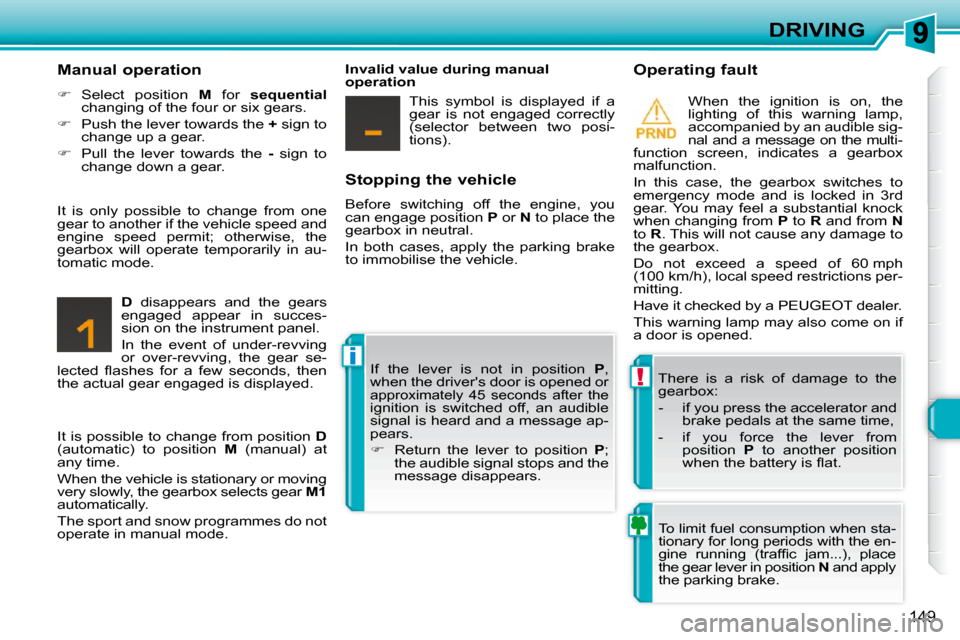

Manual operation
Select position M for sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
l e c t e d fl a s h e s f o r a f e w s e c o n d s , t h e n
the actual gear engaged is displayed. If the lever is not in position
P ,
when the driver's door is opened or
a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r t h e ignition is switched off, an audible
signal is heard and a message ap-
pears.
Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
g e a r b o x w i l l o p e r a t e t e m p o r a r i l y i n a u -
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
t i o n s ) .
It is possible to change from position D
( a u t o m a t i c ) t o p o s i t i o n M ( m a n u a l ) a t
any time.
When the vehicle is stationary or moving
v e r y s l o w l y , t h e g e a r b o x s e l e c t s g e a r M1
automatically.
The sport and snow programmes do not
operate in manual mode. To limit fuel consumption when sta-
tionary for long periods with the en-
g i n e r u n n i n g ( t r a f fi c j a m . . . ) , p l a c e
the gear lever in position
N and apply
the parking brake.
Page 146 of 313
i
1 5 0
DRIVING

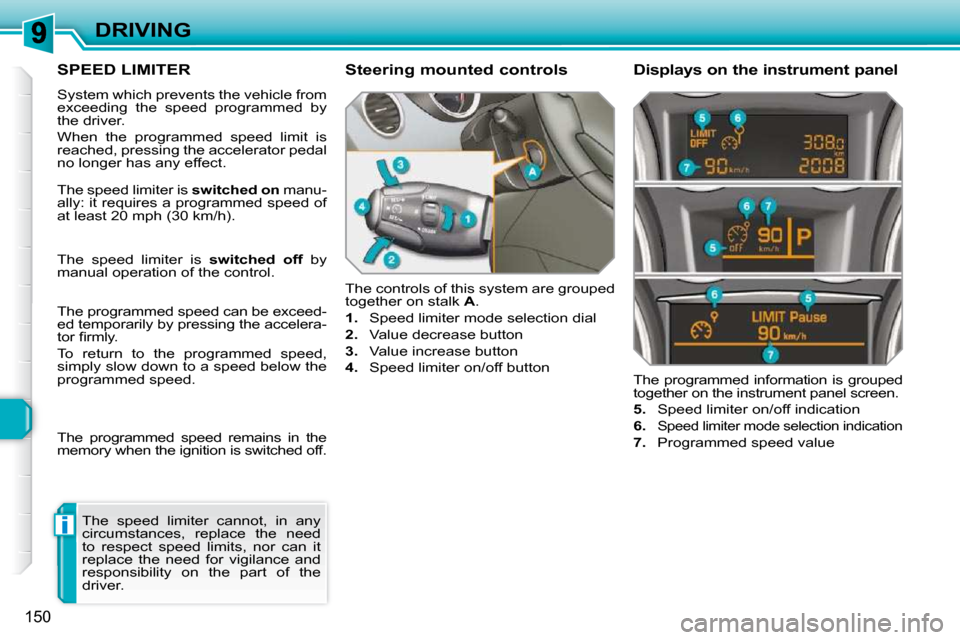

SPEED LIMITER
System which prevents the vehicle from
e x c e e d i n g t h e s p e e d p r o g r a m m e d b y
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect. The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection dial
2. Value decrease button
3. Value increase button
4. S p e e d l i m i t e r o n / o f f b u t t o n
The programmed information is grouped
together on the instrument panel screen.
5. S p e e d l i m i t e r o n / o f f i n d i c a t i o n
6.
Speed limiter mode selection indication
7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The speed limiter is switched on manu-
ally: it requires a programmed speed of
a t l e a s t 2 0 m p h ( 3 0 k m / h ) .
The speed limiter is switched off by
manual operation of the control.
T h e p r o g r a m m e d s p e e d c a n b e e x c e e d -
ed temporarily by pressing the accelera-
t o r fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched off.
Page 147 of 313
!
DRIVING
On a steep descent or in the event
of sharp acceleration, the speed
limiter will not be able to prevent
t h e v e h i c l e f r o m e x c e e d i n g t h e p r o -
grammed speed.
T o a v o i d a n y r i s k o f j a m m i n g o f t h e
pedals:
- ensure that the mat is positioned correctly,
- d o n o t fi t o n e m a t o n t o p o f another.

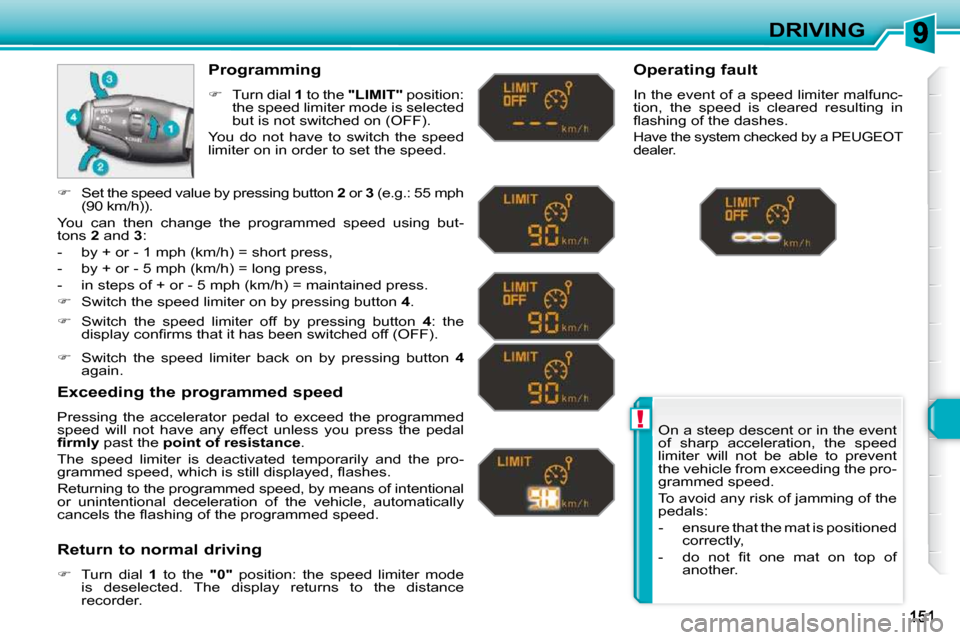

Programming
Turn dial 1 to the "LIMIT" position:
the speed limiter mode is selected
b u t i s n o t s w i t c h e d o n ( O F F ) .
You do not have to switch the speed
limiter on in order to set the speed.
Exceeding the programmed speed
P r e s s i n g t h e a c c e l e r a t o r p e d a l t o e x c e e d t h e p r o g r a m m e d
speed will not have any effect unless you press the pedal
fi r m l y past the point of resistance .
The speed limiter is deactivated temporarily and the pro-
g r a m m e d s p e e d , w h i c h i s s t i l l d i s p l a y e d , fl a s h e s .
Returning to the programmed speed, by means of int entional
or unintentional deceleration of the vehicle, automaticall y
c a n c e l s t h e fl a s h i n g o f t h e p r o g r a m m e d s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the speed limiter mode
is deselected. The display returns to the distance
recorder. Operating fault
In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have the system checked by a PEUGEOT
dealer.
Switch the speed limiter off by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the speed limiter back on by pressing button 4
again.
Set the speed value by pressing button 2 or 3 (e.g.: 55 mph
( 9 0 k m / h ) ) .
You can then change the programmed speed using but-
tons 2 and 3 :
- b y + o r - 1 m p h ( k m / h ) = s h o r t p r e s s ,
- b y + o r - 5 m p h ( k m / h ) = l o n g p r e s s ,
- i n s t e p s o f + o r - 5 m p h ( k m / h ) = m a i n t a i n e d p r e s s .
Switch the speed limiter on by pressing button 4 .
Page 148 of 313
i
152
DRIVING

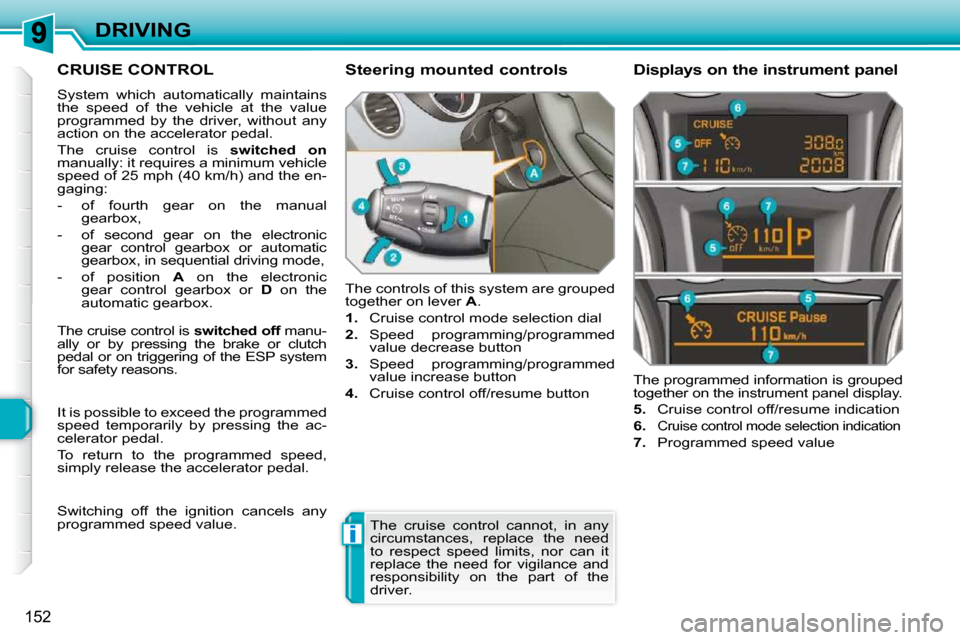

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
s p e e d o f 2 5 m p h ( 4 0 k m / h ) a n d t h e e n -
gaging:
- of fourth gear on the manual g e a r b o x ,
- of second gear on the electronic g e a r c o n t r o l g e a r b o x o r a u t o m a t i c
g e a r b o x , i n s e q u e n t i a l d r i v i n g m o d e ,
- of position A on the electronic
g e a r c o n t r o l g e a r b o x o r D on the
a u t o m a t i c g e a r b o x . The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. S p e e d p r o g r a m m i n g / p r o g r a m m e d
value decrease button
3. S p e e d p r o g r a m m i n g / p r o g r a m m e d
value increase button
4. C r u i s e c o n t r o l o f f / r e s u m e b u t t o n The programmed information is grouped
together on the instrument panel display.
5. C r u i s e c o n t r o l o f f / r e s u m e i n d i c a t i o n
6.
Cruise control mode selection indication
7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The cruise control is switched off manu-
ally or by pressing the brake or clutch
pedal or on triggering of the ESP system
for safety reasons.
I t i s p o s s i b l e t o e x c e e d t h e p r o g r a m m e d
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 149 of 313
!
DRIVING
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
On a steep descent, the cruise
control will not be able to prevent
t h e v e h i c l e f r o m e x c e e d i n g t h e p r o -
grammed speed.
T o a v o i d a n y r i s k o f j a m m i n g o f t h e
pedals:
- ensure that the mat is positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f another.

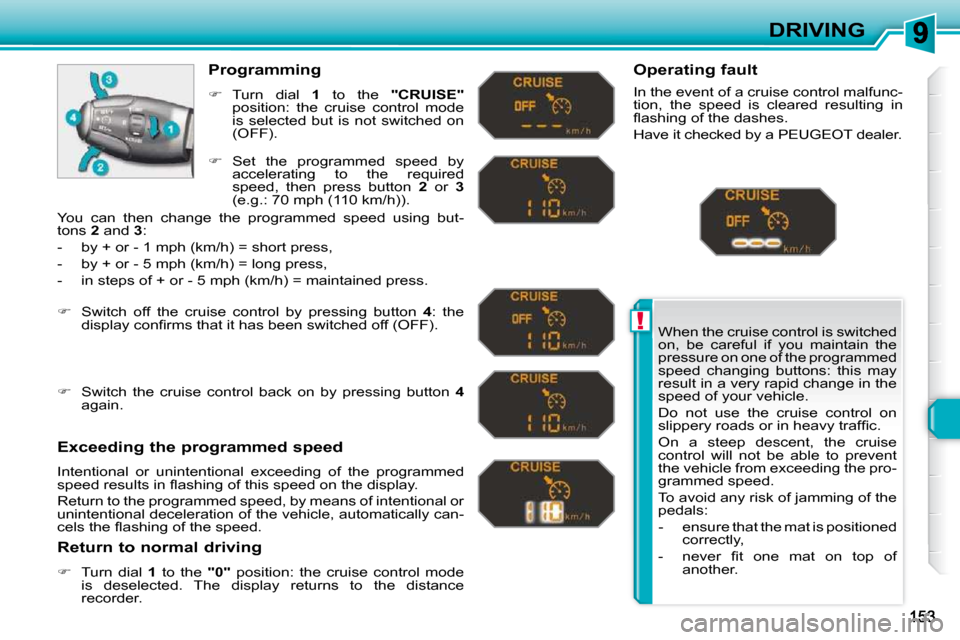

Programming
Turn dial 1 to the "CRUISE"
position: the cruise control mode
is selected but is not switched on
( O F F ) .
Exceeding the programmed speed
I n t e n t i o n a l o r u n i n t e n t i o n a l e x c e e d i n g o f t h e p r o g r a m m e d
s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically ca n-
c e l s t h e fl a s h i n g o f t h e s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the cruise control mode
is deselected. The display returns to the distance
recorder. Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have it checked by a PEUGEOT dealer.
Set the programmed speed by
accelerating to the required
speed, then press button 2 or 3
( e . g . : 7 0 m p h ( 1 1 0 k m / h ) ) .
Switch off the cruise control by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using but-
tons
2 and 3 :
- b y + o r - 1 m p h ( k m / h ) = s h o r t p r e s s ,
- b y + o r - 5 m p h ( k m / h ) = l o n g p r e s s ,
- i n s t e p s o f + o r - 5 m p h ( k m / h ) = m a i n t a i n e d p r e s s .
Page 150 of 313
i
!
154
DRIVING

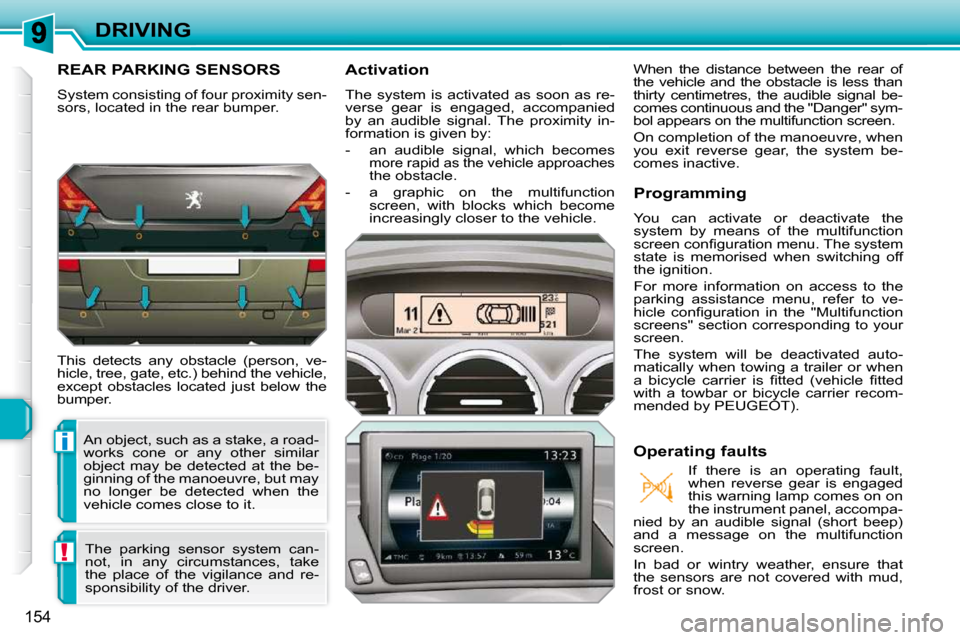

REAR PARKING SENSORS
S y s t e m c o n s i s t i n g o f f o u r p r o x i m i t y s e n -
sors, located in the rear bumper.
This detects any obstacle (person, ve-
h i c l e , t r e e , g a t e , e t c . ) b e h i n d t h e v e h i c l e ,
e x c e p t o b s t a c l e s l o c a t e d j u s t b e l o w t h e
bumper. A n o b j e c t , s u c h a s a s t a k e , a r o a d -
works cone or any other similar
o b j e c t m a y b e d e t e c t e d a t t h e b e -
ginning of the manoeuvre, but may
no longer be detected when the
vehicle comes close to it.
The parking sensor system can-
not, in any circumstances, take
the place of the vigilance and re-
sponsibility of the driver. Activation
The system is activated as soon as re-
verse gear is engaged, accompanied
b y a n a u d i b l e s i g n a l . T h e p r o x i m i t y i n -
formation is given by:
- an audible signal, which becomes
more rapid as the vehicle approaches the obstacle.
- a graphic on the multifunction screen, with blocks which become
increasingly closer to the vehicle. When the distance between the rear of
the vehicle and the obstacle is less than
thirty centimetres, the audible signal be-
comes continuous and the "Danger" sym-
bol appears on the multifunction screen.
On completion of the manoeuvre, when
y o u e x i t r e v e r s e g e a r , t h e s y s t e m b e -
comes inactive.
Programming
You can activate or deactivate the
system by means of the multifunction
s c r e e n c o n fi g u r a t i o n m e n u . T h e s y s t e m
state is memorised when switching off
the ignition.
For more information on access to the
parking assistance menu, refer to ve-
h i c l e c o n fi g u r a t i o n i n t h e " M u l t i f u n c t i o n
screens" section corresponding to your
screen.
The system will be deactivated auto-
matically when towing a trailer or when
a b i c y c l e c a r r i e r i s fi t t e d ( v e h i c l e fi t t e d
with a towbar or bicycle carrier recom-
m e n d e d b y P E U G E O T ) .
Operating faults If there is an operating fault,
when reverse gear is engaged
this warning lamp comes on on
the instrument panel, accompa-
n i e d b y a n a u d i b l e s i g n a l ( s h o r t b e e p )
and a message on the multifunction
screen.
In bad or wintry weather, ensure that
the sensors are not covered with mud,
frost or snow.
