12
224
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

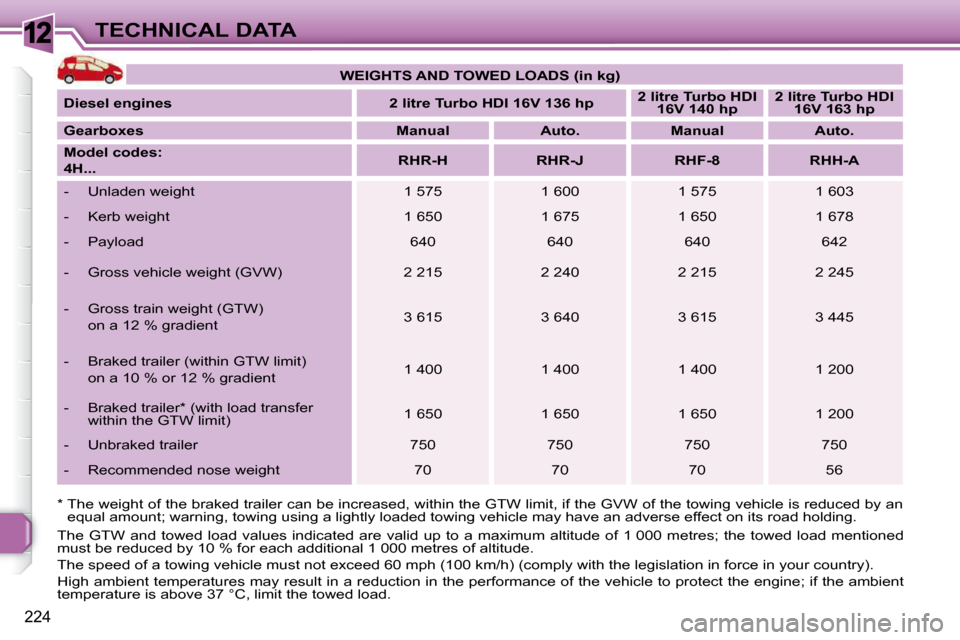

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines 2
litre
Turbo HDI 16V 136
hp
2
litre
Turbo HDI
16V 140
hp
2
litre
Turbo HDI
16V 163
hp
Gearboxes Manual Auto. Manual Auto.
Model codes:
4H...
RHR-H RHR-J RHF-8 RHH-A
- Unladen weight 1 575 1 600 1 575 1 603
- Kerb weight 1 650 1 675 1 650 1 678
- Payload 640 640 640 642
- Gross vehicle weight (GVW) 2 215 2 240 2 215 2 245
- Gross train weight (GTW)
on a 12 % gradient 3 615 3 640 3 615 3 445
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 400 1 400 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 650 1 650 1 650 1 200
- Unbraked trailer 750 750 750 750
- Recommended nose weight 70 70 70 56
Page 222 of 313
12
225
TECHNICAL DATA

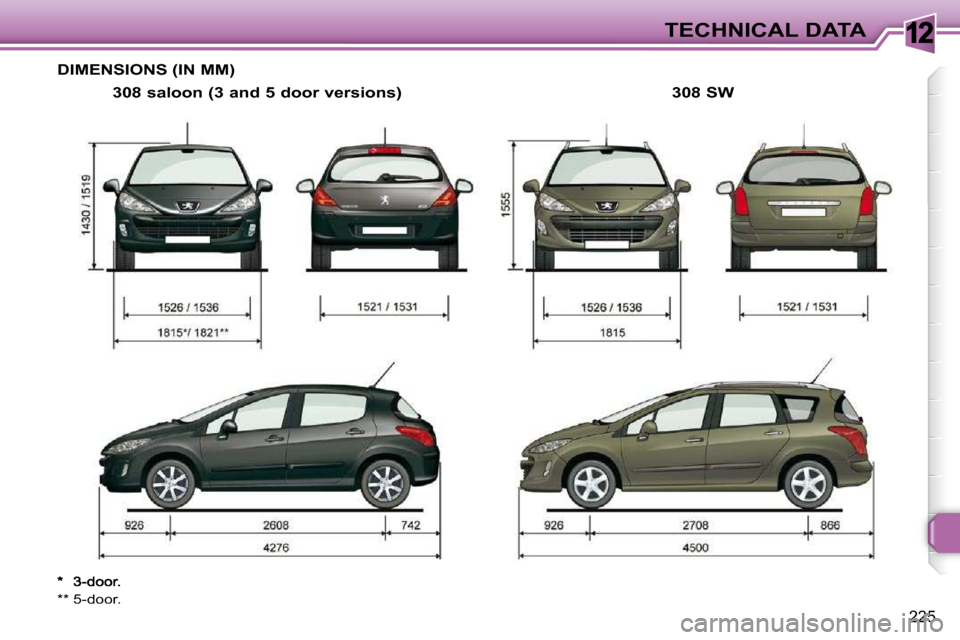

DIMENSIONS (IN MM)
308 saloon (3 and 5 door versions)
*
** 5-door.
308 SW
Page 223 of 313
12
i
226
TECHNICAL DATA

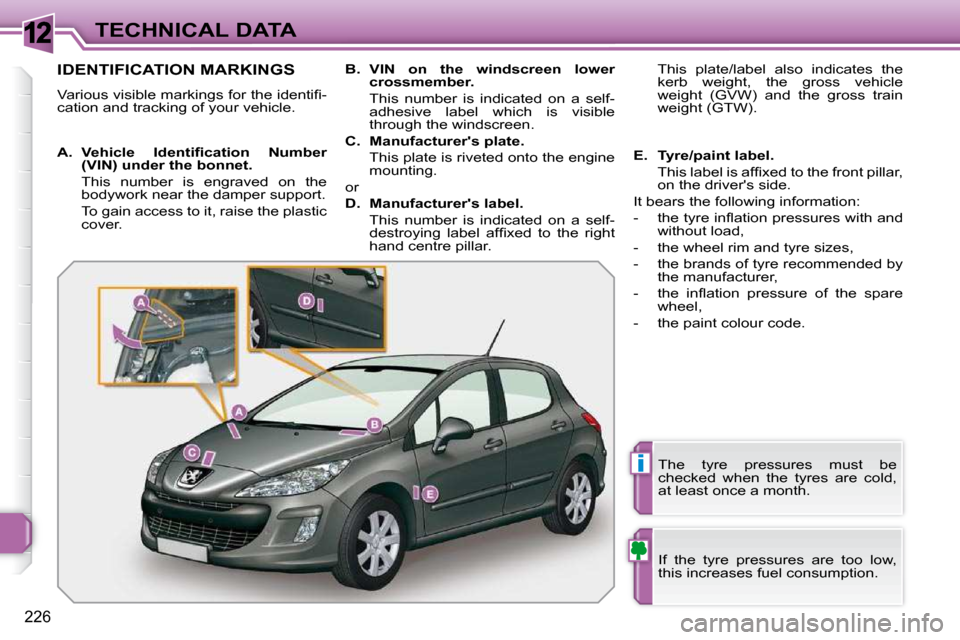

IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation and tracking of your vehicle. If the tyre pressures are too low,
this increases fuel consumption.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
A. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN)
under the bonnet.
This number is engraved on the bodywork near the damper support.
To gain access to it, raise the plastic cover.
B. VIN
on the windscreen lower
c r o s s m e m b e r .
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer's plate.
This plate is riveted onto the engine mounting.
or
D. Manufacturer's label.
This number is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e r i g h t
hand centre pillar. This plate/label also indicates the
kerb weight, the gross vehicle
weight (GVW) and the gross train
weight (GTW).
E. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e f r o n t p i l l a r , on the driver's side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour code.
Page 224 of 313
228

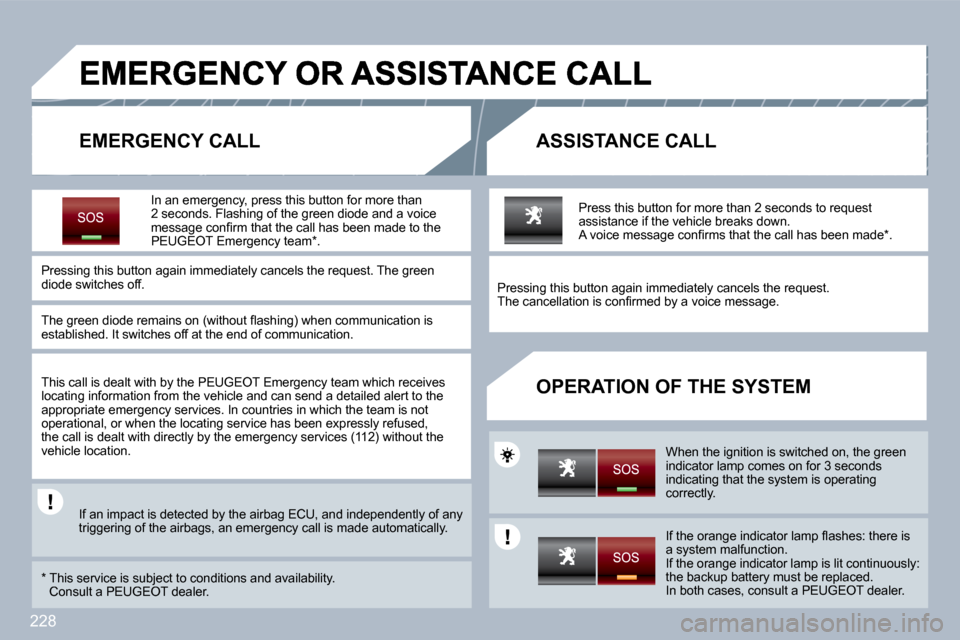

EMERGENCY CALL ASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green diode switches off.
T h e g r e e n d i o d e r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n c o m m u n i c a t i o n i s established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, t h e c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t t h e vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is mad e automatically.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to requ est assistance if the vehicle breaks down. A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * .
Pressing this button again immediately cancels the request. T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a system malfunction. I f t h e o r a n g e i n d i c a t o r l a m p i s l i t c o n t i n u o u s l y : the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.
Page 225 of 313
229
PEUGEOT ASSISTANCE
CUSTOMER CALL
Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
EMERGENCY CALL

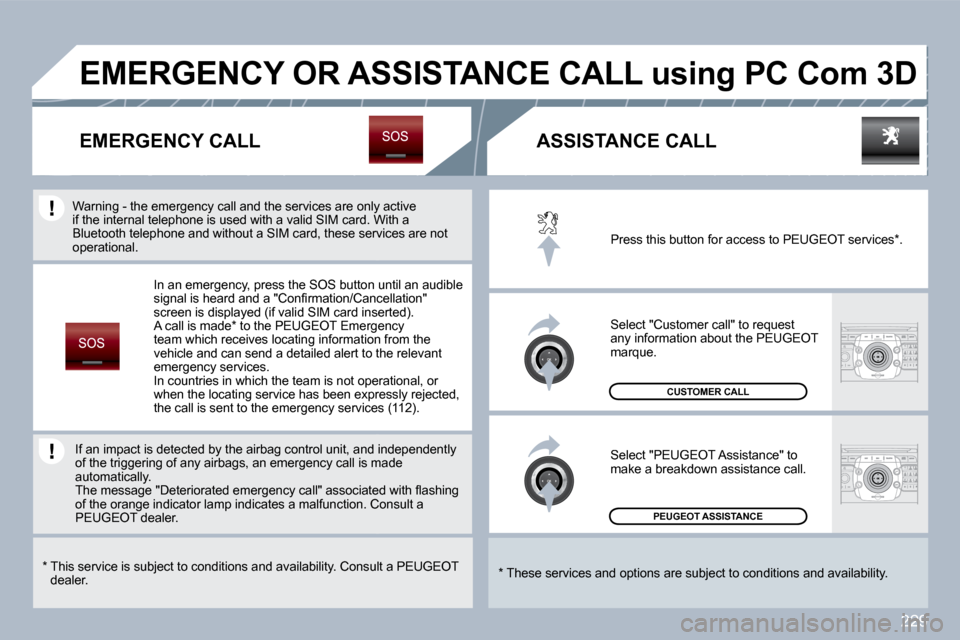

EMERGENCY OR ASSISTANCE CALL using PC Com 3D
ASSISTANCE CALL
In an emergency, press the SOS button until an au dible s i g n a l i s h e a r d a n d a " C o n fi r m a t i o n / C a n c e l l a t i o n " s c r e e n i s d i s p l a y e d ( i f v a l i d S I M c a r d i n s e r t e d ) . A call is made * to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services. In countries in which the team is not operational, or when the locating service has been expressly reject ed, t h e c a l l i s s e n t t o t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) .
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If an impact is detected by the airbag control uni t, and inand independently of the triggering of any airbags, an emergency call is mal is made automatically. T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g of the orange indicator lamp indicates a malfunction. Con. Consult a PEUGEOT dealer.
Warning - the emergency call and the services are only a only active if the internal telephone is used with a valid SIM card. Wrd. With a Bluetooth telephone and without a SIM card, these s ervi services are not operational.
Page 226 of 313
231
The PC Com 3D is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for c o n fi g u r a t i o n o f t h e s y s t e m .
Certain functions described in this handbook will become available during the course of the year.

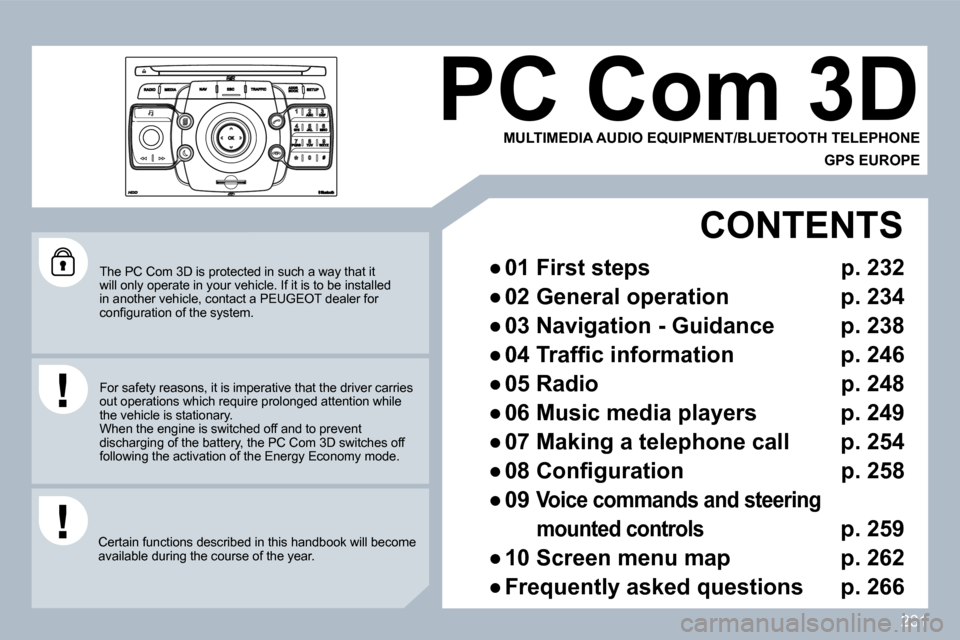

PC Com 3D
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE
CONTENTS
Page 227 of 313
232
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
1 0
2
3
4
6 1 2
9
7
8
1 1 5
TU
PQRS
0
*
1 . CD eject.
2 . R A D I O : a c c e s s t o t h e " R a d i o " M e n u . Display the list of stations in alphabetical order ( F M w a v e b a n d ) o r f r e q u e n c y o r d e r ( A M w a v e b a n d ) .
M E D I A : a c c e s s t o t h e " M e d i a " M e n u ( A u d i o C D , J u k e b o x , E x t e r n a l D e v i c e ) . Display the list of tracks. Change of source.
N A V : a c c e s s t o t h e " N a v i g a t i o n " M e n u a n d d i s p l a y o f t h e last destinations.
E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y .
T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) .
A D D R B O O K : a c c e s s t o t h e " A d d r e s s b o o k " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n 1 0 ) .
S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) . L o n g p r e s s : G P S c o v e r a g e .
3 . A u d i o s e t t i n g s ( B a l a n c e / F a d e r , B a s s / T r e b l e , M u s i c a l A m b i e n c e . . . ) .
4 . Volume adjustment (each source is independent, inc luding m e s s a g e a n d n a v i g a t i o n a l e r t ) L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m . S h o r t p r e s s : m u t e .
5 . Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
PC Com 3D CONTROL PANEL
6 . Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
7 . Normal display or black screen.
8 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y o n t h e s c r e e n o f " M A P " / " N A V " ( i f n a v i g a t i o n i s i n p r o g r e s s ) / " T E L " ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) / " R A D I O " o r " M E D I A " c u r r e n t l y b e i n g p l a y e d .
9 . P I C K U P : a c c e s s t o t h e " P h o n e " m e n u . With Bluetooth connection, accept an incoming call .
1 0 . H A N G U P : a c c e s s t o t h e " P h o n e " m e n u . Hang up the current call or refuse an incoming call, with Bluetooth connection.
1 1 . Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.
1 2 . SD card reader.
S h o r t p r e s s : c l e a r s t h e l a s t character.
L o n g p r e s s : a c t i v a t e s v o i c e recognition.
Page 228 of 313
233
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
1 3
1 4
1 3 . O K : c o n fi r m a t i o n o f t h e h i g h l i g h t e d i t e m o n t h e s
c r e e n .
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s t o t h e l e f t / r i g h t .
W h e n t h e " R A D I O " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t f r e q u e n c y .
W h e n " M E D I A " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t track.
W h e n " M A P " o r " N A V " i s d i s p l a y e d : h o r i z o n t a l m o v e m e n t o f the map.
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s u p / d o w n .
W h e n " R A D I O " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t radio station on the list.
W h e n t h e " M E D I A " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e M P 3 directory.
W h e n " M A P " o r " N A V " i s d i s p l a y e d : v e r t i c a l m o v e m e n t o f t h e map.
Switch to the next or previous page of a menu. Movement on the virtual keypad displayed.
FIRST STEPS

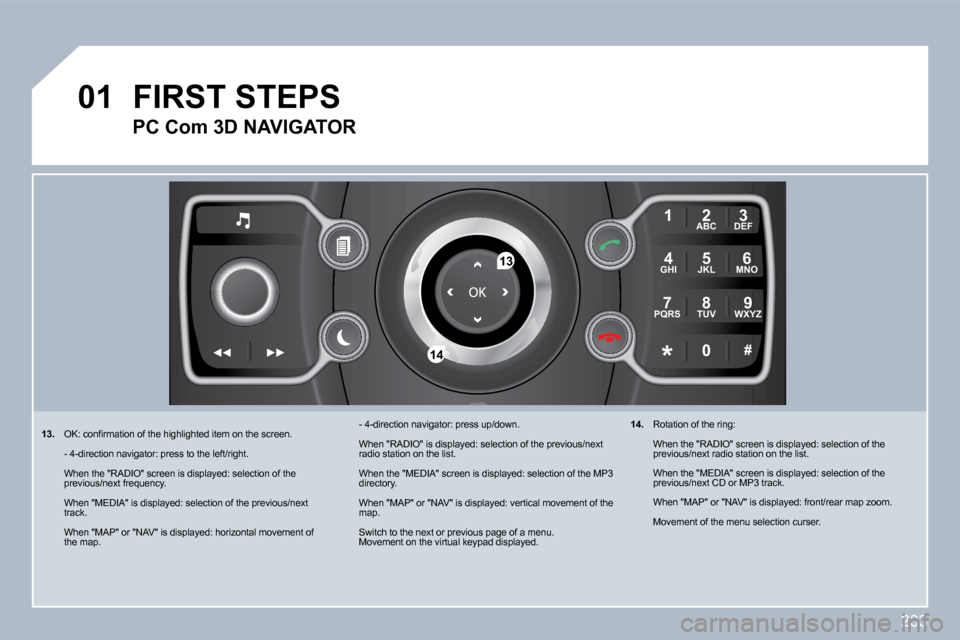

PC Com 3D NAVIGATOR
1 4 . R o t a t i o n o f t h e r i n g :
W h e n t h e " R A D I O " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t r a d i o s t a t i o n o n t h e l i s t .
W h e n t h e " M E D I A " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t C D o r M P 3 t r a c k .
W h e n " M A P " o r " N A V " i s d i s p l a y e d : f r o n t / r e a r m a p z o o m .
Movement of the menu selection curser.
Page 229 of 313
234
0 2
SETUP
MEDIA
TRAFFIC

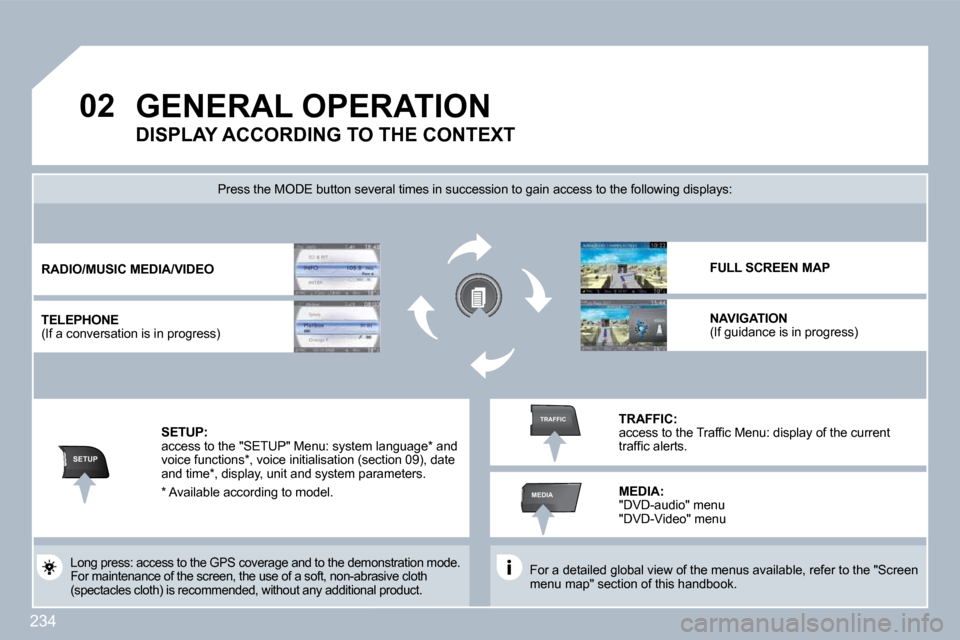

GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Screen menu map" section of this handbook.
P r e s s t h e M O D E b u t t o n s e v e r a l t i m e s i n s u c c e s s i o n t o g a i n a c c e s s t o t h e f o l l o w i n g d i s p l a y s :
L o n g p r e s s : a c c e s s t o t h e G P S c o v e r a g e a n d t o t h e d e m o n s t r a t i o n m o d e . For maintenance of the screen, the use of a soft, non-abrasive cloth ( s p e c t a c l e s c l o t h ) i s r e c o m m e n d e d , w i t h o u t a n y a d d i t i o n a l p r o d u c t .
RADIO/ MUSIC MEDIA/VIDEO
TELEPHONE ( I f a c o n v e r s a t i o n i s i n p r o g r e s s )
FULL SCREEN MAP
NAVIGATION ( I f g u i d a n c e i s i n p r o g r e s s )
SETUP: a c c e s s t o t h e " S E T U P " M e n u : s y s t e m l a n g u a g e * a n d v o i c e f u n c t i o n s * , v o i c e i n i t i a l i s a t i o n ( s e c t i o n 0 9 ) , d a t e and time * , display, unit and system parameters.
TRAFFIC: a c c e s s t o t h e T r a f fi c M e n u : d i s p l a y o f t h e c u r r e n t t r a f fi c a l e r t s .
DISPLAY ACCORDING TO THE CONTEXT
MEDIA: "DVD-audio" menu "DVD-Video" menu
* Available according to model.
Page 230 of 313
235
0 2
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
2
2
1
1
2
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
2
2
2
2
2

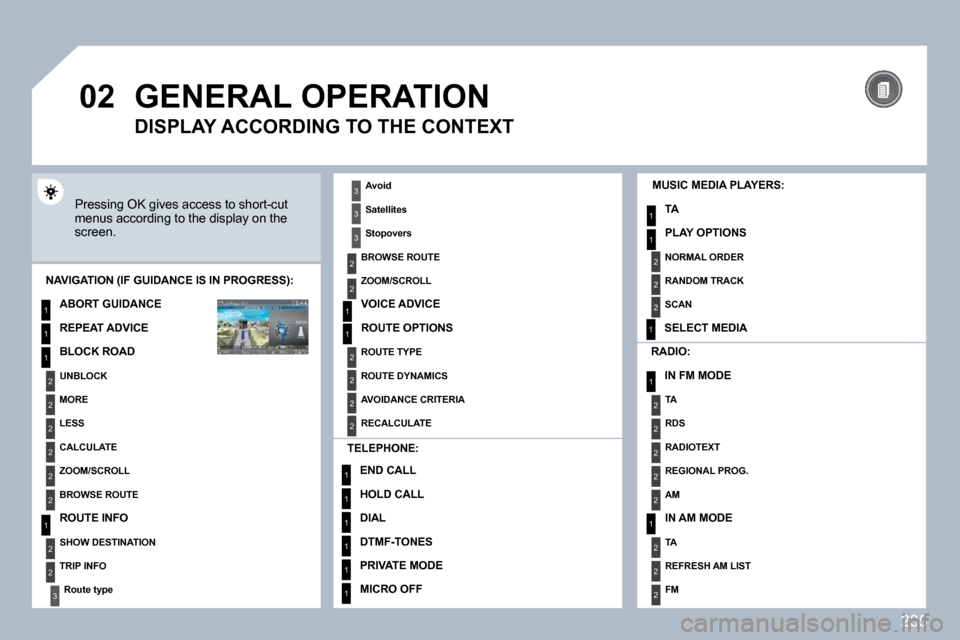

GENERAL OPERATION
Pressing OK gives access to short-cut menus according to the display on the screen.
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
UNBLOCK
MORE
LESS
CALCULATE
ZOOM/SCROLL
BROWSE ROUTE
ROUTE INFO
SHOW DESTINATION
TRIP INFO
R o u t e t y p e
RADIO:
IN FM MODE
TA
RDS
RADIOTEXT
R E G I O N A L P R O G .
AM
IN AM MODE
TA
REFRESH AM LIST
FM
TELEPHONE:
END CALL
HOLD CALL
DIAL
D T M F - T O N E S
PRIVATE MODE
MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT
A v o i d
S a t e l l i t e s
S t o p o v e r s
BROWSE ROUTE
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
NORMAL ORDER
RANDOM TRACK
SCAN
SELECT MEDIA
