11
!
i
185
PRACTICAL INFORMATION PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
B e f o r e i n s t a l l i n g o t h e r e l e c t r i c a l
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.

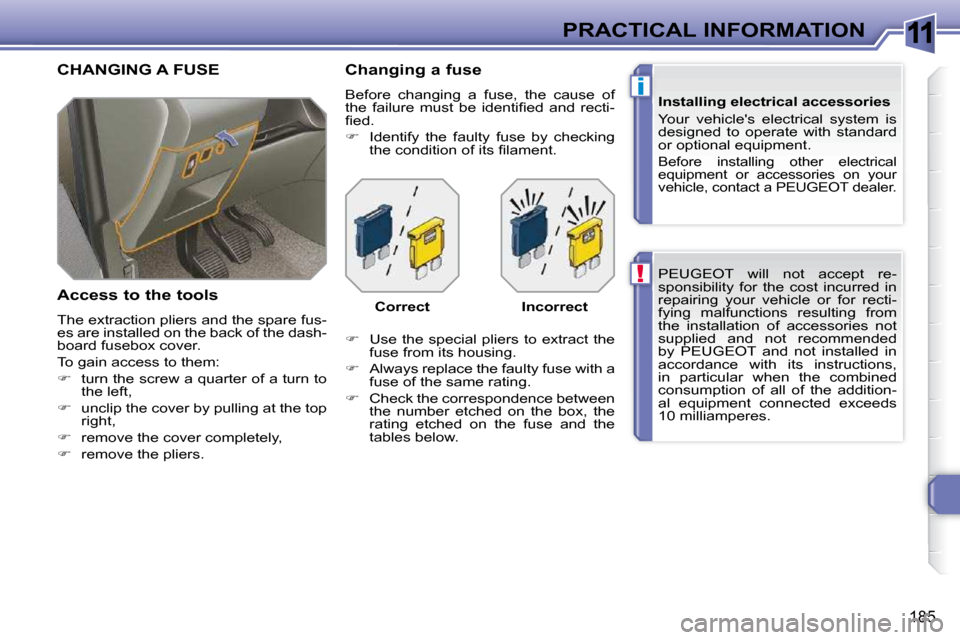

CHANGING A FUSE
Access to the tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e f u s -
es are installed on the back of the dash-
b o a r d f u s e b o x c o v e r .
T o g a i n a c c e s s t o t h e m :
turn the screw a quarter of a turn to
the left,
unclip the cover by pulling at the top
right,
remove the cover completely,
remove the pliers. Changing a fuse
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the
tables below.
Correct Incorrect
Page 182 of 313
11PRACTICAL INFORMATION

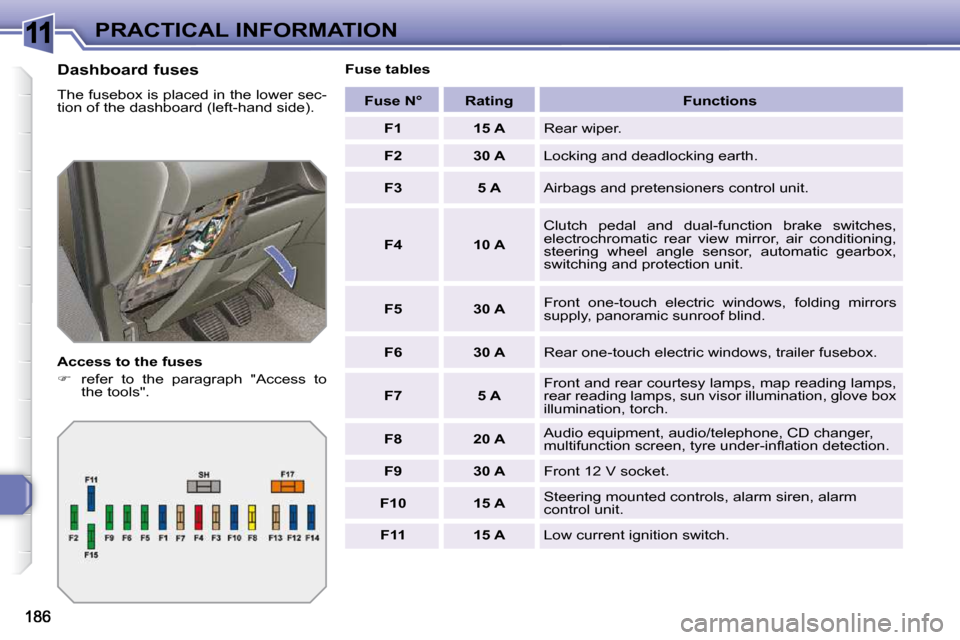

Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
t i o n o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 30 A Locking and deadlocking earth.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , a u t o m a t i c g e a r b o x ,
switching and protection unit.
F5 30 A Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6 30 A R e a r o n e - t o u c h e l e c t r i c w i n d o w s , t r a i l e r f u s e b o x .
F7 5 A Front and rear courtesy lamps, map reading lamps,
r e a r r e a d i n g l a m p s , s u n v i s o r i l l u m i n a t i o n , g l o v e b o x
illumination, torch.
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n s c r e e n , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket.
F10 15 A Steering mounted controls, alarm siren, alarm
control unit.
F11 15 A Low current ignition switch.
Page 183 of 313
11PRACTICAL INFORMATION
Fuse N° Rating Functions
G36 30 A Driver and passenger heated seats.
G37 5 A Driving position memory unit, lighting rheostat.
G38 30 A Driver's seat memory unit.
G39 30 A T r a i l e r f u s e b o x s u p p l y .
G40 30 A H i - F i a m p l i fi e r .

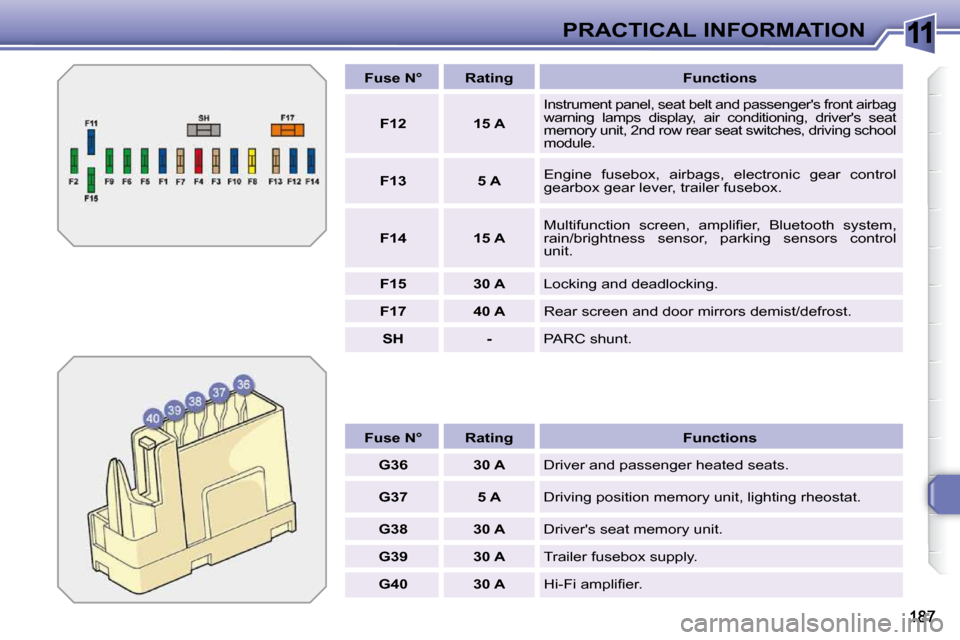

Fuse N° Rating Functions
F12 15 A
Instrument panel, seat belt and passenger's front a
irbag
warning lamps display, air conditioning, driver's s eat
memory unit, 2nd row rear seat switches, driving sc hool
module.
F13 5 A E n g i n e f u s e b o x , a i r b a g s , e l e c t r o n i c g e a r c o n t r o l
g e a r b o x g e a r l e v e r , t r a i l e r f u s e b o x .
F14 15 A M u l t i f u n c t i o n s c r e e n , a m p l i fi e r , B l u e t o o t h s y s t e m ,
rain/brightness sensor, parking sensors control
unit.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and door mirrors demist/defrost.
SH - PARC shunt.
Page 184 of 313
11
188
PRACTICAL INFORMATION

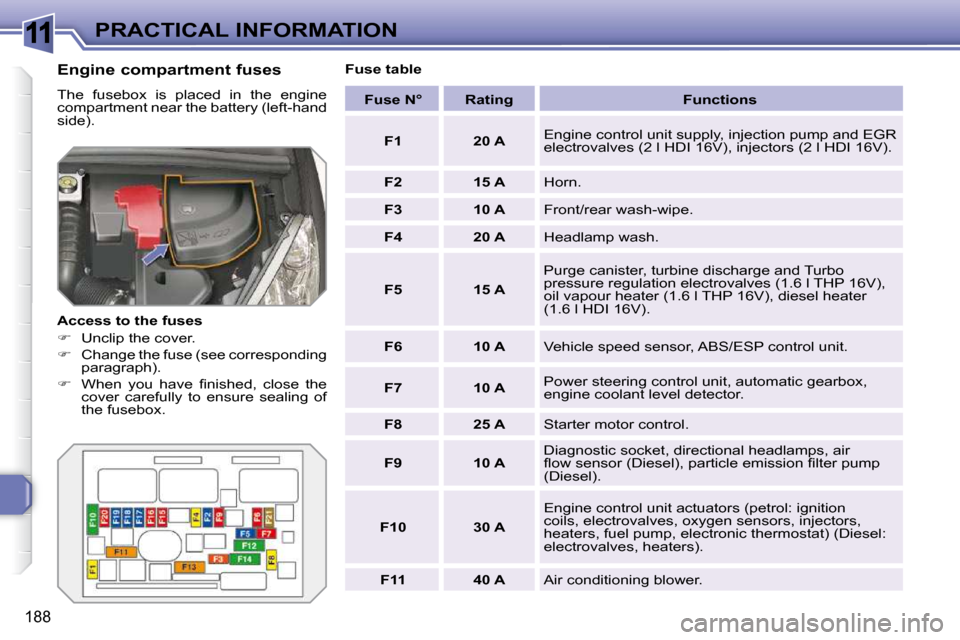

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure sealing of
t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
e l e c t r o v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I 1 6 V ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Purge canister, turbine discharge and Turbo
p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 A V e h i c l e s p e e d s e n s o r , A B S / E S P c o n t r o l u n i t .
F7 10 A P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
engine coolant level detector.
F8 25 A Starter motor control.
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
( D i e s e l ) .
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n
c o i l s , e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
h e a t e r s , f u e l p u m p , e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l :
e l e c t r o v a l v e s , h e a t e r s ) .
F11 40 A Air conditioning blower.
Page 185 of 313
11
189
PRACTICAL INFORMATION

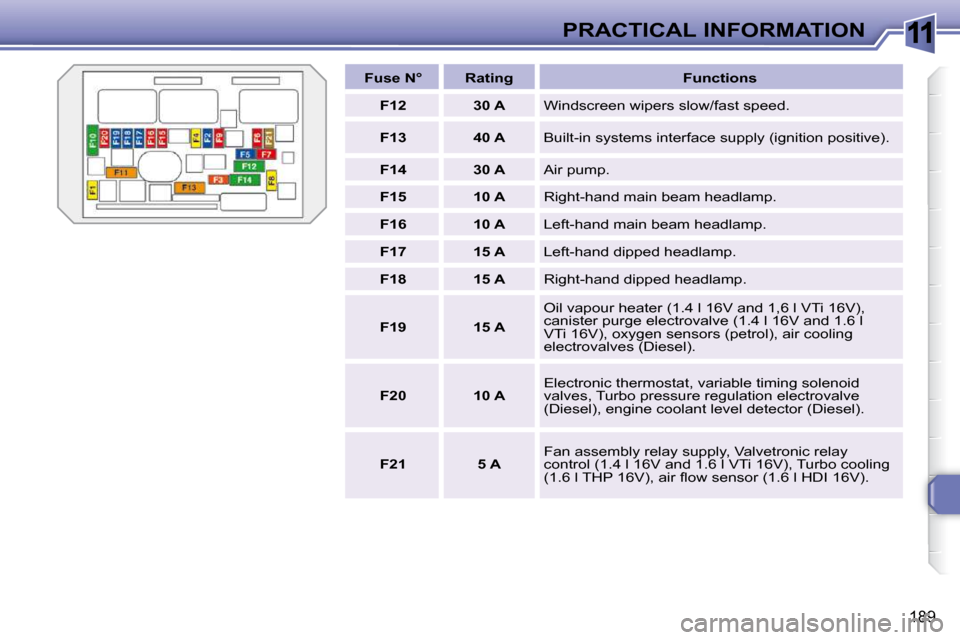

Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A Air pump.
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped headlamp.
F18 15 A Right-hand dipped headlamp.
F19 15 A O i l v a p o u r h e a t e r ( 1 . 4 l 1 6 V a n d 1 , 6 l V T i 1 6 V ) ,
canister purge electrovalve (1.4 l 16V and 1.6 l
V T i 1 6 V ) , o x y g e n s e n s o r s ( p e t r o l ) , a i r c o o l i n g
e l e c t r o v a l v e s ( D i e s e l ) .
F20 10 A Electronic thermostat, variable timing solenoid
valves, Turbo pressure regulation electrovalve
( D i e s e l ) , e n g i n e c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 A Fan assembly relay supply, Valvetronic relay
c o n t r o l ( 1 . 4 l 1 6 V a n d 1 . 6 l V T i 1 6 V ) , T u r b o c o o l i n g
( 1 . 6 l T H P 1 6 V ) , a i r fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 186 of 313
11
190

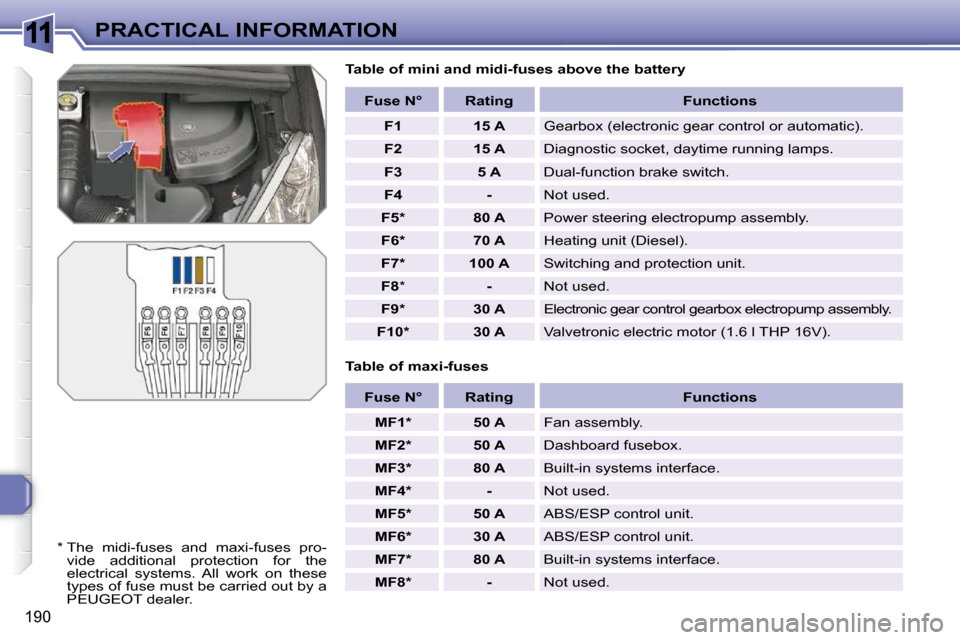

PRACTICAL INFORMATION Table of mini and midi-fuses above the battery
Table of maxi-fuses
Fuse N° Rating Functions
F1 15 A G e a r b o x ( e l e c t r o n i c g e a r c o n t r o l o r a u t o m a t i c ) .
F2 15 A Diagnostic socket, daytime running lamps.
F3 5 A Dual-function brake switch.
F4 - Not used.
F5 * 80 A Power steering electropump assembly.
F6 * 70 A H e a t i n g u n i t ( D i e s e l ) .
F7 * 100 A Switching and protection unit.
F8 *
- Not used.
F9 * 30 A E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p a s s e m b l y .
F10 * 30 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l T H P 1 6 V ) .
Fuse N° Rating Functions
MF1 * 50 A Fan assembly.
MF2 * 50 A D a s h b o a r d f u s e b o x .
MF3 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF4 * - Not used.
MF5 * 50 A A B S / E S P c o n t r o l u n i t .
MF6 * 30 A A B S / E S P c o n t r o l u n i t .
MF7 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF8 * - Not used.
* T h e m i d i - f u s e s a n d m a x i - f u s e s p r o -
vide additional protection for the
electrical systems. All work on these
types of fuse must be carried out by a
PEUGEOT dealer.
Page 187 of 313
11
191
PRACTICAL INFORMATION
Table of maxi-fuses **
Table of mini and midi-fuses above the battery **
* T h e m i d i - f u s e s a n d m a x i - f u s e s p r o v i d e additional protection for the electrical sys-
tems. All work on these types of fuse must
be carried out by a PEUGEOT dealer.
* * D u r i n g t h e y e a r .
Fuse N° Rating Functions
F1 - Not used.
F2 5 A Dual-function brake switch.
F3 5 A B a t t e r y c h a r g e u n i t .
F4 25 A A B S / E S P e l e c t r o v a l v e s .
F5 - Not used.
F6 15 A G e a r b o x ( e l e c t r o n i c g e a r c o n t r o l o r a u t o m a t i c ) .
F7 * 80 A Power steering electropump assembly.
F8 * 60 A Fan assembly.
F9 * 70 A/30 A P r e - h e a t u n i t ( D i e s e l ) / V a l v e t r o n i c e l e c t r i c m o t o r
( 1 . 6 l T H P 1 6 V ) .
F10 * 40 A A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 A Switching and protection unit.
F12 * 30 A E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p a s s e m b l y .
Fuse N° Rating Functions
MF1 * - Not used.
MF2 * 30 A T r a i l e r f u s e b o x .
MF3 * 50 A D a s h b o a r d f u s e b o x .
MF4 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF5 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF6 * - Not used.
MF7 * 30 A Heated seats.
MF8 * 20 A Headlamp wash.
Page 188 of 313
11
i
192
PRACTICAL INFORMATION

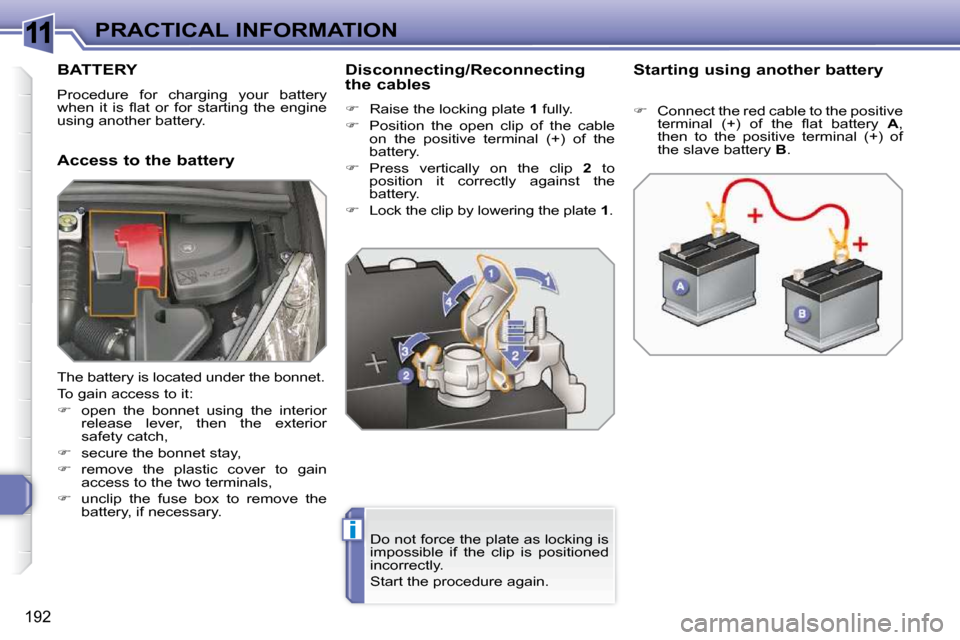

BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Disconnecting/Reconnecting
the cables
Raise the locking plate 1 fully.
Position the open clip of the cable
o n t h e p o s i t i v e t e r m i n a l ( + ) o f t h e
battery.
Press vertically on the clip 2 to
position it correctly against the
battery.
Lock the clip by lowering the plate 1 . Starting using another battery
Do not force the plate as locking is
impossible if the clip is positioned
incorrectly.
Start the procedure again.
Connect the red cable to the positive
t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
the slave battery B .
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
r e l e a s e l e v e r , t h e n t h e e x t e r i o r
safety catch,
secure the bonnet stay,
remove the plastic cover to gain
access to the two terminals,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
battery, if necessary.
Page 189 of 313
11
!
i
193

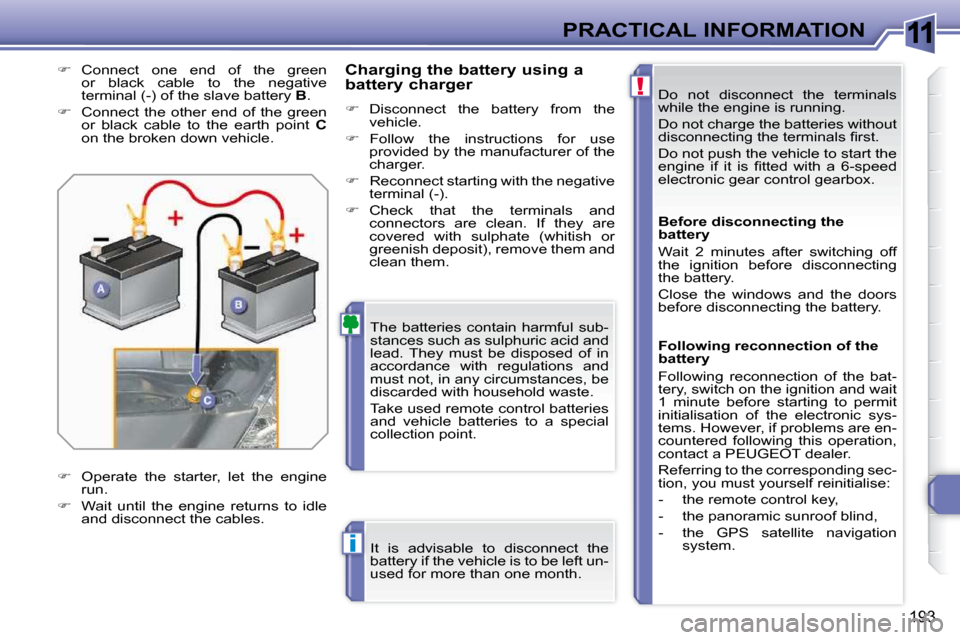

PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the negative
t e r m i n a l ( - ) .
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
clean them.
Connect one end of the green
or black cable to the negative
t e r m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 190 of 313
11
!
i
194
PRACTICAL INFORMATION A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
t h i s t i m e :
- it will be maintained for
10 minutes with the hands-free
kit of your PC Sound,
- it will be maintained for 10 minutes with the PC Nav or the PC Com
3D, then it will transfer to your
telephone depending on the
telephone model.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
l a m p s , e t c . f o r a m a x i m u m c o m b i n e d
duration of thirty minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the
e n g i n e a n d l e t i t r u n :
- for less than ten minutes, to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
fi v e m i n u t e s ,
- for more than ten minutes, to use the equipment for up to
a p p r o x i m a t e l y t h i r t y m i n u t e s .
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
