TECHNICAL DATA

MODELS:

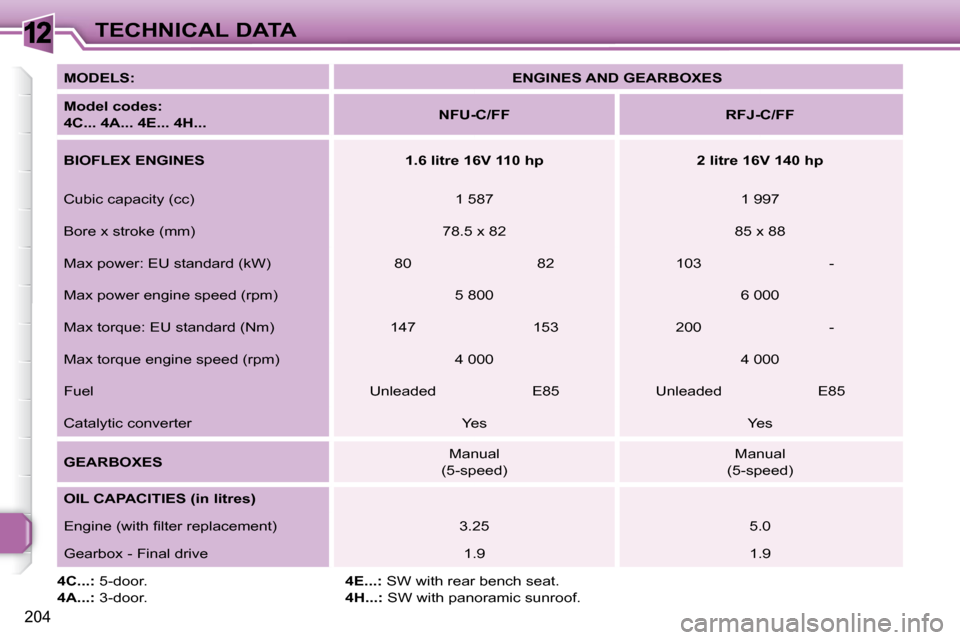

ENGINES AND GEARBOXES

Model codes:
4C... 4A... 4E... 4H...
NFU-C/FF RFJ-C/FF

BIOFLEX ENGINES 1.6 litre 16V 110
hp 2 litre 16V 140
hp
Cubic capacity (cc) 1 587 1 997
Bore x stroke (mm) 78.5 x 82 85 x 88
Max power: EU standard (kW) 80 82 103 -
Max power engine speed (rpm) 5 800 6 000
Max torque: EU standard (Nm) 147 153 200 -
Max torque engine speed (rpm) 4 000 4 000
Fuel Unleaded E85 Unleaded E85
Catalytic converter Yes Yes

GEARBOXES Manual
(5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)
Engine (with fi lter replacement) 3.25 5.0
Gearbox - Final drive 1.9 1.9

4C...: 5-door.

4A...: 3-door.
4E...: SW with rear bench seat.

4H...: SW with panoramic sunroof.

12TECHNICAL DATA

4C...: 5-door.

4A...: 3-door.
4G...: 3-door "Van".

4E...: SW with rear bench seat.
4H...: SW with panoramic sunroof.

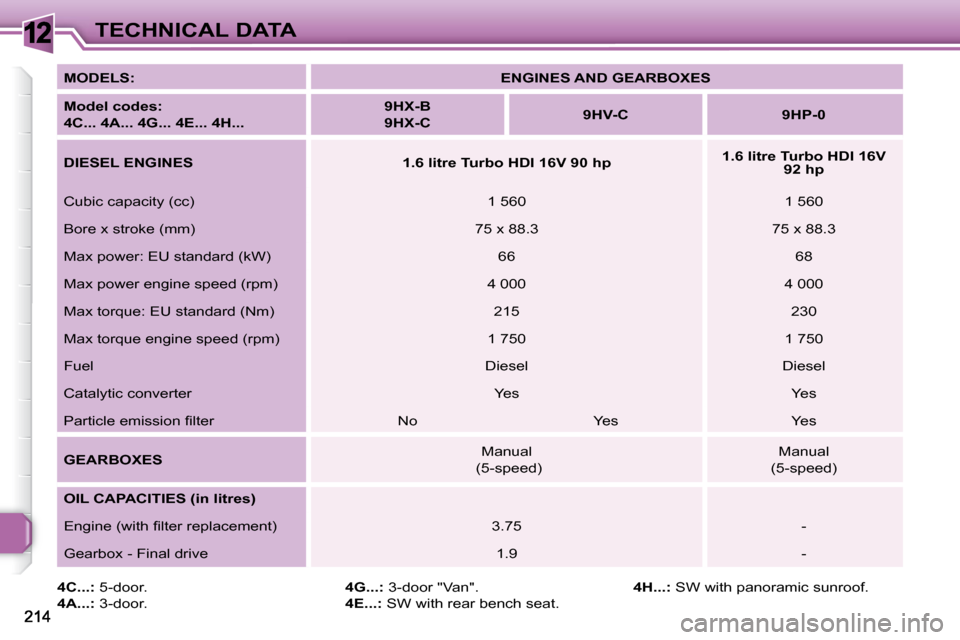

MODELS:
ENGINES AND GEARBOXES

Model codes:
4C... 4A... 4G... 4E... 4H...
9HX-B

9HX-C
9HV-C 9HP-0

DIESEL ENGINES 1.6 litre Turbo

HDI 16V 90
hp
1.6 litre Turbo HDI 16V
92
hp
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 66 68
Max power engine speed (rpm) 4 000 4 000
Max torque: EU standard (Nm) 215 230
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter No Yes Yes

GEARBOXES Manual
(5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.75 -
Gearbox - Final drive 1.9 -

12
215
TECHNICAL DATA

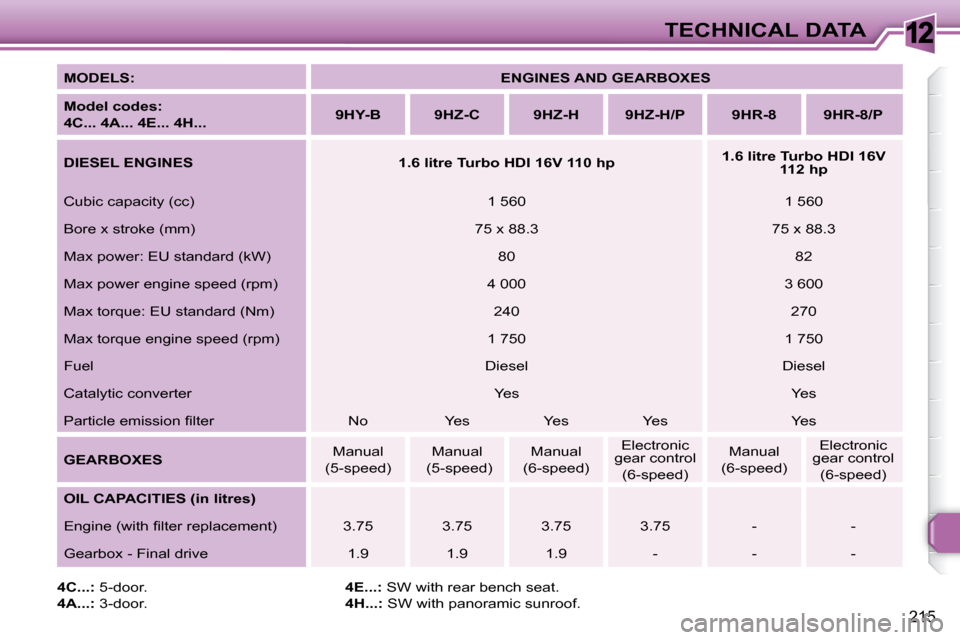

MODELS:
ENGINES AND GEARBOXES

Model codes:
4C... 4A... 4E... 4H...
9HY-B 9HZ-C 9HZ-H 9HZ-H/P 9HR-8 9HR-8/P

DIESEL ENGINES 1.6 litre Turbo HDI 16V 110
hp
1.6 litre Turbo HDI 16V
112
hp
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 80 82
Max power engine speed (rpm) 4 000 3 600
Max torque: EU standard (Nm) 240 270
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter No Yes Yes Yes Yes

GEARBOXES Manual
(5-speed) Manual
(5-speed) Manual
(6-speed) Electronic
gear control
(6-speed) Manual
(6-speed) Electronic
gear control
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.75 3.75 3.75 3.75 - -
Gearbox - Final drive 1.9 1.9 1.9 - - -

4C...: 5-door.

4A...: 3-door.
4E...: SW with rear bench seat.

4H...: SW with panoramic sunroof.

12
216
TECHNICAL DATA

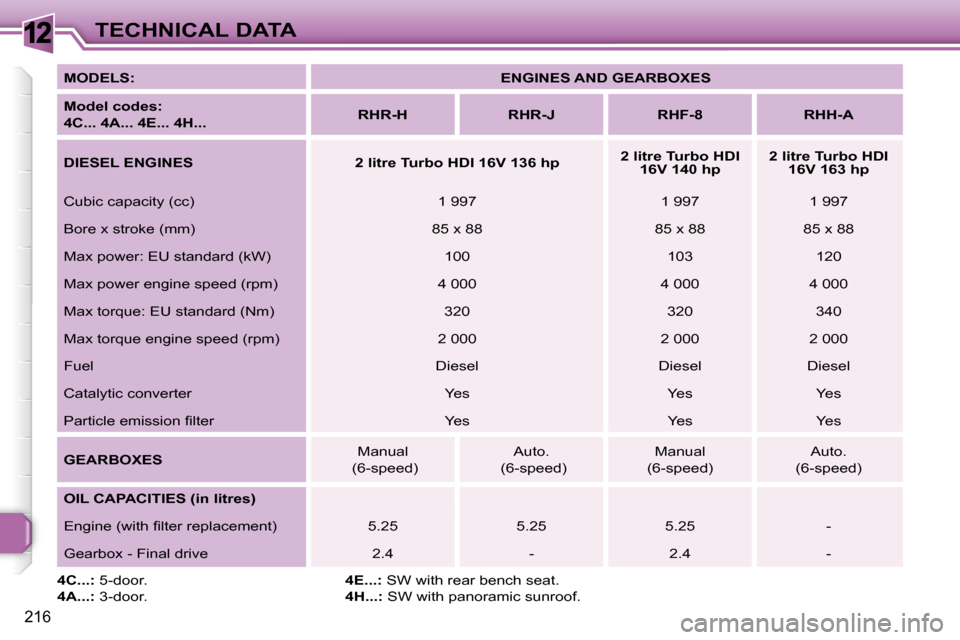

MODELS:
ENGINES AND GEARBOXES

Model codes:
4C... 4A... 4E... 4H...
RHR-H RHR-J RHF-8 RHH-A

DIESEL ENGINES 2 litre Turbo H
DI 16V 136
hp
2 litre Turbo HDI
16V 140
hp
2 litre Turbo HDI
16V 163
hp
Cubic capacity (cc) 1 997 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88 85 x 88
Max power: EU standard (kW) 100 103 120
Max power engine speed (rpm) 4 000 4 000 4 000
Max torque: EU standard (Nm) 320 320 340
Max torque engine speed (rpm) 2 000 2 000 2 000
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particle emission fi lter Yes Yes Yes

GEARBOXES Manual
(6-speed) Auto.
(6-speed) Manual
(6-speed) Auto.
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 5.25 5.25 5.25 -
Gearbox - Final drive 2.4 - 2.4 -

4C...: 5-door.

4A...: 3-door.
4E...: SW with rear bench seat.

4H...: SW with panoramic sunroof.

12
205
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

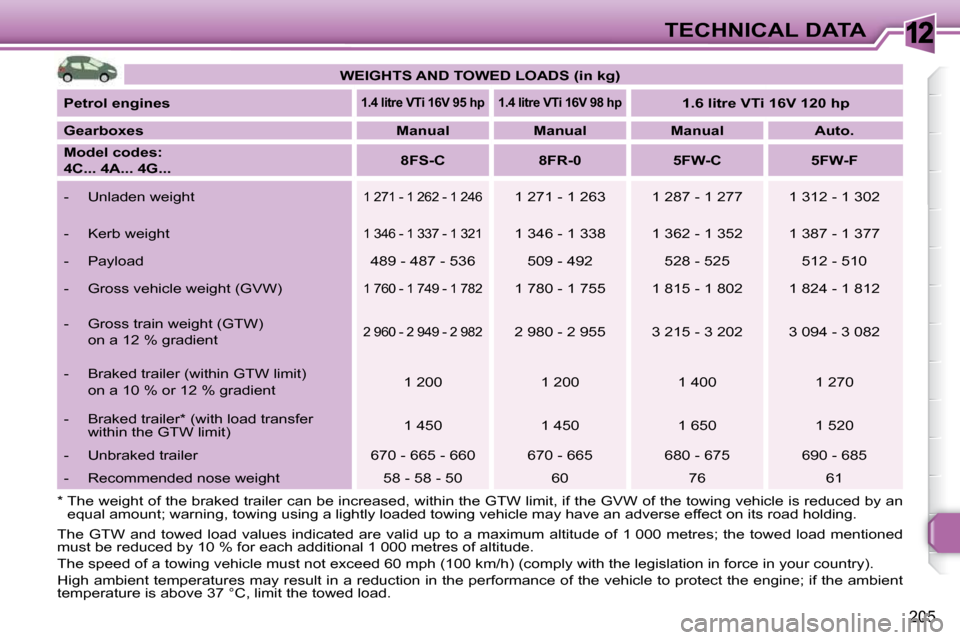

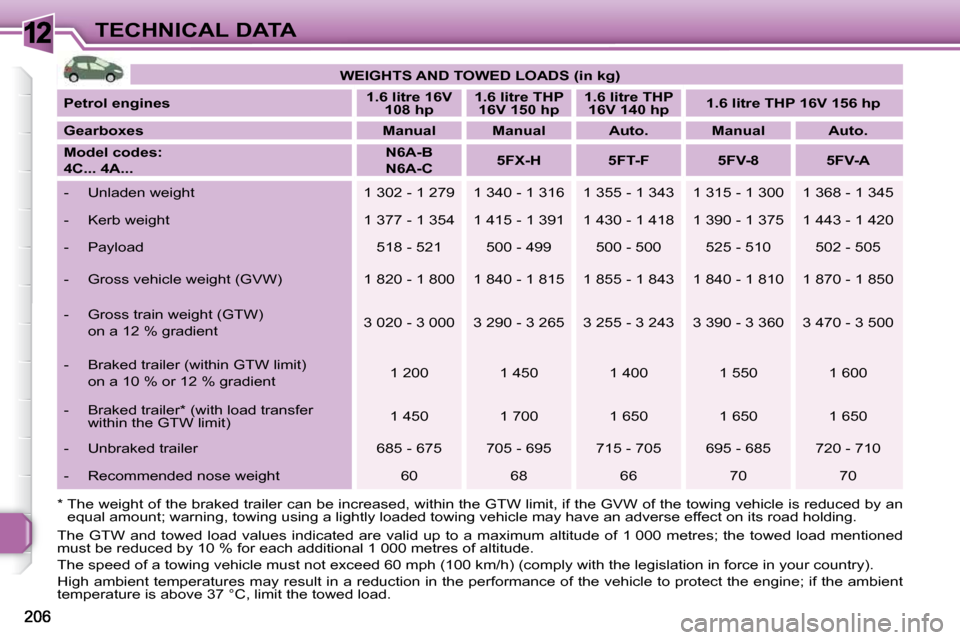

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4
litre
VTi 16V 95
hp 1.4
litre
VTi 16V 98
hp
1.6
litre
VTi 16V 120
hp

Gearboxes Manual Manual Manual Auto.

Model codes:
4C... 4A... 4G...
8FS-C 8FR-0 5FW-C 5FW-F
- Unladen weight
1 271 - 1 262 - 1 246 1 271 - 1 263 1 287 - 1 277 1 312 - 1 302
- Kerb weight
1 346 - 1 337 - 1 321 1 346 - 1 338 1 362 - 1 352 1 387 - 1 377
- Payload 489 - 487 - 536 509 - 492 528 - 525 512 - 510
- Gross vehicle weight (GVW)
1 760 - 1 749 - 1 782 1 780 - 1 755 1 815 - 1 802 1 824 - 1 812
- Gross train weight (GTW)
on a 12 % gradient
2 960 - 2 949 - 2 982 2 980 - 2 955 3 215 - 3 202 3 094 - 3 082
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 400 1 270
- Braked trailer * (with load transfer within the GTW limit) 1 450 1 450 1 650 1 520
- Unbraked trailer 670 - 665 - 660 670 - 665 6 80 - 675 690 - 685
- Recommended nose weight 58 - 58 - 50 60 76 61
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6
litre
16V
108
hp
1.6
litre
THP
16V 150
hp
1.6
litre
THP
16V 140
hp
1.6
litre
THP 16V 156
hp

Gearboxes Manual Manual Auto. Manual Auto.

Model codes:

4C... 4A...
N6A-B
N6A-C
5FX-H 5FT-F 5FV-8 5FV-A
- Unladen weight 1 302 - 1 279 1 340 - 1 316 1 355 - 1 343 1 315 - 1 300 1 368 - 1 345
- Kerb weight 1 377 - 1 354 1 415 - 1 391 1 430 - 1 418 1 390 - 1 375 1 443 - 1 420
- Payload 518 - 521 500 - 499 500 - 500 5 25 - 510 502 - 505
- Gross vehicle weight (GVW) 1 820 - 1 800 1 840 - 1 815 1 855 - 1 843 1 840 - 1 810 1 870 - 1 850
- Gross train weight (GTW)
on a 12 % gradient 3 020 - 3 000 3 290 - 3 265 3 255 - 3 243 3
390 - 3 360 3 470 - 3 500
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 450 1 400 1 550 1 600
- Braked trailer * (with load transfer within the GTW limit) 1 450 1 700 1 650 1 650 1 650
- Unbraked trailer 685 - 675 705 - 695 715 - 7 05 695 - 685 720 - 710
- Recommended nose weight 60 68 66 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12TECHNICAL DATA

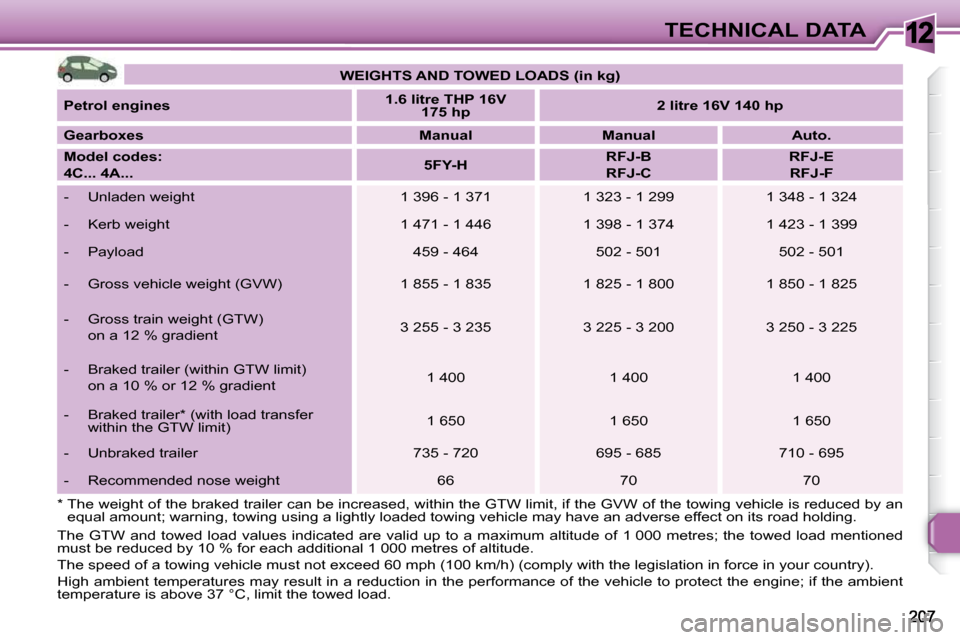

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6
litre
THP 16V
175
hp
2
litre
16V 140
hp

Gearboxes
Manual Manual Auto.

Model codes:
4C... 4A...
5FY-H
RFJ-B
RFJ-C
RFJ-E
RFJ-F
- Unladen weight 1 396 - 1 371 1 323 - 1 299 1 348 - 1 324
- Kerb weight 1 471 - 1 446 1 398 - 1 374 1 423 - 1 399
- Payload 459 - 464 502 - 501 502 - 501
- Gross vehicle weight (GVW) 1 855 - 1 835 1 825 - 1 800 1 850 - 1 825
- Gross train weight (GTW)
on a 12 % gradient 3 255 - 3 235 3 225 - 3 200 3 250 - 3 225
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 400 1 400
- Braked trailer * (with load transfer within the GTW limit) 1 650 1 650 1 650
- Unbraked trailer 735 - 720 695 - 685 710 - 6 95
- Recommended nose weight 66 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12
208
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

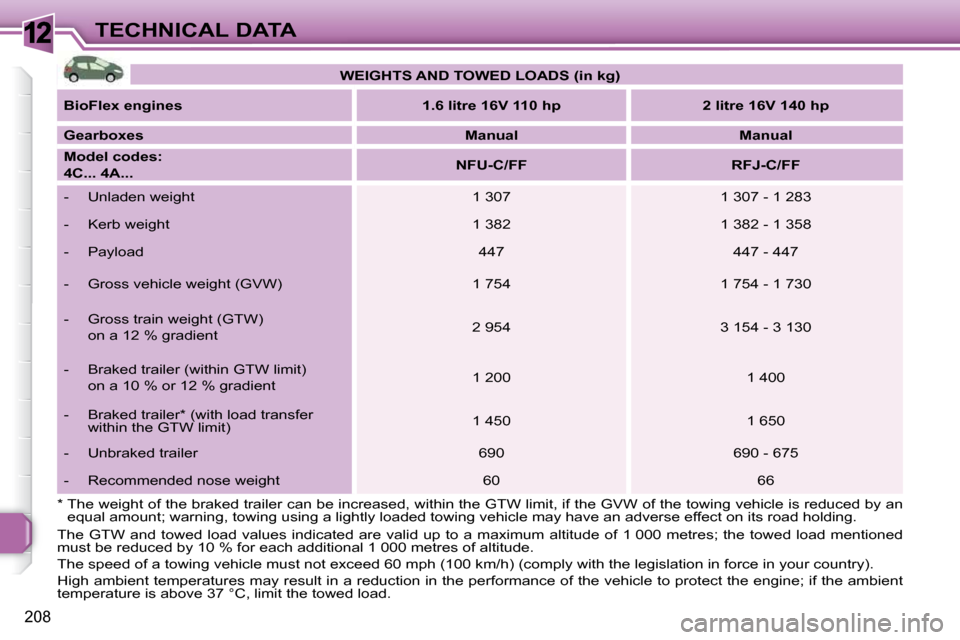

WEIGHTS AND TOWED LOADS (in kg)

BioFlex engines 1.6
litre
16V 110
hp 2
litre
16V 140
hp

Gearboxes
Manual Manual

Model codes:
4C... 4A...
NFU-C/FF RFJ-C/FF
- Unladen weight 1 307 1 307 - 1 283
- Kerb weight 1 382 1 382 - 1 358
- Payload 447 447 - 447
- Gross vehicle weight (GVW) 1 754 1 754 - 1 730
- Gross train weight (GTW)
on a 12 % gradient 2 954 3 154 - 3 130
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 400
- Braked trailer * (with load transfer within the GTW limit) 1 450 1 650
- Unbraked trailer 690 690 - 675
- Recommended nose weight 60 66
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
209
TECHNICAL DATA

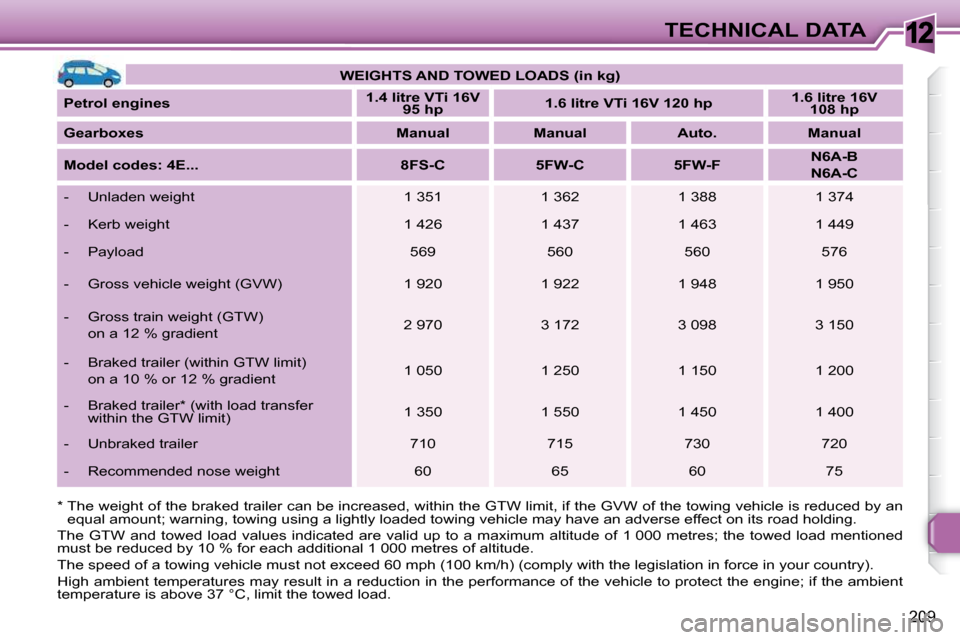

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4
litre
VTi 16V
95
hp
1.6
litre
VTi 16V 120
hp
1.6
litre
16V
108
hp

Gearboxes Manual Manual Auto. Manual

Model codes: 4E... 8FS-C 5FW-C 5FW-F
N6A-B
N6A-C
- Unladen weight 1 351 1 362 1 388 1 374
- Kerb weight 1 426 1 437 1 463 1 449
- Payload 569 560 560 576
- Gross vehicle weight (GVW) 1 920 1 922 1 948 1 950
- Gross train weight (GTW)
on a 12 % gradient 2 970 3 172 3 098 3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 050 1 250 1 150 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 350 1 550 1 450 1 400
- Unbraked trailer 710 715 730 720
- Recommended nose weight 60 65 60 75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12TECHNICAL DATA

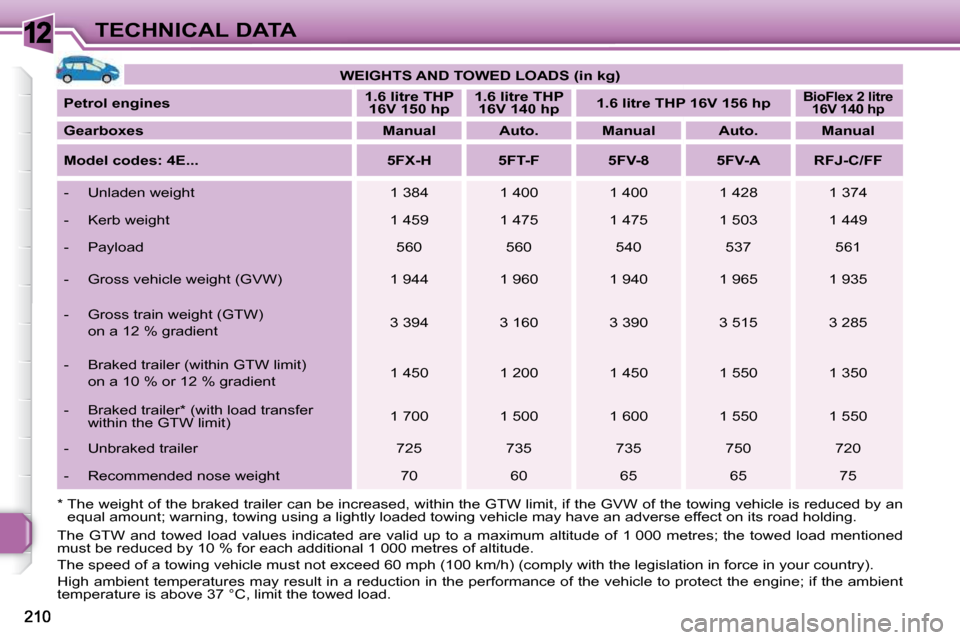

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6
litre
THP
16V 150
hp
1.6
litre
THP
16V 140
hp
1.6
litre
THP 16V 156
hp

BioFlex 2
litre

16V 140
hp

Gearboxes Manual Auto. Manual Auto. Manual

Model codes: 4E... 5FX-H 5FT-F 5FV-8 5FV-A RFJ-C/FF
- Unladen weight 1 384 1 400 1 400 1 428 1 374
- Kerb weight 1 459 1 475 1 475 1 503 1 449
- Payload 560 560 540 537 561
- Gross vehicle weight (GVW) 1 944 1 960 1 940 1 965 1 935
- Gross train weight (GTW)
on a 12 % gradient 3 394 3 160 3 390 3 515 3 285
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 450 1 200 1 450 1 550 1 350
- Braked trailer * (with load transfer within the GTW limit) 1 700 1 500 1 600 1 550 1 550
- Unbraked trailer 725 735 735 750 72 0
- Recommended nose weight 70 60 65 65 75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
