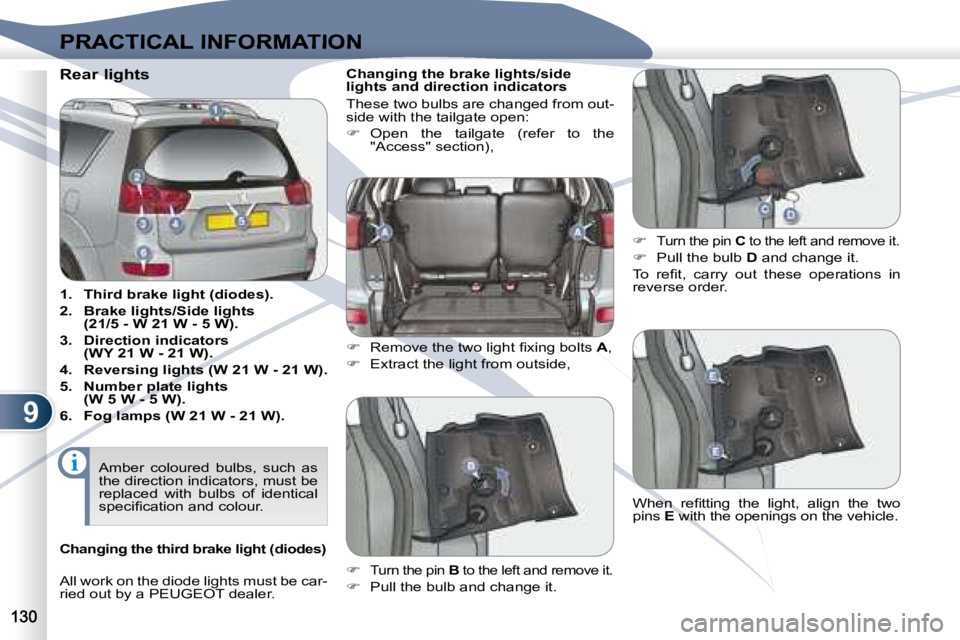

Rear lights
1. Third brake light (diodes).
2. Brake lights/Side lights
(21/5 - W 21 W - 5 W).
3. Direction indicators
(WY 21 W - 21 W).
4. Reversing lights (W 21 W - 21 W).
5. Number plate lights
(W 5 W - 5 W).
6. Fog lamps (W 21 W - 21 W). Changing the brake lights/side
lights and direction indicators
These two bulbs are changed from out-
side with the tailgate open:
Open the tailgate (refer to the
"Access" section),
R e m o v e t h e t w o l i g h t fi x i n g b o l t s A ,
E x t r a c t t h e l i g h t f r o m o u t s i d e ,
Turn the pin C to the left and remove it.
Pull the bulb D and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Turn the pin B to the left and remove it.
Pull the bulb and change it. W h e n r e fi t t i n g t h e l i g h t , a l i g n t h e t w o
pins
E with the openings on the vehicle.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r .
Changing the third brake light (diodes)
All work on the diode lights must be car-
ried out by a PEUGEOT dealer.
Page 142 of 221
9
PRACTICAL INFORMATION

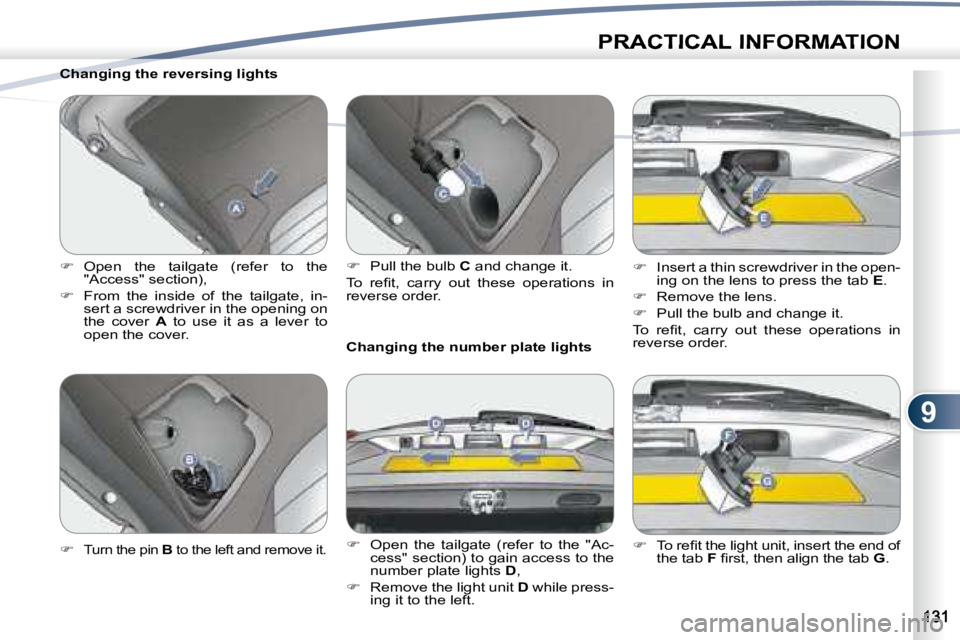

Changing the reversing lights
Open the tailgate (refer to the
"Access" section),
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A to use it as a lever to
open the cover. Changing the number plate lights
Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lights D ,
Remove the light unit D while press-
ing it to the left.
Turn the pin B to the left and remove it.
Pull the bulb C and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Insert a thin screwdriver in the open-
ing on the lens to press the tab E .
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
T o r e fi t t h e l i g h t u n i t , i n s e r t t h e e n d o f
the tab F fi r s t , t h e n a l i g n t h e t a b G .
Page 143 of 221
9

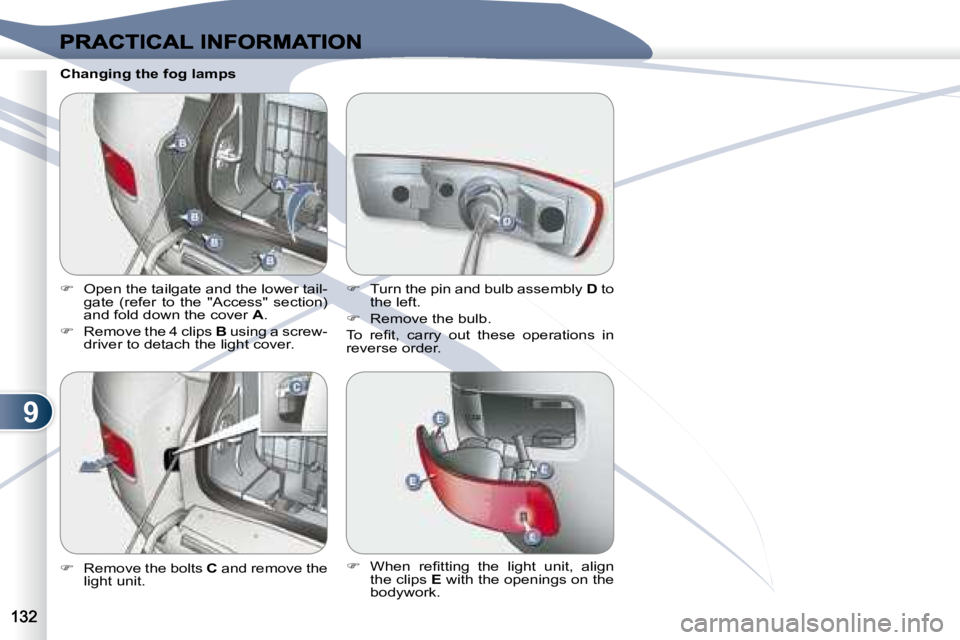

Changing the fog lamps
Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A .
Remove the 4 clips B using a screw-
driver to detach the light cover.
Remove the bolts C and remove the
light unit.
Turn the pin and bulb assembly D to
the left.
Remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
W h e n r e fi t t i n g t h e l i g h t u n i t , a l i g n
the clips E with the openings on the
bodywork.
Page 144 of 221
9
i
i
PRACTICAL INFORMATION

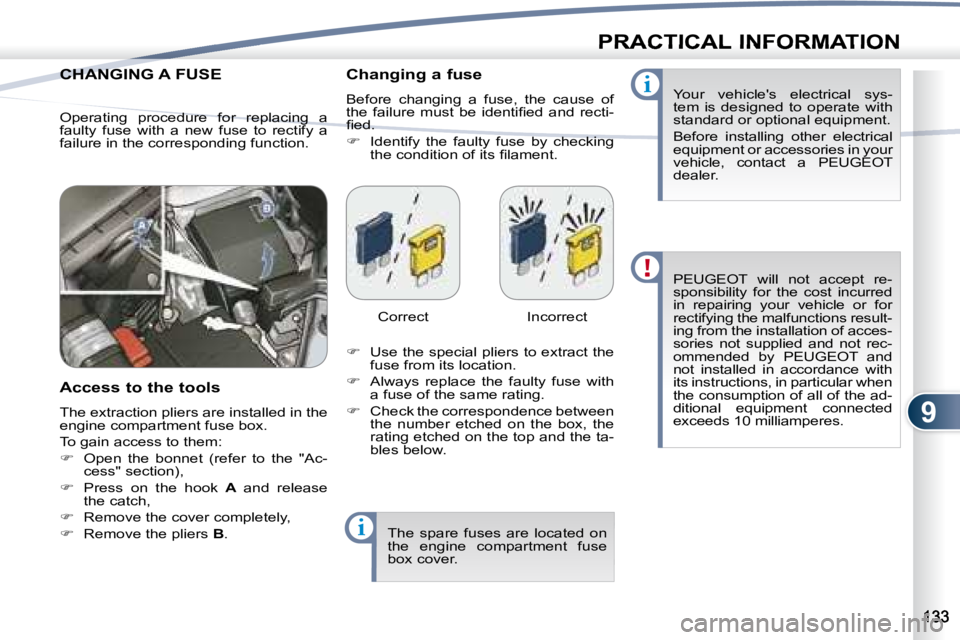

CHANGING A FUSE CHANGING
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e i n s t a l l e d i n t h e
e n g i n e c o m p a r t m e n t f u s e b o x .
To gain access to them:
Open the bonnet (refer to the "Ac-
cess" section),
Press on the hook A and release
the catch,
Remove the cover completely,
Remove the pliers B . PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying the malfunctions result-
ing from the installation of acces-
sories not supplied and not rec-
ommended by PEUGEOT and
not installed in accordance with
its instructions, in particular when
the consumption of all of the ad-
ditional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s . Your vehicle's electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer.
Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its location.
Always replace the faulty fuse with
a fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the top and the ta-
bles below. Correct
Incorrect
The spare fuses are located on
the engine compartment fuse
b o x c o v e r .
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure in the corresponding function.
Page 145 of 221
9
PRACTICAL INFORMATION
Fascia fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
p a r t o f t h e f a s c i a b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2
15 A Brake lights, third brake light, built-in systems
interface.
3 10 A Rear fog lamps.
4 30 A Windscreen wipers and wash-wipe.
5 10 A Diagnostic socket.
6 20 A C e n t r a l l o c k i n g , e x t e r i o r m i r r o r s .
7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.
9 15 A Multifunction display, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 -
Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A E x t e r i o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s , r e a r
DVD player.
Page 146 of 221
9
PRACTICAL INFORMATION

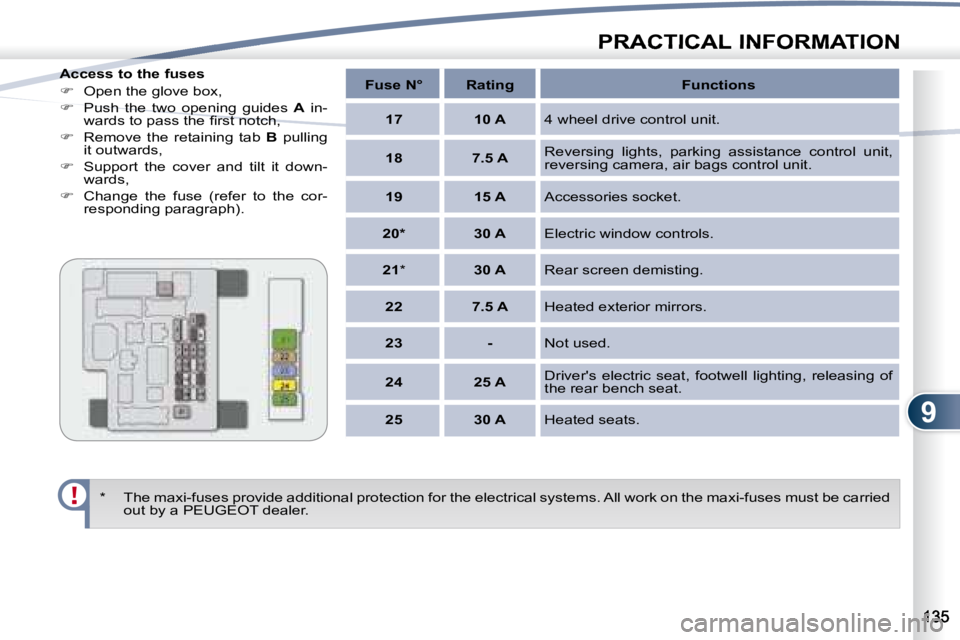

Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating Functions
17 10 A 4 wheel drive control unit.
18 7.5 A Reversing lights, parking assistance control unit,
reversing camera, air bags control unit.
19 15 A Accessories socket.
20* 30 A Electric window controls.
21 * 30 A Rear screen demisting.
22 7.5 A H e a t e d e x t e r i o r m i r r o r s .
23 - Not used.
24 25 A Driver's electric seat, footwell lighting, releasing of
the rear bench seat.
25 30 A Heated seats.
Page 147 of 221
9

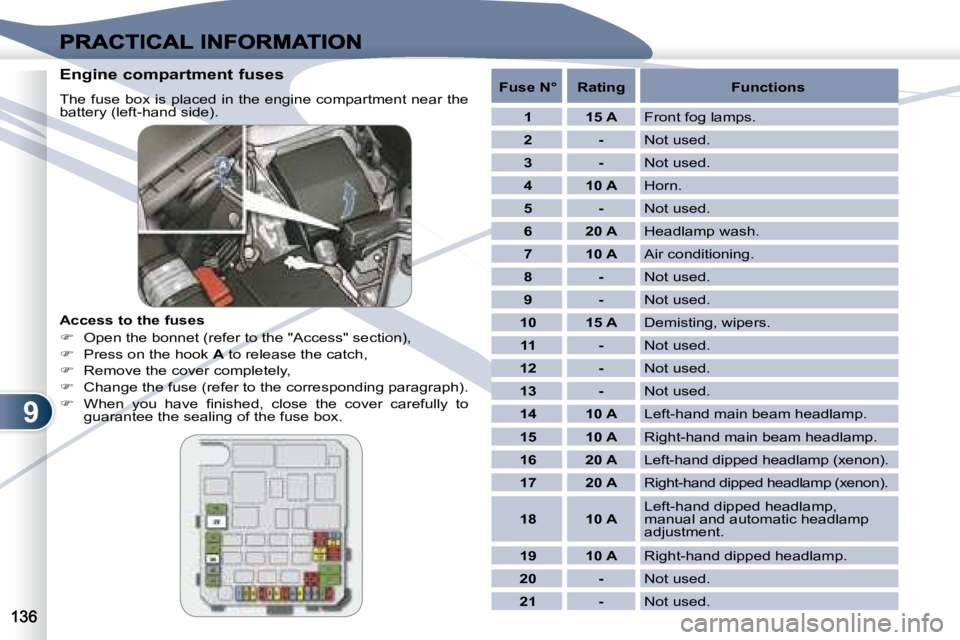

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e c o m p a r t m e n t n e a r t h e
battery (left-hand side).
Access to the fuses
Open the bonnet (refer to the "Access" section),
Press on the hook A to release the catch,
Remove the cover completely,
Change the fuse (refer to the corresponding paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e c o v e r c a r e f u l l y t o
g u a r a n t e e t h e s e a l i n g o f t h e f u s e b o x .
Fuse N° Rating Functions
1 15 A Front fog lamps.
2 - Not used.
3 - Not used.
4 10 A Horn.
5 - Not used.
6 20 A Headlamp wash.
7 10 A Air conditioning.
8 - Not used.
9 - Not used.
10 15 A Demisting, wipers.
11 - Not used.
12 - Not used.
13 - Not used.
14 10 A Left-hand main beam headlamp.
15 10 A Right-hand main beam headlamp.
16 20 A L e f t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
17 20 A R i g h t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
18 10 A Left-hand dipped headlamp,
manual and automatic headlamp
adjustment.
19 10 A Right-hand dipped headlamp.
20 - Not used.
21 - Not used.
Page 148 of 221
9
i
PRACTICAL INFORMATION
Spare fuses
The spare fuses are located under the engine compartment
f u s e b o x c o v e r . The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse must be replaced with the 10 A spare
fuse , a 25 A fuse with a 20 A spare fuse and a 30 A
fuse with the audio system fuse (N° 31) .
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i
c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.

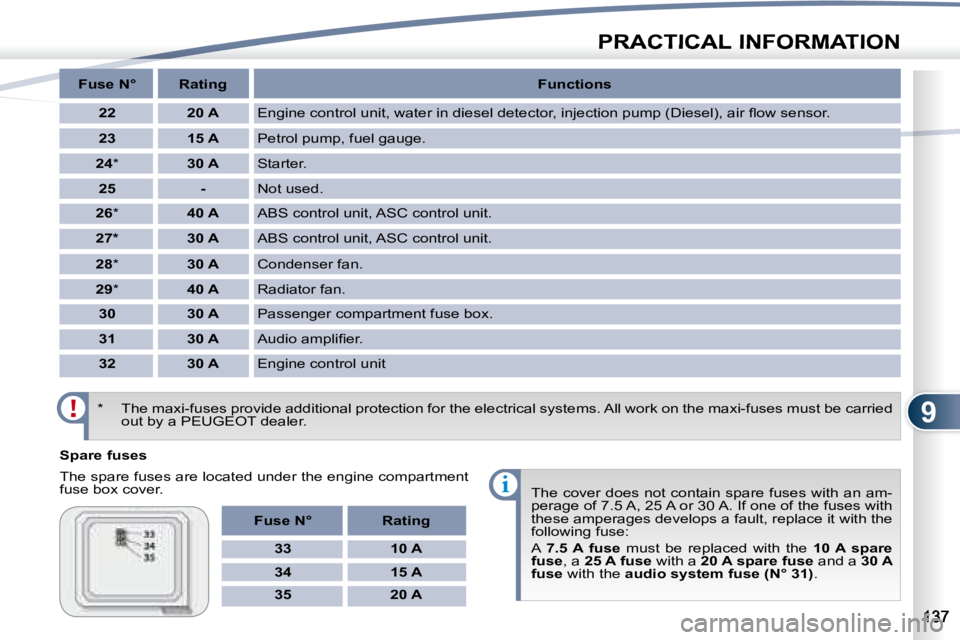

Fuse N° Rating
Functions
22 20 A E n g i n e c o n t r o l u n i t , w a t e r i n d i e s e l d e t e c t o r , i n j e c t i o n p u m p ( D i e s e l ) , a i r fl o w s e n s o r .
23 15 A Petrol pump, fuel gauge.
24 * 30 A Starter.
25 - Not used.
26 * 40 A ABS control unit, ASC control unit.
27* 30 A ABS control unit, ASC control unit.
28 * 30 A Condenser fan.
29 * 40 A Radiator fan.
30 30 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
31 30 A A u d i o a m p l i fi e r .
32 30 A Engine control unit
Fuse N° Rating
33 10 A
34 15 A
35 20 A
Page 149 of 221
9
i
PRACTICAL INFORMATION

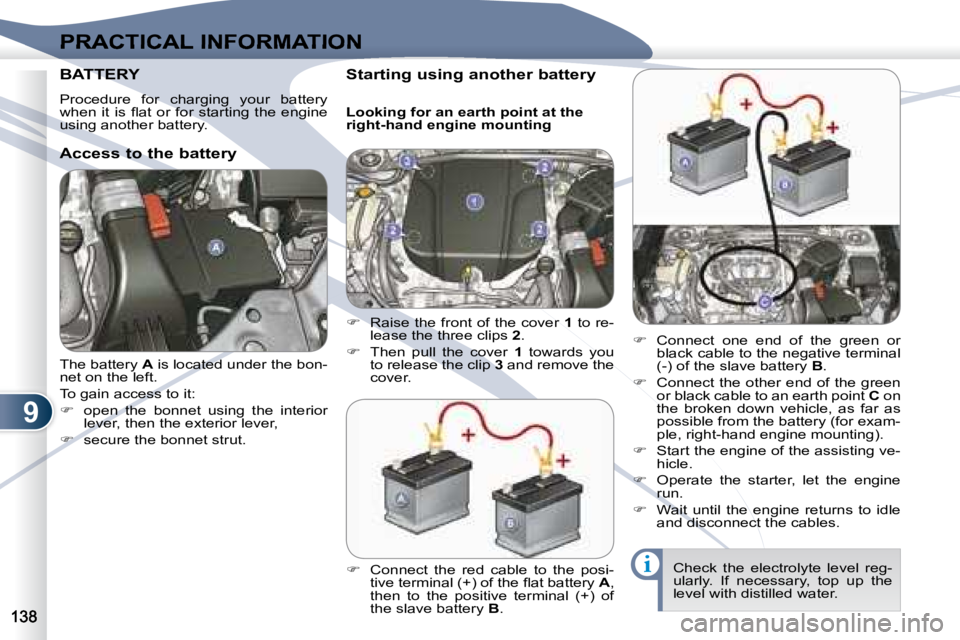

The battery A is located under the bon-
net on the left.
To gain access to it:
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut.
BATTER BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
ple, right-hand engine mounting).
Start the engine of the assisting ve-
hicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Raise the front of the cover 1 to re-
lease the three clips 2 .
Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level reg-
ularly. If necessary, top up the
level with distilled water.
Starting using another battery
Looking for an earth point at the
right-hand engine mounting
Page 150 of 221
9
i
i
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

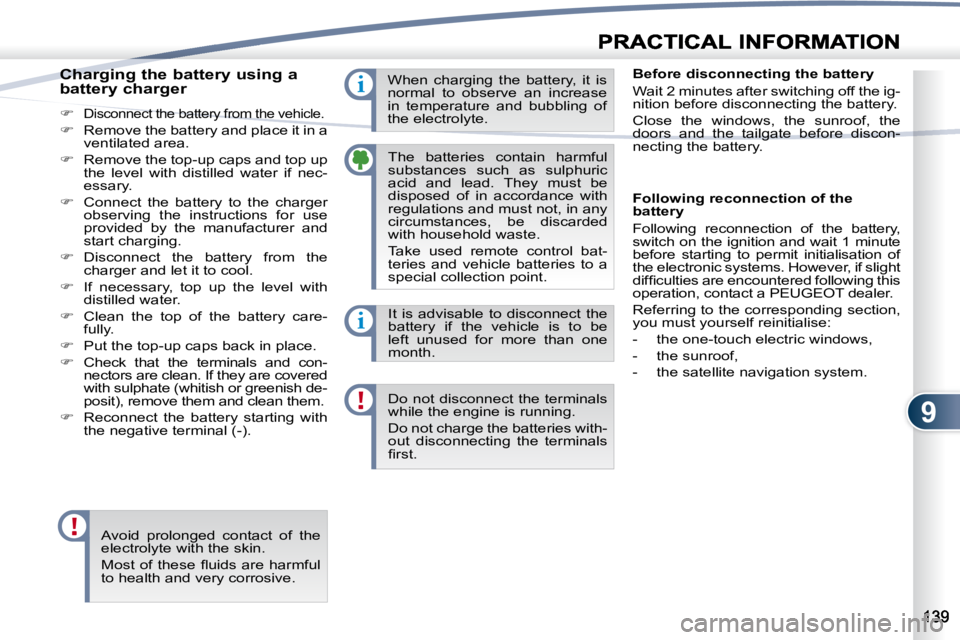

Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top up
the level with distilled water if nec-
essary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish de-
posit), remove them and clean them.
Reconnect the battery starting with
the negative terminal (-). It is advisable to disconnect the
battery if the vehicle is to be
left unused for more than one
month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t . Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w i n g t h i s
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before discon-
necting the battery.
