PEUGEOT 4007 2007 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2007, Model line: 4007, Model: PEUGEOT 4007 2007Pages: 221, PDF Size: 13.99 MB
Page 211 of 221
11
AB
A2A1
A3
B1B2
B3B4
B5B6B7B8
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

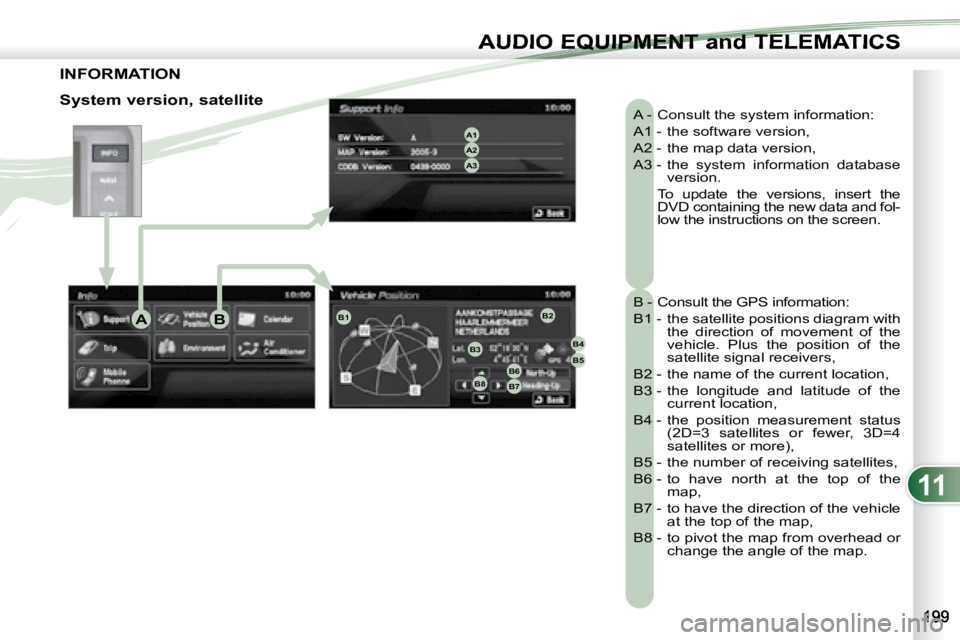

INFORMATION
System version, satellite A - Consult the system information:
A1 - the software version,
A2 - the map data version,
A3 - the system information database version.
To update the versions, insert the DVD containing the new data and fol-
low the instructions on the screen.
B - Consult the GPS information:
B1 - the satellite positions diagram with the direction of movement of the
vehicle. Plus the position of the
satellite signal receivers,
B2 - the name of the current location,
B3 - the longitude and latitude of the current location,
B4 - the position measurement status (2D=3 satellites or fewer, 3D=4
satellites or more),
B5 - the number of receiving satellites,
B6 - to have north at the top of the map,
B7 - to have the direction of the vehicle at the top of the map,
B8 - to pivot the map from overhead or change the angle of the map.
Page 212 of 221
11
D
C
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12
AUDIO EQUIPMENT and TELEMATICS

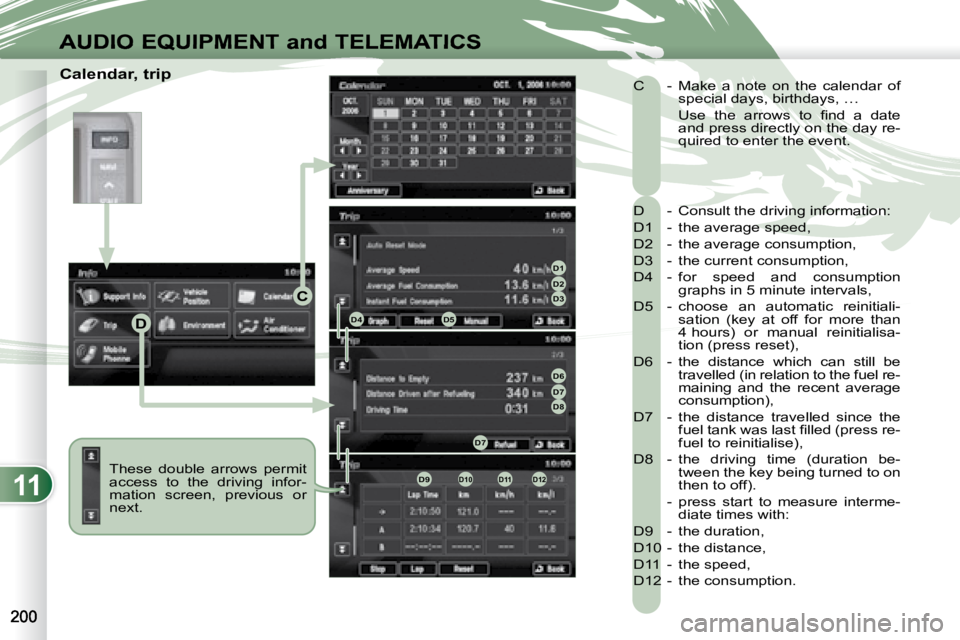

Calendar, trip These double arrows permit
access to the driving infor-
mation screen, previous or
next. D - Consult the driving information:
D1 - the average speed,
D2 - the average consumption,
D3 - the current consumption,
D4 - for speed and consumption
graphs in 5 minute intervals,
D5 - choose an automatic reinitiali- sation (key at off for more than
4 hours) or manual reinitialisa-
tion (press reset),
D6 - the distance which can still be travelled (in relation to the fuel re-
maining and the recent average
consumption),
D7 - the distance travelled since the f u e l t a n k w a s l a s t fi l l e d ( p r e s s r e -
fuel to reinitialise),
D8 - the driving time (duration be- tween the key being turned to on
then to off).
- press start to measure interme- diate times with:
D9 - the duration,
D10 - the distance,
D11 - the speed,
D12 - the consumption.
C - Make a note on the calendar of
special days, birthdays, …
U s e t h e a r r o w s t o fi n d a d a t e and press directly on the day re-
quired to enter the event.
Page 213 of 221
11
i
G
EFF1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

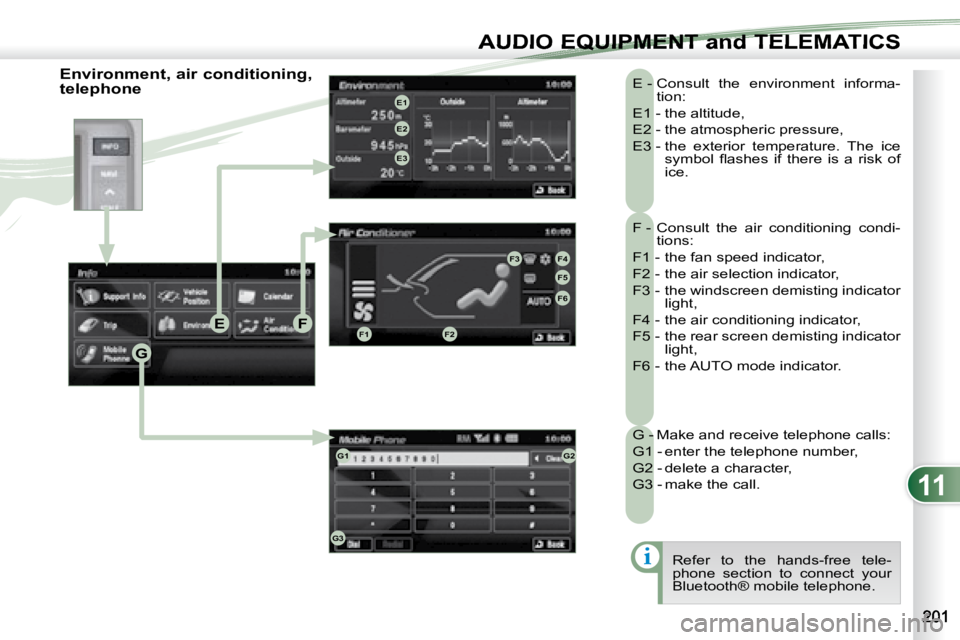

F - Consult the air conditioning condi-tions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indicator light,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indicator light,
F6 - the AUTO mode indicator.
E - Consult the environment informa-
tion:
E1 - the altitude,
E2 - the atmospheric pressure,
E3 - the exterior temperature. The ice s y m b o l fl a s h e s i f t h e r e i s a r i s k o f
ice.
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call. Refer to the hands-free tele-
phone section to connect your
Bluetooth® mobile telephone.
Environment, air conditioning,
telephone
Page 214 of 221
11
AUDIO EQUIPMENT and TELEMATICS
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
General notes SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even i f a telephone call is progress.
Increasing of the audio volume.
Decreasing of the audio volume.
PICK UP
Press to answer an incoming
call.
If a second incoming call is
received, press this button to
p l a c e t h e fi r s t c a l l o n h o l d a n d
speak to the second caller.
In this case, a brief press
switches between callers.
To establish a three-way
conversation, press the SPEAK
button to switch to voice
recognition mode and say
"Incorporate the call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call. The system uses wireless communication technology referred to as
Bluetooth® which allows you to make hands-free telephone call
s in your
vehicle via your Bluetooth® compatible mobile telephone. It has a voice recognition function which
allows you to make telephone calls
using a microphone, located in the cour-
tesy light, and also by means of easy use
of the steering wheel controls or using
voice commands. Five languages are
available: English (by default), Spanish,
French, German and Italian.
What is the Bluetooth® hands-free telephone with voice re
cognition?
Page 215 of 221
11
i
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

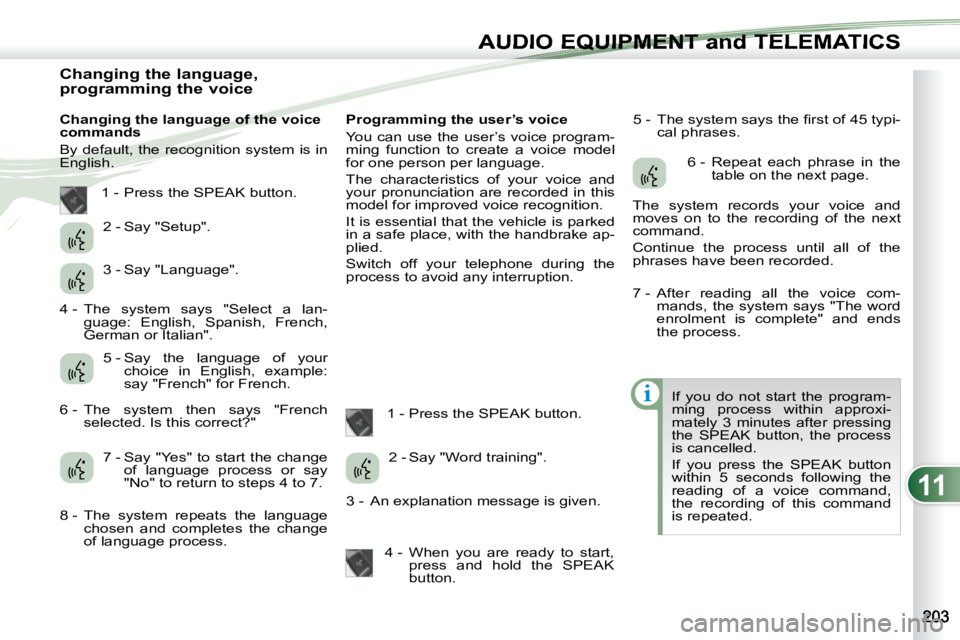

Changing the language,
programming the voice
Changing the language of the voice
commands
By default, the recognition system is in
English. Programming the user’s voice
You can use the user’s voice program-
ming function to create a voice model
for one person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked
in a safe place, with the handbrake ap-
plied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - T h e s y s t e m s a y s t h e fi r s t o f 4 5 t y p i -
cal phrases.
If you do not start the program-
ming process within approxi-
mately 3 minutes after pressing
the SPEAK button, the process
is cancelled.
If you press the SPEAK button
within 5 seconds following the
reading of a voice command,
the recording of this command
is repeated.
1 - Press the SPEAK button.
2 - Say "Setup".
3 - Say "Language".
4 - The system says "Select a lan- guage: English, Spanish, French,
German or Italian".
5 - Say the language of your choice in English, example:
say "French" for French.
6 - The system then says "French selected. Is this correct?"
7 - Say "Yes" to start the change of language process or say
"No" to return to steps 4 to 7.
8 - The system repeats the language chosen and completes the change
of language process. 2 - Say "Word training".
3 - An explanation message is given.
4 - When you are ready to start, press and hold the SPEAK
button. 6 - Repeat each phrase in the
table on the next page.
The system records your voice and
moves on to the recording of the next
command.
Continue the process until all of the
phrases have been recorded.
7 - After reading all the voice com- mands, the system says "The word
enrolment is complete" and ends
the process.
Page 216 of 221
11
AUDIO EQUIPMENT and TELEMATICS

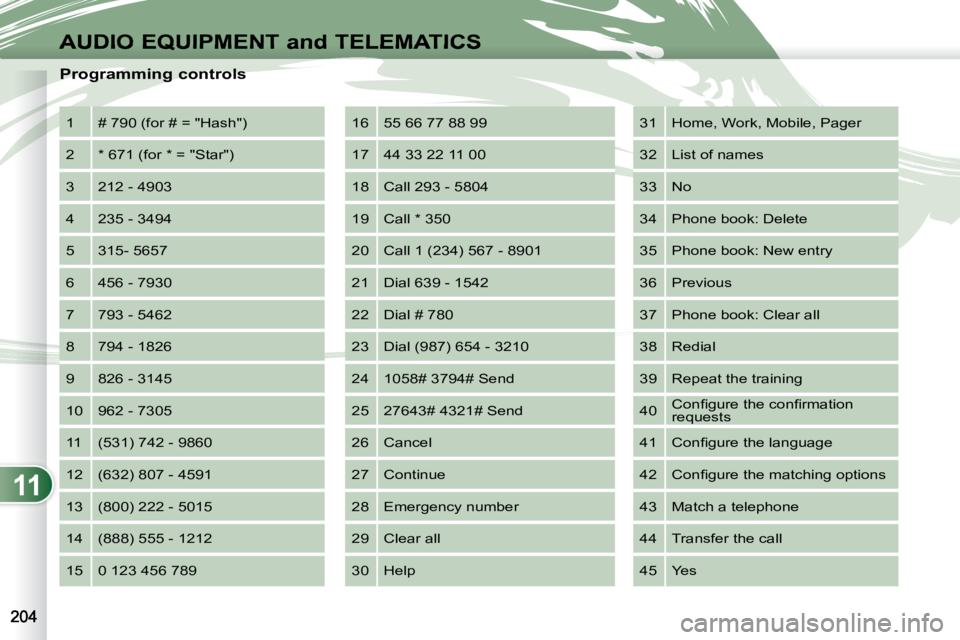

Programming controls 1 # 790 (for # = "Hash")
2 * 671 (for * = "Star")
3 212 - 4903
4 235 - 3494
5 315- 5657
6 456 - 7930
7 793 - 5462
8 794 - 1826
9 826 - 3145
10 962 - 7305
11 (531) 742 - 9860
12 (632) 807 - 4591
13 (800) 222 - 5015
14 (888) 555 - 1212
15 0 123 456 789 16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19 Call * 350
20 Call 1 (234) 567 - 8901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency number
29 Clear all
30 Help
31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete
35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40
C o n fi g u r e t h e c o n fi r m a t i o n
requests
41 C o n fi g u r e t h e l a n g u a g e
42 C o n fi g u r e t h e m a t c h i n g o p t i o n s
43 Match a telephone
44 Transfer the call
45 Yes
Page 217 of 221
11
i
i
EQUIPMENT and TELEMA

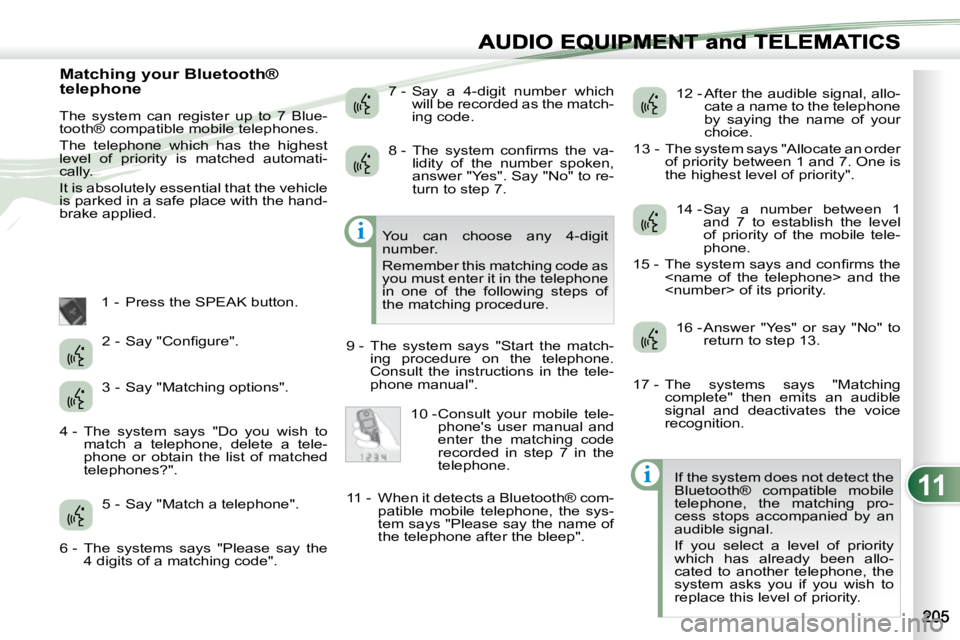

Matching your Bluetooth®
telephone
The system can register up to 7 Blue-
tooth® compatible mobile telephones.
The telephone which has the highest
level of priority is matched automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the hand-
brake applied.
1 - Press the SPEAK button. 7 - Say a 4-digit number which
will be recorded as the match-
ing code. 12 - After the audible signal, allo-
cate a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order of priority between 1 and 7. One is
the highest level of priority".
If the system does not detect the
Bluetooth® compatible mobile
telephone, the matching pro-
cess stops accompanied by an
audible signal.
If you select a level of priority
which has already been allo-
cated to another telephone, the
system asks you if you wish to
replace this level of priority.
You can choose any 4-digit
number.
Remember this matching code as
you must enter it in the telephone
in one of the following steps of
the matching procedure.
9 - The system says "Start the match- ing procedure on the telephone.
Consult the instructions in the tele-
phone manual".
2 - S a y " C o n fi g u r e " .
3 - Say "Matching options".
4 - The system says "Do you wish to match a telephone, delete a tele-
phone or obtain the list of matched
telephones?".
5 - Say "Match a telephone".
6 - The systems says "Please say the 4 digits of a matching code". 8 - T h e s y s t e m c o n fi r m s t h e v a -
lidity of the number spoken,
answer "Yes". Say "No" to re-
turn to step 7.
10 - Consult your mobile tele- phone's user manual and
enter the matching code
recorded in step 7 in the
telephone.
11 - When it detects a Bluetooth® com- patible mobile telephone, the sys-
tem says "Please say the name of
the telephone after the bleep". 14 - Say a number between 1
and 7 to establish the level
of priority of the mobile tele-
phone.
1 5 - T h e s y s t e m s a y s a n d c o n fi r m s t h e
16 - Answer "Yes" or say "No" to return to step 13.
17 - The systems says "Matching complete" then emits an audible
signal and deactivates the voice
recognition.
Page 218 of 221
11
i
AUDIO EQUIPMENT and TELEMATICS

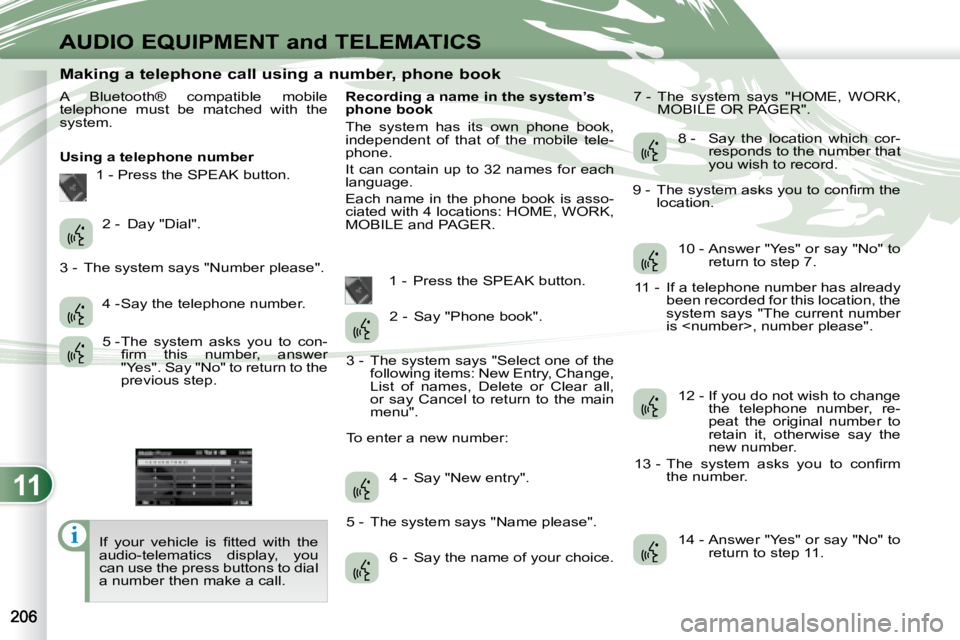

Making a telephone call using a number, phone book
A Bluetooth® compatible mobile
telephone must be matched with the
system.
Using a telephone number 1 - Press the SPEAK button.
I f y o u r v e h i c l e i s fi t t e d w i t h t h e
audio-telematics display, you
can use the press buttons to dial
a number then make a call. Recording a name in the system’s
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
3 - The system says "Number please". 4 - Say the telephone number.
5 - The system asks you to con- fi r m t h i s n u m b e r , a n s w e r
"Yes". Say "No" to return to the
previous step. 2 - Say "Phone book".
3 - The system says "Select one of the following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
To enter a new number:
4 - Say "New entry".
5 - The system says "Name please". 6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
9 - T h e s y s t e m a s k s y o u t o c o n fi r m t h e location.
10 - Answer "Yes" or say "No" to return to step 7.
11 - If a telephone number has already been recorded for this location, the
system says "The current number
is
12 - If you do not wish to change the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
1 3 - T h e s y s t e m a s k s y o u t o c o n fi r m the number.
14 - Answer "Yes" or say "No" to return to step 11.
Page 219 of 221
11
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

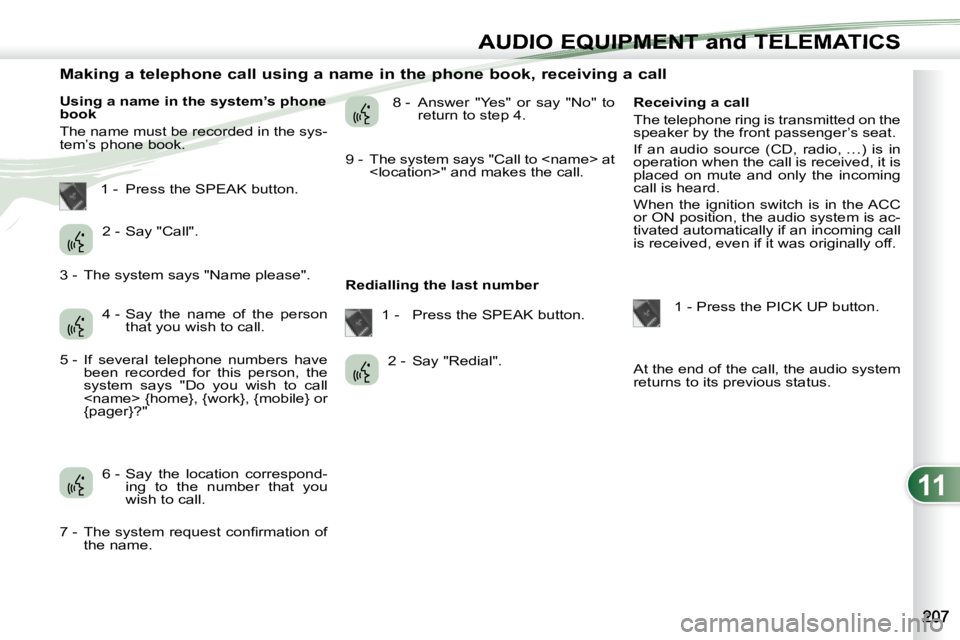

Making a telephone call using a name in the phone book, receiving a call
Using a name in the system’s phone
book
The name must be recorded in the sys-
tem’s phone book. 8 - Answer "Yes" or say "No" to
return to step 4.
9 - The system says "Call to
Redialling the last number Receiving a call
The telephone ring is transmitted on the
speaker by the front passenger’s seat.
If an audio source (CD, radio, …) is in
operation when the call is received, it is
placed on mute and only the incoming
call is heard.
When the ignition switch is in the ACC
or ON position, the audio system is ac-
tivated automatically if an incoming call
is received, even if it was originally off.
1 - Press the PICK UP button.
At the end of the call, the audio system
returns to its previous status.
1 - Press the SPEAK button.
2 - Say "Call".
3 - The system says "Name please". 4 - Say the name of the person that you wish to call.
5 - If several telephone numbers have been recorded for this person, the
system says "Do you wish to call
{pager
}?"
6 - Say the location correspond- ing to the number that you
wish to call.
7 - T h e s y s t e m r e q u e s t c o n fi r m a t i o n o f the name. 1 - Press the SPEAK button.
2 - Say "Redial".
Page 220 of 221
11
i
AUDIO EQUIPMENT and TELEMATICS
When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the
current situation.

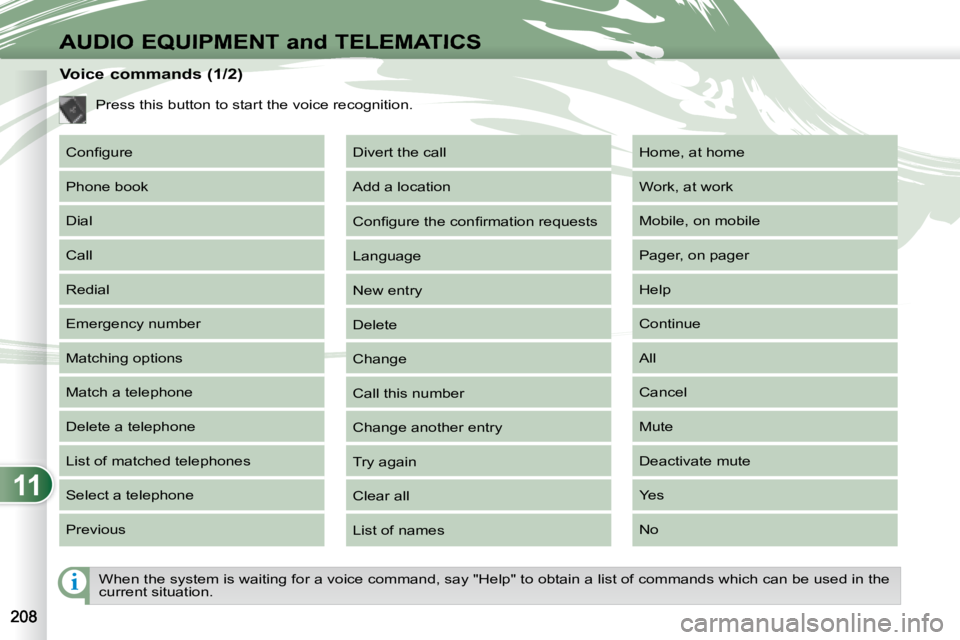

Voice commands (1/2)
Press this button to start the voice recognition.
C o n fi g u r e
Phone book
Dial
Call
Redial
Emergency number
Matching options
Match a telephone
Delete a telephone
List of matched telephones
Select a telephone
Previous Divert the call
Add a location
C o n fi g u r e t h e c o n fi r m a t i o n r e q u e s t s
Language
New entry
Delete
Change
Call this number
Change another entry
Try again
Clear all
List of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
Mute
Deactivate mute
Yes
No
