PEUGEOT 4007 2008 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 4007, Model: PEUGEOT 4007 2008Pages: 226, PDF Size: 13.63 MB
Page 131 of 226
8
CHECKS

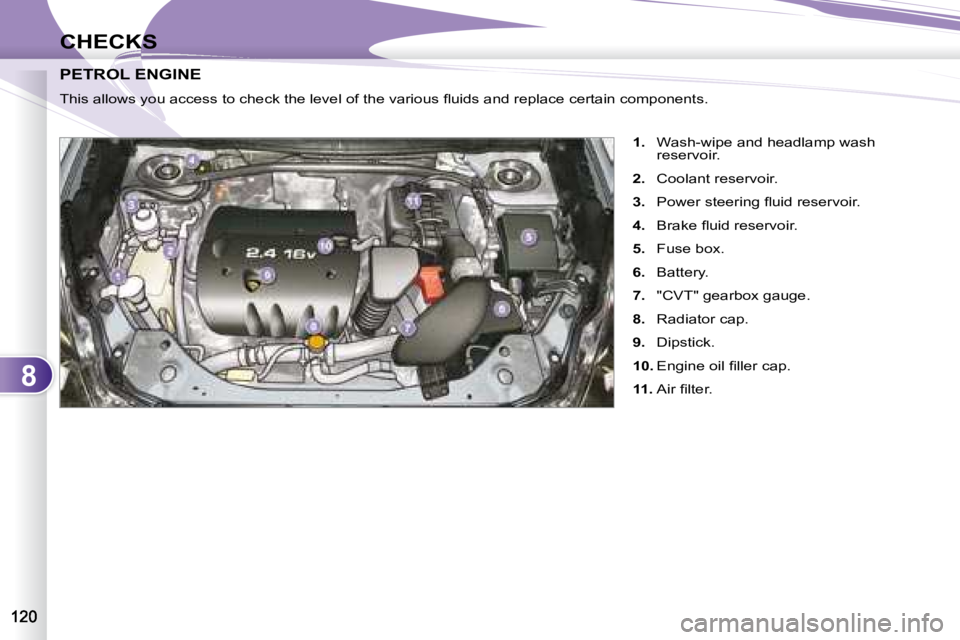

PETROL ENGINE PETROL ENGINE
1. Wash-wipe and headlamp wash
reservoir.
2. Coolant reservoir.
3. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. "CVT" gearbox gauge.
8. Radiator cap.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. A i r fi l t e r .
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a
n d r e p l a c e c e r t a i n c o m p o n e n t s .
Page 132 of 226
8
CHECKS
DIESEL ENGINE
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
3. Wash-wipe and headlamp wash
reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. Dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. A i r fi l t e r .
Page 133 of 226
8
CHECKS

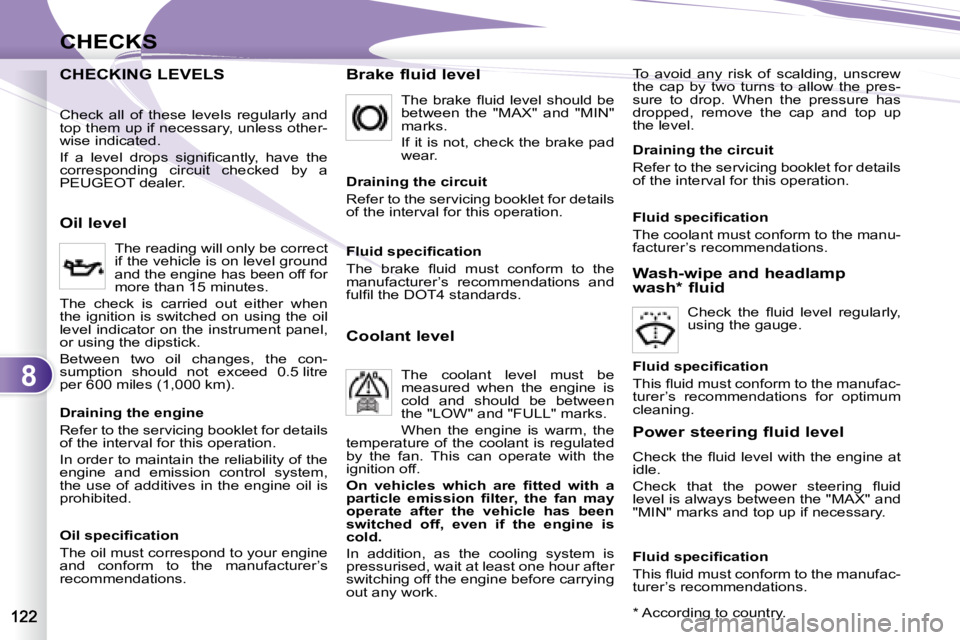

CHECKING LEVELS CHECKING LEVELS Brake fluid level To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick.
Between two oil changes, the con-
sumption should not exceed 0.5 litre
per 600 miles (1,000 km). T h e b r a k e fl u i d l e v e l s h o u l d b e
between the "MAX" and "MIN"
marks.
If it is not, check the brake pad
wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Coolant level
The coolant level must be
measured when the engine is
cold and should be between
the "LOW" and "FULL" marks.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the
ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s
cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. Wash-wipe and headlamp
wash * fluid
C h e c k t h e fl u i d l e v e l r e g u l a r l y ,
using the gauge.
* According to country.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer’s
recommendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer’s recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer’s recommendations.
F l u i d s p e c i fi c a t i o n
T h i s fl u i d m u s t c o n f o r m t o t h e m a n u f a c -
turer’s recommendations for optimum
cleaning.
Power steering fluid level
C h e c k t h e fl u i d l e v e l w i t h t h e e n g i n e a t
idle.
C h e c k t h a t t h e p o w e r s t e e r i n g fl u i d
level is always between the "MAX" and
"MIN" marks and top up if necessary.
F l u i d s p e c i fi c a t i o n
T h i s fl u i d m u s t c o n f o r m t o t h e m a n u f a c -
turer’s recommendations.
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
PEUGEOT dealer.
Page 134 of 226
8
i
CHECKS

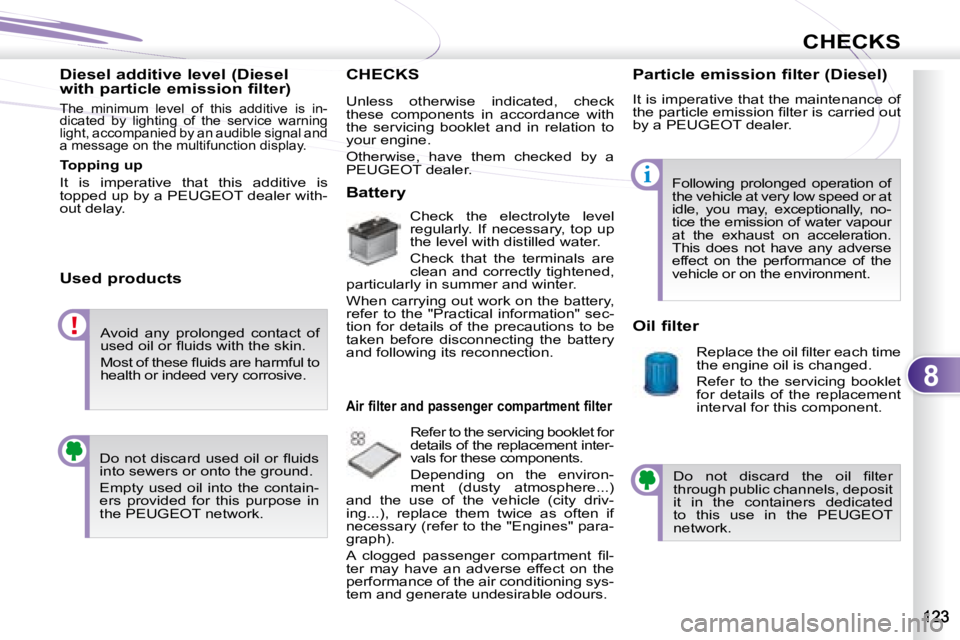

Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warning
light, accompanied by an audible signal and
a message on the multifunction display.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.
Used products
CHECKS CHECKS
B a t t e r y Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet for
details of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...)
and the use of the vehicle (city driv-
ing...), replace them twice as often if
necessary (refer to the "Engines" para-
graph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l -
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, no-
tice the emission of water vapour
at the exhaust on acceleration.
This does not have any adverse
effect on the performance of the
vehicle or on the environment.
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network. D o n o t d i s c a r d t h e o i l fi l t e r
through public channels, deposit
it in the containers dedicated
to this use in the PEUGEOT
network.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Page 135 of 226
8
i
CHECKS
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warning
light, accompanied by an audible signal and
a message on the multifunction display.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.
Used products
CHECKS CHECKS
B a t t e r y Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet for
details of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...)
and the use of the vehicle (city driv-
ing...), replace them twice as often if
necessary (refer to the "Engines" para-
graph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l -
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, no-
tice the emission of water vapour
at the exhaust on acceleration.
This does not have any adverse
effect on the performance of the
vehicle or on the environment.
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network. D o n o t d i s c a r d t h e o i l fi l t e r
through public channels, deposit
it in the containers dedicated
to this use in the PEUGEOT
network.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Page 136 of 226
8
CHECKS

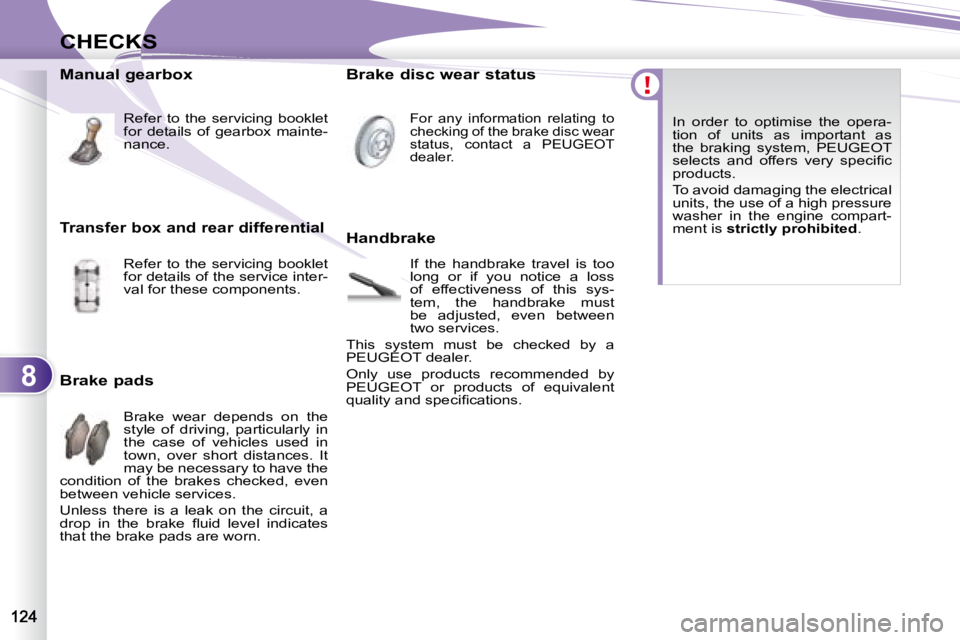

Manual gearbox Refer to the servicing booklet
for details of gearbox mainte-
nance.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn. Brake disc wear status
For any information relating to
checking of the brake disc wear
status, contact a PEUGEOT
dealer.
Handbrake
If the handbrake travel is too
long or if you notice a loss
of effectiveness of this sys-
tem, the handbrake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer.
Only use products recommended by
PEUGEOT or products of equivalent
q u a l i t y a n d s p e c i fi c a t i o n s . In order to optimise the opera-
tion of units as important as
the braking system, PEUGEOT
s e l e c t s a n d o f f e r s v e r y s p e c i fi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is
s t r i c t l y p r o h i b i t e d . Transfer box and rear differential
Refer to the servicing booklet
for details of the service inter-
val for these components.
Page 137 of 226
9
i
PRACTICAL INFORMATION

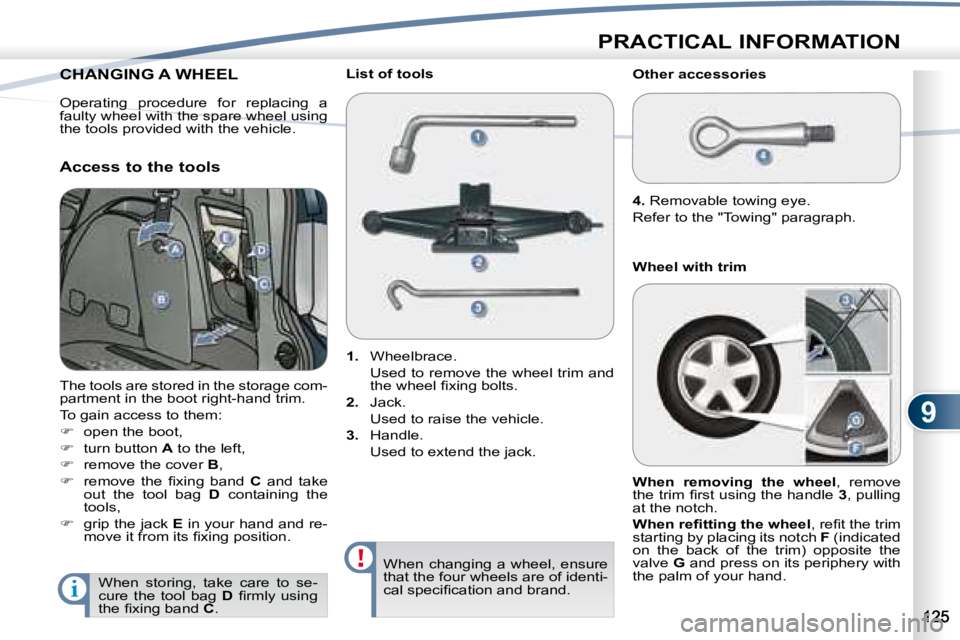

CHANGING A WHEEL CHANGING
The tools are stored in the storage com-
partment in the boot right-hand trim.
To gain access to them:
open the boot,
turn button A to the left,
remove the cover B ,
r e m o v e t h e fi x i n g b a n d C and take
out the tool bag D containing the
tools,
grip the jack E in your hand and re-
m o v e i t f r o m i t s fi x i n g p o s i t i o n .
1. Wheelbrace.
Used to remove the wheel trim and t h e w h e e l fi x i n g b o l t s .
2. Jack.
Used to raise the vehicle.
3. Handle.
U s e d t o e x t e n d t h e j a c k .
List of tools
Other accessories
4. Removable towing eye.
Refer to the "Towing" paragraph.
Access to the tools
Wheel with trim
When changing a wheel, ensure
that the four wheels are of identi-
c a l s p e c i fi c a t i o n a n d b r a n d .
When removing the wheel , remove
t h e t r i m fi r s t u s i n g t h e h a n d l e 3 , pulling
at the notch.
W h e n r e fi t t i n g t h e w h e e l , r e fi t t h e t r i m
starting by placing its notch F (indicated
on the back of the trim) opposite the
valve G and press on its periphery with
the palm of your hand.
When storing, take care to se-
cure the tool bag D fi r m l y u s i n g
t h e fi x i n g b a n d C .
Operating procedure for replacing a
faulty wheel with the spare wheel using
the tools provided with the vehicle.
Page 138 of 226
9
i
PRACTICAL INFORMATION
Fixing the "space-saving"
spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice that
the washers do not come into
contact with the "space-saving"
spare wheel when tightening the
b o l t s o n fi t t i n g . T h e w h e e l i s r e -
tained by the conical contact of
each bolt.

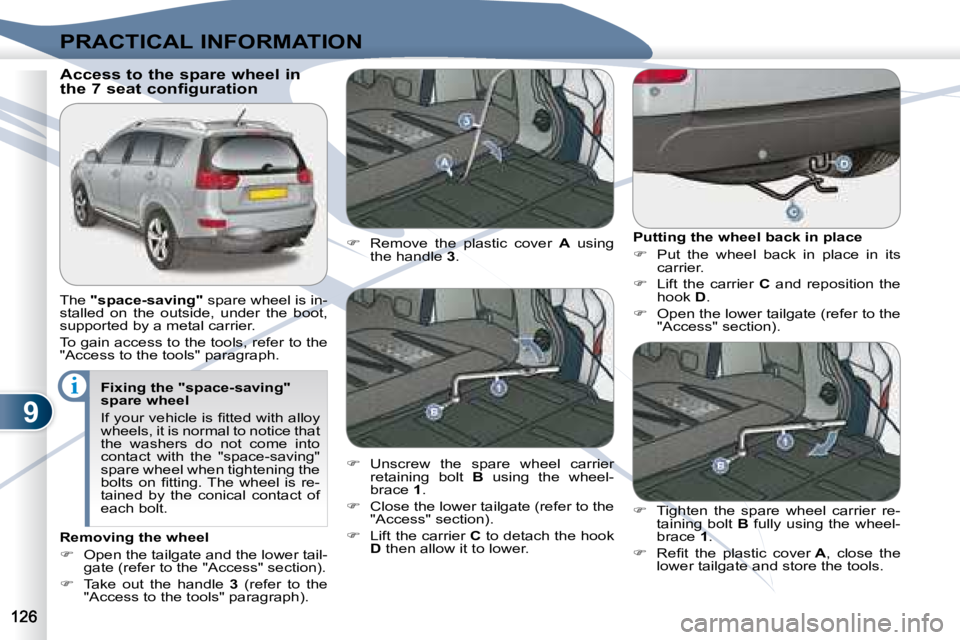

Access to the spare wheel in
the 7 seat configuration
The "space-saving" spare wheel is in-
stalled on the outside, under the boot,
supported by a metal carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph. Putting the wheel back in place
Put the wheel back in place in its
carrier.
Lift the carrier C and reposition the
hook D .
Open the lower tailgate (refer to the
"Access" section).
Remove the plastic cover A using
the handle 3 .
Unscrew the spare wheel carrier
retaining bolt B using the wheel-
brace 1 .
Close the lower tailgate (refer to the
"Access" section).
Lift the carrier C to detach the hook
D then allow it to lower.
Tighten the spare wheel carrier re-
taining bolt B fully using the wheel-
brace 1 .
R e fi t t h e p l a s t i c c o v e r A , close the
lower tailgate and store the tools.
Removing the wheel
Open the tailgate and the lower tail-
gate (refer to the "Access" section).
Take out the handle 3 (refer to the
"Access to the tools" paragraph).
Page 139 of 226
9
i
PRACTICAL INFORMATION

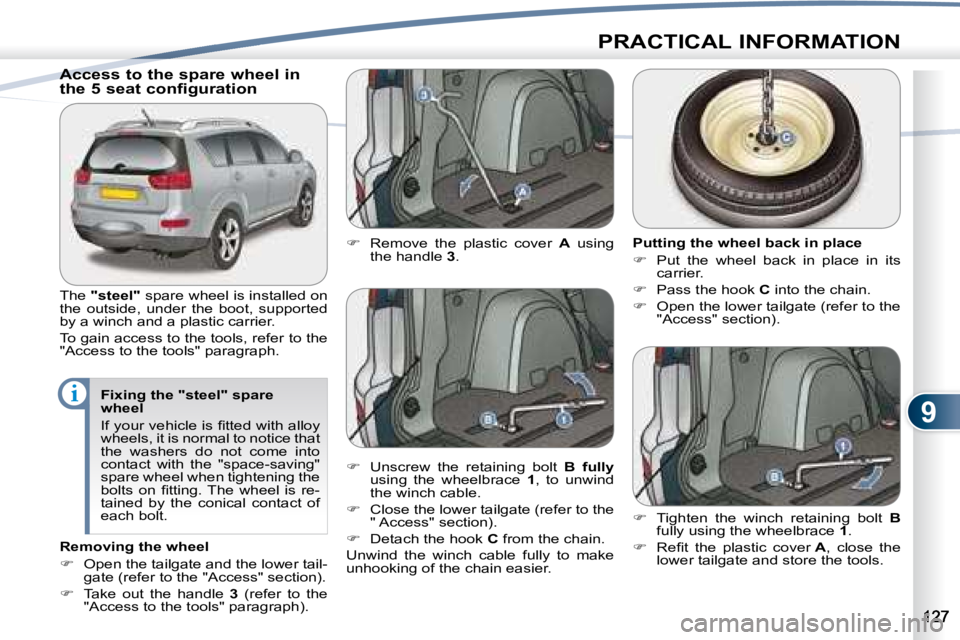

Access to the spare wheel in
the 5 seat configuration
The "steel" spare wheel is installed on
the outside, under the boot, supported
by a winch and a plastic carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph.
Fixing the "steel" spare
wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice that
the washers do not come into
contact with the "space-saving"
spare wheel when tightening the
b o l t s o n fi t t i n g . T h e w h e e l i s r e -
tained by the conical contact of
each bolt.
Removing the wheel
Open the tailgate and the lower tail-
gate (refer to the "Access" section).
Take out the handle 3 (refer to the
"Access to the tools" paragraph).
Remove the plastic cover A using
the handle 3 . Putting the wheel back in place
Put the wheel back in place in its
carrier.
Pass the hook C into the chain.
Open the lower tailgate (refer to the
"Access" section).
Unscrew the retaining bolt B fully
using the wheelbrace 1 , to unwind
the winch cable.
Close the lower tailgate (refer to the
" Access" section).
Detach the hook C from the chain.
Unwind the winch cable fully to make
unhooking of the chain easier.
Tighten the winch retaining bolt B
fully using the wheelbrace 1 .
R e fi t t h e p l a s t i c c o v e r A , close the
lower tailgate and store the tools.
Page 140 of 226
9
i
PRACTICAL INFORMATION

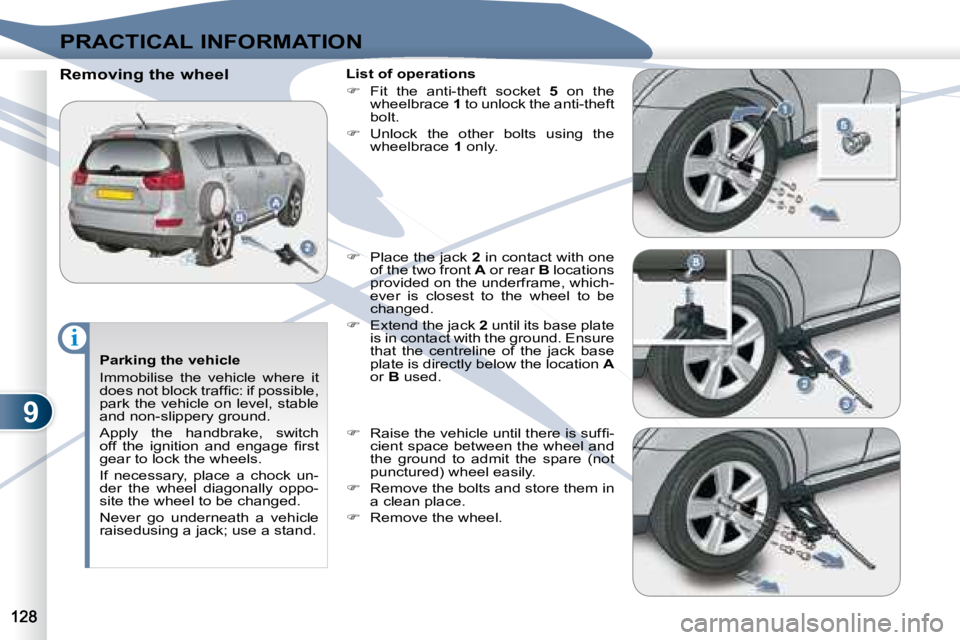

Parking the vehicle
Immobilise the vehicle where it
d o e s n o t b l o c k t r a f fi c : i f p o s s i b l e ,
park the vehicle on level, stable
and non-slippery ground.
Apply the handbrake, switch
o f f t h e i g n i t i o n a n d e n g a g e fi r s t
gear to lock the wheels.
If necessary, place a chock un-
der the wheel diagonally oppo-
site the wheel to be changed.
Never go underneath a vehicle
raisedusing a jack; use a stand.
Removing the wheel
List of operations
Fit the anti-theft socket 5 on the
wheelbrace 1 to unlock the anti-theft
bolt.
Unlock the other bolts using the
wheelbrace 1 only.
Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
E x t e n d t h e j a c k 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
R a i s e t h e v e h i c l e u n t i l t h e r e i s s u f fi -
cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
Remove the bolts and store them in
a clean place.
Remove the wheel.
