PEUGEOT 4007 2008 Owners Manual

10
TECHNICAL DATA

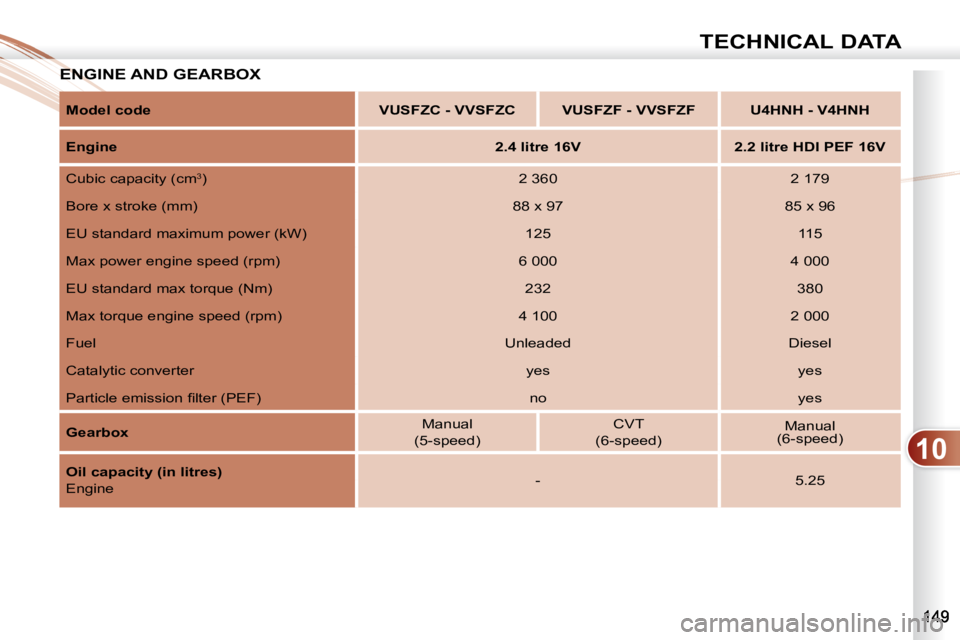

ENGINE AND GEARBOX ENGINE

Model code VUSFZC - VVSFZC VUSFZF - VVSFZF U4HNH - V4HNH

Engine
2.4 litre 16V 2.2 litre HDI PEF 16V
Cubic capacity (cm 3
) 2 360 2 179
Bore x stroke (mm) 88 x 97 85 x 96
EU standard maximum power (kW) 125 115
Max power engine speed (rpm) 6 000 4 000
EU standard max torque (Nm) 232 380
Max torque engine speed (rpm) 4 100 2 000
Fuel Unleaded Diesel
Catalytic converter yes yes
Particle emission fi lter (PEF) no yes

Gearbox Manual
(5-speed) CVT
(6-speed) Manual
(6-speed)

Oil capacity (in litres)
Engine - 5.25

10
TECHNICAL DATA

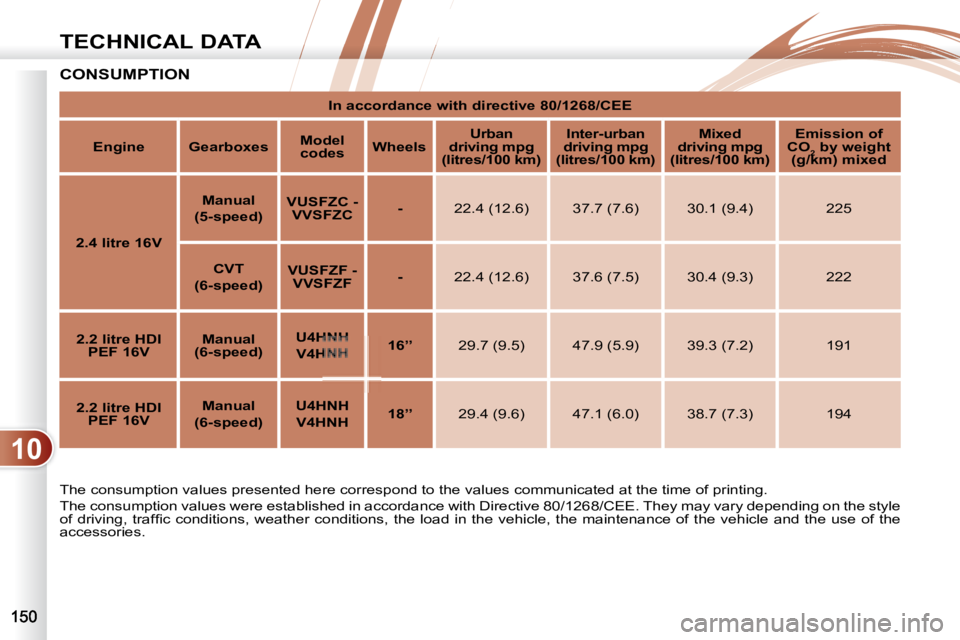

CONSUMPTION
The consumption values presented here correspond to the values communicated at the time of printing.
The consumption values were established in accordance with Dire ctive 80/1268/CEE. They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the u se of the
accessories.
In accordance with directive 80/1268/CEE

Engine Gearboxes
Model
codes
Wheels
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by weight
(g/km) mixed

2.4 litre 16V
Manual
(5-speed)
VUSFZC -
VVSFZC
- 22.4 (12.6) 37.7 (7.6) 30.1 (9.4) 225

CVT
(6-speed)
VUSFZF -
VVSFZF
- 22.4 (12.6) 37.6 (7.5) 30.4 (9.3) 222

2.2 litre HDI
PEF 16V
Manual

(6-speed)
U4HNH

V4HNH
16’’ 29.7 (9.5) 47.9 (5.9) 39.3 (7.2) 191

2.2 litre HDI
PEF 16V
Manual

(6-speed)
U4HNH

V4HNH
18’’ 29.4 (9.6) 47.1 (6.0) 38.7 (7.3) 194

10
TECHNICAL DATA

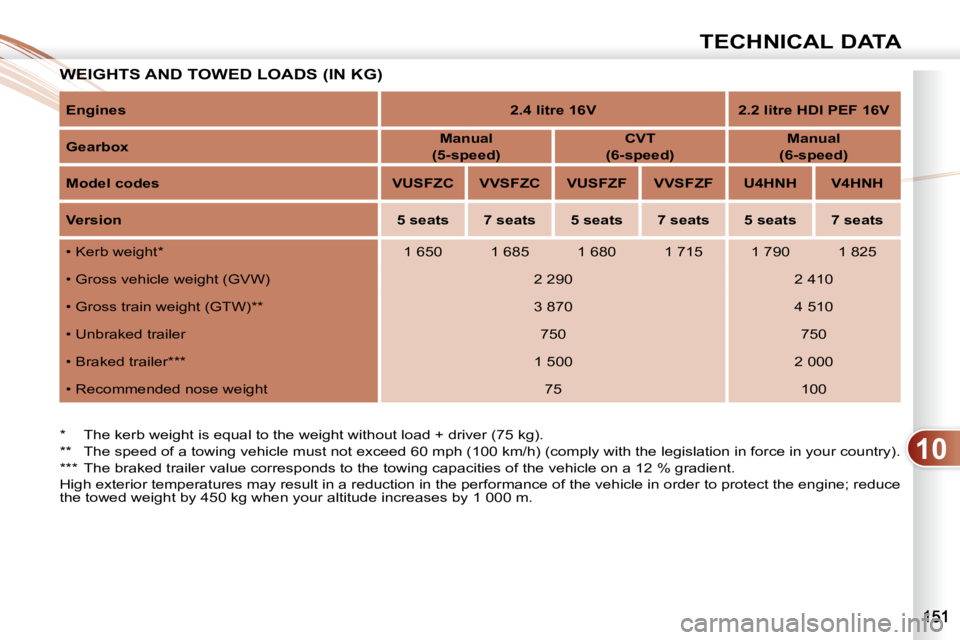

WEIGHTS AND TOWED LOADS (IN KG) WEIGHTS
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing cap acities of the vehicle on a 12 % gradient.
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; reduce
the towed weight by 450 kg when your altitude increases by 1 000 m.

Engines
2.4 litre 16V 2.2 litre HDI PEF 16V

Gearbox
Manual
(5-speed)
CVT
(6-speed)
Manual

(6-speed)

Model codes VUSFZC VVSFZC VUSFZF VVSFZF U4HNH V4HNH

Version
5 seats 7 seats 5 seats 7 seats 5 seats 7 seats

10
TECHNICAL DATA

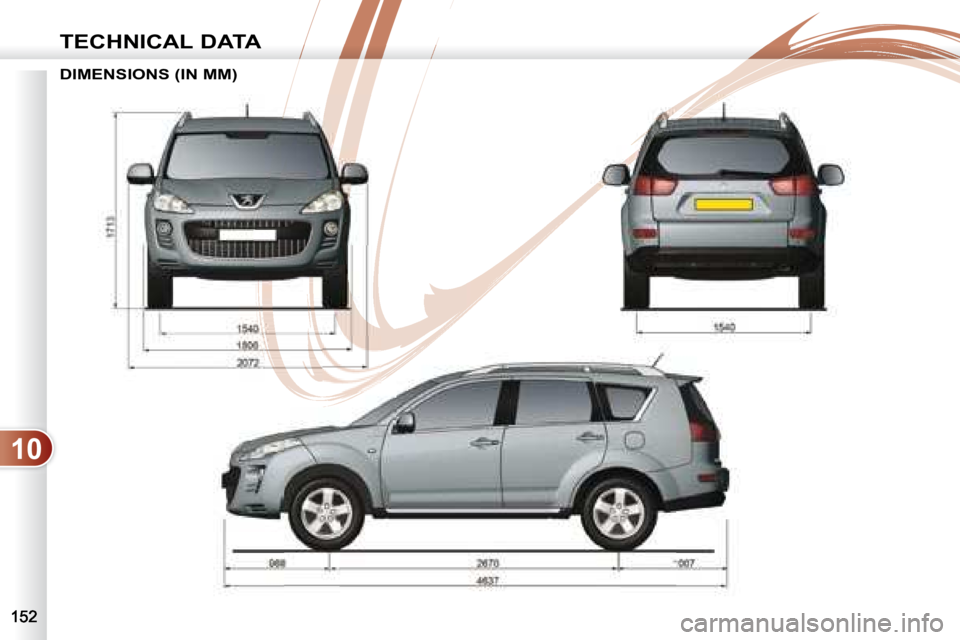

DIMENSIONS (IN MM)

10
i
TECHNICAL DATA

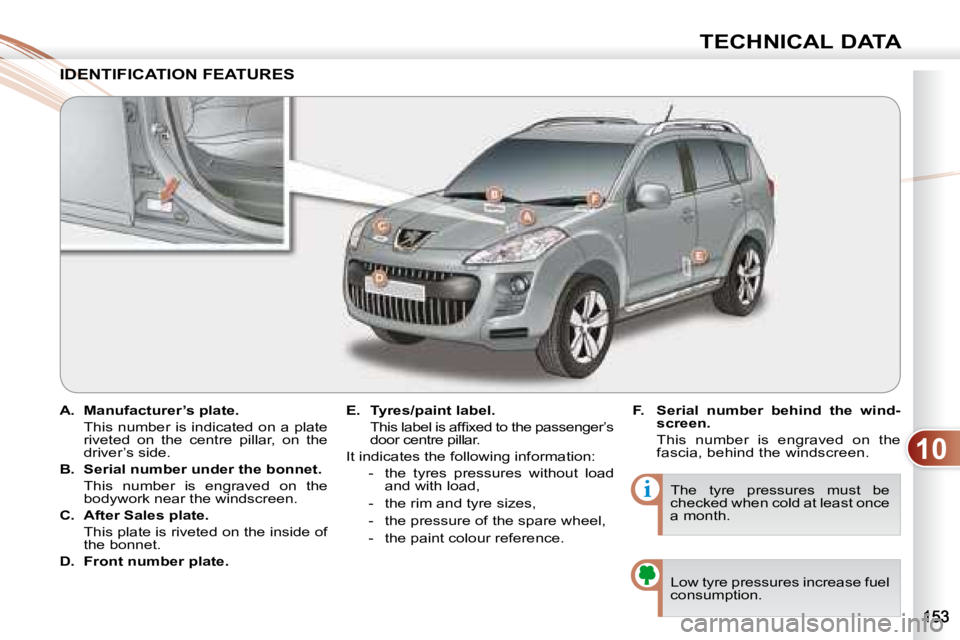

A. Manufacturer’s plate.
This number is indicated on a plate riveted on the centre pillar, on the
driver’s side.

B. Serial number under the bonnet.
This number is engraved on the bodywork near the windscreen.

C. After Sales plate.
This plate is riveted on the inside of the bonnet.

D. Front number plate.
E. Tyres/paint label.
This label is affi xed to the passenger’s door centre pillar.
It indicates the following information: - the tyres pressures without load and with load,
- the rim and tyre sizes,
- the pressure of the spare wheel,
- the paint colour reference. The tyre pressures must be
checked when cold at least once
a month.
IDENTIFICATION FEATURES IDENTIFICA
Low tyre pressures increase fuel
consumption.

F. Serial number behind the wind-
screen.
This number is engraved on the fascia, behind the windscreen.

11
i
AUDIO EQUIPMENT and TELEMATICS

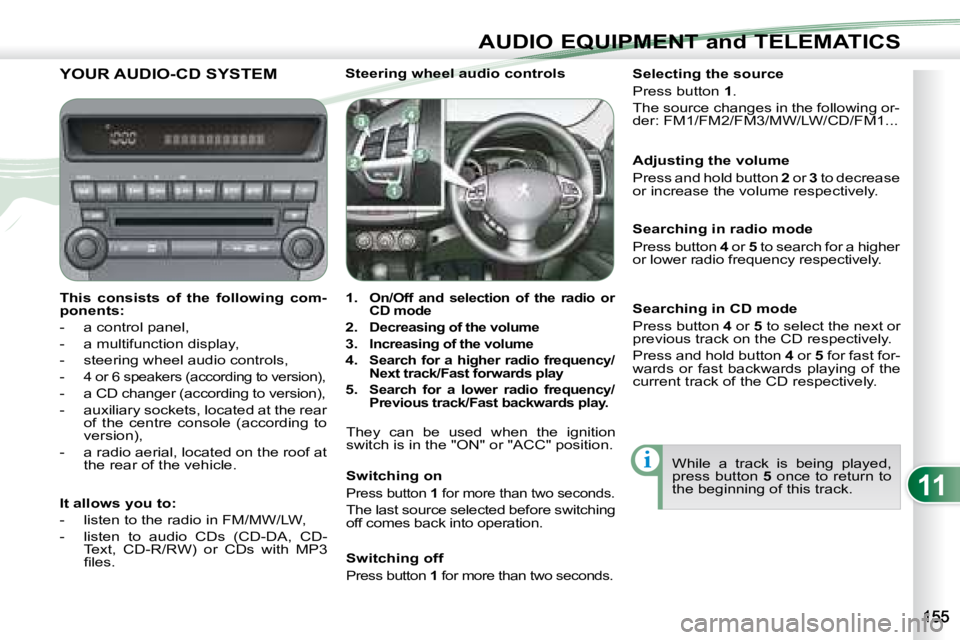

YOUR AUDIO-CD SYSTEM

This consists of the following com-
ponents:
- a control panel,
- a multifunction display,
- steering wheel audio controls,
-
4 or 6 speakers (according to version),
- a CD changer (according to version),
- auxiliary sockets, located at the rear of the centre console (according to
version),
- a radio aerial, located on the roof at the rear of the vehicle. Steering wheel audio controls

1.
On/Off and selection of the radio or
CD mode

2.
Decreasing of the volume

3.
Increasing of the volume

4.
Search for a higher radio frequency/
Next track/Fast forwards play

5. Search for a lower radio frequency/
Previous track/Fast backwards play.
They can be used when the ignition
switch is in the "ON" or "ACC" position.
Switching on

Press button 1 for more than two seconds.
The last source selected before switching
off comes back into operation. Selecting the source
Press button
1 .
The source changes in the following or-
der: FM1/FM2/FM3/MW/LW/CD/FM1...
Searching in radio mode
Press button 4 or 5 to search for a higher
or lower radio frequency respectively.
While a track is being played,
press button 5 once to return to
the beginning of this track.
Adjusting the volume
Press and hold button
2 or 3 to decrease
or increase the volume respectively.

It allows you to:
- listen to the radio in FM/MW/LW,
- listen to audio CDs (CD-DA, CD- Text, CD-R/RW) or CDs with MP3
fi les. Switching off
Press button
1 for more than two seconds.
Searching in CD mode
Press button 4 or 5 to select the next or
previous track on the CD respectively.
Press and hold button 4 or 5 for fast for-
wards or fast backwards playing of the
current track of the CD respectively.

11
AUDIO EQUIPMENT and TELEMATICS

Audio equipment On/Off.

Decreasing/Increasing
of the volume.

Selection of the CD/
Changer/AUX mode.

Automatic search for a lower
radio frequency.

Search for the previous
track.
Selection and setting
of the audio modes
(BASS, TREBLE, ...).

Manual search for a lower
or higher radio frequency/ PTY.

Functions setting mode
(AF, REG, TP, SCV, ...).

Search for the previous or
next MP3 folder.

Ejecting of one or more
CDs.

CD slot.

Loading of one
or more discs.

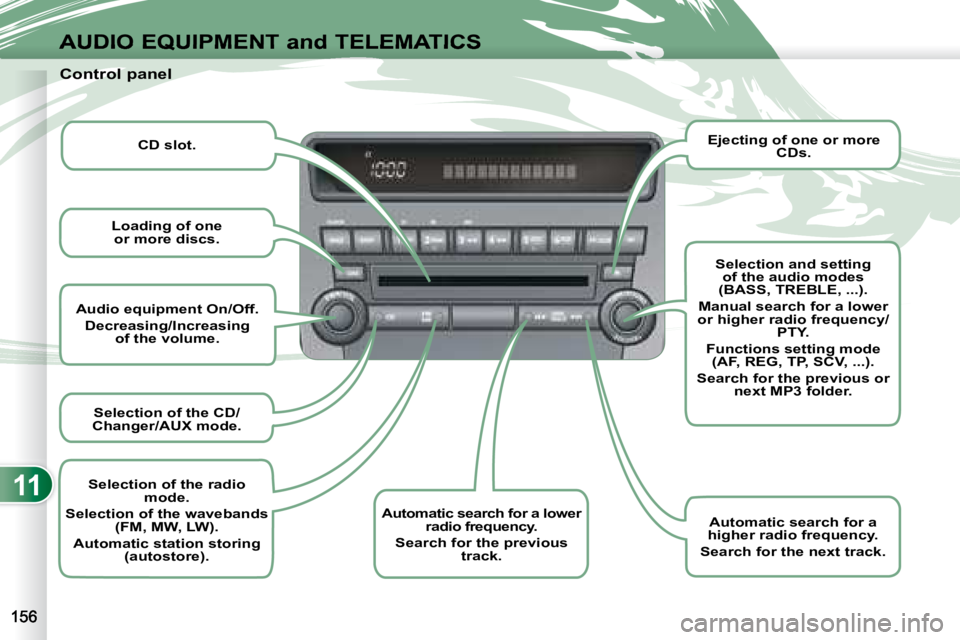

Control panel

Selection of the radio
mode.

Selection of the wavebands
(FM, MW, LW).

Automatic station storing
(autostore).
Automatic search for a
higher radio frequency.

Search for the next track.

11
AUDIO EQUIPMENT and TELEMATICS

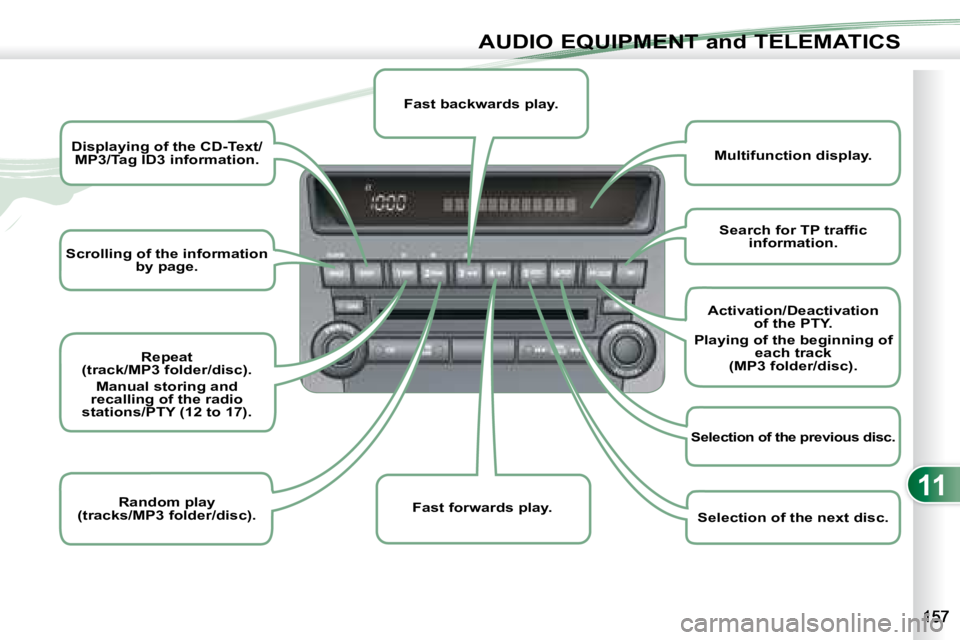

Scrolling of the information
by page.

Displaying of the CD-Text/
MP3/Tag ID3 information.
Repeat
(track/MP3 folder/disc).

Manual storing and
recalling of the radio
stations/PTY (12 to 17).
Random play
(tracks/MP3 folder/disc).
Multifunction display.

Fast backwards play.

Fast forwards play.
Search for TP traffi c
information.
Activation/Deactivation of the PTY.
Playing of the beginning of each track
(MP3 folder/disc).

Selection of the previous disc.

Selection of the next disc.

11
i
i
AUDIO EQUIPMENT and TELEMATICS

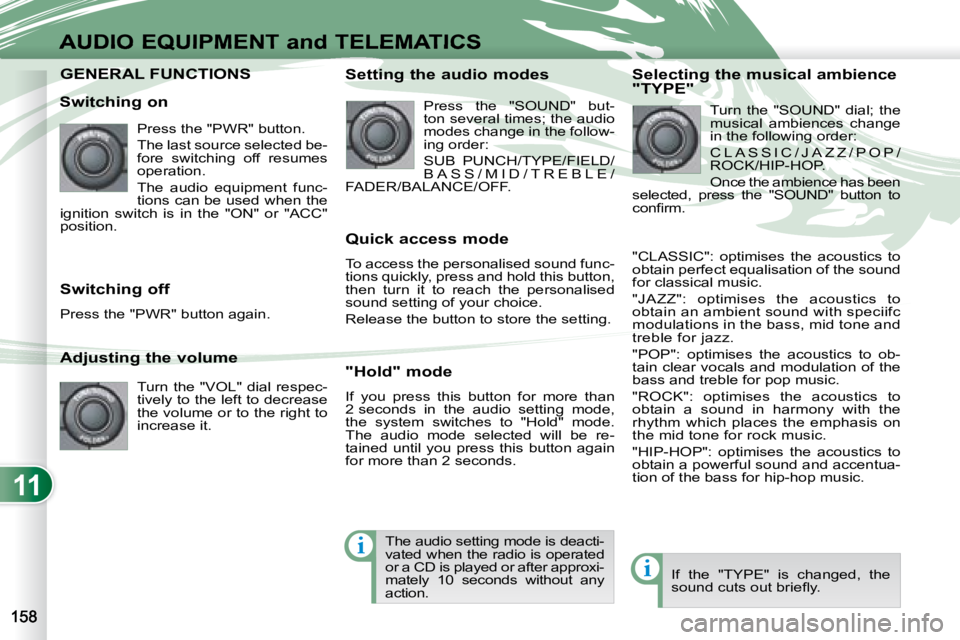

GENERAL FUNCTIONS GENERAL FUNCTIONS
Switching on Press the "PWR" button.
The last source selected be-
fore switching off resumes
operation.
The audio equipment func-
tions can be used when the
ignition switch is in the "ON" or "ACC"
position.
Adjusting the volume
Turn the "VOL" dial respec-
tively to the left to decrease
the volume or to the right to
increase it.
Switching off
Press the "PWR" button again. Setting the audio modes
Press the "SOUND" but-
ton several times; the audio
modes change in the follow-
ing order:
SUB PUNCH/TYPE/FIELD/
B A S S / M I D / T R E B L E /
FADER/BALANCE/OFF.
Quick access mode
To access the personalised sound func-
tions quickly, press and hold this button,
then turn it to reach the personalised
sound setting of your choice.
Release the button to store the setting.
"Hold" mode
If you press this button for more than
2 seconds in the audio setting mode,
the system switches to "Hold" mode.
The audio mode selected will be re-
tained until you press this button again
for more than 2 seconds. Selecting the musical ambience
"TYPE"
Turn the "SOUND" dial; the
musical ambiences change
in the following order:
C L A S S I C / J A Z Z / P O P /
ROCK/HIP-HOP.
Once the ambience has been
selected, press the "SOUND" button to
confi rm.
"CLASSIC": optimises the acoustics to
obtain perfect equalisation of the sound
for classical music.
"JAZZ": optimises the acoustics to
obtain an ambient sound with speciifc
modulations in the bass, mid tone and
treble for jazz.
"POP": optimises the acoustics to ob-
tain clear vocals and modulation of the
bass and treble for pop music.
"ROCK": optimises the acoustics to
obtain a sound in harmony with the
rhythm which places the emphasis on
the mid tone for rock music.
"HIP-HOP": optimises the acoustics to
obtain a powerful sound and accentua-
tion of the bass for hip-hop music.
If the "TYPE" is changed, the
sound cuts out briefl y.
The audio setting mode is deacti-
vated when the radio is operated
or a CD is played or after approxi-
mately 10 seconds without any
action.

11
ii
i
AUDIO EQUIPMENT and TELEMATICS

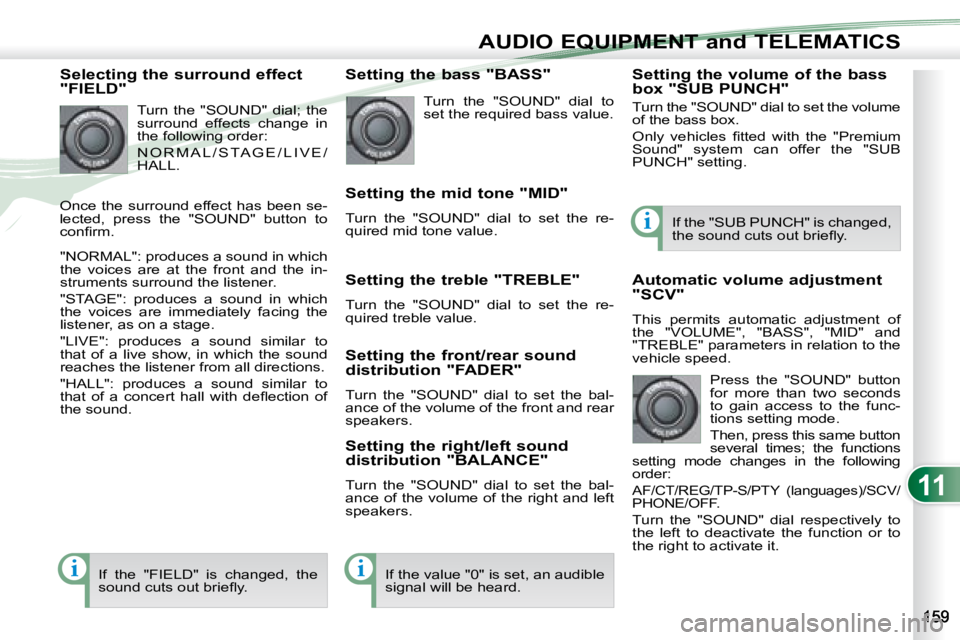

Selecting the surround effect
"FIELD" Turn the "SOUND" dial; the
surround effects change in
the following order:
N O R M A L / S TA G E / L I V E /
HALL.
"NORMAL": produces a sound in which
the voices are at the front and the in-
struments surround the listener.
"STAGE": produces a sound in which
the voices are immediately facing the
listener, as on a stage.
"LIVE": produces a sound similar to
that of a live show, in which the sound
reaches the listener from all directions.
"HALL": produces a sound similar to
that of a concert hall with defl ection of
the sound. Setting the bass "BASS"
Turn the "SOUND" dial to
set the required bass value.
Setting the mid tone "MID"
Turn the "SOUND" dial to set the re-
quired mid tone value.
Setting the treble "TREBLE"
Turn the "SOUND" dial to set the re-
quired treble value.
Setting the front/rear sound
distribution "FADER"
Turn the "SOUND" dial to set the bal-
ance of the volume of the front and rear
speakers.
Setting the right/left sound
distribution "BALANCE"
Turn the "SOUND" dial to set the bal-
ance of the volume of the right and left
speakers.
If the "FIELD" is changed, the
sound cuts out briefl y. If the value "0" is set, an audible
signal will be heard. Automatic volume adjustment
"SCV"
This permits automatic adjustment of
the "VOLUME", "BASS", "MID" and
"TREBLE" parameters in relation to the
vehicle speed.
Press the "SOUND" button
for more than two seconds
to gain access to the func-
tions setting mode.
Then, press this same button
several times; the functions
setting mode changes in the following
order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "SOUND" dial respectively to
the left to deactivate the function or to
the right to activate it. If the "SUB PUNCH" is changed,
the sound cuts out briefl y.
Setting the volume of the bass
box "SUB PUNCH"
Turn the "SOUND" dial to set the volume
of the bass box.
Only vehicles fi tted with the "Premium
Sound" system can offer the "SUB
PUNCH" setting.
Once the surround effect has been se-
lected, press the "SOUND" button to
confi rm.
