Page 151 of 230
9
PRACTICAL INFORMATION
Push the repeater A towards the
rear and detach it.
Unclip the repeater.
Disconnect the repeater connector
and change the repeater.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer.

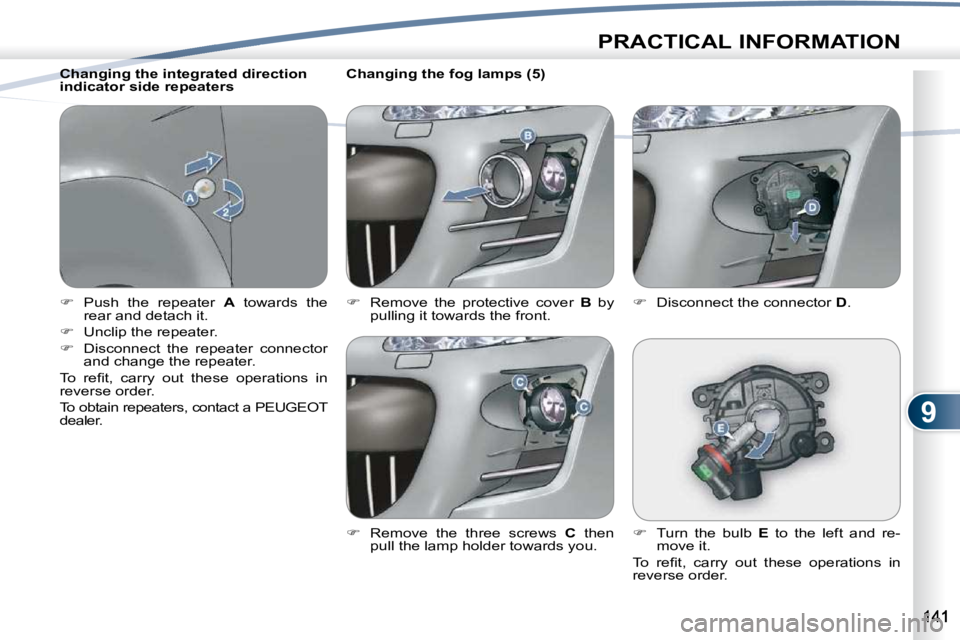

Changing the integrated direction
indicator side repeaters
Remove the protective cover B by
pulling it towards the front.
Changing the fog lamps (5)
Remove the three screws C then
pull the lamp holder towards you.
Disconnect the connector D .
Turn the bulb E to the left and re-
move it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 152 of 230
9
PRACTICAL INFORMATION
Rear lights
1. Third brake light (diodes).
2. Brake lights/Side lights
(21/5 - W21W - 5 W).
3. Direction indicators (WY21W - 21 W).
4. Reversing lights (W21W - 21 W).
5. Number plate lights (W5W - 5W).
6. Fog lamps (W21W - 21 W). Changing the brake lights/side
lights and direction indicators
These two bulbs are changed from out-
side with the tailgate open:
Open the tailgate (refer to the "Ac-
cess" section),
R e m o v e t h e t w o l i g h t fi x i n g b o l t s A ,
E x t r a c t t h e l i g h t f r o m o u t s i d e ,
Turn the pin C to the left and remove it.
Pull the bulb D and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Turn the pin B to the left and remove it.
Pull the bulb and change it. W h e n r e fi t t i n g t h e l i g h t , a l i g n t h e t w o
pins
E with the openings on the vehicle.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r .
Changing the third brake light
(diodes)
All work on the diode lights must be car-
ried out by a PEUGEOT dealer.
Page 153 of 230
9
PRACTICAL INFORMATION

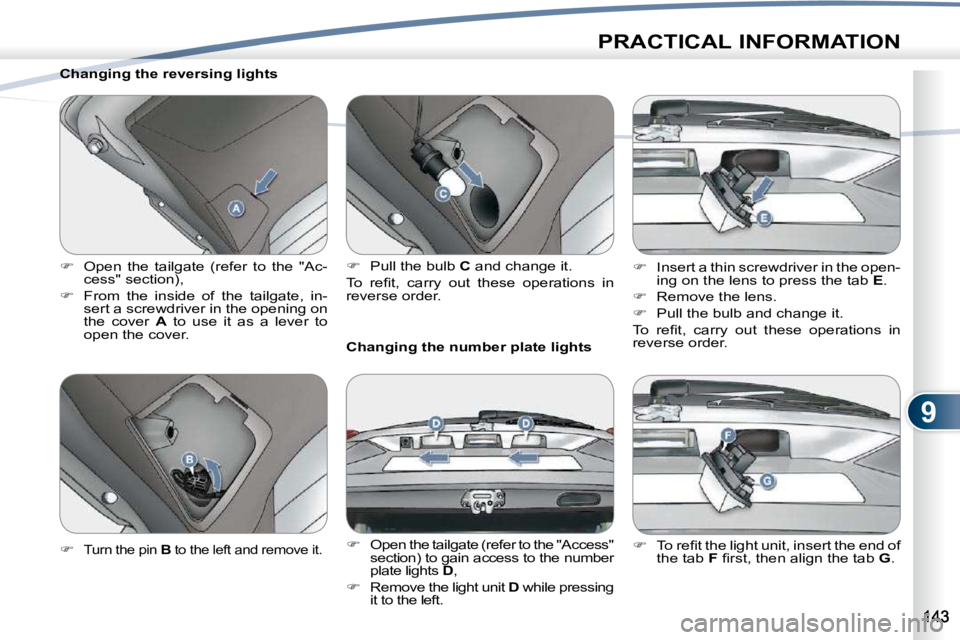

Changing the reversing lights
Open the tailgate (refer to the "Ac-
cess" section),
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A to use it as a lever to
open the cover. Changing the number plate lights
Open the tailgate (refer to the "Access"
section) to gain access to the number
plate lights D ,
Remove the light unit D while pressing
it to the left.
Turn the pin B to the left and remove it.
Pull the bulb C and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Insert a thin screwdriver in the open-
ing on the lens to press the tab E .
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
T o r e fi t t h e l i g h t u n i t , i n s e r t t h e e n d o f
the tab F fi r s t , t h e n a l i g n t h e t a b G .
Page 154 of 230
9
PRACTICAL INFORMATION

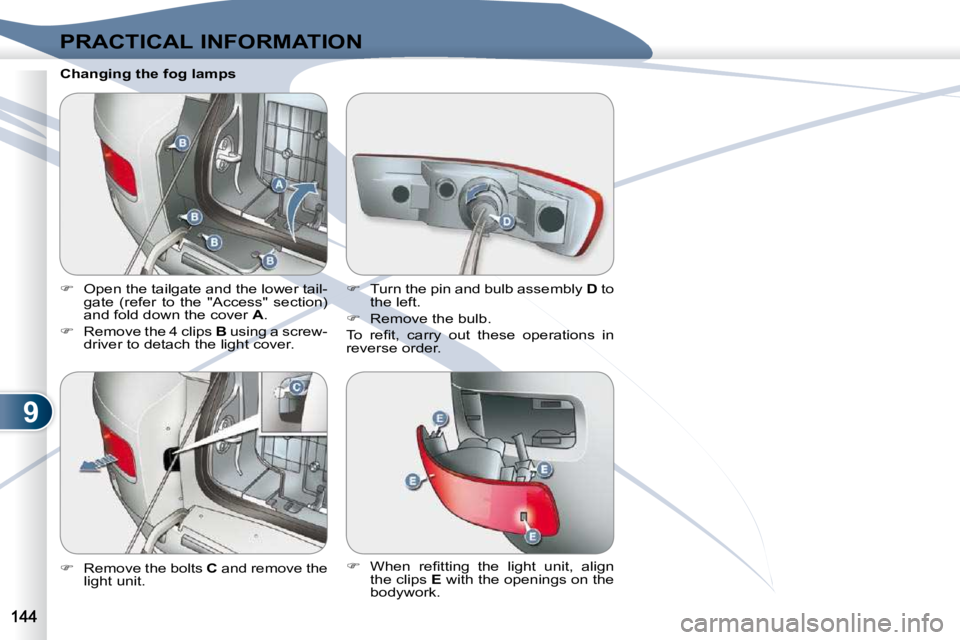

Changing the fog lamps
Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A .
Remove the 4 clips B using a screw-
driver to detach the light cover.
Remove the bolts C and remove the
light unit.
Turn the pin and bulb assembly D to
the left.
Remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
W h e n r e fi t t i n g t h e l i g h t u n i t , a l i g n
the clips E with the openings on the
bodywork.
Page 155 of 230
9
PRACTICAL INFORMATION

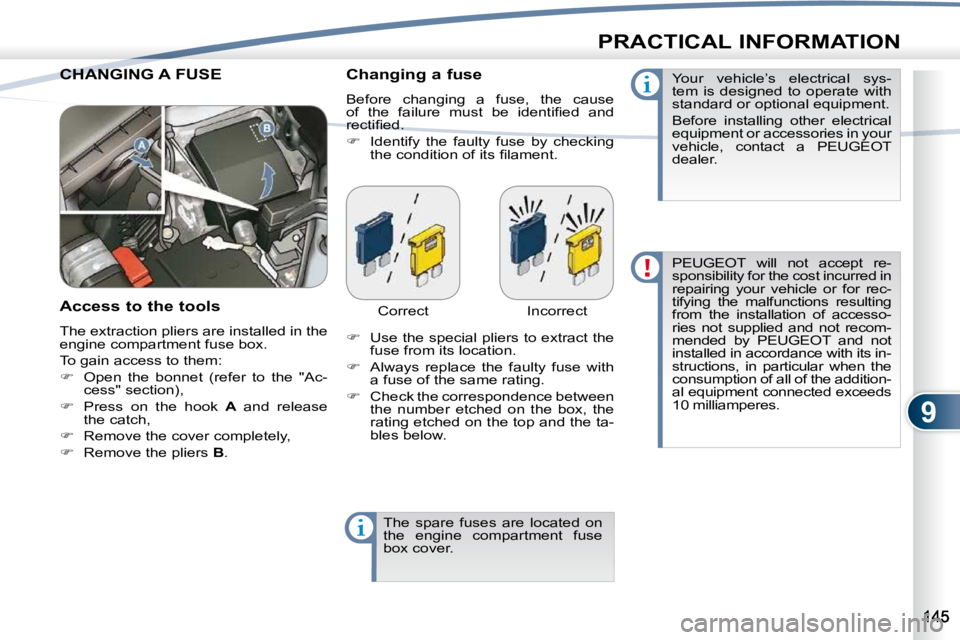

CHANGING A FUSE CHANGING Changing a fuse
Before changing a fuse, the cause
o f t h e f a i l u r e m u s t b e i d e n t i fi e d a n d
r e c t i fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e i n s t a l l e d i n t h e
e n g i n e c o m p a r t m e n t f u s e b o x .
To gain access to them:
Open the bonnet (refer to the "Ac-
cess" section),
Press on the hook A and release
the catch,
Remove the cover completely,
Remove the pliers B . Correct Incorrect
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its location.
Always replace the faulty fuse with
a fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the top and the ta-
bles below.
The spare fuses are located on
the engine compartment fuse
b o x c o v e r . Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer.
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for rec-
tifying the malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by PEUGEOT and not
installed in accordance with its in-
structions, in particular when the
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Page 156 of 230
9
PRACTICAL INFORMATION
Fascia fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
p a r t o f t h e f a s c i a b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2 15 A Brake lights, third brake light, built-in systems
interface.
3 10 A Rear fog lamps.
4 30 A Windscreen wipers and wash-wipe.
5 10 A Diagnostic socket.
6 20 A C e n t r a l l o c k i n g , e x t e r i o r m i r r o r s .
7 15 A Audio equipment, telematics, multifunction display,
hands-free kit.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.
9 15 A Multifunction display, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit, air
conditioning control panel, ABS control unit,
multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A E x t e r i o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s .
Page 157 of 230
9
PRACTICAL INFORMATION

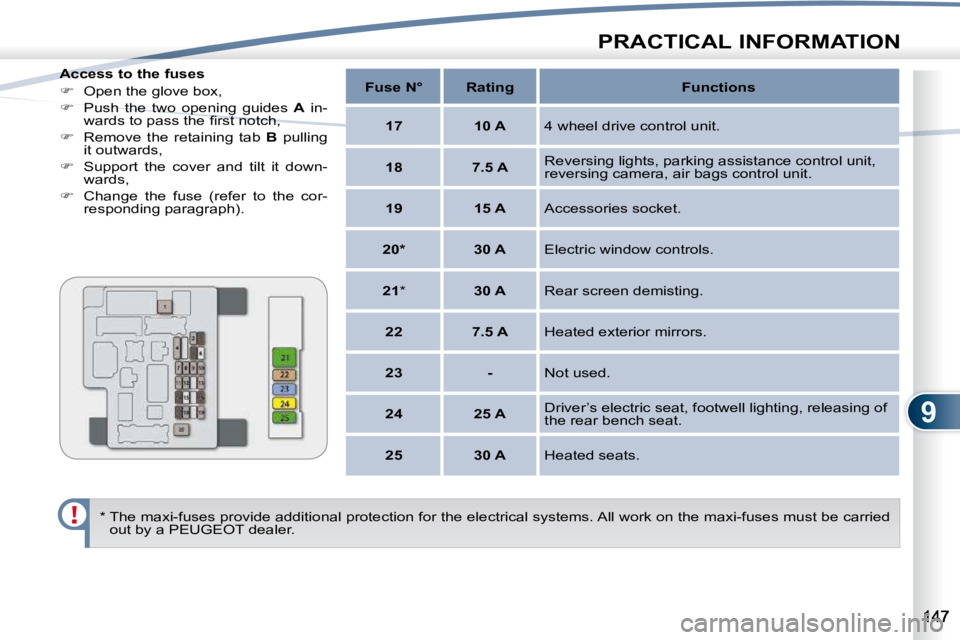

Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating Functions
17 10 A 4 wheel drive control unit.
18 7.5 A Reversing lights, parking assistance control unit,
reversing camera, air bags control unit.
19 15 A Accessories socket.
20* 30 A Electric window controls.
21 * 30 A Rear screen demisting.
22 7.5 A H e a t e d e x t e r i o r m i r r o r s .
23 - Not used.
24 25 A Driver’s electric seat, footwell lighting, releasing of
the rear bench seat.
25 30 A Heated seats.
Page 158 of 230
9
PRACTICAL INFORMATION

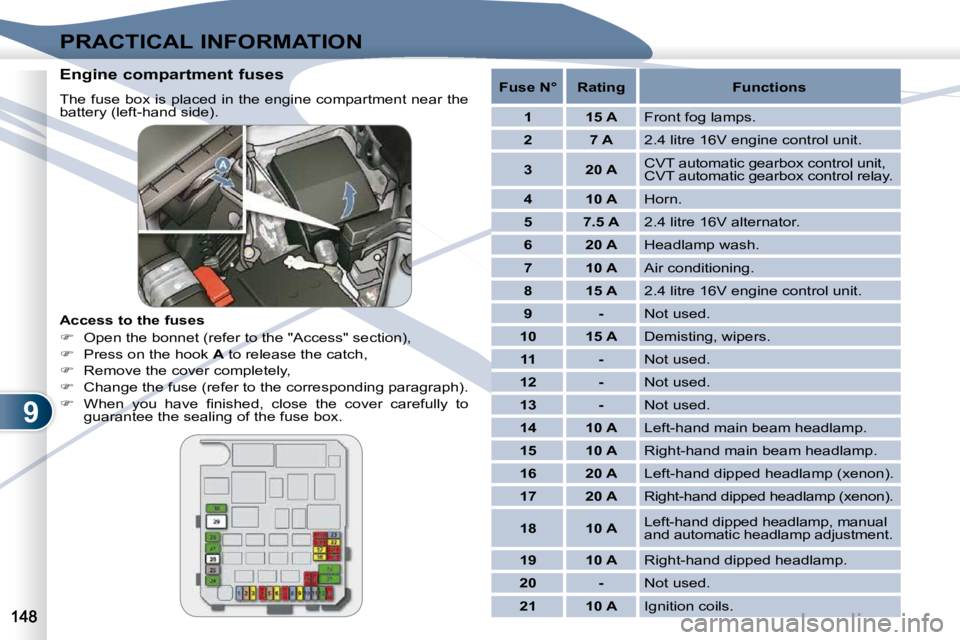

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e c o m p a r t m e n t n e a r t h e
battery (left-hand side).
Access to the fuses
Open the bonnet (refer to the "Access" section),
Press on the hook A to release the catch,
Remove the cover completely,
Change the fuse (refer to the corresponding paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e c o v e r c a r e f u l l y t o
g u a r a n t e e t h e s e a l i n g o f t h e f u s e b o x .
Fuse N° Rating Functions
1 15 A Front fog lamps.
2 7 A 2.4 litre 16V engine control unit.
3 20 A C V T a u t o m a t i c g e a r b o x c o n t r o l u n i t ,
C V T a u t o m a t i c g e a r b o x c o n t r o l r e l a y .
4 10 A Horn.
5 7.5 A 2.4 litre 16V alternator.
6 20 A Headlamp wash.
7 10 A Air conditioning.
8 15 A 2.4 litre 16V engine control unit.
9 - Not used.
10 15 A Demisting, wipers.
11 - Not used.
12 - Not used.
13 - Not used.
14 10 A Left-hand main beam headlamp.
15 10 A Right-hand main beam headlamp.
16 20 A L e f t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
17 20 A R i g h t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
18 10 A Left-hand dipped headlamp, manual
and automatic headlamp adjustment.
19 10 A Right-hand dipped headlamp.
20 - Not used.
21 10 A Ignition coils.
Page 159 of 230
9
PRACTICAL INFORMATION
Spare fuses
The spare fuses are located under the engine compartment
f u s e b o x c o v e r . The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse must be replaced with the 10 A spare
fuse , a 25 A fuse with a 20 A spare fuse and a 30 A
fuse with the audio system fuse (N° 31) .
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t
r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating
Functions
22 20 A E n g i n e c o n t r o l u n i t , w a t e r i n d i e s e l d e t e c t o r , i n j e c t i o n
p u m p ( D i e s e l ) , a i r fl o w s e n s o r , w a t e r
p r e s e n c e s e n s o r s , o x y g e n s e n s o r , c a m s h a f t p o s i t i o n s e n s o r , p u r g e c a n i s t e r s o l e n o i d v a l v e ,
vehicle speed sensor, variable timing (VTC) solenoid valve, EGR so lenoid valve.
23 15 A Petrol pump, fuel gauge.
24 * 30 A Starter.
25 - Not used.
26 * 40 A ABS control unit, ASC control unit.
27* 30 A ABS control unit, ASC control unit.
28 * 30 A Condenser fan.
29 * 40 A Radiator fan.
30 30 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
31 30 A A u d i o a m p l i fi e r .
32 30 A Diesel engine control unit.
Fuse N° Rating
33 10 A
34 15 A
35 20 A
Page 160 of 230
9
PRACTICAL INFORMATION

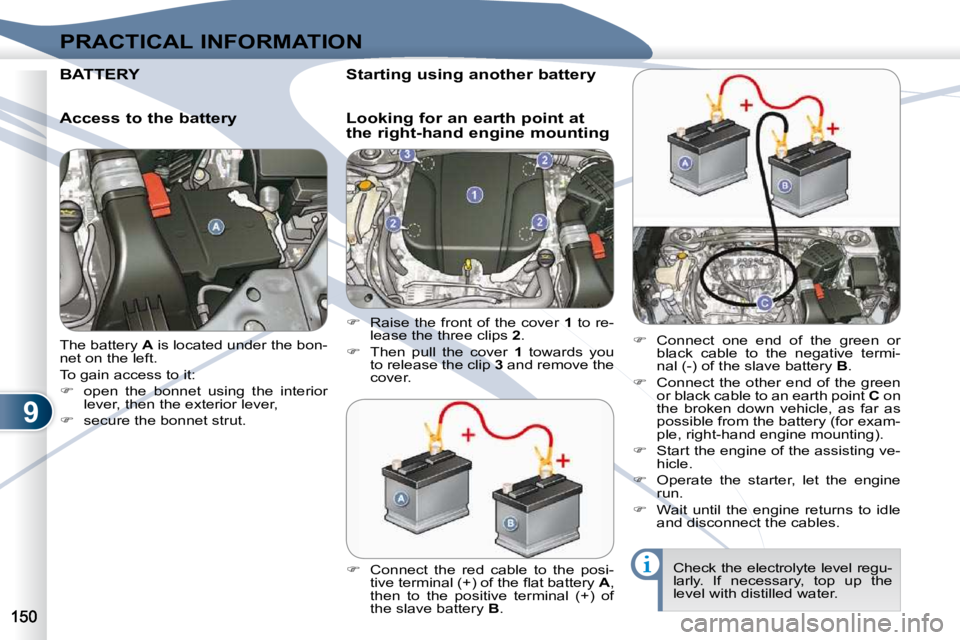

The battery A is located under the bon-
net on the left.
To gain access to it:
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut.
BATTER BATTERY
Access to the battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
ple, right-hand engine mounting).
Start the engine of the assisting ve-
hicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Raise the front of the cover 1 to re-
lease the three clips 2 .
Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level regu-
larly. If necessary, top up the
level with distilled water.
Starting using another battery
Looking for an earth point at
the right-hand engine mounting
