The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

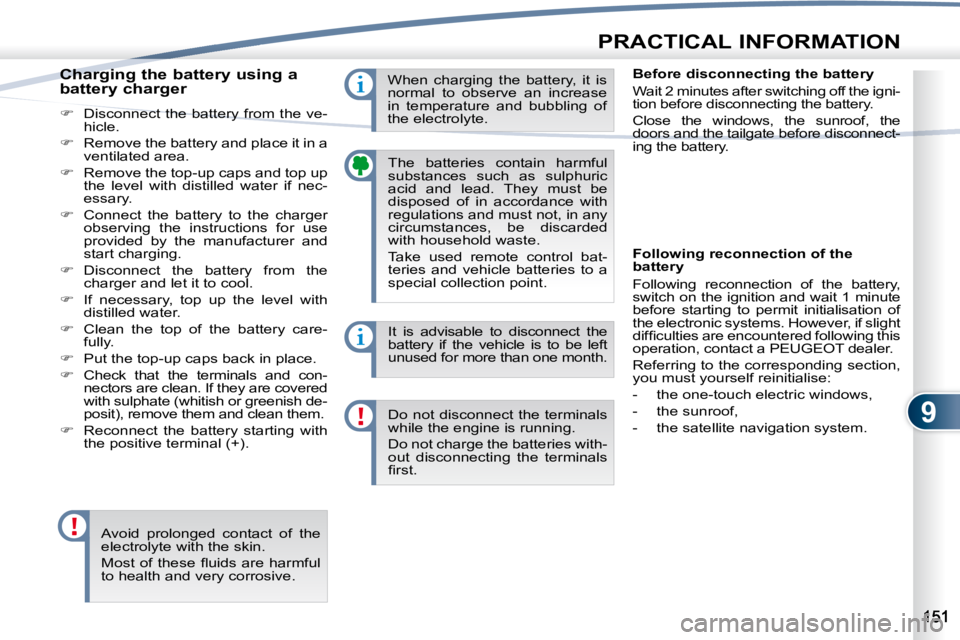

Charging the battery using a
battery charger

 Disconnect the battery from the ve-
hicle.

 Remove the battery and place it in a
ventilated area.

 Remove the top-up caps and top up
the level with distilled water if nec-
essary.

 Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.

 Disconnect the battery from the
charger and let it to cool.

 If necessary, top up the level with
distilled water.

 Clean the top of the battery care-
fully.

 Put the top-up caps back in place.

 Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish de-
posit), remove them and clean them.

 Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi rst.
Avoid prolonged contact of the
electrolyte with the skin.
Most of these fl uids are harmful
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before disconnect-
ing the battery.
Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
diffi culties are encountered following this
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.

9
PRACTICAL INFORMATION

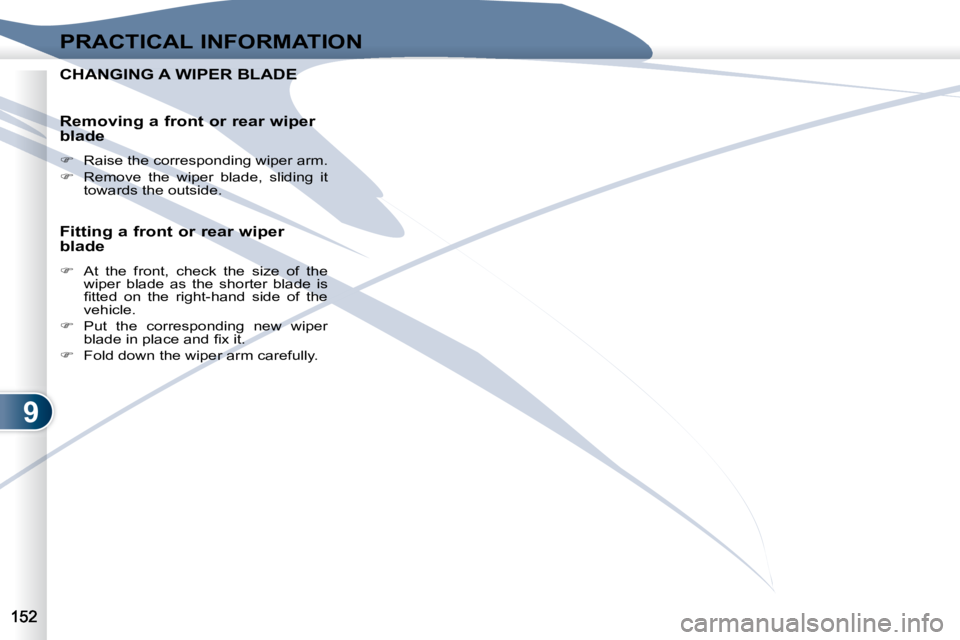

CHANGING A WIPER BLADE CHANGING A WIPER BLADE
Removing a front or rear wiper
blade

 Raise the corresponding wiper arm.

 Remove the wiper blade, sliding it
towards the outside.
Fitting a front or rear wiper
blade

 At the front, check the size of the
wiper blade as the shorter blade is
fi tted on the right-hand side of the
vehicle.

 Put the corresponding new wiper
blade in place and fi x it.

 Fold down the wiper arm carefully.

9
PRACTICAL INFORMATION
TOWING TOWING

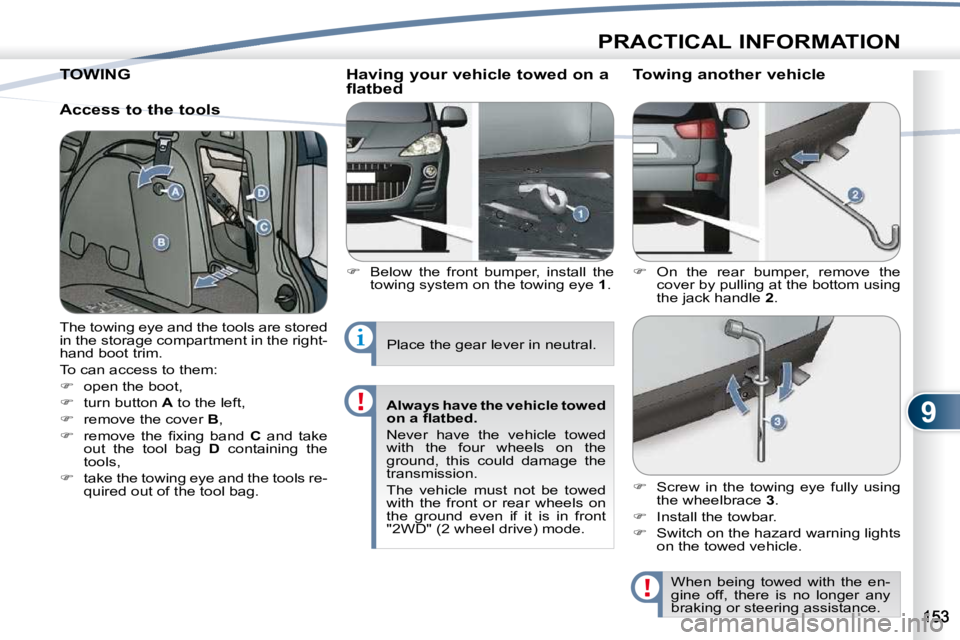

Access to the tools Having your vehicle towed on a
flatbed

 Below the front bumper, install the
towing system on the towing eye 1 .
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To can access to them:

 open the boot,

 turn button A to the left,

 remove the cover B ,

 remove the fi xing band C and take
out the tool bag D containing the
tools,

 take the towing eye and the tools re-
quired out of the tool bag. Place the gear lever in neutral.

Always have the vehicle towed
on a fl atbed.
Never have the vehicle towed
with the four wheels on the
ground, this could damage the
transmission.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode. Towing another vehicle

 On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2 .

 Screw in the towing eye fully using
the wheelbrace 3 .

 Install the towbar.

 Switch on the hazard warning lights
on the towed vehicle.
When being towed with the en-
gine off, there is no longer any
braking or steering assistance.

9
PRACTICAL INFORMATION

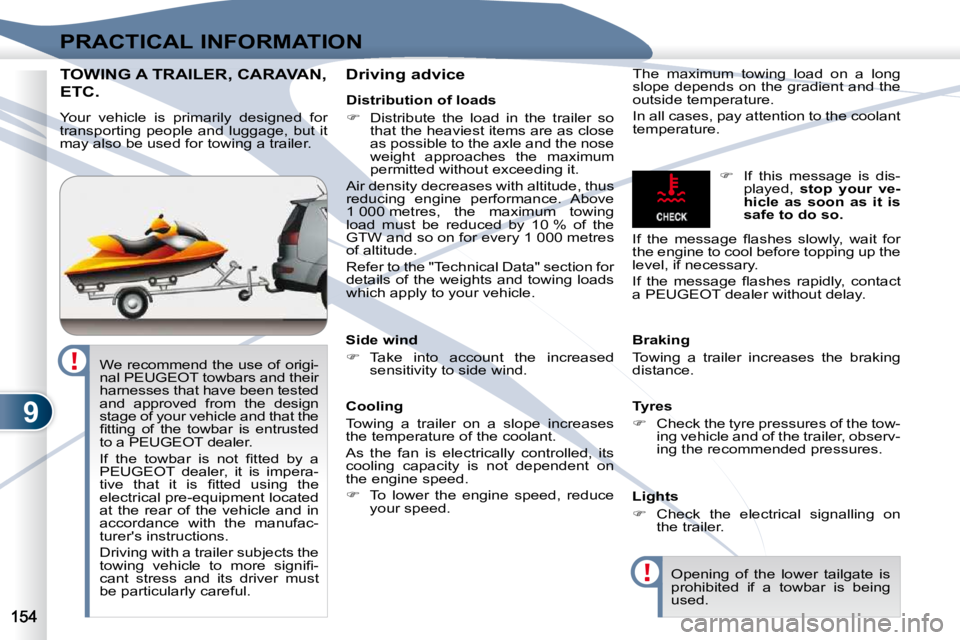

TOWING A TRAILER, CARAVAN, TOWING A TRAILER, CARAVAN,
ETC.
Driving advice The maximum towing load on a long
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Side wind

 Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

 To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres

 Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.
Lights

 Check the electrical signalling on
the trailer.
 If this message is dis-
played, stop your ve-
hicle as soon as it is
safe to do so.
If the message fl ashes slowly, wait for
the engine to cool before topping up the
level, if necessary.
If the message fl ashes rapidly, contact
a PEUGEOT dealer without delay.
Opening of the lower tailgate is
prohibited if a towbar is being
used.
We recommend the use of origi-
nal PEUGEOT towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle and that the
fi tting of the towbar is entrusted
to a PEUGEOT dealer.
If the towbar is not fi tted by a
PEUGEOT dealer, it is impera-
tive that it is fi tted using the
electrical pre-equipment located
at the rear of the vehicle and in
accordance with the manufac-
turer's instructions.
Driving with a trailer subjects the
towing vehicle to more signifi -
cant stress and its driver must
be particularly careful.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads

 Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing
load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.

9
PRACTICAL INFORMATION

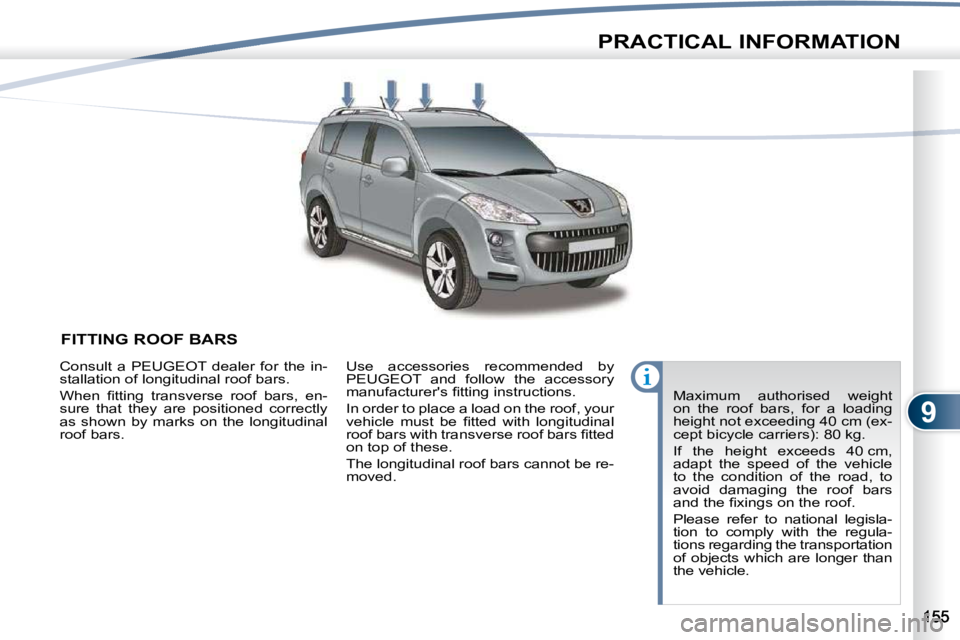

FITTING ROOF BARS
Maximum authorised weight
on the roof bars, for a loading
height not exceeding 40 cm (ex-
cept bicycle carriers): 80 kg.
If the height exceeds 40 cm,
adapt the speed of the vehicle
to the condition of the road, to
avoid damaging the roof bars
and the fi xings on the roof.
Please refer to national legisla-
tion to comply with the regula-
tions regarding the transportation
of objects which are longer than
the vehicle.
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
When fi tting transverse roof bars, en-
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fi tting instructions.
In order to place a load on the roof, your
vehicle must be fi tted with longitudinal
roof bars with transverse roof bars fi tted
on top of these.
The longitudinal roof bars cannot be re-
moved.

9
PRACTICAL INFORMATION
The fi tting of electrical equip-
ment or accessories which are
not recommended by PEUGEOT
may result in a failure of your ve-
hicle's electronic system.
Please note this specifi c warn-
ing. You are advised to contact
a representative of the Marque
to be shown the range of
recommended equipment and
accessories.

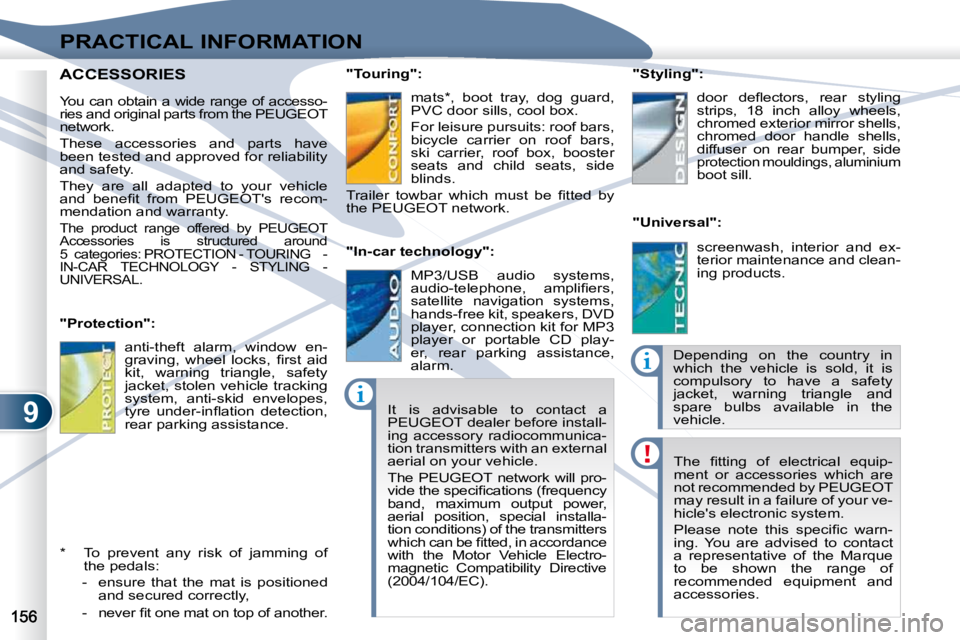

ACCESSORIES ACCESSORIES
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another. Depending on the country in
which the vehicle is sold, it is
compulsory to have a safety
jacket, warning triangle and
spare bulbs available in the
vehicle.
anti-theft alarm, window en-
graving, wheel locks, fi rst aid
kit, warning triangle, safety
jacket, stolen vehicle tracking
system, anti-skid envelopes,
tyre under-infl ation detection,
rear parking assistance. mats * , boot tray, dog guard,
PVC door sills, cool box.
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
ski carrier, roof box, booster
seats and child seats, side
blinds.
Trailer towbar which must be fi tted by
the PEUGEOT network.
MP3/USB audio systems,
audio-telephone, amplifi ers,
satellite navigation systems,
hands-free kit, speakers, DVD
player, connection kit for MP3
player or portable CD play-
er, rear parking assistance,
alarm. door defl ectors, rear styling
strips, 18 inch alloy wheels,
chromed exterior mirror shells,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, aluminium
boot sill.
screenwash, interior and ex-
terior maintenance and clean-
ing products.
It is advisable to contact a
PEUGEOT dealer before install-
ing accessory radiocommunica-
tion transmitters with an external
aerial on your vehicle.
The PEUGEOT network will pro-
vide the specifi cations (frequency
band, maximum output power,
aerial position, special installa-
tion conditions) of the transmitters
which can be fi tted, in accordance
with the Motor Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
and benefi t from PEUGEOT's recom-
mendation and warranty.
The product range offered by PEUGEOT
Accessories is structured around
5 categories: PROTECTION - TOURING -
IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.

10
TECHNICAL DATA

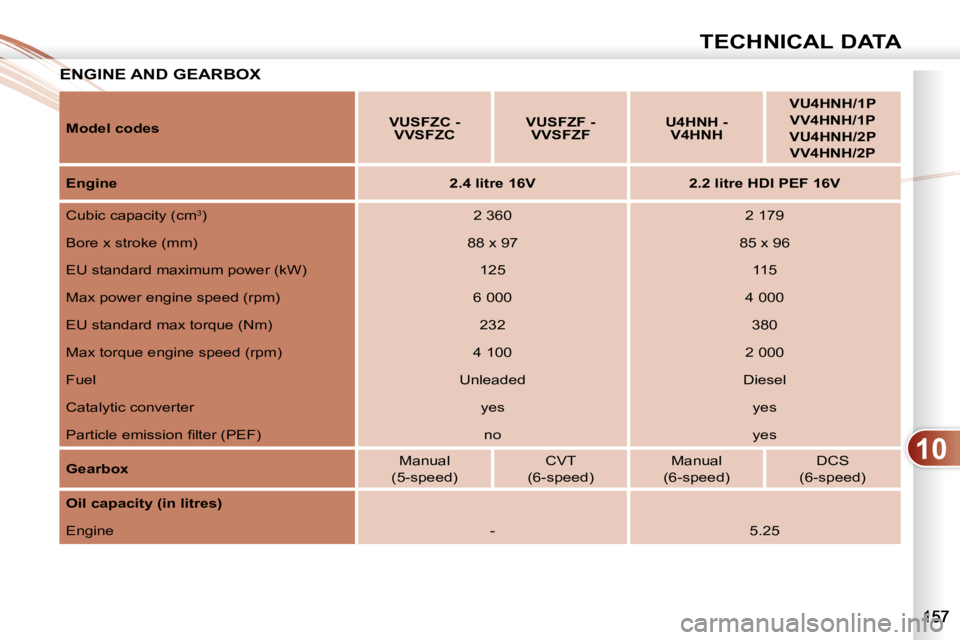

ENGINE AND GEARBOX ENGINE

Model codes
VUSFZC -
VVSFZC
VUSFZF -
VVSFZF
U4HNH -
V4HNH
VU4HNH/1P

VV4HNH/1P

VU4HNH/2P

VV4HNH/2P

Engine
2.4 litre 16V 2.2 litre HDI PEF 16V
Cubic capacity (cm 3
) 2 360 2 179
Bore x stroke (mm) 88 x 97 85 x 96
EU standard maximum power (kW) 125 115
Max power engine speed (rpm) 6 000 4 000
EU standard max torque (Nm) 232 380
Max torque engine speed (rpm) 4 100 2 000
Fuel Unleaded Diesel
Catalytic converter yes yes
Particle emission fi lter (PEF) no yes

Gearbox Manual
(5-speed) CVT
(6-speed) Manual
(6-speed) DCS
(6-speed)

Oil capacity (in litres)

Engine - 5.25

10
TECHNICAL DATA

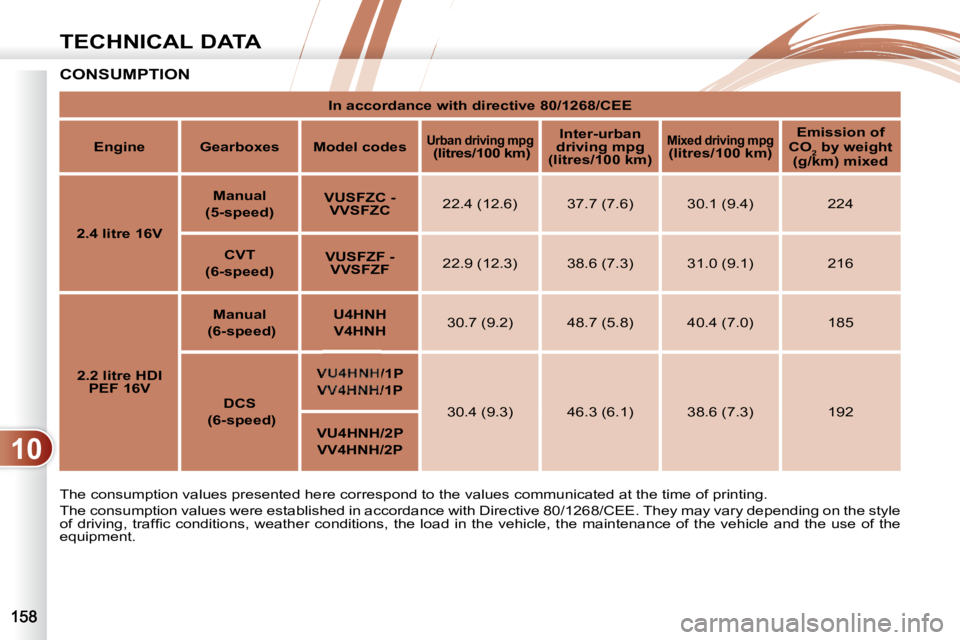

CONSUMPTION
The consumption values presented here correspond to the values communicated at the time of printing.
The consumption values were established in accordance with Dire ctive 80/1268/CEE. They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the u se of the
equipment.
In accordance with directive 80/1268/CEE

Engine Gearboxes Model codes
Urban driving mpg (litres/100 km)

Inter-urban
driving mpg
(litres/100 km) Mixed driving mpg (litres/100 km)

Emission of
CO 2 by weight
(g/km) mixed

2.4 litre 16V
Manual
(5-speed)
VUSFZC -
VVSFZC 22.4 (12.6) 37.7 (7.6) 30.1 (9.4) 224

CVT
(6-speed)
VUSFZF -
VVSFZF 22.9 (12.3) 38.6 (7.3) 31.0 (9.1) 216

2.2 litre HDI
PEF 16V
Manual
(6-speed)
U4HNH

V4HNH 30.7 (9.2) 48.7 (5.8) 40.4 (7.0) 185

DCS
(6-speed)
VU4HNH/1P
VV4HNH/1P
30.4 (9.3) 46.3 (6.1) 38.6 (7.3) 192

VU4HNH/2P
VV4HNH/2P

10
TECHNICAL DATA

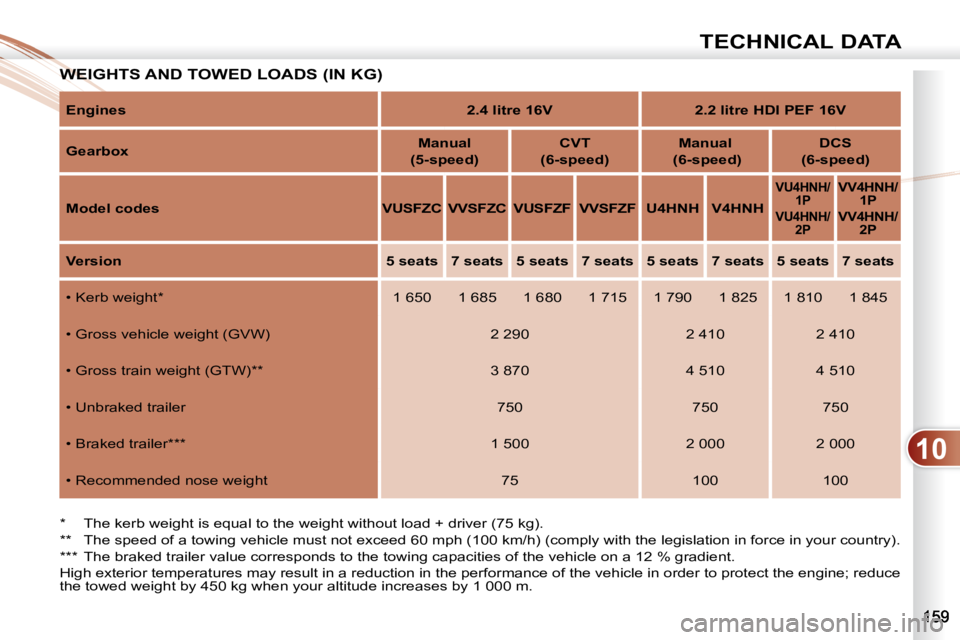

WEIGHTS AND TOWED LOADS (IN KG) WEIGHTS
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing ca pacities of the vehicle on a 12 % gradient.
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; reduce
the towed weight by 450 kg when your altitude increases by 1 000 m.

Engines
2.4 litre 16V 2.2 litre HDI PEF 16V

Gearbox
Manual
(5-speed)
CVT
(6-speed)
Manual
(6-speed)
DCS
(6-speed)

Model codes VUSFZC VVSFZC VUSFZF VVSFZF U4HNH V4HNH

VU4HNH/
1P

VU4HNH/
2P
VV4HNH/
1P

VV4HNH/
2P

Version
5 seats 7 seats 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats

10
TECHNICAL DATA

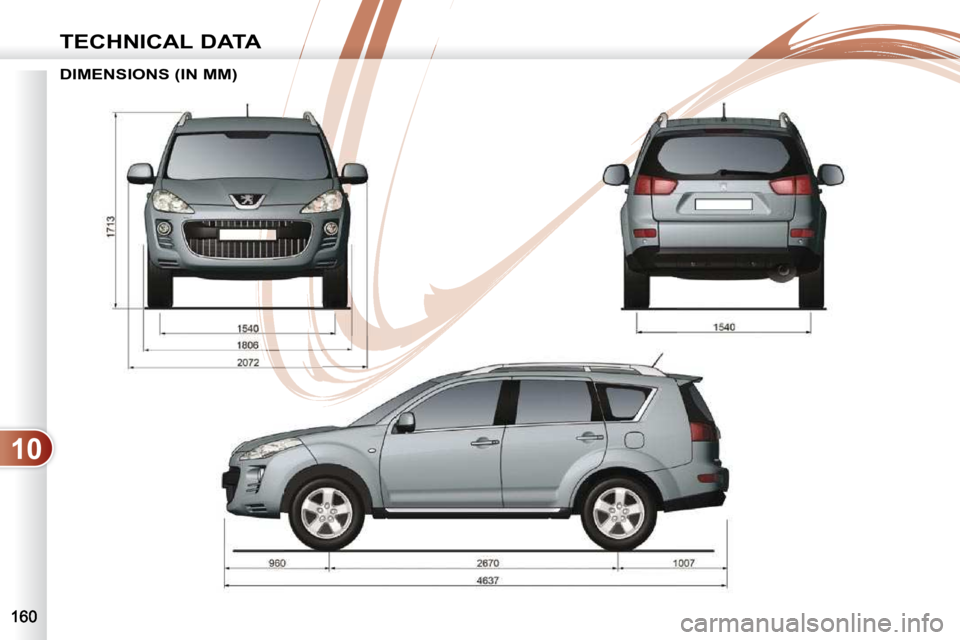

DIMENSIONS (IN MM)
