PEUGEOT 4007 2010.5 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 4007, Model: PEUGEOT 4007 2010.5Pages: 215, PDF Size: 15.37 MB
Page 151 of 215
10
TECHNICAL DATA
DIMENSIONS (IN MM) DIMENSIONS (IN MM)
Page 152 of 215
10
TECHNICAL DATA
A. Manufacturer’s plate.
T h e V e h i c l e I d e n t i fi c a t i o n N u m b e r (VIN) is indicated on a plate on the
centre pillar, on the driver’s side.
B. Serial number under the bonnet.
The VIN is engraved on the body- work near the windscreen.
C. Front number plate.
D. Tyres/paint label.
T h i s l a b e l i s a f fi x e d t o t h e p a s s e n - ger’s door centre pillar. It indicates the following informa-
tion:
-
tyres pressures, laden and unladen,
- wheel rim and tyre sizes,
- tyre pressure for the spare wheel,
- paint colour code.
E. Serial number behind the wind-
screen.
The VIN is engraved on the dash- board, behind the windscreen. The tyre pressures must be
checked when cold at least once
a month.
IDENTIFICATION MARKINGS TION MARKINGS
Low tyre pressures increase fuel
consumption.
Page 153 of 215
11

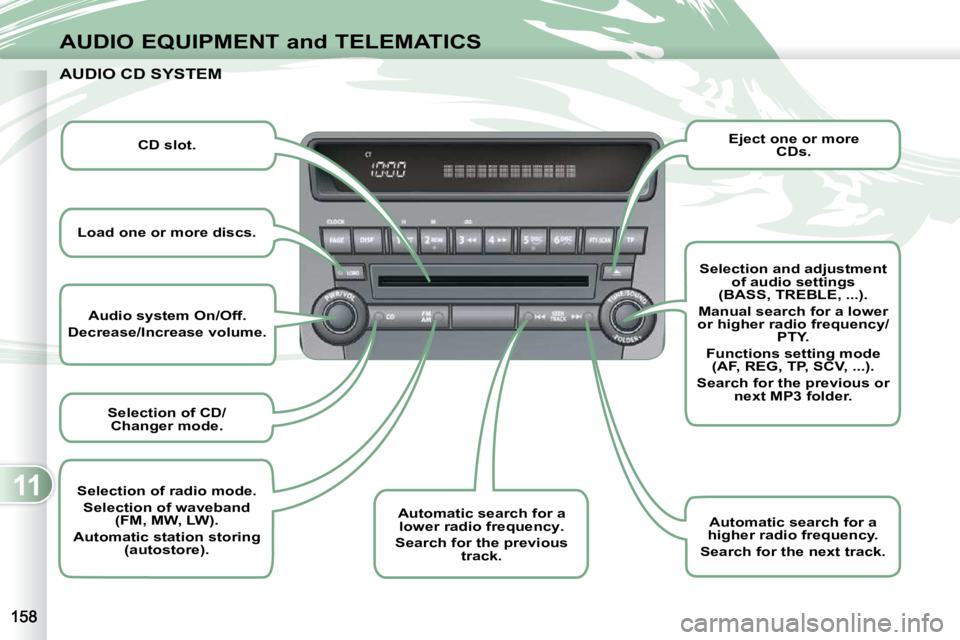

AUDIO EQUIPMENT and TELEMATICS
Audio
system
On/Off.
Decrease
/
Increase
volume.
Selection of
CD/
Changer mode.
Automatic search for a
lower radio frequency
.
Search for the previous
track.
Selection and
adjustment
of
audio
settings
(BASS, TREBLE, ...).
Manual search for a lower
or higher radio frequency/ PTY.
Functions setting mode
(AF, REG, TP, SCV, ...).
Search for the previous or
next MP3 folder.
Eject
one or more
CDs.
CD slot.
Load
one or more discs.
AUDIO CD SYSTEM AUDIO CD SYSTEM
Selection of
radio mode.
Selection of
waveband
(FM, MW, LW).
Automatic station storing
(autostore).
Automatic search for a
higher radio frequency.
Search for the next track.
Page 154 of 215
11
AUDIO EQUIPMENT and TELEMATICS

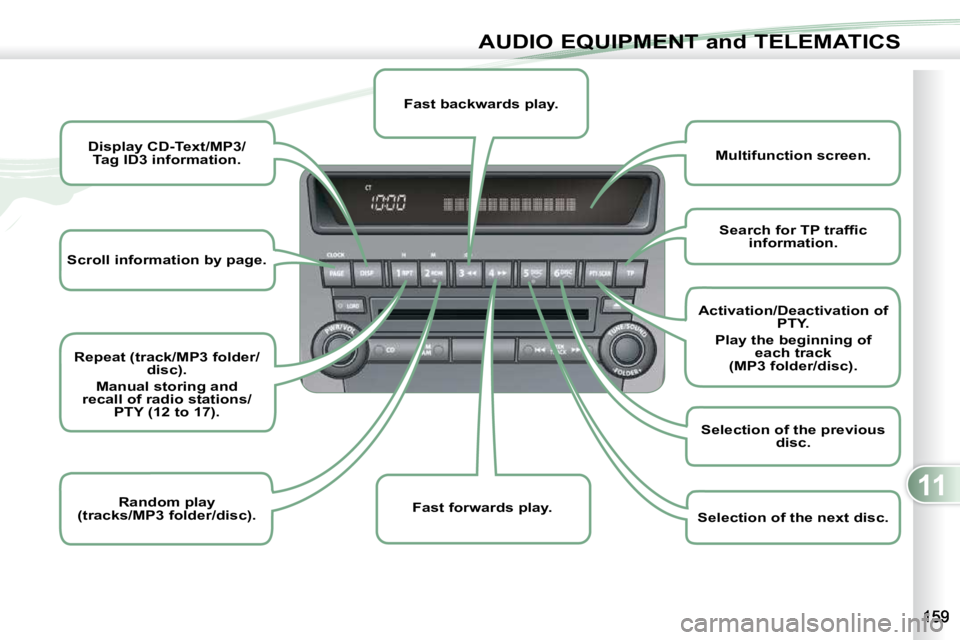

Scroll
information by page.
Display
CD-Text/MP3/
Tag ID3 information.
Repeat (track/MP3 folder/
disc).
Manual storing and
recall
of
radio stations/
PTY (12 to 17).
Random play
(tracks/MP3 folder/disc).
Multifunction
screen
.
Fast backwards play.
Fast forwards play.
S e a r c h f o r T P t r a f fi c
information.
Activation/Deactivation of
PTY.
Play
the beginning of
each track
(MP3 folder/disc).
Selection of the previous
disc.
Selection of the next disc.
Page 155 of 215
11
AUDIO EQUIPMENT and TELEMATICS

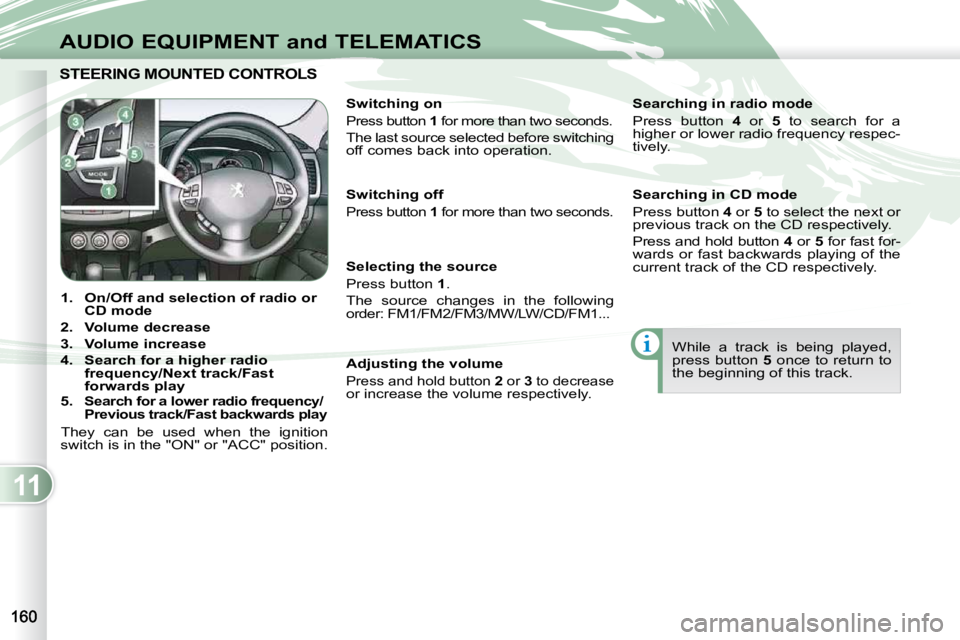

STEERING MOUNTED CONTROLS STEERING MOUNTED CONTROL
1. On/Off and selection of
radio or
CD mode
2. Volume decrease
3. Volume increase
4. Search for a higher radio
frequency/Next track/Fast
forwards play
5.
Search for a lower radio frequency/
Previous track/Fast backwards play
They can be used when the ignition
switch is in the "ON" or "ACC" position. Switching on
Press button
1 for more than two seconds.
The last source selected before switching
off comes back into operation.
Selecting the source
Press button 1 .
The source changes in the following
order: FM1/FM2/FM3/MW/LW/CD/FM1... Searching in radio mode
Press button
4 or 5 to search for a
higher or lower radio frequency respec-
tively.
While a track is being played,
press button 5 once to return to
the beginning of this track.
Adjusting the volume
Press and hold button
2 or 3 to decrease or increase the volume respectively.
Switching off
Press button
1 for more than two seconds.
Searching in CD mode
Press button 4 or 5 to select the next or
previous track on the CD respectively.
Press and hold button 4 or 5 for fast for-
wards or fast backwards playing of the
current track of the CD respectively.
Page 156 of 215
11
AUDIO EQUIPMENT and TELEMATICS

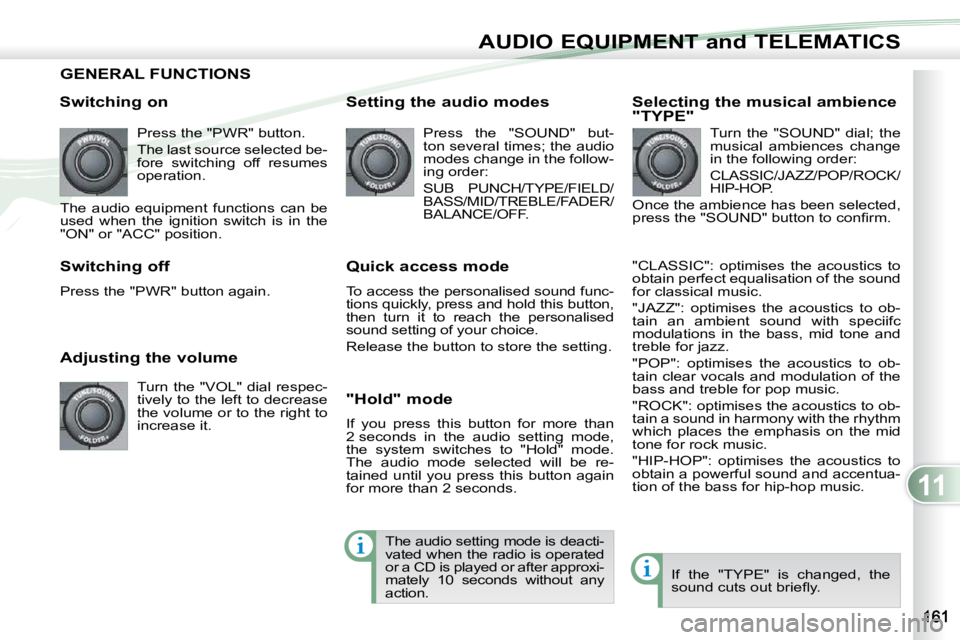

GENERAL FUNCTIONS
Switching on Press the "PWR" button.
The last source selected be-
fore switching off resumes
operation.
The audio equipment functions can be
used when the ignition switch is in the
"ON" or "ACC" position.
Adjusting the volume Turn the "VOL" dial respec-
tively to the left to decrease
the volume or to the right to
increase it.
Switching off
Press the "PWR" button again. Setting the audio modes
Press the "SOUND" but-
ton several times; the audio
modes change in the follow-
ing order:
SUB PUNCH/TYPE/FIELD/
BASS/MID/TREBLE/FADER/
BALANCE/OFF.
Quick access mode
To access the personalised sound func-
tions quickly, press and hold this button,
then turn it to reach the personalised
sound setting of your choice.
Release the button to store the setting.
"Hold" mode
If you press this button for more than
2 seconds in the audio setting mode,
the system switches to "Hold" mode.
The audio mode selected will be re-
tained until you press this button again
for more than 2 seconds. Selecting the musical ambience
"TYPE"
Turn the "SOUND" dial; the
musical ambiences change
in the following order:
CLASSIC/JAZZ/POP/ROCK/
HIP-HOP.
Once the ambience has been selected,
p r e s s t h e " S O U N D " b u t t o n t o c o n fi r m .
"CLASSIC": optimises the acoustics to
obtain perfect equalisation of the sound
for classical music.
"JAZZ": optimises the acoustics to ob-
tain an ambient sound with speciifc
modulations in the bass, mid tone and
treble for jazz.
"POP": optimises the acoustics to ob-
tain clear vocals and modulation of the
bass and treble for pop music.
"ROCK": optimises the acoustics to ob-
tain a sound in harmony with the rhythm
which places the emphasis on the mid
tone for rock music.
"HIP-HOP": optimises the acoustics to
obtain a powerful sound and accentua-
tion of the bass for hip-hop music.
If the "TYPE" is changed, the
s o u n d c u t s o u t b r i e fl y .
The audio setting mode is deacti-
vated when the radio is operated
or a CD is played or after approxi-
mately 10 seconds without any
action.
Page 157 of 215
11
AUDIO EQUIPMENT and TELEMATICS

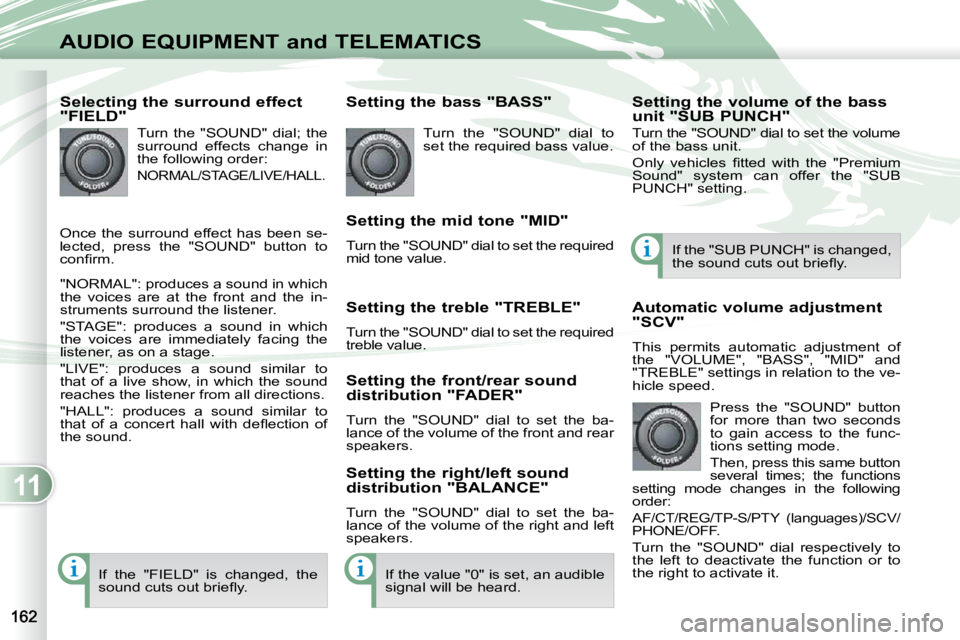

Selecting the surround effect
"FIELD" Turn the "SOUND" dial; the
surround effects change in
the following order:
NORMAL/STAGE/LIVE/HALL.
"NORMAL": produces a sound in which
the voices are at the front and the in-
struments surround the listener.
"STAGE": produces a sound in which
the voices are immediately facing the
listener, as on a stage.
"LIVE": produces a sound similar to
that of a live show, in which the sound
reaches the listener from all directions.
"HALL": produces a sound similar to
t h a t o f a c o n c e r t h a l l w i t h d e fl e c t i o n o f
the sound. Setting the bass "BASS"
Turn the "SOUND" dial to
set the required bass value.
Setting the mid tone "MID"
Turn the "SOUND" dial to set the required
mid tone value.
Setting the treble "TREBLE"
Turn the "SOUND" dial to set the required
treble value.
Setting the front/rear sound
distribution "FADER"
Turn the "SOUND" dial to set the ba-
lance of the volume of the front and rear
speakers.
Setting the right/left sound
distribution "BALANCE"
Turn the "SOUND" dial to set the ba-
lance of the volume of the right and left
speakers.
If the "FIELD" is changed, the
s o u n d c u t s o u t b r i e fl y . If the value "0" is set, an audible
signal will be heard. Automatic volume adjustment
"SCV"
This permits automatic adjustment of
the "VOLUME", "BASS", "MID" and
"TREBLE" settings in relation to the ve-
hicle speed.
Press the "SOUND" button
for more than two seconds
to gain access to the func-
tions setting mode.
Then, press this same button
several times; the functions
setting mode changes in the following
order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "SOUND" dial respectively to
the left to deactivate the function or to
the right to activate it. If the "SUB PUNCH" is changed,
t h e s o u n d c u t s o u t b r i e fl y .
Setting the volume of the bass
unit "SUB PUNCH"
Turn the "SOUND" dial to set the volu me
of the bass unit.
O n l y v e h i c l e s fi t t e d w i t h t h e " P r e m i u m
Sound" system can offer the "SUB
PUNCH" setting.
Once the surround effect has been se-
lected, press the "SOUND" button to
c o n fi r m .
Page 158 of 215
11
AUDIO EQUIPMENT and TELEMATICS

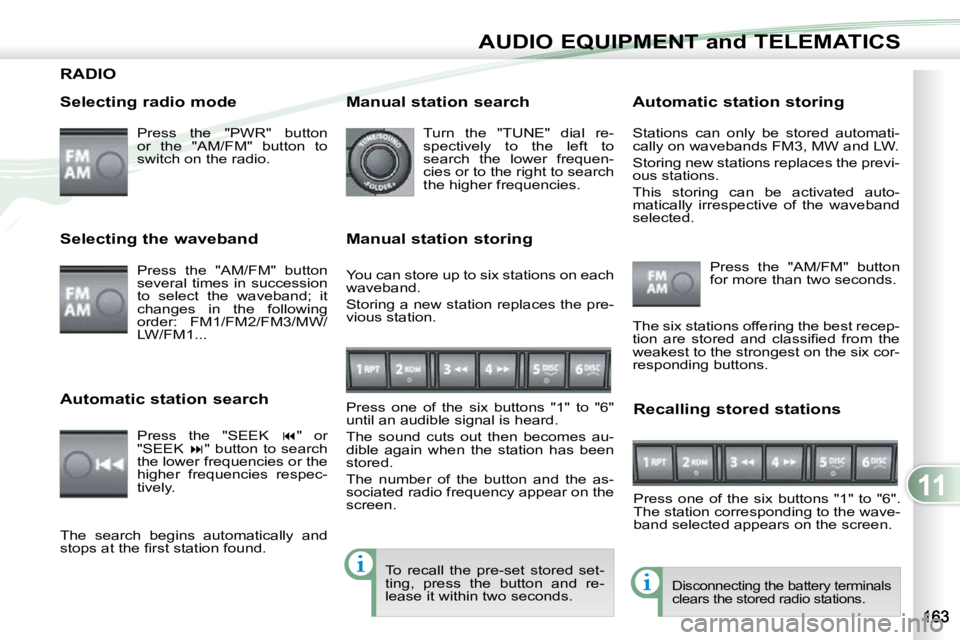

RADIO
Selecting radio mode Press the "PWR" button
or the "AM/FM" button to
switch on the radio.
Disconnecting the battery terminals
clears the stored radio stations.
Selecting the waveband
Press the "AM/FM" button
several times in succession
to select the waveband; it
changes in the following
order: FM1/FM2/FM3/MW/
LW/FM1...
Automatic station search Press the "SEEK " or
"SEEK " button to search
the lower frequencies or the
higher frequencies respec-
tively. Manual station search
Turn the "TUNE" dial re-
spectively to the left to
search the lower frequen-
cies or to the right to search
the higher frequencies.
Manual station storing
Press one of the six buttons "1" to "6"
until an audible signal is heard.
The sound cuts out then becomes au-
dible again when the station has been
stored.
The number of the button and the as-
sociated radio frequency appear on the
screen. Automatic station storing
Press the "AM/FM" button
for more than two seconds.
Recalling stored stations
Press one of the six buttons "1" to "6".
The station corresponding to the wave-
band selected appears on the screen.
The search begins automatically and
s t o p s a t t h e fi r s t s t a t i o n f o u n d . The six stations offering the best recep-
t i o n a r e s t o r e d a n d c l a s s i fi e d f r o m t h e
weakest to the strongest on the six cor-
responding buttons.
You can store up to six stations on each
waveband.
Storing a new station replaces the pre-
vious station. Stations can only be stored automati-
cally on wavebands FM3, MW and LW.
Storing new stations replaces the previ-
ous stations.
This storing can be activated auto-
matically irrespective of the waveband
selected.
To recall the pre-set stored set-
ting, press the button and re-
lease it within two seconds.
Page 159 of 215
11
AUDIO EQUIPMENT and TELEMATICS

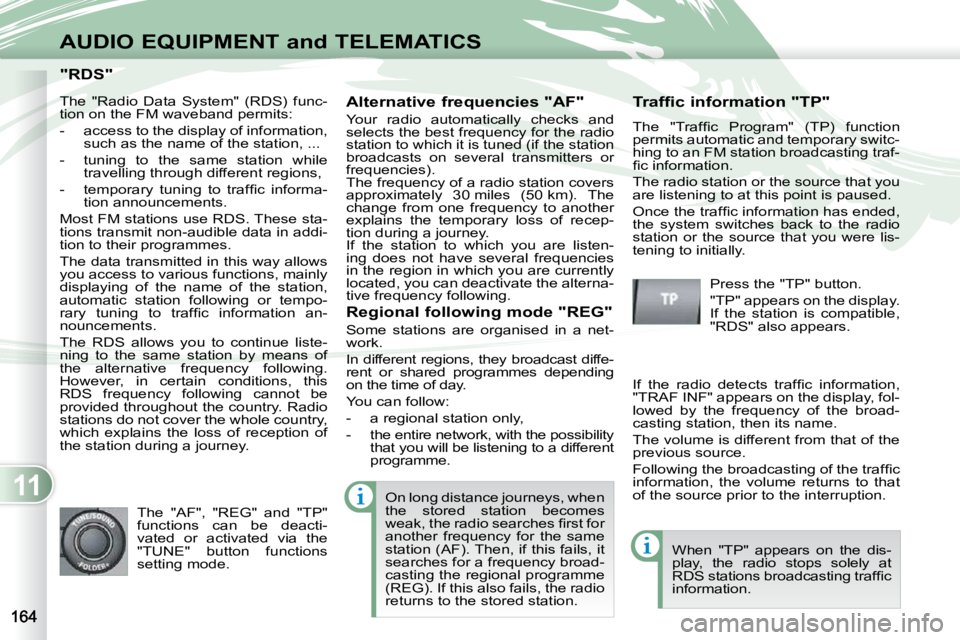

"RDS" "RDS"
Alternative frequencies "AF"
Your radio automatically checks and
selects the best frequency for the radio
station to which it is tuned (if the station
broadcasts on several transmitters or
frequencies).
The frequency of a radio station covers
approximately 30 miles (50 km). The
change from one frequency to another
explains the temporary loss of recep-
tion during a journey.
If the station to which you are listen-
ing does not have several frequencies
in the region in which you are currently
located, you can deactivate the alterna-
tive frequency following. Traffic information "TP"
T h e " T r a f fi c P r o g r a m " ( T P ) f u n c t i o n
permits automatic and temporary switc-
hing to an FM station broadcasting traf-
fi c i n f o r m a t i o n .
The radio station or the source that you
are listening to at this point is paused.
O n c e t h e t r a f fi c i n f o r m a t i o n h a s e n d e d ,
the system switches back to the radio
station or the source that you were lis-
tening to initially.
Regional following mode "REG"
Some stations are organised in a net-
work.
In different regions, they broadcast diffe-
rent or shared programmes depending
on the time of day.
You can follow:
- a regional station only,
- the entire network, with the possibility that you will be listening to a different
programme.
The "AF", "REG" and "TP"
functions can be deacti-
vated or activated via the
"TUNE" button functions
setting mode. Press the "TP" button.
"TP" appears on the display.
If the station is compatible,
"RDS" also appears.
I f t h e r a d i o d e t e c t s t r a f fi c i n f o r m a t i o n ,
"TRAF INF" appears on the display, fol-
lowed by the frequency of the broad-
casting station, then its name.
The volume is different from that of the
previous source.
F o l l o w i n g t h e b r o a d c a s t i n g o f t h e t r a f fi c
information, the volume returns to that
of the source prior to the interruption. When "TP" appears on the dis-
play, the radio stops solely at
R D S s t a t i o n s b r o a d c a s t i n g t r a f fi c
information.
On long distance journeys, when
the stored station becomes
w e a k , t h e r a d i o s e a r c h e s fi r s t f o r
another frequency for the same
station (AF). Then, if this fails, it
searches for a frequency broad-
casting the regional programme
(REG). If this also fails, the radio
returns to the stored station.
The "Radio Data System" (RDS) func-
tion on the FM waveband permits:
- access to the display of information,
such as the name of the station, ...
- tuning to the same station while travelling through different regions,
- t e m p o r a r y t u n i n g t o t r a f fi c i n f o r m a - tion announcements.
Most FM stations use RDS. These sta-
tions transmit non-audible data in addi-
tion to their programmes.
The data transmitted in this way allows
you access to various functions, mainly
displaying of the name of the station,
automatic station following or tempo-
r a r y t u n i n g t o t r a f fi c i n f o r m a t i o n a n -
nouncements.
The RDS allows you to continue liste-
ning to the same station by means of
the alternative frequency following.
However, in certain conditions, this
RDS frequency following cannot be
provided throughout the country. Radio
stations do not cover the whole country,
which explains the loss of reception of
the station during a journey.
Page 160 of 215
11
AUDIO EQUIPMENT and TELEMATICS

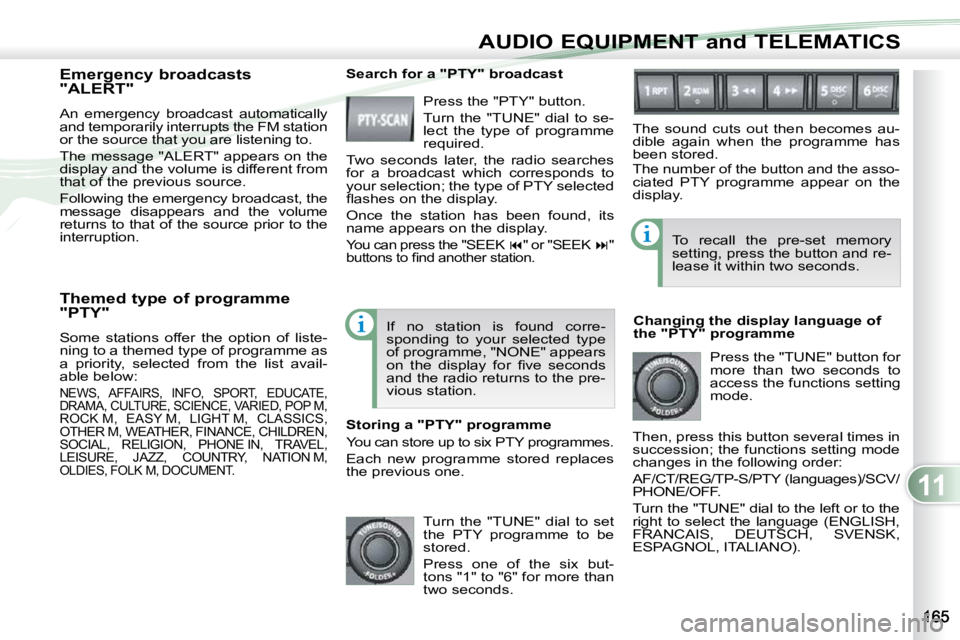

Themed type of programme
"PTY"
Some stations offer the option of liste-
ning to a themed type of programme as
a priority, selected from the list avail-
able below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED, POP M,
ROCK M, EASY M, LIGHT M, CLASSICS,
OTHER M, WEATHER, FINANCE, CHILDREN,
SOCIAL, RELIGION, PHONE IN, TRAVEL,
LEISURE, JAZZ, COUNTRY, NATION M
,
OLDIES, FOLK M, DOCUMENT.
Emergency broadcasts
"ALERT"
An emergency broadcast automatically
and temporarily interrupts the FM station
or the source that you are listening to.
The message "ALERT" appears on the
display and the volume is different from
that of the previous source.
Following the emergency broadcast, the
message disappears and the volume
returns to that of the source prior to the
interruption. Search for a "PTY" broadcast
Press the "PTY" button.
Turn the "TUNE" dial to se-
lect the type of programme
required.
Two seconds later, the radio searches
for a broadcast which corresponds to
your selection; the type of PTY selected
fl a s h e s o n t h e d i s p l a y .
Once the station has been found, its
name appears on the display.
You can press the "SEEK " or "SEEK "
b u t t o n s t o fi n d a n o t h e r s t a t i o n .
If no station is found corre-
sponding to your selected type
of programme, "NONE" appears
o n t h e d i s p l a y f o r fi v e s e c o n d s
and the radio returns to the pre-
vious station.
Storing a "PTY" programme
You can store up to six PTY programmes.
Each new programme stored replaces
the previous one. To recall the pre-set memory
setting, press the button and re-
lease it within two seconds.
Changing the display language of
the "PTY" programme Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button several times in
succession; the functions setting mode
changes in the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial to the left or to the
right to select the language (ENGLISH,
FRANCAIS, DEUTSCH, SVENSK,
ESPAGNOL, ITALIANO).
The sound cuts out then becomes au-
dible again when the programme has
been stored.
The number of the button and the asso-
ciated PTY programme appear on the
display.
Turn the "TUNE" dial to set
the PTY programme to be
stored.
Press one of the six but-
tons "1" to "6" for more than
two seconds.
