Page 141 of 215
9
PRACTICAL INFORMATION
Spare fuses
The spare fuses are located under the engine compartment
f u s e b o x c o v e r . The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse must be replaced with the 10 A spare
fuse , a 25 A fuse with a 20 A spare fuse and a 30 A
fuse with the audio system fuse (N° 31) .
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t
r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.

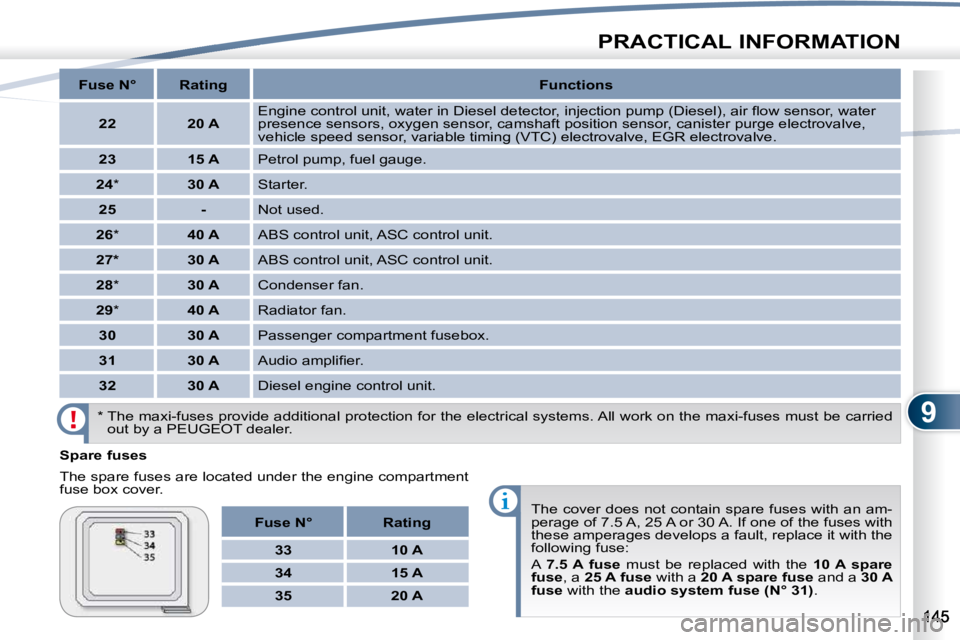

Fuse N° Rating
Functions
22 20 A E n g i n e c o n t r o l u n i t , w a t e r i n D i e s e l d e t e c t o r , i n j e c t i o n
p u m p ( D i e s e l ) , a i r fl o w s e n s o r , w a t e r
p r e s e n c e s e n s o r s , o x y g e n s e n s o r , c a m s h a f t p o s i t i o n s e n s o r , c a n i s t e r p u r g e e l e c t r o v a l v e ,
vehicle speed sensor, variable timing (VTC) electrovalve, EGR electro valve.
23 15 A Petrol pump, fuel gauge.
24 * 30 A Starter.
25 - Not used.
26 * 40 A ABS control unit, ASC control unit.
27* 30 A ABS control unit, ASC control unit.
28 * 30 A Condenser fan.
29 * 40 A Radiator fan.
30 30 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
31 30 A A u d i o a m p l i fi e r .
32 30 A Diesel engine control unit.
Fuse N° Rating
33 10 A
34 15 A
35 20 A
Page 142 of 215
9
PRACTICAL INFORMATION
The battery A is located under the bon-
net on the left.
To gain access to it:
open the bonnet using the interior
r e l e a s e l e v e r , t h e n t h e e x t e r i o r s a f e -
ty catch,
secure the bonnet stay.
BATTER BATTERY
Access to the battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
ple, right-hand engine mounting).
Start the engine of the assisting ve-
hicle.
Operate the starter, let the engine run.
Wait until the engine returns to idle
and disconnect the cables.
Raise the front of the cover 1 to re-
lease the three clips 2 .
Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level regu-
larly. If necessary, top up the
level with distilled water.
Starting using another battery
Looking for an earth point at
the right-hand engine mounting
Page 143 of 215
9
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

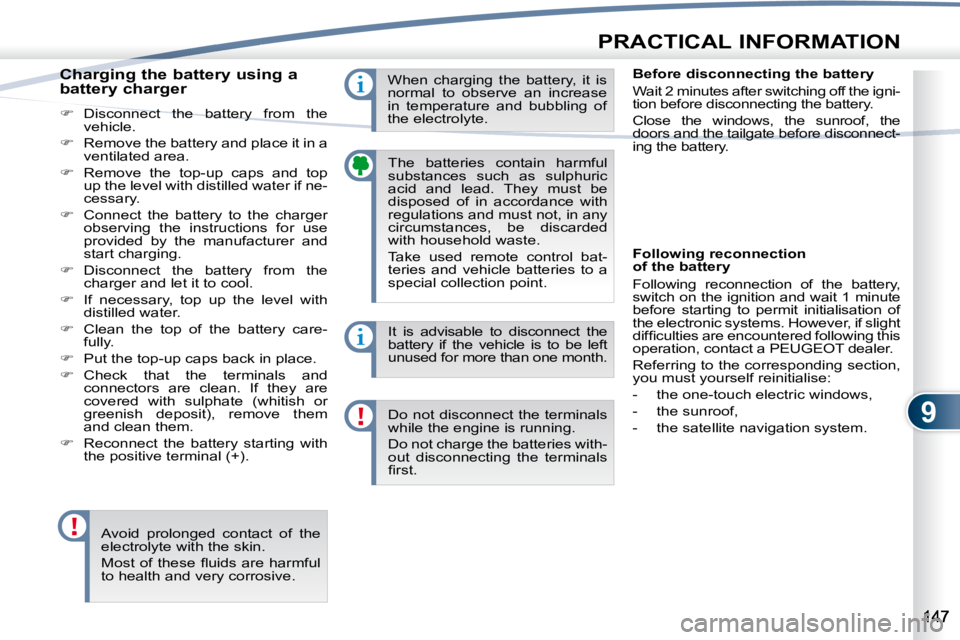

Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top
up the level with distilled water if ne-
cessary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them
and clean them.
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before disconnect-
ing the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w i n g t h i s
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
Page 144 of 215
9
PRACTICAL INFORMATION

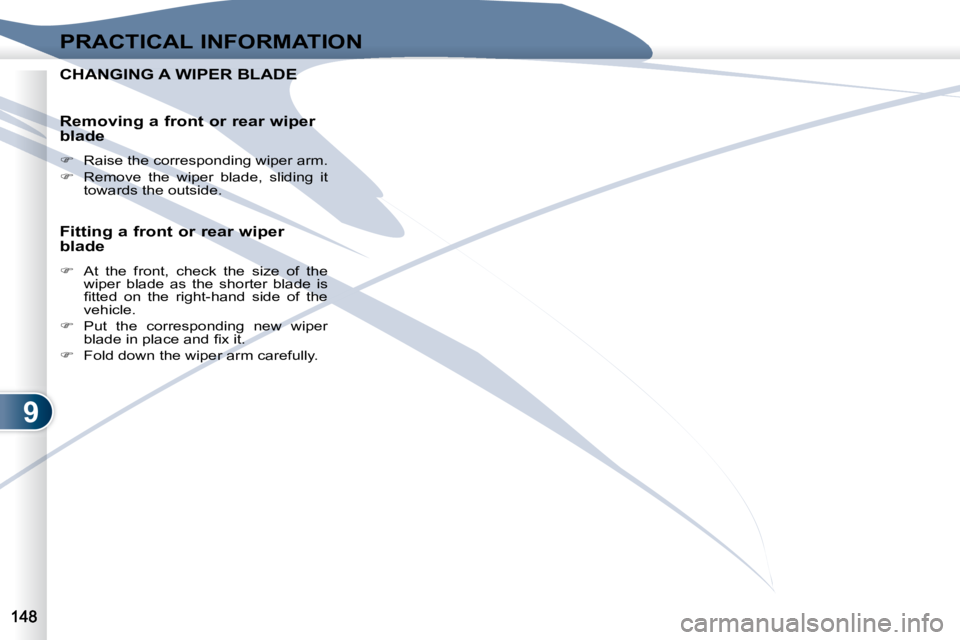

CHANGING A WIPER BLADE CHANGING A WIPER BLADE
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Remove the wiper blade, sliding it
towards the outside.
Fitting a front or rear wiper
blade
A t t h e f r o n t , c h e c k t h e s i z e o f t h e
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
b l a d e i n p l a c e a n d fi x i t .
Fold down the wiper arm carefully.
Page 145 of 215
9
PRACTICAL INFORMATION

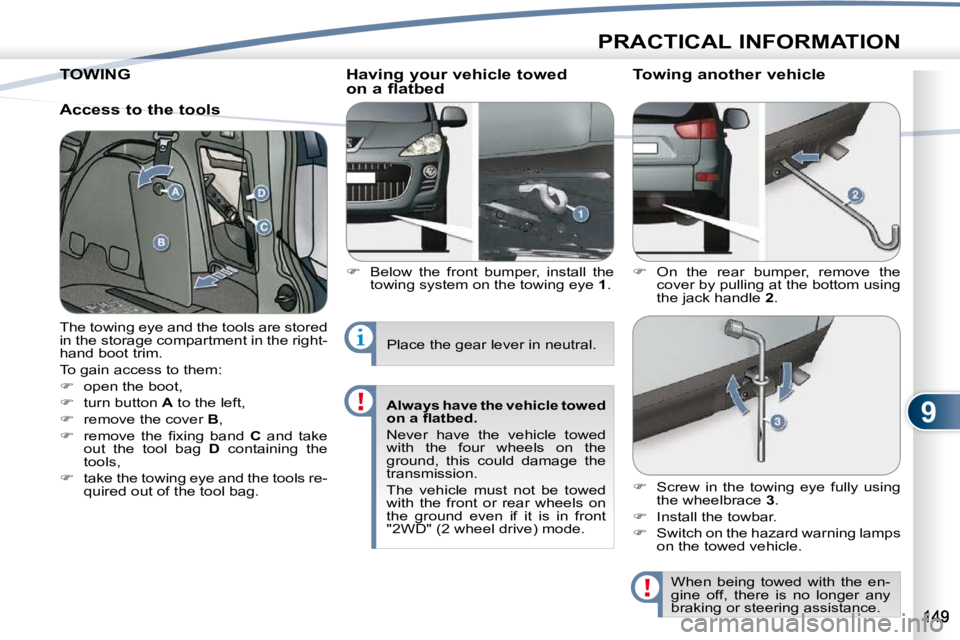

TOWING TOWING
Access to the tools Having your vehicle towed
on a flatbed
Below the front bumper, install the
towing system on the towing eye 1 .
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To gain access to them:
open the boot,
turn button A to the left,
remove the cover B ,
r e m o v e t h e fi x i n g b a n d C and take
out the tool bag D containing the
tools,
take the towing eye and the tools re-
quired out of the tool bag. Place the gear lever in neutral.
Always have the vehicle towed
o n a fl a t b e d .
Never have the vehicle towed
with the four wheels on the
ground, this could damage the
transmission.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode. Towing another vehicle
On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2 .
Screw in the towing eye fully using
the wheelbrace 3 .
Install the towbar.
S w i t c h o n t h e h a z a r d w a r n i n g l a m p s
on the towed vehicle.
When being towed with the en-
gine off, there is no longer any
braking or steering assistance.
Page 146 of 215
9
PRACTICAL INFORMATION
TOWING TOWING A TRAILER,
CARAVAN, ETC. CARAVAN, ETC.
Driving advice T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.
Lighting
Check the lighting and signalling on
the trailer.
If this message is dis-
played, stop your ve-
hicle as soon as it is
safe to do so.
I f t h e m e s s a g e fl a s h e s
slowly, wait for the engine to cool before
topping up the level, if necessary.
I f t h e m e s s a g e fl a s h e s r a p i d l y , c o n t a c t
a PEUGEOT dealer without delay.
Opening of the lower tailgate is
prohibited if a towbar is being
used.
We recommend the use of genu-
ine PEUGEOT towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle and that the
fi t t i n g o f t h e t o w b a r i s e n t r u s t e d
to a PEUGEOT dealer.
I f t h e t o w b a r i s n o t fi t t e d b y a
PEUGEOT dealer, it is impera-
t i v e t h a t i t i s fi t t e d u s i n g t h e
electrical pre-equipment located
at the rear of the vehicle and in
accordance with the manufac-
turer's instructions.
Driving with a trailer subjects the
t o w i n g v e h i c l e t o m o r e s i g n i fi -
cant stress and its driver must
be particularly careful.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g
load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Page 147 of 215
9
PRACTICAL INFORMATION

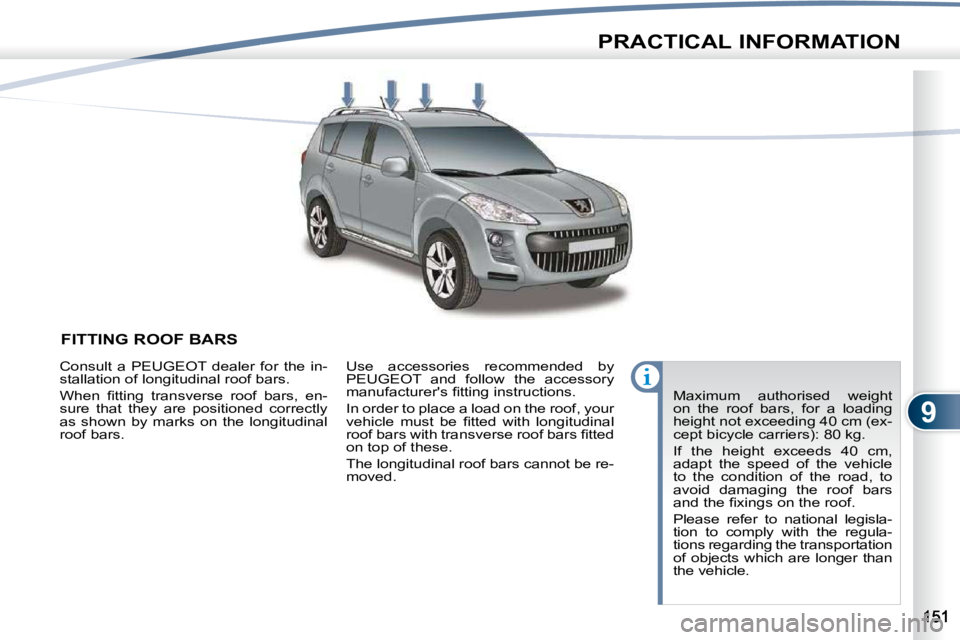

FITTING ROOF BARS
M a x i m u m a u t h o r i s e d w e i g h t
on the roof bars, for a loading
h e i g h t n o t e x c e e d i n g 4 0 c m ( e x -
cept bicycle carriers): 80 kg.
I f t h e h e i g h t e x c e e d s 4 0 c m ,
adapt the speed of the vehicle
to the condition of the road, to
avoid damaging the roof bars
a n d t h e fi x i n g s o n t h e r o o f .
Please refer to national legisla-
tion to comply with the regula-
tions regarding the transportation
of objects which are longer than
the vehicle.
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , e n -
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
m a n u f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
In order to place a load on the roof, your
v e h i c l e m u s t b e fi t t e d w i t h l o n g i t u d i n a l
r o o f b a r s w i t h t r a n s v e r s e r o o f b a r s fi t t e d
on top of these.
The longitudinal roof bars cannot be re-
moved.
Page 148 of 215
9
PRACTICAL INFORMATION
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which are
not recommended by PEUGEOT
may result in a failure of your
vehicle's electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n -
ing. You are advised to contact
a your dealer to be shown the
range of recommended equip-
ment and accessories.

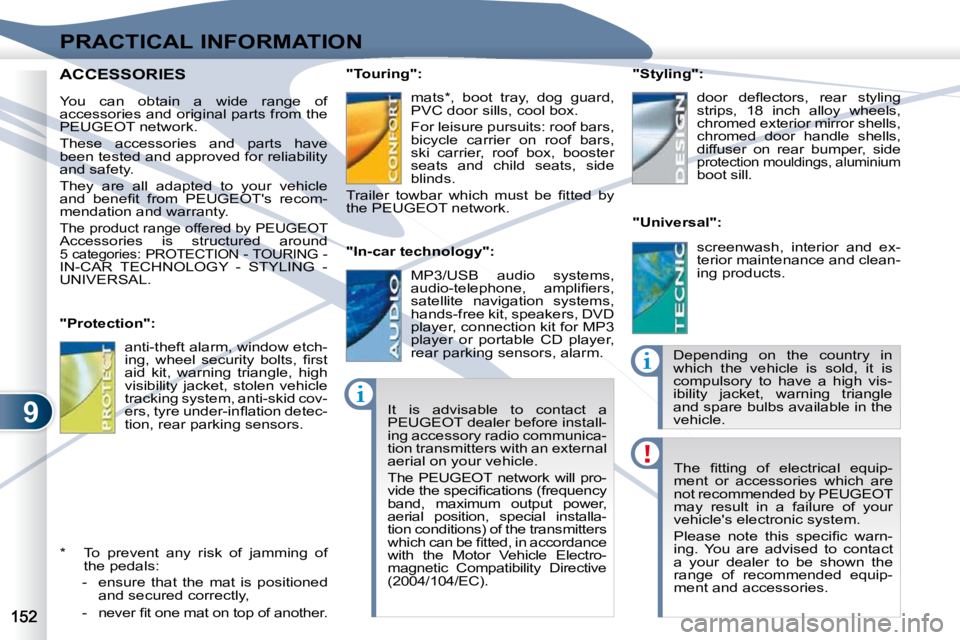

ACCESSORIES ACCESSORIES
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in
which the vehicle is sold, it is
compulsory to have a high vis-
ibility jacket, warning triangle
and spare bulbs available in the
vehicle.
anti-theft alarm, window etch-
i n g , w h e e l s e c u r i t y b o l t s , fi r s t
aid kit, warning triangle, high
visibility jacket, stolen vehicle
tracking system, anti-skid cov-
e r s , t y r e u n d e r - i n fl a t i o n d e t e c -
tion, rear parking sensors. mats * , boot tray, dog guard,
P V C d o o r s i l l s , c o o l b o x .
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side
blinds.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
MP3/USB audio systems,
a u d i o - t e l e p h o n e , a m p l i fi e r s ,
satellite navigation systems,
hands-free kit, speakers, DVD
player, connection kit for MP3
player or portable CD player,
rear parking sensors, alarm. d o o r d e fl e c t o r s , r e a r s t y l i n g
strips, 18 inch alloy wheels,
c h r o m e d e x t e r i o r m i r r o r s h e l l s ,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, aluminium
boot sill.
s c r e e n w a s h , i n t e r i o r a n d e x -
terior maintenance and clean-
ing products.
It is advisable to contact a
PEUGEOT dealer before install-
ing accessory radio communica-
t i o n t r a n s m i t t e r s w i t h a n e x t e r n a l
aerial on your vehicle.
The PEUGEOT network will pro-
v i d e t h e s p e c i fi c a t i o n s ( f r e q u e n c y
b a n d , m a x i m u m o u t p u t p o w e r ,
aerial position, special installa-
tion conditions) of the transmitters
w h i c h c a n b e fi t t e d , i n a c c o r d a n c e
with the Motor Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m P E U G E O T ' s r e c o m -
mendation and warranty.
The product range offered by PEUGEOTAccessories is structured around 5 categories: PROTECTION - TOURING - IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
Page 149 of 215
10
TECHNICAL DATA
ENGINES AND GEARBOXES ENGINES
Model codes
VUSFY0 -
VVSFY0
VUSFY9 -
VVSFY9
V
U4HK8 -
VV4HK8
VU4HK8
VU4HK8/1P
VV4HK8
VV4HK8/
1P
Engine
2.4 litre 16V 2.2 litre HDI PEF 16V
Cubic capacity (cc) 2 360 2 179
Bore x stroke (mm) 88 x 97 85 x 96
EU standard maximum power (kW) 125 115
Max power engine speed (rpm) 6 000 4 000
EU standard max torque (Nm) 232 380
Max torque engine speed (rpm) 4 100 2 000
Fuel Unleaded Diesel
Catalytic converter yes yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) no yes
Gearbox Manual
(5-speed) CVT
(6-speed) Manual
(6-speed) DCS
(6-speed)
Oil capacity (in litres)
Engine - 5.25
Page 150 of 215
10
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (IN KG) OWED LOADS (IN KG)
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing cap acities of the vehicle on a 12 % gradient.
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; reduce
the towed weight by 450 kg when your altitude increases by 1 000 m.
Engines
2.4 litre 16V 2.2 litre HDI PEF 16V
Gearbox
Manual
(5-speed)
CVT
(6-speed)
Manual
(6-speed)
DCS
(6-speed)
Model codes VUSFY0 VVSFY0 VUSFY9 VVSFY9 VU4HK8 VV4HK8
VU4HK8
VU4HK8/
1P
VV4HK8
VV4HK8/
1P
Version 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats
