AUDIO EQUIPMENT and TELEMATICS
CD PLAYER CD PLAYER

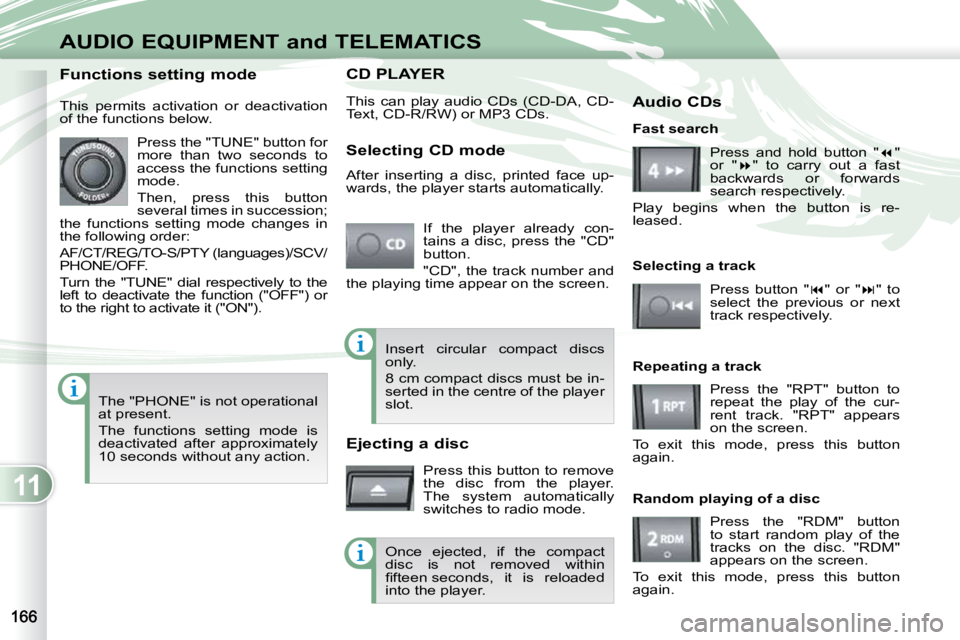

This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs. If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the screen.
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button
several times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational
at present.
The functions setting mode is
deactivated after approximately
10 seconds without any action. Selecting CD mode
After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode. Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.
Selecting a track
Press button " " or " " to
select the previous or next
track respectively.
Repeating a track Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again.
Insert circular compact discs
only.
8 cm compact discs must be in-
serted in the centre of the player
slot.
Once ejected, if the compact
disc is not removed within
fi f t e e n s e c o n d s , i t i s r e l o a d e d
into the player. Audio CDs
Page 162 of 215
11
AUDIO EQUIPMENT and TELEMATICS
CD PLAYER CD PLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs. If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the screen.
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button
several times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational
at present.
The functions setting mode is
deactivated after approximately
10 seconds without any action. Selecting CD mode
After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode. Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.
Selecting a track
Press button " " or " " to
select the previous or next
track respectively.
Repeating a track Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again.
Insert circular compact discs
only.
8 cm compact discs must be in-
serted in the centre of the player
slot.
Once ejected, if the compact
disc is not removed within
fi f t e e n s e c o n d s , i t i s r e l o a d e d
into the player. Audio CDs
Page 163 of 215
11
AUDIO EQUIPMENT and TELEMATICS
MP3/TAG ID3 CD
Playing the beginning of each track Press the "SCAN" button to
s t a r t p l a y b a c k o f t h e fi r s t t e n
seconds of each track on
the disc. "SCAN" appears
on the screen and the corresponding
t r a c k n u m b e r fl a s h e s .
To exit this mode, press this button

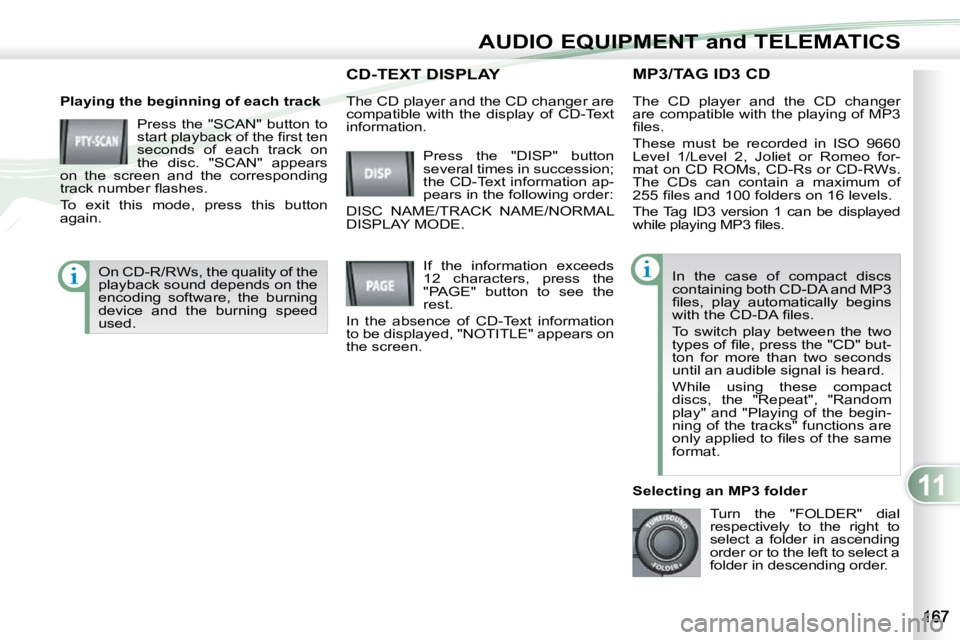

again. The CD player and the CD changer
are compatible with the playing of MP3
fi l e s .
These must be recorded in ISO 9660
Level 1/Level 2, Joliet or Romeo for-
mat on CD ROMs, CD-Rs or CD-RWs.
The CDs can contain a maximum of
2 5 5 fi l e s a n d 1 0 0 f o l d e r s o n 1 6 l e v e l s .
The Tag ID3 version 1 can be displayed
w h i l e p l a y i n g M P 3 fi l e s .
In the case of compact discs
containing both CD-DA and MP3
fi l e s , p l a y a u t o m a t i c a l l y b e g i n s
w i t h t h e C D - D A fi l e s .
To switch play between the two
t y p e s o f fi l e , p r e s s t h e " C D " b u t -
ton for more than two seconds
until an audible signal is heard.
While using these compact
discs, the "Repeat", "Random
play" and "Playing of the begin-
ning of the tracks" functions are
o n l y a p p l i e d t o fi l e s o f t h e s a m e
format.
Selecting an MP3 folder Turn the "FOLDER" dial
respectively to the right to
select a folder in ascending
order or to the left to select a
folder in descending order.
Press the "DISP" button
several times in succession;
the CD-Text information ap-
pears in the following order:
DISC NAME/TRACK NAME/NORMAL
DISPLAY MODE.
CD-TEXT DISPLAY CD-TEXT DISPLAY
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of CD-Text information
to be displayed, "NOTITLE" appears on
the screen.
The CD player and the CD changer are
compatible with the display of CD-Text
information.
On CD-R/RWs, the quality of the
playback sound depends on the
encoding software, the burning
device and the burning speed
used.
Page 164 of 215
11
AUDIO EQUIPMENT and TELEMATICS
When play begins, "READING" appears
in the screen then disappears to make
way for the folder number, the track
number, the playing time and "MP3".
Playing the beginning of each track
Press the "SCAN" button
t o s t a r t p l a y i n g t h e fi r s t t e n
seconds of each track in
all of the folders. "SCAN"
appears in the screen and the corre-
s p o n d i n g t r a c k n u m b e r fl a s h e s .
To exit this mode, press this button again.
MP3/Tag ID3 display
Press the "DISP" button
several times in succession;
the MP3 information ap-
pears in the following order:
FOLDER NAME/TRACK NAME/NORMAL
DISPLAY MODE.
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of MP3 or Tag ID3 in-
formation to be displayed, "NOTITLE"
appears in the screen.
Press the "DISP" button for
more than two seconds to
activate the Tag ID3 infor-
mation. "TAG" appears in
the screen.
Press the "DISP" button several times
in succession; the Tag ID3 information
appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST
NAME/NORMAL DISPLAY MODE. To deactivate this information, press
the "DISP" button again for more than
two seconds.

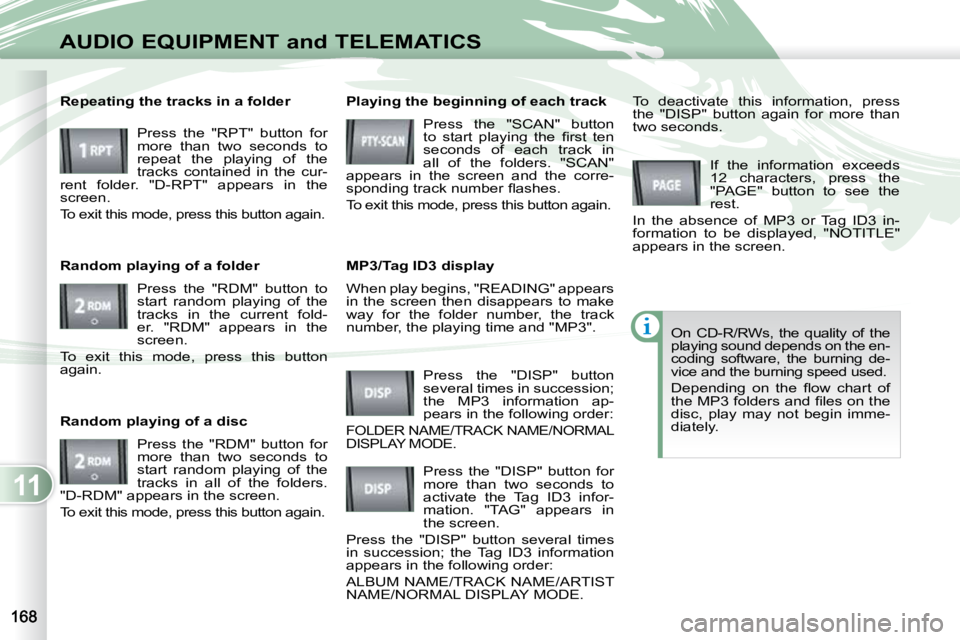

Repeating the tracks in a folder
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks contained in the cur-
rent folder. "D-RPT" appears in the
screen.
To exit this mode, press this button again.
Random playing of a folder
Press the "RDM" button to
start random playing of the
tracks in the current fold-
er. "RDM" appears in the
screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button for
more than two seconds to
start random playing of the
tracks in all of the folders.
"D-RDM" appears in the screen.
To exit this mode, press this button again. On CD-R/RWs, the quality of the
playing sound depends on the en-
coding software, the burning de-
vice and the burning speed used.
D e p e n d i n g o n t h e fl o w c h a r t o f
t h e M P 3 f o l d e r s a n d fi l e s o n t h e
disc, play may not begin imme-
diately.
Page 165 of 215
11
AUDIO EQUIPMENT and TELEMATICS

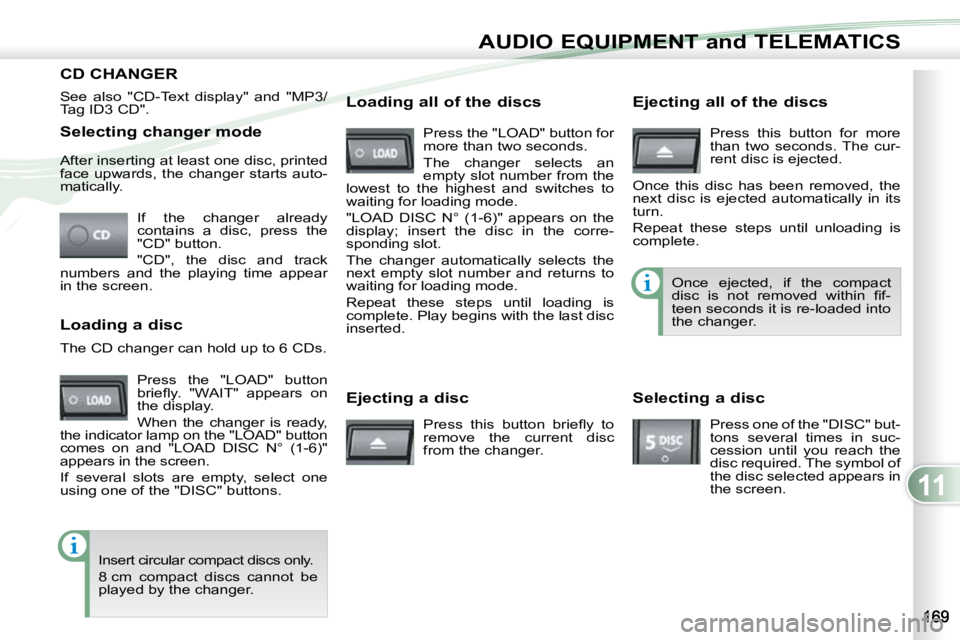

Selecting changer mode If the changer already
contains a disc, press the
"CD" button.
"CD", the disc and track
numbers and the playing time appear
in the screen.
After inserting at least one disc, printed
face upwards, the changer starts auto-
matically.
Ejecting a disc P r e s s t h i s b u t t o n b r i e fl y t o
remove the current disc
from the changer. Once ejected, if the compact
d i s c i s n o t r e m o v e d w i t h i n fi f -
teen seconds it is re-loaded into
the changer.
Loading a disc
Press the "LOAD" button
b r i e fl y . " W A I T " a p p e a r s o n
the display.
When the changer is ready,
the indicator lamp on the "LOAD" button
comes on and "LOAD DISC N° (1-6)"
appears in the screen.
If several slots are empty, select one
using one of the "DISC" buttons.
The CD changer can hold up to 6 CDs.
Insert circular compact discs only.
8 cm compact discs cannot be
played by the changer. Loading all of the discs Ejecting all of the discs
Press this button for more
than two seconds. The cur-
rent disc is ejected.
Once this disc has been removed, the
next disc is ejected automatically in its
turn.
Repeat these steps until unloading is
complete.
Selecting a disc Press one of the "DISC" but-
tons several times in suc-
cession until you reach the
disc required. The symbol of
the disc selected appears in
the screen.
See also "CD-Text display" and "MP3/
Tag ID3 CD".
Press the "LOAD" button for
more than two seconds.
The changer selects an
empty slot number from the
lowest to the highest and switches to
waiting for loading mode.
"LOAD DISC N° (1-6)" appears on the
display; insert the disc in the corre-
sponding slot.
The changer automatically selects the
next empty slot number and returns to
waiting for loading mode.
Repeat these steps until loading is
complete. Play begins with the last disc
inserted.
CD CHANGER
Page 166 of 215
11
AUDIO EQUIPMENT and TELEMATICS
Playing of the beginning of each track Press the "SCAN" button
t o s t a r t p l a y o f t h e fi r s t t e n
seconds of each track on
the disc. "SCAN" appears in
the screen and the corresponding track
n u m b e r fl a s h e s .
To exit this mode, press this button
again.
On CD-R/RWs, the playback
sound quality depends on the
encoding software, the burning
device and the burning speed
used.
Random playing on all of the discs Press the "RDM" button for
more than two seconds to
start random playing of the
tracks on all of the discs.
"D-RDM" appears in the screen.
To exit this mode, press this button
again.
Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is released.
Selecting a track
Press button " " or " " to
select the previous track or
next track respectively.
Repeating a track Press the "RPT" button to
repeat the playing of the cur-
rent track. "RPT" appears in
the screen.
To exit this mode, press this button
again. Random playing of a disc
Press the "RDM" button to
start random playing of the
tracks on the disc. "RDM"
appears in the screen.
To exit this mode, press this button
again.
Repeating a disc
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks of the current disc.
"D-RPT" appears in the
screen.
To exit this mode, press this button
again.
Audio CD
Page 167 of 215
11
AUDIO EQUIPMENT and TELEMATICS

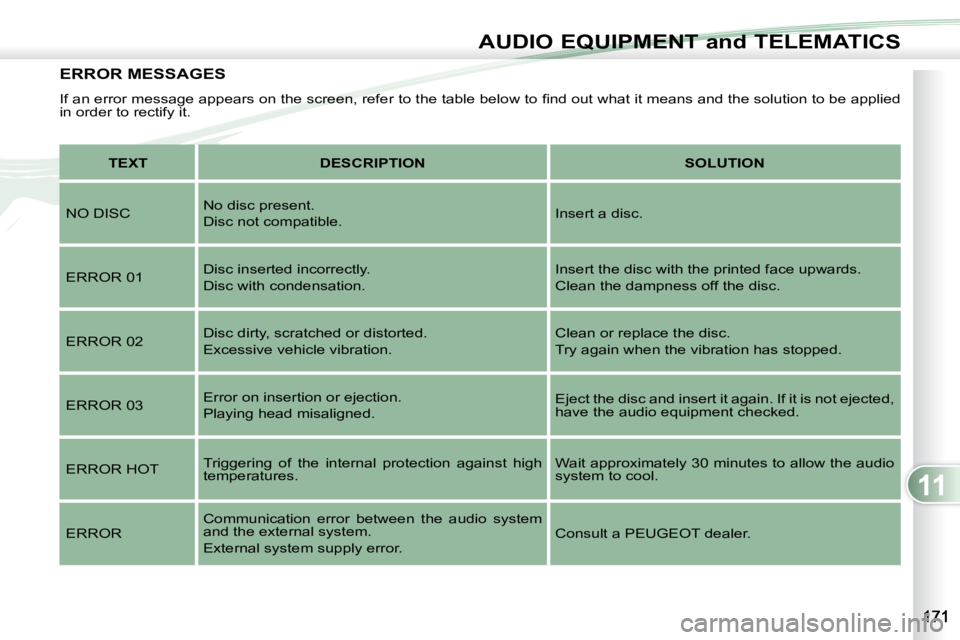

ERROR MESSAGES
I f a n e r r o r m e s s a g e a p p e a r s o n t h e s c r e e n , r e f e r t o t h e t a b l e b e l o w t o fi n d o u t w h a t i t m e a n s a n d t h e s o l u t i o n t o b e a p p l i e d
in order to rectify it.
TEXT DESCRIPTION
SOLUTION
NO DISC No disc present.
Disc not compatible.
Insert a disc.
ERROR 01 Disc inserted incorrectly.
Disc with condensation. Insert the disc with the printed face upwards.
Clean the dampness off the disc.
ERROR 02 Disc dirty, scratched or distorted.
Excessive vehicle vibration. Clean or replace the disc.
Try again when the vibration has stopped.
ERROR 03 Error on insertion or ejection.
Playing head misaligned. Eject the disc and insert it again. If it is not ejected,
have the audio equipment checked.
ERROR HOT Triggering of the internal protection against high
temperatures. Wait approximately 30 minutes to allow the audio
system to cool.
ERROR Communication error between the audio system
and the external system.
External system supply error. Consult a PEUGEOT dealer.
Page 168 of 215
11
AUDIO EQUIPMENT and TELEMATICS

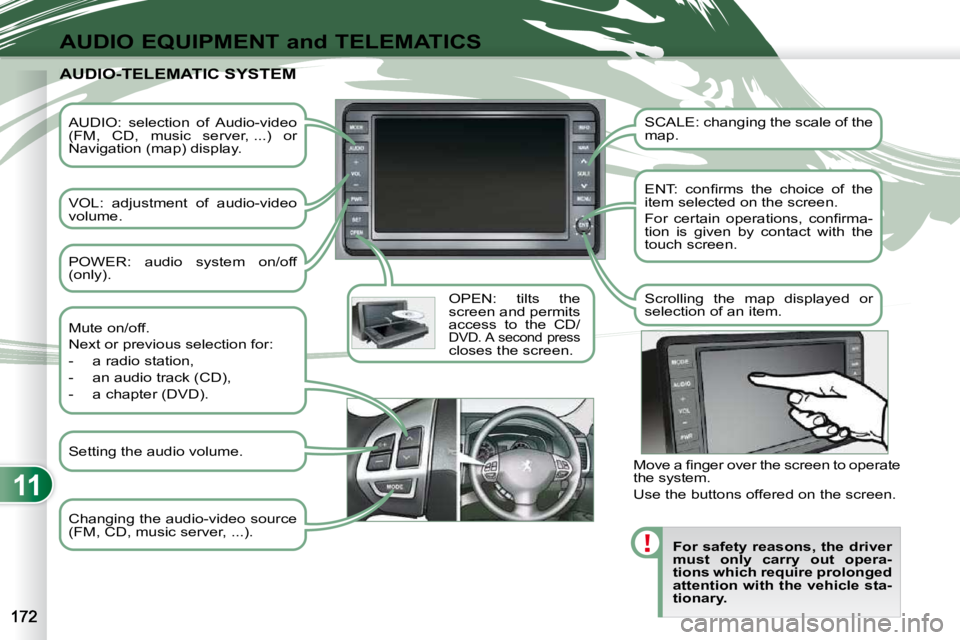

AUDIO: selection of Audio-video
(FM, CD, music server, ...) or
Navigation (map) display.
VOL: adjustment of audio-video
volume. OPEN: tilts the
screen and permits
access to the CD/
DVD. A second press closes the screen. SCALE: changing the scale of the
map.
E N T : c o n fi r m s t h e c h o i c e o f t h e
item selected on the screen.
F o r c e r t a i n o p e r a t i o n s , c o n fi r m a -
tion is given by contact with the
touch screen.
Scrolling the map displayed or
selection of an item.
For safety reasons, the driver
must only carry out opera-
tions which require prolonged
attention with the vehicle sta-
tionary.
AUDIO-TELEMATIC SYSTEM AUDIO-TELEMATIC SYSTEM
Changing the audio-video source
(FM, CD, music server, ...).
Mute on/off.
Next or previous selection for:
- a radio station,
- an audio track (CD),
- a chapter (DVD).
M o v e a fi n g e r o v e r t h e s c r e e n t o o p e r a t e
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting the audio volume.
Page 169 of 215
11
AUDIO EQUIPMENT and TELEMATICS

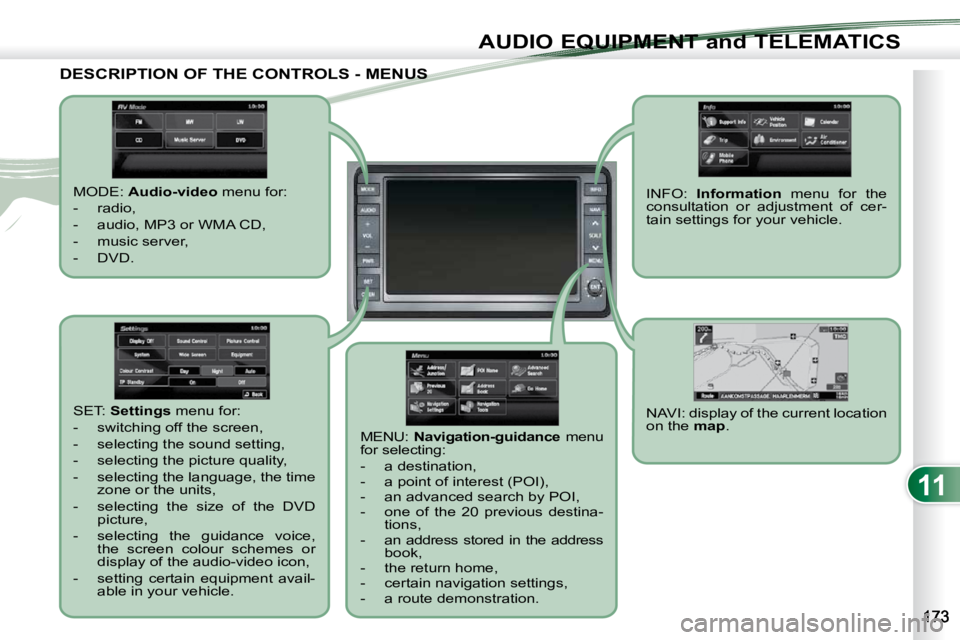

DESCRIPTION OF THE CONTROLS - MENUS DESCRIPTION OF THE CONTROLS - MENUS
MODE: Audio-video menu for:
- radio,
- audio, MP3 or WMA CD,
- music server,
- DVD.
MENU: Navigation-guidance menu
for selecting:
- a destination,
- a point of interest (POI),
- an advanced search by POI,
- one of the 20 previous destina- tions,
- an address stored in the address book,
- the return home,
- certain navigation settings,
- a route demonstration. NAVI: display of the current location
on the
map .
SET:
Settings menu for:
- switching off the screen,
- selecting the sound setting,
- selecting the picture quality,
- selecting the language, the time zone or the units,
- selecting the size of the DVD picture,
- selecting the guidance voice, the screen colour schemes or
display of the audio-video icon,
- setting certain equipment avail- able in your vehicle. INFO:
Information menu for the
consultation or adjustment of cer-
tain settings for your vehicle.
Page 170 of 215
11
AUDIO EQUIPMENT and TELEMATICS
NAVIGATION - GUIDANCE NAVIGATION - GUIDANCE

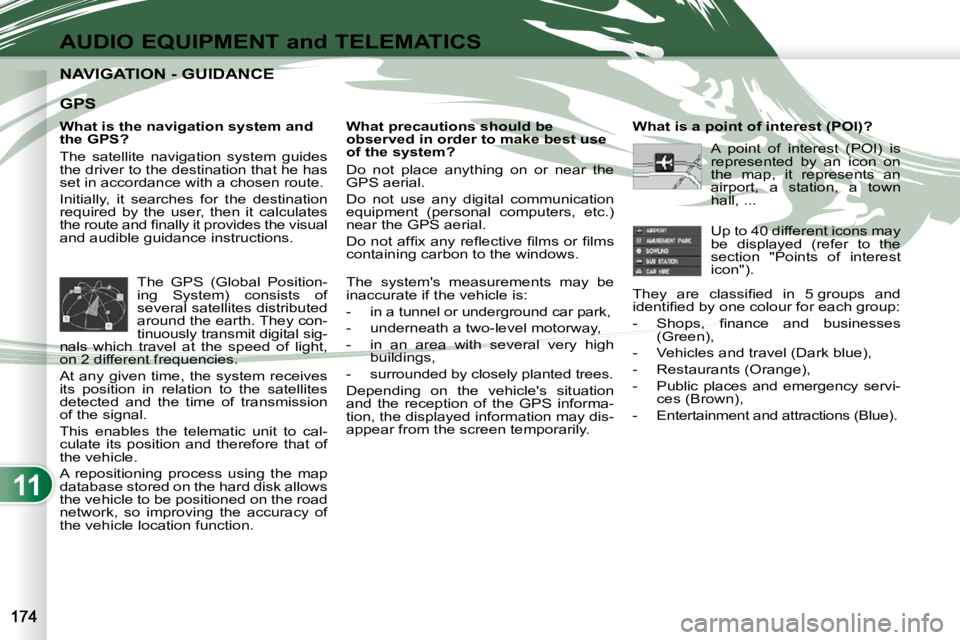

What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
t h e r o u t e a n d fi n a l l y i t p r o v i d e s t h e v i s u a l
and audible guidance instructions. What precautions should be
observed in order to make best use
of the system?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc.)
near the GPS aerial.
D o n o t a f fi x a n y r e fl e c t i v e fi l m s o r fi l m s
containing carbon to the windows.
The GPS (Global Position-
ing System) consists of
several satellites distributed
around the earth. They con-
tinuously transmit digital sig-
nals which travel at the speed of light,
on 2 different frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to cal-
culate its position and therefore that of
the vehicle.
A repositioning process using the map
database stored on the hard disk allows
the vehicle to be positioned on the road
network, so improving the accuracy of
the vehicle location function. What is a point of interest (POI)?
Up to 40 different icons may
be displayed (refer to the
section "Points of interest
icon").
T h e y a r e c l a s s i fi e d i n 5 g r o u p s a n d
i d e n t i fi e d b y o n e c o l o u r f o r e a c h g r o u p :
- S h o p s , fi n a n c e a n d b u s i n e s s e s (Green),
- Vehicles and travel (Dark blue),
- Restaurants (Orange),
- Public places and emergency servi- ces (Brown),
- Entertainment and attractions (Blue).
GPS
The system's measurements may be
inaccurate if the vehicle is:
- in a tunnel or underground car park,
- underneath a two-level motorway,
- in an area with several very high buildings,
- surrounded by closely planted trees.
Depending on the vehicle's situation
and the reception of the GPS informa-
tion, the displayed information may dis-
appear from the screen temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...
