VISIBILITY
I n f o g g y w e a t h e r o r i n s n o w , t h e
s u n s h i n e s e n s o r m a y d e t e c t s u f -
fi c i e n t l i g h t . T h e l i g h t i n g w i l l n o t
c o m e o n a u t o m a t i c a l l y .
D o n o t c o v e r t h e s u n s h i n e s e n -
sor, the associated functions will
n o l o n g e r b e c o n t r o l l e d .

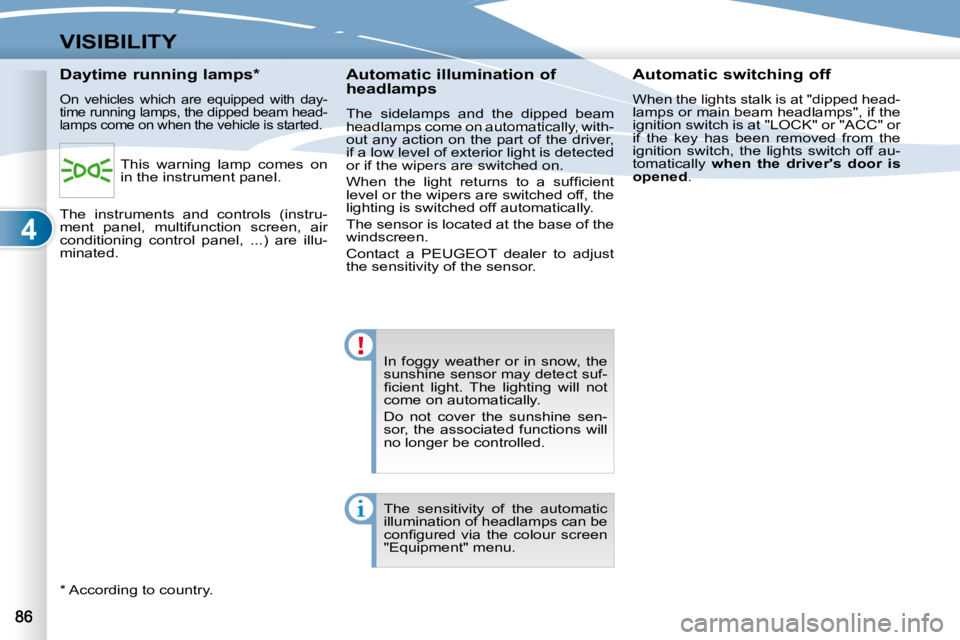

Daytime running lamps *
O n v e h i c l e s w h i c h a r e e q u i p p e d w i t h d a y -
t i m e r u n n i n g l a m p s , t h e d i p p e d b e a m h e a d -
l a m p s c o m e o n w h e n t h e v e h i c l e i s s t a r t e d .
* A c c o r d i n g t o c o u n t r y . Automatic switching off
W h e n t h e l i g h t s s t a l k i s a t " d i p p e d h e a d - l a m p s o r m a i n b e a m h e a d l a m p s " , i f t h e
ignition switch is at "LOCK" or "ACC" or
i f t h e k e y h a s b e e n r e m o v e d f r o m t h e
i g n i t i o n s w i t c h , t h e l i g h t s s w i t c h o f f a u -
t o m a t i c a l l y
when the driver's door is
opened .
Automatic illumination of
headlamps
T h e s i d e l a m p s a n d t h e d i p p e d b e a m
h e a d l a m p s c o m e o n a u t o m a t i c a l l y , w i t h -
o u t a n y a c t i o n o n t h e p a r t o f t h e d r i v e r ,
if a low level of exterior light is detected
o r i f t h e w i p e r s a r e s w i t c h e d o n .
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
l i g h t i n g i s s w i t c h e d o f f a u t o m a t i c a l l y .
T h e s e n s o r i s l o c a t e d a t t h e b a s e o f t h e
w i n d s c r e e n .
Contact a PEUGEOT dealer to adjust
t h e s e n s i t i v i t y o f t h e s e n s o r .
T h e s e n s i t i v i t y o f t h e a u t o m a t i c
i l l u m i n a t i o n o f h e a d l a m p s c a n b e
c o n fi g u r e d v i a t h e c o l o u r s c r e e n
" E q u i p m e n t " m e n u .
This warning lamp comes on
i n t h e i n s t r u m e n t p a n e l .
T h e i n s t r u m e n t s a n d c o n t r o l s ( i n s t r u -
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e i l l u -
m i n a t e d .
Page 82 of 215
4
VISIBILITY

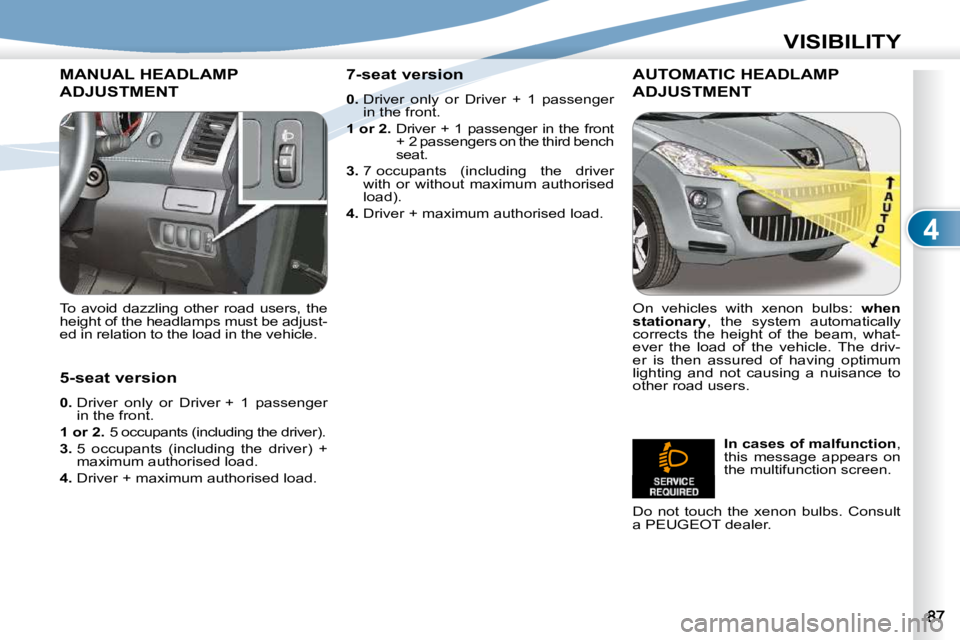

MANUAL HEADLAMP
ADJUSTMENT
To avoid dazzling other road users, the
h e i g h t o f t h e h e a d l a m p s m u s t b e a d j u s t -
e d i n r e l a t i o n t o t h e l o a d i n t h e v e h i c l e .
AUTOMATIC HEADLAMP
ADJUSTMENT
O n v e h i c l e s w i t h x e n o n b u l b s : when
stationary , t h e s y s t e m a u t o m a t i c a l l y
c o r r e c t s t h e h e i g h t o f t h e b e a m , w h a t -
e v e r t h e l o a d o f t h e v e h i c l e . T h e d r i v -
er is then assured of having optimum
lighting and not causing a nuisance to
o t h e r r o a d u s e r s .
In cases of malfunction ,
this message appears on
t h e m u l t i f u n c t i o n s c r e e n .
7-seat version
0. D r i v e r o n l y o r D r i v e r + 1 p a s s e n g e r
i n t h e f r o n t .
1 or 2. D r i v e r + 1 p a s s e n g e r i n t h e f r o n t
+ 2 p a s s e n g e r s o n t h e t h i r d b e n c h
s e a t .
3. 7 occupants (including the driver
with or without maximum authorised
l o a d ) .
4. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
5-seat version
0. D r i v e r o n l y o r D r i v e r + 1 p a s s e n g e r
i n t h e f r o n t .
1 or 2. 5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) .
3. 5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) +
m a x i m u m a u t h o r i s e d l o a d .
4. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
D o n o t t o u c h t h e x e n o n b u l b s . C o n s u l t
a P E U G E O T d e a l e r .
Page 83 of 215
4
VISIBILITY

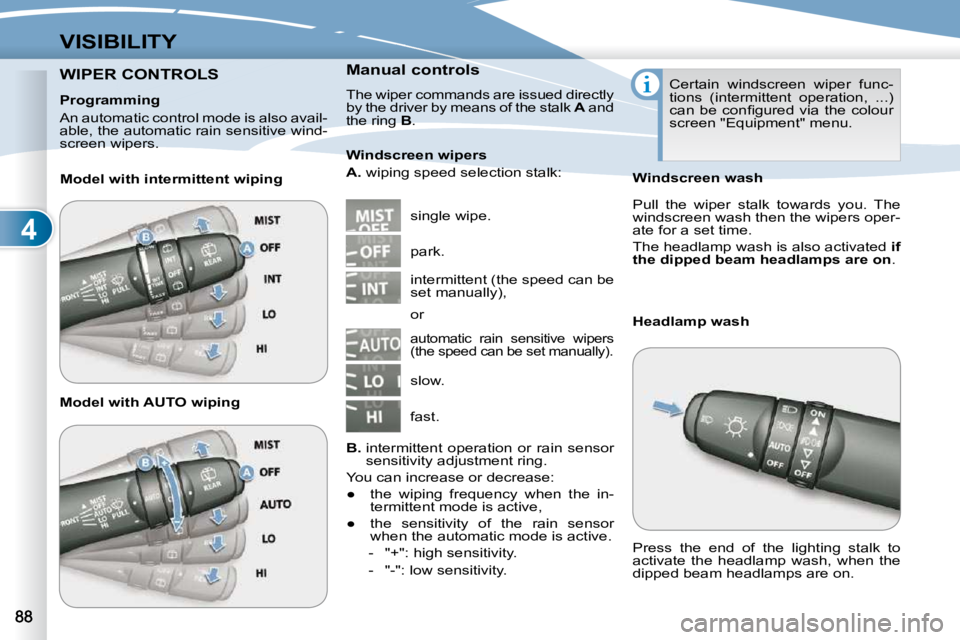

WIPER CONTROLS WIPER CONTROLS Manual controls
T h e w i p e r c o m m a n d s a r e i s s u e d d i r e c t l y
b y t h e d r i v e r b y m e a n s o f t h e s t a l k A and
the ring B .
s i n g l e w i p e .
Windscreen wipers
A. wiping speed selection stalk:
p a r k .
i n t e r m i t t e n t ( t h e s p e e d c a n b e
s e t m a n u a l l y ) ,
s l o w .
f a s t .
B. intermittent operation or rain sensor
s e n s i t i v i t y a d j u s t m e n t r i n g .
You can increase or decrease:
Page 84 of 215
4
VISIBILITY
B. rear wiper selection ring:
p a r k .
i n t e r m i t t e n t w i p e .
w i p e w i t h s c r e e n w a s h .
Rear wiper
The wiper wipes twice then switches to
intermittent mode with an interval of a
f e w s e c o n d s .
Keep the ring in this position to operate
the screen wash with several wipes of
t h e w i p e r .
The intermittence of the rear
w i p e r c a n b e c o n fi g u r e d v i a
the colour screen "Equipment"
m e n u .

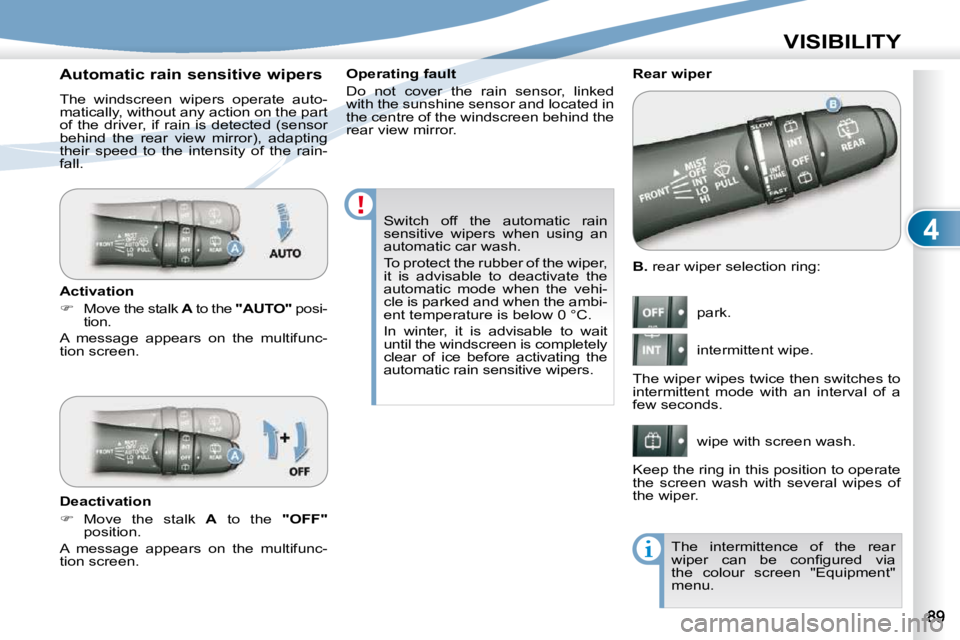

Automatic rain sensitive wipers
T h e w i n d s c r e e n w i p e r s o p e r a t e a u t o -
m a t i c a l l y , w i t h o u t a n y a c t i o n o n t h e p a r t
of the driver, if rain is detected (sensor
b e h i n d t h e r e a r v i e w m i r r o r ) , a d a p t i n g
t h e i r s p e e d t o t h e i n t e n s i t y o f t h e r a i n -
f a l l .
Activation
Move the stalk A to the "AUTO" p o s i -
t i o n .
A m e s s a g e a p p e a r s o n t h e m u l t i f u n c -
t i o n s c r e e n .
Deactivation
Move the stalk A to the "OFF"
p o s i t i o n .
A m e s s a g e a p p e a r s o n t h e m u l t i f u n c -
t i o n s c r e e n . Operating fault
Do not cover the rain sensor, linked
with the sunshine sensor and located in
t h e c e n t r e o f t h e w i n d s c r e e n b e h i n d t h e
r e a r v i e w m i r r o r .
Switch off the automatic rain
sensitive wipers when using an
a u t o m a t i c c a r w a s h .
T o p r o t e c t t h e r u b b e r o f t h e w i p e r ,
i t i s a d v i s a b l e t o d e a c t i v a t e t h e
a u t o m a t i c m o d e w h e n t h e v e h i -
c l e i s p a r k e d a n d w h e n t h e a m b i -
e n t t e m p e r a t u r e i s b e l o w 0 ° C .
I n w i n t e r , i t i s a d v i s a b l e t o w a i t
u n t i l t h e w i n d s c r e e n i s c o m p l e t e l y
c l e a r o f i c e b e f o r e a c t i v a t i n g t h e
a u t o m a t i c r a i n s e n s i t i v e w i p e r s .
Page 85 of 215
4
VISIBILITY

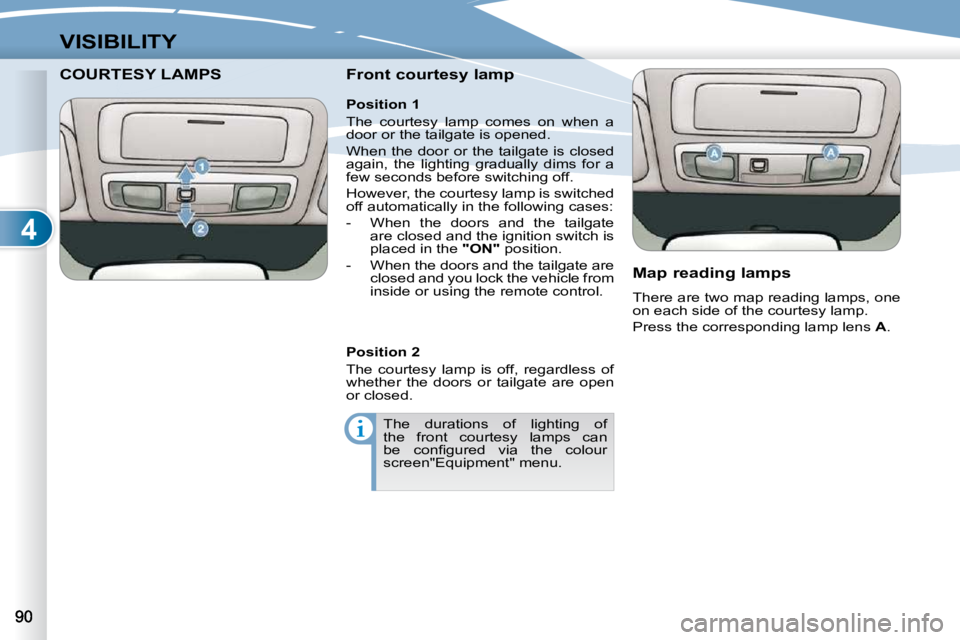

COURTESY LAMPS COURTESY LAMPS Front courtesy lamp Map reading lamps
There are two map reading lamps, one
o n e a c h s i d e o f t h e c o u r t e s y l a m p .
Press the corresponding lamp lens A .
Position 2
T h e c o u r t e s y l a m p i s o f f , r e g a r d l e s s o f
whether the doors or tailgate are open
o r c l o s e d .
The durations of lighting of
t h e f r o n t c o u r t e s y l a m p s c a n
b e c o n fi g u r e d v i a t h e c o l o u r
s c r e e n " E q u i p m e n t " m e n u .
Position 1
T h e c o u r t e s y l a m p c o m e s o n w h e n a
d o o r o r t h e t a i l g a t e i s o p e n e d .
When the door or the tailgate is closed
a g a i n , t h e l i g h t i n g g r a d u a l l y d i m s f o r a
f e w s e c o n d s b e f o r e s w i t c h i n g o f f .
H o w e v e r , t h e c o u r t e s y l a m p i s s w i t c h e d
o f f a u t o m a t i c a l l y i n t h e f o l l o w i n g c a s e s :
- W h e n t h e d o o r s a n d t h e t a i l g a t e
are closed and the ignition switch is
placed in the "ON" p o s i t i o n .
- W h e n t h e d o o r s a n d t h e t a i l g a t e a r e c l o s e d a n d y o u l o c k t h e v e h i c l e f r o m
i n s i d e o r u s i n g t h e r e m o t e c o n t r o l .
Page 86 of 215
4
VISIBILITY

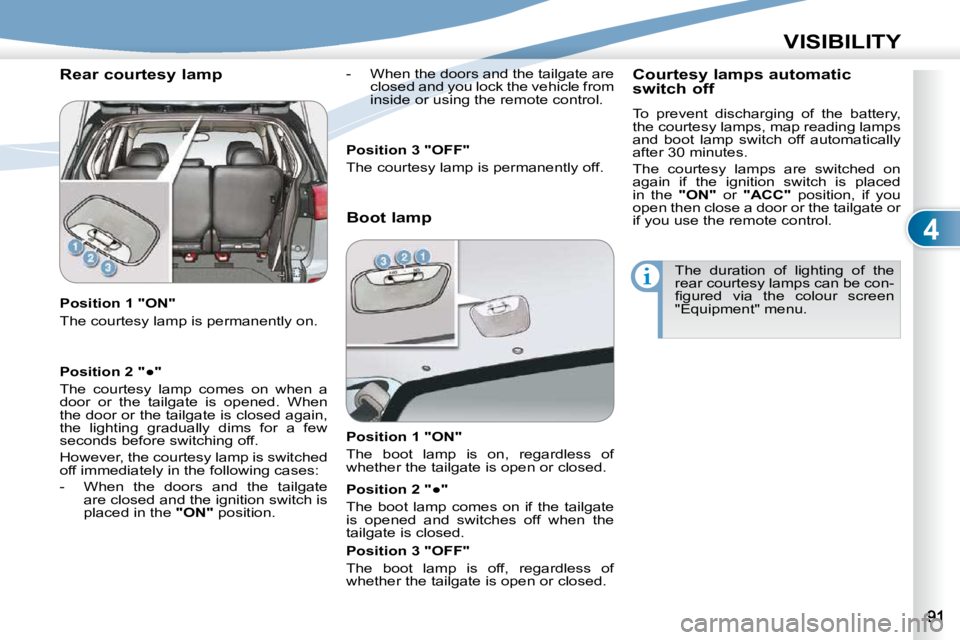

Rear courtesy lamp
Position 1 "ON"
T h e c o u r t e s y l a m p i s p e r m a n e n t l y o n . - W h e n t h e d o o r s a n d t h e t a i l g a t e a r e
c l o s e d a n d y o u l o c k t h e v e h i c l e f r o m
i n s i d e o r u s i n g t h e r e m o t e c o n t r o l .
Boot lamp
Position 1 "ON"
T h e b o o t l a m p i s o n , r e g a r d l e s s o f
w h e t h e r t h e t a i l g a t e i s o p e n o r c l o s e d .
P o s i t i o n 2 "
Page 87 of 215
5
CHILD SAFETY
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
CHILD SEAT IN THE FRONT T IN THE FRONT
* The rules for carrying children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS
"Rearwards-facing"
PEUGEOT recommends that
children should travel in the rear
seats of your vehicle:
- "rearwards-facing" up to
the age of 2,
- "forwards-facing" over the
age of 2. When a "rearwards-facing" child
seat is installed on the
front
passenger seat , it is essential
that the passenger airbag is de-
activated. Otherwise, the child
would risk being seriously
injured or killed if the airbag
w e r e t o i n fl a t e . When a "forwards-facing" child seat is
installed on the
front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Forwards-facing"
Intermediate longitudinal position
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , o n s e a t s fi t t e d w i t h a s e a t
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
Page 88 of 215
5
CHILD SAFETY

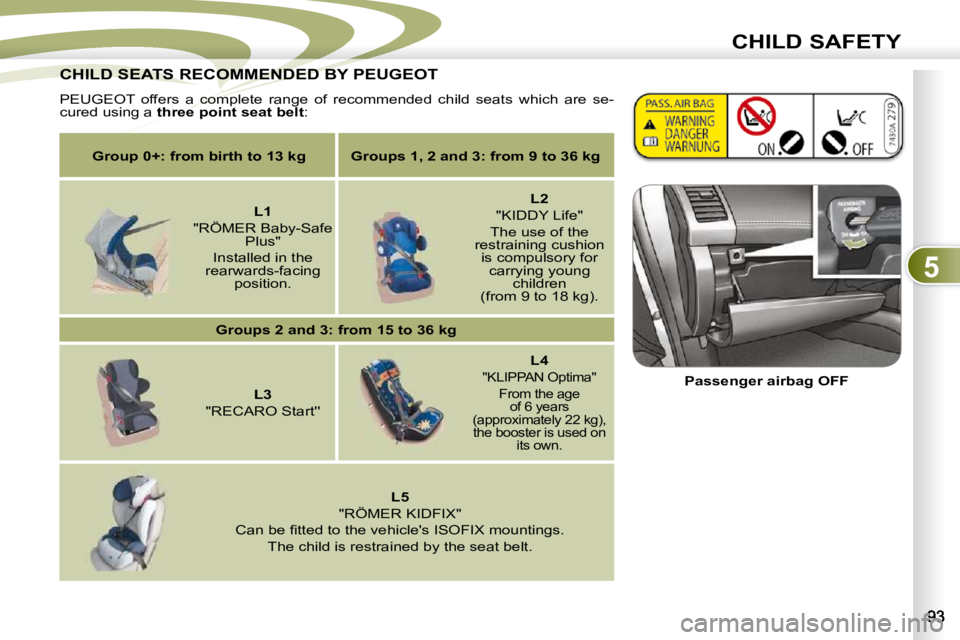

CHILD SEATS RECOMMENDED BY PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Passenger airbag OFF
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - S a f e Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s . The child is restrained by the seat belt.
Page 89 of 215
5
CHILD SAFETY

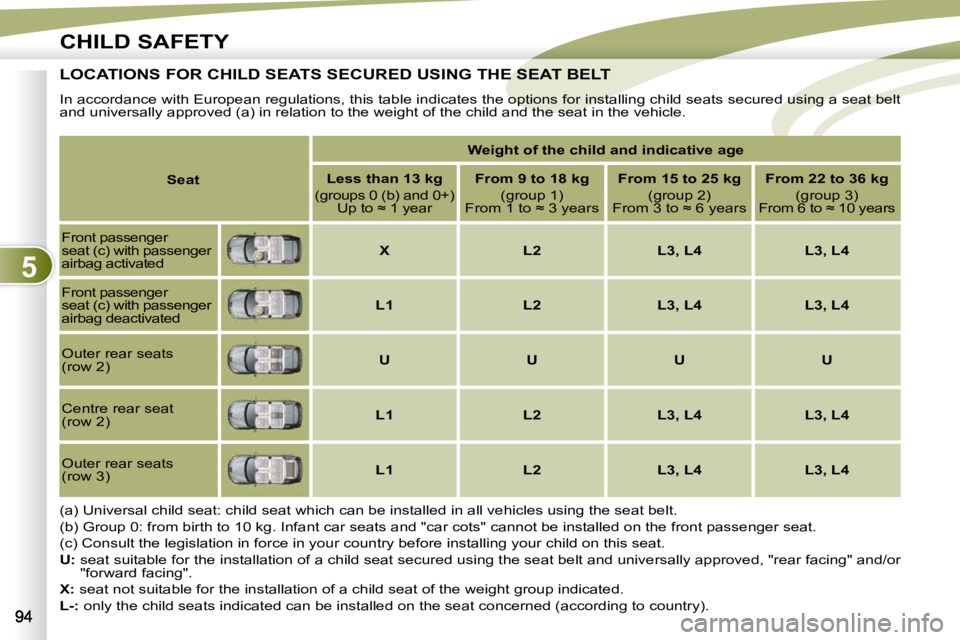

LOCATIONS FOR CHILD SEATS SECURED USING THE SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in relation to the weight of th e child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" ca nnot be installed on the front passenger seat.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U: seat suitable for the installation of a child seat secure d using the seat belt and universally approved, "rear facing" an d/or
"forward facing".
X: seat not suitable for the installation of a child seat of the weight group indicated.
L-: only the child seats indicated can be installed on the se at concerned (according to country).
Seat
Weight of the child and indicative age
Less than 13 kg
(groups 0 (b) and 0+) U p t o ≈ 1 y e a r
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From
22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger
seat (c) with passenger
airbag activated
X L2 L3, L4 L3, L4
Front passenger
seat (c) with passenger
airbag deactivated
L1 L2 L3, L4 L3, L4
Outer rear seats
(row 2)
U U U U
C e n t r e r e a r s e a t
(row 2)
L1 L2 L3, L4 L3, L4
Outer rear seats
(row 3)
L1 L2 L3, L4 L3, L4
Page 90 of 215
5
CHILD SAFETY
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident. For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the table showing the locations
for ISOFIX child seats.
"ISOFIX" MOUNTINGS
These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , u s e d t o fi x t h e u p p e r s t r a p ,
referred to as the TOP TETHER ,
indicated by a label. This ISOFIX mounting system provides
f a s t , r e l i a b l e a n d s a f e fi t t i n g o f t h e c h i l d
seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to the ring B .
To attach this strap, remove the vehi-
c l e s e a t ' s h e a d r e s t r a i n t . T h e n fi x t h e
hook on the ring B and tighten the upper
strap.
Your vehicle has been approved in ac-
cordance with the
new ISOFIX regula-
tion .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings:
