Page 71 of 215
3
ACCESS
Before opening the tailgate,
ensure that no one is within the
radius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning lamp comes on on
the instrument panel screen when
the tailgate is not closed correctly.

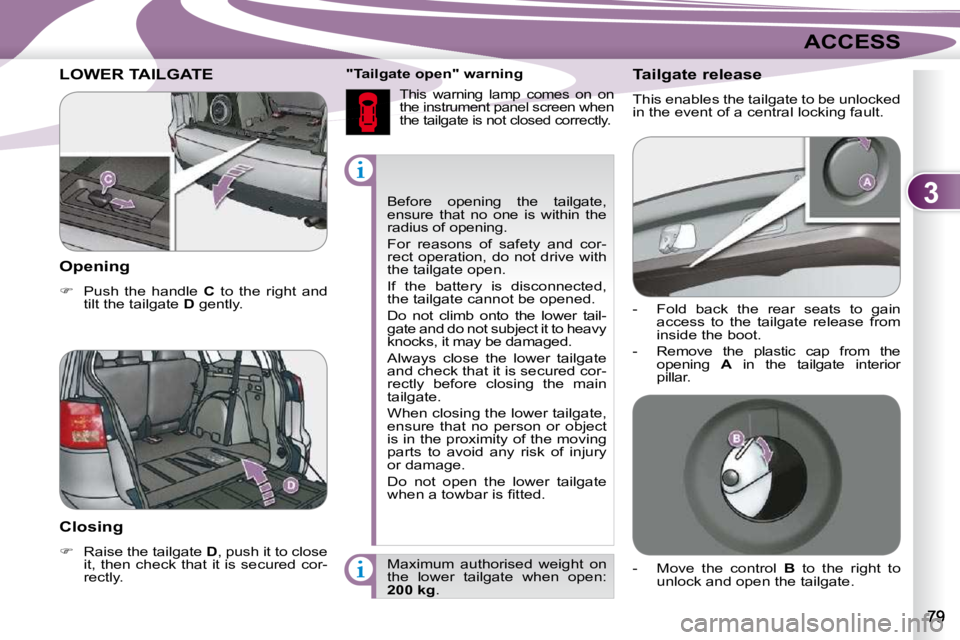

LOWER TAILGALOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Raise the tailgate D , push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg . Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the tailgate release from
inside the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar.
- Move the control B to the right to
unlock and open the tailgate.
Page 72 of 215
3
ACCESS
Before opening the tailgate,
ensure that no one is within the
radius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning lamp comes on on
the instrument panel screen when
the tailgate is not closed correctly.
LOWER TAILGALOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Raise the tailgate D , push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg . Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the tailgate release from
inside the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar.
- Move the control B to the right to
unlock and open the tailgate.
Page 73 of 215
3
ACCESS

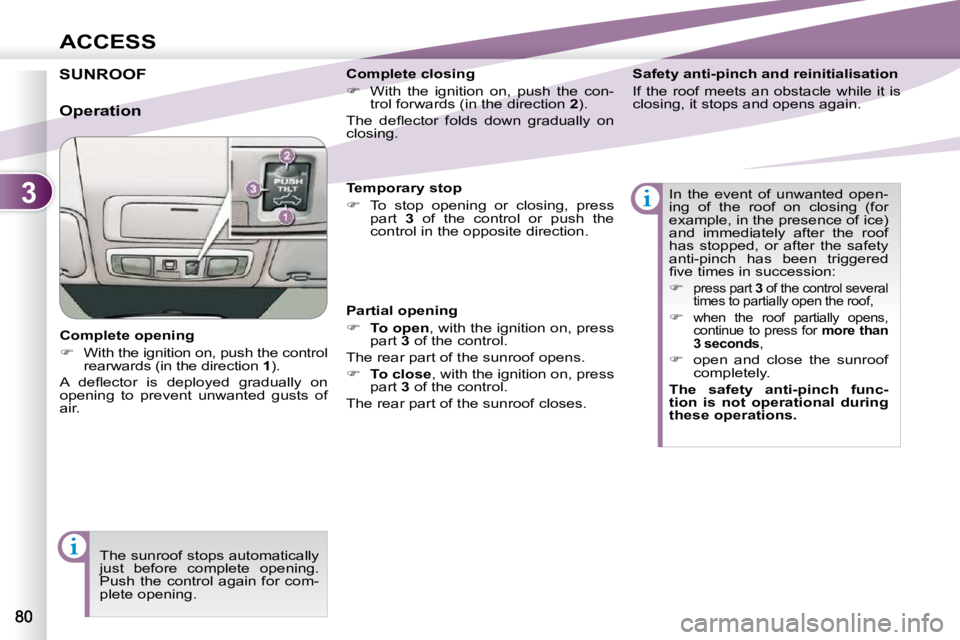

SUNROOF
Complete opening
With the ignition on, push the control
rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts of
air.
Operation
Complete closing
With the ignition on, push the con-
trol forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes. In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
anti-pinch has been triggered
fi v e t i m e s i n s u c c e s s i o n :
press part 3 of the control several
times to partially open the roof,
when the roof partially opens,
continue to press for more than
3 seconds ,
open and close the sunroof
completely.
The
safety
anti
-
pinch
func-
tion is not
operational during
t
hese operations.
The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening. Temporary stop
To stop opening or closing, press
part 3 of the control or push the
control in the opposite direction. Safety anti-pinch and reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again.
Page 74 of 215
3
ACCESS

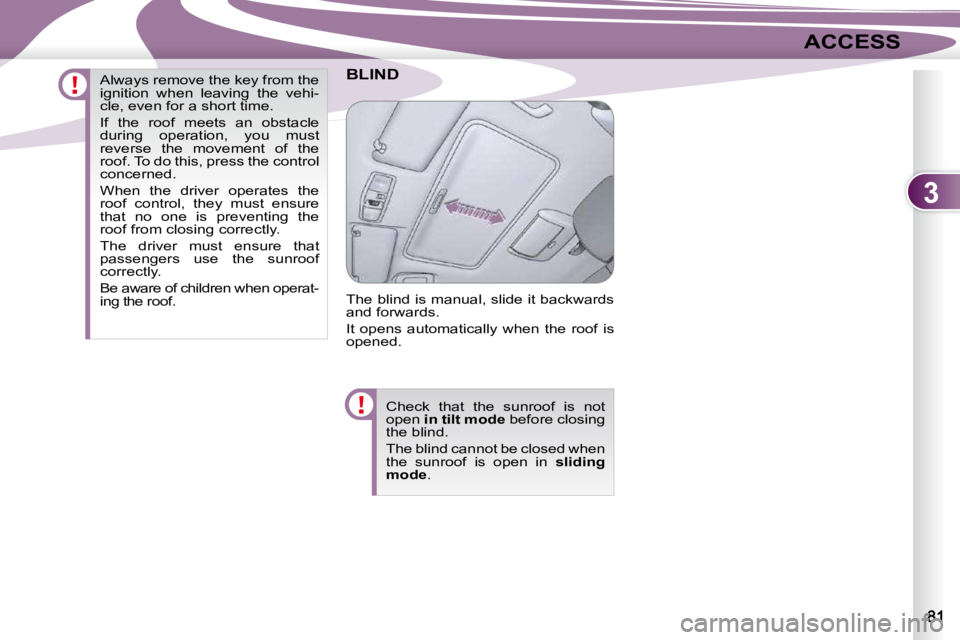

BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before closing
the blind.
The blind cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the
roof control, they must ensure
that no one is preventing the
roof from closing correctly.
The driver must ensure that
passengers use the sunroof
correctly.
Be aware of children when operat-
ing the roof.
Page 75 of 215
3
ACCESS
BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before closing
the blind.
The blind cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the
roof control, they must ensure
that no one is preventing the
roof from closing correctly.
The driver must ensure that
passengers use the sunroof
correctly.
Be aware of children when operat-
ing the roof.
Page 76 of 215
3
ACCESS

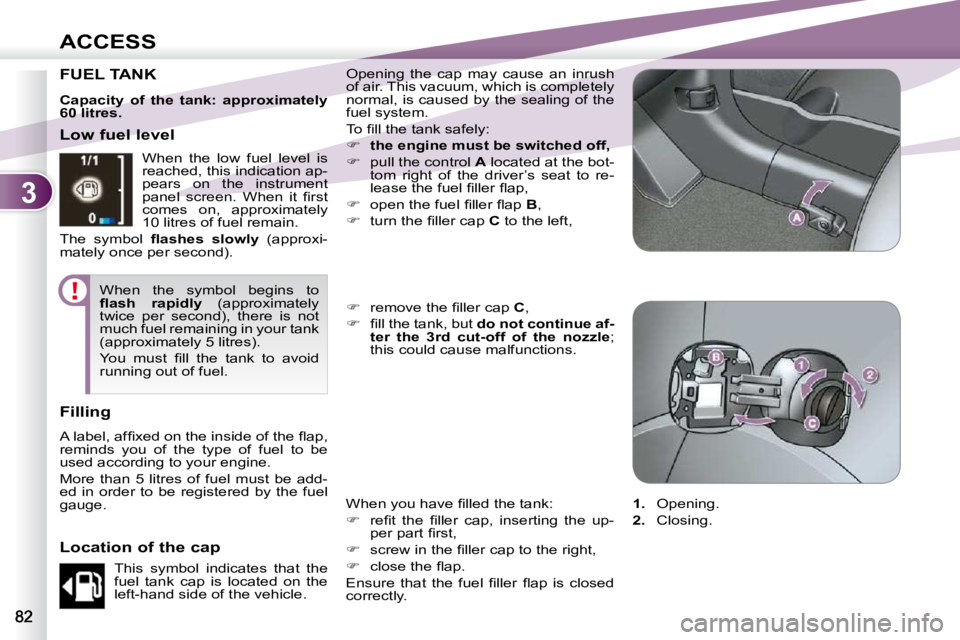

FUEL TANK Opening the cap may cause an inrush
of air. This vacuum, which is completely
normal, is caused by the sealing of the
fuel system.
T o fi l l t h e t a n k s a f e l y :
the engine
must be
switched off,
pull the control A located at the bot-
tom right of the driver’s seat to re-
l e a s e t h e f u e l fi l l e r fl a p ,
o p e n t h e f u e l fi l l e r fl a p B ,
t u r n t h e fi l l e r c a p C to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
r e fi t t h e fi l l e r c a p , i n s e r t i n g t h e u p -
p e r p a r t fi r s t ,
s c r e w i n t h e fi l l e r c a p t o t h e r i g h t ,
c l o s e t h e fl a p .
E n s u r e t h a t t h e f u e l fi l l e r fl a p i s c l o s e d
correctly.
r e m o v e t h e fi l l e r c a p C ,
fi l l t h e t a n k , b u t do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l , a f fi x e d o n t h e i n s i d e o f t h e fl a p ,
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the low fuel level is
reached, this indication ap-
pears on the instrument
p a n e l s c r e e n . W h e n i t fi r s t
comes on, approximately
10 litres of fuel remain.
The symbol fl a s h e s s l o w l y (approxi-
mately once per second).
When the symbol begins to
fl a s h r a p i d l y (approximately
twice per second), there is not
much fuel remaining in your tank
(approximately 5 litres).
Y o u m u s t fi l l t h e t a n k t o a v o i d
running out of fuel.
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap
1. Opening.
2. Closing.
Capacity of the tank: approximately
60 litres.
Page 77 of 215
3
ACCESS

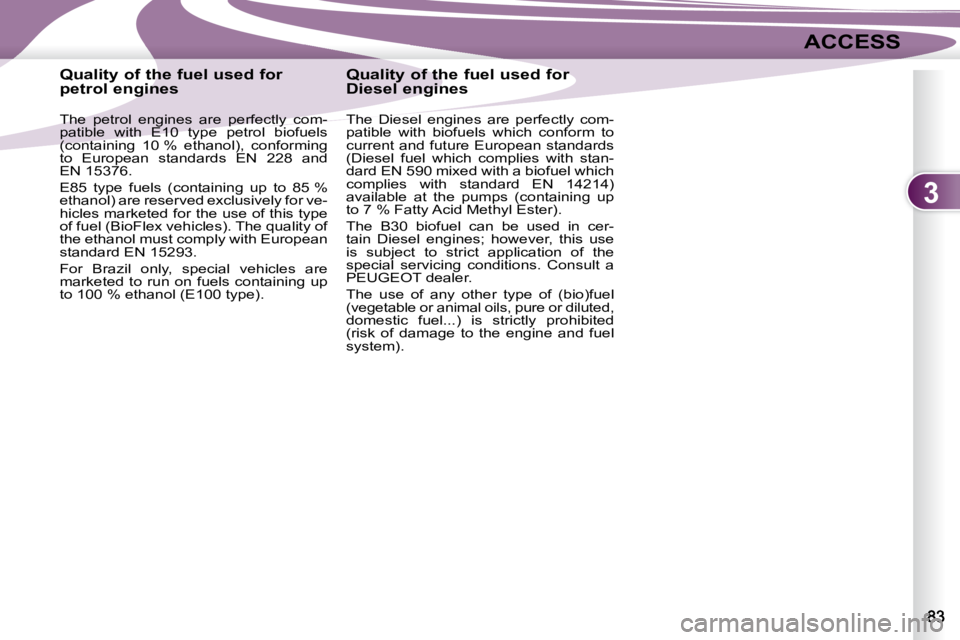

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Page 78 of 215
4
VISIBILITY

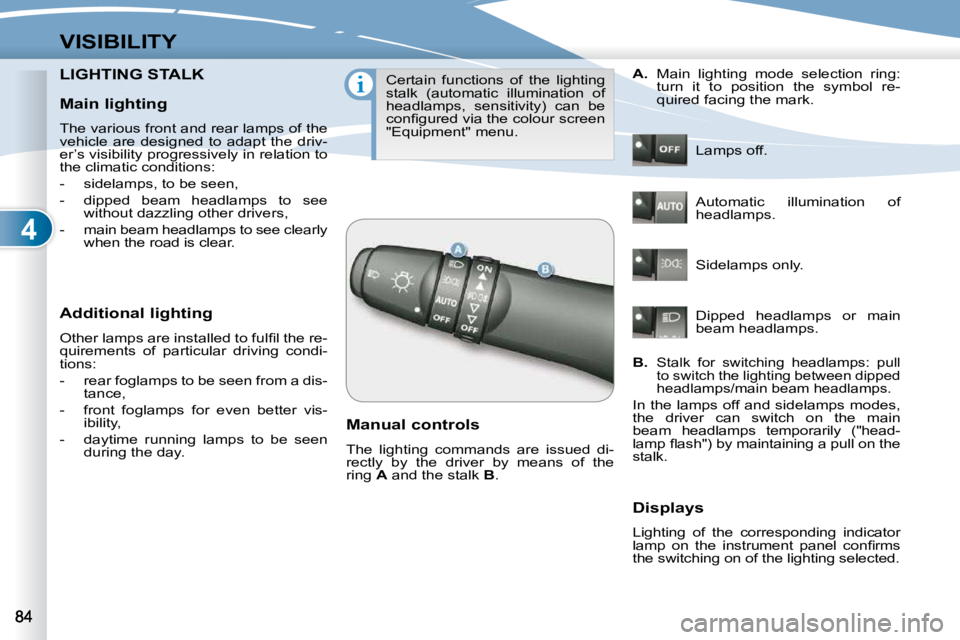

LIGHTING STALK LIGHTING STALK
Additional lighting
O t h e r l a m p s a r e i n s t a l l e d t o f u l fi l t h e r e -
q u i r e m e n t s o f p a r t i c u l a r d r i v i n g c o n d i -
tions:
- r e a r f o g l a m p s t o b e s e e n f r o m a d i s -tance,
- f r o n t f o g l a m p s f o r e v e n b e t t e r v i s - i b i l i t y ,
- d a y t i m e r u n n i n g l a m p s t o b e s e e n d u r i n g t h e d a y . Certain functions of the lighting
stalk (automatic illumination of
h e a d l a m p s , s e n s i t i v i t y ) c a n b e
c o n fi g u r e d v i a t h e c o l o u r s c r e e n
" E q u i p m e n t " m e n u .
Manual controls
T h e l i g h t i n g c o m m a n d s a r e i s s u e d d i -
r e c t l y b y t h e d r i v e r b y m e a n s o f t h e
ring A and the stalk B . L a m p s o f f .
Automatic illumination of
h e a d l a m p s .
S i d e l a m p s o n l y .
B.
Stalk for switching headlamps: pull
t o s w i t c h t h e l i g h t i n g b e t w e e n d i p p e d
h e a d l a m p s / m a i n b e a m h e a d l a m p s .
In the lamps off and sidelamps modes,
the driver can switch on the main
b e a m h e a d l a m p s t e m p o r a r i l y ( " h e a d -
l a m p fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e
s t a l k .
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
t h e s w i t c h i n g o n o f t h e l i g h t i n g s e l e c t e d .
A. Main lighting mode selection ring:
t u r n i t t o p o s i t i o n t h e s y m b o l r e -
q u i r e d f a c i n g t h e m a r k .
Dipped headlamps or main
b e a m h e a d l a m p s .
Main lighting
The various front and rear lamps of the
v e h i c l e a r e d e s i g n e d t o a d a p t t h e d r i v -
e r ’ s v i s i b i l i t y p r o g r e s s i v e l y i n r e l a t i o n t o
the climatic conditions:
- s i d e l a m p s , t o b e s e e n ,
- d i p p e d b e a m h e a d l a m p s t o s e e
without dazzling other drivers,
- m a i n b e a m h e a d l a m p s t o s e e c l e a r l y w h e n t h e r o a d i s c l e a r .

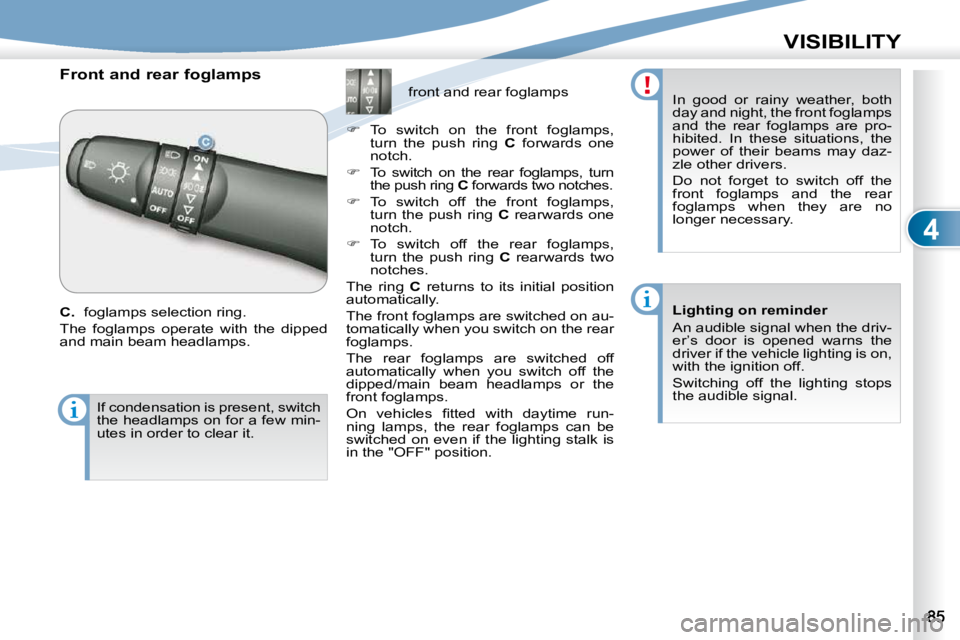

Page 79 of 215
4
VISIBILITY
Front and rear foglamps
C. f o g l a m p s s e l e c t i o n r i n g .
The foglamps operate with the dipped
a n d m a i n b e a m h e a d l a m p s . front and rear foglamps
To switch on the front foglamps,
turn the push ring C forwards one
n o t c h .
To switch on the rear foglamps, turn
the push ring C f o r w a r d s t w o n o t c h e s .
To switch off the front foglamps,
turn the push ring C rearwards one
n o t c h .
To switch off the rear foglamps,
turn the push ring C rearwards two
n o t c h e s .
The ring C returns to its initial position
a u t o m a t i c a l l y .
T h e f r o n t f o g l a m p s a r e s w i t c h e d o n a u -
t o m a t i c a l l y w h e n y o u s w i t c h o n t h e r e a r
f o g l a m p s .
The rear foglamps are switched off
a u t o m a t i c a l l y w h e n y o u s w i t c h o f f t h e
d i p p e d / m a i n b e a m h e a d l a m p s o r t h e
f r o n t f o g l a m p s .
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
n i n g l a m p s , t h e r e a r f o g l a m p s c a n b e
switched on even if the lighting stalk is
i n t h e " O F F " p o s i t i o n .
I n g o o d o r r a i n y w e a t h e r , b o t h
d a y a n d n i g h t , t h e f r o n t f o g l a m p s
a n d t h e r e a r f o g l a m p s a r e p r o -
h i b i t e d . I n t h e s e s i t u a t i o n s , t h e
p o w e r o f t h e i r b e a m s m a y d a z -
z l e o t h e r d r i v e r s .
Do not forget to switch off the
front foglamps and the rear
f o g l a m p s w h e n t h e y a r e n o
l o n g e r n e c e s s a r y .
Lighting on reminder
A n a u d i b l e s i g n a l w h e n t h e d r i v -
er’s door is opened warns the
driver if the vehicle lighting is on,
w i t h t h e i g n i t i o n o f f .
Switching off the lighting stops
t h e a u d i b l e s i g n a l .
If condensation is present, switch
t h e h e a d l a m p s o n f o r a f e w m i n -
u t e s i n o r d e r t o c l e a r i t .

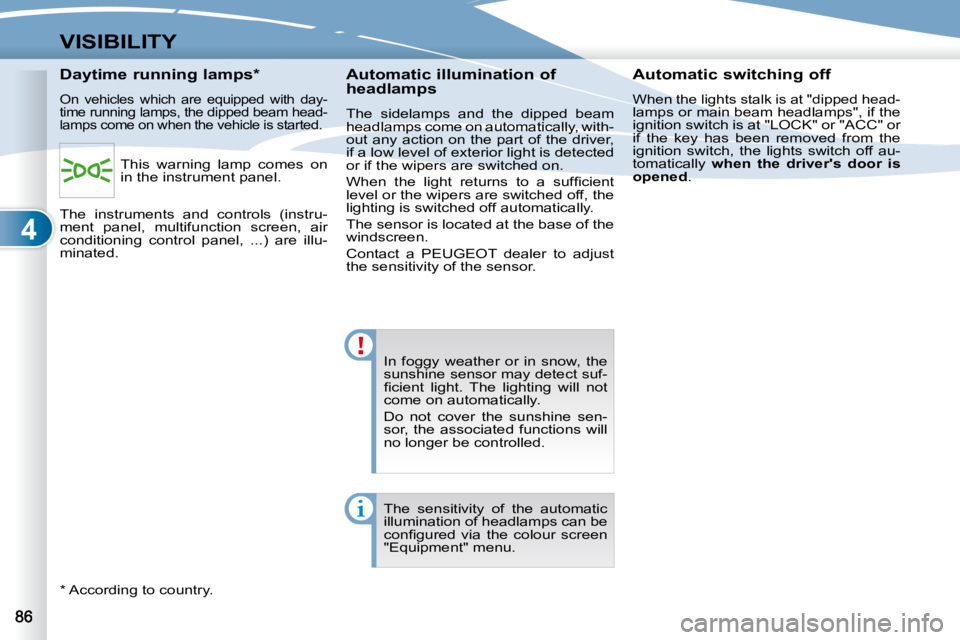

Page 80 of 215
4
VISIBILITY
I n f o g g y w e a t h e r o r i n s n o w , t h e
s u n s h i n e s e n s o r m a y d e t e c t s u f -
fi c i e n t l i g h t . T h e l i g h t i n g w i l l n o t
c o m e o n a u t o m a t i c a l l y .
D o n o t c o v e r t h e s u n s h i n e s e n -
sor, the associated functions will
n o l o n g e r b e c o n t r o l l e d .
Daytime running lamps *
O n v e h i c l e s w h i c h a r e e q u i p p e d w i t h d a y -
t i m e r u n n i n g l a m p s , t h e d i p p e d b e a m h e a d -
l a m p s c o m e o n w h e n t h e v e h i c l e i s s t a r t e d .
* A c c o r d i n g t o c o u n t r y . Automatic switching off
W h e n t h e l i g h t s s t a l k i s a t " d i p p e d h e a d - l a m p s o r m a i n b e a m h e a d l a m p s " , i f t h e
ignition switch is at "LOCK" or "ACC" or
i f t h e k e y h a s b e e n r e m o v e d f r o m t h e
i g n i t i o n s w i t c h , t h e l i g h t s s w i t c h o f f a u -
t o m a t i c a l l y
when the driver's door is
opened .
Automatic illumination of
headlamps
T h e s i d e l a m p s a n d t h e d i p p e d b e a m
h e a d l a m p s c o m e o n a u t o m a t i c a l l y , w i t h -
o u t a n y a c t i o n o n t h e p a r t o f t h e d r i v e r ,
if a low level of exterior light is detected
o r i f t h e w i p e r s a r e s w i t c h e d o n .
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
l i g h t i n g i s s w i t c h e d o f f a u t o m a t i c a l l y .
T h e s e n s o r i s l o c a t e d a t t h e b a s e o f t h e
w i n d s c r e e n .
Contact a PEUGEOT dealer to adjust
t h e s e n s i t i v i t y o f t h e s e n s o r .
T h e s e n s i t i v i t y o f t h e a u t o m a t i c
i l l u m i n a t i o n o f h e a d l a m p s c a n b e
c o n fi g u r e d v i a t h e c o l o u r s c r e e n
" E q u i p m e n t " m e n u .
This warning lamp comes on
i n t h e i n s t r u m e n t p a n e l .
T h e i n s t r u m e n t s a n d c o n t r o l s ( i n s t r u -
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e i l l u -
m i n a t e d .
