Page 101 of 215
6
SAFETY
If the airbag warning lamp and
the display come on continuous-
ly, do not install a "rear facing"
child seat on the front passen-
ger seat.
Consult a PEUGEOT dealer.
Operating fault
If this warning lamp comes on on the
instrument panel and this display ap-
pears on the instrument panel screen,
contact a PEUGEOT dealer to have the
system checked. The airbags may no
longer be triggered in the event of a se-
rious impact.
To ensure the safety of your
child, the passenger airbag must
be deactivated when you install
a "rear facing" child seat on the
front passenger seat.
Otherwise, the child would risk
being seriously injured or killed
if the airbag were triggered.
This warning lamp comes on on the cen-
tre console front panel when the ignition
is on and until the airbag is reactivated. Reactivation
When you remove the child seat, turn
switch
A to the "ON" position to reacti-
vate the airbag and so ensure the safe-
ty of your front passenger in the event
of an impact.
The associated warning lamp goes off.

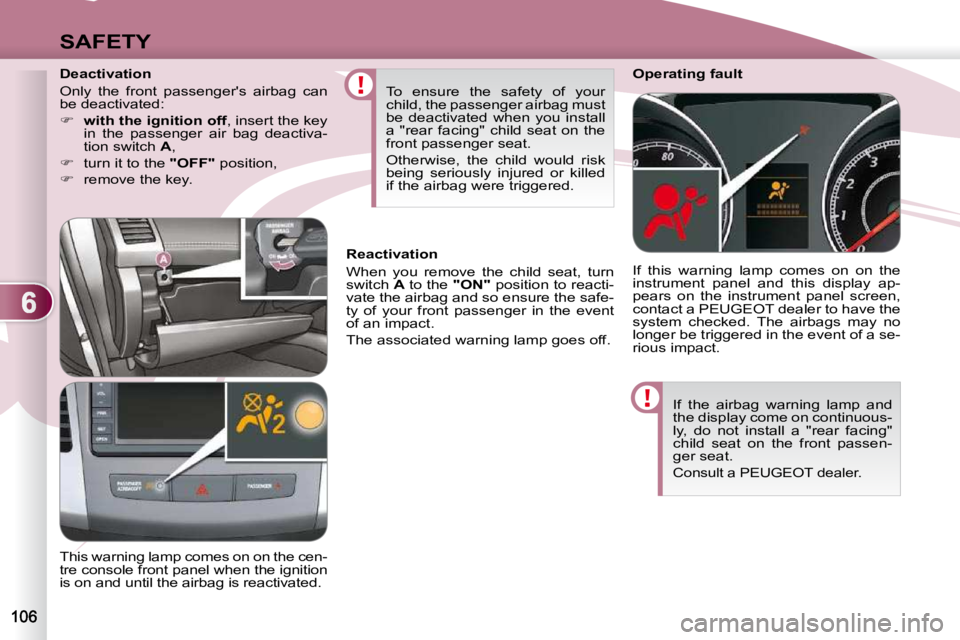

Deactivation
Only the front passenger's airbag can
be deactivated:
with the ignition off , insert the key
in the passenger air bag deactiva-
tion switch A ,
turn it to the "OFF" position,
remove the key.
Page 102 of 215
6
SAFETY

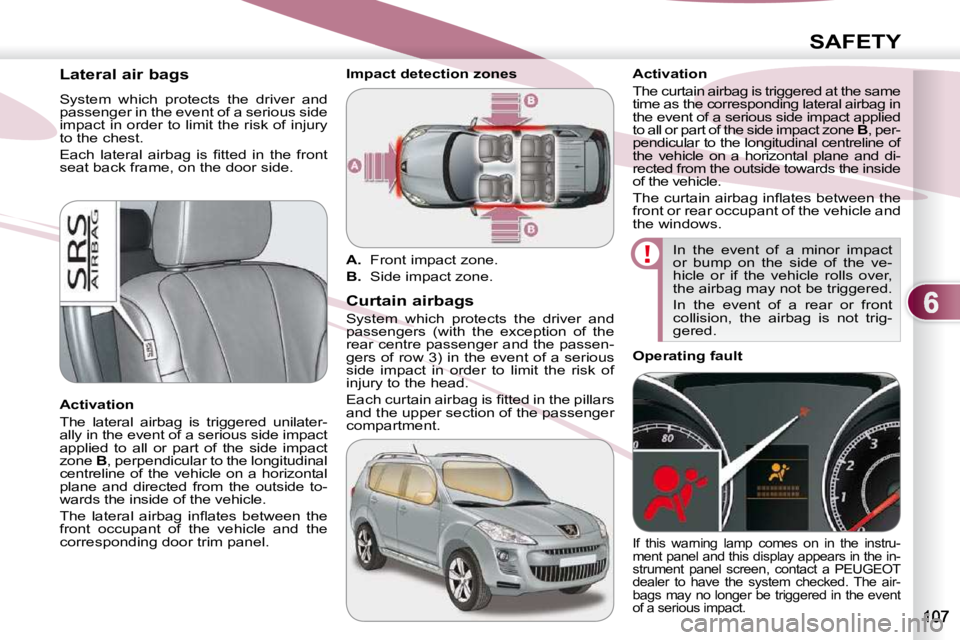

Lateral air bags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
E a c h l a t e r a l a i r b a g i s fi t t e d i n t h e f r o n t
seat back frame, on the door side.
Activation
The lateral airbag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim panel. Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
g e r s o f r o w 3 ) i n t h e e v e n t o f a s e r i o u s
side impact in order to limit the risk of
injury to the head.
E a c h c u r t a i n a i r b a g i s fi t t e d i n t h e p i l l a r s
and the upper section of the passenger
compartment. Activation
The curtain airbag is triggered at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone
B , per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the ve-
hicle or if the vehicle rolls over,
the airbag may not be triggered.
In the event of a rear or front
collision, the airbag is not trig-
gered.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Operating fault
If this warning lamp comes on in the instru-
ment panel and this display appears in the in-
strument panel screen, contact a PEUGEOT
dealer to have the system checked. The air-
bags may no longer be triggered in the event
of a serious impact.
Page 103 of 215
6
SAFETY

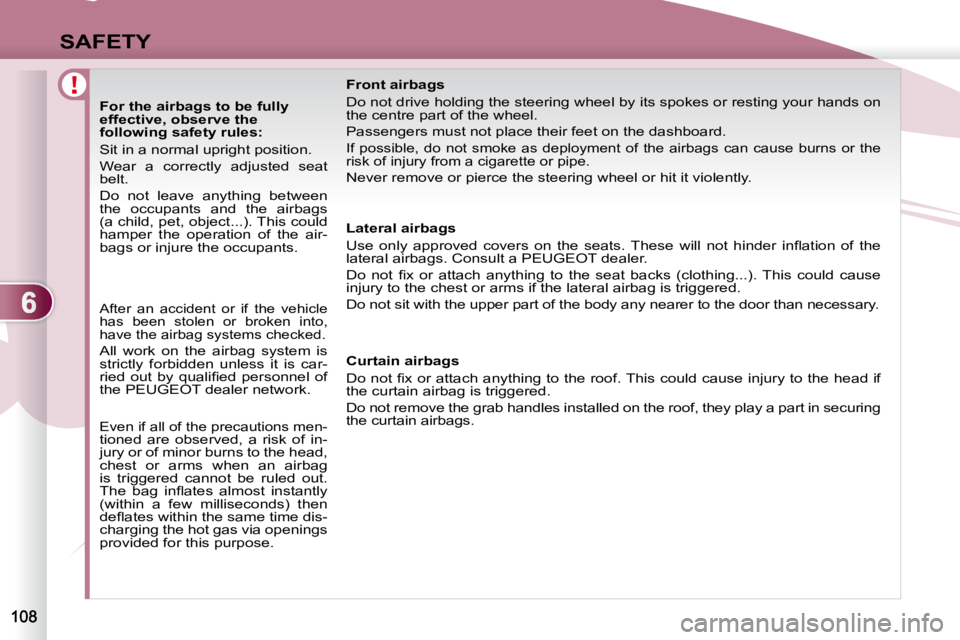

For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat
belt.
Do not leave anything between
the occupants and the airbags
(a child, pet, object...). This could
hamper the operation of the air-
bags or injure the occupants. Lateral airbags
U s e o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i
n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s ( c l o t h i n g . . . ) . T h i s c o u l d c a u s e
injury to the chest or arms if the lateral airbag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
After an accident or if the vehicle
has been stolen or broken into,
have the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f
the PEUGEOT dealer network.
Even if all of the precautions men-tioned are observed, a risk of in-
jury or of minor burns to the head,
chest or arms when an airbag
is triggered cannot be ruled out.
T h e b a g i n fl a t e s a l m o s t i n s t a n t l y
(within a few milliseconds) then
d e fl a t e s w i t h i n t h e s a m e t i m e d i s -
charging the hot gas via openings
provided for this purpose. Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e
i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain airbags. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Page 104 of 215
7
DRIVING
When the vehicle is being
driven, the display of this
message indicates that
the parking brake is still on
or has not been properly
released.

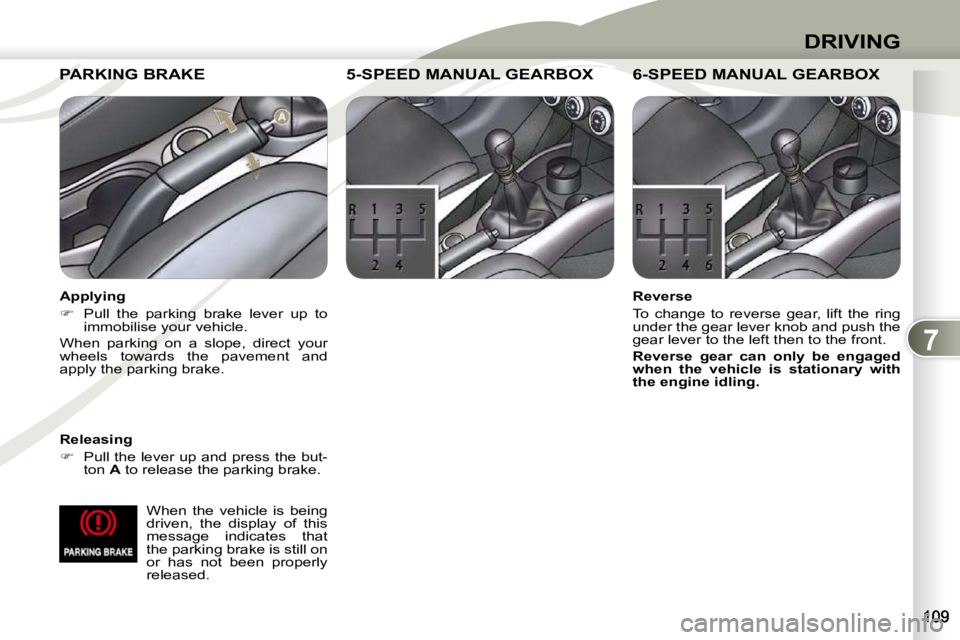

PARKING BRAKE PARKING BRAKE
Releasing
Pull the lever up and press the but-
ton A to release the parking brake.
5-SPEED MANUAL GEARBOX 5-SPEED MANUAL GEARBOX 5-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling. Applying
Pull the parking brake lever up to
immobilise your vehicle.
When parking on a slope, direct your
wheels towards the pavement and
apply the parking brake.
6-SPEED MANUAL 6-SPEED MANUAL GEARBOX
Page 105 of 215
7
DRIVING
Gear lever positions
N : neutral.
With your foot on the brake, select this
position to start.
R
: reverse gear.
With the vehicle stationary, keep your
foot on the brake pedal and push the
gear lever forwards.
D
: automated mode.
Move the lever backwards to select this
mode.
+/-: sequential mode with manual gear
changing. Functions of the steering
mounted control paddles
+: manual gear changing in sequential
mode.
Press behind the "+" steering mounted
control paddle to change up.
-: manual gear changing in sequential
mode.
Press behind the "-" steering mounted
control paddle to change down.
- a
"-" steering mounted control
paddle 2 for sequential downward
gear changes,
- a "+" steering mounted control
paddle 3 for sequential upward gear
changes. Move the lever backwards, then to the
left to select this mode, then:
- push forward to change up,
- push backward to change down.

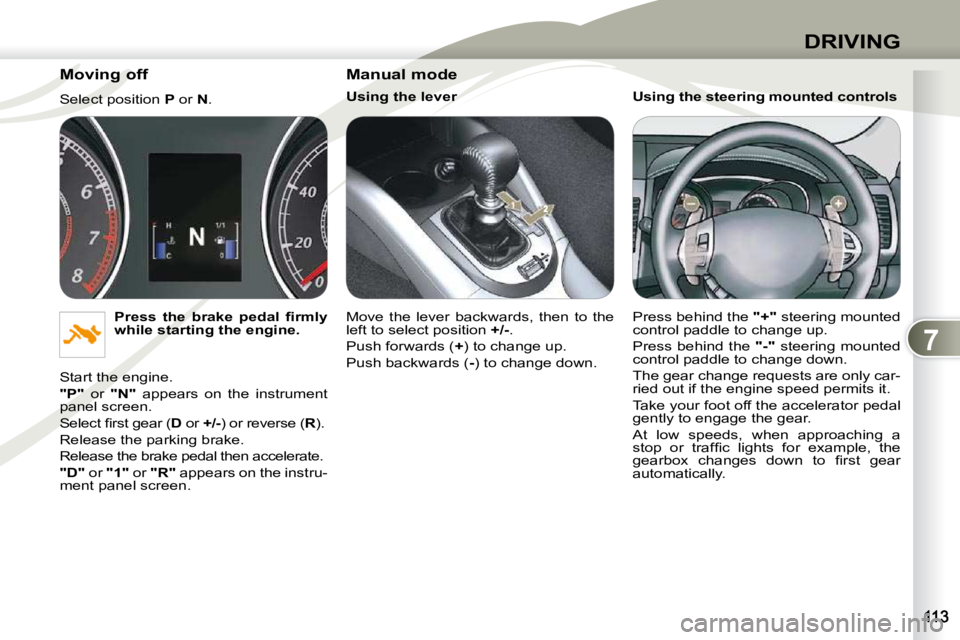

Moving off
Select position
N .

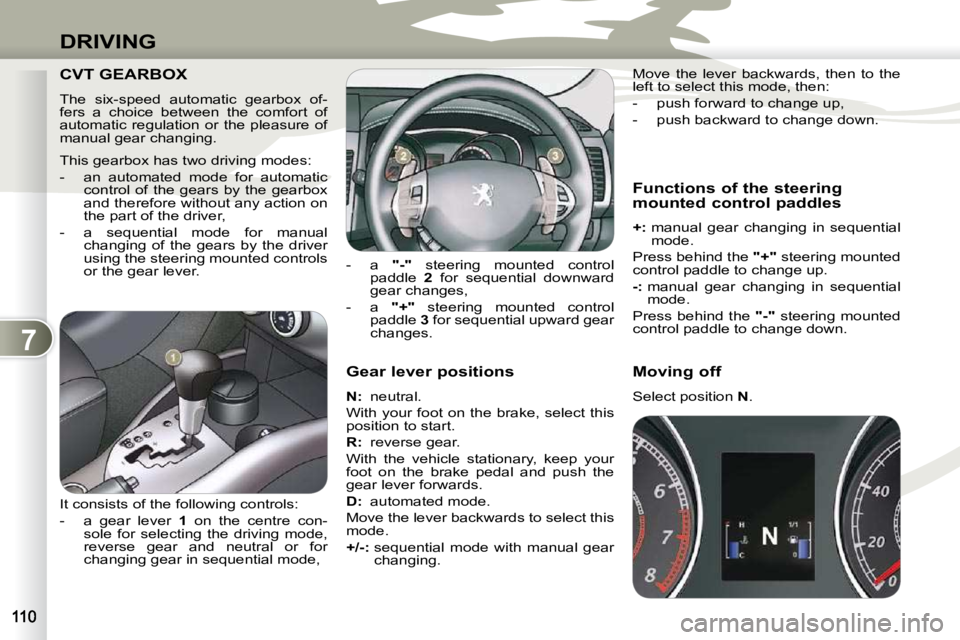

CVT GEARBOX
The six-speed automatic gearbox of-
fers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
This gearbox has two driving modes:
- an automated mode for automatic
control of the gears by the gearbox
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering mounted controls
or the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre con-
sole for selecting the driving mode,
reverse gear and neutral or for
changing gear in sequential mode,
Page 106 of 215
7
DRIVING
Stopping - Starting on a slope
Do not use the accelerator pedal to
immobilise the vehicle on a slope,
apply the
parking brake
instead.
When starting on a slope, accelerate
gradually while releasing the parking
brake.
Switching to sequential mode
Once you have moved off, you can
switch to sequential mode by selecting
position +/- .
"D" disappears and the gears engaged
appear in succession on the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear. Switching to automated mode

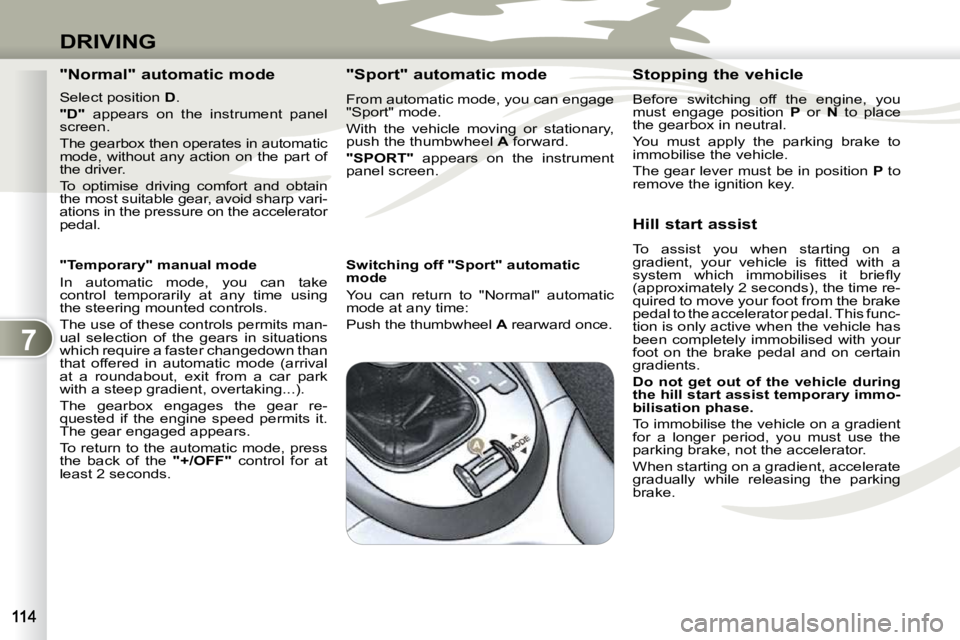

Automated mode
After using the sequential mode, you
can return to the automated mode by
selecting position
D .
"D" appears on the instrument panel
screen.
The gearbox then operates in auto-
active mode, without any action on the
part of the driver.
It continuously selects the gear most
suited to the conditions of:
- driving style,
- road characteristics,
- vehicle load.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp vari-
ations in the pressure on the accelerator
pedal.
Auto sequential mode
In the automated mode, you can take
over control temporarily at any time us-
ing the steering mounted controls.
The use of these controls permits manual
selection of the gears in situations which
require a faster changedown than that
offered in automated mode (arrival at a
roundabout, exit from a car park with a
steep gradient, overtaking...).
Stopping the vehicle
Before switching off the engine, you
can:
- move to position N to leave the
gearbox in neutral.
- l e a v e a g e a r e n g a g e d , s u c h a s fi r s t or reverse.
In both cases, you must apply the park-
ing brake to immobilise the vehicle.
Operating anomaly
With the ignition on, if the message
"Slow down" or "Maintenance re-
quired" appears on the multifunction
screen, this indicates a gearbox mal-
function.
When a message is displayed, carry
out the following operations:
- slow down and stop your vehicle in a safe place,
- place the lever in position N and let
the engine run,
- open the bonnet to allow the engine to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or ap-
pears frequently, contact a PEUGEOT
dealer without delay.
P r e s s t h e b r a k e p e d a l fi r m l y
while starting the engine.
Start the engine. "N" appears on the
instrument panel screen.
S e l e c t fi r s t g e a r ( p o s i t i o n D or +/- ) or
reverse (position R ).
Release the parking brake.
Release the brake pedal then accelerate.
"D" or "1" or "R" appear on the instru-
ment panel screen. The gearbox engages the gear re-
quested if the engine speed permits it.
The gear engaged appears.
To return to the automated mode, press
the back of the
"+/OFF" control for
approximately 2 seconds.
At low speeds, when approaching a
s t o p o r t r a f fi c l i g h t s f o r e x a m p l e , t h e
g e a r b o x c h a n g e s d o w n t o fi r s t g e a r
automatically.
Page 107 of 215
7
DRIVING

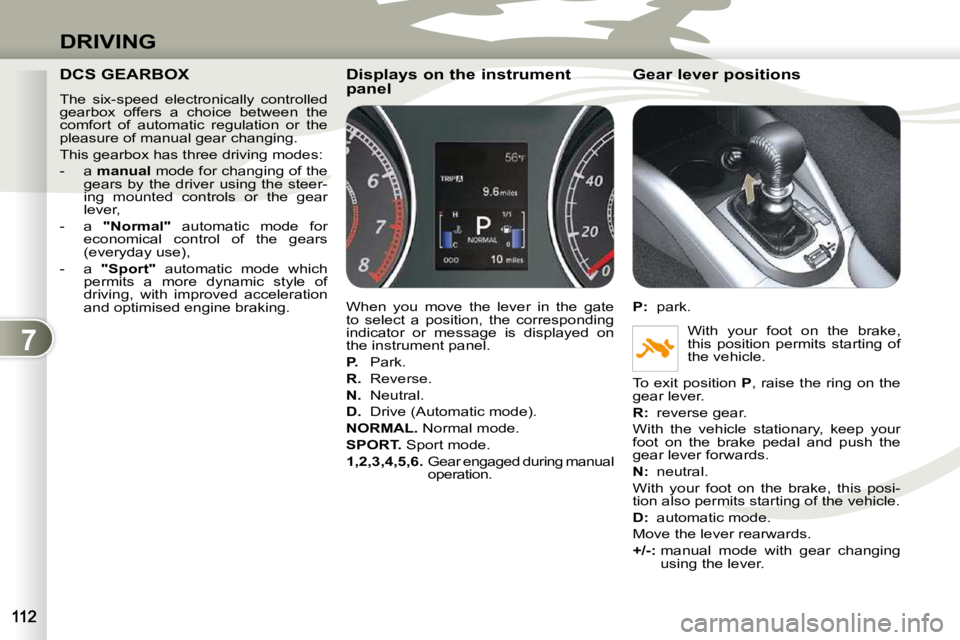

DCS GEARBOX
The six-speed electronically controlled
gearbox offers a choice between the
comfort of automatic regulation or the
pleasure of manual gear changing.
This gearbox has three driving modes:
- a manual mode for changing of the
gears by the driver using the steer-
ing mounted controls or the gear
lever,
- a "
Normal
" automatic mode for
economical control of the gears
(everyday use),
- a "
Sport
" automatic mode which
permits a more dynamic style of
driving, with improved acceleration
and optimised engine braking. Displays on the instrument
panel
When you move the lever in the gate
to select a position, the corresponding
indicator or message is displayed on
the instrument panel.
P. Park.
R. Reverse.
N. Neutral.
D. Drive (Automatic mode).
NORMAL. Normal mode.
SPORT. Sport mode.
1,2,3,4,5,6. Gear engaged during manual
operation. Gear lever positions
P
: park.
With your foot on the brake,
this position permits starting of
the vehicle.
To exit position P , raise the ring on the
gear lever.
R
: reverse gear.
With the vehicle stationary, keep your
foot on the brake pedal and push the
gear lever forwards.
N
: neutral.
With your foot on the brake, this posi-
tion also permits starting of the vehicle.
D
: automatic mode.
Move the lever rearwards.
+/- : manual mode with gear changing
using the lever.
Page 108 of 215
7
DRIVING
Moving off
Select position P or N .
P r e s s t h e b r a k e p e d a l fi r m l y
while starting the engine.
Start the engine.
"P" or "N" appears on the instrument
panel screen.
S e l e c t fi r s t g e a r ( D or +/- ) or reverse ( R ).
Release the parking brake.
Release the brake pedal then accelerate.
"D" or "1" or "R" appears on the instru-
ment panel screen. Manual mode
Using the lever
Move the lever backwards, then to the
left to select position
+/- .
Push forwards ( + ) to change up.
Push backwards ( - ) to change down. Using the steering mounted controls
Press behind the
"+" steering mounted
control paddle to change up.
Press behind the "-" steering mounted
control paddle to change down.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear.
At low speeds, when approaching a
s t o p o r t r a f fi c l i g h t s f o r e x a m p l e , t h e
g e a r b o x c h a n g e s d o w n t o fi r s t g e a r
automatically.
Page 109 of 215
7
DRIVING
"Normal" automatic mode
Select position D .
"D" appears on the instrument panel
screen.
The gearbox then operates in automatic
mode, without any action on the part of
the driver.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp vari-
ations in the pressure on the accelerator
pedal.
"Temporary" manual mode
In automatic mode, you can take
control temporarily at any time using
the steering mounted controls.
The use of these controls permits man-
ual selection of the gears in situations
which require a faster changedown than
that offered in automatic mode (arrival
at a roundabout, exit from a car park
with a steep gradient, overtaking...).
The gearbox engages the gear re-
quested if the engine speed permits it.
The gear engaged appears.
To return to the automatic mode, press
the back of the "+/OFF" control for at
least 2 seconds. "Sport" automatic mode
From automatic mode, you can engage
"Sport" mode.
With the vehicle moving or stationary,
push the thumbwheel
A forward.
"SPORT" appears on the instrument
panel screen.
Switching off "Sport" automatic
mode
You can return to "Normal" automatic
mode at any time:
Push the thumbwheel A rearward once. Stopping the vehicle
Before switching off the engine, you
must engage position
P or N to place
the gearbox in neutral.
You must apply the parking brake to
immobilise the vehicle.
The gear lever must be in position P
to
remove the ignition key.
Hill start assist
To assist you when starting on a
g r a d i e n t , y o u r v e h i c l e i s fi t t e d w i t h a
s y s t e m w h i c h i m m o b i l i s e s i t b r i e fl y
(approximately 2 seconds), the time re-
quired to move your foot from the brake
pedal to the accelerator pedal. This func-
tion is only active when the vehicle has
been completely immobilised with your
foot on the brake pedal and on certain
gradients.
Do not get out of the vehicle during
the hill start
assist
temporary immo-
bilisation phase.
To immobilise the vehicle on a gradient
for a longer period, you must use the
parking brake, not the accelerator.
When starting on a gradient, accelerate
gradually while releasing the parking
brake.
Page 110 of 215
7
DRIVING
Operating anomaly Reverse gear
Flashing of the indicator
R in the instru-
ment panel screen, accompanied by an
audible signal, indicates a malfunction
on engaging the gear:
Press the brake pedal, position the gear
lever in position N and engage reverse
gear again.
With the ignition on, if this warning light
comes on, accompanied by vibration
in the pedals and the message "Main-
tenance required" on the instrument
panel display, this indicates a gearbox
malfunction.
If the message is displayed, carry out
the following operations:
- slow down and stop your vehicle in a safe place,
- place the lever in position P or N ,
apply the handbrake and let the
engine run,
- open the bonnet to allow the engine to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or
appears frequently, contact a dealer of
the Marque without delay.
Overheating of the engine may
result in unwanted declutching of
the gearbox.
