PEUGEOT 4007 2012 Owners Manual

11
AUDIO EQUIPMENT and TELEMATICS

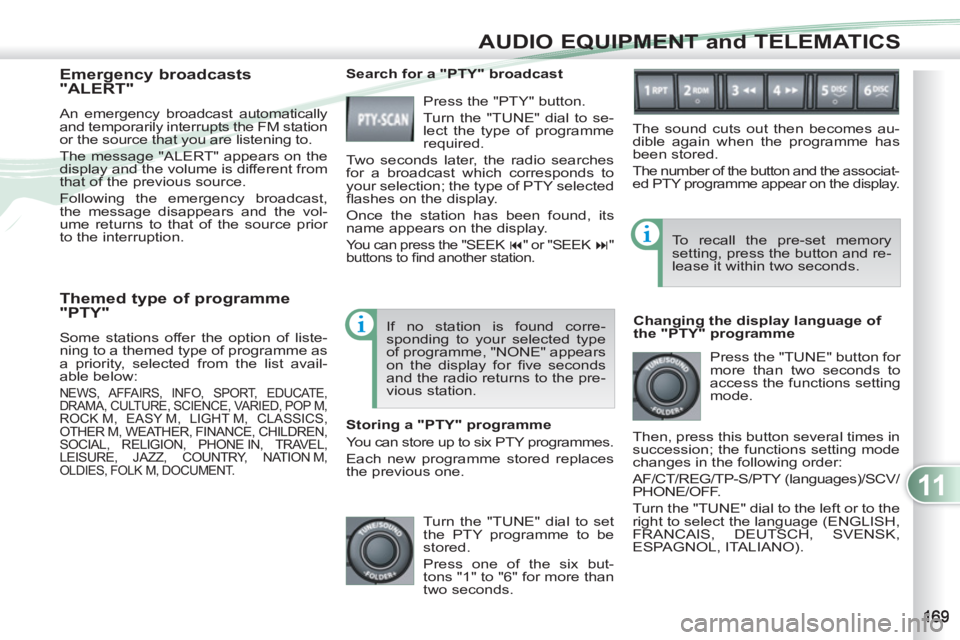

Themed type of programme
"PTY"
Some stations offer the option of liste-
ning to a themed type of programme as
a priority, selected from the list avail-
able below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED, POP M,
ROCK M, EASY M, LIGHT M, CLASSICS,
OTHER M, WEATHER, FINANCE, CHILDREN,
SOCIAL, RELIGION, PHONE IN, TRAVEL,
LEISURE, JAZZ, COUNTRY, NATION M
,
OLDIES, FOLK M, DOCUMENT.

Emergency broadcasts
"ALERT"
An emergency broadcast automatically
and temporarily interrupts the FM station
or the source that you are listening to.
The message "ALERT" appears on the
display and the volume is different from
that of the previous source.
Following the emergency broadcast,
the message disappears and the vol-
ume returns to that of the source prior
to the interruption.
Search for a "PTY" broadcast
Press the "PTY" button.
Turn the "TUNE" dial to se-
lect the type of programme
required.
Two seconds later, the radio searches
for a broadcast which corresponds to
your selection; the type of PTY selected
fl ashes on the display.
Once the station has been found, its
name appears on the display.




You can press the "SEEK
" or "SEEK



"
buttons to fi nd another station.

If no station is found corre-
sponding to your selected type
of programme, "NONE" appears
on the display for fi ve seconds
and the radio returns to the pre-
vious station.

Storing a "PTY" programme
You can store up to six PTY programmes.
Each new programme stored replaces
the previous one. To recall the pre-set memory
setting, press the button and re-
lease it within two seconds.

Changing the display language of
the "PTY" programme
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button several times in
succession; the functions setting mode
changes in the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial to the left or to the
right to select the language (ENGLISH,
FRANCAIS, DEUTSCH, SVENSK,
ESPAGNOL, ITALIANO).
The sound cuts out then becomes au-
dible again when the programme has
been stored.
The number of the button and the associat-
ed PTY programme appear on the display.
Turn the "TUNE" dial to set
the PTY programme to be
stored.
Press one of the six but-
tons "1" to "6" for more than
two seconds.

11
AUDIO EQUIPMENT and TELEMATICS

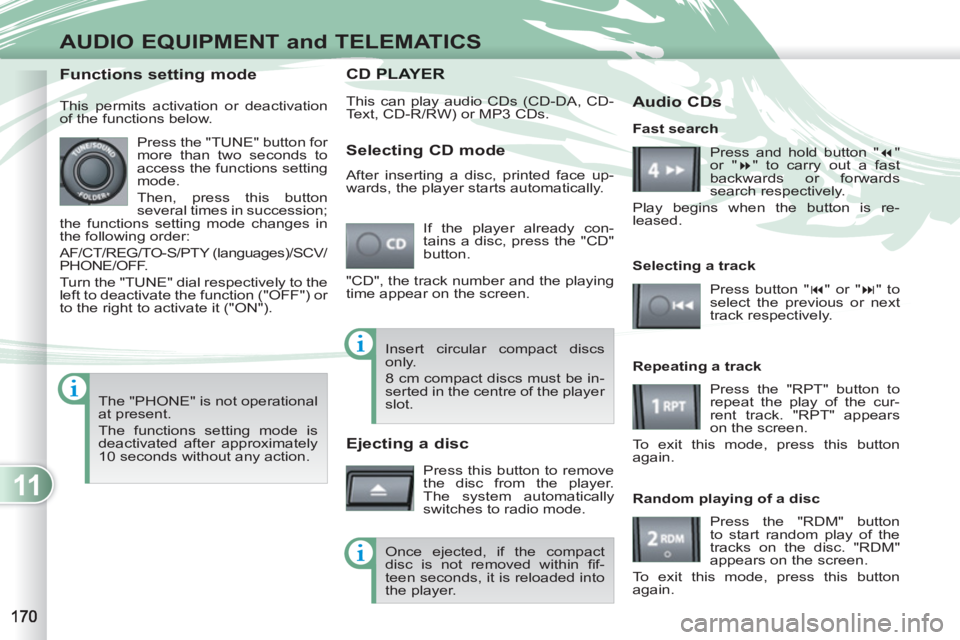

CD PLAPLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs.
If the player already con-
tains a disc, press the "CD"
button.

"CD", the track number and the playing
time appear on the screen.

Functions setting mode

This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button
several times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational
at present.
The functions setting mode is
deactivated after approximately
10 seconds without any action.


Selecting CD mode

After inserting a disc, printed face up-
wards, the player starts automatically.

Ejecting a disc

Press this button to remove
the disc from the player.
The system automatically
switches to radio mode.
Fast search
Press and hold button "
"
or "
" to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.

Selecting a track
Press button "
" or "
" to
select the previous or next
track respectively.

Repeating a track
Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.

Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again. Insert circular compact discs
only.
8 cm compact discs must be in-
serted in the centre of the player
slot.
Once ejected, if the compact
disc is not removed within fi f-
teen seconds, it is reloaded into
the player.


Audio CDs

11
AUDIO EQUIPMENT and TELEMATICS

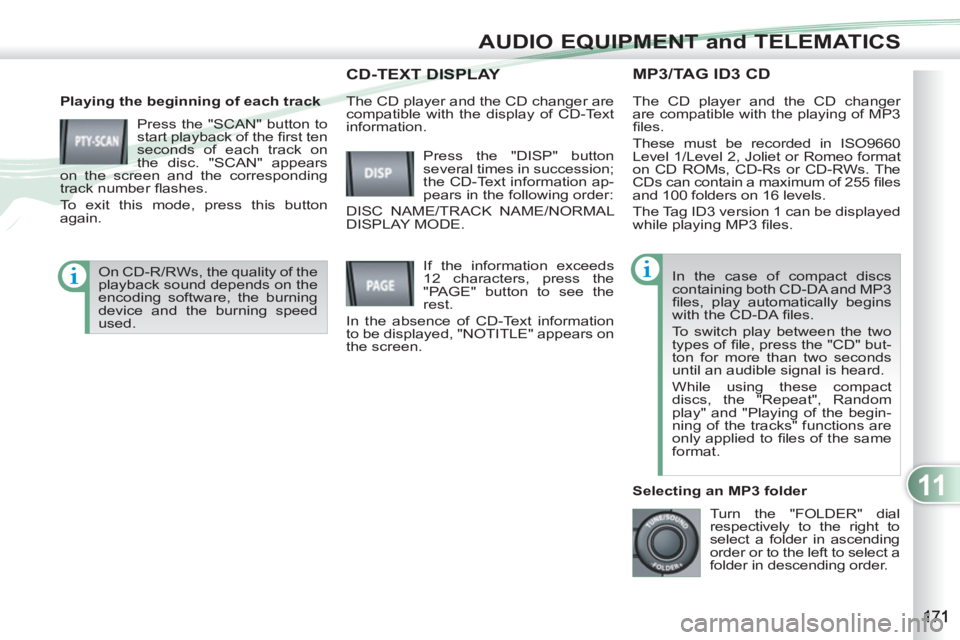

MP3/TAG ID3 CD

Playing the beginning of each track
Press the "SCAN" button to
start playback of the fi rst ten
seconds of each track on
the disc. "SCAN" appears
on the screen and the corresponding
track number fl ashes.
To exit this mode, press this button
again. The CD player and the CD changer
are compatible with the playing of MP3
fi les.
These must be recorded in ISO9660
Level 1/Level 2, Joliet or Romeo format
on CD ROMs, CD-Rs or CD-RWs. The
CDs can contain a maximum of 255 fi les
and 100 folders on 16 levels.
The Tag ID3 version 1 can be displayed
while playing MP3 fi les.
In the case of compact discs
containing both CD-DA and MP3
fi les, play automatically begins
with the CD-DA fi les.
To switch play between the two
types of fi le, press the "CD" but-
ton for more than two seconds
until an audible signal is heard.
While using these compact
discs, the "Repeat", Random
play" and "Playing of the begin-
ning of the tracks" functions are
only applied to fi les of the same
format.

Selecting an MP3 folder
Turn the "FOLDER" dial
respectively to the right to
select a folder in ascending
order or to the left to select a
folder in descending order. Press the "DISP" button
several times in succession;
the CD-Text information ap-
pears in the following order:
DISC NAME/TRACK NAME/NORMAL
DISPLAY MODE.
CD-TEXT DISPLAY XT DISPLAY
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of CD-Text information
to be displayed, "NOTITLE" appears on
the screen. The CD player and the CD changer are
compatible with the display of CD-Text
information.
On CD-R/RWs, the quality of the
playback sound depends on the
encoding software, the burning
device and the burning speed
used.

11
AUDIO EQUIPMENT and TELEMATICS
When play begins, "READING" appears
in the screen then disappears to make
way for the folder number, the track
number, the playing time and "MP3".
Playing the beginning of each track
Press the "SCAN" button
to start playing the fi rst ten
seconds of each track in
all of the folders. "SCAN"
appears in the screen and the corre-
sponding track number fl ashes.
To exit this mode, press this button
again.

MP3/Tag ID3 display
Press the "DISP" button sev-
eral times in succession; the
MP3 information appears in
the following order:
FOLDER NAME/TRACK NAME/NORMAL
DISPLAY MODE.
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of MP3 or Tag ID3 in-
formation to be displayed, "NOTITLE"
appears in the screen.
Press the "DISP" button for
more than two seconds to
activate the Tag ID3 infor-
mation. "TAG" appears in
the screen.
Press the "DISP" button several times
in succession; the Tag ID3 information
appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST
NAME/NORMAL DISPLAY MODE. To deactivate this information, press
the "DISP" button again for more than
two seconds.

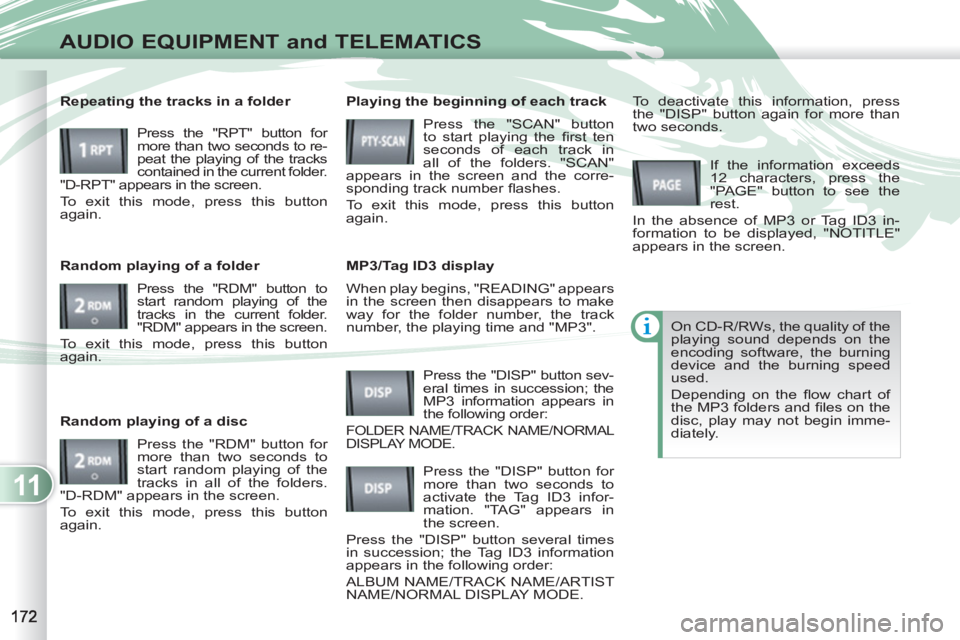

Repeating the tracks in a folder
Press the "RPT" button for
more than two seconds to re-
peat the playing of the tracks
contained in the current folder.
"D-RPT" appears in the screen.
To exit this mode, press this button
again.

Random playing of a folder
Press the "RDM" button to
start random playing of the
tracks in the current folder.
"RDM" appears in the screen.
To exit this mode, press this button
again.

Random playing of a disc
Press the "RDM" button for
more than two seconds to
start random playing of the
tracks in all of the folders.
"D-RDM" appears in the screen.
To exit this mode, press this button
again. On CD-R/RWs, the quality of the
playing sound depends on the
encoding software, the burning
device and the burning speed
used.
Depending on the fl ow chart of
the MP3 folders and fi les on the
disc, play may not begin imme-
diately.

11
AUDIO EQUIPMENT and TELEMATICS

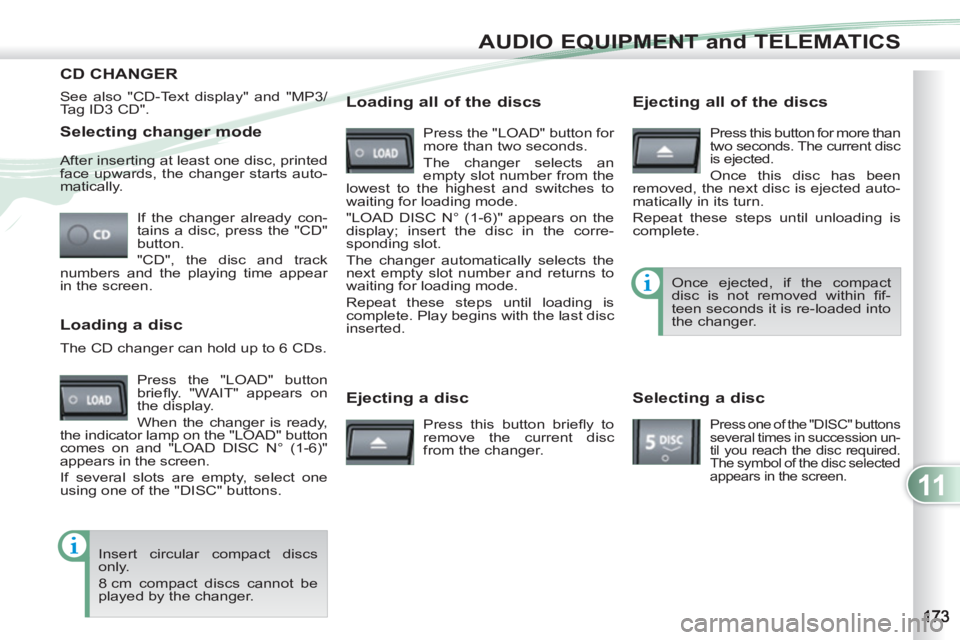

Selecting changer mode

If the changer already con-
tains a disc, press the "CD"
button.
"CD", the disc and track
numbers and the playing time appear
in the screen. After inserting at least one disc, printed
face upwards, the changer starts auto-
matically.

Ejecting a disc

Press this button briefl y to
remove the current disc
from the changer. Once ejected, if the compact
disc is not removed within fi f-
teen seconds it is re-loaded into
the changer.


Loading a disc

Press the "LOAD" button
briefl y. "WAIT" appears on
the display.
When the changer is ready,
the indicator lamp on the "LOAD" button
comes on and "LOAD DISC N° (1-6)"
appears in the screen.
If several slots are empty, select one
using one of the "DISC" buttons. The CD changer can hold up to 6 CDs.
Insert circular compact discs
only.
8 cm compact discs cannot be
played by the changer.


Loading all of the discs
Ejecting all of the discs

Press this button for more than
two seconds. The current disc
is ejected.
Once this disc has been
removed, the next disc is ejected auto-
matically in its turn.
Repeat these steps until unloading is
complete.

Selecting a disc

Press one of the "DISC" buttons
several times in succession un-
til you reach the disc required.
The symbol of the disc selected
appears in the screen.

See also "CD-Text display" and "MP3/
Tag ID3 CD".
Press the "LOAD" button for
more than two seconds.
The changer selects an
empty slot number from the
lowest to the highest and switches to
waiting for loading mode.
"LOAD DISC N° (1-6)" appears on the
display; insert the disc in the corre-
sponding slot.
The changer automatically selects the
next empty slot number and returns to
waiting for loading mode.
Repeat these steps until loading is
complete. Play begins with the last disc
inserted.
CD CHANGER

11
AUDIO EQUIPMENT and TELEMATICS

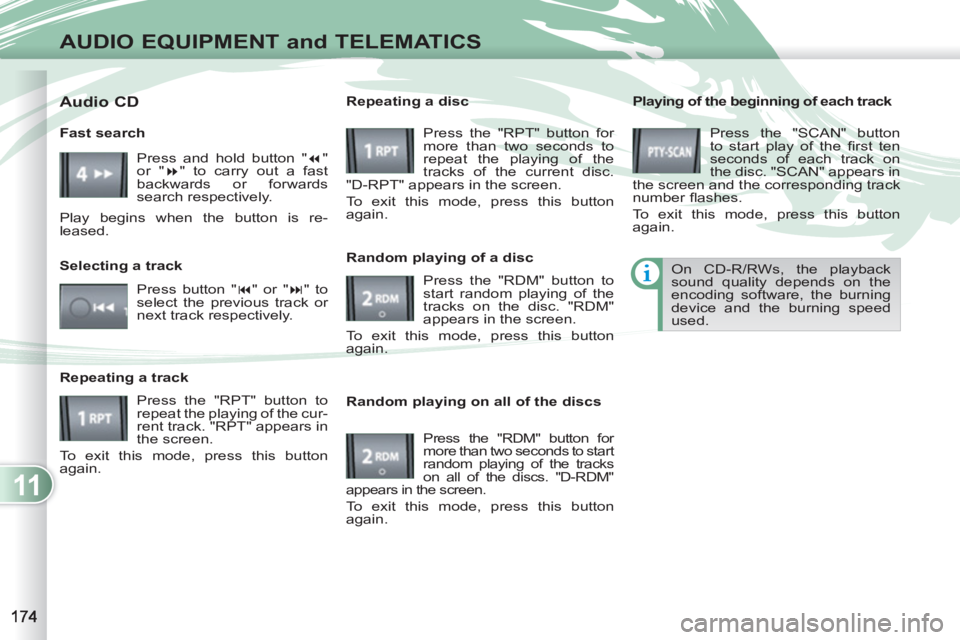

Playing of the beginning of each track
Press the "SCAN" button
to start play of the fi rst ten
seconds of each track on
the disc. "SCAN" appears in
the screen and the corresponding track
number fl ashes.
To exit this mode, press this button
again.
On CD-R/RWs, the playback
sound quality depends on the
encoding software, the burning
device and the burning speed
used.


Random playing on all of the discs

Press the "RDM" button for
more than two seconds to start
random playing of the tracks
on all of the discs. "D-RDM"
appears in the screen.
To exit this mode, press this button
again.
Fast search
Press and hold button "
"
or "
" to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.

Selecting a track
Press button "
" or "
" to
select the previous track or
next track respectively.

Repeating a track
Press the "RPT" button to
repeat the playing of the cur-
rent track. "RPT" appears in
the screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button to
start random playing of the
tracks on the disc. "RDM"
appears in the screen.
To exit this mode, press this button
again.
Repeating a disc
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks of the current disc.
"D-RPT" appears in the screen.
To exit this mode, press this button
again.


Audio CD

11
AUDIO EQUIPMENT and TELEMATICS

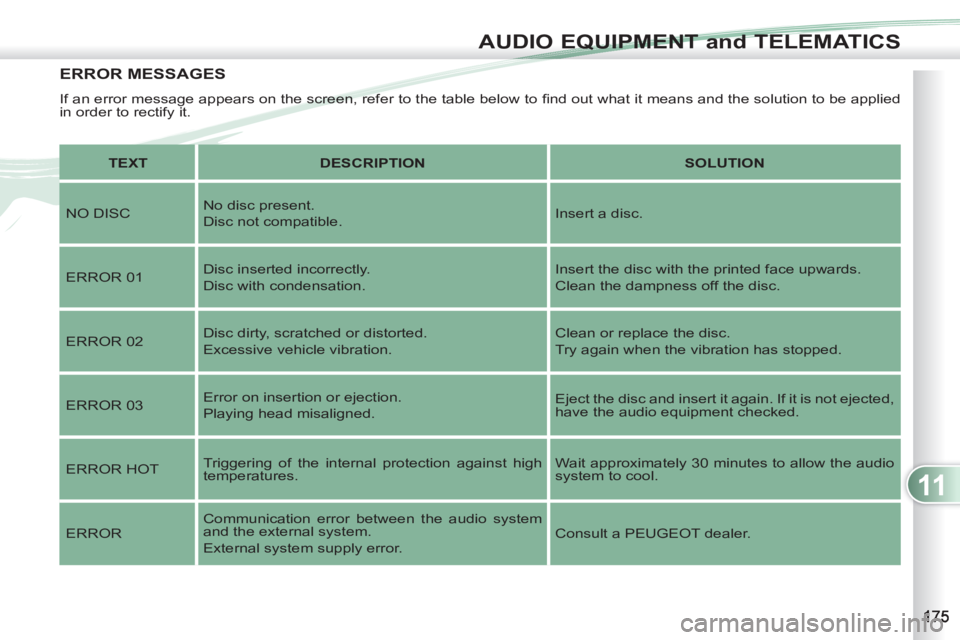

ERROR MESSAGES
If an error message appears on the screen, refer to the table below to fi nd out what it means and the solution to be applied
in order to rectify it.


TEXT



DESCRIPTION



SOLUTION



NO DISC No disc present.
Disc not compatible. Insert a disc.

ERROR 01 Disc inserted incorrectly.
Disc with condensation. Insert the disc with the printed face upwards.
Clean the dampness off the disc.

ERROR 02 Disc dirty, scratched or distorted.
Excessive vehicle vibration. Clean or replace the disc.
Try again when the vibration has stopped.

ERROR 03 Error on insertion or ejection.
Playing head misaligned. Eject the disc and insert it again. If it is not ejected,
have the audio equipment checked.

ERROR HOT Triggering of the internal protection against high
temperatures. Wait approximately 30 minutes to allow the audio
system to cool.

ERROR Communication error between the audio system
and the external system.
External system supply error. Consult a PEUGEOT dealer.

11
AUDIO EQUIPMENT and TELEMATICS

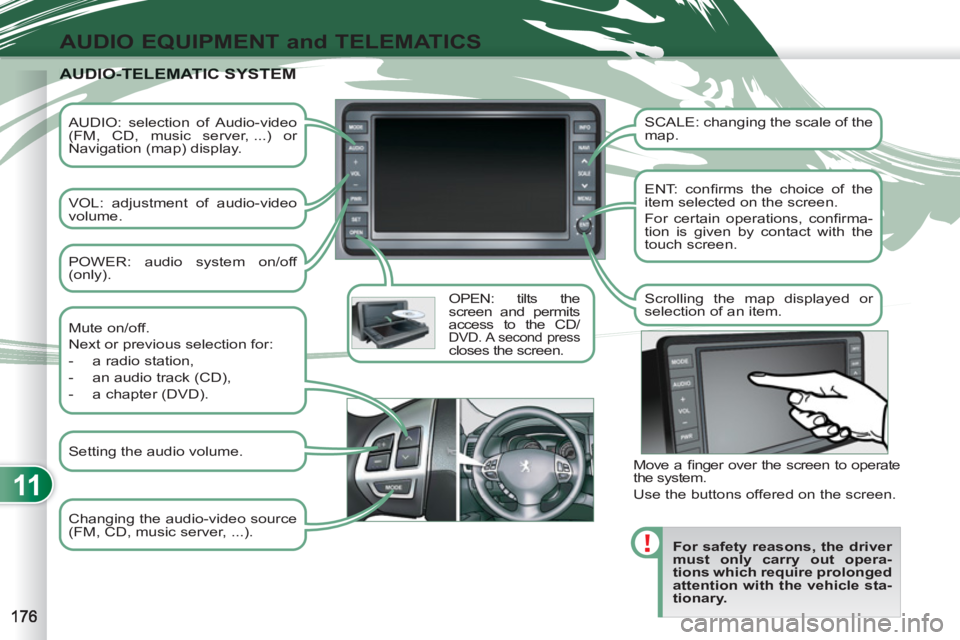

AUDIO: selection of Audio-video
(FM, CD, music server, ...) or
Navigation (map) display.

VOL: adjustment of audio-video
volume.

OPEN: tilts the
screen and permits
access to the CD/
DVD. A second press closes the screen.
SCALE: changing the scale of the
map.

ENT: confi rms the choice of the
item selected on the screen.
For certain operations, confi rma-
tion is given by contact with the
touch screen.

Scrolling the map displayed or
selection of an item.

For safety reasons, the driver
must only carry out opera-
tions which require prolonged
attention with the vehicle sta-
tionary.


AUDIO-TELEMATIC SYSTEMAUDIO-TELEMATIC SYSTEM


Changing the audio-video source
(FM, CD, music server, ...).
Mute on/off.
Next or previous selection for:


- a radio station,

- an audio track (CD),

- a chapter (DVD).

Move a fi nger over the screen to operate
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).

Setting the audio volume.

11
AUDIO EQUIPMENT and TELEMATICS

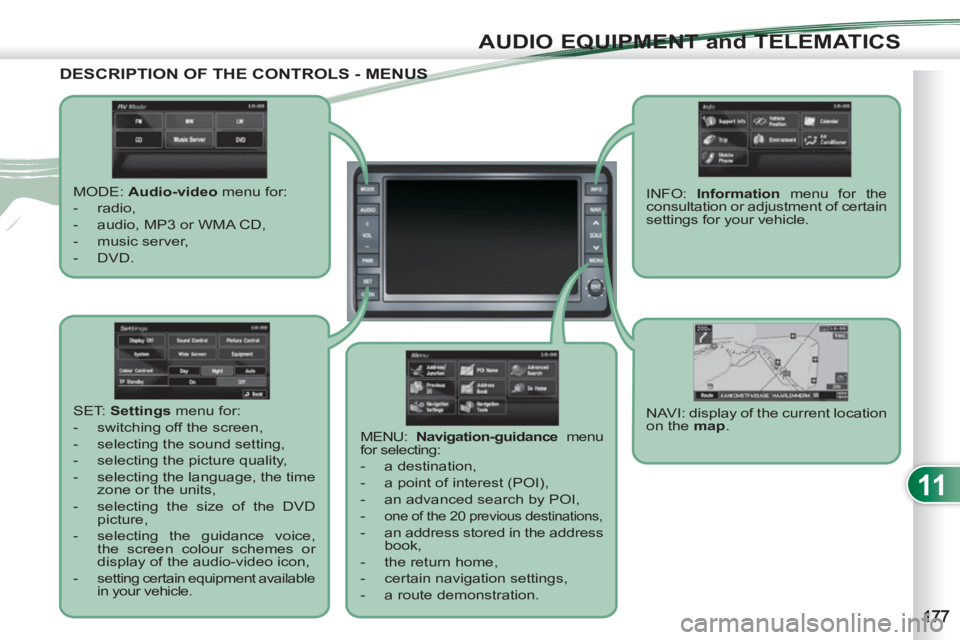

DESCRIPTION OF THE CONTROLS - MENUS US

MODE: Audio-video
menu for:


- radio,

- audio, MP3 or WMA CD,

- music server,

- DVD.
MENU: Navigation-guidance
menu
for selecting:


- a destination,

- a point of interest (POI),

- an advanced search by POI,

-
one of the 20 previous destinations,


- an address stored in the address
book,

- the return home,

- certain navigation settings,

- a route demonstration. NAVI: display of the current location
on the map
. SET: Settings
menu for:


- switching off the screen,

- selecting the sound setting,

- selecting the picture quality,

- selecting the language, the time
zone or the units,

- selecting the size of the DVD
picture,

- selecting the guidance voice,
the screen colour schemes or
display of the audio-video icon,

-
setting certain equipment available
in your vehicle.

INFO: Information
menu for the
consultation or adjustment of certain
settings for your vehicle.

11
AUDIO EQUIPMENT and TELEMATICS

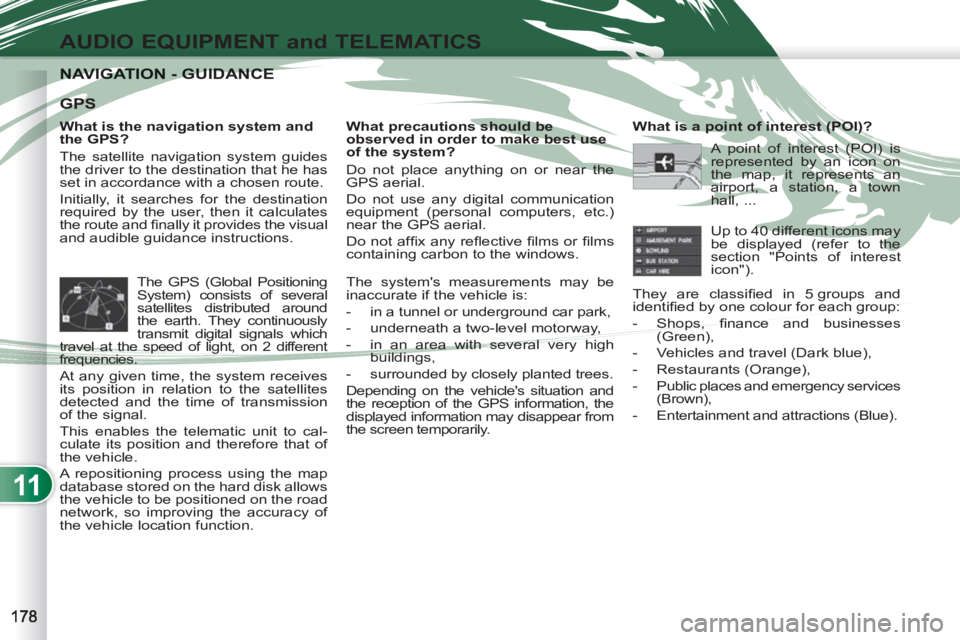

NAVIGATION - GUIDANCENAVIGATION - GUIDANCE

What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
the route and fi nally it provides the visual
and audible guidance instructions.
What precautions should be
observed in order to make best use
of the system?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc.)
near the GPS aerial.
Do not affi x any refl ective fi lms or fi lms
containing carbon to the windows.
The GPS (Global Positioning
System) consists of several
satellites distributed around
the earth. They continuously
transmit digital signals which
travel at the speed of light, on 2 different
frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to cal-
culate its position and therefore that of
the vehicle.
A repositioning process using the map
database stored on the hard disk allows
the vehicle to be positioned on the road
network, so improving the accuracy of
the vehicle location function.
What is a point of interest (POI)?
Up to 40 different icons may
be displayed (refer to the
section "Points of interest
icon").
They are classifi ed in 5 groups and
identifi ed by one colour for each group:


- Shops, fi nance and businesses
(Green),

- Vehicles and travel (Dark blue),

- Restaurants (Orange),

- Public places and emergency services
(Brown),

- Entertainment and attractions (Blue).




GPS

The system's measurements may be
inaccurate if the vehicle is:


- in a tunnel or underground car park,

- underneath a two-level motorway,

- in an area with several very high
buildings,

- surrounded by closely planted trees.
Depending on the vehicle's situation and
the reception of the GPS information, the
displayed information may disappear from
the screen temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...
