Page 141 of 236
9
PRACTICAL INFORMATION

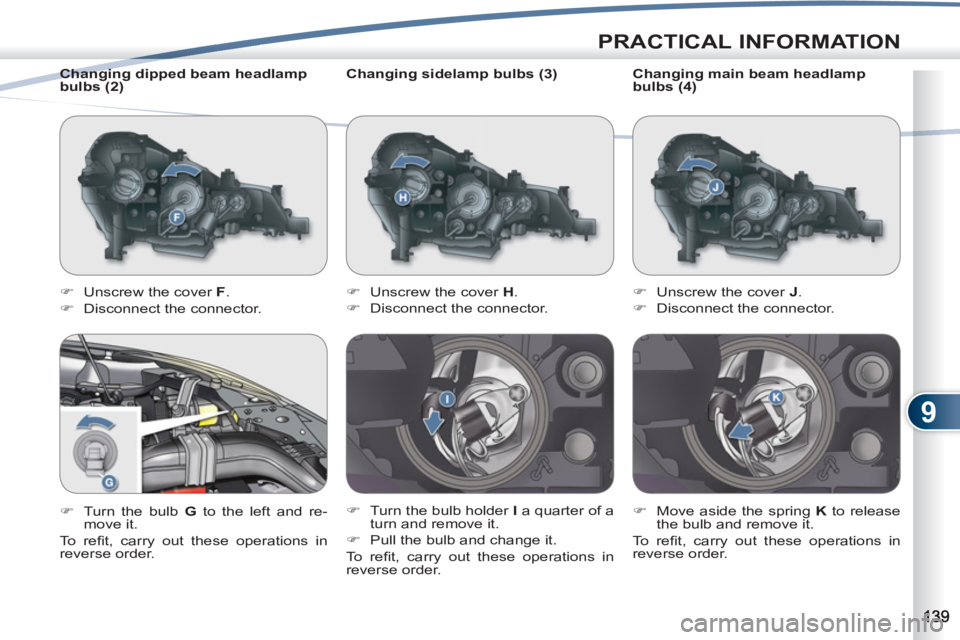

Changing sidelamp bulbs (3)
)
Unscrew the cover H
.
)
Disconnect the connector.
)
Turn the bulb holder I
a quarter of a
turn and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
)
Unscrew the cover F
.
)
Disconnect the connector.
)
Turn the bulb G
to the left and re-
move it.
To r efi t, carry out these operations in
reverse order.
Changing dipped beam headlamp
bulbs (2)
Changing main beam headlamp
bulbs (4)
)
Unscrew the cover J
.
)
Disconnect the connector.
)
Move aside the spring K
to release
the bulb and remove it.
To r efi t, carry out these operations in
reverse order.
Page 142 of 236
9
PRACTICAL INFORMATION
)
Push the repeater A
towards the
rear and detach it.
)
Unclip the repeater.
)
Disconnect the repeater connector
and change the repeater.
To r efi t, carry out these operations in
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer or qualifi ed workshop.

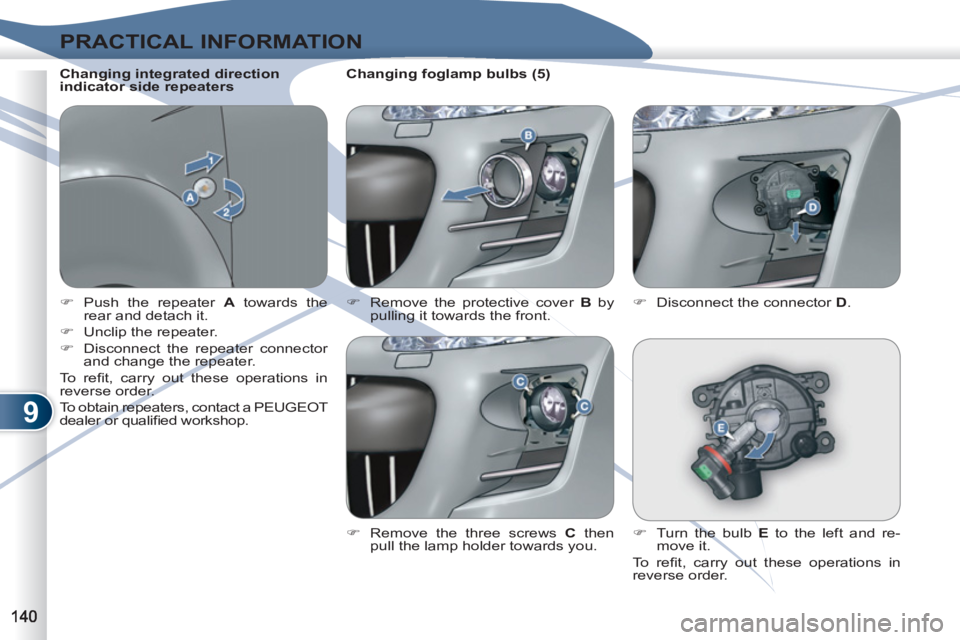

Changing integrated direction
indicator side repeaters
)
Remove the protective cover B
by
pulling it towards the front.
Changing foglamp bulbs (5)
)
Remove the three screws C
then
pull the lamp holder towards you.
)
Disconnect the connector D
.
)
Turn the bulb E
to the left and re-
move it.
To r efi t, carry out these operations in
reverse order.
Page 143 of 236
9
PRACTICAL INFORMATION

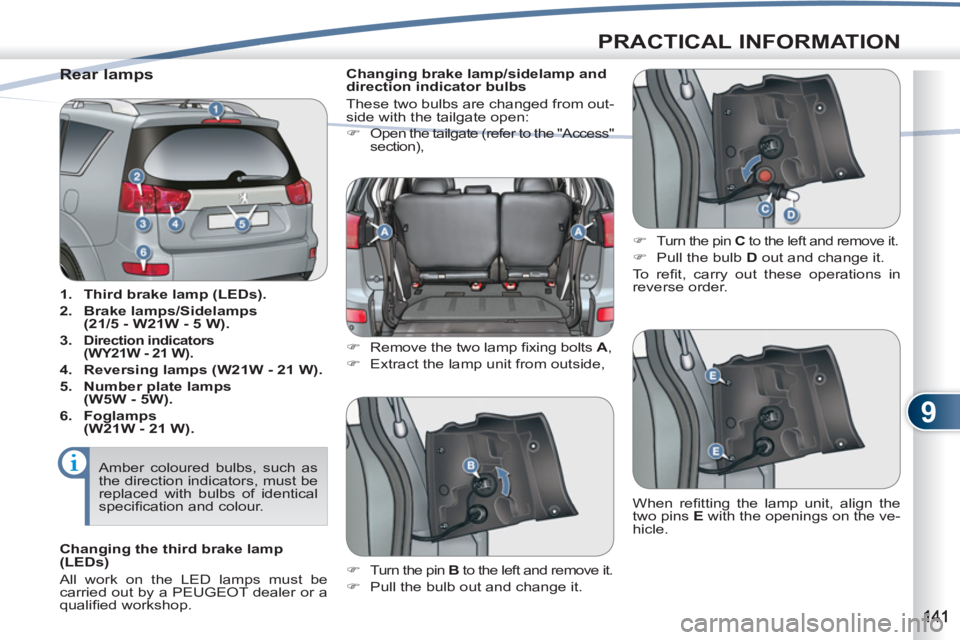

Rear lamps
1.
Third brake lamp (LEDs).
2.
Brake lamps/Sidelamps
(21/5 - W21W - 5 W).
3.
Direction indicators
(WY21W - 21 W).
4.
Reversing lamps (W21W - 21 W).
5.
Number plate lamps
(W5W - 5W).
6.
Foglamps
(W21W - 21 W).
Changing brake lamp/sidelamp and
direction indicator bulbs
These two bulbs are changed from out-
side with the tailgate open:
)
Open the tailgate (refer to the "Access"
section),
)
Remove the two lamp fi xing bolts A
,
)
Extract the lamp unit from outside,
)
Turn the pin C
to the left and remove it.
)
Pull the bulb D
out and change it.
To r efi t, carry out these operations in
reverse order.
)
Turn the pin B
to the left and remove it.
)
Pull the bulb out and change it. When refi tting the lamp unit, align the
two pins E
with the openings on the ve-
hicle. Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
Changing the third brake lamp
(LEDs)
All work on the LED lamps must be
carried out by a PEUGEOT dealer or a
qualifi ed workshop.
Page 144 of 236
9
PRACTICAL INFORMATION

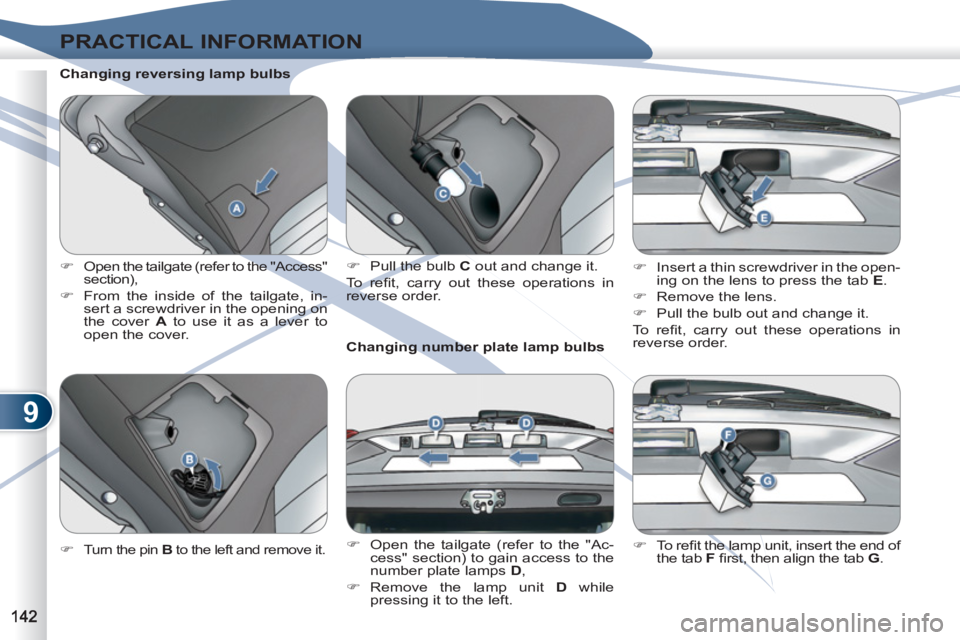

Changing reversing lamp bulbs
)
Open the tailgate (refer to the "Access"
section),
)
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A
to use it as a lever to
open the cover.
Changing number plate lamp bulbs
)
Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lamps D
,
)
Remove the lamp unit D
while
pressing it to the left.
)
Turn the pin B
to the left and remove it.
)
Pull the bulb C
out and change it.
To r efi t, carry out these operations in
reverse order.
)
Insert a thin screwdriver in the open-
ing on the lens to press the tab E
.
)
Remove the lens.
)
Pull the bulb out and change it.
To r efi t, carry out these operations in
reverse order.
)
To r efi t the lamp unit, insert the end of
the tab F
fi rst, then align the tab G
.
Page 145 of 236
9
PRACTICAL INFORMATION

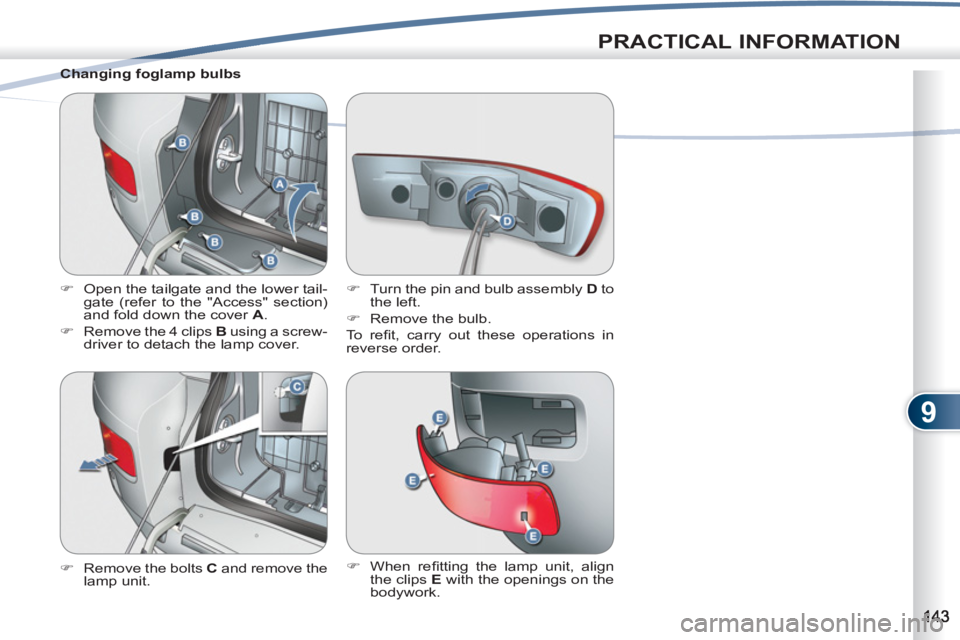

Changing foglamp bulbs
)
Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A
.
)
Remove the 4 clips B
using a screw-
driver to detach the lamp cover.
)
Remove the bolts C
and remove the
lamp unit.
)
Turn the pin and bulb assembly D
to
the left.
)
Remove the bulb.
To r efi t, carry out these operations in
reverse order.
)
When refi tting the lamp unit, align
the clips E
with the openings on the
bodywork.
Page 146 of 236
9
PRACTICAL INFORMATION

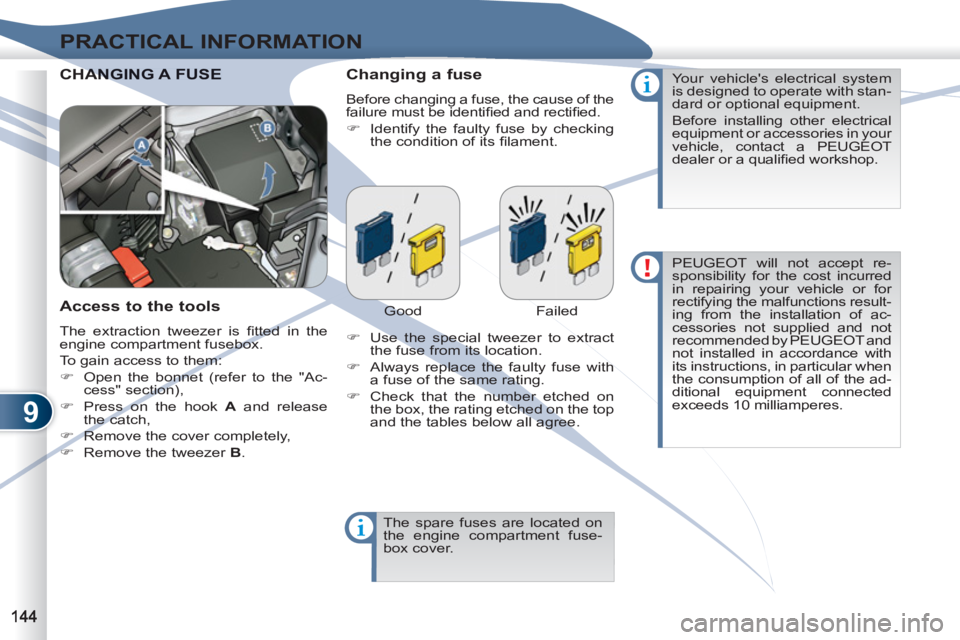

CHANANGING A FUSE
Changing a fuse
Before changing a fuse, the cause of the
failure must be identifi ed and rectifi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
Access to the tools
The extraction tweezer is fi tted in the
engine compartment fusebox.
To gain access to them:
)
Open the bonnet (refer to the "Ac-
cess" section),
)
Press on the hook A
and release
the catch,
)
Remove the cover completely,
)
Remove the tweezer B
.
Good Failed
)
Use the special tweezer to extract
the fuse from its location.
)
Always replace the faulty fuse with
a fuse of the same rating.
)
Check that the number etched on
the box, the rating etched on the top
and the tables below all agree.
The spare fuses are located on
the engine compartment fuse-
box cover. Your vehicle's electrical system
is designed to operate with stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer or a qualifi ed workshop.
PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying the malfunctions result-
ing from the installation of ac-
cessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with
its instructions, in particular when
the consumption of all of the ad-
ditional equipment connected
exceeds 10 milliamperes.
Page 147 of 236
9
PRACTICAL INFORMATION

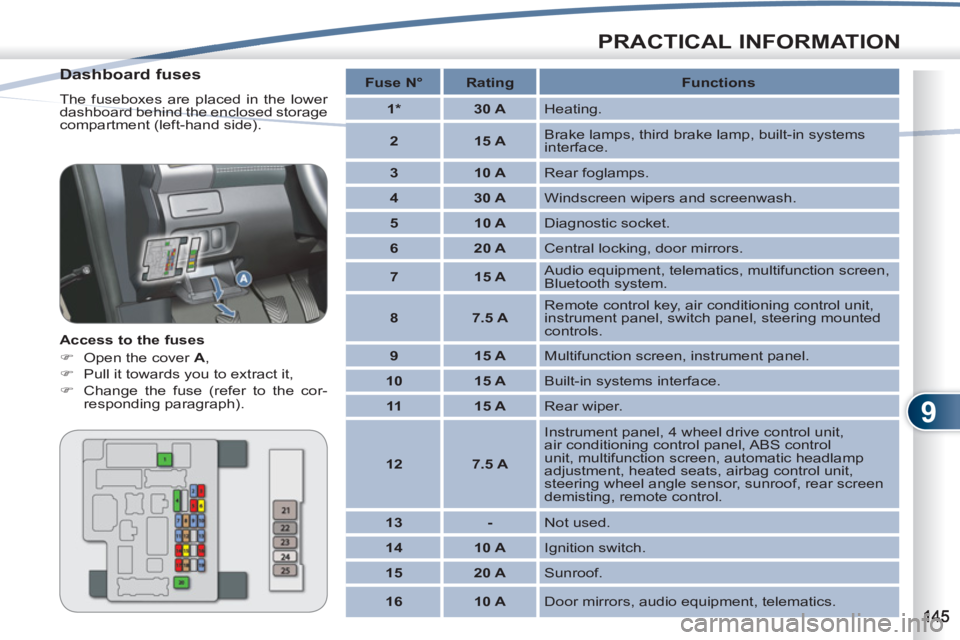

Dashboard fuses
The fuseboxes are placed in the lower
dashboard behind the enclosed storage
compartment (left-hand side).
Access to the fuses
)
Open the cover A
,
)
Pull it towards you to extract it,
)
Change the fuse (refer to the cor-
responding paragraph).
Fuse N°
Rating
Functions
1*
30 A
Heating.
2
15 A
Brake lamps, third brake lamp, built-in systems
interface.
3
10 A
Rear foglamps.
4
30 A
Windscreen wipers and screenwash.
5
10 A
Diagnostic socket.
6
20 A
Central locking, door mirrors.
7
15 A
Audio equipment, telematics, multifunction screen,
Bluetooth system.
8
7.5 A
Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9
15 A
Multifunction screen, instrument panel.
10
15 A
Built-in systems interface.
11
15 A
Rear wiper.
12
7.5 A
Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13
-
Not used.
14
10 A
Ignition switch.
15
20 A
Sunroof.
16
10 A
Door mirrors, audio equipment, telematics.
Page 148 of 236
9
PRACTICAL INFORMATION

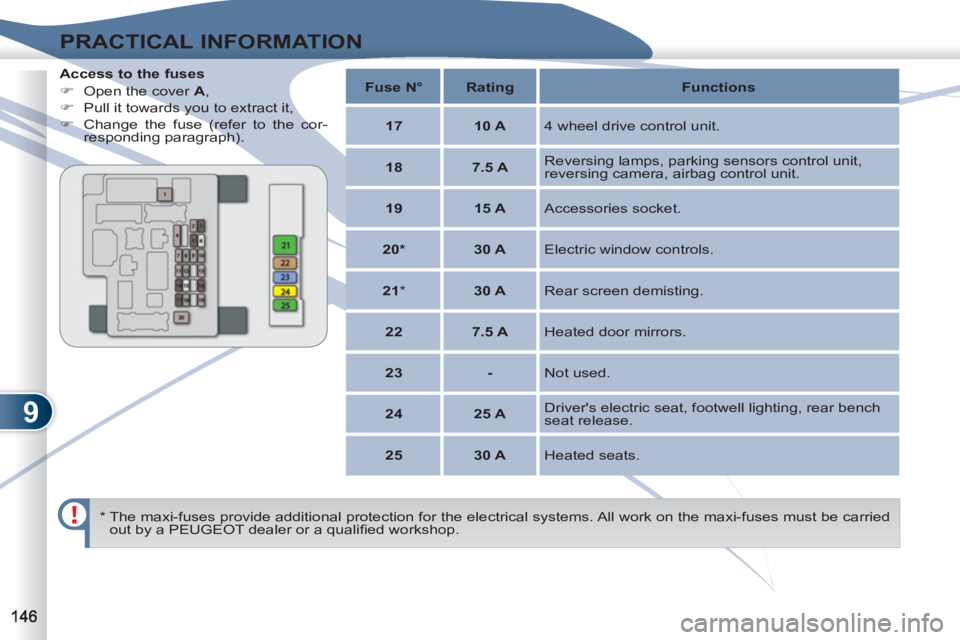

Access to the fuses
)
Open the cover A
,
)
Pull it towards you to extract it,
)
Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
17
10 A
4 wheel drive control unit.
18
7.5 A
Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.
19
15 A
Accessories socket.
20*
30 A
Electric window controls.
21
*
30 A
Rear screen demisting.
22
7.5 A
Heated door mirrors.
23
-
Not used.
24
25 A
Driver's electric seat, footwell lighting, rear bench
seat release.
25
30 A
Heated seats.
Page 149 of 236
9
PRACTICAL INFORMATION

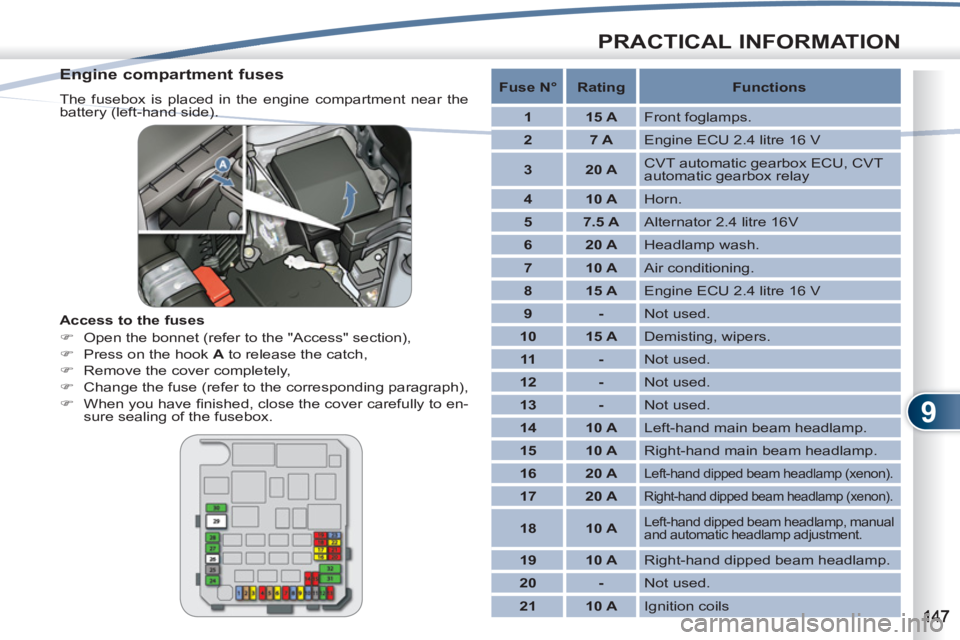

Engine compartment fuses
The fusebox is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses
)
Open the bonnet (refer to the "Access" section),
)
Press on the hook A
to release the catch,
)
Remove the cover completely,
)
Change the fuse (refer to the corresponding paragraph),
)
When you have fi nished, close the cover carefully to en-
sure sealing of the fusebox.
Fuse N°
Rating
Functions
1
15 A
Front foglamps.
2
7 A
Engine ECU 2.4 litre 16 V
3
20 A
CVT automatic gearbox ECU, CVT
automatic gearbox relay
4
10 A
Horn.
5
7.5 A
Alternator 2.4 litre 16V
6
20 A
Headlamp wash.
7
10 A
Air conditioning.
8
15 A
Engine ECU 2.4 litre 16 V
9
-
Not used.
10
15 A
Demisting, wipers.
11
-
Not used.
12
-
Not used.
13
-
Not used.
14
10 A
Left-hand main beam headlamp.
15
10 A
Right-hand main beam headlamp.
16
20 A
Left-hand dipped beam headlamp (xenon).
17
20 A
Right-hand dipped beam headlamp (xenon).
18
10 A
Left-hand dipped beam headlamp, manual
and automatic headlamp adjustment.
19
10 A
Right-hand dipped beam headlamp.
20
-
Not used.
21
10 A
Ignition coils
Page 150 of 236
9
PRACTICAL INFORMATION

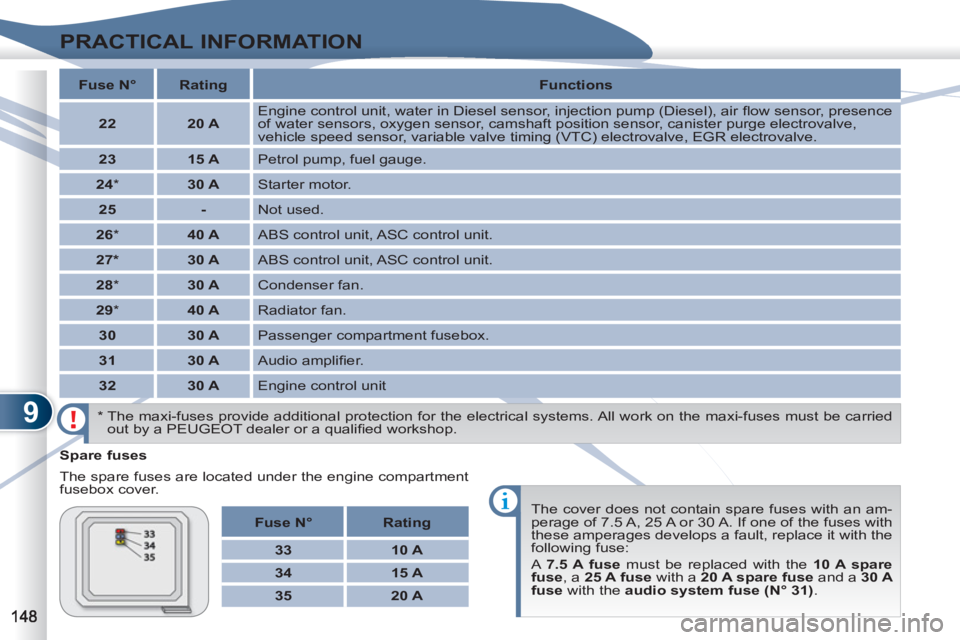

Spare fuses
The spare fuses are located under the engine compartment
fusebox cover.
The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse
must be replaced with the 10 A spare
fuse
, a 25 A fuse
with a 20 A spare fuse
and a 30 A
fuse
with the audio system fuse (N° 31)
.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
22
20 A
Engine control unit, water in Diesel sensor, injection pump (Diesel), air fl ow sensor, presence
of water sensors, oxygen sensor, camshaft position sensor, canister purge electrovalve,
vehicle speed sensor, variable valve timing (VTC) electrovalve, EGR electrovalve.
23
15 A
Petrol pump, fuel gauge.
24
*
30 A
Starter motor.
25
-
Not used.
26
*
40 A
ABS control unit, ASC control unit.
27*
30 A
ABS control unit, ASC control unit.
28
*
30 A
Condenser fan.
29
*
40 A
Radiator fan.
30
30 A
Passenger compartment fusebox.
31
30 A
Audio amplifi er.
32
30 A
Engine control unit
Fuse N°
Rating
33
10 A
34
15 A
35
20 A
