8
CHECKS

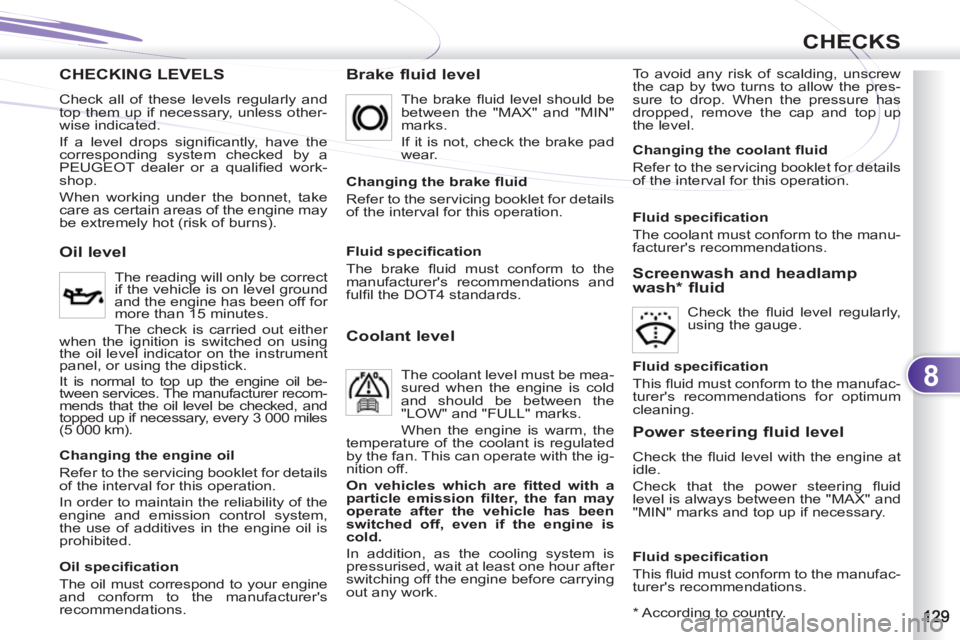

CHECKING LEVELS
Brake fluid level
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level
The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either
when the ignition is switched on using
the oil level indicator on the instrument
panel, or using the dipstick.
It is normal to top up the engine oil be-
tween services. The manufacturer recom-
mends that the oil level be checked, and
topped up if necessary, every 3 000 miles
(5 000 km). The brake fl uid level should be
between the "MAX" and "MIN"
marks.
If it is not, check the brake pad
wear.
Changing the brake fl uid
Refer to the servicing booklet for details
of the interval for this operation.
Coolant level
The coolant level must be mea-
sured when the engine is cold
and should be between the
"LOW" and "FULL" marks.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.
On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
Screenwash and headlamp
wash * fluid
Check the fl uid level regularly,
using the gauge.
*
According to country.
Changing the engine oil
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's
recommendations.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.
Changing the coolant fl uid
Refer to the servicing booklet for details
of the interval for this operation.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
Fluid specifi cation
This fl uid must conform to the manufac-
turer's recommendations for optimum
cleaning.
Power steering fluid level
Check the fl uid level with the engine at
idle.
Check that the power steering fl uid
level is always between the "MAX" and
"MIN" marks and top up if necessary.
Fluid specifi cation
This fl uid must conform to the manufac-
turer's recommendations.
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
When working under the bonnet, take
care as certain areas of the engine may
be extremely hot (risk of burns).
Page 132 of 236
8
CHECKS

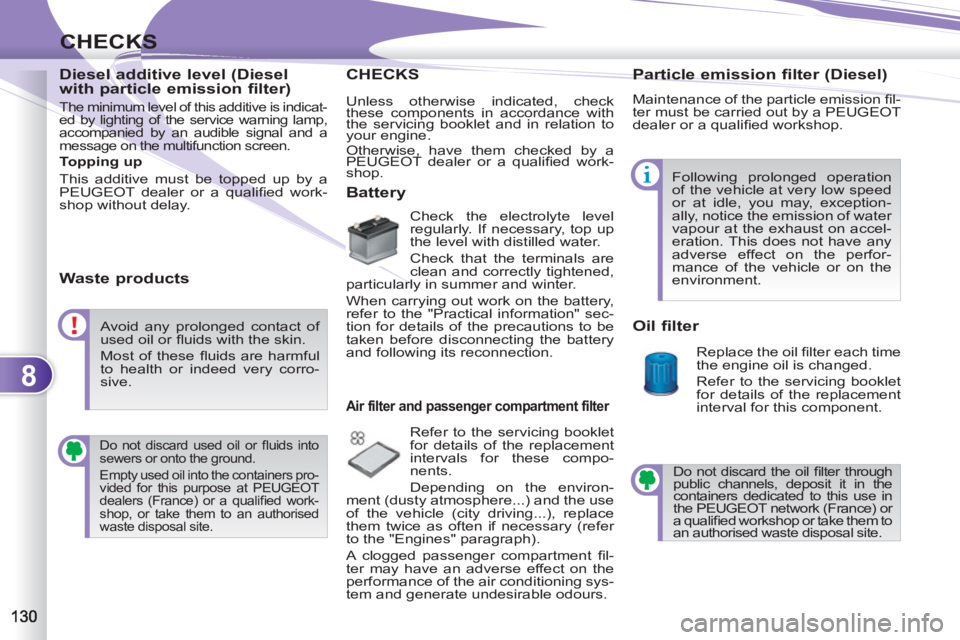

Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is indicat-
ed by lighting of the service warning lamp,
accompanied by an audible signal and a
message on the multifunction screen.
Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.
Waste products
CHECKS
Battery
Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi l-
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
Maintenance of the particle emission fi l-
ter must be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, exception-
ally, notice the emission of water
vapour at the exhaust on accel-
eration. This does not have any
adverse effect on the perfor-
mance of the vehicle or on the
environment.
Avoid any prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corro-
sive.
Do not discard used oil or fl uids into
sewers or onto the ground.
Empty used oil into the containers pro-
vided for this purpose at PEUGEOT
dealers (France) or a qualifi ed work-
shop, or take them to an authorised
waste disposal site.
Do not discard the oil fi lter through
public channels, deposit it in the
containers dedicated to this use in
the PEUGEOT network (France) or
a qualifi ed workshop or take them to
an authorised waste disposal site.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Page 133 of 236
8
CHECKS

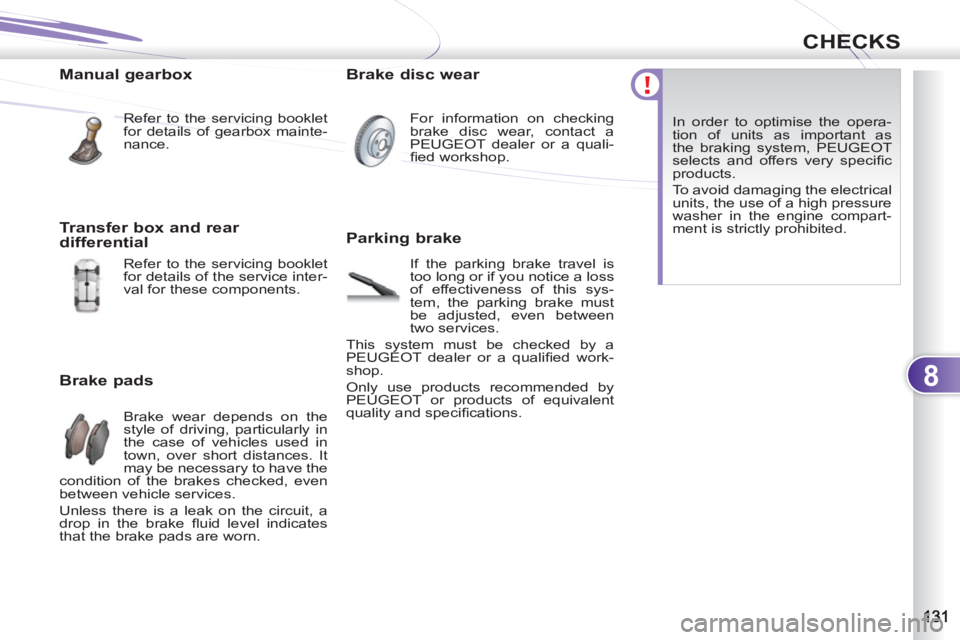

Manual gearbox
Refer to the servicing booklet
for details of gearbox mainte-
nance.
Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Brake disc wear
For information on checking
brake disc wear, contact a
PEUGEOT dealer or a quali-
fi ed workshop.
Parking brake
If the parking brake travel is
too long or if you notice a loss
of effectiveness of this sys-
tem, the parking brake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specifi cations. In order to optimise the opera-
tion of units as important as
the braking system, PEUGEOT
selects and offers very specifi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly prohibited.
Transfer box and rear
differential
Refer to the servicing booklet
for details of the service inter-
val for these components.
Page 134 of 236
9
PRACTICAL INFORMATION

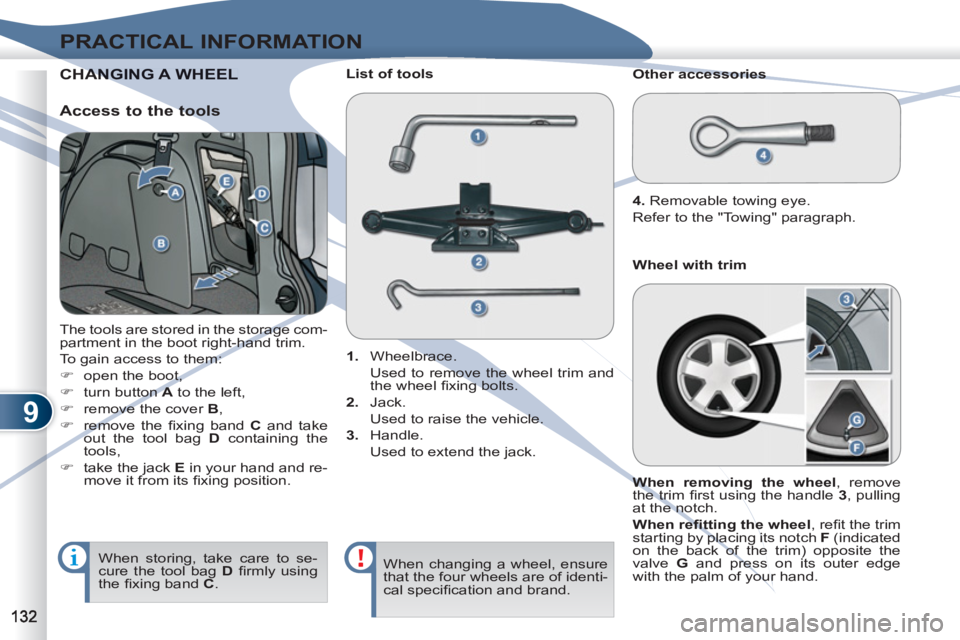

CHANANGING A WHEEL
The tools are stored in the storage com-
partment in the boot right-hand trim.
To gain access to them:
)
open the boot,
)
turn button A
to the left,
)
remove the cover B
,
)
remove the fi xing band C
and take
out the tool bag D
containing the
tools,
)
take the jack E
in your hand and re-
move it from its fi xing position.
1.
Wheelbrace.
Used to remove the wheel trim and
the wheel fi xing bolts.
2.
Jack.
Used to raise the vehicle.
3.
Handle.
Used to extend the jack.
List of tools
Other accessories
4.
Removable towing eye.
Refer to the "Towing" paragraph.
Access to the tools
When changing a wheel, ensure
that the four wheels are of identi-
cal specifi cation and brand. When storing, take care to se-
cure the tool bag D
fi rmly using
the fi xing band C
.
When removing the wheel
, remove
the trim fi rst using the handle 3
, pulling
at the notch.
When refi tting the wheel
, refi t the trim
starting by placing its notch F
(indicated
on the back of the trim) opposite the
valve G
and press on its outer edge
with the palm of your hand.
Wheel with trim
Page 135 of 236
9
PRACTICAL INFORMATION
Fixing the "space-saver"
spare wheel
If your vehicle is fi tted with al-
loy wheels, it is normal to notice
that the washers do not come
into contact with the "space-
saver" spare wheel when tight-
ening the bolts on fi tting. The
wheel is retained by the conical
contact of each bolt.

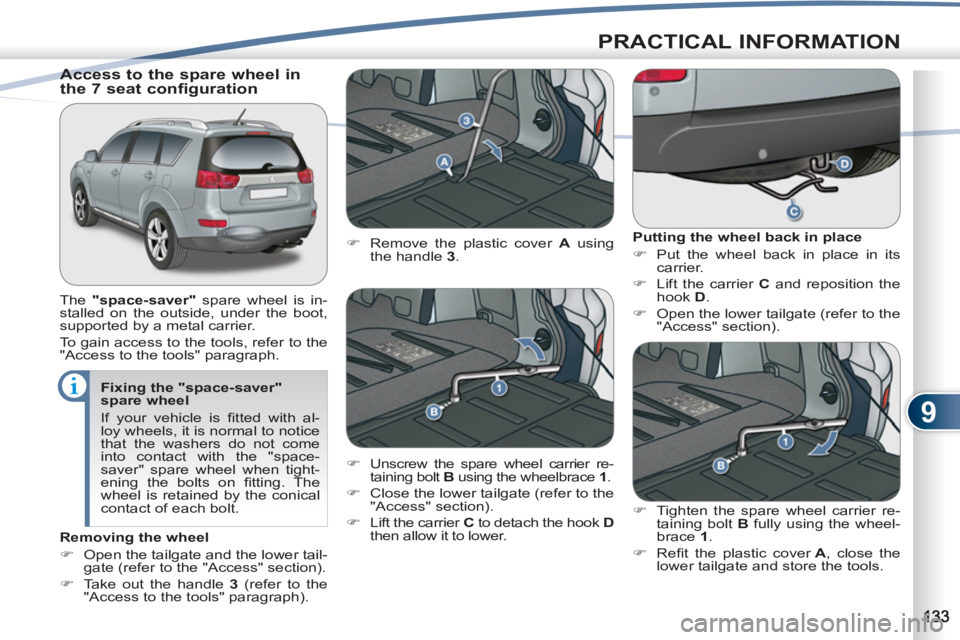

Access to the spare wheel in
the 7 seat configuration
The "space-saver"
spare wheel is in-
stalled on the outside, under the boot,
supported by a metal carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph.
Putting the wheel back in place
)
Put the wheel back in place in its
carrier.
)
Lift the carrier C
and reposition the
hook D
.
)
Open the lower tailgate (refer to the
"Access" section).
)
Remove the plastic cover A
using
the handle 3
.
)
Unscrew the spare wheel carrier re-
taining bolt B
using the wheelbrace 1
.
)
Close the lower tailgate (refer to the
"Access" section).
)
Lift the carrier C
to detach the hook D
then allow it to lower.
)
Tighten the spare wheel carrier re-
taining bolt B
fully using the wheel-
brace 1
.
)
Refi t the plastic cover A
, close the
lower tailgate and store the tools.
Removing the wheel
)
Open the tailgate and the lower tail-
gate (refer to the "Access" section).
)
Take out the handle 3
(refer to the
"Access to the tools" paragraph).
Page 136 of 236
9
PRACTICAL INFORMATION

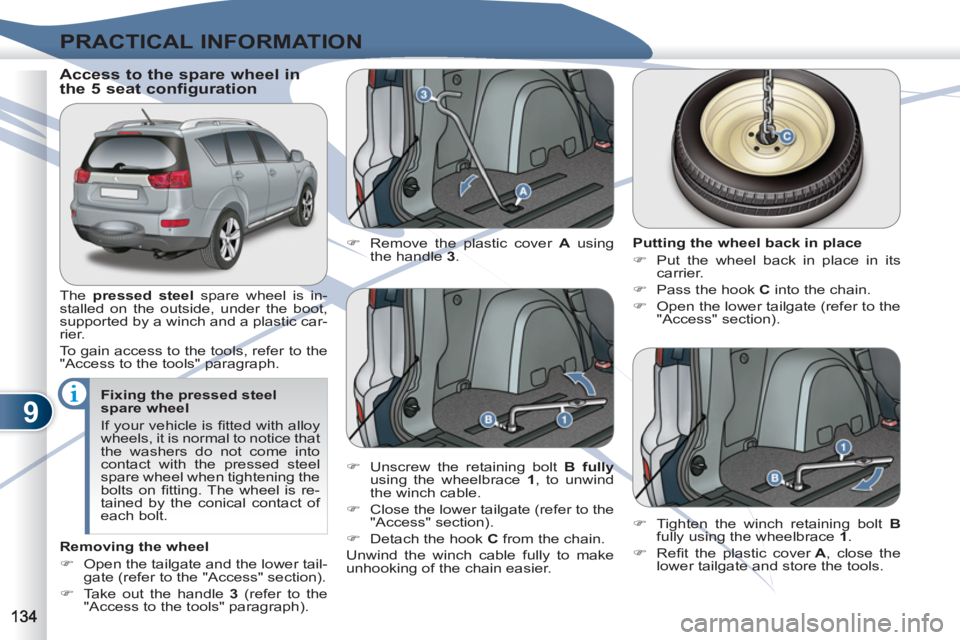

Access to the spare wheel in
the 5 seat configuration
The pressed steel
spare wheel is in-
stalled on the outside, under the boot,
supported by a winch and a plastic car-
rier.
To gain access to the tools, refer to the
"Access to the tools" paragraph.
Fixing the pressed steel
spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice that
the washers do not come into
contact with the pressed steel
spare wheel when tightening the
bolts on fi tting. The wheel is re-
tained by the conical contact of
each bolt.
Removing the wheel
)
Open the tailgate and the lower tail-
gate (refer to the "Access" section).
)
Take out the handle 3
(refer to the
"Access to the tools" paragraph).
)
Remove the plastic cover A
using
the handle 3
.
Putting the wheel back in place
)
Put the wheel back in place in its
carrier.
)
Pass the hook C
into the chain.
)
Open the lower tailgate (refer to the
"Access" section).
)
Unscrew the retaining bolt B fully
using the wheelbrace 1
, to unwind
the winch cable.
)
Close the lower tailgate (refer to the
"Access" section).
)
Detach the hook C
from the chain.
Unwind the winch cable fully to make
unhooking of the chain easier.
)
Tighten the winch retaining bolt B
fully using the wheelbrace 1
.
)
Refi t the plastic cover A
, close the
lower tailgate and store the tools.
Page 137 of 236
9
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: if possible,
park the vehicle on level, stable
and non-slippery ground.
Apply the parking brake, switch
off the ignition and engage fi rst
gear to lock the wheels.
If necessary, place a chock un-
der the wheel diagonally oppo-
site the wheel to be changed.
Never go underneath a vehi-
cle raised using a jack; use a
stand.

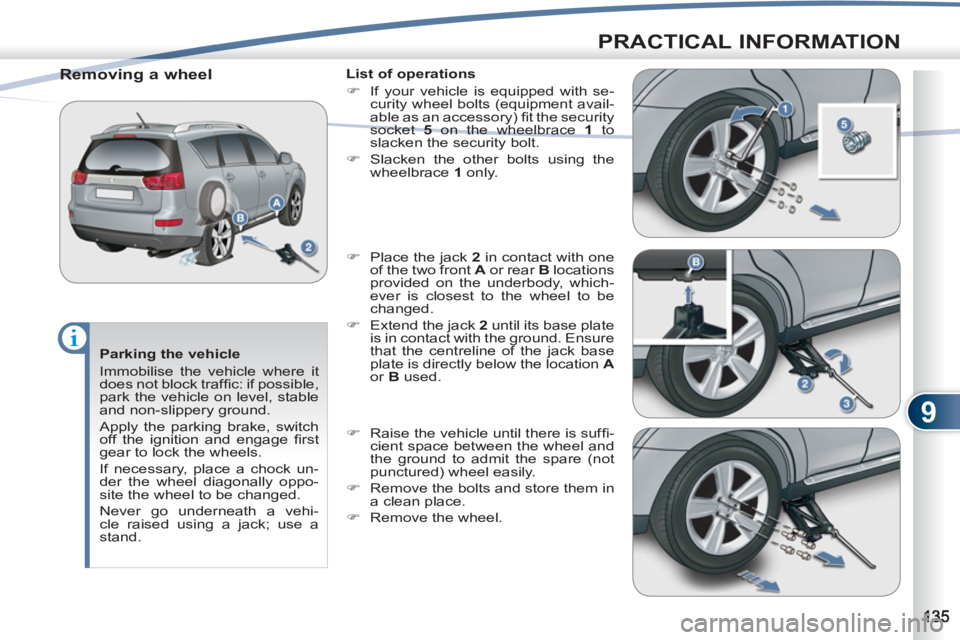

Removing a wheel
List of operations
)
If your vehicle is equipped with se-
curity wheel bolts (equipment avail-
able as an accessory) fi t the security
socket 5 on the wheelbrace 1
to
slacken the security bolt.
)
Slacken the other bolts using the
wheelbrace 1
only.
)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.
)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B
used.
)
Raise the vehicle until there is suffi -
cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
)
Remove the bolts and store them in
a clean place.
)
Remove the wheel.
Page 138 of 236
9
PRACTICAL INFORMATION
After changing a wheel
When using the "space-saver"
spare wheel, do not exceed a
speed of 50 mph (80 km/h).
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a PEUGEOT
dealer or a qualifi ed workshop
without delay.
Have the punctured wheel re-
paired and replace it on the ve-
hicle as soon as possible.

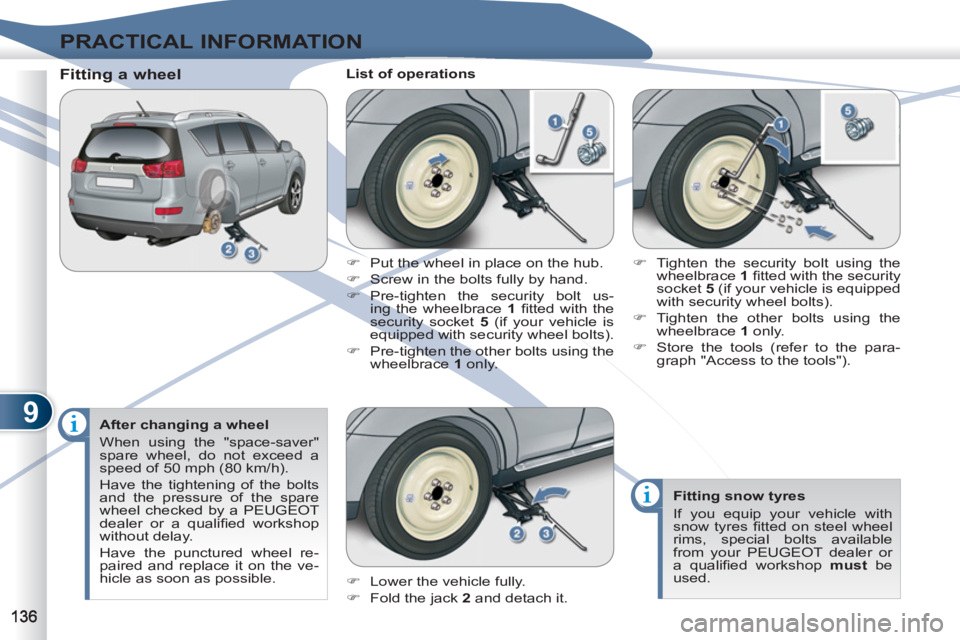

Fitting a wheel
List of operations
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 5
(if your vehicle is equipped
with security wheel bolts).
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Store the tools (refer to the para-
graph "Access to the tools").
Fitting snow tyres
If you equip your vehicle with
snow tyres fi tted on steel wheel
rims, special bolts available
from your PEUGEOT dealer or
a qualifi ed workshop must
be
used.
)
Put the wheel in place on the hub.
)
Screw in the bolts fully by hand.
)
Pre-tighten the security bolt us-
ing the wheelbrace 1
fi tted with the
security socket 5 (if your vehicle is
equipped with security wheel bolts).
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
Page 139 of 236
9
PRACTICAL INFORMATION
CHANGING A BULB CHANG
Handle the bulbs using a dry
cloth.
Do not clean the headlamps
using a dry or abrasive cloth,
or using detergent or solvent
products,
use a sponge and
soapy water. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal; it
disappears after the lamps have
been on for a few minutes.

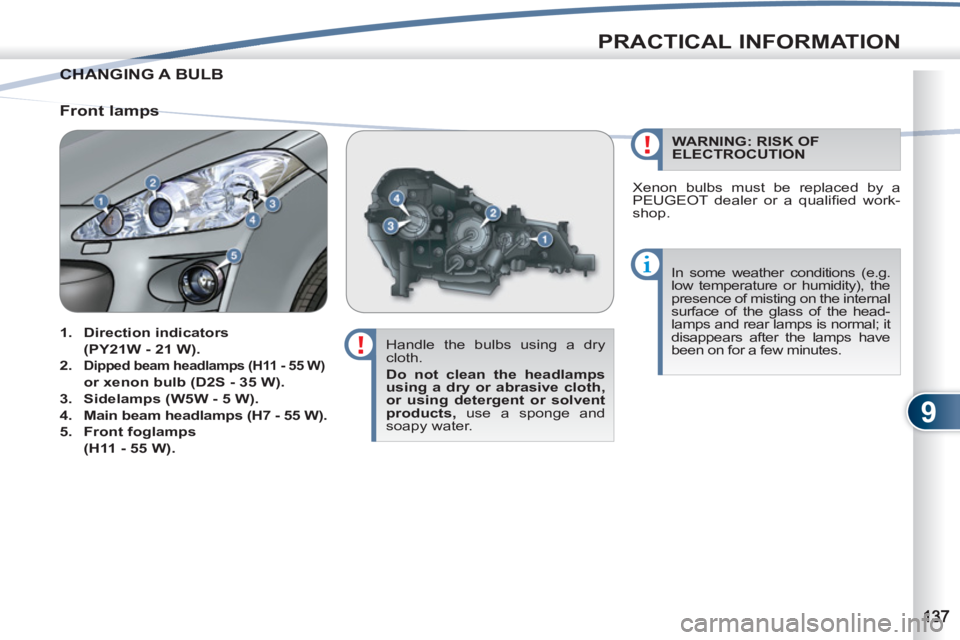

Front lamps
1.
Direction indicators
(PY21W - 21 W).
2.
Dipped beam headlamps (H11 - 55 W)
or xenon bulb (D2S - 35 W).
3.
Sidelamps (W5W - 5 W).
4.
Main beam headlamps (H7 - 55 W).
5.
Front foglamps
(H11 - 55 W).
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer or a qualifi ed work-
shop.
Page 140 of 236
9
PRACTICAL INFORMATION

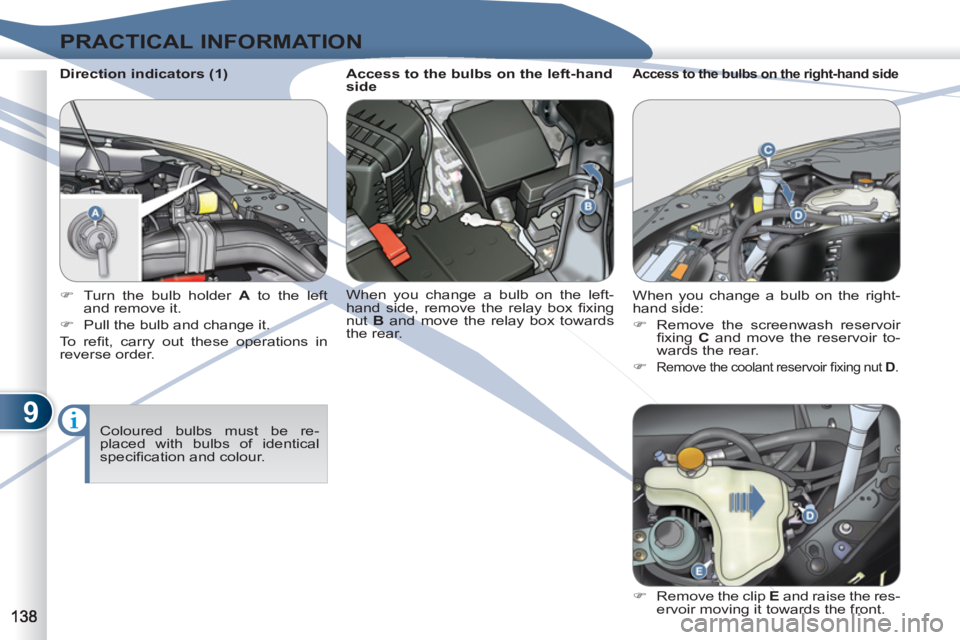

Direction indicators (1)
Coloured bulbs must be re-
placed with bulbs of identical
specifi cation and colour.
)
Turn the bulb holder A
to the left
and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Access to the bulbs on the left-hand
side
When you change a bulb on the left-
hand side, remove the relay box fi xing
nut B
and move the relay box towards
the rear.
Access to the bulbs on the right-hand side
When you change a bulb on the right-
hand side:
)
Remove the screenwash reservoir
fi xing C
and move the reservoir to-
wards the rear.
)
Remove the coolant reservoir fi xing nut D
.
)
Remove the clip E
and raise the res-
ervoir moving it towards the front.
