Peugeot 406 2002.5 Owner's Manual

MAINTENANCE OF YOUR 406
26
1.8 litre 16 V and 2 litre 16 V
petrol engines
1
Power steering.
2 Coolant reservoir. 3
Windscreen and headlamp
wash reservoir.
4 Battery.
5 Air filter. 6
Brake and clutch fluid reservoir.
7 Engine oil filler cap.
8 Dipstick.
29-07-2002

MAINTENANCE OF YOUR 40627
2 litre 16 valve HPI petrol
injection engine
1
Power steering reservoir.
2 Coolant reservoir. 3
Windscreen and headlamp
wash reservoir.
4 Battery.
5 Air filter. 6
Brake and clutch fluid reservoir.
7 Engine oil filler cap.
8 Dipstick.
29-07-2002

MAINTENANCE OF YOUR 406
28
2.2 litre 16 valve petrol engine
1
Power steering reservoir.
2 Coolant reservoir. 3
Windscreen and headlamp
wash reservoir.
4 Battery.
5 Air filter. 6
Brake and clutch fluid reservoir.
7 Engine oil filler cap.
8 Dipstick.
29-07-2002

MAINTENANCE OF YOUR 40629
3 litre 24 valve V6 petrol
injection engine
1
Power steering reservoir.
2 Coolant reservoir. 3
Windscreen and headlamp
wash reservoir.
4 Battery.
5 Air filter. 6
Brake and clutch fluid reservoir.
7 Engine oil filler cap.
8 Dipstick.
29-07-2002

MAINTENANCE OF YOUR 406
30
2 litre turbo diesel HDI engine
(90 bhp
/ 110 bhp)
1 Power steering.
2 Coolant reservoir. 3
Windscreen and headlamp
wash reservoir.
4 Battery.
5 Air filter. 6
Brake and clutch fluid reservoir.
7 Engine oil filler cap.
8 Dipstick.
29-07-2002

MAINTENANCE OF YOUR 40631
2.2 litre 16V turbo diesel HDI
engine
1
Power steering reservoir.
2 Coolant reservoir. 3
Windscreen and headlamp
wash reservoir.
4 Battery.
5 Air filter. 6
Brake and clutch fluid reservoir.
7 Engine oil filler cap.
8 Dipstick.
29-07-2002

29072002
CHECKING THE LEVELS
Engine
Checking the oil level
Check the level regularly and top up
between changes. Maximum con
sumption is 0.5 litres per 600 miles
(1 000 km).
The oil level should be checked with
the vehicle level and the engine cold.There are two marks on
the dipstick:
A= maximum
B = minimum
Oil change: according to the manu
facturer's servicing schedule.
Dipstick. Never fill past the maxi mum mark A.
Oil level gauge on the instrument panel.
Viscosity selection
In all cases, the oil selected must
meet the manufacturer's require
ments.
MAINTENANCE OF YOUR 406
32
Oil filter
Change the filter regularly according
to the servicing schedule.
Used oil
Prevent used oil from coming into
prolonged contact with the skin.
Do not dispose of used oil into drains
or onto the ground.
To maintain the reliability of engines
and emission control systems, the
use of additives in the engine oil is
prohibited.
Brakes and clutch
Checking the brake and clutch
fluid level:
The level should always be above
the DANGER mark on the reser
voir.
If the level drops substantially, con tact a PEUGEOT dealer imme
diately.
Fluid change
must be carried out according to the manufacturer's servicing
schedule.
use fluids approved by the manu facturer, which fulfil DOT 4 stan
dards. Cooling system
Use the fluid approved by the manu
facturer.
When the engine is warm, the tem
perature of the coolant is controlled
by the engine fan. Because this fan
can operate with the ignition key
removed and because the cooling
system is pressurised, wait for at
least one hour after the engine has
stopped before carrying out any
work.
In the event of a breakdown and to
avoid any risk of burns, slacken the
cap to the first notch to release the
pressure. When the pressure has
dropped, remove the cap and top up
the level.

29072002
MAINTENANCE OF YOUR 40633
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor
mance from components as
important as the power steering
and the braking system,
PEUGEOT selects and offers
quite specific products.
Power steering reservoir
Open the reservoir with the engine
cold. The level should always be
above the MINI mark, close to the
MAXI mark.
Windscreen and headlamp
wash reservoir
For best quality cleaning and for your
safety, we recommend that you use
products approved by PEUGEOT
(capacity 4.5 litres or 9 litres with
headlamp wash).
Battery
At the start of winter, have your bat
tery checked by a PEUGEOT dealer.
Air filter
Regular replacement of the filter ele
ment is essential. If you drive in
very dusty conditions, change it
twice as often. Brake pads
Brake pad wear depends on the
style of driving, in particular for vehi
cles that are used in town, for short
journeys. It may be necessary to
check the thickness of the pads even
between services.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer.
Manual gearbox
This does not need an oil change.
Check the level according to the
manufacturer's servicing schedule.
Automatic autoadaptive
gearbox
This does not need an oil change.
Have the level checked by a
PEUGEOT dealer according to the
manufacturer's servicing schedule.

29072002
MAINTENANCE OF YOUR 40633
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor
mance from components as
important as the power steering
and the braking system,
PEUGEOT selects and offers
quite specific products.
Power steering reservoir
Open the reservoir with the engine
cold. The level should always be
above the MINI mark, close to the
MAXI mark.
Windscreen and headlamp
wash reservoir
For best quality cleaning and for your
safety, we recommend that you use
products approved by PEUGEOT
(capacity 4.5 litres or 9 litres with
headlamp wash).
Battery
At the start of winter, have your bat
tery checked by a PEUGEOT dealer.
Air filter
Regular replacement of the filter ele
ment is essential. If you drive in
very dusty conditions, change it
twice as often. Brake pads
Brake pad wear depends on the
style of driving, in particular for vehi
cles that are used in town, for short
journeys. It may be necessary to
check the thickness of the pads even
between services.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer.
Manual gearbox
This does not need an oil change.
Check the level according to the
manufacturer's servicing schedule.
Automatic autoadaptive
gearbox
This does not need an oil change.
Have the level checked by a
PEUGEOT dealer according to the
manufacturer's servicing schedule.

29072002
MAINTENANCE OF YOUR 406
34

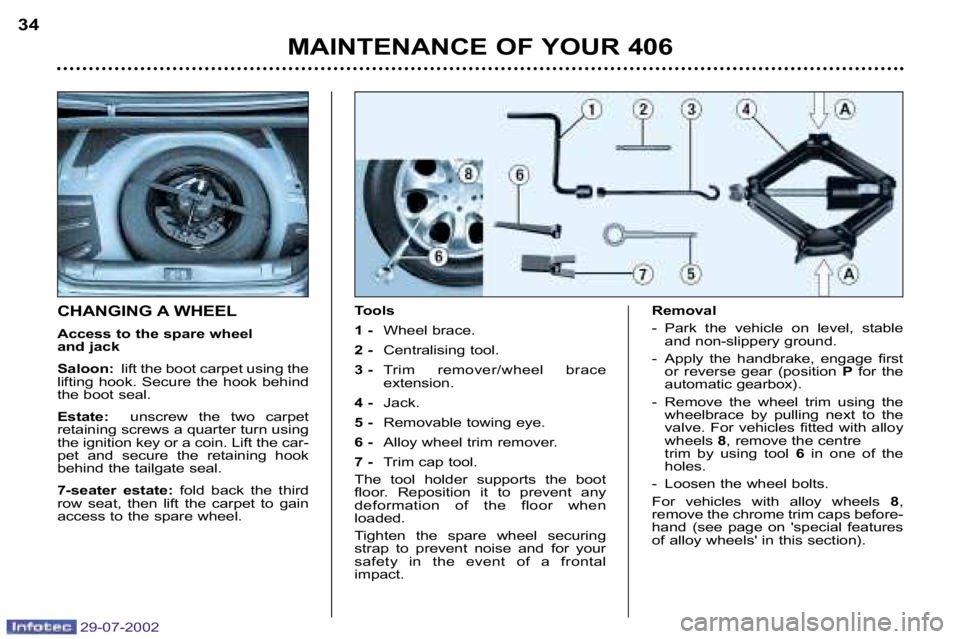

CHANGING A WHEEL
Access to the spare wheel
and jack
Saloon:
lift the boot carpet using the
lifting hook. Secure the hook behind
the boot seal.
Estate: unscrew the two carpet
retaining screws a quarter turn using
the ignition key or a coin. Lift the car
pet and secure the retaining hook
behind the tailgate seal.
7seater estate: fold back the third
row seat, then lift the carpet to gain
access to the spare wheel. Tools
1
Wheel brace.
2 Centralising tool.
3 Trim remover/wheel brace
extension.
4 Jack.
5 Removable towing eye.
6 Alloy wheel trim remover.
7 Trim cap tool.
The tool holder supports the boot
floor. Reposition it to prevent any
deformation of the floor when
loaded.
Tighten the spare wheel securing
strap to prevent noise and for your
safety in the event of a frontal
impact. Removal
Park the vehicle on level, stable
and nonslippery ground.
Apply the handbrake, engage first or reverse gear (position Pfor the
automatic gearbox).
Remove the wheel trim using the wheelbrace by pulling next to the
valve. For vehicles fitted with alloy
wheels 8, remove the centre
trim by using tool 6in one of the
holes.
Loosen the wheel bolts.
For vehicles with alloy wheels 8,
remove the chrome trim caps before
hand (see page on 'special features
of alloy wheels' in this section).
