battery Peugeot 406 2002 Owner's Manual

∀∀
MAINTENANCE OF YOUR 40623
∀All driving conditions.o Arduous conditions.
A AND C SERVICES AND THE INTERMEDIATE VISIT
- Oil filter∀∀- Fuel filter (Petrol only)∀- Fuel filter element (Diesel only)∀- Air filter element∀- Spark plugs (Petrol only)HPI∀
- Operation of lights and indicators∀∀∀- Condition of glass, headlamp & light lenses and mirrors∀∀- Horn∀∀- Windscreen washer jets∀∀- Condition of wiper blades∀∀- Condition and tension of the ancillary drive belts∀∀- Handbrake∀∀- Condition of hydraulic circuits (hoses and covers)∀∀- Condition of rubber boots and gaiters∀∀∀- Brake pads∀∀
o- Play in hubs, link rods, ball joints, flexible mountings∀- Shock absorbers∀- Rear drum brake lining wear∀- Condition and pressure of tyres (including spare wheel)∀∀∀- Emission control check (Petrol only)∀∀∀- Smoke opacity (Diesel only)∀∀- Pollen filter (according to specification)∀∀o- Visual check of the whole vehicle∀∀
DRAIN and
REFILL
REPLACE
CHECK
ROAD TEST SERVICE
Level
Operation Description of Operation First Service
A C Intermediate
- Engine oil∀∀- Bleed fuel filter (Diesel only)∀∀∀
- Engine oil (check + top-up)∀∀- Gearbox level (check + top-up)∀∀- Battery level (check + top-up) if cap is removable∀∀- Front/rear screen wash level (check + top-up)∀∀∀∀- Coolant level (check + top-up)∀∀∀∀- Brake fluid level (check + top-up)∀∀∀- Power steering fluid level (check + top-up, according to specification)∀∀∀

INSTRUMENT PANEL DIALS: PETROL / DIESEL1 - Fuel filler cap warning light.
2 - Door open warning ligt.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Service indicator, oil level and
total distance recorder. 9 -
Right-hand direction indicator.
10 - Speedometer.
11 - Clogging of the particulate emission filter warning light(Diesel).
12 - Front fog lamps indicator light.
13 - Rear fog lamp indicator light.
14 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only).
15 - Low coolant level warning light.
YOUR 406 IN DETAIL 127
16 - Coolant temperature indicator.
17 - Trip recorder zero reset.
18 - Hand-brake and low brake fluid level warning light.
19 - Seat belt not fastened warning light.
20 - Air bags warning light.
21 - ABS system warning light.
22 - Engine diagnostics warning light.
23 - Battery charge warning light.
24 - Diesel engine preheating indicator light.
25 - Passenger air bag disarming warning light.
26 - Water in diesel filter warning light.
27 - Front brake pad wear warning light.
28 - Engine oil pressure warning light.
29 - Electronic immobiliser warning light.
30 - Lighting rheostat.
31 - Fuel gauge.
32 - Low fuel level warning light.

1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level and
total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warning light.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warning light.
25 - Battery charge warning light.
26 - Diesel engine preheatingindicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warning light.
29 - Front brake pad wear warning light.
30 - Engine oil pressure warning light.
31 - Electronic immobiliser warning light.
32 - Lighting rheostat.
33 - Engine oil temperature.
YOUR 406 IN DETAIL
128
INSTRUMENT PANEL DIALS: PETROL / DIESEL

YOUR 406 IN DETAIL129
1 -
Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level and
total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamp indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset.
20 - Handbrake and low brake fluid
level warning light.
21 - Seat belt not fastened warning light.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warning light.
25 - Battery charge warning light.
26 - Diesel engine pre-heating
indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter
warning light.
29 - Front brake pad wear warning light.
30 - Engine oil pressure warning light.
31 - Operating programmes.
32 - Gear lever position indicator.
33 - Electronic immobiliser warninglight.
34 - Lighting rheostat.
35 - Engine oil temperature.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

Passenger air bag disarming warninglight Lighting of this warning light
is accompanied by an audible signal and a message on the multi–function
display. If the passenger air bag isdisarmed, the indicator light comeson when the ignition is switched onand remains on. In all cases, if the warning light flashes,
contact a PEUGEOT dealer.
Air bag warning light The warning light comes on for 6 seconds when the igni-tion is switched on.
This warning light comes on whenthe vehicle is running and is accom-panied by an audible signal and amessage on the multi–function dis-play indicating the cause of the front,side or curtain air bag fault.
Contact a PEUGEOT dealer.
Water in diesel filter warning light (depending on destination)
Contact a PEUGEOT dealer as soon as possible.
There is a risk of damage to the injection system. Diesel pre-heating indicator lightIf the engine is warm enough, the light will not come on, and you can start the engine without waiting.
If the light comes on, wait until it goes out before trying the starter. Engine diagnostics warning light This comes on each time the ignition is switched on.If it is lit continuously with the engine runnning, this indicates a fault in
the emission control system.If it flashes with the engine running, this indicates a malfunction in the injection
or ignition system. There is a risk of damage to the catalytic converter (petrol
engine only). Contact a PEUGEOT dealer as soon as possible. Battery charge warning light This comes on each time the ignition is switched on.If it comes on with the engine running it can indicate:
– faulty operation of the charging circuit,
– loose battery or starter terminals,
– a cut or slack alternator belt,
– an alternator fault.
Contact a PEUGEOT dealer. YOUR 406 IN DETAIL
132

Display BThis enables the following information to be displayed:
– the time,
– the date,
– the outside temperature (the °C symbol flashes when there is a risk of ice),
– the radio displays,
– the status of the doors. The display shows you whether a door, the boot or thebonnet is open and if the fuel filler cap is missing.
– the warning messages (e.g. ''battery low'') or information messages (e.g. "top up fuel tank''), displayed temporarily, can be cleared by pressing button 1or 2,
– the trip computer. Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1 allow you to scroll through the various data
in the following sequence:
– language in which the information is displayed,
– hour,
– unit of distance (kms or miles),
– unit of temperature (Celsius or Fahrenheit),
– time format (12 then 24 hour mode)
– minutes,
– year,
– month,
– day, Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling.After ten seconds without moving, the display returns to the main screen and the modified data is recorded.
YOUR 406 IN DETAIL 137

YOUR 406 IN DETAIL109
Changing the battery of the remote control The information 'battery flat'is
given by an audible signal accompa- nied by a message on the
multi–function display.
To replace the battery, unclip the casing using a coin at the ring(CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control
Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.

YOUR 406 IN DETAIL109
Changing the battery of the remote control The information 'battery flat'is
given by an audible signal accompa- nied by a message on the
multi–function display.
To replace the battery, unclip the casing using a coin at the ring(CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control
Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.

Automatic operation Automatic changing of thefour
gears :
 Select function Din the gate.
The gearbox always selects the most suitable gear on the basis ofthe following parameters:
– driving style,
– road characteristics,
– the vehicle's load.The gearbox operates in auto-adap-
tive mode without any action on
your part.
Moving off
With the engine running, to move off with the selector lever in position
P:
 It is essential to press the brakepedal to exit position P (shift
lock),
 Select the required function (R, D,
3 , 2 or 1)then gradually release
the pressure on the brake pedal;
the vehicle will move off immedi-
ately.
You can also move off with the selec-tor lever in position N:
 Release the handbrake with yourfoot on the brake,
 Select the required function (R,D ,
3 , 2 or 1)then gradually release
the pressure on the brake pedal;the vehicle will move offimmedi-
ately.
DRIVING YOUR 406 149

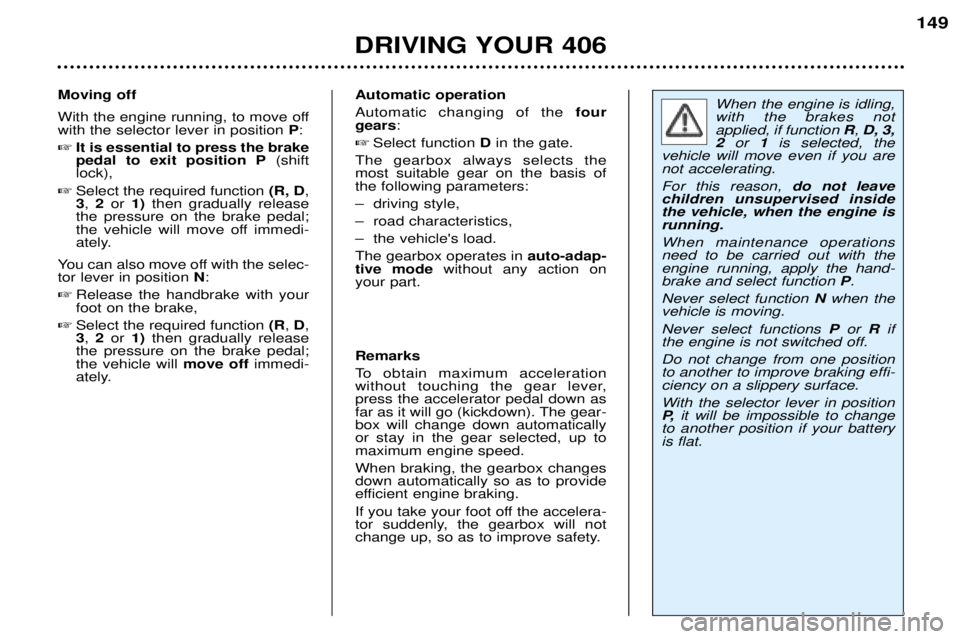

When the engine is idling, with the brakes notapplied, if function R,D, 3,
2 or 1is selected, the
vehicle will move even if you arenot accelerating. For this reason, do not leave
children unsupervised inside the vehicle, when the engine isrunning. When maintenance operations need to be carried out with theengine running, apply the hand-brake and select function P.
Never select function Nwhen the
vehicle is moving. Never select functions Por Rif
the engine is not switched off.Do not change from one position to another to improve braking effi-ciency on a slippery surface.
With the selector lever in position
P, it will be impossible to change
to another position if your batteryis flat.
Remarks
To obtain maximum acceleration
without touching the gear lever,press the accelerator pedal down as
far as it will go (kickdown). The gear-box will change down automaticallyor stay in the gear selected, up tomaximum engine speed. When braking, the gearbox changes down automatically so as to provide
efficient engine braking.
If you take your foot off the accelera-
tor suddenly, the gearbox will not
change up, so as to improve safety.

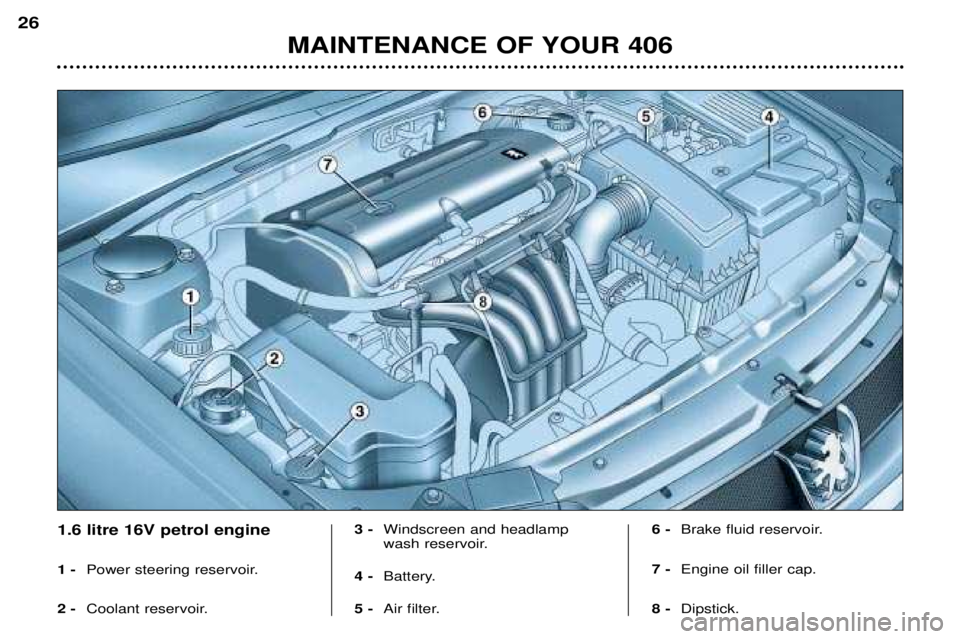

1.6 litre 16V petrol engine 1 -Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
MAINTENANCE OF YOUR 406
26
