headrest Peugeot 406 2002 Owner's Manual

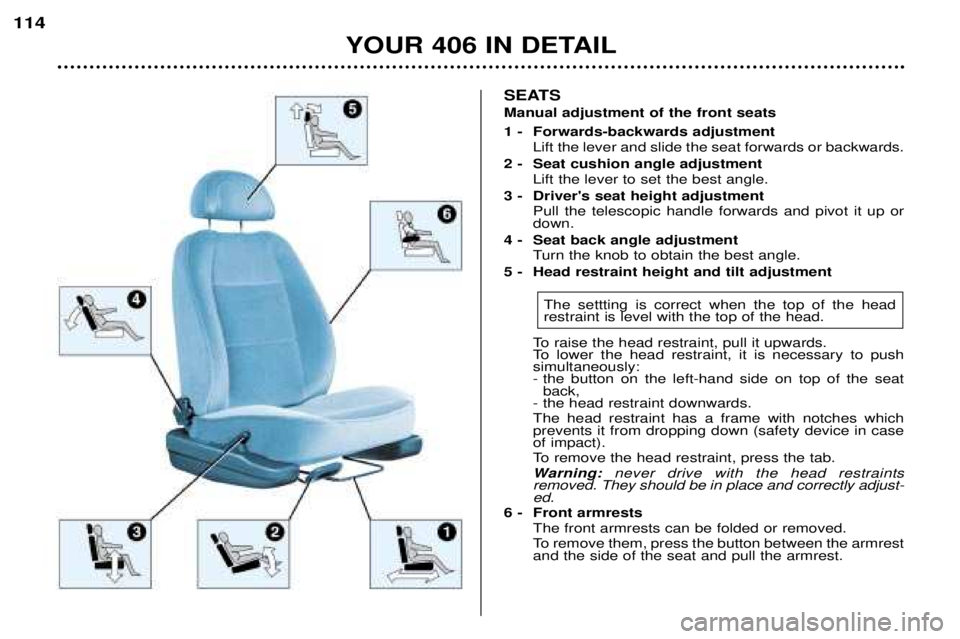

SEATS Manual adjustment of the front seats
1 - Forwards-backwards adjustmentLift the lever and slide the seat forwards or backwards.
2 - Seat cushion angle adjustment Lift the lever to set the best angle.
3 - Driver's seat height adjustment Pull the telescopic handle forwards and pivot it up or down.
4 - Seat back angle adjustment Turn the knob to obtain the best angle.
5 - Head restraint height and tilt adjustment
The settting is correct when the top of the headrestraint is level with the top of the head.
To raise the head restraint, pull it upwards.
To lower the head restraint, it is necessary to pushsimultaneously:
- the button on the left-hand side on top of the seat back,
- the head restraint downwards. The head restraint has a frame with notches which prevents it from dropping down (safety device in caseof impact).
To remove the head restraint, press the tab.
Warning: never drive with the head restraints
removed. They should be in place and correctly adjust- ed.
6 - Front armrests The front armrests can be folded or removed.
To remove them, press the button between the armrest and the side of the seat and pull the armrest.
YOUR 406 IN DETAIL
114
