Display CThis enables the following information to be displayed:
– the time,
– the date,
– the outside temperature (the °C symbol flashes when there is a risk of ice),
– the radio displays,
– the status of the doors. The display shows you whether a door, the boot or the
bonnet is open,
– the warning messages are displayed temporarily (e.g. "top up fuel tank'') and can be cleared using the remote control,
– the trip computer (see following page),

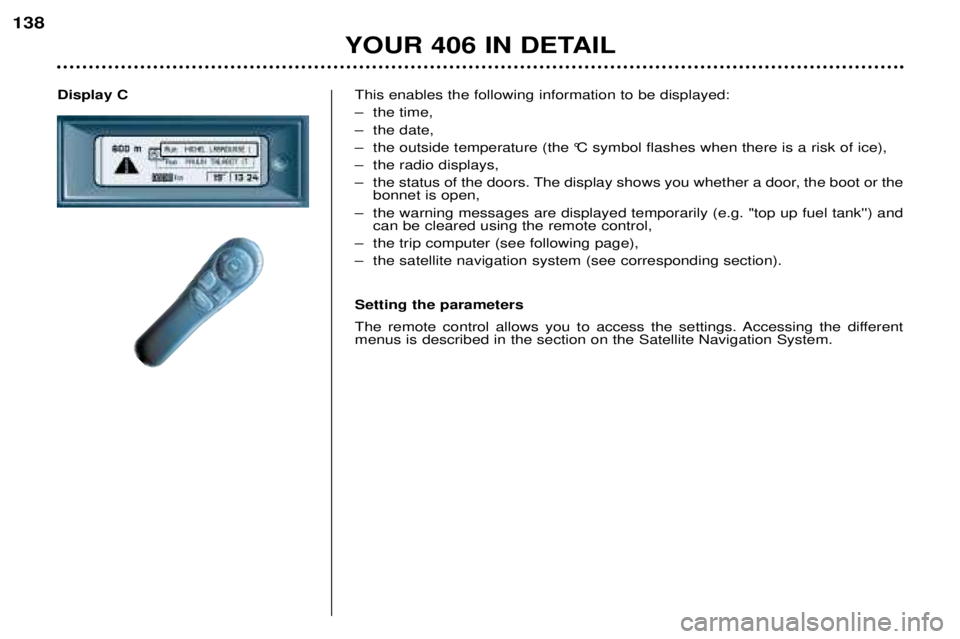

– the satellite navigation system (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section on the Satellite Navigation System.
YOUR 406 IN DETAIL
138

THE SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you to the destination of yourchoice by means of vocal and visual
instructions. The heart of the systemlies in the use of a map databaseand GPS (Global Positioning Sys-
tem). This enables your position tobe located by means of severalsatellites. The satellite navigation system con- sists of the following components:
- the remote control,
- the display,
- the control unit,
- the last voice message recall con-trol,
- the CD ROM.
Some functions or services
described in this guide may vary depending on the CD ROM version or the country.The remote control

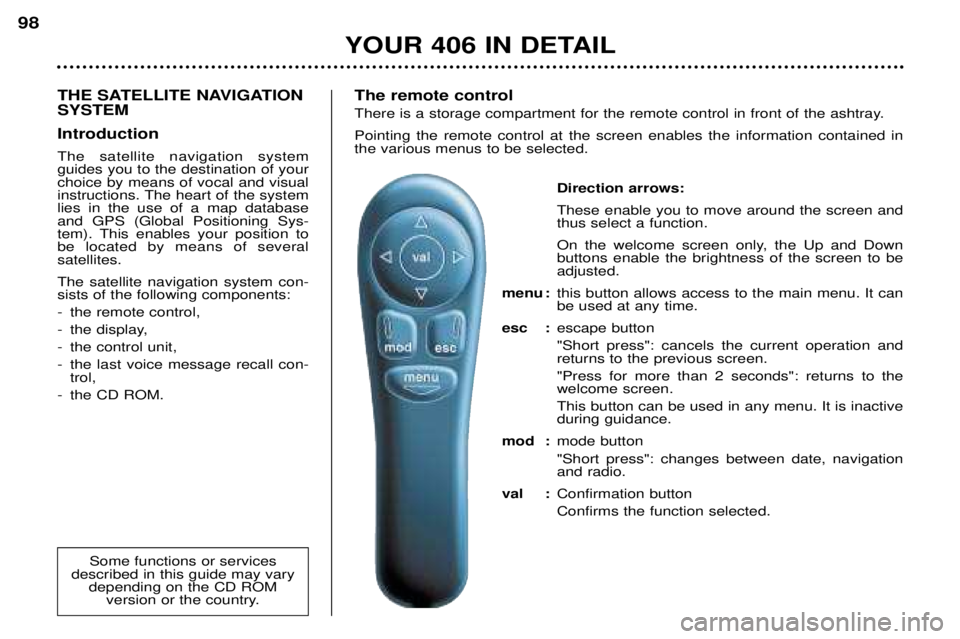

There is a storage compartment for the remote control in front of the ashtray. Pointing the remote control at the screen enables the information contained in the various menus to be selected.
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the Up and Down buttons enable the brightness of the screen to beadjusted.
menu : this button allows access to the main menu. It canbe used at any time.
esc : escape button "Short press": cancels the current operation and returns to the previous screen. "Press for more than 2 seconds": returns to the welcome screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button "Short press": changes between date, navigation and radio.
val : Confirmation button Confirms the function selected.
YOUR 406 IN DETAIL
98

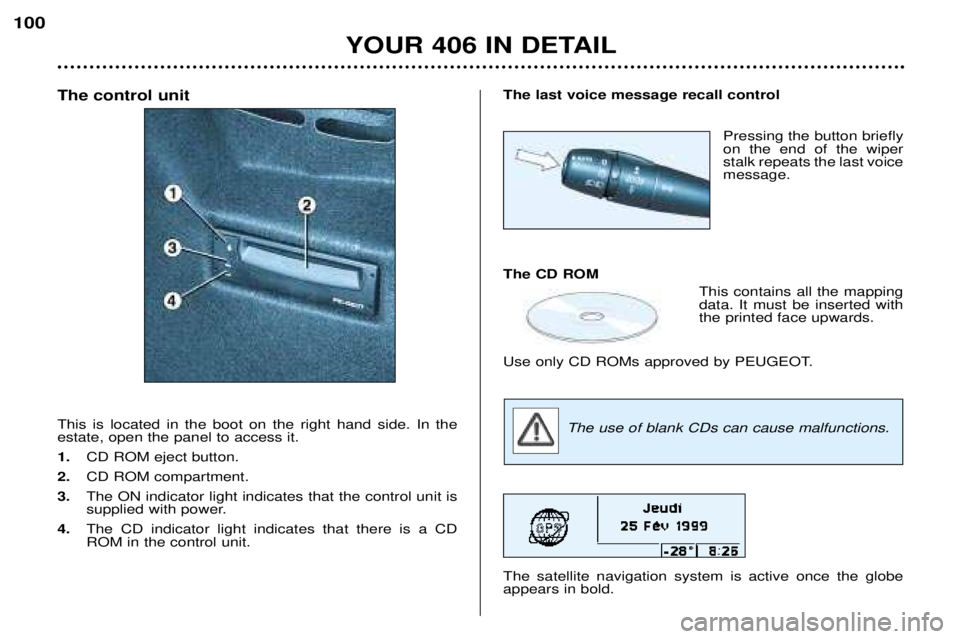

The control unit This is located in the boot on the right hand side. In the estate, open the panel to access it. 1.CD ROM eject button.
2. CD ROM compartment.
3. The ON indicator light indicates that the control unit is
supplied with power.
4. The CD indicator light indicates that there is a CDROM in the control unit.The last voice message recall control
Pressing the button briefly on the end of the wiperstalk repeats the last voicemessage.
The CD ROM This contains all the mappingdata. It must be inserted withthe printed face upwards.
Use only CD ROMs approved by PEUGEOT.
The use of blank CDs can cause malfunctions.
The satellite navigation system is active once the globeappears in bold.
YOUR 406 IN DETAIL
100

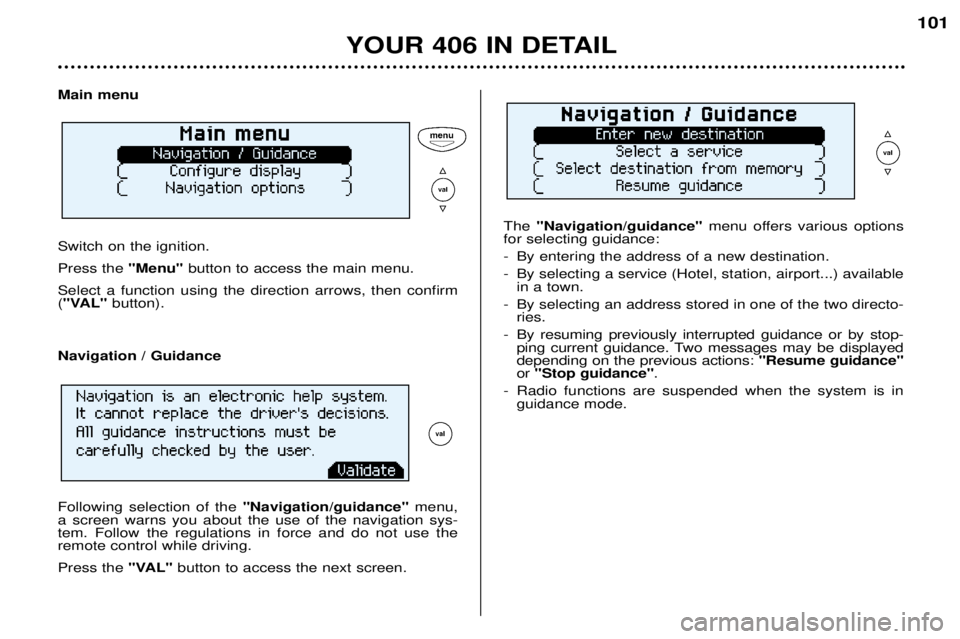

Main menu Switch on the ignition. Press the "Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button). The
"Navigation/guidance" menu offers various options
for selecting guidance:
- By entering the address of a new destination.
- By selecting a service (Hotel, station, airport...) available in a town.
- By selecting an address stored in one of the two directo- ries.
- By resuming previously interrupted guidance or by stop- ping current guidance. Two messages may be displayed depending on the previous actions: "Resume guidance"
or "Stop guidance" .
- Radio functions are suspended when the system is in guidance mode.
YOUR 406 IN DETAIL 101
Navigation / Guidance Following selection of the
"Navigation/guidance"menu,
a screen warns you about the use of the navigation sys- tem. Follow the regulations in force and do not use theremote control while driving. Press the "VAL"button to access the next screen.

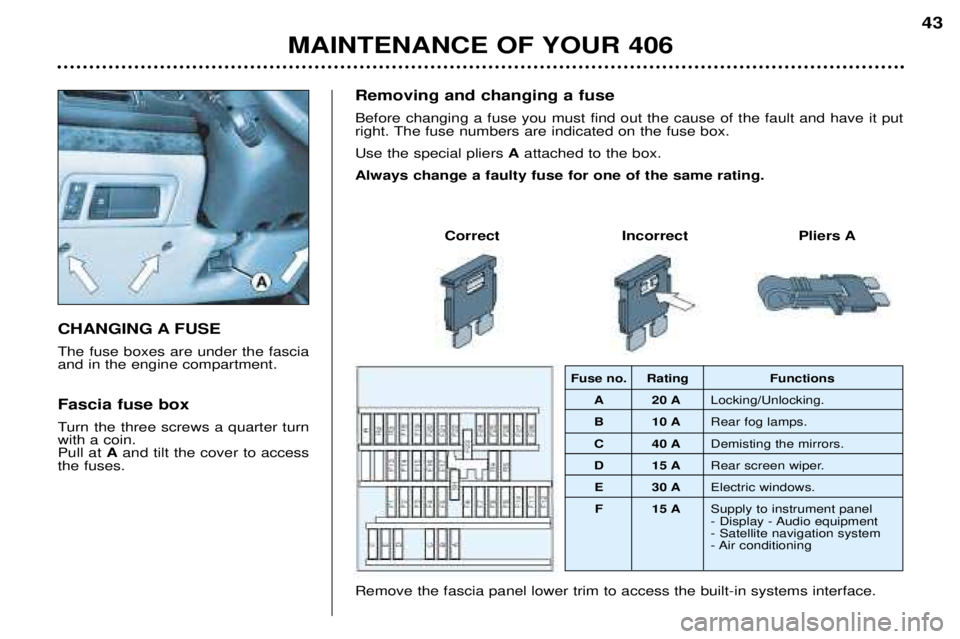

CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box
Turn the three screws a quarter turn with a coin.Pull at Aand tilt the cover to access
the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers A
Remove the fascia panel lower trim to access the built-in systems interface. Fuse no. Rating Functions
A 20 A Locking/Unlocking.
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D 15 A Rear screen wiper.
E 30 A Electric windows.
F 15 A Supply to instrument panel
- Display - Audio equipment- Satellite navigation system
- Air conditioning
MAINTENANCE OF YOUR 406 43

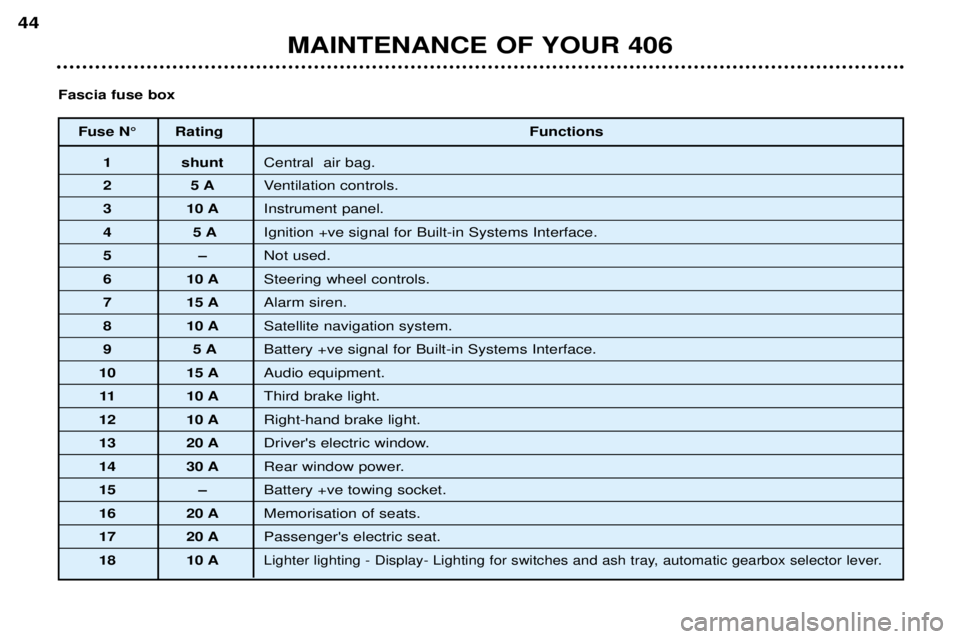

Fuse N° RatingFunctions
1 shuntCentral air bag.
25 AVentilation controls.
3 10 A Instrument panel.
45 AIgnition +ve signal for Built-in Systems Interface.
5– Not used.
6 10 ASteering wheel controls.
7 15 AAlarm siren.
8 10 ASatellite navigation system.
95 ABattery +ve signal for Built-in Systems Interface.
10 15 A Audio equipment.
11 10 AThird brake light.
12 10 A Right-hand brake light.
13 20 ADriver's electric window.
14 30 ARear window power.
15 –Battery +ve towing socket.
16 20 AMemorisation of seats.
17 20 APassenger's electric seat.
18 10 A
Lighter lighting - Display- Lighting for switches and ash tray, automatic gearbox selector lever.
Fascia fuse box
MAINTENANCE OF YOUR 406
