Page 156 of 166
1.8 Litre 16V 2 Litre 16V1749 1 997
82.7 x 81.4 85 x 88 16 16
85 100
5 500 6 000
160 190
4 000 4 100
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Automatic Manual Automatic
(5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.25 4.251.9 – 1.9 –
156

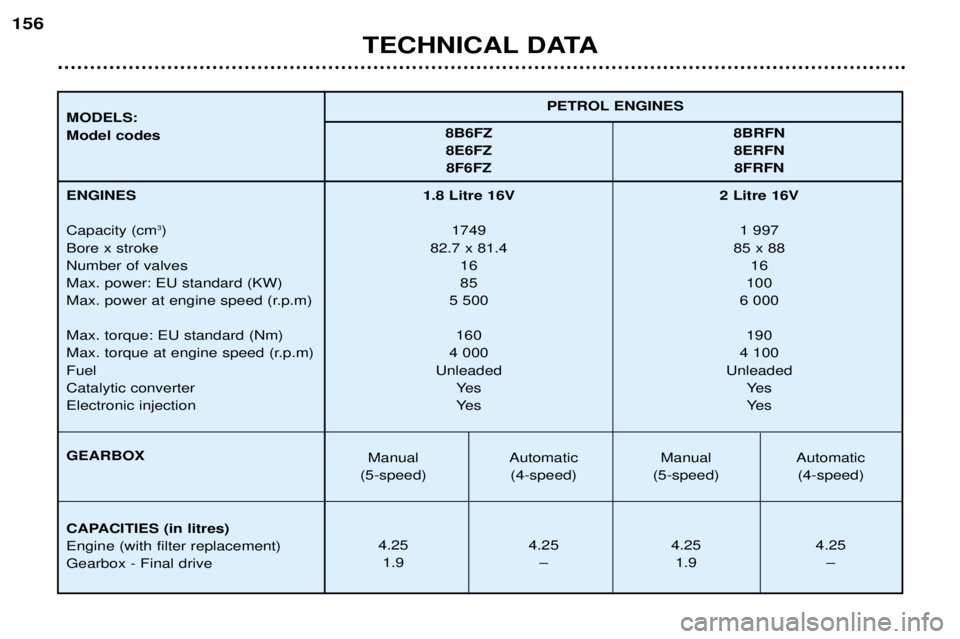

TECHNICAL DATA
PETROL ENGINES
MODELS: Model codes 8B6FZ 8BRFN
8E6FZ 8ERFN 8F6FZ 8FRFN
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive
Page 157 of 166
TECHNICAL DATA
157

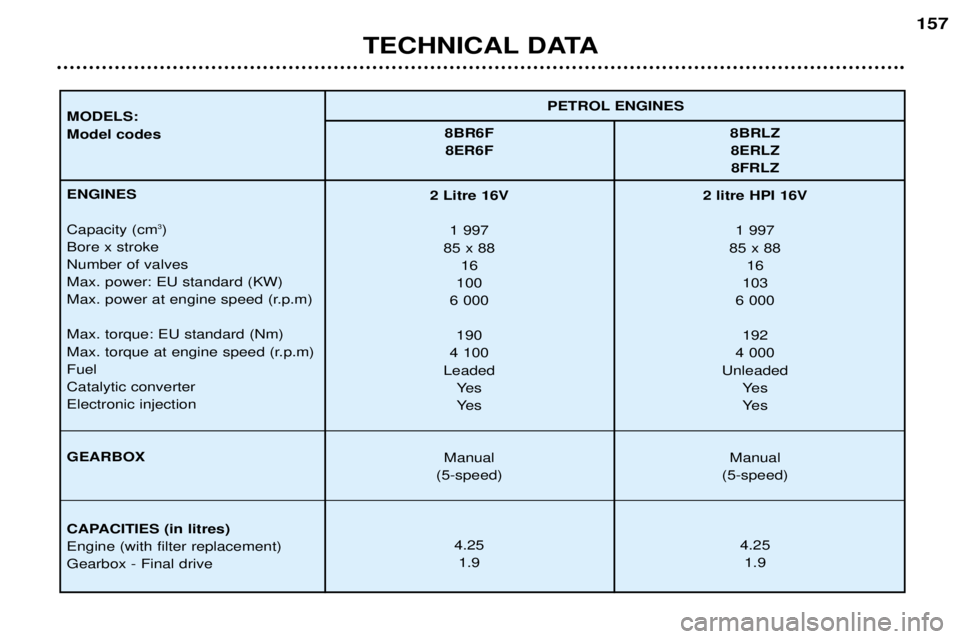

PETROL ENGINES
MODELS: Model codes 8BR6F 8BRLZ
8ER6F 8ERLZ 8FRLZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2 Litre 16V 2 litre HPI 16V
1 997 1 997
85 x 88 85 x 88 16 16
100 103
6 000 6 000
190 192
4 100 4 000
Leaded Unleaded
Ye s Ye s
Ye s Ye s
Manual Manual
(5-speed) (5-speed)
4.25 4.25
1.9 1.9
Page 158 of 166
TECHNICAL DATA
158

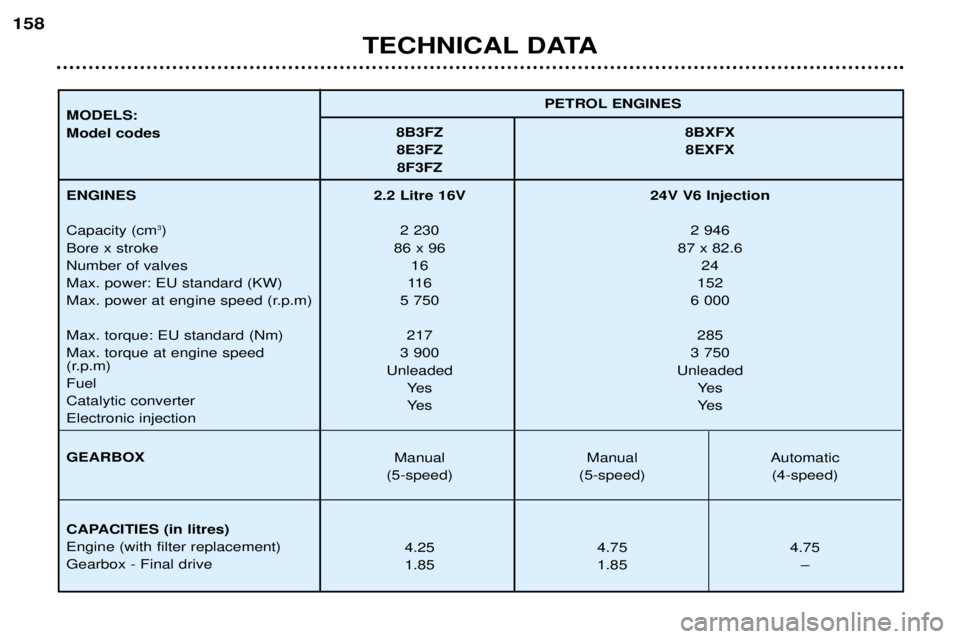

PETROL ENGINES
MODELS: Model codes 8B3FZ 8BXFX
8E3FZ 8EXFX 8F3FZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm) Max. torque at engine speed
(r.p.m) FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2.2 Litre 16V 24V V6 Injection
2 230 2 946
86 x 96 87 x 82.6 16 24
116 152
5 750 6 000
217 285
3 900 3 750
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.25 4.75 4.75
1.85 1.85 –
Page 159 of 166
Diesel Turbo Diesel Turbo Diesel Turbo2 Litre HDI 2 Litre HDI 2.2 litre 16V HDI
1 997 1 997 2 179
85 x 88 85 x 88 85 x 96 88 1 6
66 80 /79 79 98
4 000 4 000 4 000
205 250 314
1 900 1 750 2 000
Diesel Diesel Diesel Ye s Ye s Ye s
Electronic Electronic Electronic
No No Yes Yes Yes
Manual Manual Automatic Manual Manual
(5-speed) (5-speed) (4-speed) (5-speed) (5-speed)
4.5 4.5 4.5 4.5 4.5
1.9 1.85 – 1.85 1.85
TECHNICAL DATA
159

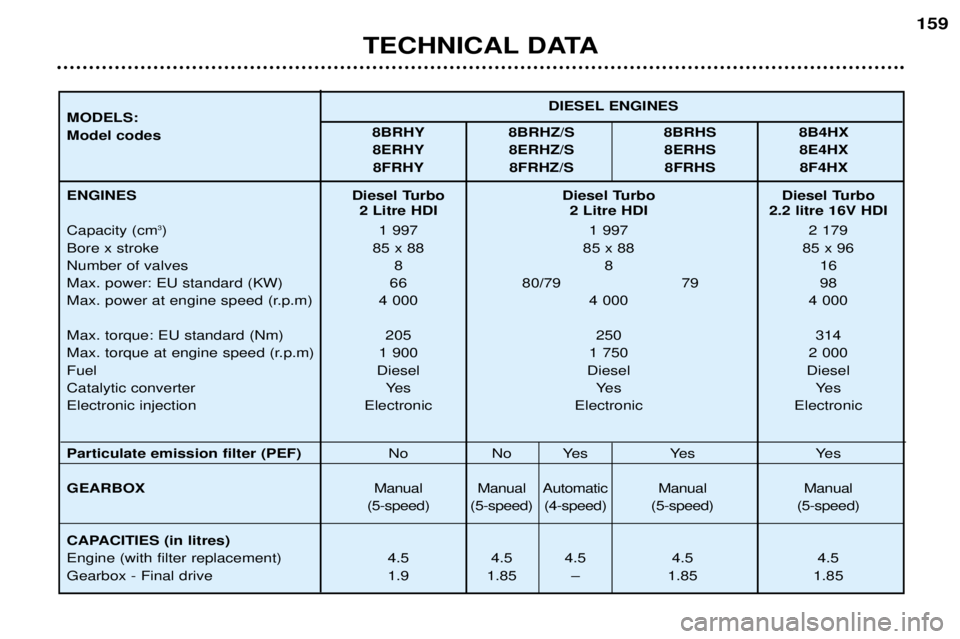

MODELS: Model codes 8BRHY 8BRHZ/S 8BRHS 8B4HX
8ERHY 8ERHZ/S 8ERHS 8E4HX 8FRHY 8FRHZ/S 8FRHS 8F4HX
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection Particulate emission filter (PEF) GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final driveDIESEL ENGINES
Page 160 of 166
TECHNICAL DATA
160

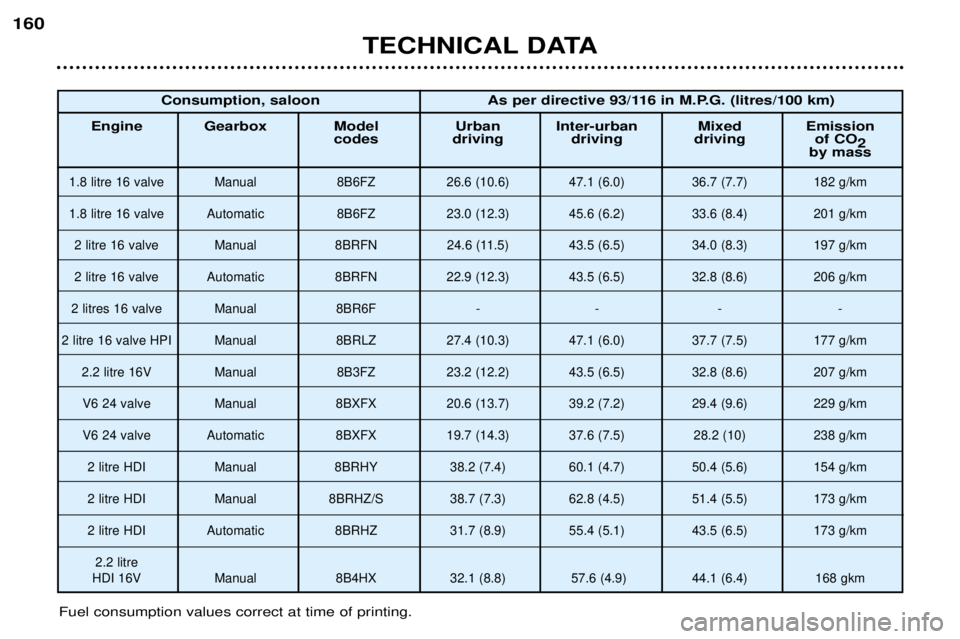

Fuel consumption values correct at time of printing.Consumption, saloon As per directive 93/116 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving driving driving of CO 2
by mass
1.8 litre 16 valve Manual 8B6FZ 26.6 (10.6) 47.1 (6.0) 36.7 (7.7) 182 g/km
1.8 litre 16 valve Automatic 8B6FZ 23.0 (12.3) 45.6 (6.2) 33.6 (8.4) 201 g/km
2 litre 16 valve Manual 8BRFN 24.6 (11.5) 43.5 (6.5) 34.0 (8.3) 197 g/km
2 litre 16 valve Automatic 8BRFN 22.9 (12.3) 43.5 (6.5) 32.8 (8.6) 206 g/km
2 litres 16 valve Manual 8BR6F - - - -
2 litre 16 valve HPI Manual 8BRLZ 27.4 (10.3) 47.1 (6.0) 37.7 (7.5) 177 g/km 2.2 litre 16V Manual 8B3FZ 23.2 (12.2) 43.5 (6.5) 32.8 (8.6) 207 g/kmV6 24 valve Manual 8BXFX 20.6 (13.7) 39.2 (7.2) 29.4 (9.6) 229 g/km
V6 24 valve Automatic 8BXFX 19.7 (14.3) 37.6 (7.5) 28.2 (10) 238 g/km 2 litre HDI Manual 8BRHY 38.2 (7.4) 60.1 (4.7) 50.4 (5.6) 154 g/km
2 litre HDI Manual 8BRHZ/S 38.7 (7.3) 62.8 (4.5) 51.4 (5.5) 173 g/km
2 litre HDI Automatic 8BRHZ 31.7 (8.9) 55.4 (5.1) 43.5 (6.5) 173 g/km
2.2 litre
HDI 16V Manual 8B4HX 32.1 (8.8) 57.6 (4.9) 44.1 (6.4) 168 gkm
Page 161 of 166
TECHNICAL DATA
161

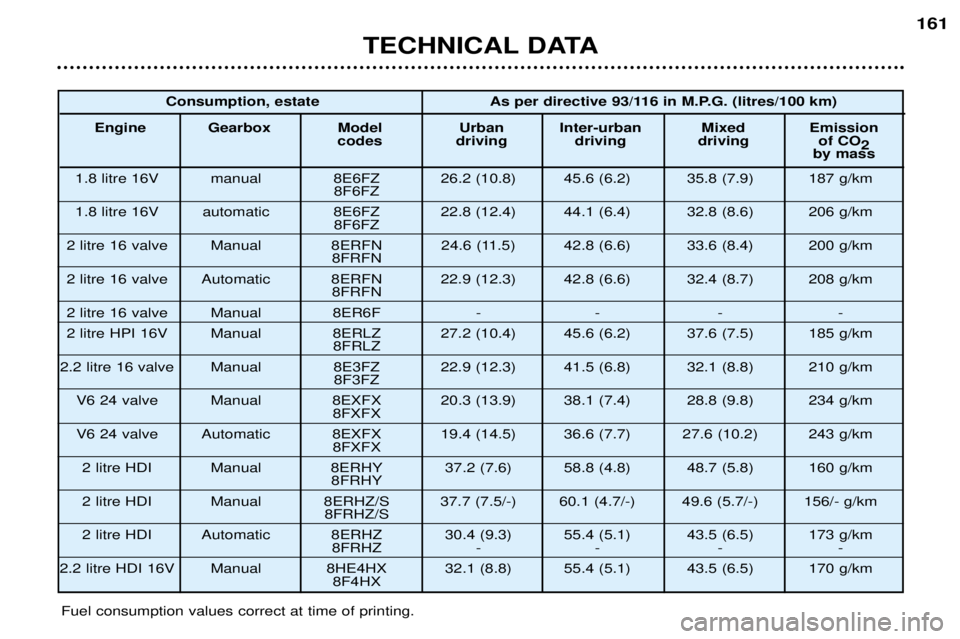

Fuel consumption values correct at time of printing.Consumption, estate As per directive 93/116 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving driving driving of CO 2
by mass
1.8 litre 16V manual 8E6FZ 26.2 (10.8) 45.6 (6.2) 35.8 (7.9) 187 g/km 8F6FZ
1.8 litre 16V automatic 8E6FZ 22.8 (12.4) 44.1 (6.4) 32.8 (8.6) 206 g/km 8F6FZ
2 litre 16 valve Manual 8ERFN 24.6 (11.5) 42.8 (6.6) 33.6 (8.4) 200 g/km 8FRFN
2 litre 16 valve Automatic 8ERFN 22.9 (12.3) 42.8 (6.6) 32.4 (8.7) 208 g/km 8FRFN
2 litre 16 valve Manual 8ER6F - - - - 2 litre HPI 16V Manual 8ERLZ 27.2 (10.4) 45.6 (6.2) 37.6 (7.5) 185 g/km 8FRLZ
2.2 litre 16 valve Manual 8E3FZ 22.9 (12.3) 41.5 (6.8) 32.1 (8.8) 210 g/km 8F3FZ
V6 24 valve Manual 8EXFX 20.3 (13.9) 38.1 (7.4) 28.8 (9.8) 234 g/km 8FXFX
V6 24 valve Automatic 8EXFX 19.4 (14.5) 36.6 (7.7) 27.6 (10.2) 243 g/km 8FXFX
2 litre HDI Manual 8ERHY 37.2 (7.6) 58.8 (4.8) 48.7 (5.8) 160 g/km 8FRHY
2 litre HDI Manual 8ERHZ/S 37.7 (7.5/-) 60.1 (4.7/-) 49.6 (5.7/-) 156/- g/km 8FRHZ/S
2 litre HDI Automatic 8ERHZ 30.4 (9.3) 55.4 (5.1) 43.5 (6.5) 173 g/km 8FRHZ - - - -
2.2 litre HDI 16V Manual 8HE4HX 32.1 (8.8) 55.4 (5.1) 43.5 (6.5) 170 g/km 8F4HX
Page 162 of 166
TECHNICAL DATA
162

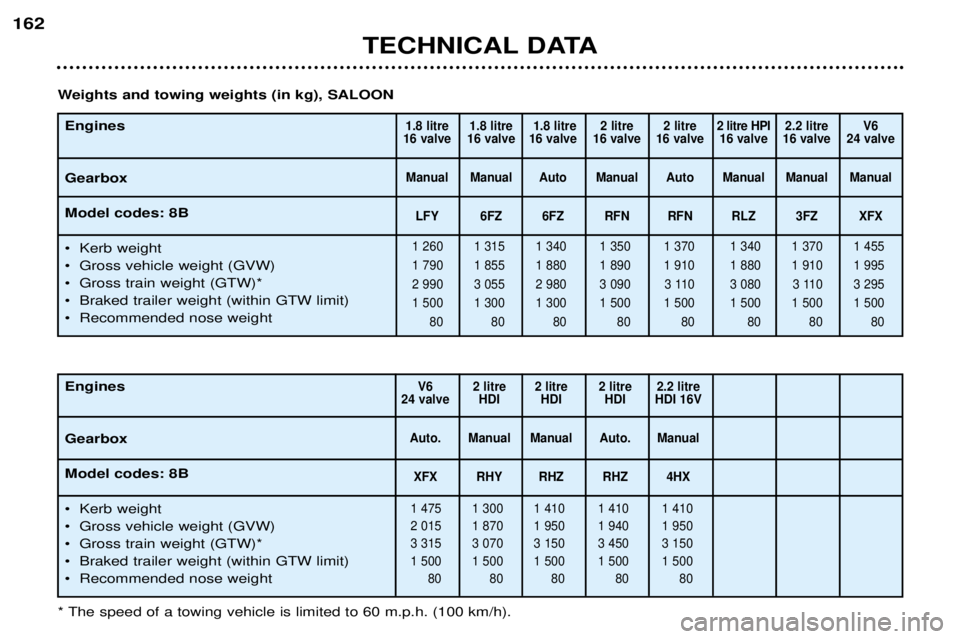

Engines Gearbox Model codes: 8B
Page 163 of 166
TECHNICAL DATA
163

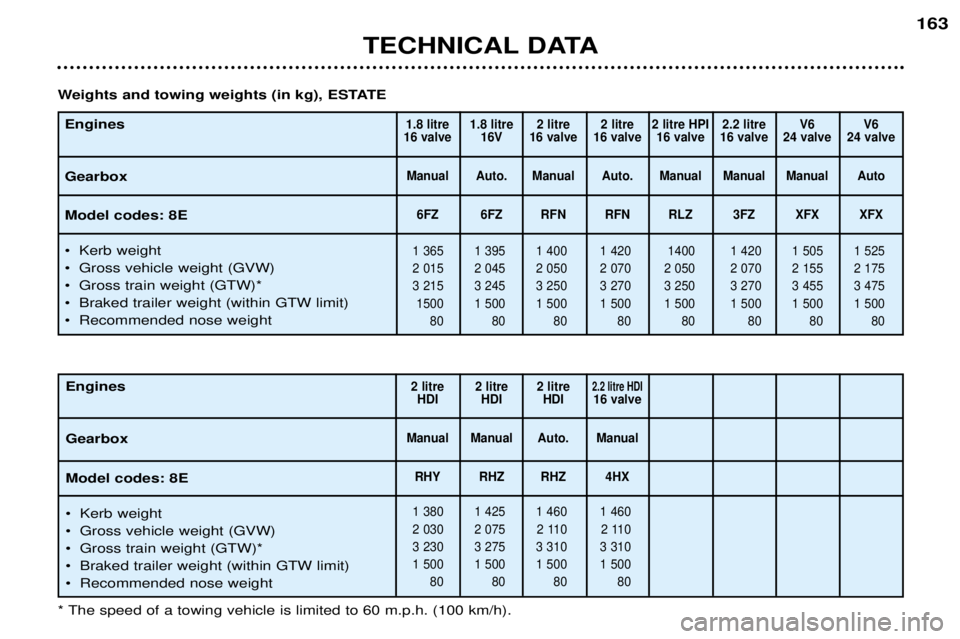

Engines Gearbox Model codes: 8E
Page 164 of 166
TECHNICAL DATA
164

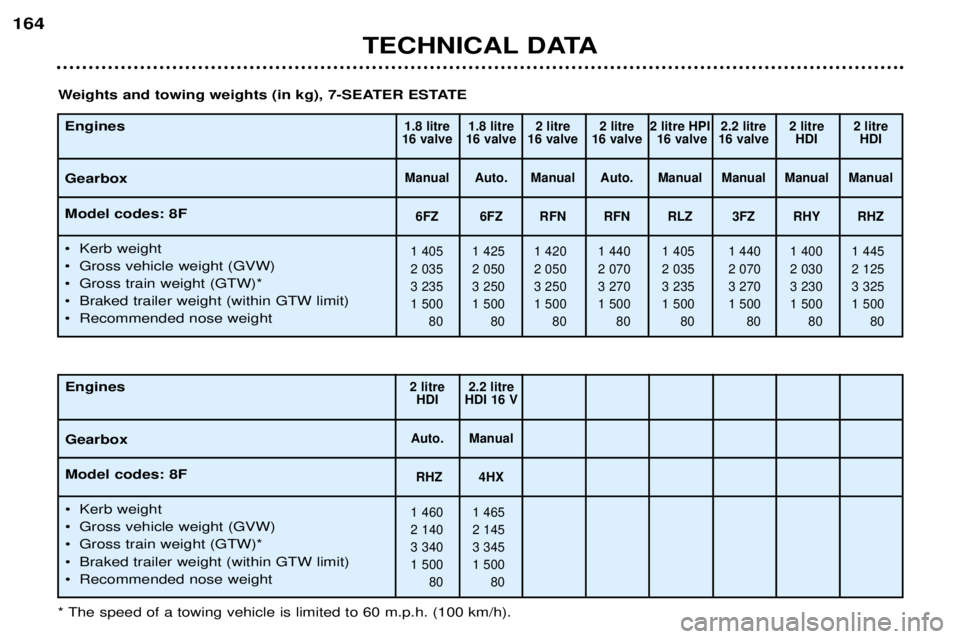

Engines Gearbox Model codes: 8F
Page 165 of 166
TECHNICAL DATA165

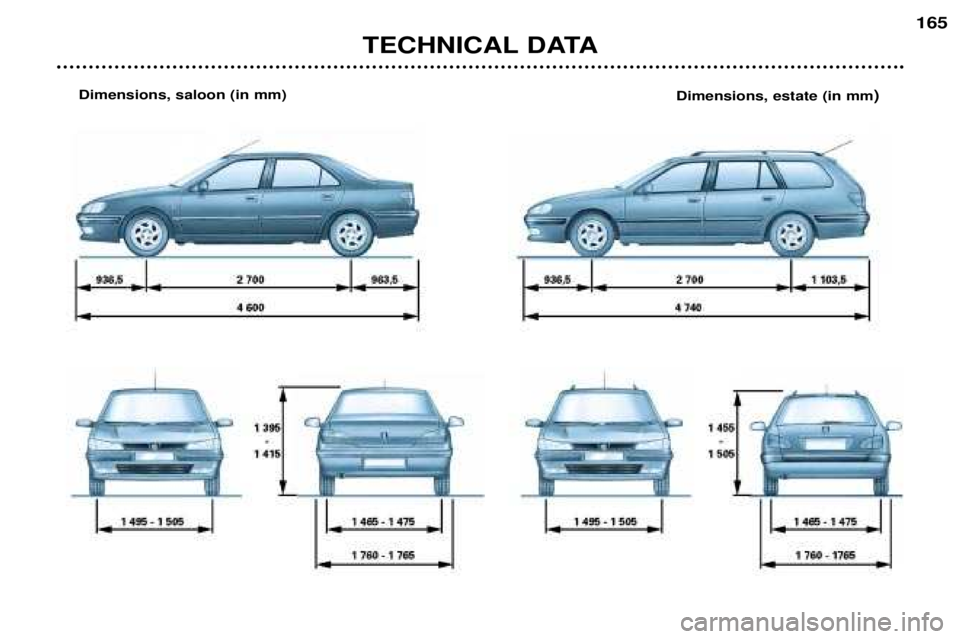

Dimensions, saloon (in mm) Dimensions, estate (in mm)
