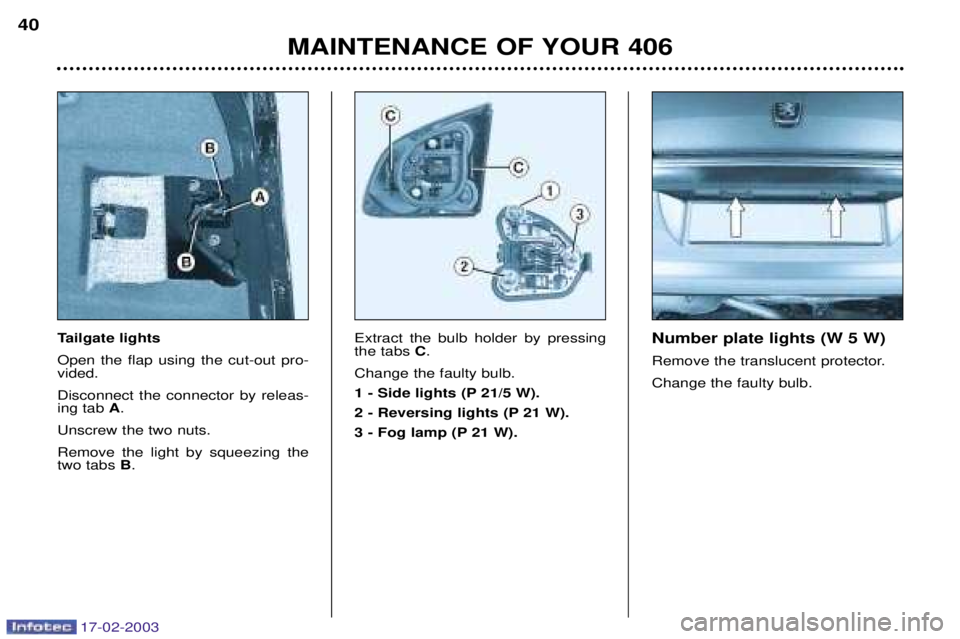

Tailgate lights Open the flap using the cut-out pro- vided. Disconnect the connector by releas- ing tab A.
Unscrew the two nuts. Remove the light by squeezing the two tabs B. Extract the bulb holder by pressingthe tabs
C.
Change the faulty bulb.
1 - Side lights (P 21/5 W).
2 - Reversing lights (P 21 W).
3 - Fog lamp (P 21 W). Number plate lights (W 5 W)
Remove the translucent protector.Change the faulty bulb.
MAINTENANCE OF YOUR 406
40

17-02-2003

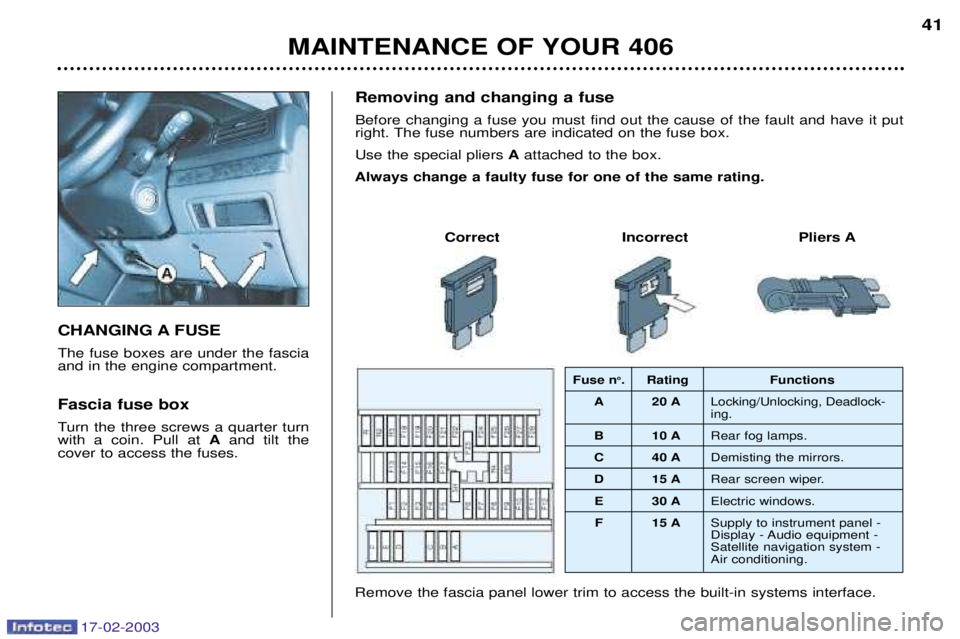

CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box
Turn the three screws a quarter turn with a coin. Pull at Aand tilt the
cover to access the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers A
Remove the fascia panel lower trim to access the built-in systems interface.
Fuse n o
. Rating Functions
A 20 A Locking/Unlocking, Deadlock- ing.
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D 15 A Rear screen wiper.
E 30 A Electric windows.
F 15 A Supply to instrument panel -
Display - Audio equipment - Satellite navigation system - Air conditioning.
MAINTENANCE OF YOUR 406 41

17-02-2003
Fuse N¡ Rating Functions1* 10 A Reversing lights - Double injection relay - Oil temperature - Oil level -
Air conditioning compressor.
2* 15 A Fuel pump, canister solenoid valve.
3* 10 AElectronic Control unit.
4* 10 AEngine control unit and automatic gearbox.
5 10 A Particulate Emission Filter control unit -
Rear windscreen relay.
6 15 A Front fog lamps.
7 20 AHeadlamp wash.
8* 20 A Direct petrol injection engine control unit -
Clutch pedal
9* 15 A Left-hand dipped beam lights.
10* 15 A Right-hand dipped beam lights.
Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. Some electrical accessories or the way in which they are fitted canhave damaging effects on theoperation of your vehicle; theelectronic control circuits, theaudio circuit and the batterycharging circuit. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for rectify-ing the malfunctions resulting fromthe installation of accessories notsupplied and not recommended byPEUGEOT and not installed inaccordance with its instructions, inparticular where the equipment inquestion consumes more than
10 milliamperes. *The maxi-fuses provide additional protection for the electrical sys-
tems. All work must be carried out
by a PEUGEOT dealer.
MAINTENANCE OF YOUR 406
44

17-02-2003
Fuse N¡ RatingFunctions
11* 10 ALeft hand main beam.
12* 10 A Right hand main beam.
13* 15 AHorn.
14 10 AFront and rear screen wash pump.
15* 30 A Ignition coil - Windscreen wiper - Oxygen sensor - Oil pressure - Injection system.
16* 30 A Air pump - Oil temperature - Oil level - Brake lights operation - Alternator - Water in diesel
detector - Injection relay control.
17* 30 A Passenger's electric seat.
18 40 A Heater blower - Starter - Windscreen wiper slow speed.
MAINTENANCE OF YOUR 406 45

17-02-2003
PETROL/LPG TWIN FUEL VERSION169

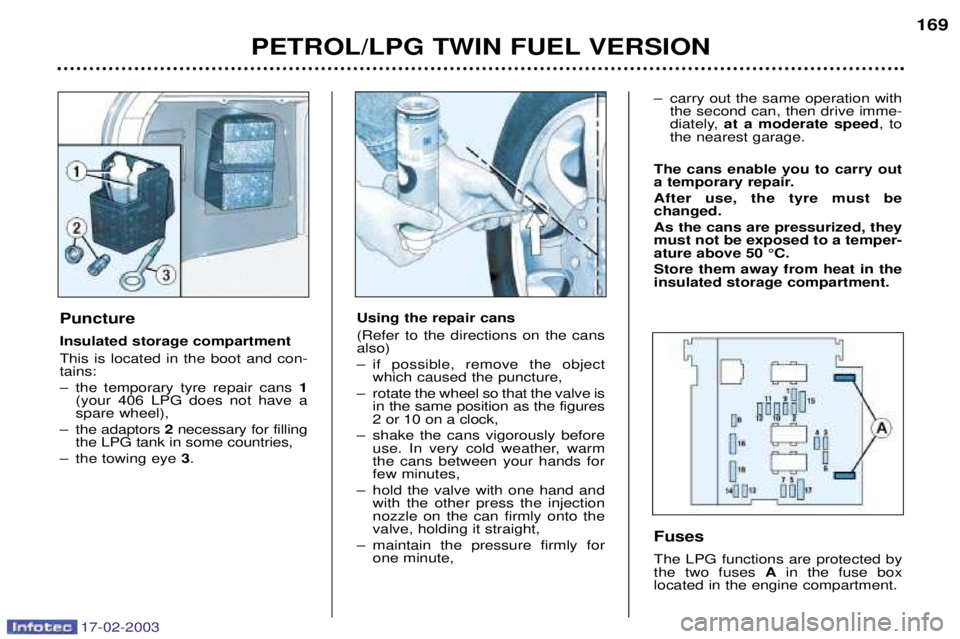

Puncture Insulated storage compartment This is located in the boot and con- tains:
Ð the temporary tyre repair cans 1
(your 406 LPG does not have a spare wheel),
Ð the adaptors 2necessary for filling
the LPG tank in some countries,
Ð the towing eye 3.
Fuses The LPG functions are protected by the two fuses Ain the fuse box
located in the engine compartment.
Using the repair cans (Refer to the directions on the cans also)
Ð if possible, remove the object
which caused the puncture,
Ð rotate the wheel so that the valve is in the same position as the figures 2 or 10 on a clock,
Ð shake the cans vigorously before use. In very cold weather, warmthe cans between your hands forfew minutes,
Ð hold the valve with one hand and with the other press the injectionnozzle on the can firmly onto thevalve, holding it straight,
Ð maintain the pressure firmly for one minute, Ð carry out the same operation with
the second can, then drive imme-
diately, at a moderate speed , to
the nearest garage.
The cans enable you to carry out
a temporary repair. After use, the tyre must be changed. As the cans are pressurized, they must not be exposed to a temper-ature above 50 ¡C. Store them away from heat in the insulated storage compartment.

17-02-2003
CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box
Turn the three screws a quarter turn with a coin. Pull at Aand tilt the
cover to access the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers A
Remove the fascia panel lower trim to access the built-in systems interface.
Fuse n o
. Rating Functions
A 20 A Locking/Unlocking, Deadlock- ing.
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D 15 A Rear screen wiper.
E 30 A Electric windows.
F 15 A Supply to instrument panel -
Display - Audio equipment - Satellite navigation system - Air conditioning.
MAINTENANCE OF YOUR 406 41

17-02-2003

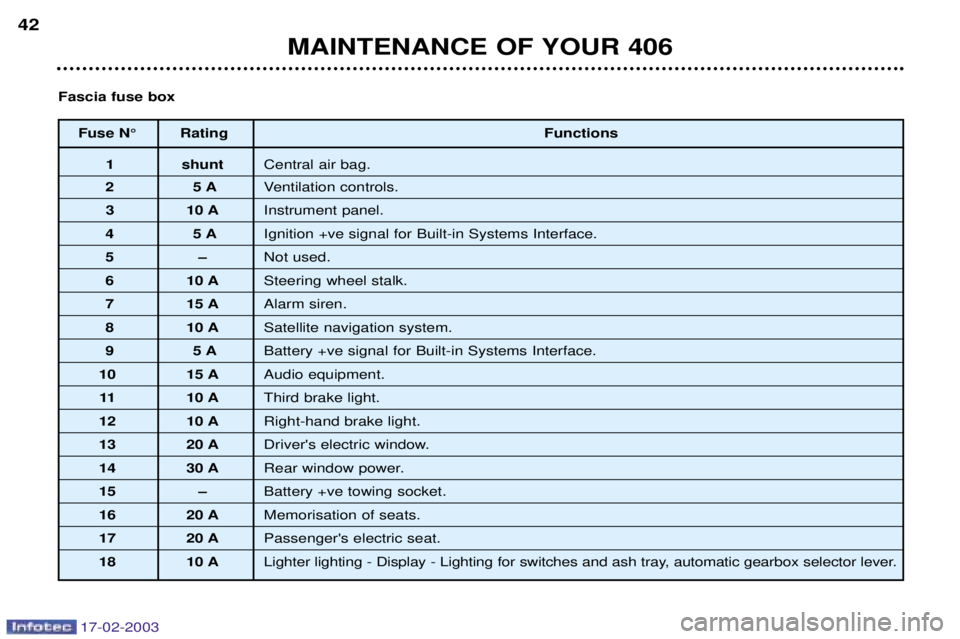

Fuse N¡ RatingFunctions
1 shuntCentral air bag.
25 AVentilation controls.
3 10 A Instrument panel.
45 AIgnition +ve signal for Built-in Systems Interface.
5Ð Not used.
6 10 ASteering wheel stalk.
7 15 AAlarm siren.
8 10 ASatellite navigation system.
95 ABattery +ve signal for Built-in Systems Interface.
10 15 A Audio equipment.
11 10 AThird brake light.
12 10 A Right-hand brake light.
13 20 ADriver's electric window.
14 30 ARear window power.
15 ÐBattery +ve towing socket.
16 20 AMemorisation of seats.
17 20 APassenger's electric seat.
18 10 A Lighter lighting - Display - Lighting for switches and ash tray, automatic gearbox selector lever.
Fascia fuse box
MAINTENANCE OF YOUR 406
42

17-02-2003

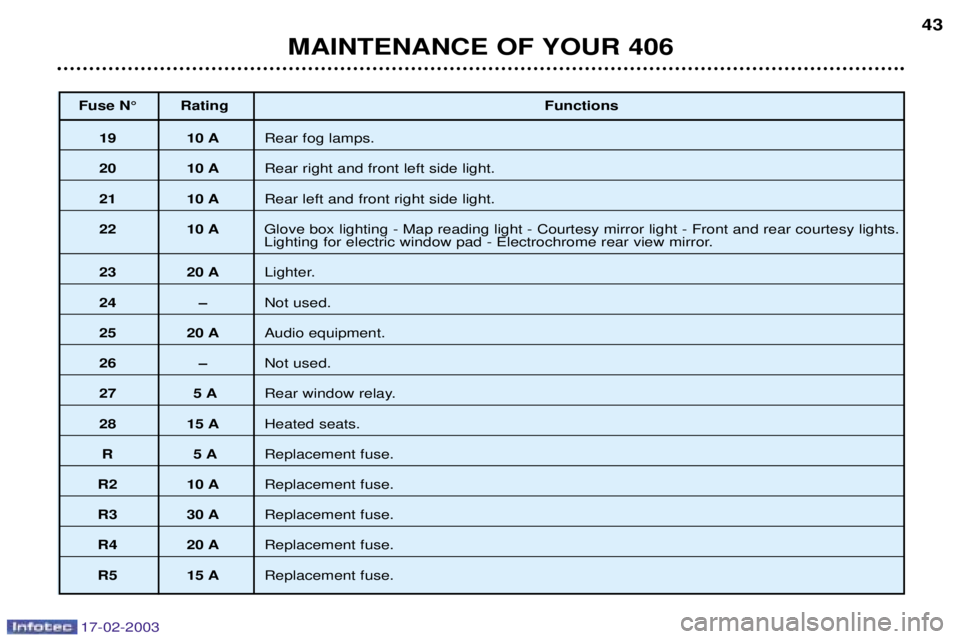

Fuse N¡ RatingFunctions
19 10 ARear fog lamps.
20 10 ARear right and front left side light.
21 10 ARear left and front right side light.
22 10 A Glove box lighting - Map reading light - Courtesy mirror light - Front and rear courtesy lights.
Lighting for electric window pad - Electrochrome rear view mirror.
23 20 A Lighter.
24 ÐNot used.
25 20 AAudio equipment.
26 ÐNot used.
27 5 ARear window relay.
28 15 AHeated seats.
R5 AReplacement fuse.
R2 10 A Replacement fuse.
R3 30 AReplacement fuse.
R4 20 AReplacement fuse.
R5 15 A Replacement fuse.
MAINTENANCE OF YOUR 406 43

17-02-2003
BATTERY
To charge the battery using a battery charger:
Ð Disconnect the battery,
Ð Follow the instructions for use given by the battery charger manufacturer,
Ð Reconnect starting with the negative (Ð) terminal,
Ð Check that the terminals and connectors are clean. If they are covered with sul-phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
Ð Connect the red cable to the positive (+) terminals of the two batteries,
Ð Connect one end of the green or black cable to the negative (Ð) terminal of the slave battery,
Ð Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle, as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables.
Ð Never disconnect a terminal when the engine is running.
Ð Never charge a battery without first disconnecting the terminals.
Ð Close the sunroof before disconnecting the battery. If it does not operate normally following re-connection of the battery, you must
re-initialise it by turning the control to the maximum tilt position and pressing it for a few seconds.
Ð After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initialised. Ifslight difficulties are experienced after this, please contact a PEUGEOT deal-
er.
It is advisable to disconnect the battery if the vehicle
is not to be used for a period of more than one month.
Economy mode
With the engine switched off and the ignition key in the "running" or"accessories" position for about half
an hour, certain electrical equipment(displays, instrument panel, warninglights, courtesy lights, electric win-
dows, wipers etc.) will switch offautomatically to avoid draining the
battery. Once the electrical equipment goes into economy mode, it is necessaryto start the engine to enable theequipment to work again.
MAINTENANCE OF YOUR 406
46

17-02-2003
FITTING THE SPEAKERS The factory-fitted equipment allows you to fit:
Ð 165 mm diameter speakers to thefront doors,
Ð 55 mm diameter tweeters to the fascia,
Ð special elliptical-shaped speakers at the rear of the saloon,
Ð 100 mm diameter speakers at the rear of the estate.

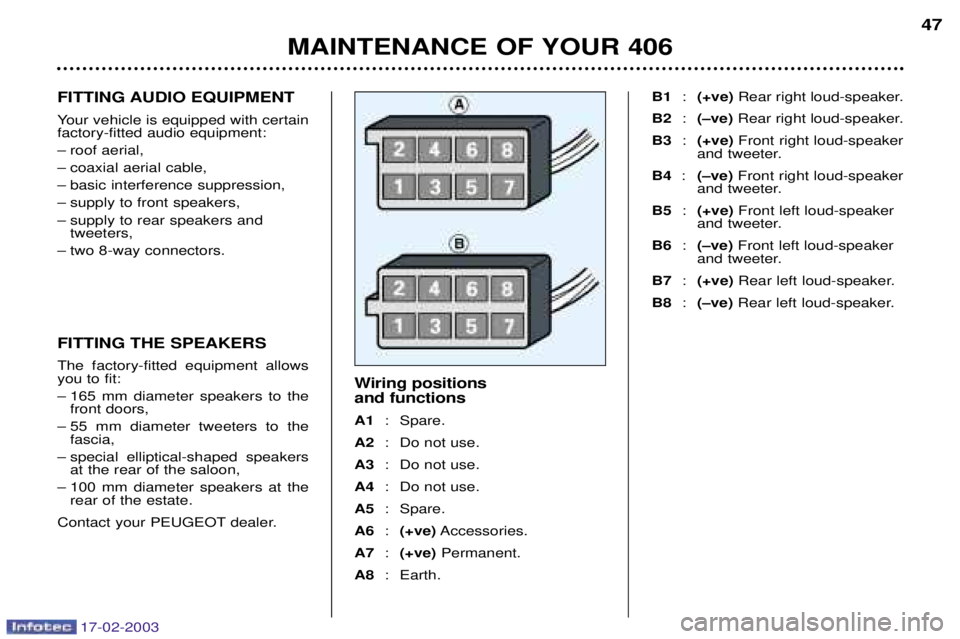

Contact your PEUGEOT dealer. Wiring positions and functions A1
: Spare.
A2 : Do not use.
A3 : Do not use.
A4 : Do not use.
A5 : Spare.
A6 :(+ve) Accessories.
A7 :(+ve) Permanent.
A8 : Earth. B1
:(+ve) Rear right loud-speaker.
B2 :(Ðve) Rear right loud-speaker.
B3 :(+ve) Front right loud-speaker
and tweeter.
B4 :(Ðve) Front right loud-speaker
and tweeter.
B5 :(+ve) Front left loud-speaker
and tweeter.
B6 :(Ðve) Front left loud-speaker
and tweeter.
B7 :(+ve) Rear left loud-speaker.
B8 :(Ðve) Rear left loud-speaker.
MAINTENANCE OF YOUR 406 47
FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain factory-fitted audio equipment:
Ð roof aerial,
Ð coaxial aerial cable,
Ð basic interference suppression,
Ð supply to front speakers,
Ð supply to rear speakers and tweeters,
Ð two 8-way connectors.
