Horn Press one of the spokes or the centre of the steeringwheel.
Adjusting the headlamps Depending on the load in your vehi- cle, adjusting the beam of the head-lamps is recommended as follows.0- 1 or 2 people in the front seats.
–- 3 people.
1- 5 people.
2- 5 people + maximum authorised load.
3- Driver + maximum authorised load.
Initial setting is position 0. Hazard warning lights Press the button, the direction indi- cators flash. They can operate with the ignition
off.
Steering wheel height and depth adjustment
When the vehicle is stationary, unlock the steering wheel by pullinghandle
A.
Adjust the height and depth of thesteering wheel, then lock it by push-ing handle Adown fully.
YOUR 406 IN DETAIL
144
Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. they switch of auto-matically the first time you accelerate.
However, it is also possible to switch
them off by pressing the button.* According to country.

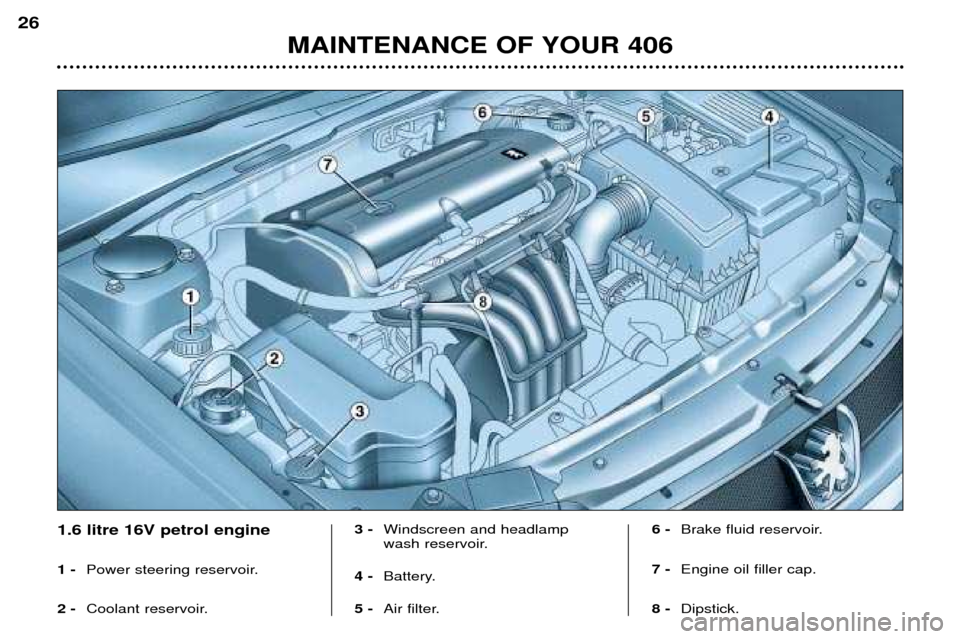

1.6 litre 16V petrol engine 1 -Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
MAINTENANCE OF YOUR 406
26

MAINTENANCE OF YOUR 40627

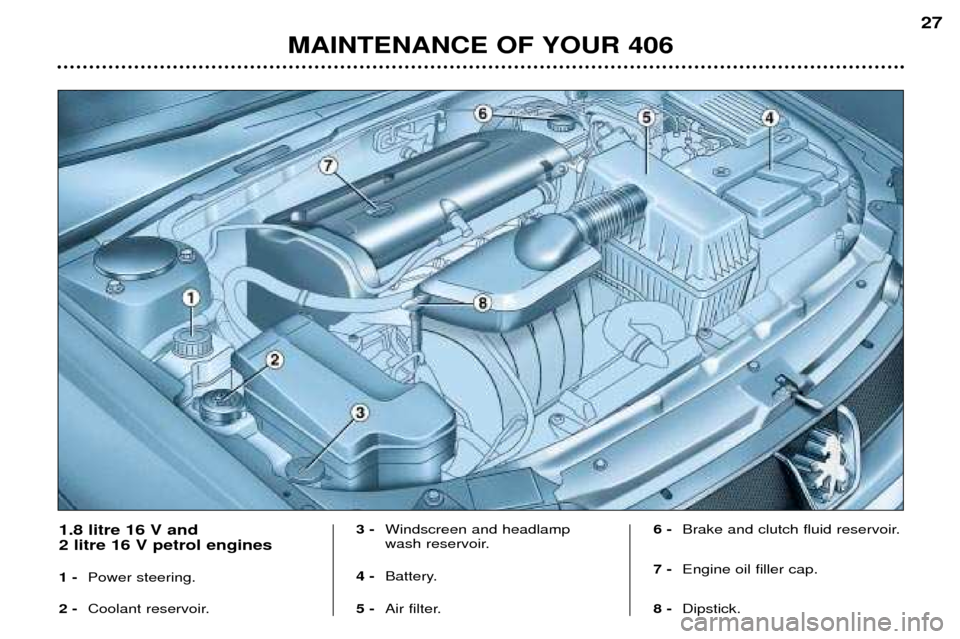

1.8 litre 16 V and 2 litre 16 V petrol engines 1 -
Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
28

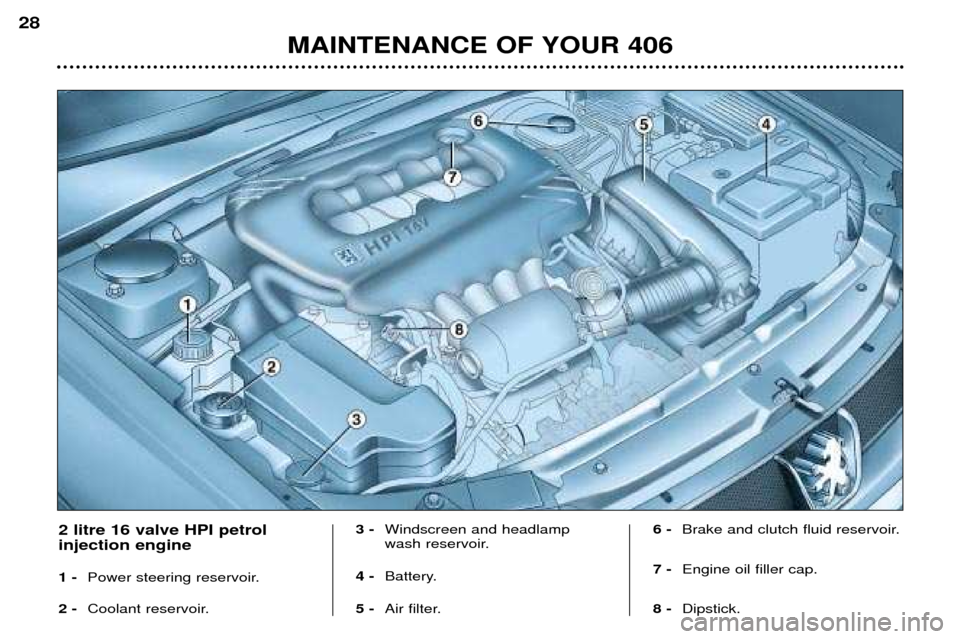

2 litre 16 valve HPI petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 40629

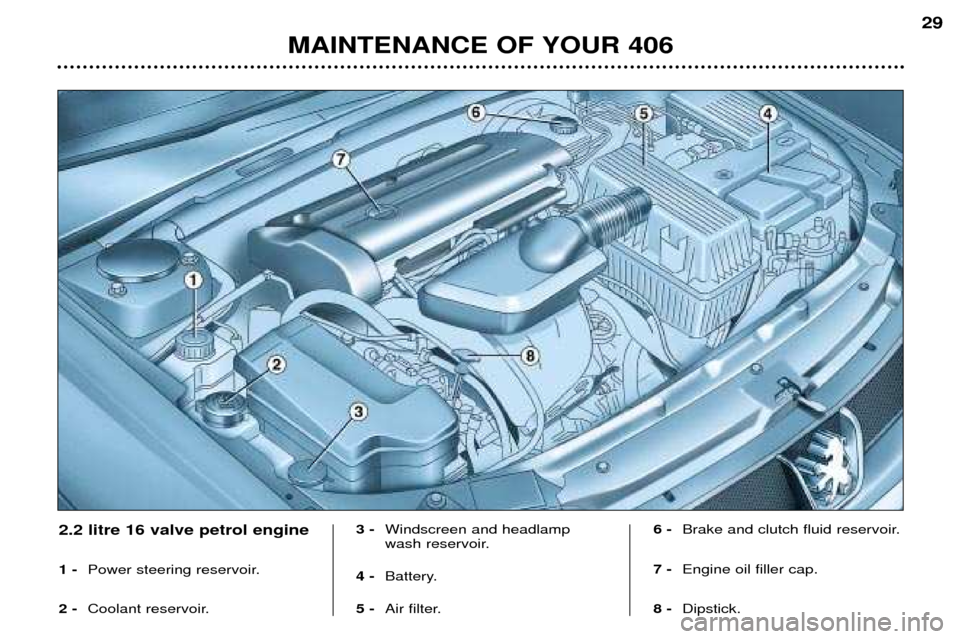

2.2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
30

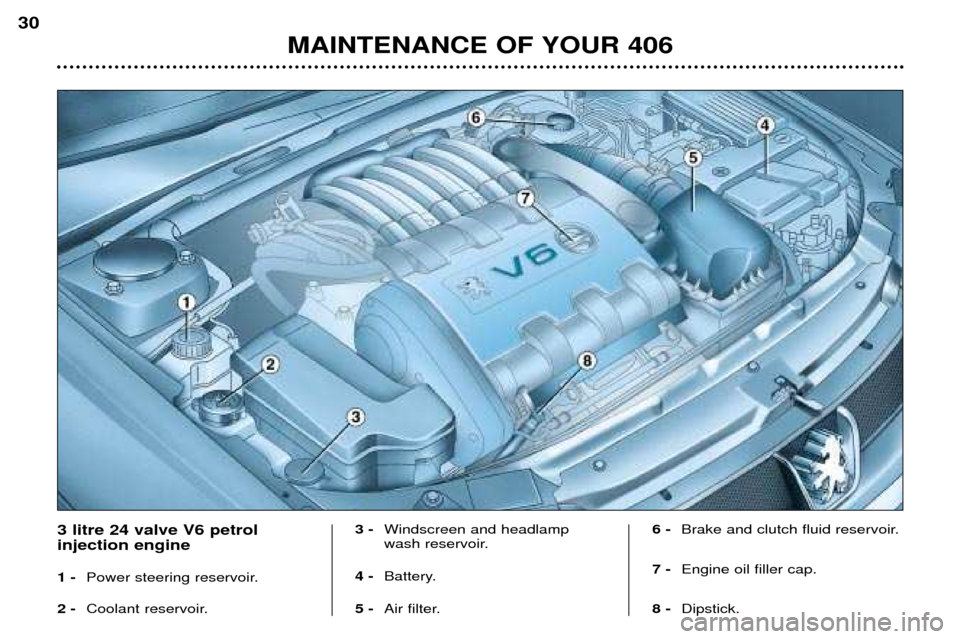

3 litre 24 valve V6 petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 40631

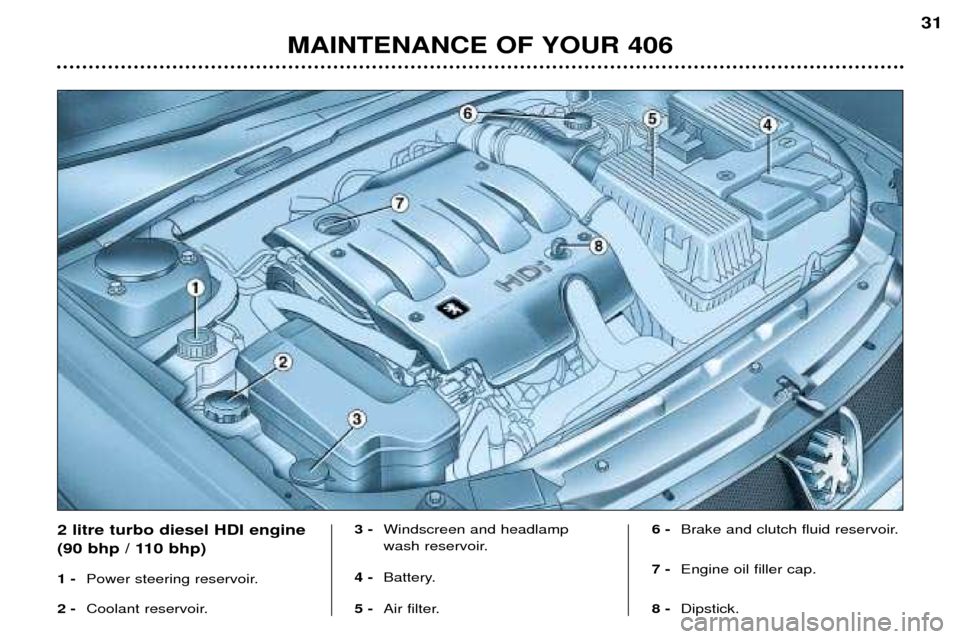

2 litre turbo diesel HDI engine
(90 bhp / 110 bhp) 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
32

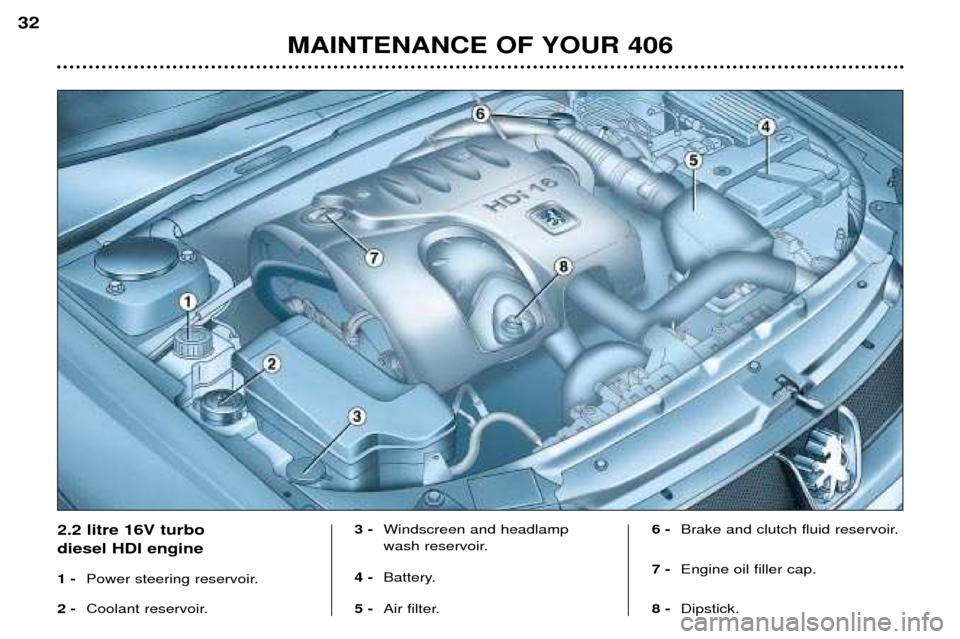

2.2 litre 16V turbo diesel HDI engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 40635
Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as important as the power steeringand the braking system, PEUGEOT selects and offersquite specific products.
Power steering reservoir Open the reservoir with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4.5 litres or 9 litres withheadlamp wash). Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential. If you drive in
very dusty conditions, change ittwice as often. Brake pads Brake pad wear depends on the style of driving, in particular forvehicles that are used in town, forshort journeys. It may be necessaryto check the thickness of the padseven between services. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services.Have the system checked by a
PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Automatic autoadaptive gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer according to themanufacturer's servicing schedule.

Amber bulbs must be replaced by bulbs of iden-tical specification and
colour.
In certain weather conditions (lowtemperatures, humidity), the pre-
sence of condensation on theinside of the headlamp glass isnormal; it disappears a few
minutes after the lights have beenswitched on.
CHANGING A BULB
1 - Dipped beam headlamps
2 - Main beam headlamps 2 bulbs (H7-55W)
- Press the tab and remove the protective cover corresponding to the faulty bulb.
- Disconnect the connector.
- Press the end of the securing clip to remove it. Change the bulb.
- When fitting, ensure that the direction notches are positioned correctly and that the securing clip is corrrectly fixed.
- Reconnect the connector.
- Refit the protective cover.
3 - Side lights (W 5 W)
Turn the socket using the lever and remove it. Change the bulb.
4 - Direction indicators (P 21 W)
Turn the bulb holder a quarter turn and remove it. Change the bulb. Note: only handle H7 bulbs using a dry cloth.
To replace the left-hand bulbs, remove the protective battery cover. Direction indicator (WY 5 W)
- Pull the rear section of the transpa-
rent cover and release the assem-
bly.
- Turn the connector a quarter turn and remove it.
- Change the bulb.
