MAINTENANCE OF YOUR 406
36
CHANGING A WHEEL Access to the spare wheel and jack Saloon:
lift the boot carpet using the
lifting hook. Secure the hook behind the boot seal. Estate: unscrew the two carpet
retaining screws a quarter turn using the ignition key or a coin. Lift the car-pet and secure the retaining hookbehind the tailgate seal. 7-seater estate: fold back the third
row seat, then lift the carpet to gain access to the spare wheel. Tools 1 -
Wheel brace.
2 - Centralising tool.
3 - Trim remover/wheel brace extension.
4 - Jack.
5 - Removable towing eye.
6 - Alloy wheel trim remover.
7 - Trim cap tool.
The tool holder supports the boot
floor. Reposition it to prevent anydeformation of the floor when loa-ded.
Tighten the spare wheel securing strap to prevent noise and for yoursafety in the event of a frontalimpact. Removal
- Park the vehicle on level, stable
and non-slippery ground.
- Apply the handbrake, engage first or reverse gear (position Pfor the
automatic gearbox).
- Remove the wheel trim using the wheelbrace by pulling next to the valve. For vehicles fitted with alloywheels 8, remove the centre
trim by using tool 6in one of the
holes.
- Loosen the wheel bolts. For vehicles with alloy wheels 8,
remove the chrome trim caps before-
hand (see page on 'special featuresof alloy wheels' in this section).

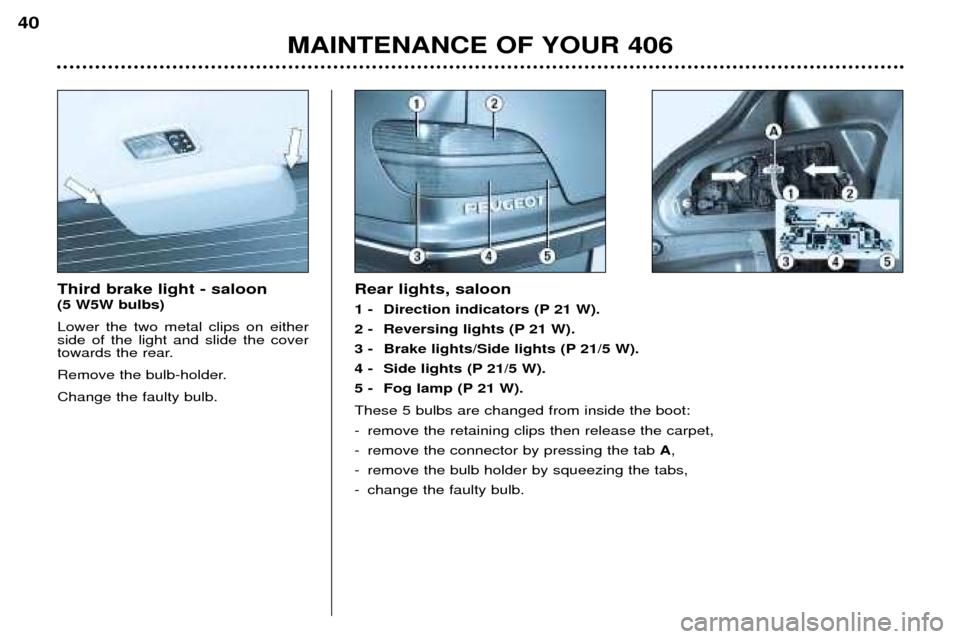

Third brake light - saloon (5 W5W bulbs) Lower the two metal clips on either side of the light and slide the cover
towards the rear.
Remove the bulb-holder.Change the faulty bulb. Rear lights, saloon
1 - Direction indicators (P 21 W).
2 - Reversing lights (P 21 W).
3 - Brake lights/Side lights (P 21/5 W).
4 - Side lights (P 21/5 W).
5 - Fog lamp (P 21 W). These 5 bulbs are changed from inside the boot:
- remove the retaining clips then release the carpet,
- remove the connector by pressing the tab
A,
- remove the bulb holder by squeezing the tabs,
- change the faulty bulb.
MAINTENANCE OF YOUR 406
40

MAINTENANCE OF YOUR 406
54
406 ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safe-
ty, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee.
–Security : Alarms, window engraving, wheel anti-theft devices, first aid kit etc.
–Protection: Covers compatible with side air bags, mats, door sill protector, styling strips.
–Communication: Telephone, satellite navigation, audio equipment, CD changer, speakers.
–Customising: Alloy wheels, wheel trims, spoiler, sports exhaust.
–Comfort: Air conditioning, sun roofs*, storage facilities, portable refrigerator, luggage net,
telephone console, armrest, door sill protector, boot storage, door deflectors.
–Leisure pursuits : Tow bar, roof bars, carriers (for bicycles and skis), roof boxes, snow chains etc.
–Children: Booster seats and child seats, side blinds, rear blinds.
–Maintenance products: Windscreen washer fluid, internal and external cleaning and maintenance
products.
* As the fitting of a sun roof may require cutting of the roof strengthener, it is essential to use original PEUGEOT products only.
