engine Peugeot 406 Break 2002 Owner's Guide

CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:-All children under the age of 10 must travel in a special approved child seat*, adapted to their weight, in a seat fitted with a seat belt.
- Front passenger seat*: children under the age of 10 must not travel in the forwards facing position**. The rearwards facing position is permitted. In this position, it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 13 kg)
" Römer Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the 'mid-way' position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Römer Prince": installed in the rear using a three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg) "Römer Vario'': installed in the rear with a three point seat belt.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing or folded down). In this case, adjust the front passenger seat to the rear-most position and leave the air bag active.
YOUR 406 IN DETAIL 121
3
2
1

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

YOUR 406 IN DETAIL
110
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a high-performance system.
Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge. The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram- ming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: – ensure that you are in possession of the confidential card;
– have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

OPENING THE BONNET From inside:pull the handle on the
left-hand side under the fascia. From outside: lift the catch and
raise the bonnet. Bonnet struts These open the bonnet and hold it open.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Fill with fuel with the engine switched
off.
To open the fuel filler flap, firmly pull the handle on the floor on the outside
of the driver’s seat. If you are filling up your tank, do not
continue after the 3rd cut-off of thepump; this could cause your vehicleto malfunction. The capacity of the tank is approx- imately 15.4 gallons (70 litres).
A filler cap hook is provided on the inside of the fuel filler flap.
YOUR 406 IN DETAIL
113

AUTOMATIC SWITCHING ON OF THE LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function: Start with the key in the acces- sories position (1st notch),
 Press the end of the stalk formore than two seconds.
Note: In foggy weather, the bright-
ness sensor can detect sufficientlight. Because of this, the lights do
not come on automatically. Do not cover the brightness sen-
sor connected to the rain sensor,located in the windscreen behind
the mirror. It is used for automaticswitching on of the lights. Operating check
Triggering of the sensor
Triggering of this function is accom- panied by an audible signal and themessage
"Automatic lighting of
the headlamps activated" on the
multi–function display. Note: Always operate the lighting
controls manually where this is pos- sible. Disarming Disarming of the function is accom- panied by an audible signal. When driving, if this function is
switched off when the headlampswould switch on in automatic mode,the lights remain on. It is however possible to disarm this
function and switch off the lights by:
- manually switching off the lights using the lights stalk,
- switching off the engine.
YOUR 406 IN DETAIL 125
If the brightness sensor does not
function correctly, the system acti-
vates the function (the lights come
on). The driver is alerted by theflashing of the 'dipped beam' warn-ing light on the instrument panel.
Contact a PEUGEOT dealer to have the system checked. Follow me Home When there is a low level of bright- ness or at night, if you leave yourvehicle, the side lights and thedipped beam lights may remain onfor approximately one minute.
To do this: place the lights stalk in the AUTO
position,
 place the key in the accessories position (first notch on key),
 press the end of the lights stalk formore than two seconds,
 place the lights stalk in the 0position,
 flash the headlamps,
 get out of the car and lock it.

V6 Engine
1.8 litre and 2 litre petrol engines, 2 litre turbo diesel HDI engine
DRIVING YOUR 406
148

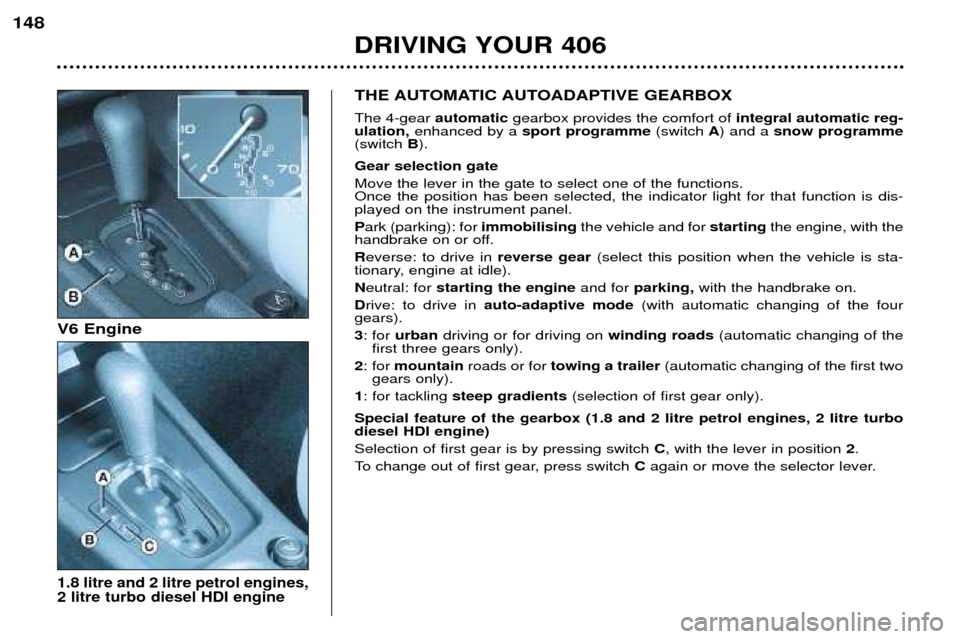

THE AUTOMATIC AUTOADAPTIVE GEARBOX The 4-gear
automaticgearbox provides the comfort of integral automatic reg-
ulation, enhanced by a sport programme (switchA) and a snow programme
(switch B).
Gear selection gate Move the lever in the gate to select one of the functions. Once the position has been selected, the indicator light for that function is dis-played on the instrument panel. P ark (parking): for immobilisingthe vehicle and for startingthe engine, with the
handbrake on or off.R everse: to drive in reverse gear(select this position when the vehicle is sta-
tionary, engine at idle).N eutral: for starting the engine and forparking, with the handbrake on.
D rive: to drive in auto-adaptive mode (with automatic changing of the four
gears).3 : for urban driving or for driving on winding roads(automatic changing of the
first three gears only).
2 : for mountain roads or for towing a trailer (automatic changing of the first two
gears only).
1 : for tackling steep gradients (selection of first gear only).
Special feature of the gearbox (1.8 and 2 litre petrol engines, 2 litre turbo diesel HDI engine) Selection of first gear is by pressing switch C, with the lever in position 2.
To change out of first gear, press switch Cagain or move the selector lever.

Automatic operation Automatic changing of thefour
gears :
 Select function Din the gate.
The gearbox always selects the most suitable gear on the basis ofthe following parameters:
– driving style,
– road characteristics,
– the vehicle's load.The gearbox operates in auto-adap-
tive mode without any action on
your part.
Moving off
With the engine running, to move off with the selector lever in position
P:
 It is essential to press the brakepedal to exit position P (shift
lock),
 Select the required function (R, D,
3 , 2 or 1)then gradually release
the pressure on the brake pedal;
the vehicle will move off immedi-
ately.
You can also move off with the selec-tor lever in position N:
 Release the handbrake with yourfoot on the brake,
 Select the required function (R,D ,
3 , 2 or 1)then gradually release
the pressure on the brake pedal;the vehicle will move offimmedi-
ately.
DRIVING YOUR 406 149

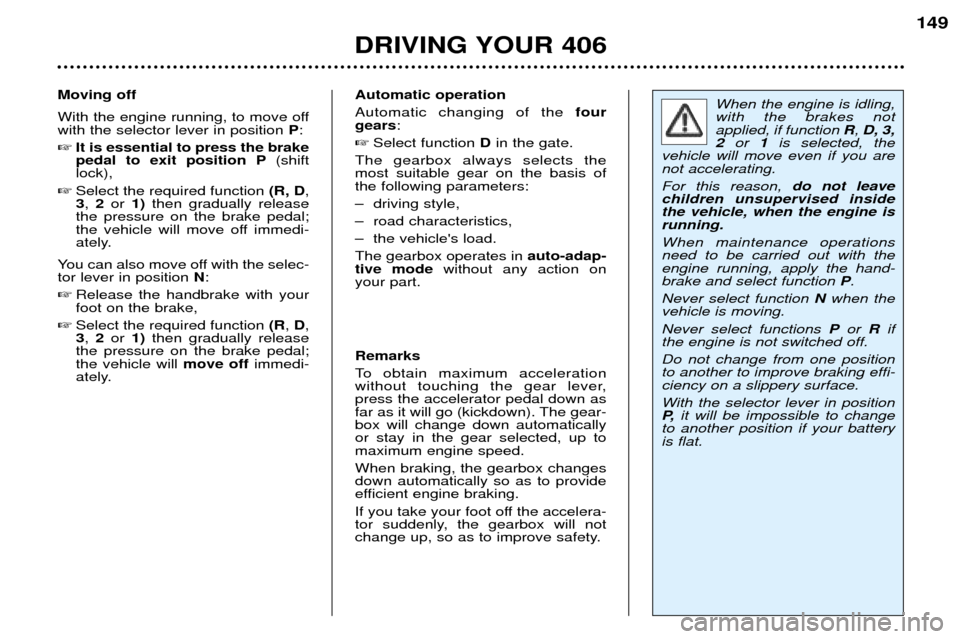

When the engine is idling, with the brakes notapplied, if function R,D, 3,
2 or 1is selected, the
vehicle will move even if you arenot accelerating. For this reason, do not leave
children unsupervised inside the vehicle, when the engine isrunning. When maintenance operations need to be carried out with theengine running, apply the hand-brake and select function P.
Never select function Nwhen the
vehicle is moving. Never select functions Por Rif
the engine is not switched off.Do not change from one position to another to improve braking effi-ciency on a slippery surface.
With the selector lever in position
P, it will be impossible to change
to another position if your batteryis flat.
Remarks
To obtain maximum acceleration
without touching the gear lever,press the accelerator pedal down as
far as it will go (kickdown). The gear-box will change down automaticallyor stay in the gear selected, up tomaximum engine speed. When braking, the gearbox changes down automatically so as to provide
efficient engine braking.
If you take your foot off the accelera-
tor suddenly, the gearbox will not
change up, so as to improve safety.

DRIVING YOUR 406
150
Sport and Snow programmes In addition to the auto-adaptive pro- gramme, you have a choice of two
specific programmes. The pro-gramme selected is displayed on theinstrument panel. Sport Programme Press button S, once the vehicle
has started and function D has
been selected.
The gearbox automatically favours dynamic driving. Snow programme This programme favours starting operations and drive to improve trac-tion.  Press button ∀, once the vehicle
has started and function Dhas
been selected.
The gearbox adapts to driving on slippery roads. Note: you can return to the auto-
adaptive programme at any time.  Press button Sor ∀again to can-
cel the programme selected. Difficulties in operationAny disruption of the system is sig- nalled by the alternate flashing of theSport and Snow lights on the instru-ment panel. In this case, the gearbox will operate in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when reverse is selected fromP
to Ror from Nto R (without any
risk of damage to the gearbox). Donot exceed 60 m.p.h. (100 km/h),speed restrictions permitting.
Contact a PEUGEOT dealer without
delay.
MANUAL GEARBOX Reverse
To change to reverse gear, lift the ring under the gear lever knob andpush the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is sta-tionary with the engine idling.
