CHECKING THE LEVELS Engine Checking the oil levelCheck the level regularly and top up between changes. Maximumconsumption is 0.5 litres per600 miles (1 000 km). The oil level should be checked with the vehicle level and the engine cold.There are two marks onthe dipstick: A= maximum
B = minimum
Oil change: according to the manu-
facturer's servicing schedule.
- Dipstick. Never fill past the maxi- mum mark A.
- Oil level gauge on the instrument panel.
Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments.
MAINTENANCE OF YOUR 406
34
Oil filter Change the filter regularly according to the servicing schedule. Used oilPrevent used oil from coming into prolonged contact with the skin. Do not dispose of used oil into drains or onto the ground.
To maintain the reliability of engines and emission control systems, theuse of additives in the engine oil isprohibited. Brakes and clutch Checking the brake and clutch fluid level:
- The level should always be above
the DANGER mark on the reser-
voir.
- If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change
- must be carried out according to the manufacturer's servicing sche- dule.
- use fluids approved by the manu- facturer, which fulfil DOT 4 stan-dards. Cooling system Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlledby the engine fan. Because this fancan operate with the ignition keyremoved and because the coolingsystem is pressurised, wait for atleast one hour after the engine hasstopped before carrying out anywork. In the event of a breakdown and to avoid any risk of burns, slacken thecap to the first notch to release thepressure. When the pressure hasdropped, remove the cap and top upthe level.

MAINTENANCE OF YOUR 406
36

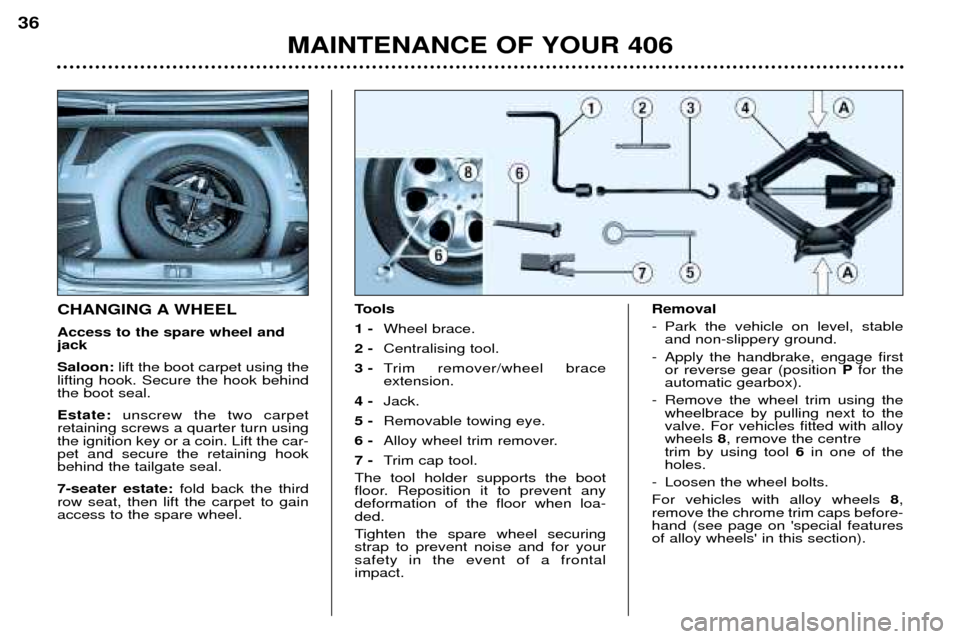

CHANGING A WHEEL Access to the spare wheel and jack Saloon:
lift the boot carpet using the
lifting hook. Secure the hook behind the boot seal. Estate: unscrew the two carpet
retaining screws a quarter turn using the ignition key or a coin. Lift the car-pet and secure the retaining hookbehind the tailgate seal. 7-seater estate: fold back the third
row seat, then lift the carpet to gain access to the spare wheel. Tools 1 -
Wheel brace.
2 - Centralising tool.
3 - Trim remover/wheel brace extension.
4 - Jack.
5 - Removable towing eye.
6 - Alloy wheel trim remover.
7 - Trim cap tool.
The tool holder supports the boot
floor. Reposition it to prevent anydeformation of the floor when loa-ded.
Tighten the spare wheel securing strap to prevent noise and for yoursafety in the event of a frontalimpact. Removal
- Park the vehicle on level, stable
and non-slippery ground.
- Apply the handbrake, engage first or reverse gear (position Pfor the
automatic gearbox).
- Remove the wheel trim using the wheelbrace by pulling next to the valve. For vehicles fitted with alloywheels 8, remove the centre
trim by using tool 6in one of the
holes.
- Loosen the wheel bolts. For vehicles with alloy wheels 8,
remove the chrome trim caps before-
hand (see page on 'special featuresof alloy wheels' in this section).

MAINTENANCE OF YOUR 406
38
Anti-theft bolts* If your wheels are fitted with an anti- theft bolt (one per wheel), the chro-me trim and then the plastic covermust be removed using tool 7, befo-
re unscrewing the bolt using one ofthe two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheel brace 1.
Note: make a careful note of the
code number engraved on the head
of the anti-theft socket. This willenable you to obtain duplicate anti-
theft sockets from a Peugeot dealer.
* According to model and destination

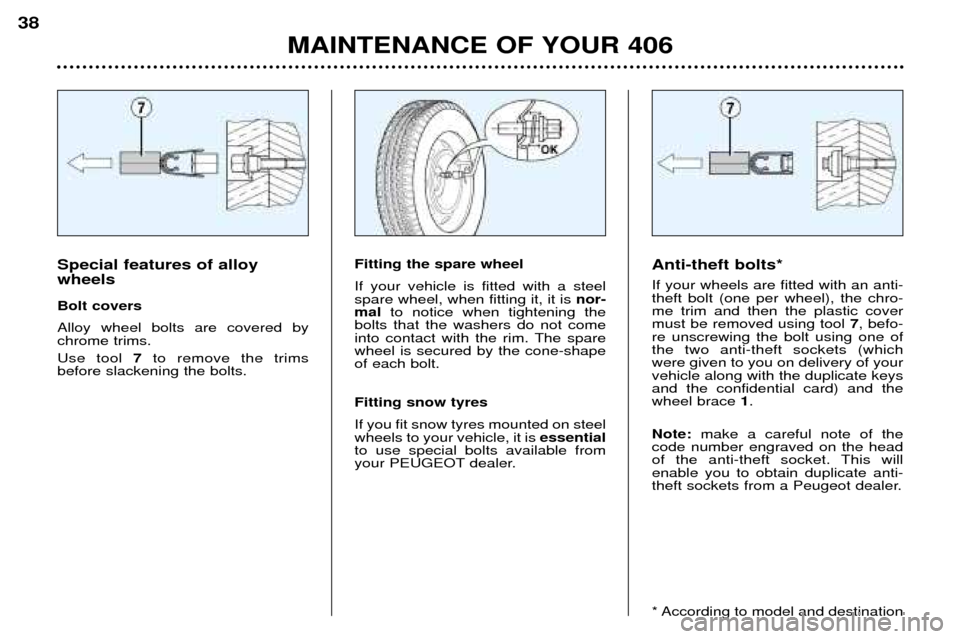

Special features of alloy wheels Bolt covers Alloy wheel bolts are covered by chrome trims. Use tool
7to remove the trims
before slackening the bolts. Fitting the spare wheel If your vehicle is fitted with a steel spare wheel, when fitting it, it is
nor-
mal to notice when tightening the
bolts that the washers do not come
into contact with the rim. The sparewheel is secured by the cone-shapeof each bolt. Fitting snow tyres If you fit snow tyres mounted on steel wheels to your vehicle, it is essential
to use special bolts available from
your PEUGEOT dealer.

Rear lights, estate
Wing lights
To remove the trim, pull the handle towards you and release the panelupwards.Open the flap using the ignition key. Remove the connector by pressing the metal bar
A.
Unscrew the wing nut B.
Release the light. To gain access to the bulbs, press
the tabs and release the bulb holder. 1 - Brake/side lights (P21/5 W).
2 - Direction indicators (P 21 W). Change the faulty bulb.
MAINTENANCE OF YOUR 406
41

BATTERY
To charge the battery using a battery charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manufacturer,
- Reconnect starting with the negative (–) terminal,
- Check that the terminals and connectors are clean. If they are covered with sul-phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle, as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables.
- Never disconnect a terminal when the engine is running. - Never charge a battery without first disconnecting the terminals.
- Close the sunroof before disconnecting the battery. If it does not ope-rate normally following re-connection of the battery, you must re-ini- tialise it by turning the control to the maximum tilt position and pres-sing it for an extended period.
- After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initialised. Ifslight difficulties are experienced after this, please contact a PEUGEOT
dealer.
It is advisable to disconnect the battery if the vehicle is not to be used
for a period of more than one month.Economy mode
With the engine switched off and the ignition key in the "running" or"accessories" position for about half
an hour, certain electrical equipment(displays, instrument panel, warninglights, courtesy lights, electric win-
dows, wipers etc.) will switch offautomatically to avoid draining the
battery. Once the electrical equipment goes into economy mode, it is necessaryto start the engine to enable theequipment to work again.
