Peugeot 406 C 2002 Owner's Manual

MAINTENANCE OF YOUR 406 COUPE37
CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box Undo the three screws a quarter turn with a coin.Pull switch
Aand tilt the cover to
access the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers AFuse no. Rating FunctionsA 20 A
Locking/Unlocking..
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D - Not used. E 30 A Electric windows.
F 15 A Supply to instrument panel -
Display - Audio equipment -
Satellite navigation system - Airconditioning.
01-07-2002
Remove the instrument panel lower trim to access the built-in systems interface.

MAINTENANCE OF YOUR 406 COUPE
40
Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT dea-
ler. Some electrical accessories or the way in which they are fitted canhave damaging effects on theoperation of your vehicle; theelectronic control circuits, theaudio circuit and the battery char-ging circuit. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying malfunctions resulting fromthe installation of accessories notsupplied and not recommendedby PEUGEOT and not installed inaccordance with its instructions, inparticular where the equipment inquestion consumes more than 10milliamperes. * The maxi-fuses provide additio- nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse N¡ Rating Functions
1* 10 A
Reversing lights - Double injection relay - Engine oil
temperature - Oil level - Air conditioning compressor.
2* 15 AFuel pump - Canister solenoid valve.
3* 10 A Control unit.
4* 10 A Engine control unit and automatic gearbox.
5 10 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash.
8* 20 A Direct injection petrol engine control unit - Clutchpedal.
9* 15 A Left-hand dipped beam.
10* 15 A Right-hand dipped beam.
01-07-2002

MAINTENANCE OF YOUR 406 COUPE41
Fuse N¡ Rating
Functions
11* 10 A Left-hand main beam.
12* 10 A Right-hand main beam.
13* 15 A Horn.
14 10 A Front screenwash pump.
15* 30 A Ignition coil - Windscreen wiper - Oxygen sensor - Oil pressure - Injection system.
16* 30A Air pump and oil temperature - Oil level - Brake lights operation - Alternator - Water in diesel detector - Injection relay control.
17* 30 A Passenger electric seat.
18 40 A Heater blower - Starter - Windscreen wiper slow speed.
* The maxi fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT dealer
01-07-2002

MAINTENANCE OF YOUR 406 COUPE37
CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box Undo the three screws a quarter turn with a coin.Pull switch
Aand tilt the cover to
access the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers AFuse no. Rating FunctionsA 20 A
Locking/Unlocking..
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D - Not used. E 30 A Electric windows.
F 15 A Supply to instrument panel -
Display - Audio equipment -
Satellite navigation system - Airconditioning.
01-07-2002
Remove the instrument panel lower trim to access the built-in systems interface.

MAINTENANCE OF YOUR 406 COUPE
38
Fuse N¡ Rating
Functions
1 shunt
Central air bag.
25 AVentilation controls.
3 10 A Instrument panel.
45 AIgnition +ve signal for Built-in Systems Interface.
5- Not used.
6 10 A Steering wheel controls.
7 15 A Alarm siren.
8 10 A Satellite navigation system.
95 ABattery +ve signal for Built-in Systems Interface.
10 15 A Audio equipment.
11 10 A Third brake light.
12 10 A Right-hand brake light.
13 20 A Driver's one-touch electric window.
14 30 A Passenger's one-touch electric window.
15 Ð Battery +ve towing socket.
16 20 A Seat memorisation.
17 20 A Passenger's electric seat.
18 10 A Display Ð Lighting for lighter, switches and ash tray - Automatic gearbox selector lever.
Fascia panel fuse box
01-07-2002

MAINTENANCE OF YOUR 406 COUPE39
Fuse N¡ Rating
Functions
19 10 A Rear fog lamps.
20 10 A Rear right and front left side light.
21 10 A Rear left and front right side light.
22 10 A Lighting for glove boxÐ Map reading light - Courtesy mirror - Front and rear courtesy lights Ð
Lighting for electric window control pad and electrochrome rear view mirror.
23 20 A Lighter.
24 - Not used.
25 20 A Audio equipment.
26 - Not used.
27 5 A Accessories +ve.
28 15 A Heated seats.
R5 AReplacement fuse.
R2 10 A Replacement fuse.
R3 30 A Replacement fuse.
R4 20 A Replacement fuse.
R5 15 A Replacement fuse.
01-07-2002

01-07-2002
MAINTENANCE OF YOUR 406 COUPE
42
BATTERY
To charge the battery using a battery charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manufacturer,
- Reconnect starting with the negative (Ð) terminal,
- Check that the terminals and connectors are clean. If they are covered with sul-
phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (Ð) terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle, as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables.
- Never disconnect a terminal when the engine is running.
- Never charge a battery without first disconnecting the terminals.
- Close the sunroof before disconnecting the battery. If it does not operatenormally following re-connection of the battery, you must re-initialise
it by turning the control to the maximum tilt position and pressing it for an exten- ded period.
- After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initialised. If slight difficulties are experienced after this, please contact a PEUGEOT
dealer.
It is advisable to disconnect the battery if the vehicle is not to be used
for a period of more than one month.Economy mode
With the engine switched off and the ignition key in the "running" or"accessories" position for about half
an hour, certain electrical equipment(displays, instrument panel, warninglights, courtesy lights, electric win-
dows, wipers etc.) will switch offautomatically to avoid draining the
battery. Once the electrical equipment goes into economy mode, it is necessaryto start the engine to enable theequipment to work again.

43
FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain factory-fitted audio equipment:
- roof aerial,
- coaxial aerial cable,
- basic interference suppression,
- supply to front speakers,
- supply to rear speakers and tweeters,
- two 8-way connectors.
Wiring positions and functions A1: Mute.
A2 : Do not use.
A3 : Do not use.
A4 : Do not use.
A5 : Spare.
A6 :(+ve) Accessories.
A7 :(+ve) Permanent.
A8 : Earth. B1
:(+ve) Rear right loud-speaker
and tweeter.
B2 :(Ðve) Rear right loud-speaker
and tweeter.
B3 :(+ve) Front right loud-speaker
and tweeter.
B4 :(Ðve) Front right loud-speaker
and tweeter.
B5 :(+ve) Front left loud-speaker
and tweeter.
B6 :(Ðve) Front left loud-speaker
and tweeter.
B7 :(+ve) Rear left loud-speaker
and tweeter.
B8 :(Ðve) Rear left loud-speaker
and tweeter.
MAINTENANCE OF YOUR 406 COUPE
FITTING THE SPEAKERSThe factory-fitted equipment allows you to fit:
- 165 mm diameter speakers to the front doors,
- 55 mm diameter tweeters to the fascia,
- special elliptical shaped speakers on the rear shelf,
- 65 mm diameter tweeters on the rear panels.
Contact your PEUGEOT dealer.
01-07-2002

Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
- gear lever in position N,
- tow the vehicle at less than 30 m.p.h. (50 km/h) over a maxi- mum distance of 30 miles (50 km).
- do not add oil to the gearbox.
MAINTENANCE OF YOUR 406 COUPE
44

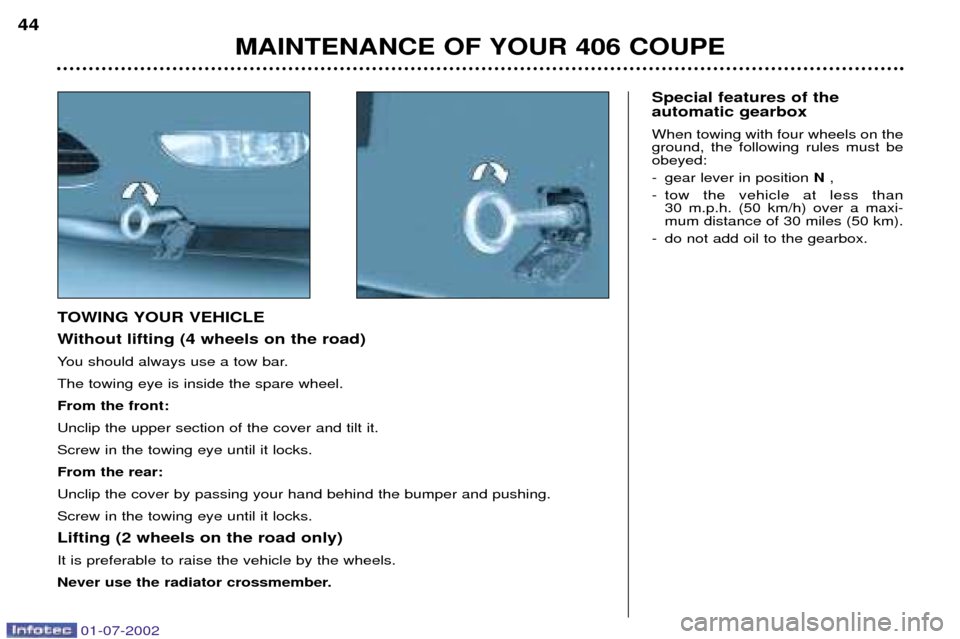

TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a tow bar.The towing eye is inside the spare wheel. From the front: Unclip the upper section of the cover and tilt it.Screw in the towing eye until it locks.From the rear:Unclip the cover by passing your hand behind the bumper and pushing.Screw in the towing eye until it locks. Lifting (2 wheels on the road only) It is preferable to raise the vehicle by the wheels.
Never use the radiator crossmember.
01-07-2002

Towing a trailer, caravan, boat etc.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage of
your vehicle. The tow bar must be fit-
ted by a PEUGEOT dealer.
Your vehicle is basically designed fortransporting people and luggage but it
may also be used for towing a trailer.
Driving with a trailer subjects thetowing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.Above 1000 metres, the maximumtowing load must be reduced by 10%and so on for every 1000 metres ofaltitude.Driving advice Distribution of loads Distribute the load in the trailer so that the heaviest items are as closeas possible to the axle and the noseweight approaches the maximumpermitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient andthe outside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible.Tyres Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-ing the recommended pressures. Braking
Towing increases the braking dis-tance. Lights Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sen-sitivity to side wind.
MAINTENANCE OF YOUR 406 COUPE
45
01-07-2002
