Peugeot 406 C 2004 Service Manual

02-02-2004
RDS Using the RDS (Radio Data System) function on FMRadio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. Briefly press the "RDS"button to switch the function on or off.
The display will show: Ð "RDS" if the function is selected.
Ð "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the "TA"button to switch the function on or off.
The display will show: Ð "TA" if the function is selected,
Ð "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source is in use (radio, cassette or CD changer). If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-cast.
YOUR 406 COUPE IN DETAIL
58

02-02-2004
Regional following modeWhen they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTY programme: Ð select the PTYfunction,
Ð briefly press button Kor Mto scroll down the list of the various types of pro-
grammes offered.
Ð when the programme of your choice is displayed, keep one of the buttons Kor Mpressed for two seconds to carry out an
automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode, the different types of programmes can be stored in the
memory. To do this, press the preselection buttons 1to 6for more
than two seconds. To recall the type of programme stored in the
memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It allows the broadcast of traffic information, by a station that is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
YOUR 406 COUPE IN DETAIL 59

CASSETTE Selecting cassette modeWhen a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press button C.
Ejecting the cassette Press button Eto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side. To manually reverse the direction of play, press button C.
Selecting a track on a cassette (blank search) Press button Kto select the following track.
Press button Mto return to the start of the current track or to select the previous
track.
Fast forward/rewindPress and hold button Kor Mto fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the
current side. Noise reduction (Dolby B NR system) Press button Cfor more than two seconds to switch the function on or off.
Dolby noise reduction manufactured under licence from Dolby Laboratories Licensing Corporation."Dolby" and the double D symbol are trade marks of Dolby Laboratories Licensing Corporation. Recommendations for the use of cassettes
Ð Use good quality cassettes.
Ð Avoid using cassettes of a duration of more than 90 minutes.
Ð Never expose the cassettes to heat or direct sunlight.
Ð If necessary, tighten the tape before inserting the cassette into the player.
Ð Clean the play heads regularly using a damp-type cleaning cassette.
YOUR 406 COUPE IN DETAIL
60
02-02-2004

02-02-2004
CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press one of the buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the following track.
Press button Mto return to the start of the current track or to select the previous
track.
Accelerated playPress and hold button Kor Mfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle
When the CD changer is selected, keep button Dpressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button Dagain for two seconds returns you to normal play.
YOUR 406 COUPE IN DETAIL 61

02-02-2004
YOUR 406 COUPE IN DETAIL
62

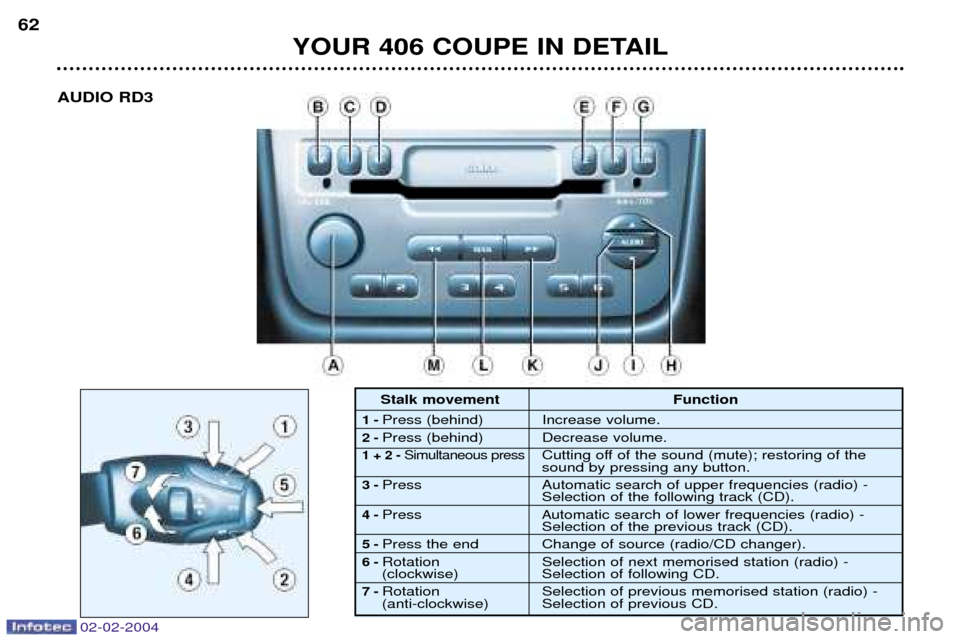

Stalk movement Function
1- Press (behind) Increase volume.
2- Press (behind) Decrease volume.
1 + 2 -Simultaneous pressCutting off of the sound (mute); restoring of the sound by pressing any button.
3- Press Automatic search of upper frequencies (radio) -
Selection of the following track (CD).
4- Press Automatic search of lower frequencies (radio) -
Selection of the previous track (CD).
5- Press the end Change of source (radio/CD changer).
6- Rotation Selection of next memorised station (radio) -
(clockwise) Selection of following CD.
7- Rotation Selection of previous memorised station (radio) -
(anti-clockwise) Selection of previous CD.
AUDIO RD3

02-02-2004
YOUR 406 COUPE IN DETAIL63
Button Function
A ON/VOL Radio On/Off . Volume adjustment.
B Radio selection. Selection of FM1, FM2, FMast and AM wavebands. Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C CD selection.
Press for more than 2 seconds: shuffle.
D CD changer selection.
Press for more than 2 seconds: shuffle.
E Ejection of the CD.
FT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
H Increase bass/treble setting.
I Decrease bass/treble setting.
J AUDIO Selection of bass, treble, loudness, sound distribution and automatic volume correction.
K Automatic search of higher frequency. Selection of following CD track.
L MAN Manual/automatic operation of buttons Kand Min radio mode.
M Automatic search of lower frequency.Selection of previous CD track.
1 to 6 1 2 3 4 5 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a disc in the CD changer.

02-02-2004
YOUR 406 COUPE IN DETAIL
64
GENERAL FUNCTIONS On/off With the ignition key in the ACCESSORIES or IGNITION position, press button Ato switch the set on or
off.The set can operate for 30 minutes without the vehicle ignition being switched on.
ANTI-THEFT SYSTEMThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Turn button Ato increase or decrease the volume of the set.
Note: If you have a telephone fitted with a "mute"signal output connected to the set, the set will automatically
change to "mute"when the telephone is used.
AUDIO SETTINGS Press the "AUDIO"button several times in succession to access the bass (BASS), treble (TREB) , loudness
(LOUD) , fader (FAD), balance (BAL)and the automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the "AUDIO" button after configuration of the automatic volume correction.
Note: the bass and treble settings are specific to each source. It is possible to set them differently for radio,
CD, or CD changer.

YOUR 406 COUPE IN DETAIL65
Adjusting the bass When "BASS" is displayed, press button Hor Ito vary the setting.
Ð "BASS Ð9" for a minimum bass setting,
Ð "BASS 0" for a normal setting,
Ð "BASS +9" for a maximum bass setting.
Adjusting the treble When " TREB" is displayed, press button H or Ito vary the setting.
Ð "TREB Ð9" for a minimum treble setting,
Ð "TREB 0" for a normal setting,
Ð "TREB +9" for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low.Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader)When "FAD" is displayed, press button Hor Ito vary the setting
Button Hincreases the volume in the front.
Button Iincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor Ito vary the setting.
Button Hincreases the volume on the right-hand side.
Button Iincreases the volume on the left-hand side.
Automatic Volume Correction This function enables the volume to be adjusted automatically according to the level of noise produced by the speed of the vehi cle.
Press buttons Hor Ito switch the function on or off.
02-02-2004

02-02-2004
YOUR 406 COUPE IN DETAIL
66
RADIO Notes on radio reception
Your radio is subject to phenomena which do not affect domestic radio sets. Both MW/LW and FM reception are subject to
various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals a nd
the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting radio mode
Press button B.
Selecting a waveband Briefly press button Bto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press button Kor Mto search for the station immediately above or below.
By continuing to press the button in the direction selected, you will obtain contin-
uous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX"sensitivity, press button Kor Mtwice.

02-02-2004
YOUR 406 COUPE IN DETAIL67
Manual station search Press the "MAN" button.
Briefly press button Kor Mto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continu-
ous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released. Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required.Press one of the buttons 1to 6for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore) Press button Bfor more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FMAST waveband.
Ð If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press the buttons 1to 6to recall the corresponding stored station.
