Peugeot 407 2009 User Guide
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 407, Model: Peugeot 407 2009Pages: 250, PDF Size: 14.81 MB

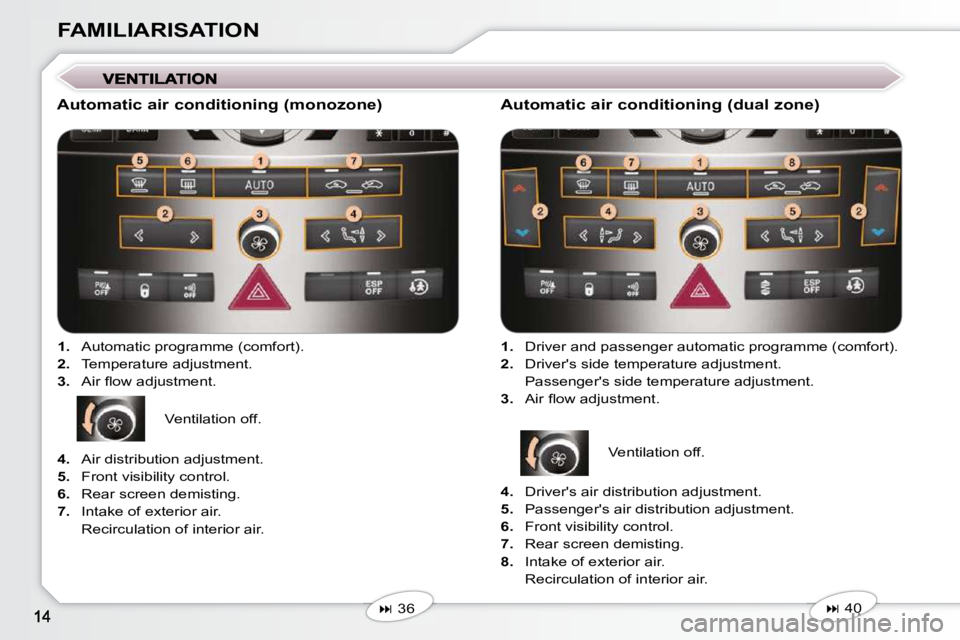

Page 11 of 250
FAMILIARISATION
Automatic air conditioning (monozone)
1. Automatic programme (comfort).
2. Temperature adjustment.
3. A i r fl o w a d j u s t m e n t .
36 Automatic air conditioning (dual zone)
1. Driver and passenger automatic programme (comfort).
2. Driver's side temperature adjustment.
Passenger's side temperature adjustment.
3. A i r fl o w a d j u s t m e n t .
40
Ventilation off.
4. Air distribution adjustment.
5. Front visibility control.
6. Rear screen demisting.
7. Intake of exterior air.
Recirculation of interior air. Ventilation off.
4. Driver's air distribution adjustment.
5. Passenger's air distribution adjustment.
6. Front visibility control.
7. Rear screen demisting.
8. Intake of exterior air.
Recirculation of interior air.

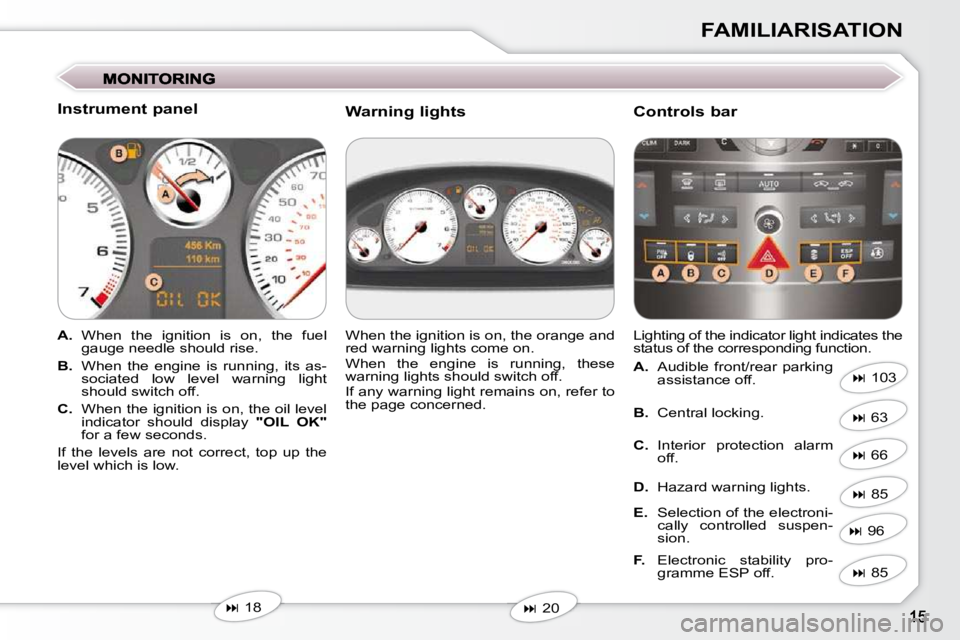

Page 12 of 250
FAMILIARISATION
Instrument panel
A. When the ignition is on, the fuel
gauge needle should rise.
B. When the engine is running, its as-
sociated low level warning light
should switch off.
C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low. Lighting of the indicator light indicates the
status of the corresponding function.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If any warning light remains on, refer to
the page concerned.
18
20
103
A. Audible front/rear parking
assistance off.
B. Central locking.
C. Interior protection alarm
off.
D. Hazard warning lights.
E. Selection of the electroni-
cally controlled suspen-
sion.
F. Electronic stability pro-
gramme ESP off.
63
66
85
96
85
Warning lights Controls bar

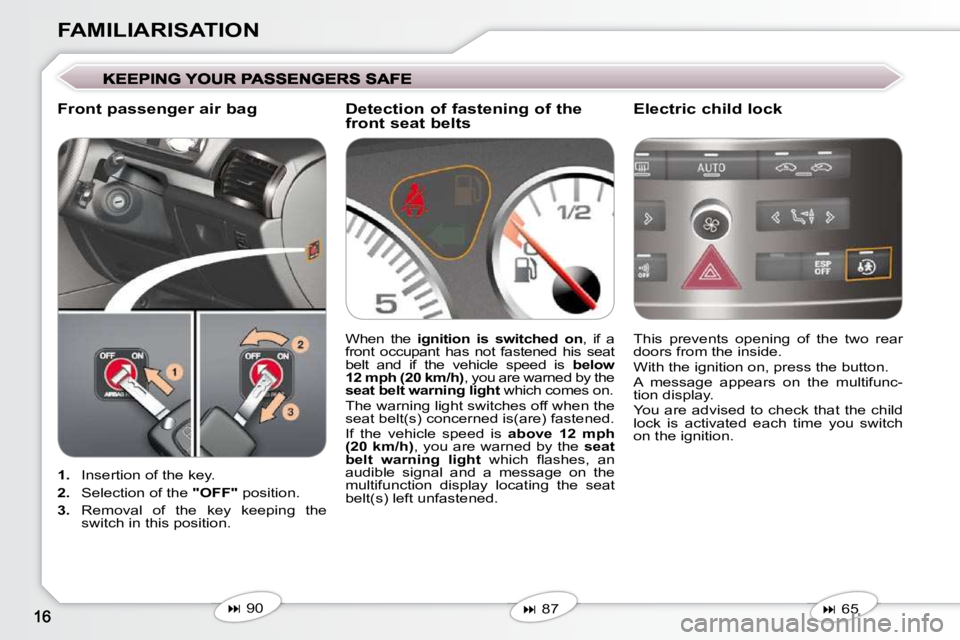

Page 13 of 250
FAMILIARISATION
1. Insertion of the key.
2. Selection of the "OFF" position .
3. Removal of the key keeping the
switch in this position. This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunc-
tion display.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the
ignition is switched on , if a
front occupant has not fastened his seat
belt and if the vehicle speed is below
12 mph (20 km/h) , you are warned by the
seat belt warning light which comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat
belt warning light w h i c h fl a s h e s , a n
audible signal and a message on the
multifunction display locating the seat
belt(s) left unfastened.
Detection of fastening of the
front seat belts
90
87
65
Front passenger air bag
Electric child lock

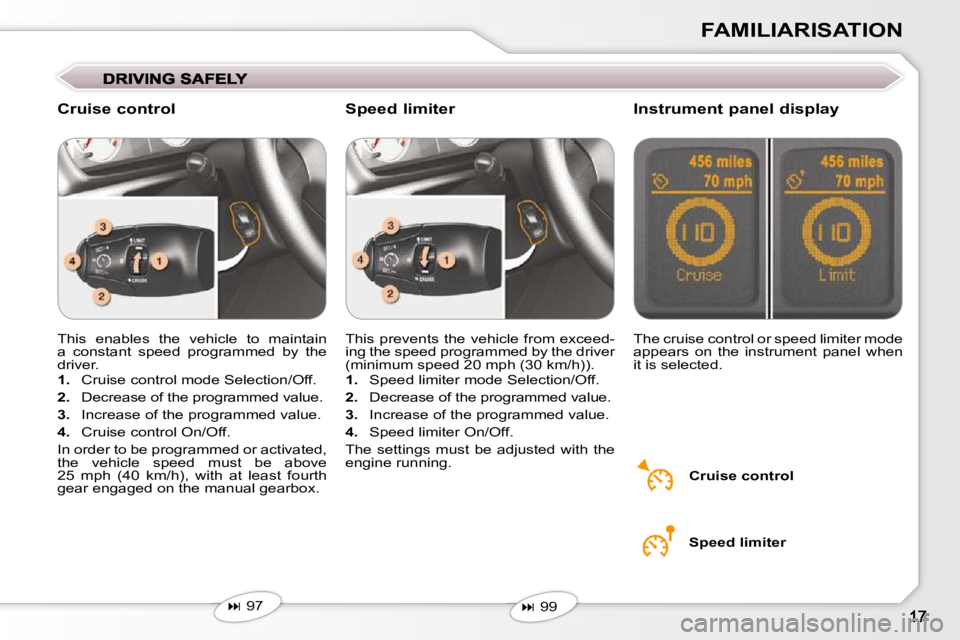

Page 14 of 250
FAMILIARISATION
This enables the vehicle to maintain
a constant speed programmed by the
driver.
1. Cruise control mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Cruise control On/Off.
In order to be programmed or activated,
the vehicle speed must be above
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox. The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).
1. Speed limiter mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Speed limiter On/Off.
The settings must be adjusted with the
engine running.
Speed limiter
Cruise control
97
99
Cruise control
Instrument panel display
Speed limiter

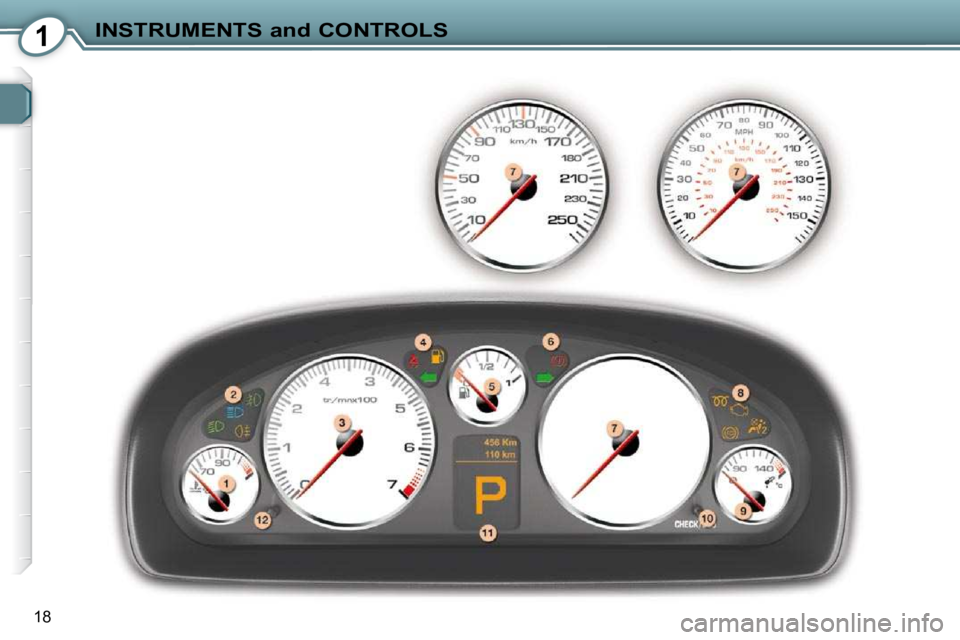

Page 15 of 250
1INSTRUMENTS and CONTROLS
18

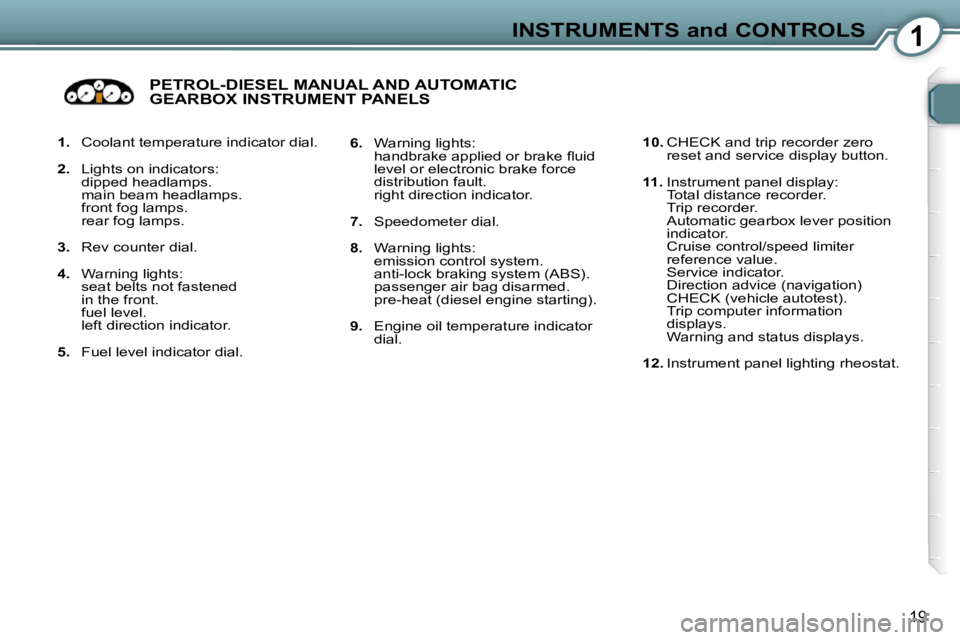

Page 16 of 250
1INSTRUMENTS and CONTROLS
19
1. Coolant temperature indicator dial.
2. Lights on indicators:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3. Rev counter dial.
4. Warning lights:
seat belts not fastened
in the front.
fuel level.
left direction indicator.
5. Fuel level indicator dial.
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX INSTRUMENT PANELS
10. CHECK and trip recorder zero
reset and service display button.
11. Instrument panel display:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position
indicator.
Cruise control/speed limiter
reference value.
Service indicator.
Direction advice (navigation)
CHECK (vehicle autotest).
Trip computer information
displays.
Warning and status displays.
12. Instrument panel lighting rheostat.
6. Warning lights:
h a n d b r a k e a p p l i e d o r b r a k e fl u i d
level or electronic brake force
distribution fault.
right direction indicator.
7. Speedometer dial.
8. Warning lights:
emission control system.
anti-lock braking system (ABS).
passenger air bag disarmed.
pre-heat (diesel engine starting).
9. Engine oil temperature indicator
dial.

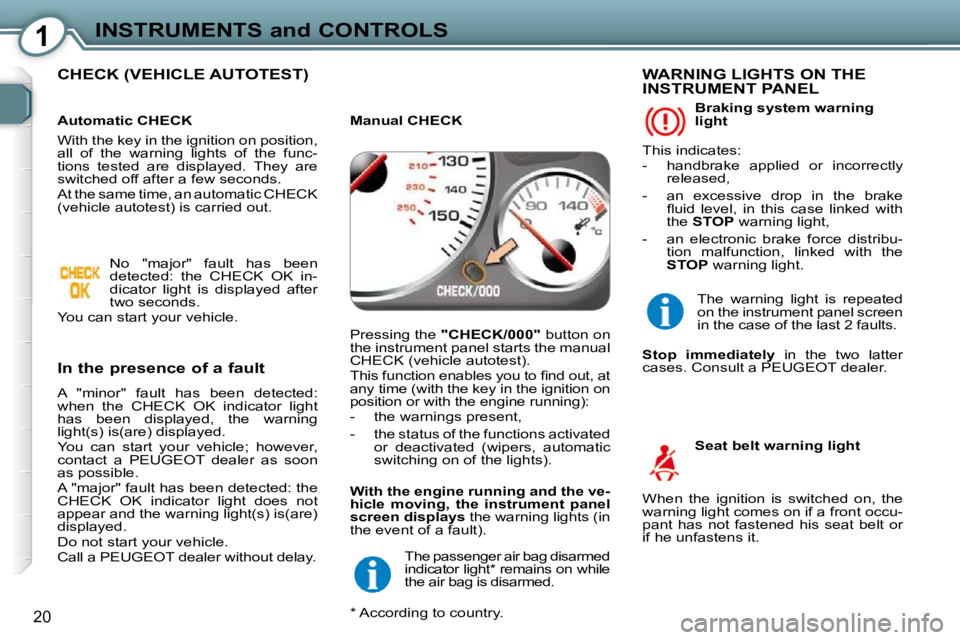

Page 17 of 250
1INSTRUMENTS and CONTROLS
20
CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator light
has been displayed, the warning
light(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected: the
CHECK OK indicator light does not
appear and the warning light(s) is(are)
displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lights of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been
detected: the CHECK OK in-
dicator light is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
T h i s f u n c t i o n e n a b l e s y o u t o fi n d o u t , a t
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
switching on of the lights).
Manual CHECK
The passenger air bag disarmed
indicator light * remains on while
the air bag is disarmed.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lights (in
the event of a fault). Braking system warning
light
WARNING LIGHTS ON THE INSTRUMENT PANEL
This indicates:
- handbrake applied or incorrectly
released,
- an excessive drop in the brake fl u i d l e v e l , i n t h i s c a s e l i n k e d w i t h
the STOP warning light,
- an electronic brake force distribu- tion malfunction, linked with the
STOP warning light.
Seat belt warning light
When the ignition is switched on, the
warning light comes on if a front occu-
pant has not fastened his seat belt or
if he unfastens it. The warning light is repeated
on the instrument panel screen
in the case of the last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* According to country.
Page 18 of 250
1INSTRUMENTS and CONTROLS
20
CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator light
has been displayed, the warning
light(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected: the
CHECK OK indicator light does not
appear and the warning light(s) is(are)
displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lights of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been
detected: the CHECK OK in-
dicator light is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
T h i s f u n c t i o n e n a b l e s y o u t o fi n d o u t , a t
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
switching on of the lights).
Manual CHECK
The passenger air bag disarmed
indicator light * remains on while
the air bag is disarmed.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lights (in
the event of a fault). Braking system warning
light
WARNING LIGHTS ON THE INSTRUMENT PANEL
This indicates:
- handbrake applied or incorrectly
released,
- an excessive drop in the brake fl u i d l e v e l , i n t h i s c a s e l i n k e d w i t h
the STOP warning light,
- an electronic brake force distribu- tion malfunction, linked with the
STOP warning light.
Seat belt warning light
When the ignition is switched on, the
warning light comes on if a front occu-
pant has not fastened his seat belt or
if he unfastens it. The warning light is repeated
on the instrument panel screen
in the case of the last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* According to country.

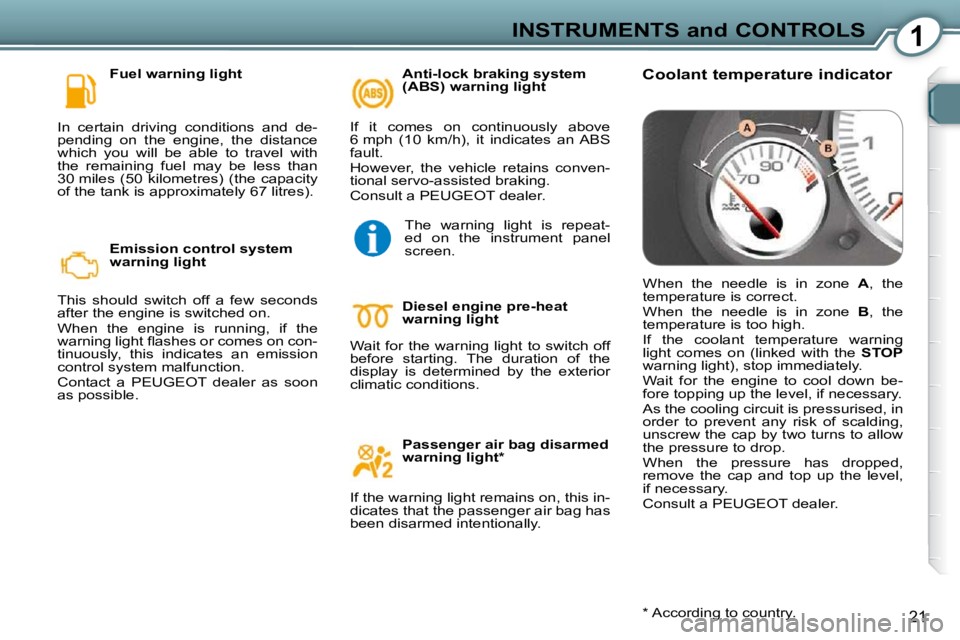

Page 19 of 250
1INSTRUMENTS and CONTROLS
21
Fuel warning light
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning light
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
w a r n i n g l i g h t fl a s h e s o r c o m e s o n c o n -
tinuously, this indicates an emission
control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning light
Wait for the warning light to switch off
before starting. The duration of the
display is determined by the exterior
climatic conditions.
Passenger air bag disarmed
warning light *
If the warning light remains on, this in-
dicates that the passenger air bag has
been disarmed intentionally.
If it comes on continuously above
6 mph (10 km/h), it indicates an ABS
fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning light
* According to country.
The warning light is repeat-
ed on the instrument panel
screen.
Coolant temperature indicator
When the needle is in zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
light comes on (linked with the STOP
warning light), stop immediately.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped,
remove the cap and top up the level,
if necessary.
Consult a PEUGEOT dealer.
Page 20 of 250
1INSTRUMENTS and CONTROLS
21
Fuel warning light
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning light
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
w a r n i n g l i g h t fl a s h e s o r c o m e s o n c o n -
tinuously, this indicates an emission
control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning light
Wait for the warning light to switch off
before starting. The duration of the
display is determined by the exterior
climatic conditions.
Passenger air bag disarmed
warning light *
If the warning light remains on, this in-
dicates that the passenger air bag has
been disarmed intentionally.
If it comes on continuously above
6 mph (10 km/h), it indicates an ABS
fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning light
* According to country.
The warning light is repeat-
ed on the instrument panel
screen.
Coolant temperature indicator
When the needle is in zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
light comes on (linked with the STOP
warning light), stop immediately.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped,
remove the cap and top up the level,
if necessary.
Consult a PEUGEOT dealer.
