1INSTRUMENTS and CONTROLS
22
Battery charge warning
light
When the engine is running, this in-
dicates a charging circuit malfunction
(battery terminals, alternator belt).
Consult a PEUGEOT dealer. T y r e u n d e r - i n fl a t i o n w a r n i n g
light
This indicates that the tyre pressure is
too low.
A message on the multifunction display
indicates the wheel(s) concerned.
R e f e r t o t h e i n f o r m a t i o n l a b e l a f fi x e d
to the central pillar of the driver's door.
For your safety, check the tyre pres-
sures as soon as possible.
Electronic stability control system
(ESP) warning lights Activation warning light
Operation warning light
Deactivation warning light
Malfunction warning light
Power steering warning
light
This indicates a power steering fault.
It is linked with the STOP warning
light.
Consult a PEUGEOT dealer. Handbrake warning light
This indicates that the handbrake is
still applied or has not been released
correctly.
It is linked with the braking system
warning light. Low wash-wipe and
h e a d l a m p w a s h fl u i d l e v e l
warning light
When the wipers are switched on, this
i n d i c a t e s t h a t t h e fl u i d l e v e l i s t o o l o w .
Fill the wash-wipe and headlamp wash
fl u i d r e s e r v o i r .
Engine oil level warning
light
This indicates a critical engine oil level
(too low).

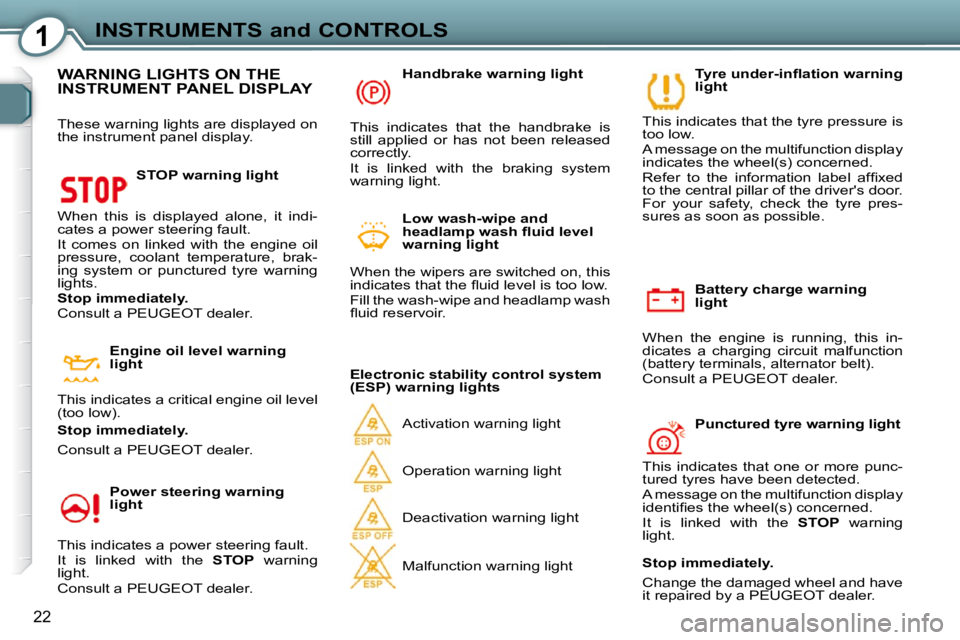

WARNING LIGHTS ON THE INSTRUMENT PANEL DISPLAY
These warning lights are displayed on
the instrument panel display.
STOP warning light
When this is displayed alone, it indi-
cates a power steering fault.
It comes on linked with the engine oil
pressure, coolant temperature, brak-
ing system or punctured tyre warning
lights.
Stop immediately.
Consult a PEUGEOT dealer.
Punctured tyre warning light
This indicates that one or more punc-
tured tyres have been detected.
A message on the multifunction display
i d e n t i fi e s t h e w h e e l ( s ) c o n c e r n e d .
It is linked with the STOP warning
light.
Stop immediately.
Consult a PEUGEOT dealer.
Stop immediately.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.
Page 22 of 250
1INSTRUMENTS and CONTROLS
23
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
system warning light
This indicates the absence or mal-
function of one or more tyre pressure
sensors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning light
This indicates an electronic engine im-
mobiliser system malfunction.
Consult a PEUGEOT dealer. Front brake pads wear
warning light
This indicates that the brake pads are
worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel tank cap warning light
(according to version)
With the engine running, this indicates
that the fuel tank cap is incorrectly se-
cured or absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
W a t e r i n d i e s e l fi l t e r
warning light
This indicates the presence of water
i n t h e d i e s e l fi l t e r . T h e r e i s a r i s k o f
damage to the injection system.
Contact a PEUGEOT dealer as soon
as possible. Door/boot open warning
light
With the engine running, this indicates
that an access has not been closed
correctly.
An illustration on the multifunction
d i s p l a y i d e n t i fi e s t h e a c c e s s ( e s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h). Air bags warning light
This indicates an air bag fault.
Consult a PEUGEOT dealer.
Automatic headlamp beam
adjustment system warning
light
This indicates that the automatic
headlamp height adjuster is faulty.
Consult a PEUGEOT dealer.
Engine oil pressure warning
light
This indicates that the engine oil
pressure is too low.
It is linked with the STOP warning
light.
Stop immediately if it comes on while
the engine is running.
If there is a lack of oil in the lubrication
circuit, top up the level and contact a
PEUGEOT dealer as soon as possible.
Page 23 of 250

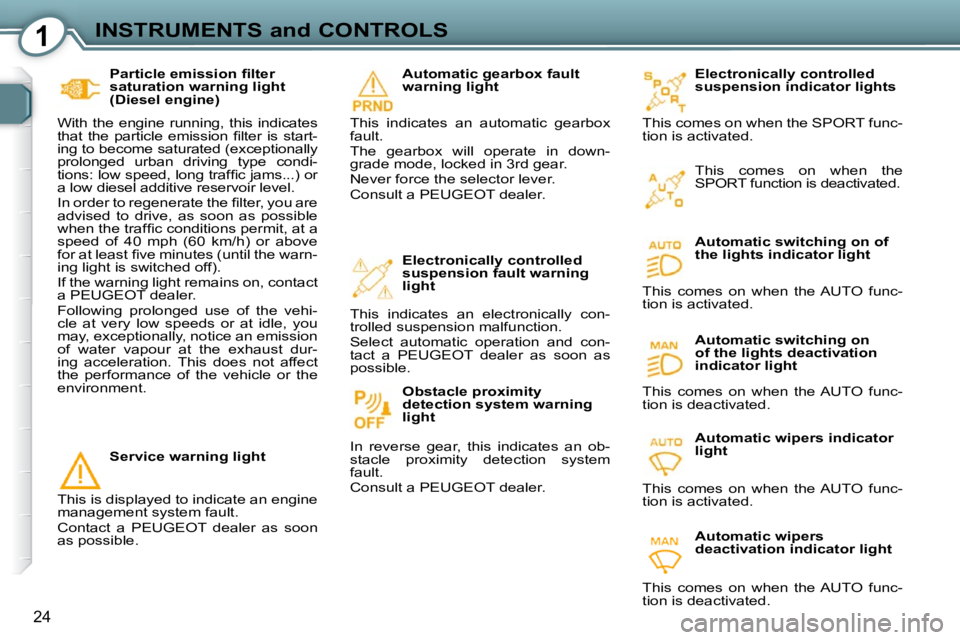

1INSTRUMENTS and CONTROLS
24
P a r t i c l e e m i s s i o n fi l t e r
saturation warning light
(Diesel engine)
With the engine running, this indicates
t h a t t h e p a r t i c l e e m i s s i o n fi l t e r i s s t a r t -
ing to become saturated (exceptionally
prolonged urban driving type condi-
t i o n s : l o w s p e e d , l o n g t r a f fi c j a m s . . . ) o r
a low diesel additive reservoir level.
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u a r e
advised to drive, as soon as possible
w h e n t h e t r a f fi c c o n d i t i o n s p e r m i t , a t a
speed of 40 mph (60 km/h) or above
f o r a t l e a s t fi v e m i n u t e s ( u n t i l t h e w a r n -
ing light is switched off).
If the warning light remains on, contact
a PEUGEOT dealer.
Following prolonged use of the vehi-
cle at very low speeds or at idle, you
may, exceptionally, notice an emission
of water vapour at the exhaust dur-
ing acceleration. This does not affect
the performance of the vehicle or the
environment.
Service warning light
This is displayed to indicate an engine
management system fault.
Contact a PEUGEOT dealer as soon
as possible. Automatic gearbox fault
warning light
This indicates an automatic gearbox
fault.
The gearbox will operate in down-
grade mode, locked in 3rd gear.
Never force the selector lever.
Consult a PEUGEOT dealer.
Electronically controlled
suspension fault warning
light
This indicates an electronically con-
trolled suspension malfunction.
Select automatic operation and con-
tact a PEUGEOT dealer as soon as
possible. Obstacle proximity
detection system warning
light
In reverse gear, this indicates an ob-
stacle proximity detection system
fault.
Consult a PEUGEOT dealer. Electronically controlled
suspension indicator lights
This comes on when the SPORT func-
tion is activated. This comes on when the
SPORT function is deactivated.
Automatic switching on of
the lights indicator light
Automatic switching on
of the lights deactivation
indicator light
Automatic wipers indicator
light
Automatic wipers
deactivation indicator light
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.
Page 24 of 250

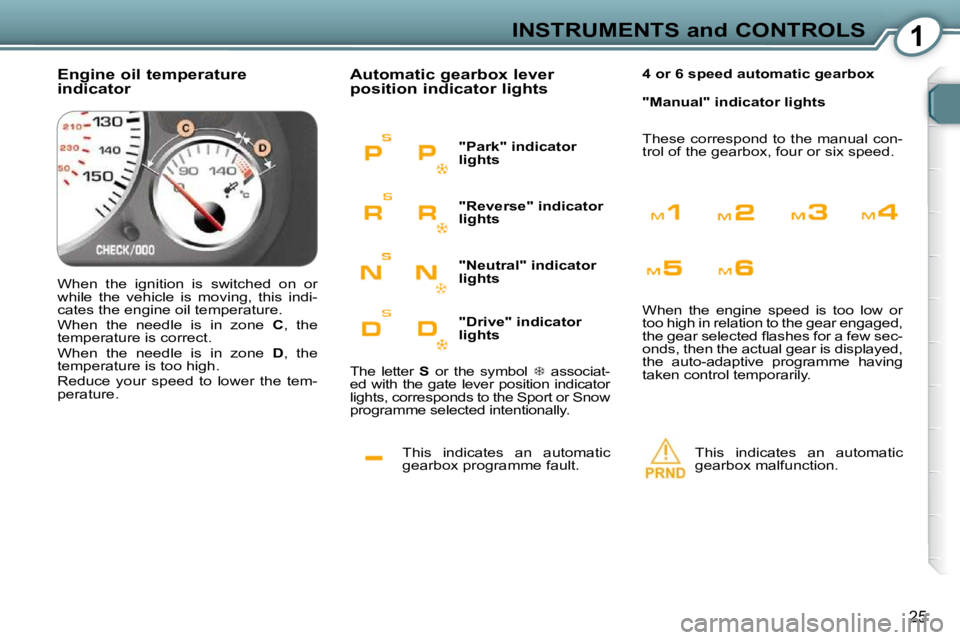

1INSTRUMENTS and CONTROLS
25
This indicates an automatic
gearbox programme fault.
Automatic gearbox lever
position indicator lights
This indicates an automatic
gearbox malfunction.
4 or 6 speed automatic gearbox
"Park" indicator
lights
"Reverse" indicator
lights
"Neutral" indicator
lights
"Drive" indicator
lights
The letter S or the symbol associat-
ed with the gate lever position indicator
lights, corresponds to the Sport or Snow
programme selected intentionally. These correspond to the manual con-
trol of the gearbox, four or six speed.
When the engine speed is too low or
too high in relation to the gear engaged,
t h e g e a r s e l e c t e d fl a s h e s f o r a f e w s e c -
onds, then the actual gear is displayed,
the auto-adaptive programme having
taken control temporarily.
Engine oil temperature
indicator
When the ignition is switched on or
while the vehicle is moving, this indi-
cates the engine oil temperature.
When the needle is in zone
C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the tem-
perature. "Manual" indicator lights
Page 25 of 250

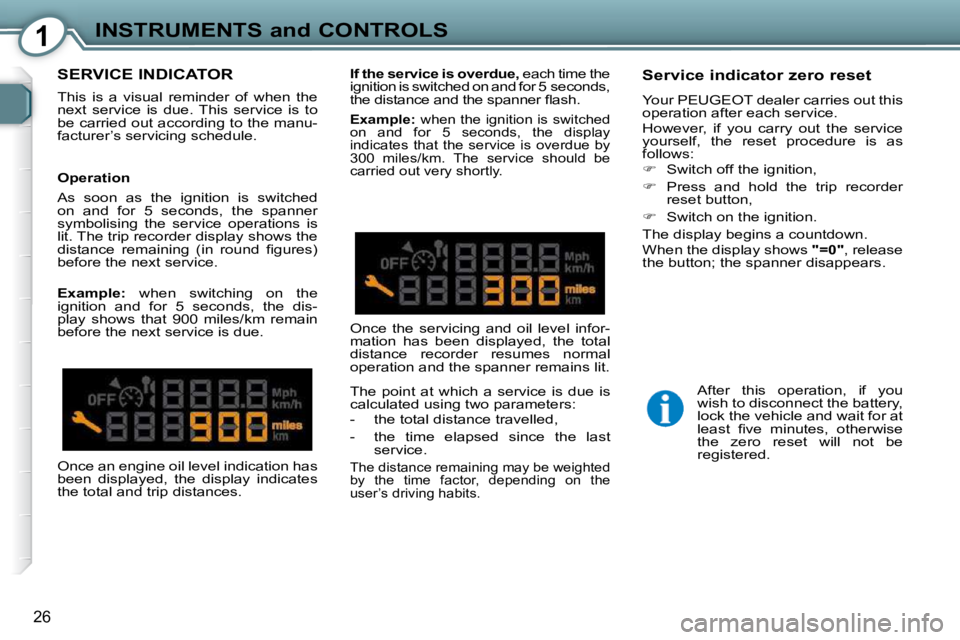

1INSTRUMENTS and CONTROLS
26
SERVICE INDICATOR
This is a visual reminder of when the
next service is due. This service is to
be carried out according to the manu-
facturer’s servicing schedule. Service indicator zero reset
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the reset procedure is as
follows:
Switch off the ignition,
Press and hold the trip recorder
reset button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears .
Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.
If the service is overdue , each time the
ignition is switched on and for 5 seconds,
t h e d i s t a n c e a n d t h e s p a n n e r fl a s h .
Example
: when the ignition is switched
on and for 5 seconds, the display
indicates that the service is overdue by
300 miles/km. The service should be
carried out very shortly.
Once the servicing and oil level infor-
mation has been displayed, the total
distance recorder resumes normal
operation and the spanner remains lit.
The point at which a service is due is
calculated using two parameters:
- the total distance travelled,
- the time elapsed since the last service.
The distance remaining may be weighted
by the time factor, depending on the
user’s driving habits.
Operation
As soon as the ignition is switched
on and for 5 seconds, the spanner
symbolising the service operations is
lit. The trip recorder display shows the
d i s t a n c e r e m a i n i n g ( i n r o u n d fi g u r e s )
before the next service.
Example
: when switching on the
ignition and for 5 seconds, the dis-
play shows that 900 miles/km remain
before the next service is due.
After this operation, if you
wish to disconnect the battery,
lock the vehicle and wait for at
l e a s t fi v e m i n u t e s , o t h e r w i s e
the zero reset will not be
registered.
Page 26 of 250

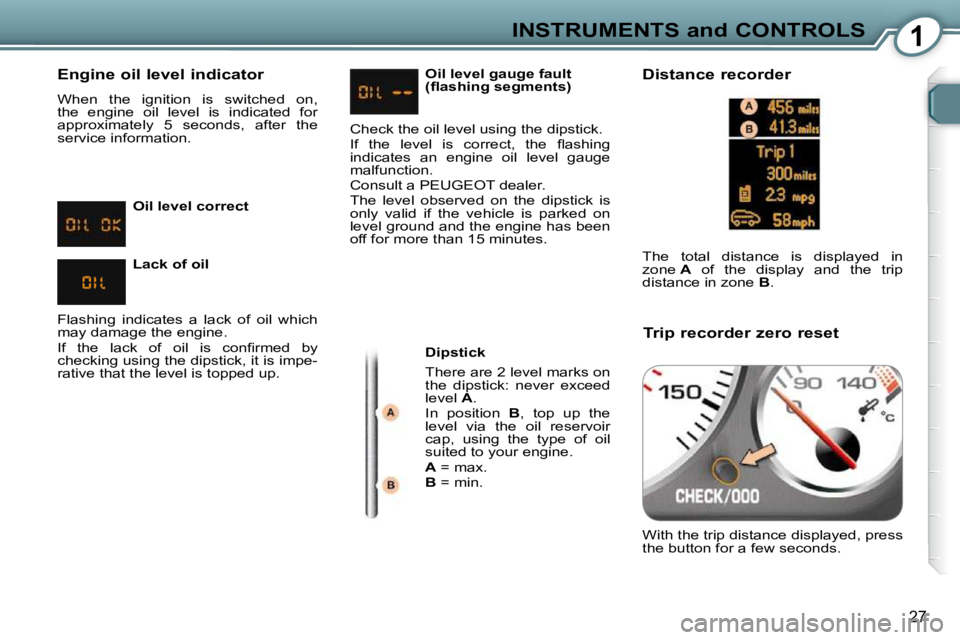

1INSTRUMENTS and CONTROLS
27
Engine oil level indicator
When the ignition is switched on,
the engine oil level is indicated for
approximately 5 seconds, after the
service information. Dipstick
There are 2 level marks on
the dipstick: never exceed
level A .
In position B , top up the
level via the oil reservoir
cap, using the type of oil
suited to your engine.
A = max.
B = min. Trip recorder zero reset
Oil level correct
Lack of oil
Flashing indicates a lack of oil which
may damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y
checking using the dipstick, it is impe-
rative that the level is topped up. Oil level gauge fault
( fl a s h i n g s e g m e n t s )
Check the oil level using the dipstick.
I f t h e l e v e l i s c o r r e c t , t h e fl a s h i n g
indicates an engine oil level gauge
malfunction.
Consult a PEUGEOT dealer.
The level observed on the dipstick is
only valid if the vehicle is parked on
level ground and the engine has been
off for more than 15 minutes. The total distance is displayed in
zone A of the display and the trip
distance in zone B .
Distance recorder
With the trip distance displayed, press
the button for a few seconds.
Page 27 of 250
1INSTRUMENTS and CONTROLS
28
TRIP COMPUTER
or
TRIP (Route): access to
the trip computer displays.
Each successive press on the button
located at the end of the wipers stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required route is displayed,
press the control for more than
two seconds.
With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum
(or maximum) setting, release the
button then press it again to increase
(or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
- the ''vehicle'' tab with:
Page 28 of 250

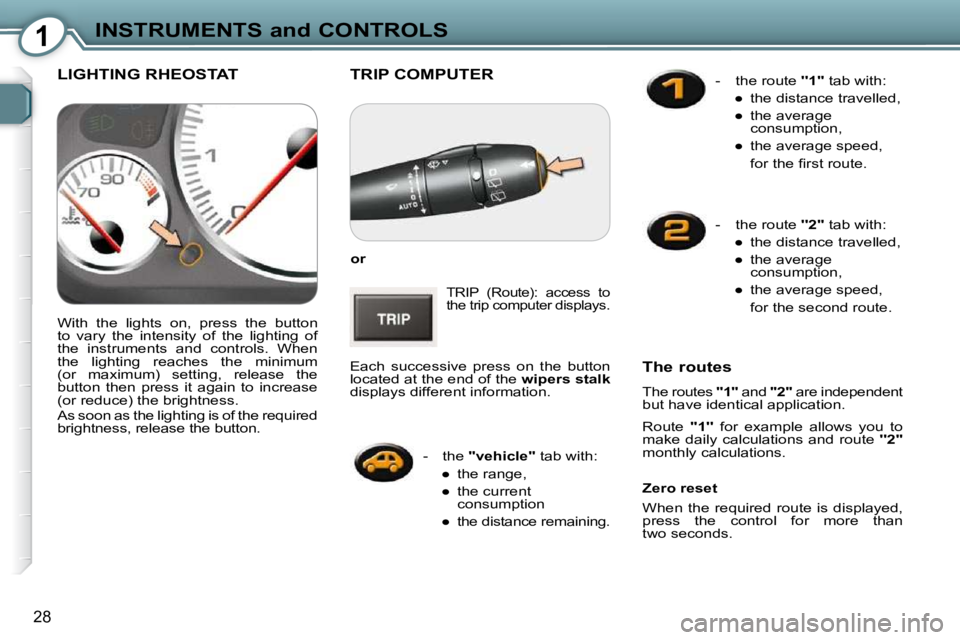

1INSTRUMENTS and CONTROLS
28
TRIP COMPUTER
or
TRIP (Route): access to
the trip computer displays.
Each successive press on the button
located at the end of the wipers stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required route is displayed,
press the control for more than
two seconds.
With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum
(or maximum) setting, release the
button then press it again to increase
(or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
- the ''vehicle'' tab with:
Page 29 of 250

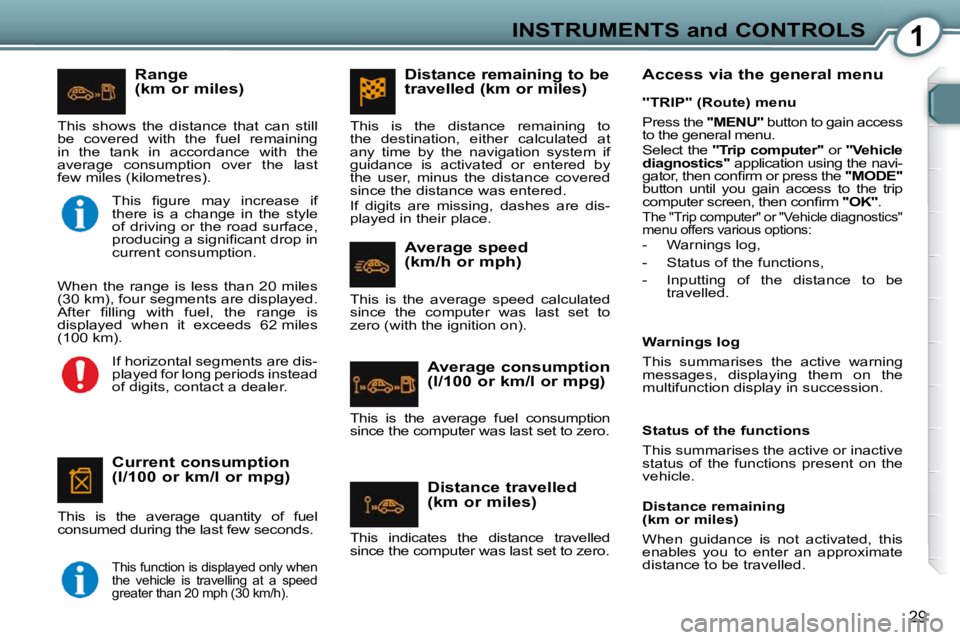

1INSTRUMENTS and CONTROLS
29
Range
(km or miles)
Current consumption
(l/100 or km/l or mpg)
This is the average quantity of fuel
consumed during the last few seconds.
This shows the distance that can still
be covered with the fuel remaining
in the tank in accordance with the
average consumption over the last
few miles (kilometres).
Distance remaining to be
travelled (km or miles)
Average speed
(km/h or mph) ''TRIP'' (Route) menu
Press the
''MENU'' button to gain access
to the general menu.
Select the ''Trip computer'' or ''Vehicle
diagnostics'' application using the navi-
g a t o r , t h e n c o n fi r m o r p r e s s t h e ''MODE''
button until you gain access to the trip
c o m p u t e r s c r e e n , t h e n c o n fi r m ''OK'' .
The ''Trip computer'' or ''Vehicle diagnostics''
menu offers various options:
- Warnings log,
- Status of the functions,
- Inputting of the distance to be
travelled.
Average consumption
(l/100 or km/l or mpg)
Distance travelled
(km or miles) Warnings log
This summarises the active warning
messages, displaying them on the
multifunction display in succession.
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Distance remaining
(km or miles)
When guidance is not activated, this
enables you to enter an approximate
distance to be travelled.
T h i s fi g u r e m a y i n c r e a s e i f
there is a change in the style
of driving or the road surface,
p r o d u c i n g a s i g n i fi c a n t d r o p i n
current consumption.
When the range is less than 20 miles
(30 km), four segments are displayed.
A f t e r fi l l i n g w i t h f u e l , t h e r a n g e i s
displayed when it exceeds 62 miles
(100 km). If horizontal segments are dis-
played for long periods instead
of digits, contact a dealer.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
This is the distance remaining to
the destination, either calculated at
any time by the navigation system if
guidance is activated or entered by
the user, minus the distance covered
since the distance was entered.
If digits are missing, dashes are dis-
played in their place.
This is the average fuel consumption
since the computer was last set to zero.
This indicates the distance travelled
since the computer was last set to zero. Access via the general menu
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
Page 30 of 250

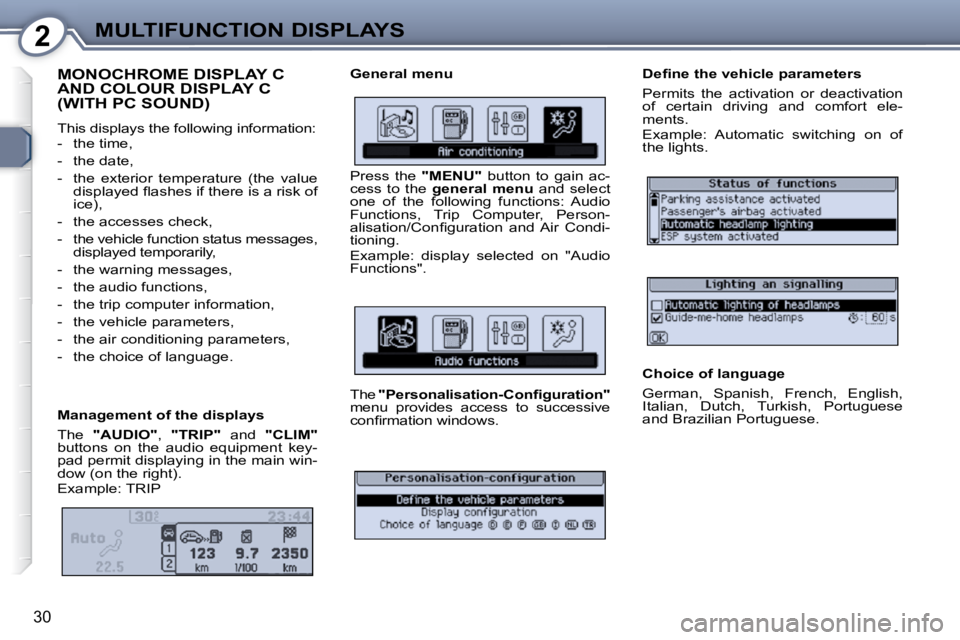

2MULTIFUNCTION DISPLAYS
30
MONOCHROME DISPLAY C AND COLOUR DISPLAY C (WITH PC SOUND)
This displays the following information:
- the time,
- the date,
- the exterior temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- t h e a c c e s s e s c h e c k ,
- the vehicle function status messages, displayed temporarily,
- the warning messages,
- the audio functions,
- the trip computer information,
- the vehicle parameters,
- the air conditioning parameters,
- the choice of language. General menu
D e fi n e t h e v e h i c l e p a r a m e t e r s
Permits the activation or deactivation
of certain driving and comfort ele-
ments.
Example: Automatic switching on of
the lights.
Press the "MENU" button to gain ac-
cess to the general menu and select
one of the following functions: Audio
Functions, Trip Computer, Person-
a l i s a t i o n / C o n fi g u r a t i o n a n d A i r C o n d i -
tioning.
Example: display selected on "Audio
Functions".
The " P e r s o n a l i s a t i o n - C o n fi g u r a t i o n "
menu provides access to successive
c o n fi r m a t i o n w i n d o w s .
M a n a g e m e n t o f t h e d i s p l a y s
The "AUDIO" , "TRIP" and "CLIM"
b u t t o n s o n t h e a u d i o e q u i p m e n t k e y -
pad permit displaying in the main win-
dow (on the right).
Example: TRIP C h o i c e o f l a n g u a g e
German, Spanish, French, English,
I t a l i a n , D u t c h , T u r k i s h , P o r t u g u e s e
and Brazilian Portuguese.
