Page 34 of 211
2
35
16/9 COLOUR SCREEN DT
This displays the following information,
via the WIP Com audio and telematics
system control panel:
- the time,
- the date,
- the outside temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k
of ice),
- the status of the accesses,
- the warning messages or vehicle function status messages, displayed
temporarily,
- the audio functions,
- the telematic systems display ( t e l e p h o n e , s e r v i c e s , . . . ) ,
- the trip computer information,
- t h e p e r s o n a l i s a t i o n a n d c o n fi g u r a t i o n displays,
- the air conditioning parameters,
- t h e f r o n t a n d r e a r p a r k i n g a s s i s t a n c e display,
- the satellite navigation system i n f o r m a t i o n . General menu
Press the
"MENU" button to access
the general menu and select one of
the following functions:
- "Navigation - guidance",
- "Map",
- " T r a f fi c i n f o r m a t i o n " ,
- "Audio functions",
- "Telematics",
- " C o n fi g u r a t i o n " ,
- "Video",
- "Vehicle diagnostics",
- " A i r c o n d i t i o n i n g " . " C o n fi g u r a t i o n " m e n u
This provides access to the following
functions:
- " D i s p l a y c o n fi g u r a t i o n " ,
- "Sound",
- "Select language",
- " D e fi n e t h e v e h i c l e p a r a m e t e r s " .
Page 35 of 211
2
36
D i s p l a y c o n fi g u r a t i o n
- "Choose colour",
- "Adjust brightness",
- "Adjust date and time",
- " S e l e c t u n i t s " . "Video" menu
D e fi n e t h e v e h i c l e p a r a m e t e r s
This enables you to activate or deactivate
certain driving and comfort functions:
- "Automatic switching on of the
headlamps",
- "Follow-me-home lighting" and "Duration",
- "Remote control action",
- "Directional headlamps",
- " P e r m a n e n t l o c k i n g o f t h e b o o t " .
Example: "Automatic switching on of
the headlamps"
You can connect video equipment (cam-
c o r d e r , d i g i t a l c a m e r a , D V D p l a y e r , . . . )
t o t h e t h r e e v i d e o s o c k e t s , l o c a t e d i n t h e
g l o v e b o x .
V i d e o s c a n o n l y b e d i s p l a y e d w h e n
stationary.
Select the "Video" menu from the
general menu :
- "Activate video mode" to activate/ deactivate the video,
- "Video parameters" to set the dis- play format, the brightness, the
c o n t r a s t a n d t h e c o l o u r s .
Pressing the "DARK" button disconnects
t h e d i s p l a y f r o m t h e v i d e o .
Successive presses on the "SOURCE"
button permit the selection of an audio
s o u r c e o t h e r t h a n t h a t o f t h e v i d e o .
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction displays by
t h e d r i v e r m u s t t a k e p l a c e w h e n
s t a t i o n a r y .
Page 36 of 211
2
36
D i s p l a y c o n fi g u r a t i o n
- "Choose colour",
- "Adjust brightness",
- "Adjust date and time",
- " S e l e c t u n i t s " . "Video" menu
D e fi n e t h e v e h i c l e p a r a m e t e r s
This enables you to activate or deactivate
certain driving and comfort functions:
- "Automatic switching on of the
headlamps",
- "Follow-me-home lighting" and "Duration",
- "Remote control action",
- "Directional headlamps",
- " P e r m a n e n t l o c k i n g o f t h e b o o t " .
Example: "Automatic switching on of
the headlamps"
You can connect video equipment (cam-
c o r d e r , d i g i t a l c a m e r a , D V D p l a y e r , . . . )
t o t h e t h r e e v i d e o s o c k e t s , l o c a t e d i n t h e
g l o v e b o x .
V i d e o s c a n o n l y b e d i s p l a y e d w h e n
stationary.
Select the "Video" menu from the
general menu :
- "Activate video mode" to activate/ deactivate the video,
- "Video parameters" to set the dis- play format, the brightness, the
c o n t r a s t a n d t h e c o l o u r s .
Pressing the "DARK" button disconnects
t h e d i s p l a y f r o m t h e v i d e o .
Successive presses on the "SOURCE"
button permit the selection of an audio
s o u r c e o t h e r t h a n t h a t o f t h e v i d e o .
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction displays by
t h e d r i v e r m u s t t a k e p l a c e w h e n
s t a t i o n a r y .
Page 43 of 211
3
44
PROGRAMMABLE HEATING Programming remote control
T h e h e a t i n g s y s t e m p r o g r a m m i n g
remote control consists of the following
b u t t o n s a n d d i s p l a y s :
1. S c r o l l i n g f u n c t i o n s m e n u b u t t o n s .
2. Function indicator lights: clock,
t e m p e r a t u r e , o p e r a t i n g t i m e , p r o -
g r a m m e d t i m e , h e a t e r o p e r a t i o n ,
h e a t i n g m a n a g e m e n t s y m b o l s .
3. D i g i t a l d i s p l a y s : t i m e , t e m p e r a t u r e ,
d u r a t i o n o f o p e r a t i o n , p r o g r a m m e d
t i m e o r l e v e l o f h e a t i n g .
4. O f f b u t t o n .
5. O n b u t t o n .
Displaying the functions
If a malfunction of the programma-
ble heating system occurs, contact
a PEUGEOT dealer.
T h e p r o g r a m m a b l e h e a t i n g o p e r a t e s
i n d e p e n d e n t l y o f t h e e n g i n e .
W h e n t h e e n g i n e i s o f f , i t p r e - h e a t s
t h e c o o l a n t c i r c u i t i n o r d e r t o b e n e fi t
f r o m a n o p t i m u m e n g i n e o p e r a t i n g
t e m p e r a t u r e f r o m t h e t i m e t h e e n g i n e
i s s w i t c h e d o n .
T h e p r o g r a m m a b l e h e a t i n g s y s t e m i s
switched on using the long range remote
c o n t r o l . A c t i v a t i o n c a n b e i m m e d i a t e o r
d e f e r r e d b y m e a n s o f a p r o g r a m m i n g
f u n c t i o n .
screen
Press the buttons
1 in succession to
d i s p l a y t h e f u n c t i o n s .
T h e fi r s t p r e s s o f t h e l e f t - h a n d o r r i g h t -
h a n d b u t t o n d i s p l a y s t h e t i m e .
N e x t , t h e l e f t - h a n d b u t t o n p e r m i t s
a c c e s s t o t h e p r o g r a m m i n g t i m e t h e n
t o t h e l e v e l o f h e a t i n g ( C 1 t o C 5 ) .
T h e r i g h t - h a n d b u t t o n p e r m i t s a c c e s s
t o t h e p a s s e n g e r c o m p a r t m e n t t e m p e -
r a t u r e t h e n t o t h e d u r a t i o n o f o p e r a t i o n
of the heater if it is to be switched on
i m m e d i a t e l y .
T h e p a s s e n g e r c o m p a r t m e n t
t e m p e r a t u r e i n f o r m a t i o n i s o n l y
available when the engine is
o f f .
Page 68 of 211
4

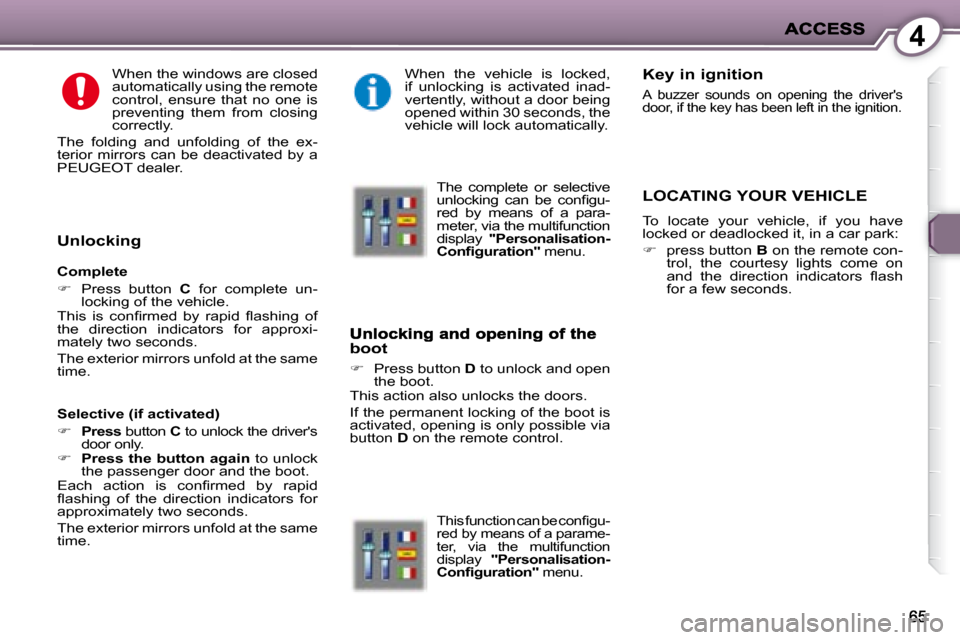

When the windows are closed
automatically using the remote
control, ensure that no one is
preventing them from closing
correctly.
The folding and unfolding of the ex-
terior mirrors can be deactivated by a
PEUGEOT dealer.
The complete or selective
u n l o c k i n g c a n b e c o n fi g u -
red by means of a para-
meter, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
boot
Press button D to unlock and open
the boot.
This action also unlocks the doors.
If the permanent locking of the boot is
activated, opening is only possible via
button D on the remote control.
When the vehicle is locked,
if unlocking is activated inad-
vertently, without a door being
opened within 30 seconds, the
vehicle will lock automatically.
T h i s f u n c t i o n c a n b e c o n fi g u -
red by means of a parame-
ter, via the multifunction
display
"Personalisation-
C o n fi g u r a t i o n " menu.
Key in ignition
A buzzer sounds on opening the driver's
door, if the key has been left in the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B on the remote con-
trol, the courtesy lights come on
a n d t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Unlocking
Selective (if activated)
Press button C to unlock the driver's
door only.
P r e s s t h e b u t t o n a g a i n to unlock
the passenger door and the boot.
E a c h a c t i o n i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds.
The exterior mirrors unfold at the same
time.
Complete
Press button C for complete un-
locking of the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators for approxi-
mately two seconds.
The exterior mirrors unfold at the same
time.
Page 69 of 211
4
66

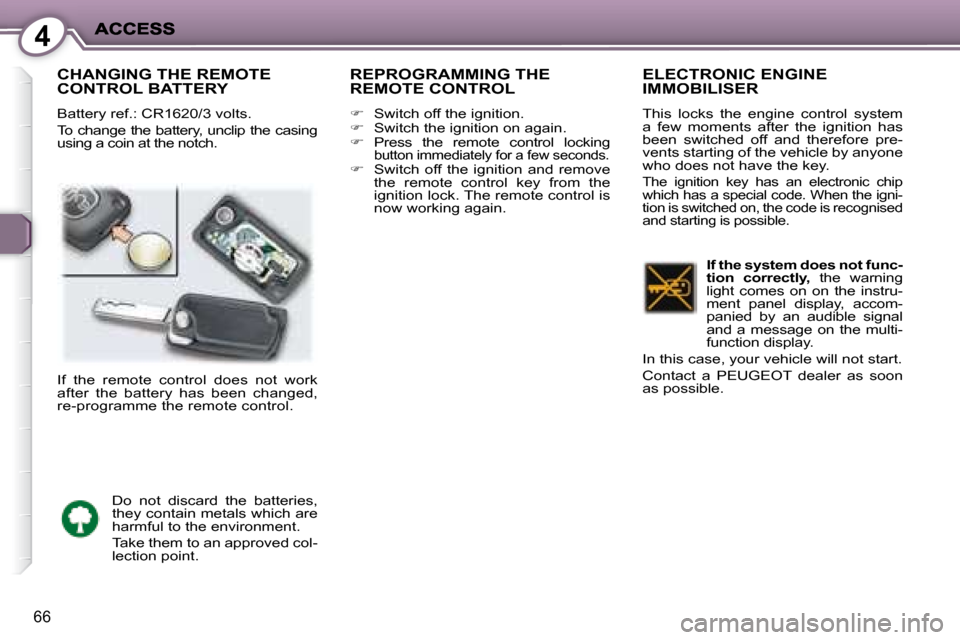

CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking
button immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the igni-
tion is switched on, the code is recognised
and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
I f t h e s y s t e m d o e s n o t f u n c -
tion correctly, the warning
light comes on on the instru-
ment panel display, accom-
panied by an audible signal
and a message on the multi-
function display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
Page 71 of 211
4
When the windows are closed
automatically using the remote
control, ensure that no one is
preventing them from closing
correctly.
The folding and unfolding of the ex-
terior mirrors can be deactivated by a
PEUGEOT dealer.
The complete or selective
u n l o c k i n g c a n b e c o n fi g u -
red by means of a para-
meter, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
boot
Press button D to unlock and open
the boot.
This action also unlocks the doors.
If the permanent locking of the boot is
activated, opening is only possible via
button D on the remote control.
When the vehicle is locked,
if unlocking is activated inad-
vertently, without a door being
opened within 30 seconds, the
vehicle will lock automatically.
T h i s f u n c t i o n c a n b e c o n fi g u -
red by means of a parame-
ter, via the multifunction
display
"Personalisation-
C o n fi g u r a t i o n " menu.
Key in ignition
A buzzer sounds on opening the driver's
door, if the key has been left in the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B on the remote con-
trol, the courtesy lights come on
a n d t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Unlocking
Selective (if activated)
Press button C to unlock the driver's
door only.
P r e s s t h e b u t t o n a g a i n to unlock
the passenger door and the boot.
E a c h a c t i o n i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds.
The exterior mirrors unfold at the same
time.
Complete
Press button C for complete un-
locking of the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators for approxi-
mately two seconds.
The exterior mirrors unfold at the same
time.
Page 72 of 211
4
66
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking
button immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the igni-
tion is switched on, the code is recognised
and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
I f t h e s y s t e m d o e s n o t f u n c -
tion correctly, the warning
light comes on on the instru-
ment panel display, accom-
panied by an audible signal
and a message on the multi-
function display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
Page 73 of 211
4
66
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking
button immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the igni-
tion is switched on, the code is recognised
and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
I f t h e s y s t e m d o e s n o t f u n c -
tion correctly, the warning
light comes on on the instru-
ment panel display, accom-
panied by an audible signal
and a message on the multi-
function display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
Page 82 of 211
5
74
LIGHTS STALK
Lights off
Side lights Dipped/main beam head-
lamps Lights on
With the ignition and the automatic
lights function switched off, on open-
ing the driver's door a buzzer sounds
to warn you that you have left your
lights on.
Front and rear fog lamps (ring B)
Turn ring B forwards to switch on
and backwards to switch off. The
p o s i t i o n i s c o n fi r m e d b y t h e l i g h t
on the instrument panel.
Front fog lamps (one press)
These operate with the side lights, dipped
headlamps or main beam headlamps. Rear fog lamps (two presses)
These operate with the side lights and
the front fog lamps, or with the dipped
or main beam headlamps.
Left: downwards.
Right: upwards
D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
If you forget to return the di-
rection indicator to its normal
position, the volume of the au-
dible signal will increase, if you
are driving at a speed greater
than 45 mph (70 km/h).
Parking lights *
The side lights are lit on the side the
t r a f fi c i s o n f o r a f e w h o u r s .
With the engine switched off and with-
in 45 seconds maximum, place the in-
d i c a t o r l i g h t s s t a l k o n t h e t r a f fi c s i d e
(for example: for parking on the right;
switching on of the lights on the left).
This is indicated by an audible sig-
nal and lighting of the corresponding
direction indicator on the instrument
panel for a few seconds.
If the parking lights are activat-
ed when your vehicle switches
to economy mode, they will re-
main on. However, you cannot
activate the parking lights if your ve-
hicle is already in economy mode.
Dipped/main beam change
Pull the stalk fully towards you.
* According to version.
Automatic switching on of
the lights.
In the case of vehicles which
a r e n o t fi t t e d w i t h a l i g h t s s t a l k
with the "AUTO" position,
you can deactivate or activate
the automatic lighting via the multi-
function display "Personalisation-
C o n fi g u r a t i o n " menu.
Front and rear lights (ring A)
Turn ring A to the position re-
quired
