Page 83 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 84 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 85 of 211
5
76

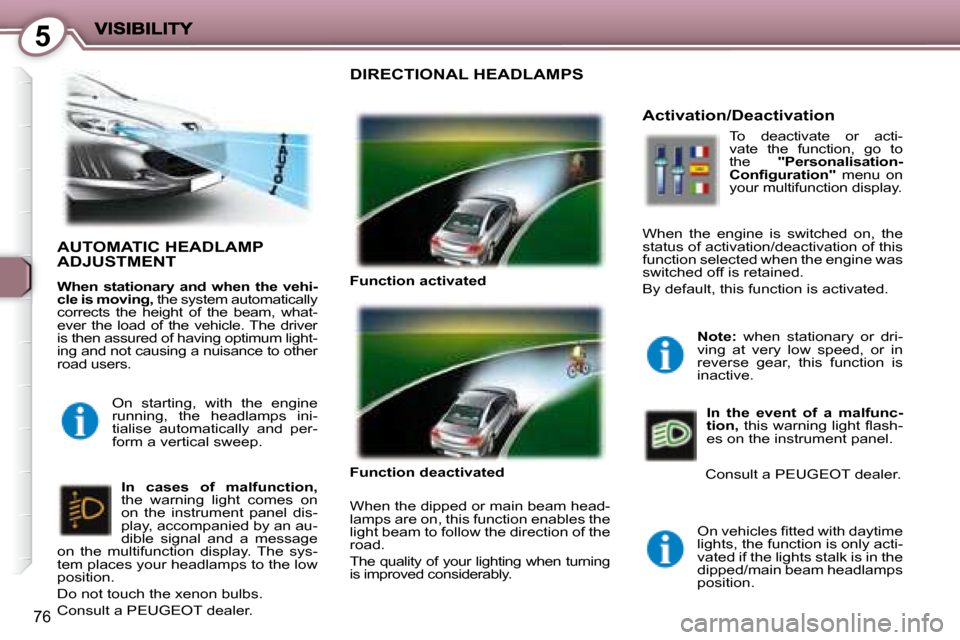

AUTOMATIC HEADLAMP ADJUSTMENT
W h e n s t a t i o n a r y a n d w h e n t h e v e h i -
c l e i s m o v i n g , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driver
is then assured of having optimum light-
ing and not causing a nuisance to other
road users.
DIRECTIONAL HEADLAMPS
Activation/Deactivation
When the dipped or main beam head-
lamps are on, this function enables the
light beam to follow the direction of the
road.
The quality of your lighting when turning
is improved considerably.
I n c a s e s o f m a l f u n c t i o n ,
the warning light comes on
on the instrument panel dis-
play, accompanied by an au-
dible signal and a message
on the multifunction display. The sys-
tem places your headlamps to the low
position.
Do not touch the xenon bulbs.
Consult a PEUGEOT dealer. F u n c t i o n a c t i v a t e d
F u n c t i o n d e a c t i v a t e d To deactivate or acti-
vate the function, go to
the
"Personalisation-
C o n fi g u r a t i o n " menu on
your multifunction display.
When the engine is switched on, the
status of activation/deactivation of this
function selected when the engine was
switched off is retained.
By default, this function is activated.
Note: when stationary or dri-
ving at very low speed, or in
reverse gear, this function is
inactive.
I n t h e e v e n t o f a m a l f u n c -
t i o n , t h i s w a r n i n g l i g h t fl a s h -
es on the instrument panel.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
lights, the function is only acti-
vated if the lights stalk is in the
dipped/main beam headlamps
position.
On starting, with the engine
running, the headlamps ini-
tialise automatically and per-
form a vertical sweep.
Consult a PEUGEOT dealer.
Page 86 of 211
5
77
WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 87 of 211
5
78

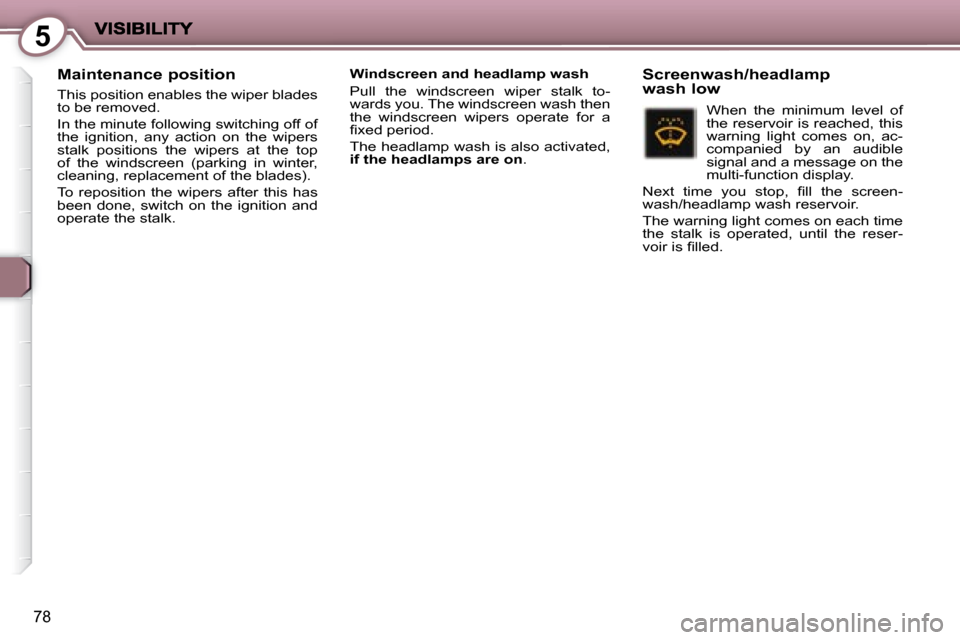

Maintenance position
This position enables the wiper blades
to be removed.
In the minute following switching off of
the ignition, any action on the wipers
stalk positions the wipers at the top
of the windscreen (parking in winter,
cleaning, replacement of the blades).
To reposition the wipers after this has
been done, switch on the ignition and
operate the stalk. W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash then
the windscreen wipers operate for a
fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
S c r e e n w a s h / h e a d l a m p w a s h l o w
When the minimum level of
the reservoir is reached, this
warning light comes on, ac-
companied by an audible
signal and a message on the
multi-function display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n -
wash/headlamp wash reservoir.
The warning light comes on each time
the stalk is operated, until the reser-
v o i r i s fi l l e d .
Page 88 of 211
5
77
WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 95 of 211
7
85
Dynamic stability control (DSC)
When changing wheels (tyres
and rims), make sure that
these are approved.
Normal operation of the ABS
may make itself felt by slight vibrations
of the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. Operating fault
When a system malfunction occurs,
the warning light comes on accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked.
The DSC offers improved
safety during normal driving
but should not encourage the
driver to take extra risks (late
braking) or drive at very high speeds.
Operation of the system is guaran-
teed on condition that the manufactu-
rer's instructions regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT network assembly and
maintenance/repair procedures are
complied with.
Following an impact, have the system
checked by a PEUGEOT dealer.
Warning light on the instrument
panel.
The indicator light comes on.
Deactivation
In exceptional conditions (starting the
vehicle when it is stuck in mud, immo-
bilised in snow, on unstable ground…),
it may prove useful to deactivate the
DSC.
Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch light and the indicator light
come on: the DSC no longer acts on
the operation of the engine.
Indicator light on the instrument
panel.
Reactivation
Automatic when the ignition is
switched off,
Automatic from 30 mph (50 km/h),
Manual by pressing the switch
again.
Operation of the DSC
Page 96 of 211
7
86
SEAT BELTS
Detection of fastening of the front
seat belts
When the ignition is switched on ,
if a front passenger has not fastened
his seat belt and if the vehicle speed
is below 13 mph (20 km/h) , you are
warned by lighting of the seat belt
warning light .
The warning light switches off when
the seat belt(s) concerned is(are) fas-
tened.
If the vehicle speed is above 13 mph
(20 km/h) , y o u a r e w a r n e d b y fl a s h -
ing of the seat belt warning light , an
audible signal and a message on the
multifunction display locating the un-
fastened seat belt(s).
Front seat belts with
pre-tensioner and force
limiter
In the event of a serious front impact,
the pre-tensioning system instantly
t i g h t e n s t h e s e a t b e l t s fi r m l y a g a i n s t
the bodies of the occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pressure
of the seat belt against the chest of
the occupant, so increasing his pro-
tection. Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt.
These seat belts have a force limiter.
To fasten the seat belts
Pull the strap, then insert the
tongue into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. To unfasten the seat belts
Press the red button on the buckle.
Note: a bag or an animal
placed on the front passenger
seat may trigger the lighting of
the warning light.
The audible signal ceases and the
warning light switches off when the
seat belt concerned is fastened.
After two minutes without any action
o n t h e s e a t b e l t s , t h e fl a s h i n g w a r n i n g
light remains on permanently and the
audible signal ceases.
All of the warnings cease when a
door is opened or when the engine is
switched off.
Front seat belt height adjustment:
To lower the attachment point,
squeeze control 1 and slide it
downwards.
To raise the attachment point, slide
control 1 upwards.
Page 99 of 211
7
89

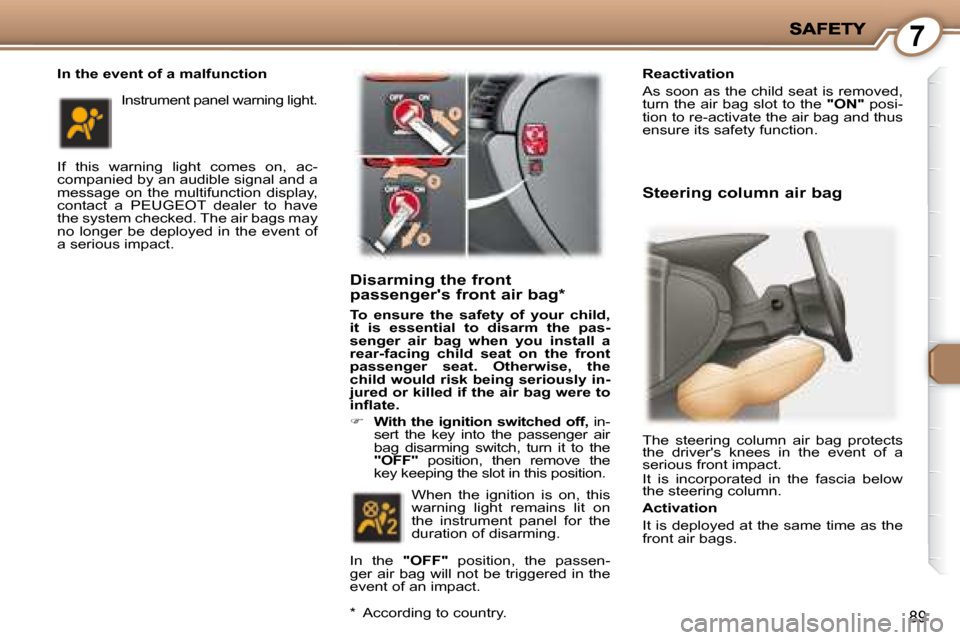

In the event of a malfunction
If this warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display,
contact a PEUGEOT dealer to have
the system checked. The air bags may
no longer be deployed in the event of
a serious impact. Instrument panel warning light.
Disarming the front passenger's front air bag *
To ensure the safety of your child,
it is essential to disarm the pas-
senger air bag when you install a
rear- facing child seat on the front
passenger seat. Otherwise, the
child would risk being seriously in-
jured or killed if the air bag were to
i n fl a t e .
With the ignition switched off, in-
sert the key into the passenger air
bag disarming switch, turn it to the
"OFF" position, then remove the
key keeping the slot in this position. Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" posi-
tion to re-activate the air bag and thus
ensure its safety function.
* According to country. When the ignition is on, this
warning light remains lit on
the instrument panel for the
duration of disarming.
In the "OFF" position, the passen-
ger air bag will not be triggered in the
event of an impact. The steering column air bag protects
the driver's knees in the event of a
serious front impact.
It is incorporated in the fascia below
the steering column.
Steering column air bag
Activation
It is deployed at the same time as the
front air bags.
Page 100 of 211
7
90

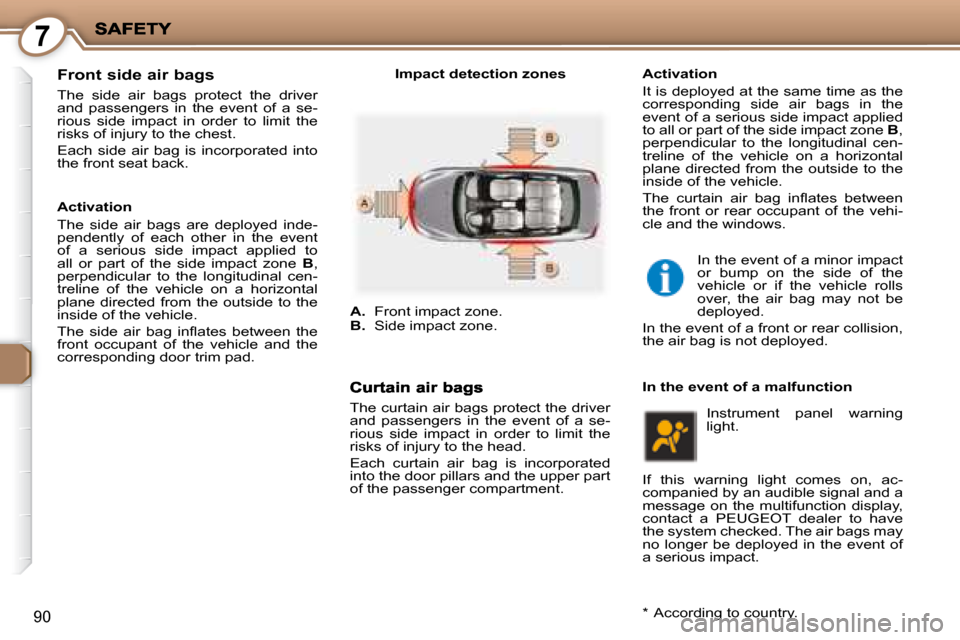

Front side air bags
The side air bags protect the driver
and passengers in the event of a se-
rious side impact in order to limit the
risks of injury to the chest.
Each side air bag is incorporated into
the front seat back.
Activation
The side air bags are deployed inde-
pendently of each other in the event
of a serious side impact applied to
all or part of the side impact zone B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane directed from the outside to the
inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad.
In the event of a malfunction
If this warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display,
contact a PEUGEOT dealer to have
the system checked. The air bags may
no longer be deployed in the event of
a serious impact. Instrument panel warning
light.
* According to country.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The curtain air bags protect the driver
and passengers in the event of a se-
rious side impact in order to limit the
risks of injury to the head.
Each curtain air bag is incorporated
into the door pillars and the upper part
of the passenger compartment. Activation
It is deployed at the same time as the
corresponding side air bags in the
event of a serious side impact applied
to all or part of the side impact zone
B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane directed from the outside to the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the vehi-
cle and the windows.
In the event of a minor impact
or bump on the side of the
vehicle or if the vehicle rolls
over, the air bag may not be
deployed.
In the event of a front or rear collision,
the air bag is not deployed.
