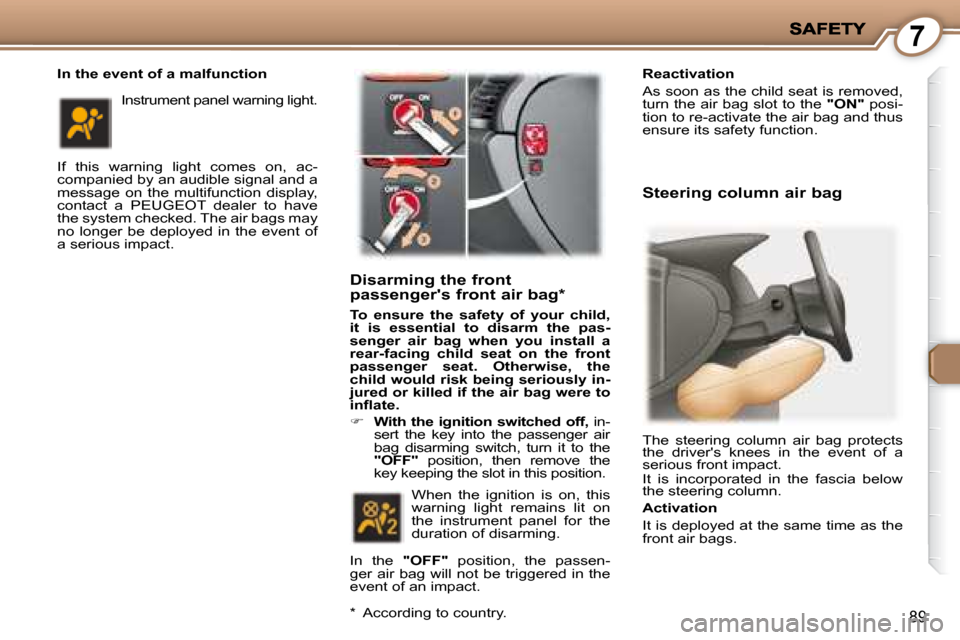

In the event of a malfunction
If this warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display,
contact a PEUGEOT dealer to have
the system checked. The air bags may
no longer be deployed in the event of
a serious impact. Instrument panel warning light.
Disarming the front passenger's front air bag *

To ensure the safety of your child,
it is essential to disarm the pas-
senger air bag when you install a
rear- facing child seat on the front
passenger seat. Otherwise, the
child would risk being seriously in-
jured or killed if the air bag were to
infl ate.

 With the ignition switched off, in-
sert the key into the passenger air
bag disarming switch, turn it to the

"OFF" position, then remove the
key keeping the slot in this position. Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" posi-
tion to re-activate the air bag and thus
ensure its safety function.
* According to country. When the ignition is on, this
warning light remains lit on
the instrument panel for the
duration of disarming.
In the "OFF" position, the passen-
ger air bag will not be triggered in the
event of an impact. The steering column air bag protects
the driver's knees in the event of a
serious front impact.
It is incorporated in the fascia below
the steering column.
Steering column air bag
Activation
It is deployed at the same time as the
front air bags.

8
94
When maintenance opera-
tions need to be carried out
with the engine running, apply
the handbrake and select the

P ark position. Sport and Snow programmes
These are two special programmes.
The programme selected is displayed
on the instrument panel screen. It is only possible to change
from one gear to another if
the vehicle speed and engine
speed permit. If they do not,
the vehicle will operate temporarily in
automatic mode.
When the vehicle is stationary or
moving very slowly, the gearbox auto-
matically selects gear M1 .
Programmes S (sport) and  (snow)
do not operate in manual gear selec-
tion mode.
Any operating abnormality is
indicated by lighting of this
warning light, accompanied
by an audible signal and a
message on the multi-func-
tion display.
In this situation the gearbox operates in
downgrade mode (locked in 3rd gear).
You may feel a substantial knock when
changing from P to R and from N to R
(this will not cause any damage to the
gearbox).
Do not exceed 60 mph (100 km/h) or
keep within local speed limits.
Contact a PEUGEOT dealer as soon
as possible.
Operating check
Operation with manual selection of the gears

 select position M in the gate,

 push the lever to the + sign to
change up a gear and push again
to change up another gear,

 pull the lever to the - sign to change
down a gear and pull again to
change down another gear.
You can change from position D
(driving in automatic mode) to posi-
tion M (driving in manual mode) at any
time.
The auto-adaptive programme

 select position D in the gate: the
gearbox operates in auto-adap-
tive mode, without any action on
your part, taking into account the
following parameters:
- the style of driving,
- the profi le of the road,
- the vehicle load.
To obtain maximum acceleration
without touching the lever, press the
accele rator down fully (kick down).
The programme will change down
automatically or will stay in the gear
selected until the maximum engine
speed is reached.
When the brake is applied, the pro-
gramme will change down automati-
cally in order to provide effi cient engine
braking. Sport programme

 Press button S once the vehicle
has been started in position D , the
auto-adaptive programme favours
dynamic driving
Snow programme
This programme improves starting and
drive when traction is poor.

 Press button  once the vehicle
has been started and position D
has been selected, the auto-adap-
tive programme adjusts the perfor-
mance of the vehicle to the condi-
tion of the slippery road.
You can deactivate the Sport or Snow
programme at any time by pressing
the button selected.
Releasing the accelerator
sharply does not have any im-
mediate effect on the speed of
the vehicle.
Never select position N when
the vehicle is moving.
Never select positions P or R
unless the vehicle is stationary.
Never change between positions to
optimise braking on a slippery sur-
face. If the battery is fl at and the
lever is in position
P , it will
be impossible to change to
another position.
In particular, do not force the lever
or there is a risk the gearbox may be
damaged.

8
95

 Press switch 1 , the indi-
cator light comes on and
the SPORT warning light
comes on.
Manual selection of the SPORT
position

 Press switch 1 again. The
indicator light is switched
off and the AUTO indica-
tor light comes on.
To return to automatic operation
In this position, the suspension is
maintained in the
SPORT position.

In the event of a fault, it
comes on, accompanied by
an audible signal and a mes-
sage on the multifunction
display.
Select automatic operation and contact
a PEUGEOT dealer as soon as possible.
Operating check
This is confi rmed by the switch light
and the indicator lights.

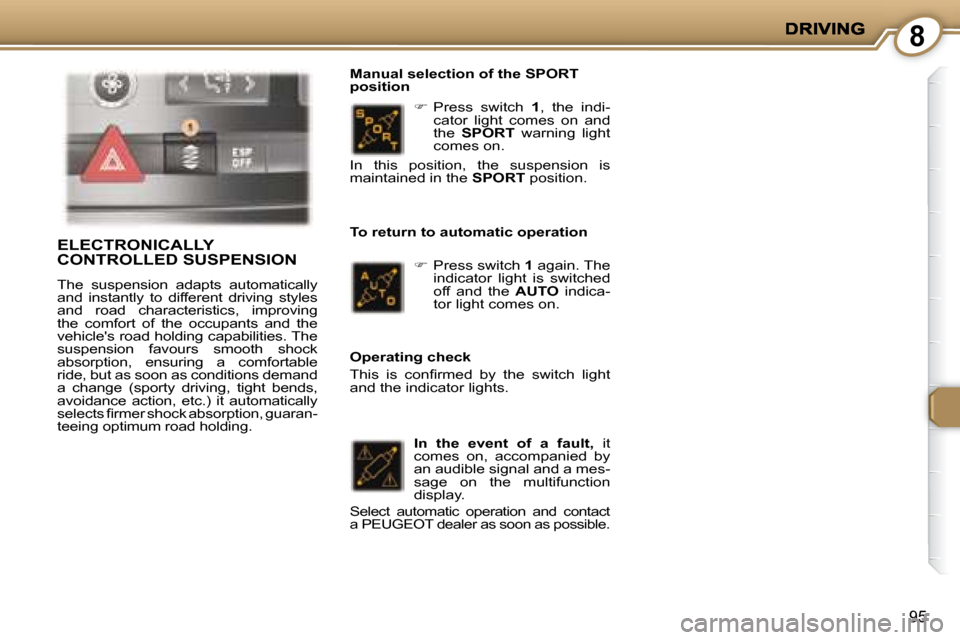

ELECTRONICALLY CONTROLLED SUSPENSION
The suspension adapts automatically
and instantly to different driving styles
and road characteristics, improving
the comfort of the occupants and the
vehicle's road holding capabilities. The
suspension favours smooth shock
absorption, ensuring a comfortable
ride, but as soon as conditions demand
a change (sporty driving, tight bends,
avoidance action, etc.) it automatically
selects fi rmer shock absorption, guaran-
teeing optimum road holding.

8
96

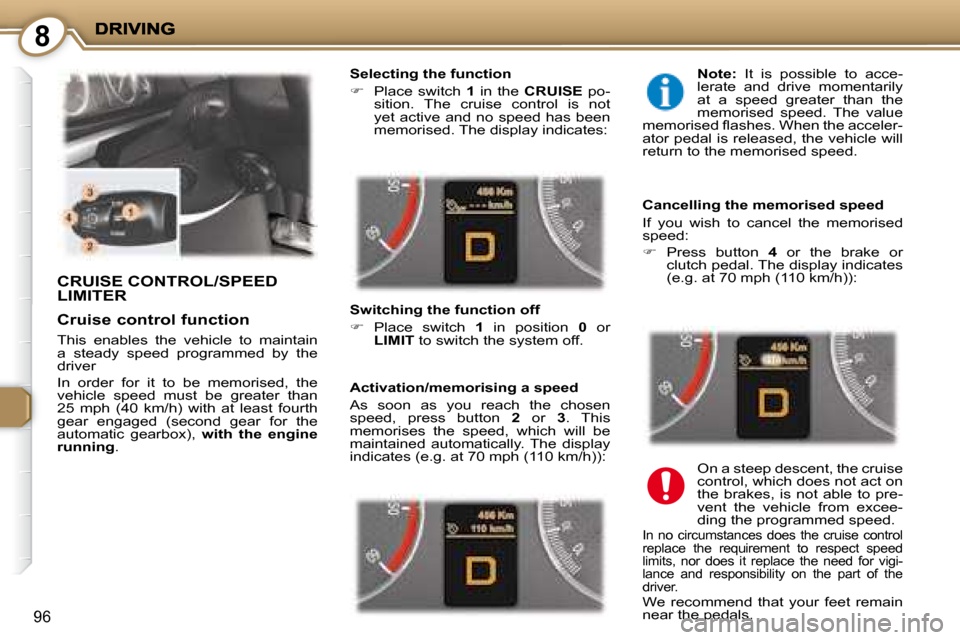

CRUISE CONTROL/SPEED LIMITER
Selecting the function

 Place switch 1 in the CRUISE po-
sition. The cruise control is not
yet active and no speed has been
memorised. The display indicates:
Switching the function off

 Place switch 1 in position 0 or

LIMIT to switch the system off.
Note: It is possible to acce-
lerate and drive momentarily
at a speed greater than the
memorised speed. The value
memorised fl ashes. When the acceler-
ator pedal is released, the vehicle will
return to the memorised speed.
Cancelling the memorised speed
If you wish to cancel the memorised
speed:

 Press button 4 or the brake or
clutch pedal. The display indicates
(e.g. at 70 mph (110 km/h)):
Activation/memorising a speed
As soon as you reach the chosen
speed, press button 2 or 3 . This
memorises the speed, which will be
maintained automatically. The display
indicates (e.g. at 70 mph (110 km/h)): On a steep descent, the cruise
control, which does not act on
the brakes, is not able to pre-
vent the vehicle from excee-
ding the programmed speed.
In no circumstances does the cruise control
replace the requirement to respect speed
limits, nor does it replace the need for vigi-
lance and responsibility on the part of the
driver.
We recommend that your feet remain
near the pedals.
Cruise control function
This enables the vehicle to maintain
a steady speed programmed by the
driver
In order for it to be memorised, the
vehicle speed must be greater than
25 mph (40 km/h) with at least fourth
gear engaged (second gear for the
automatic gearbox), with the engine
running .

8

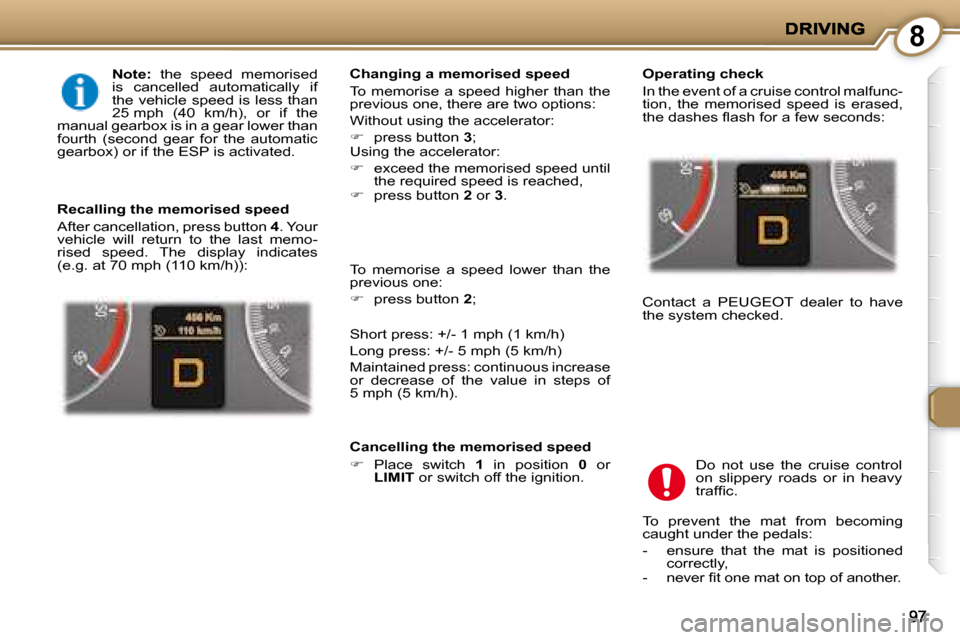

Note: the speed memorised
is cancelled automatically if
the vehicle speed is less than
25 mph (40 km/h), or if the
manual gearbox is in a gear lower than
fourth (second gear for the automatic
gearbox) or if the ESP is activated. Operating check
In the event of a cruise control malfunc-
tion, the memorised speed is erased,
the dashes fl ash for a few seconds:
Contact a PEUGEOT dealer to have
the system checked.
Do not use the cruise control
on slippery roads or in heavy
traffi c.
Changing a memorised speed
To memorise a speed higher than the
previous one, there are two options:
Without using the accelerator:

 press button 3 ;
Using the accelerator:

 exceed the memorised speed until
the required speed is reached,

 press button 2 or 3 .
Recalling the memorised speed
After cancellation, press button 4 . Your
vehicle will return to the last memo-
rised speed. The display indicates
(e.g. at 70 mph (110 km/h)):
Cancelling the memorised speed

 Place switch 1 in position 0 or

LIMIT or switch off the ignition.
To memorise a speed lower than the
previous one:

 press button 2 ;
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned correctly,
- never fi t one mat on top of another.
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or decrease of the value in steps of
5 mph (5 km/h).

8
98

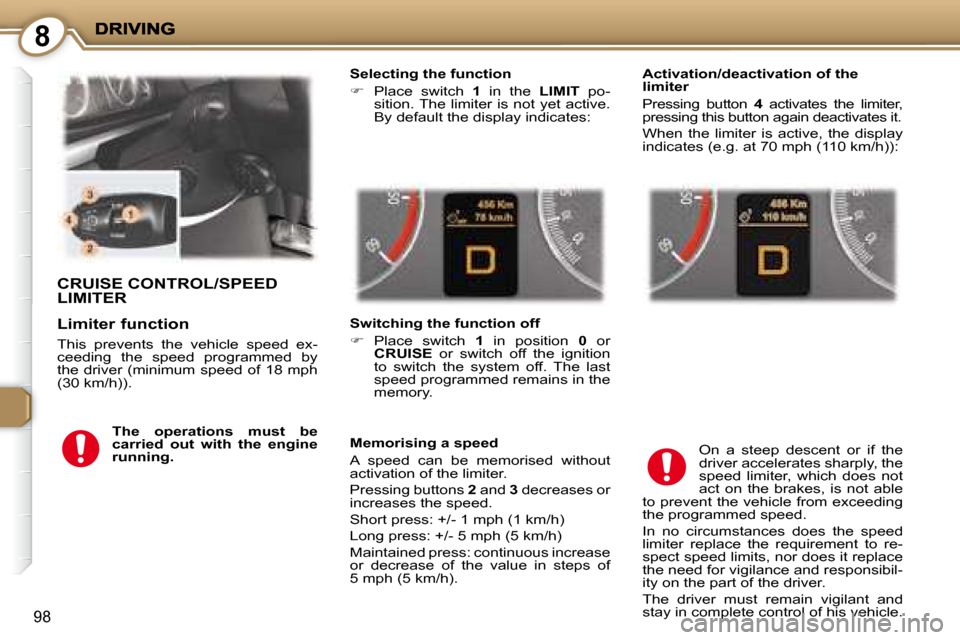

CRUISE CONTROL/SPEED LIMITER
Selecting the function

 Place switch 1 in the LIMIT po-
sition. The limiter is not yet active.
By default the display indicates:
Switching the function off

 Place switch 1 in position 0 or

CRUISE or switch off the ignition
to switch the system off. The last
speed programmed remains in the
memory.
Memorising a speed
A speed can be memorised without
activation of the limiter.
Pressing buttons 2 and 3 decreases or
increases the speed.
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or decrease of the value in steps of
5 mph (5 km/h). Activation/deactivation of the
limiter
Pressing button
4 activates the limiter,
pressing this button again deactivates it.
When the limiter is active, the display
indicates (e.g. at 70 mph (110 km/h)):

The operations must be
carried out with the engine
running. On a steep descent or if the
driver accelerates sharply, the
speed limiter, which does not
act on the brakes, is not able
to prevent the vehicle from exceeding
the programmed speed.
In no circumstances does the speed
limiter replace the requirement to re-
spect speed limits, nor does it replace
the need for vigilance and responsibil-
ity on the part of the driver.
The driver must remain vigilant and
stay in complete control of his vehicle.
Limiter function
This prevents the vehicle speed ex-
ceeding the speed programmed by
the driver (minimum speed of 18 mph
(30 km/h)).

8
Exceeding the programmed speed
Additional pressing of the accelera-
tor to exceed the programmed speed
will have no effect unless the pedal is
pressed fi rmly (passing the point of
resistance ).
The limiter is deactivated temporarily
and displays the programmed speed
(e.g. at 70 mph (110 km/h)):
To prevent the mat from becom-
ing caught under the pedals:
- ensure that the mat is posi-tioned correctly,
Operating check
In the event of a limiter malfunction,
the memorised speed is erased, the
dashes fl ash for a few seconds:

Note: the speed also fl ashes
when the speed limiter can-
not prevent the vehicle from
exceeding the programmed
speed (on a steep descent or in the
event of sharp acceleration).
To re-activate the limiter, release the
accelerator to slow down to a speed
below the programmed speed. Contact a PEUGEOT dealer to have
the system checked.
- never fi t one mat on top of another.

8
100
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING ASSISTANCE
This system consists of proximity sen-
sors:
- six in the front bumper,
and/or
- four in the rear bumper.
It detects any obstacle (person, ve-
hicle, tree, gate, etc.) in front of or be-
hind the vehicle. However, it cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other similar object may be detected
at the beginning of the manoeuvre but
may no longer be detected when the
vehicle comes close to it. The proximity of the obstacle is indi-
cated by:
- an audible signal which becomes
more rapid as the vehicle ap-
proaches the obstacle,
- a graphic on the multifunction display, with blocks which become
increasingly close to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; that is, front or rear and
right or left.
When the distance between the ve-
hicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears
on the multifunction display.
The system becomes inactive again:
- when you exit reverse gear,
- when the speed is above 6 mph (10 km/h),
- at the end of the manoeuvre, when stationary, after a few seconds
(front parking assistance only).
Detection zone
To guarantee optimum opera-
tion, in bad weather or in win-
ter, ensure that the sensors
are not covered with mud,
frost or snow. The system is deactivated if
the vehicle is stationary for
more than 3 seconds.
Detection
The system is activated when:
- reverse gear is engaged,
- the speed is below 6 mph (10 km/h)
in forward gear.
It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction display.

8
101
Deactivation
Press button A to deactivate the sys-
tem (child asleep in the rear...). The in-
dicator light on the button comes on.

Note: this function will be de-
activated automatically when
a trailer is being towed (vehi-
cle fi tted with a towbar recom-
mended by PEUGEOT ).
Reactivation
Press button A again to reactivate the
system. The indicator light on the button
is switched off.
If there is an operating fault,
when reverse gear is en-
gaged, the indicator light
fl ashes, accompanied by an
audible signal and a message on the
multifunction display.

8
102
TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Pressure Check With the ignition on and the
vehicle having been stationary
for approximately 15 minutes,
and after the engine oil level,
this indicator light comes on
on the instrument panel screen to indi-
cate that the system is measuring the
tyre pressures.
Pressure OK
This indicator light comes
on on the instrument panel
screen if all of the tyre pres-
sure values measured are
correct.
If this indicator light does not appear,
contact a PEUGEOT dealer to have
the system checked. Puncture
This warning light, accom-
panied by the audible signal
and the message on the
multi-function display loca-
ting the wheel concerned, is
followed by illumination of the STOP
warning light.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
tured or very defl ated tyre), and have
the tyre pressure checked as soon as
possible.

Note: this message is also dis-
played when one of the wheels
is away from the vehicle (be-
ing repaired) or when one or
more wheels without a sensor
are fi tted. All repairs and changing of
tyres on a wheel fi tted with this
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
The tyre under-infl ation detection sys-
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate the
need to have the tyre pressure checked
regularly (see manufacturer's label) to
ensure that the optimum dynamic per-
formance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember
to check the pressure of the spare
wheel.
The tyre under-infl ation detection sys-
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.
Flat tyre
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display loca-
ting the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible. Sensor(s) not detected or faulty
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display which
indicates that under-infl ation
detection is absent from one (or seve-
ral) wheel(s) or that there is a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
