151

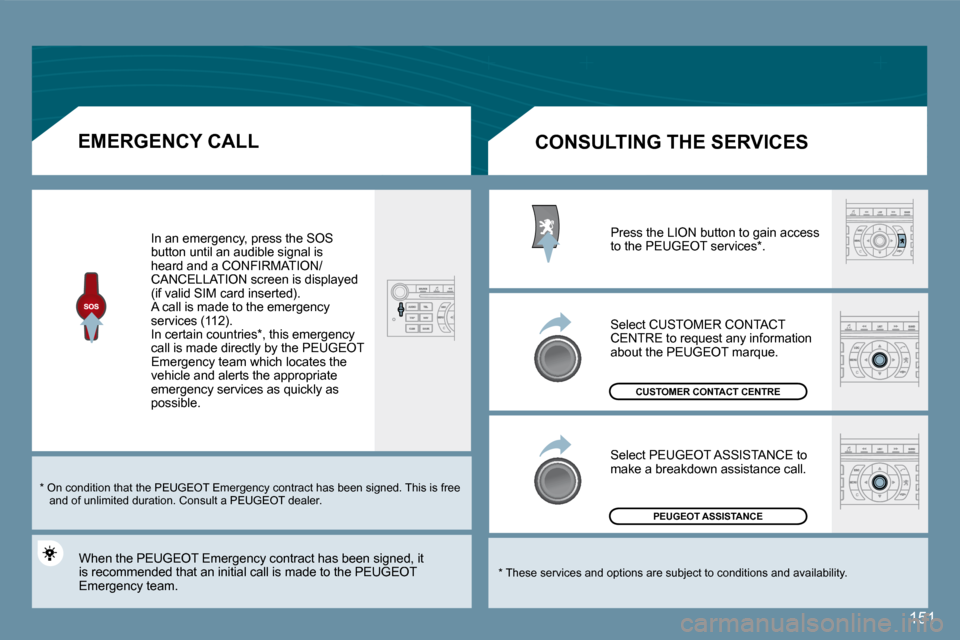

E M E R G E N C Y C A L L
In an emergency, press the SOS button until an audible signal is heard and a CONFIRMATION/CANCELLATION screen is displayed ( i f v a l i d S I M c a r d i n s e r t e d ) . A call is made to the emergency s e r v i c e s ( 1 1 2 ) . In certain countries * , this emergency call is made directly by the PEUGEOT Emergency team which locates the vehicle and alerts the appropriate emergency services as quickly as possible.
P E U G E O T A S S I S T A N C E
C U S T O M E R C O N T A C T C E N T R E
When the PEUGEOT Emergency contract has been signed, it is recommended that an initial call is made to the PEUGEOT Emergency team.
C O N S U L T I N G T H E S E R V I C E S
Press the LION button to gain access to the PEUGEOT services * .
Select CUSTOMER CONTACT CENTRE to request any information about the PEUGEOT marque.
Select PEUGEOT ASSISTANCE to make a breakdown assistance call.
* On condition that the PEUGEOT Emergency contract has been signed. This is free and of unlimited duration. Consult a PEUGEOT dealer.
* These services and options are subject to conditions and availability.
Page 166 of 211
2 2
11
153
Press the end of the lights stalk to start thtart the voice recognition. Say the words one by one and wait for the for the audible c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . The list which follows is exhaustive.
D I S P L A Y I N G T H E L I S T A N D U S I N G T H E M
To display the list of available voice commcommands, press the end of the lights stalk to start the voice voice recognition, then say HELP or WHAT CAN I SAY.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.

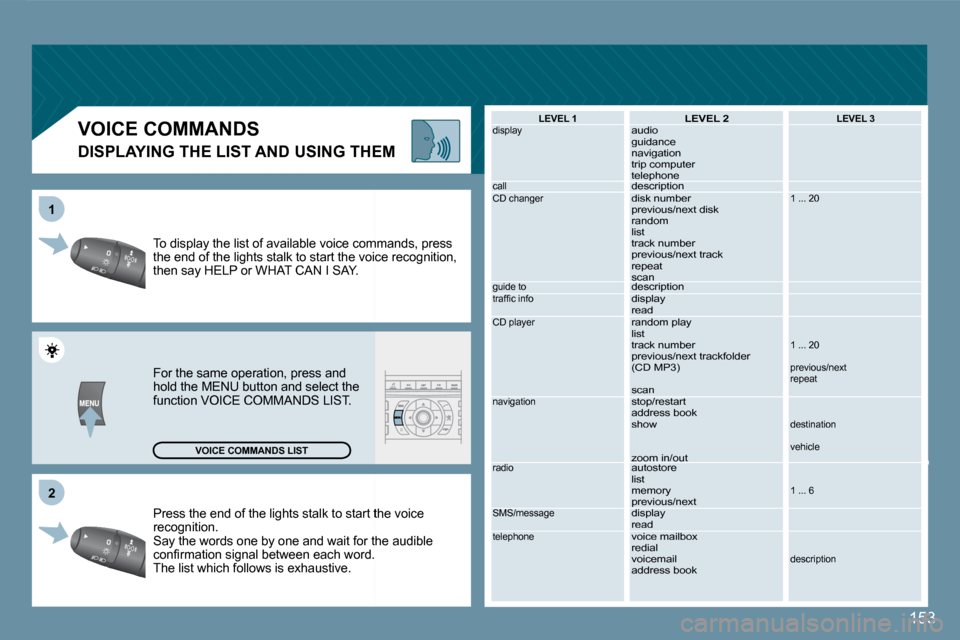

V O I C E C O M M A N D S L I S T
V O I C E C O M M A N D S L E V E L 1 display
callCD changer
guide to t r a f fi c i n f o
CD player
navigation
radio
SMS/message
telephone
L E V E L 2 audioguidancenavigationtrip computertelephonedescription
descriptiondisplayreadrandom playlisttrack numberprevious/next trackfolder ( C D M P 3 )
scanstop/restartaddress bookshow
zoom in/outautostorelistmemoryprevious/nextdisplayreadvoice mailbox redialvoicemailaddress book
L E V E L 3
1 ... 20
1 ... 20
previous/nextrepeat
destination
vehicle
1 ... 6
disk numberprevious/next diskrandomlisttrack numberprevious/next trackrepeatscan
description
Page 167 of 211
11
2 2
3 3
4 4
5 5
6 6
7 7
8 8
0 8
154
C O N F I G U R A T I O N

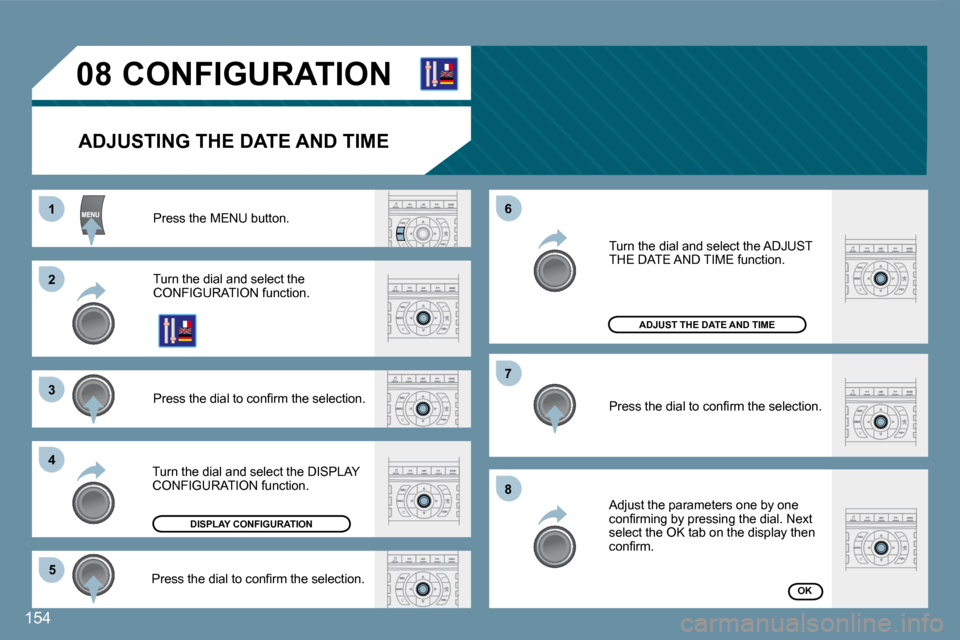

A D J U S T I N G T H E D A T E A N D T I M E
Press the MENU button.
Turn the dial and select the CONFIGURATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DISPLAY CONFIGURATION function.
Adjust the parameters one by one c o n fi r m i n g b y p r e s s i n g t h e d i a l . N e x t select the OK tab on the display then c o n fi r m .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
D I S P L A Y C O N F I G U R A T I O N
A D J U S T T H E D A T E A N D T I M E
OK P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the ADJUST THE DATE AND TIME function.
Page 170 of 211
4
3
4
5
5
5
5
4
4
4
3
4
3
4
4
3
3
3
3
2
5
5
1
2
3
4
3
3
3
3
3
2
3
3
3
2
4
4
2
4
3
4
4
4
3
4
4
3
3
4
4
4
4
4
4
5
5
5
5
2
3
5
5
5
3
157

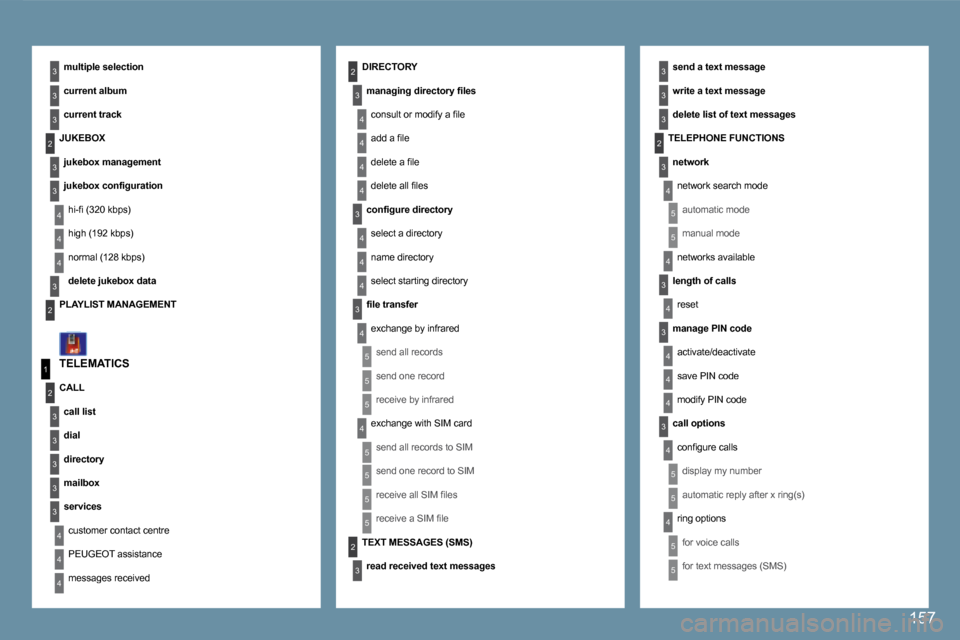

T E L E M A T I C S
m u l t i p l e s e l e c t i o n
c u r r e n t a l b u m
c u r r e n t t r a c k
s e n d a t e x t m e s s a g e
w r i t e a t e x t m e s s a g e
d e l e t e l i s t o f t e x t m e s s a g e s
D I R E C T O R Y
m a n a g i n g d i r e c t o r y fi l e s
c o n s u l t o r m o d i f y a fi l e
a d d a fi l e
d e l e t e a fi l e
d e l e t e a l l fi l e s
c o n fi g u r e d i r e c t o r y
select a directory
name directory
select starting directory
fi l e t r a n s f e r
exchange by infrared
send all records
send one record
receive by infrared
exchange with SIM card
send all records to SIM
send one record to SIM
r e c e i v e a l l S I M fi l e s
r e c e i v e a S I M fi l e
JUKEBOX
j u k e b o x m a n a g e m e n t
j u k e b o x c o n fi g u r a t i o n
h i - fi ( 3 2 0 k b p s )
h i g h ( 1 9 2 k b p s )
n o r m a l ( 1 2 8 k b p s )
d e l e t e j u k e b o x d a t a
P L A Y L I S T M A N A G E M E N T
C A L L
c a l l l i s t
d i a l
d i r e c t o r y
m a i l b o x
s e r v i c e s
customer contact centre
PEUGEOT assistance
messages received
T E X T M E S S A G E S ( S M S )
r e a d r e c e i v e d t e x t m e s s a g e s
T E L E P H O N E F U N C T I O N S
n e t w o r k
network search mode
automatic mode
manual mode
networks available
l e n g t h o f c a l l s
reset
m a n a g e P I N c o d e
activate/deactivate
save PIN code
modify PIN code
c a l l o p t i o n s
c o n fi g u r e c a l l s
display my number
a u t o m a t i c r e p l y a f t e r x r i n g ( s )
ring options
for voice calls
f o r t e x t m e s s a g e s ( S M S )
Page 173 of 211
171
( T A ) i s d i s p l a y e d . I d o n o t r e c e i v e a n y t r a f fi c information.
T u n e t o a r a d i o s t a t i o n w h i c h b r o a d c a s t s t r a f fi c information. T h e r a d i o s t a t i o n i s n o t p a r t o f t h e r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .

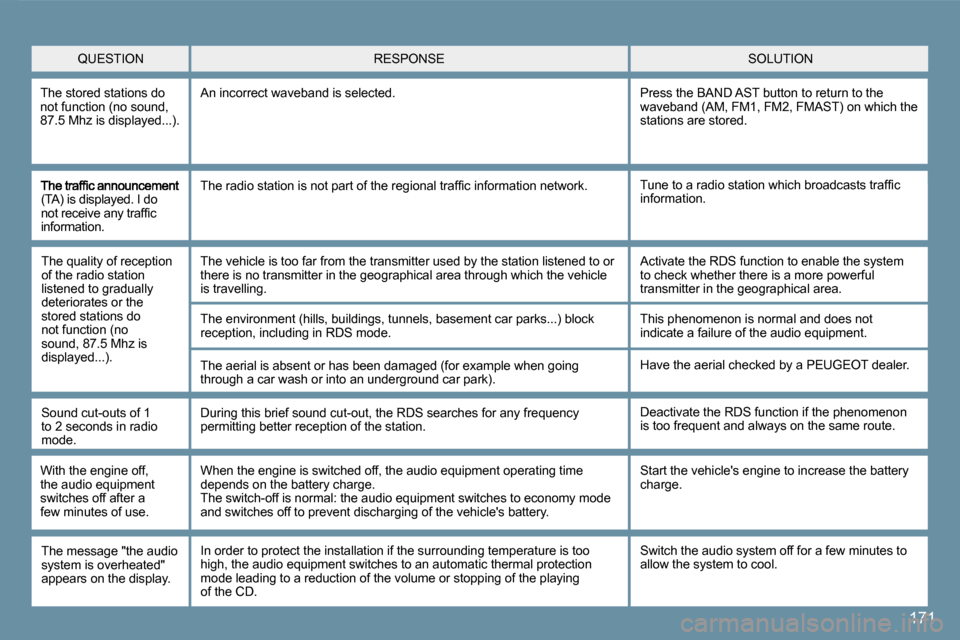

QUESTION SOLUTION RESPONSE
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is d i s p l a y e d . . . ) .
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
An incorrect waveband is selected. Press the BAND AST button to return to the w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
Page 175 of 211
11
2 2 3 3 4 4
5 5
6 6 7 7
1010
1111
1 2 1 2 1 3 1 3 1 4 1 4 1 5 1 5
8 8
9 9
01
160

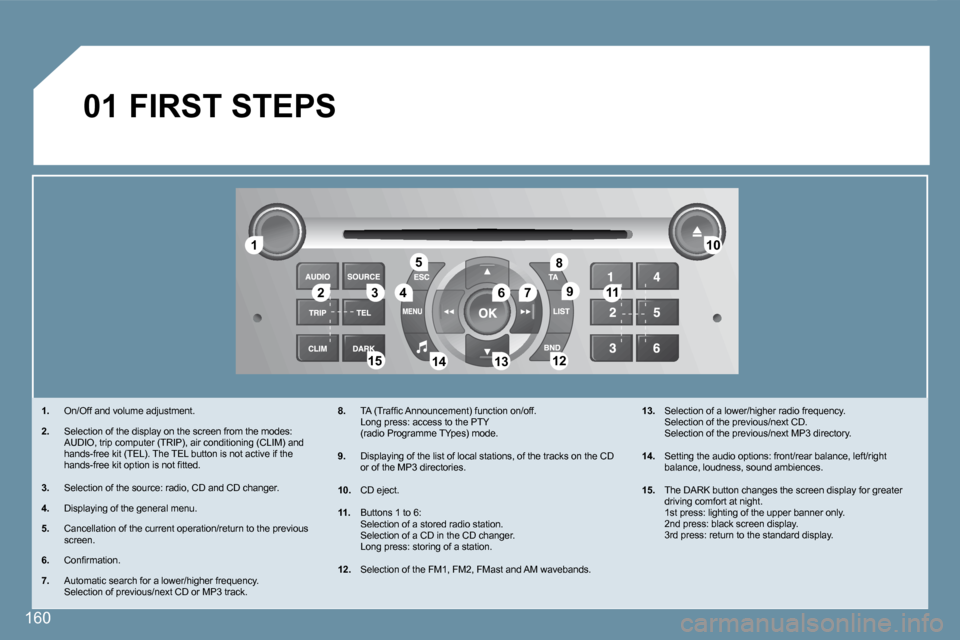

FIRST STEPS
1 . On/Off and volume adjustment.
2 . Selection of the display on the screen from the modes: A U D I O , t r i p c o m p u t e r ( T R I P ) , a i r c o n d i t i o n i n g ( C L I M ) a n d h a n d s - f r e e k i t ( T E L ) . T h e T E L b u t t o n i s n o t a c t i v e i f t h e h a n d s - f r e e k i t o p t i o n i s n o t fi t t e d .
3 . Selection of the source: radio, CD and CD changer .
4 . Displaying of the general menu.
5 . Cancellation of the current operation/return to the previous screen.
6 . C o n fi r m a t i o n .
7 . Automatic search for a lower/higher frequency. Selection of previous/next CD or MP3 track.
8 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY ( r a d i o P r o g r a m m e T Y p e s ) m o d e .
9 . Displaying of the list of local stations, of the tracks on the CD or of the MP3 directories.
1 0 . CD eject.
1 1 . Buttons 1 to 6: Selection of a stored radio station. Selection of a CD in the CD changer. Long press: storing of a station.
1 2 . Selection of the FM1, FM2, FMast and AM wavebands .
1 3 . Selection of a lower/higher radio frequency. Selection of the previous/next CD. Selection of the previous/next MP3 directory.
1 4 . Setting the audio options: front/rear balance, left/right balance, loudness, sound ambiences.
1 5 . The DARK button changes the screen display for gr eater driving comfort at night. 1st press: lighting of the upper banner only. 2nd press: black screen display. 3rd press: return to the standard display.
Page 176 of 211
0 2
161

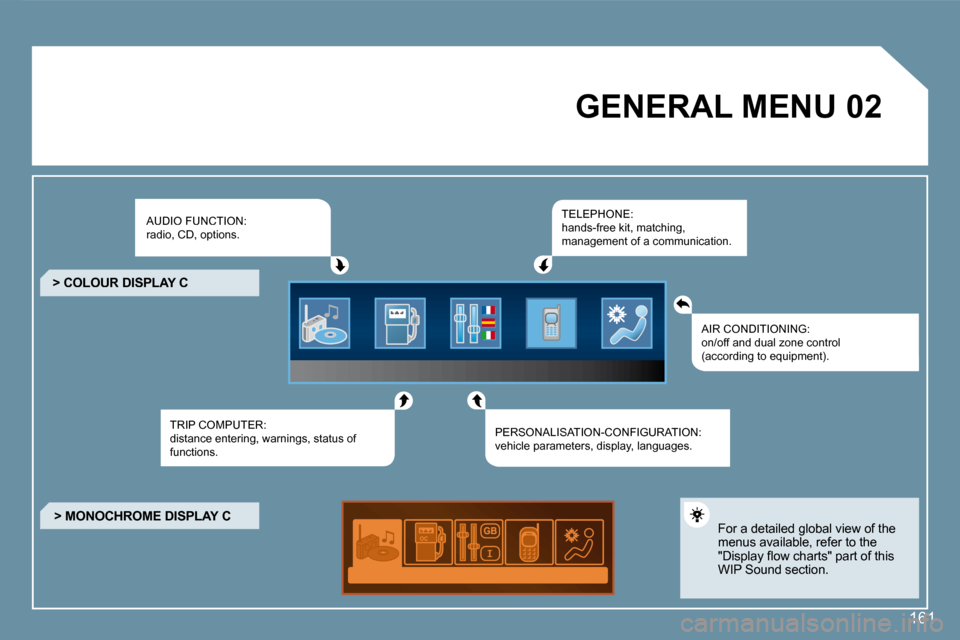

G E N E R A L M E N U
AUDIO FUNCTION: radio, CD, options.
TRIP COMPUTER: distance entering, warnings, status of functions.
TELEPHONE: hands-free kit, matching, management of a communication.
PERSONALISATION-CONFIGURATION: vehicle parameters, display, languages.
> C O L O U R D I S P L A Y C
> M O N O C H R O M E D I S P L A Y C
AIR CONDITIONING: on/off and dual zone control ( a c c o r d i n g t o e q u i p m e n t ) .
For a detailed global view of the menus available, refer to the " D i s p l a y fl o w c h a r t s " p a r t o f t h i s WIP Sound section.
Page 177 of 211
11
2 2
3 3
4 4
2 2
4 4
3 3
11
0 3
162
A U D I O
R A D I O

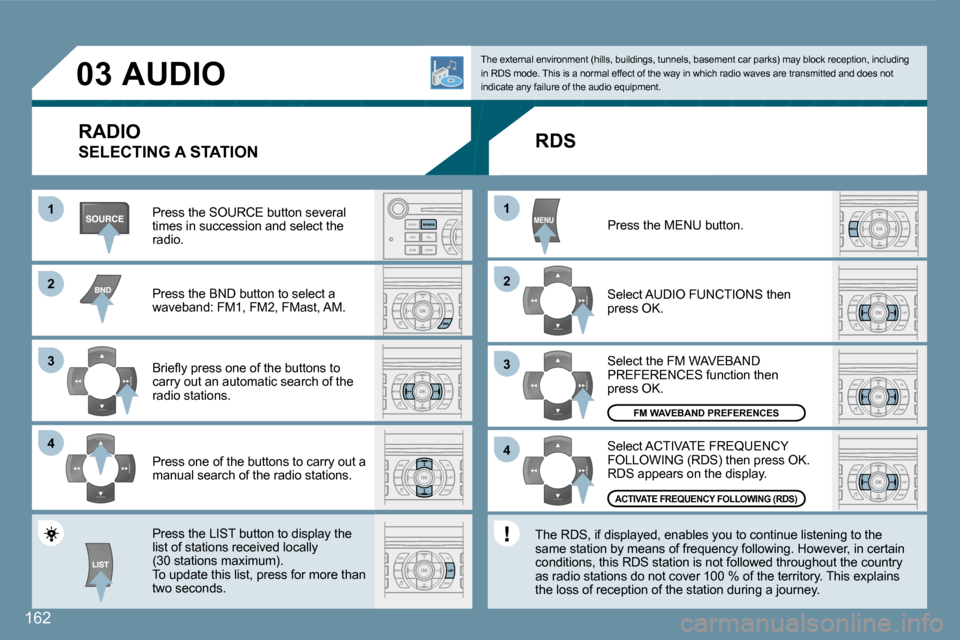

S E L E C T I N G A S T A T I O N
Press the SOURCE button several times in succession and select the radio.
Press the BND button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to display the list of stations received locally ( 3 0 s t a t i o n s m a x i m u m ) . To update this list, press for more than two seconds.
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s ) m a y b l o c k r e c e p t i o n , i n c l u d i n g in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
R D S
Press the MENU button.
The RDS, if displayed, enables you to continue lis tening to the same station by means of frequency following. Howev er, in certain conditions, this RDS station is not followed throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
Select ACTIVATE FREQUENCY F O L L O W I N G ( R D S ) t h e n p r e s s O K . RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
F M W A V E B A N D P R E F E R E N C E S
A C T I V A T E F R E Q U E N C Y F O L L O W I N G ( R D S )
Page 178 of 211
11
2 2
3 3
11
2 2
163

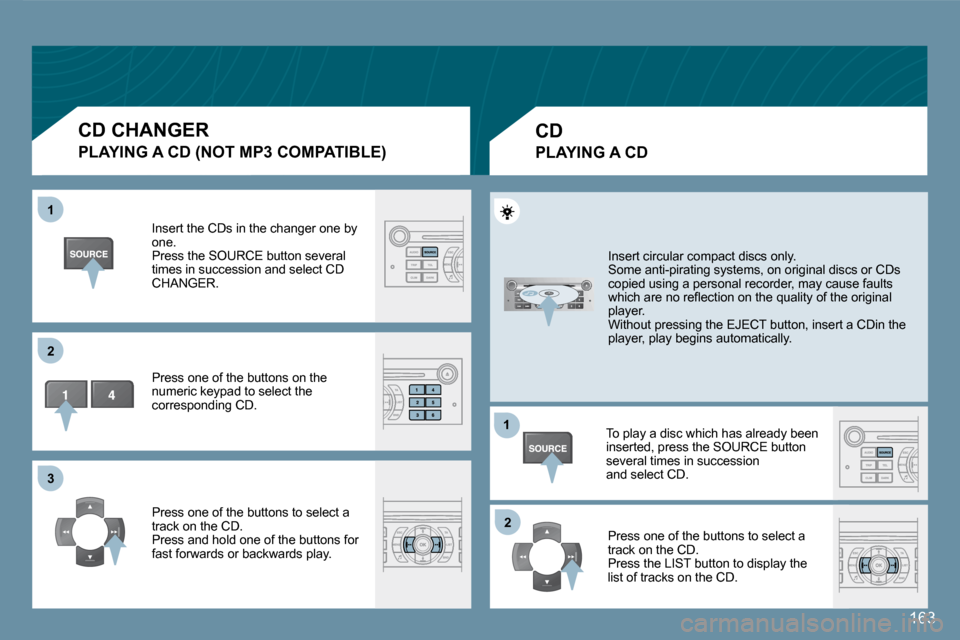

P L A Y I N G A C D ( N O T M P 3 C O M P A T I B L E )
Insert the CDs in the changer one by one. Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD. Press and hold one of the buttons for fast forwards or backwards play.
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults w h i c h a r e n o r e fl e c t i o n o n t h e q u a l i t y o f t h e o r i g i n a l player. Without pressing the EJECT button, insert a CDin t he player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST button to display the list of tracks on the CD.
P L A Y I N G A C D
C D C H A N G E R C D
Page 179 of 211
11
2 2
164
The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds, before play begins.
To play a disc which has already been inserted, press the SOURCE button several times in succession andselect CD.
Press one of the buttons to selecta track on the CD. Press the LIST button to display the list of directories of the MP3 compilation.
O n a s i n g l e d i s c , t h e C D p l a y e r c a n r e a d u p t o 2 5 5 M P 3 fi l e s s p r e a d over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played.

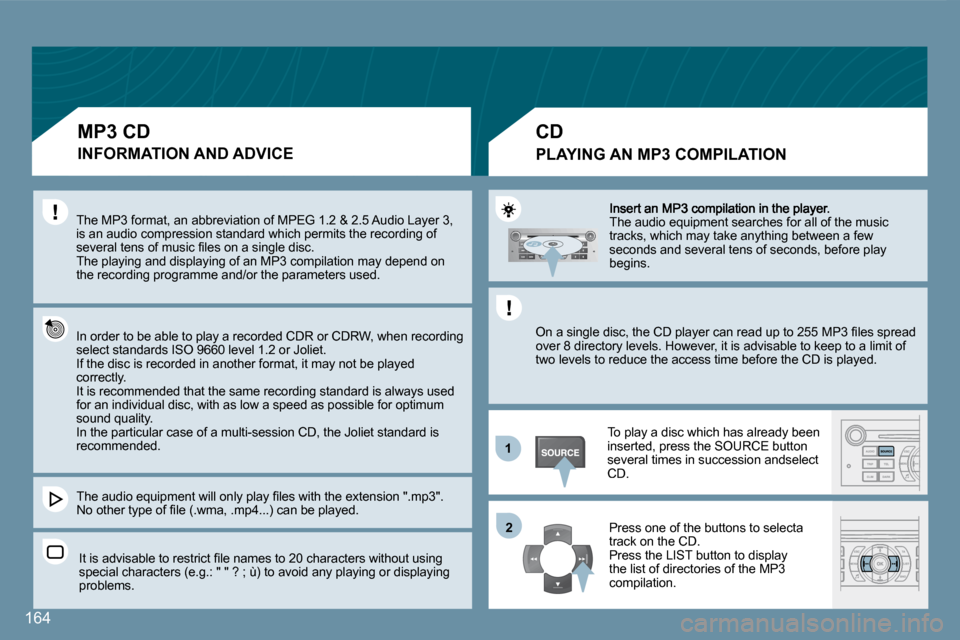

P L A Y I N G A N M P 3 C O M P I L A T I O N I N F O R M A T I O N A N D A D V I C E
