FITTINGS
104
REAR MULTIMEDIA
Multimedia system permitting the con-
nection of any external portable sys-
tem: Ipod Video, games consoles, DVD
player, … Two separate
audio sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B button allows you to pair the
headphones with the screen: A left-
hand side, B right-hand side.
The video is displayed on
two 7" screens, integrated in
the head restraints.
Two separate
video sources
can be connected via the RCA
connectors (yellow). You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3 rd set of
Bluetooth headphones.

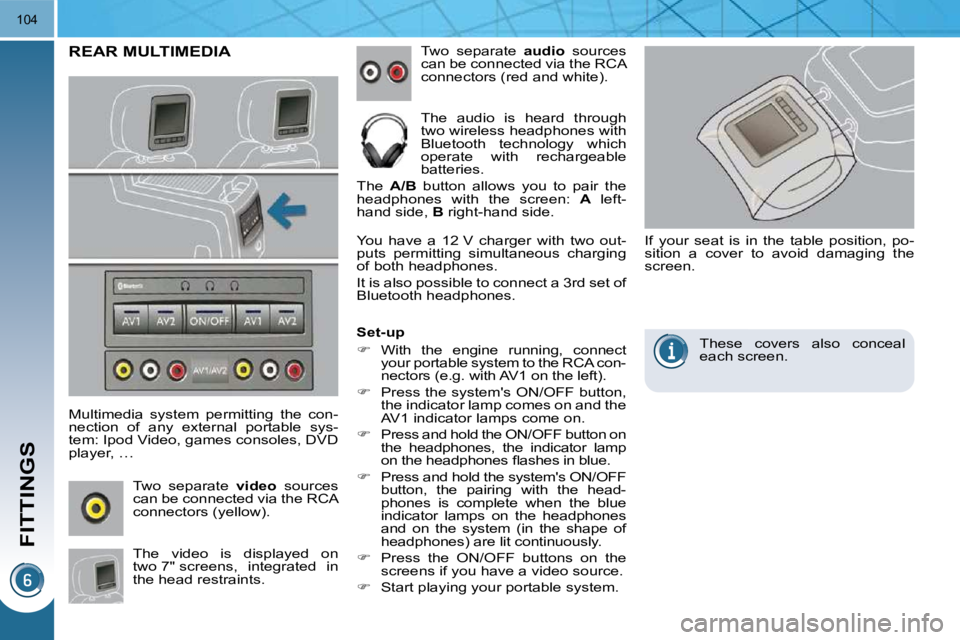

Set-up
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.
Press and hold the ON/OFF button on
the headphones, the indicator lamp
o n t h e h e a d p h o n e s fl a s h e s i n b l u e .
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue
indicator lamps on the headphones
and on the system (in the shape of
headphones) are lit continuously.
Press the ON/OFF buttons on the
screens if you have a video source.
Start playing your portable system. If your seat is in the table position, po-
sition a cover to avoid damaging the
screen.
These covers also conceal
each screen.
Page 122 of 345
FITTINGS
105
PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort. If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.
-
manual mode
Pull or press control A gently.
The blind stops when you release the control. -
automatic mode
Pull or press control A fi r m l y .
One press opens or closes the blind completely.
Pressing the control again stops the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing: If the blind re-opens during a closing
manoeuvre, and immediately after it
stops:
pull the control until the blind is
fully open,
press the control until the blind is
fully closed.
The safety anti-pinch function is not
operational during these operations.
Reinitialisation: if the blind's
supply is cut off while it is mov-
ing, the safety anti-pinch must
be reinitialised:
press the control until the blind is
fully closed,
continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
c o n fi r m i n g t h e r e i n i t i a l i s a t i o n .
Page 123 of 345
FITTINGS
106
BOOT FITTINGS (5 SEAT VERSION)

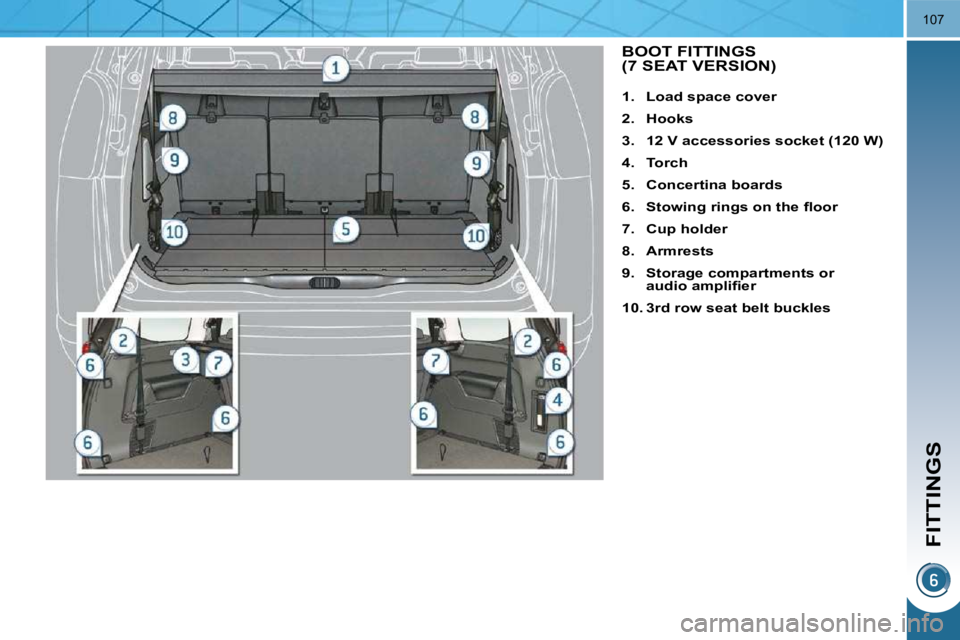

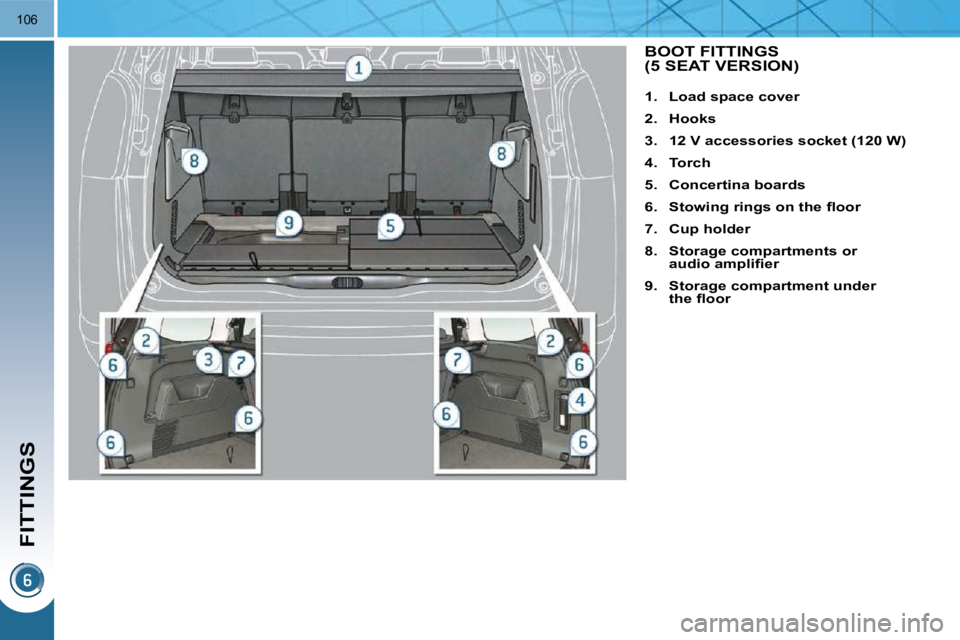

1. Load space cover
2. Hooks
3. 12 V accessories socket (120 W)
4. Torch
5. Concertina boards
6. S t o w i n g r i n g s o n t h e fl o o r
7. Cup holder
8. Storage compartments or
a u d i o a m p l i fi e r
9. Storage compartment under
t h e fl o o r
Page 124 of 345
FITTINGS
107
1. Load space cover
2. Hooks
3. 12 V accessories socket (120 W)
4. Torch
5. Concertina boards
6. S t o w i n g r i n g s o n t h e fl o o r
7. Cup holder
8. Armrests
9. Storage compartments or
a u d i o a m p l i fi e r
10. 3 rd row seat belt buckles
BOOT FITTINGS (7 SEAT VERSION)
Page 125 of 345
FITTINGS
108

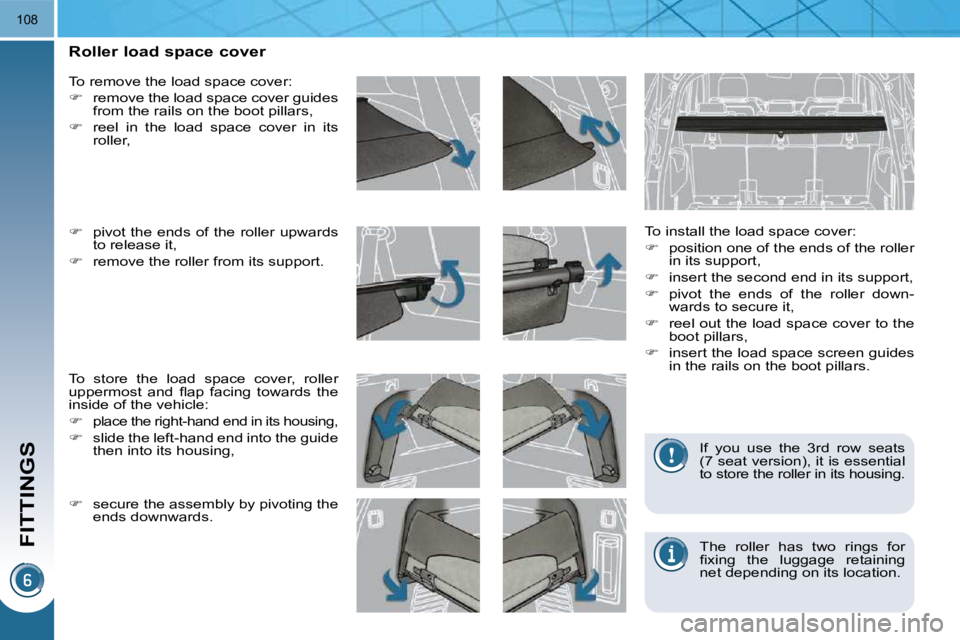

Roller load space cover To install the load space cover:
position one of the ends of the roller
in its support,
insert the second end in its support,
pivot the ends of the roller down-
wards to secure it,
reel out the load space cover to the
boot pillars,
insert the load space screen guides
in the rails on the boot pillars.
To remove the load space cover:
remove the load space cover guides
from the rails on the boot pillars,
reel in the load space cover in its
roller,
To store the load space cover, roller
u p p e r m o s t a n d fl a p f a c i n g t o w a r d s t h e
inside of the vehicle:
place the right-hand end in its housing,
slide the left-hand end into the guide
then into its housing,
pivot the ends of the roller upwards
to release it,
remove the roller from its support.
The roller has two rings for
fi x i n g t h e l u g g a g e r e t a i n i n g
net depending on its location.
If you use the 3 rd row seats
(7 seat version), it is essential
to store the roller in its housing.
secure the assembly by pivoting the
ends downwards.
Page 126 of 345
FITTINGS
109

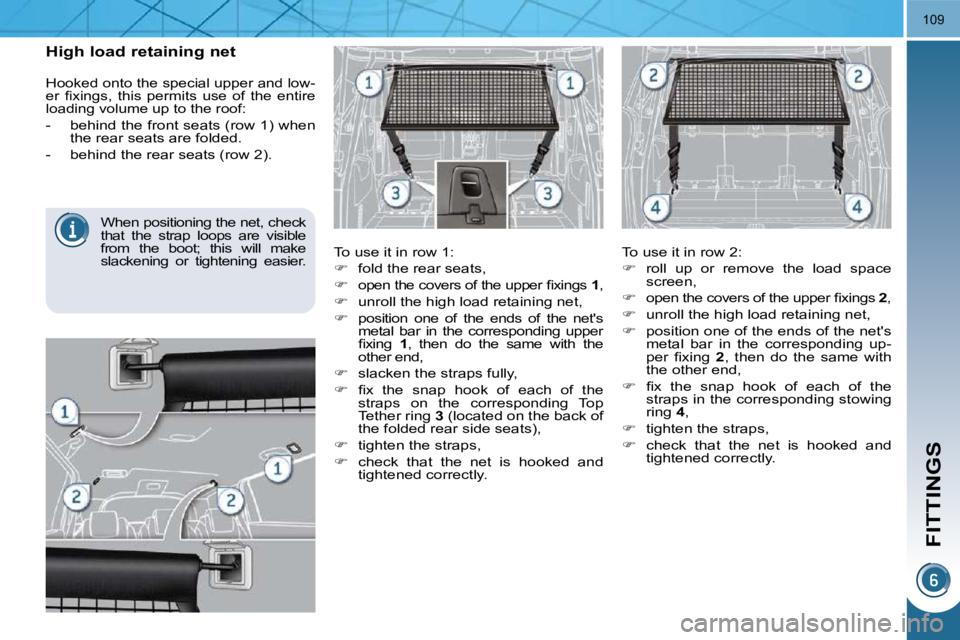

High load retaining net To use it in row 1:
fold the rear seats,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 1 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding upper
fi x i n g 1 , then do the same with the
other end,
slacken the straps fully,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps on the corresponding Top
Tether ring 3 (located on the back of
the folded rear side seats),
tighten the straps,
check that the net is hooked and
tightened correctly. To use it in row 2:
roll up or remove the load space
screen,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 2 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding up-
p e r fi x i n g 2 , then do the same with
the other end,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps in the corresponding stowing
ring 4 ,
tighten the straps,
check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible
from the boot; this will make
slackening or tightening easier.
Hooked onto the special upper and low-
e r fi x i n g s , t h i s p e r m i t s u s e o f t h e e n t i r e
loading volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).
Page 127 of 345
FITTINGS
110

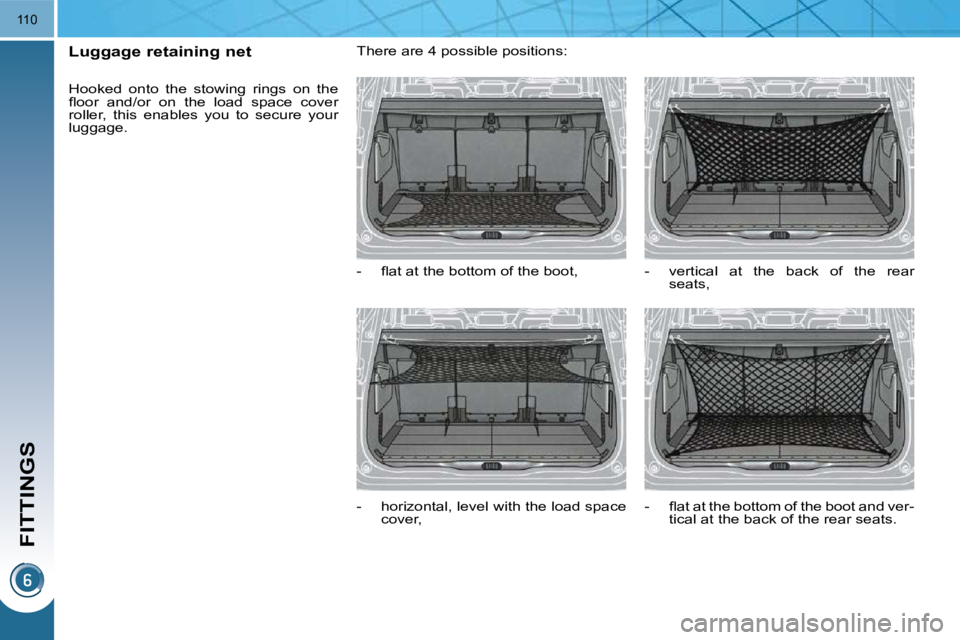

Luggage retaining net
Hooked onto the stowing rings on the
fl o o r a n d / o r o n t h e l o a d s p a c e c o v e r
roller, this enables you to secure your
luggage. There are 4 possible positions:
- fl a t a t t h e b o t t o m o f t h e b o o t ,
- horizontal, level with the load space
cover, - vertical at the back of the rear
seats,
- fl a t a t t h e b o t t o m o f t h e b o o t a n d v e r - tical at the back of the rear seats.
Page 128 of 345
FITTINGS
111

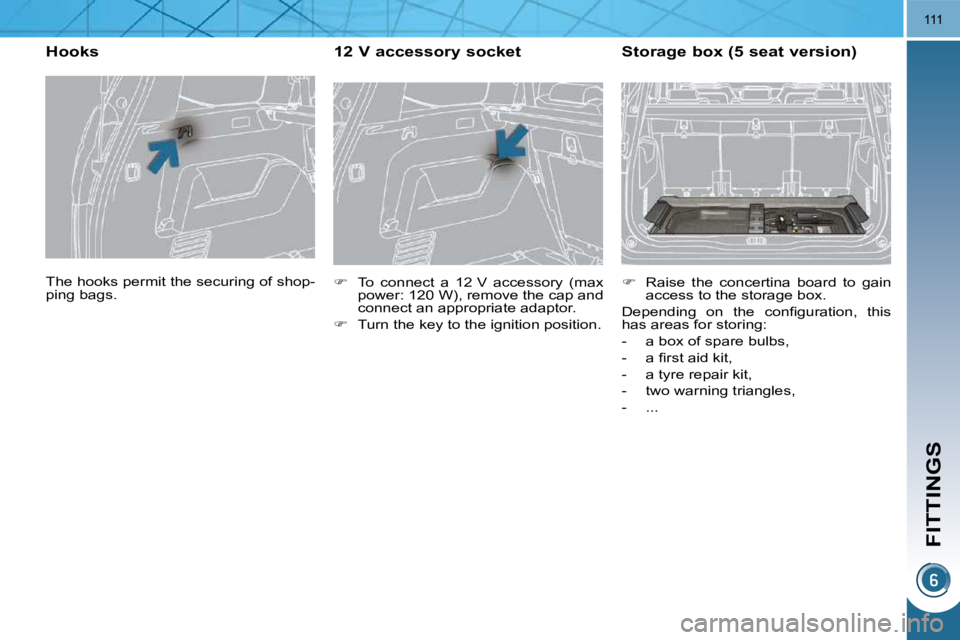

The hooks permit the securing of shop-
ping bags.
Hooks
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
Turn the key to the ignition position.
12 V accessory socket
Raise the concertina board to gain
access to the storage box.
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h i s
has areas for storing:
- a box of spare bulbs,
- a fi r s t a i d k i t ,
- a tyre repair kit,
- two warning triangles,
- ... Storage box (5 seat version)
Page 129 of 345
FITTINGS
112

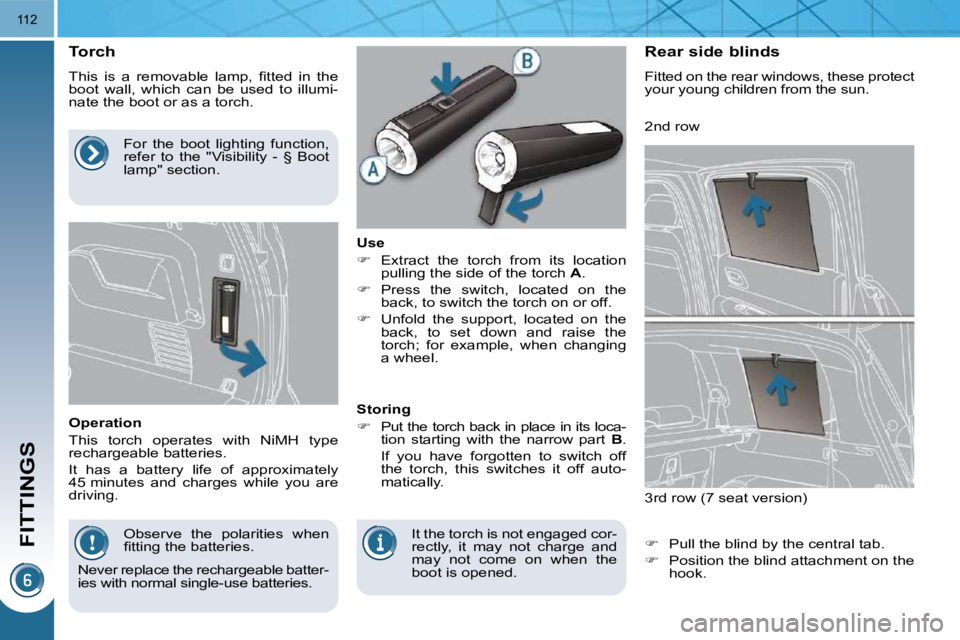

Torch
T h i s i s a r e m o v a b l e l a m p , fi t t e d i n t h e
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e b a t t e r i e s .
Never replace the rechargeable batter-
ies with normal single-use batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row
Page 130 of 345
FITTINGS
107
1. Load space cover
2. Hooks
3. 12 V accessories socket (120 W)
4. Torch
5. Concertina boards
6. S t o w i n g r i n g s o n t h e fl o o r
7. Cup holder
8. Armrests
9. Storage compartments or
a u d i o a m p l i fi e r
10. 3 rd row seat belt buckles
BOOT FITTINGS (7 SEAT VERSION)
