FITTINGS
100

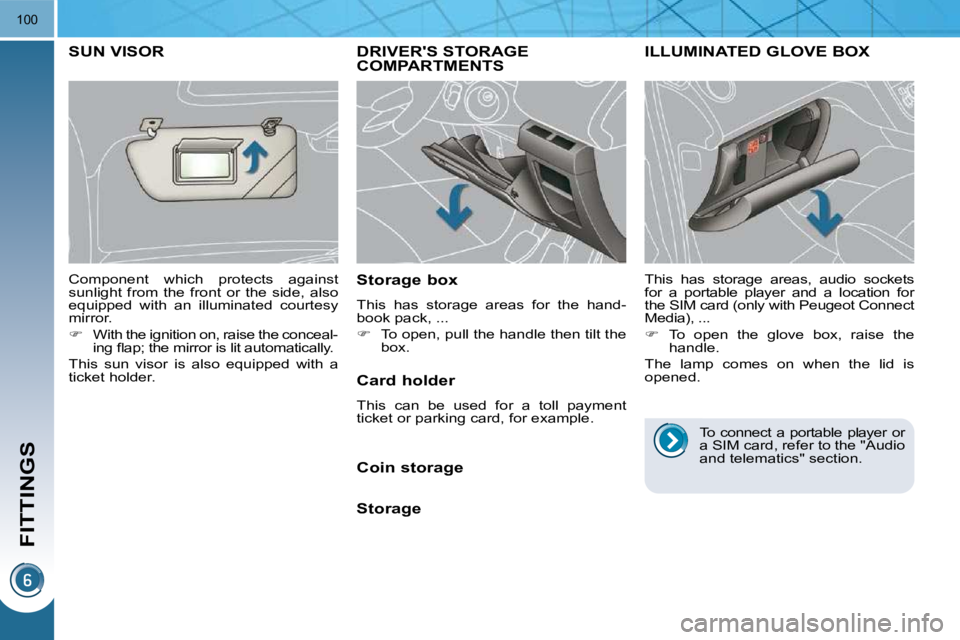

DRIVER'S STORAGE COMPARTMENTS
Storage box
This has storage areas for the hand-
book pack, ...
To open, pull the handle then tilt the
box.
ILLUMINATED GLOVE BOX
This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media), ...
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the conceal-
i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t i c a l l y .
This sun visor is also equipped with a
ticket holder. Card holder
This can be used for a toll payment
ticket or parking card, for example.
Coin storage
Storage To connect a portable player or
a SIM card, refer to the "Audio
and telematics" section.
Page 112 of 345
FITTINGS
101

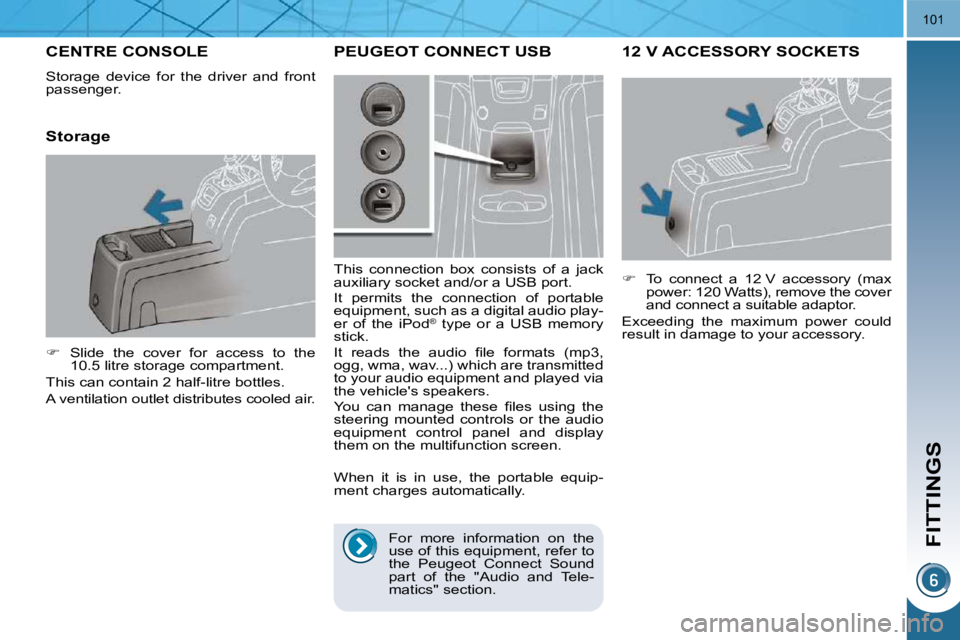

12 V ACCESSORY SOCKETS
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
CENTRE CONSOLE
Storage device for the driver and front
passenger.
Storage
Slide the cover for access to the
10.5 litre storage compartment.
This can contain 2 half-litre bottles.
A ventilation outlet distributes cooled air.
PEUGEOT CONNECT USB
This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio play-
er of the iPod ®
type or a USB memory
stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the
use of this equipment, refer to
the Peugeot Connect Sound
part of the "Audio and Tele-
matics" section.
Page 113 of 345
FITTINGS
102
To avoid any risk of jamming
of the pedals:

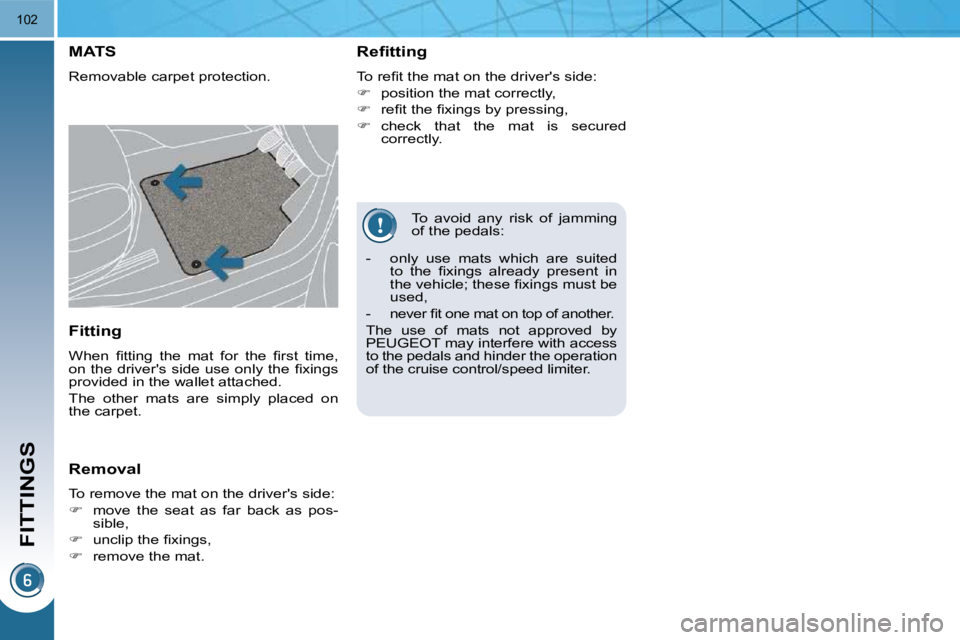

MATS
Removable carpet protection. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured
correctly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as pos-
sible,
u n c l i p t h e fi x i n g s ,
remove the mat. - only use mats which are suited
t o t h e fi x i n g s a l r e a d y p r e s e n t i n
t h e v e h i c l e ; t h e s e fi x i n g s m u s t b e
used,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.
Page 114 of 345
FITTINGS
103
STORAGE COMPARTMENTS UNDER THE REAR FOOTWELLS
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl a p s w i t h a h a n d l e A .

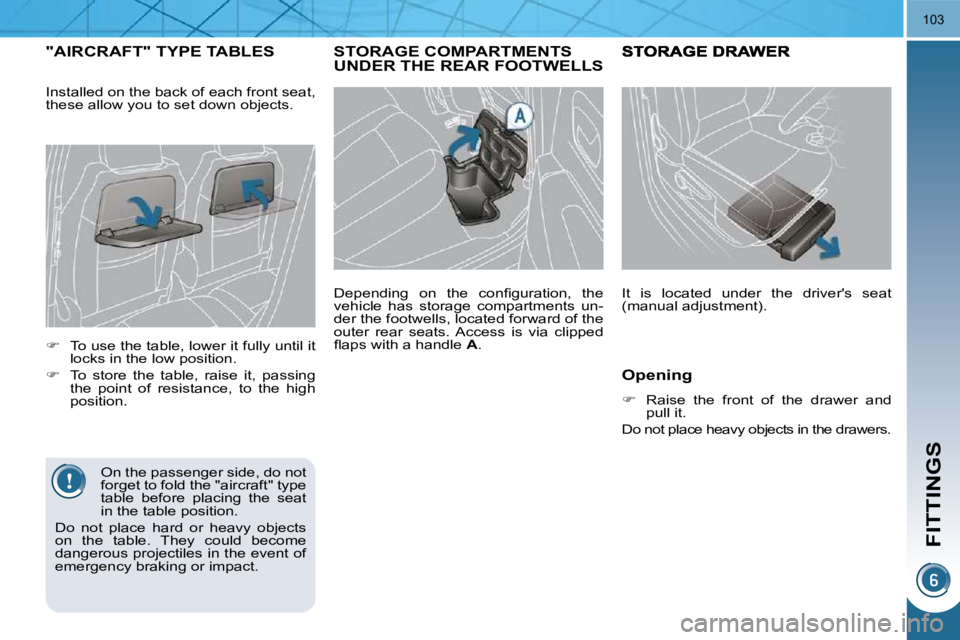

"AIRCRAFT" TYPE TABLES
To use the table, lower it fully until it
locks in the low position.
To store the table, raise it, passing
the point of resistance, to the high
position.
On the passenger side, do not
forget to fold the "aircraft" type
table before placing the seat
in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact.
Installed on the back of each front seat,
these allow you to set down objects.
It is located under the driver's seat
(manual adjustment).
Opening
Raise the front of the drawer and
pull it.
Do not place heavy objects in the drawers.
Page 115 of 345
FITTINGS
104

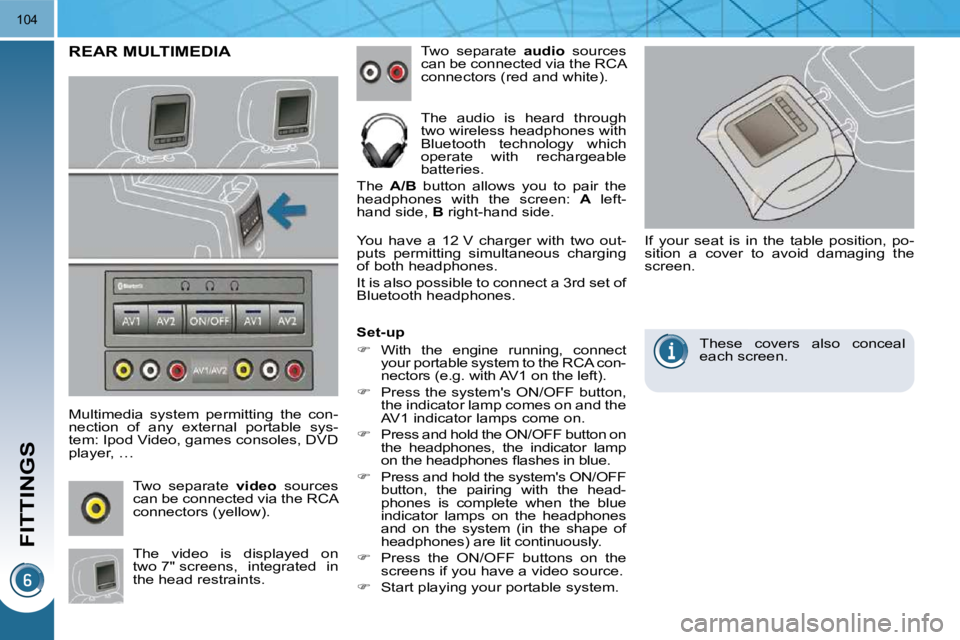

REAR MULTIMEDIA
Multimedia system permitting the con-
nection of any external portable sys-
tem: Ipod Video, games consoles, DVD
player, … Two separate
audio sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B button allows you to pair the
headphones with the screen: A left-
hand side, B right-hand side.
The video is displayed on
two 7" screens, integrated in
the head restraints.
Two separate
video sources
can be connected via the RCA
connectors (yellow). You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3 rd set of
Bluetooth headphones.
Set-up
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.
Press and hold the ON/OFF button on
the headphones, the indicator lamp
o n t h e h e a d p h o n e s fl a s h e s i n b l u e .
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue
indicator lamps on the headphones
and on the system (in the shape of
headphones) are lit continuously.
Press the ON/OFF buttons on the
screens if you have a video source.
Start playing your portable system. If your seat is in the table position, po-
sition a cover to avoid damaging the
screen.
These covers also conceal
each screen.
Page 116 of 345
FITTINGS
105

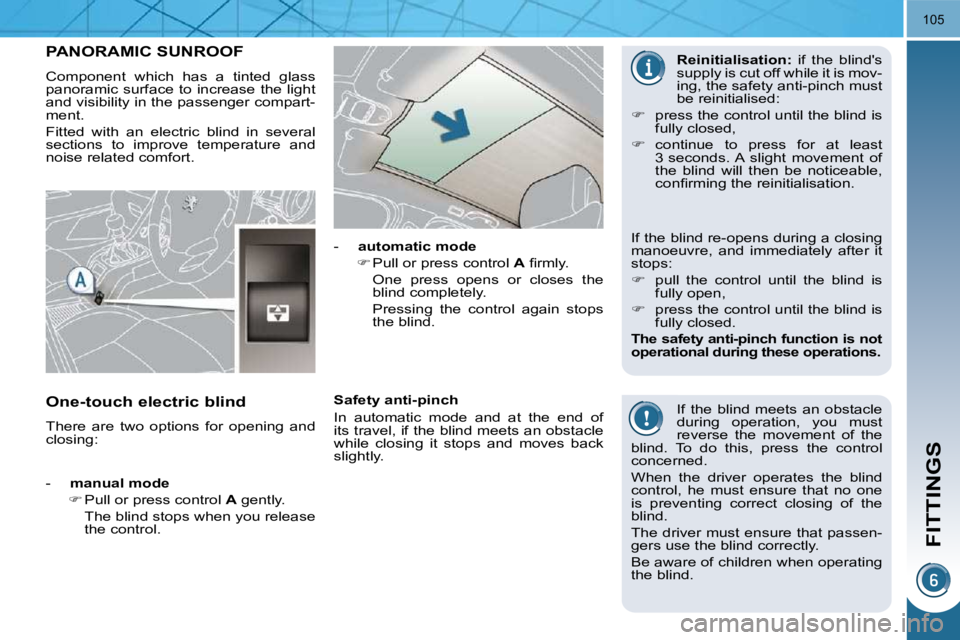

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort. If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.
-
manual mode
Pull or press control A gently.
The blind stops when you release the control. -
automatic mode
Pull or press control A fi r m l y .
One press opens or closes the blind completely.
Pressing the control again stops the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing: If the blind re-opens during a closing
manoeuvre, and immediately after it
stops:
pull the control until the blind is
fully open,
press the control until the blind is
fully closed.
The safety anti-pinch function is not
operational during these operations.
Reinitialisation: if the blind's
supply is cut off while it is mov-
ing, the safety anti-pinch must
be reinitialised:
press the control until the blind is
fully closed,
continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
c o n fi r m i n g t h e r e i n i t i a l i s a t i o n .
Page 117 of 345
FITTINGS
100
DRIVER'S STORAGE COMPARTMENTS
Storage box
This has storage areas for the hand-
book pack, ...
To open, pull the handle then tilt the
box.
ILLUMINATED GLOVE BOX
This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media), ...
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the conceal-
i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t i c a l l y .
This sun visor is also equipped with a
ticket holder. Card holder
This can be used for a toll payment
ticket or parking card, for example.
Coin storage
Storage To connect a portable player or
a SIM card, refer to the "Audio
and telematics" section.
Page 118 of 345
FITTINGS
101
12 V ACCESSORY SOCKETS
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
CENTRE CONSOLE
Storage device for the driver and front
passenger.
Storage
Slide the cover for access to the
10.5 litre storage compartment.
This can contain 2 half-litre bottles.
A ventilation outlet distributes cooled air.
PEUGEOT CONNECT USB
This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio play-
er of the iPod ®
type or a USB memory
stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the
use of this equipment, refer to
the Peugeot Connect Sound
part of the "Audio and Tele-
matics" section.
Page 119 of 345
FITTINGS
102
To avoid any risk of jamming
of the pedals:
MATS
Removable carpet protection. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured
correctly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as pos-
sible,
u n c l i p t h e fi x i n g s ,
remove the mat. - only use mats which are suited
t o t h e fi x i n g s a l r e a d y p r e s e n t i n
t h e v e h i c l e ; t h e s e fi x i n g s m u s t b e
used,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.
Page 120 of 345
FITTINGS
103
STORAGE COMPARTMENTS UNDER THE REAR FOOTWELLS
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl a p s w i t h a h a n d l e A .
"AIRCRAFT" TYPE TABLES
To use the table, lower it fully until it
locks in the low position.
To store the table, raise it, passing
the point of resistance, to the high
position.
On the passenger side, do not
forget to fold the "aircraft" type
table before placing the seat
in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact.
Installed on the back of each front seat,
these allow you to set down objects.
It is located under the driver's seat
(manual adjustment).
Opening
Raise the front of the drawer and
pull it.
Do not place heavy objects in the drawers.
