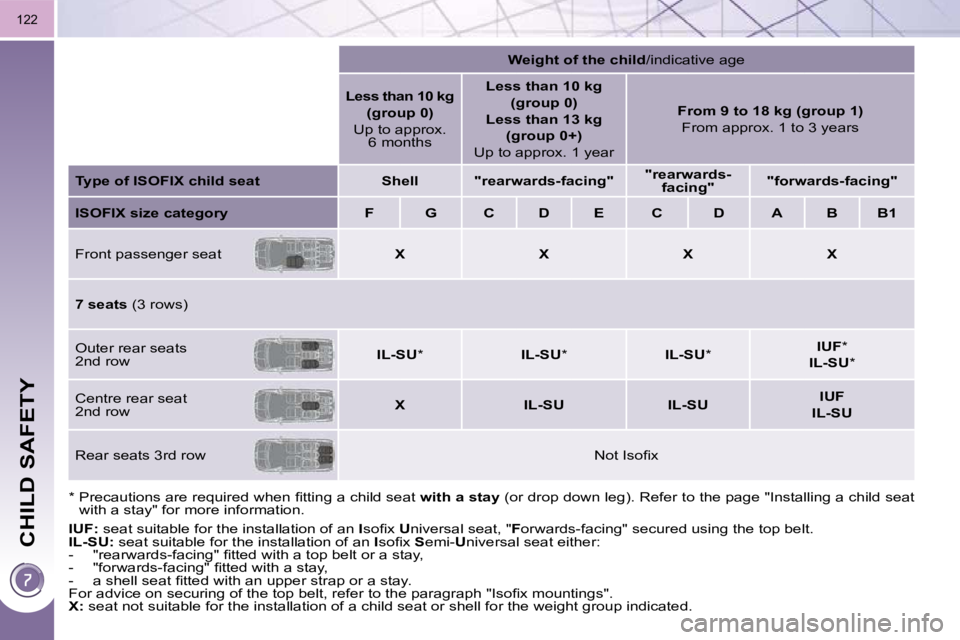

CHILD SAFETY
122
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orwards-facing" secured using the top belt.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r w a r d s - f a c i n g " fi t t e d w i t h a t o p b e l t o r a s t a y ,
- " f o r w a r d s - f a c i n g " fi t t e d w i t h a s t a y ,
- a s h e l l s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s t a y .
F o r a d v i c e o n s e c u r i n g o f t h e t o p b e l t , r e f e r t o t h e p a r a g r a p h " I s o fi x m o u n t i n g s " .
X: seat not suitable for the installation of a child seat or shell for the weight group indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Shell "rearwards-facing"
"rearwards-
facing"
"forwards-facing"
ISOFIX size category F G C D E C D A B B1
Front passenger seat
X X X X
7 seats (3 rows)
Outer rear seats
2nd row
IL-SU * IL-SU * IL-SU *
IUF *
IL-SU *
Centre rear seat
2nd row
X IL-SU IL-SU
IUF
IL-SU
Rear seats 3rd row
N o t I s o fi x
* P r e c a u t i o n s a r e r e q u i r e d w h e n fi t t i n g a c h i l d s e a t with a stay (or drop down leg). Refer to the page "Installing a child seat
with a stay" for more information.
Page 152 of 345
CHILD SAFETY
123
This system is independent
and in no circumstances does
it take the place of the central
locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.

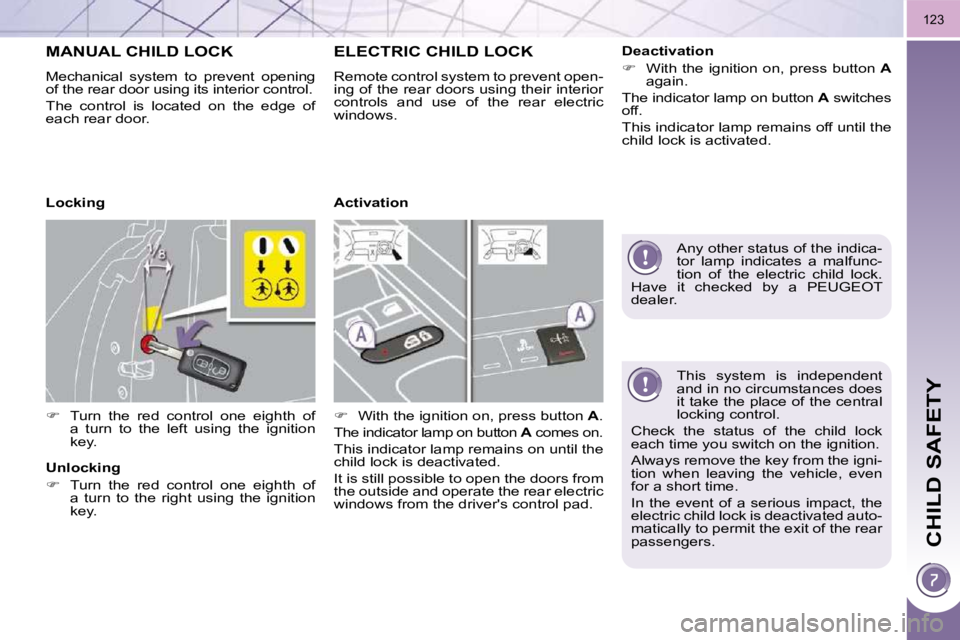

MANUAL CHILD LOCK
Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.
Turn the red control one eighth of
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric
windows.
With the ignition on, press button A .
The indicator lamp on button A comes on.
This indicator lamp remains on until the
child lock is deactivated.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.
Locking
Unlocking
Turn the red control one eighth of
a turn to the right using the ignition
key. Activation
Deactivation
With the ignition on, press button A
again.
The indicator lamp on button A switches
off.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indica-
tor lamp indicates a malfunc-
tion of the electric child lock.
Have it checked by a PEUGEOT
dealer.
Page 153 of 345
124

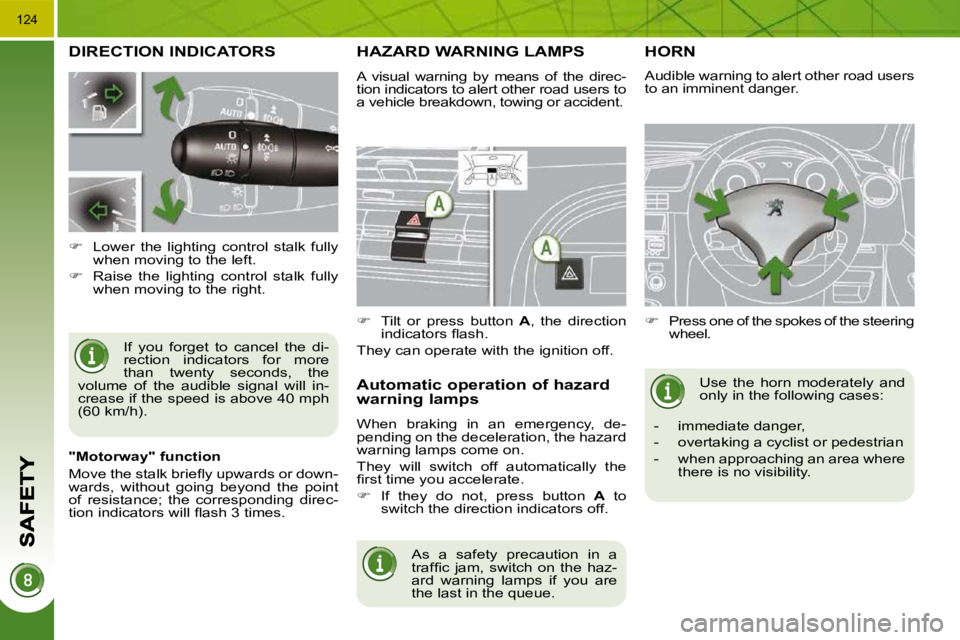

DIRECTION INDICATORS
If you forget to cancel the di-
rection indicators for more
than twenty seconds, the
volume of the audible signal will in-
crease if the speed is above 40 mph
(60 km/h).
Lower the lighting control stalk fully
when moving to the left.
Raise the lighting control stalk fully
when moving to the right.
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
As a safety precaution in a
t r a f fi c j a m , s w i t c h o n t h e h a z -
ard warning lamps if you are
the last in the queue.
Tilt or press button A , the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off.
HORN
Press one of the spokes of the steering
wheel.
Use the horn moderately and
only in the following cases:
- immediate danger,
- overtaking a cyclist or pedestrian
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
"Motorway" function
M o v e t h e s t a l k b r i e fl y u p w a r d s o r d o w n -
wards, without going beyond the point
of resistance; the corresponding direc-
t i o n i n d i c a t o r s w i l l fl a s h 3 t i m e s .
Page 154 of 345
125

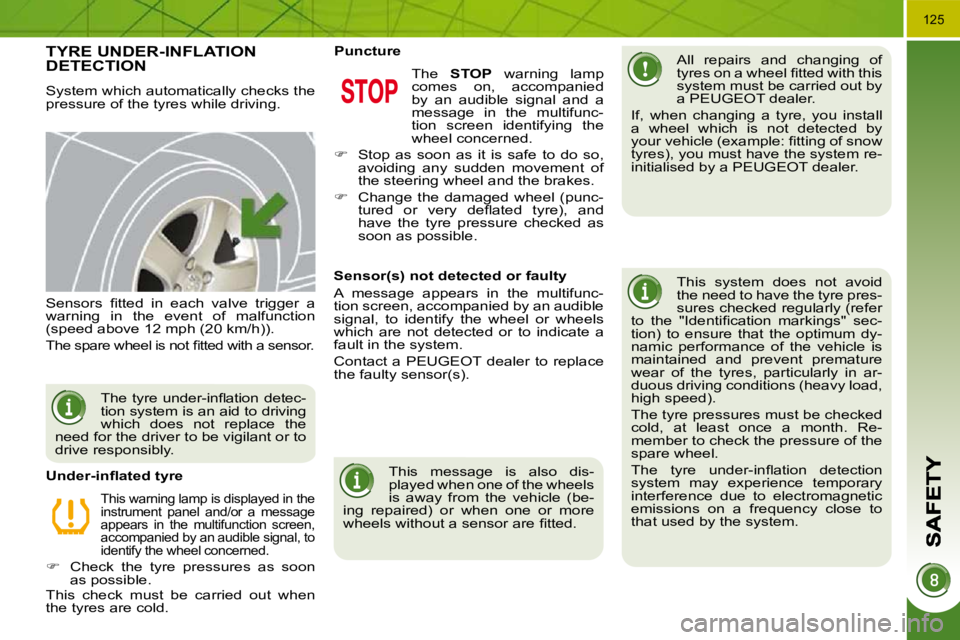

TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install
a wheel which is not detected by
y o u r v e h i c l e ( e x a m p l e : fi t t i n g o f s n o w
tyres), you must have the system re-
initialised by a PEUGEOT dealer.
This system does not avoid
the need to have the tyre pres-
sures checked regularly (refer
t o t h e " I d e n t i fi c a t i o n m a r k i n g s " s e c -
tion) to ensure that the optimum dy-
namic performance of the vehicle is
maintained and prevent premature
wear of the tyres, particularly in ar-
duous driving conditions (heavy load,
high speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of the
spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to electromagnetic
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a s e n s o r .
This warning lamp is displayed in the
instrument panel and/or a message
appears in the multifunction screen,
accompanied by an audible signal, to
identify the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
U n d e r - i n fl a t e d t y r e The
STOP warning lamp
comes on, accompanied
by an audible signal and a
message in the multifunc-
tion screen identifying the
wheel concerned.
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c -
tion system is an aid to driving
which does not replace the
need for the driver to be vigilant or to
drive responsibly. Sensor(s) not detected or faulty
A message appears in the multifunc-
tion screen, accompanied by an audible
signal, to identify the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also dis-
played when one of the wheels
is away from the vehicle (be-
ing repaired) or when one or more
w h e e l s w i t h o u t a s e n s o r a r e fi t t e d .
Page 155 of 345
126

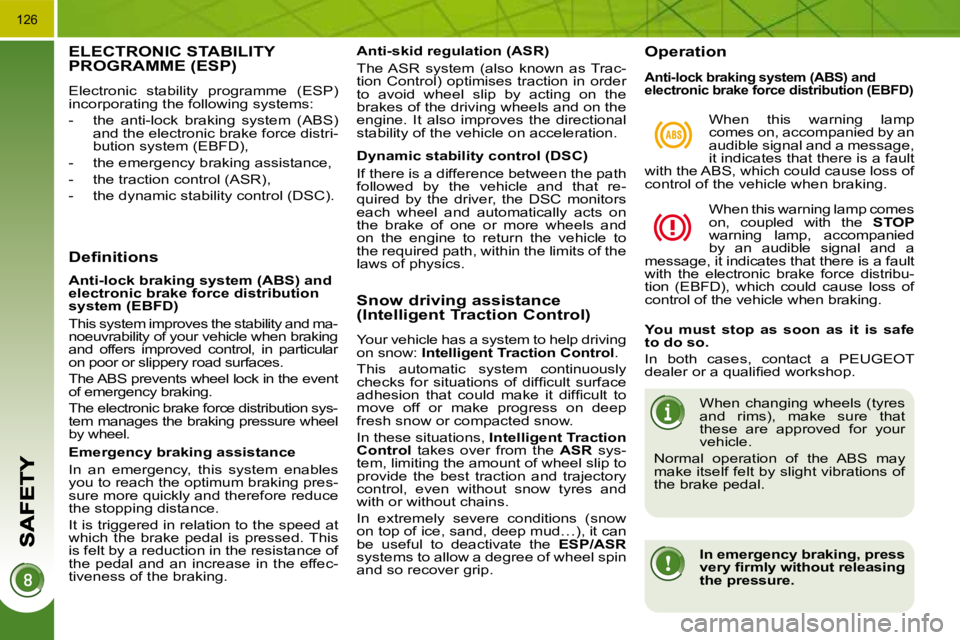

ELECTRONIC STABILITY PROGRAMME (ESP)
Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the electronic brake force distri-
bution system (EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Definitions
Anti-skid regulation (ASR)
The ASR system (also known as Trac-
tion Control) optimises traction in order
to avoid wheel slip by acting on the
brakes of the driving wheels and on the
engine. It also improves the directional
stability of the vehicle on acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.
Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
electronic brake force distribution
system (EBFD)
This system improves the stability and ma-
noeuvrability of your vehicle when braking
and offers improved control, in particular
on poor or slippery road surfaces.
The ABS prevents wheel lock in the event
of emergency braking.
The electronic brake force distribution sys-
tem manages the braking pressure wheel
by wheel. Operation
When this warning lamp
comes on, accompanied by an
audible signal and a message,
it indicates that there is a fault
with the ABS, which could cause loss of
control of the vehicle when braking.
When this warning lamp comes
on, coupled with the STOP
warning lamp, accompanied
by an audible signal and a
message, it indicates that there is a fault
with the electronic brake force distribu-
tion (EBFD), which could cause loss of
control of the vehicle when braking.
You must stop as soon as it is safe
to do so.
In both cases, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
When changing wheels (tyres
and rims), make sure that
these are approved for your
vehicle.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Anti-lock braking system (ABS) and
electronic brake force distribution (EBFD)
Snow driving assistance (Intelligent Traction Control)
Your vehicle has a system to help driving
on snow: Intelligent Traction Control .
This automatic system continuously
c h e c k s f o r s i t u a t i o n s o f d i f fi c u l t s u r f a c e
a d h e s i o n t h a t c o u l d m a k e i t d i f fi c u l t t o
move off or make progress on deep
fresh snow or compacted snow.
In these situations, Intelligent Traction
Control takes over from the ASR sys-
tem, limiting the amount of wheel slip to
provide the best traction and trajectory
control, even without snow tyres and
with or without chains.
In extremely severe conditions (snow
on top of ice, sand, deep mud…), it can
be useful to deactivate the ESP/ASR
systems to allow a degree of wheel spin
and so recover grip.
Page 156 of 345
127

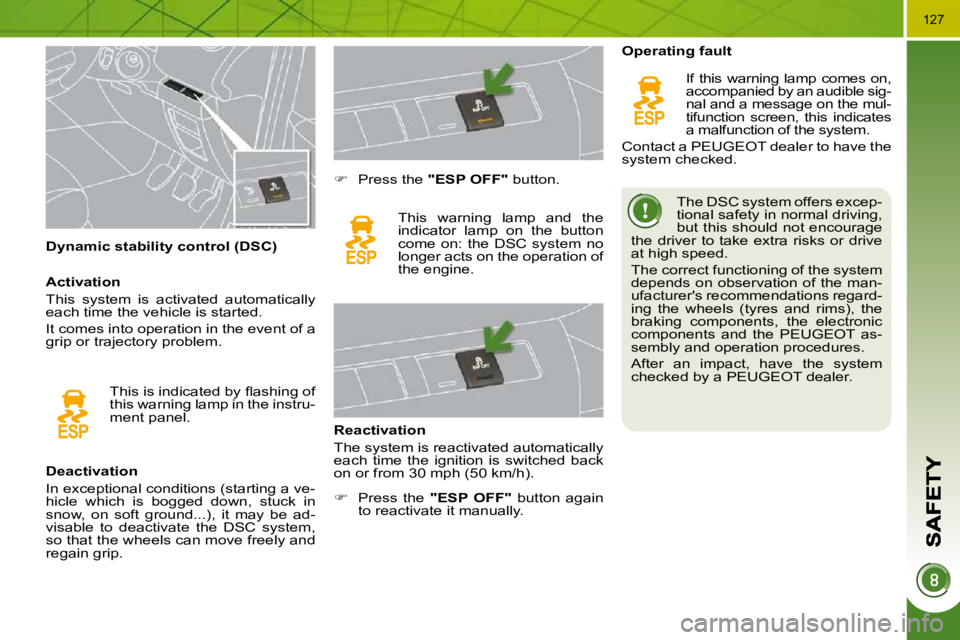

Dynamic stability control (DSC) The DSC system offers excep-
tional safety in normal driving,
but this should not encourage
the driver to take extra risks or drive
at high speed.
The correct functioning of the system
depends on observation of the man-
ufacturer's recommendations regard-
ing the wheels (tyres and rims), the
braking components, the electronic
components and the PEUGEOT as-
sembly and operation procedures.
After an impact, have the system
checked by a PEUGEOT dealer.
Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the DSC system,
so that the wheels can move freely and
regain grip.
Press the "ESP OFF" button.
This warning lamp and the
indicator lamp on the button
come on: the DSC system no
longer acts on the operation of
the engine.
Reactivation
The system is reactivated automatically
each time the ignition is switched back
on or from 30 mph (50 km/h). Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, this indicates
a malfunction of the system.
Contact a PEUGEOT dealer to have the
system checked.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp in the instru-
ment panel.
Activation
This system is activated automatically
each time the vehicle is started.
It comes into operation in the event of a
grip or trajectory problem.
Press the "ESP OFF" button again
to reactivate it manually.
Page 157 of 345
126
ELECTRONIC STABILITY PROGRAMME (ESP)
Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the electronic brake force distri-
bution system (EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Definitions
Anti-skid regulation (ASR)
The ASR system (also known as Trac-
tion Control) optimises traction in order
to avoid wheel slip by acting on the
brakes of the driving wheels and on the
engine. It also improves the directional
stability of the vehicle on acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.
Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
electronic brake force distribution
system (EBFD)
This system improves the stability and ma-
noeuvrability of your vehicle when braking
and offers improved control, in particular
on poor or slippery road surfaces.
The ABS prevents wheel lock in the event
of emergency braking.
The electronic brake force distribution sys-
tem manages the braking pressure wheel
by wheel. Operation
When this warning lamp
comes on, accompanied by an
audible signal and a message,
it indicates that there is a fault
with the ABS, which could cause loss of
control of the vehicle when braking.
When this warning lamp comes
on, coupled with the STOP
warning lamp, accompanied
by an audible signal and a
message, it indicates that there is a fault
with the electronic brake force distribu-
tion (EBFD), which could cause loss of
control of the vehicle when braking.
You must stop as soon as it is safe
to do so.
In both cases, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
When changing wheels (tyres
and rims), make sure that
these are approved for your
vehicle.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Anti-lock braking system (ABS) and
electronic brake force distribution (EBFD)
Snow driving assistance (Intelligent Traction Control)
Your vehicle has a system to help driving
on snow: Intelligent Traction Control .
This automatic system continuously
c h e c k s f o r s i t u a t i o n s o f d i f fi c u l t s u r f a c e
a d h e s i o n t h a t c o u l d m a k e i t d i f fi c u l t t o
move off or make progress on deep
fresh snow or compacted snow.
In these situations, Intelligent Traction
Control takes over from the ASR sys-
tem, limiting the amount of wheel slip to
provide the best traction and trajectory
control, even without snow tyres and
with or without chains.
In extremely severe conditions (snow
on top of ice, sand, deep mud…), it can
be useful to deactivate the ESP/ASR
systems to allow a degree of wheel spin
and so recover grip.
Page 158 of 345
128
Height adjustment
Front seat belt not fastened/
unfastened warning lamp
Fastening

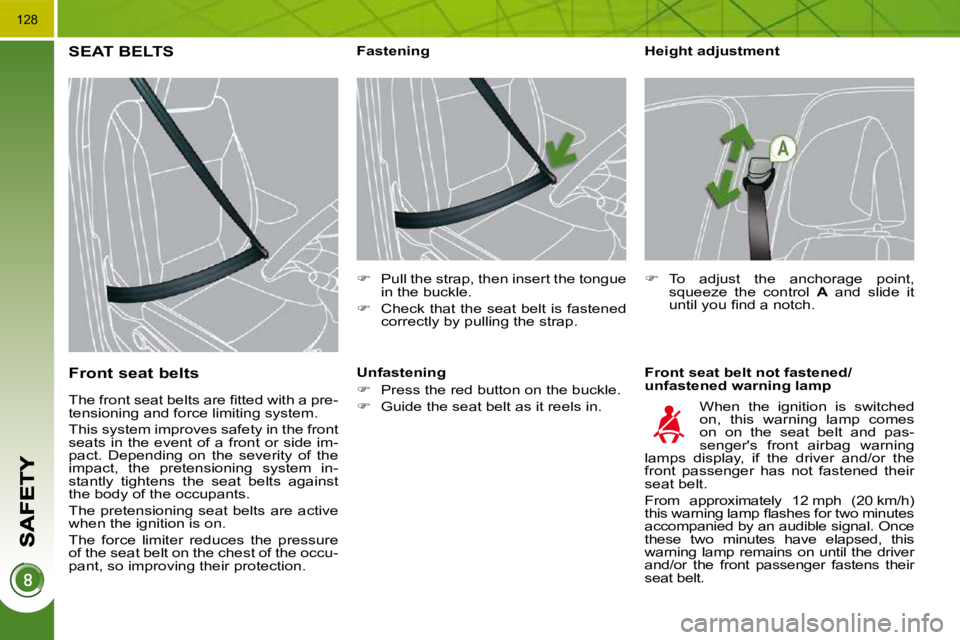

Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To adjust the anchorage point,
squeeze the control A and slide it
u n t i l y o u fi n d a n o t c h .
When the ignition is switched
on, this warning lamp comes
on on the seat belt and pas-
senger's front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their
seat belt.
From approximately 12 mph (20 km/h)
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the driver
and/or the front passenger fastens their
seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in. SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system in-
stantly tightens the seat belts against
the body of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so improving their protection.
Page 159 of 345
129
1. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.
2. Front left seat belt warning lamp.
3. Front right seat belt warning lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt not fastened/unfastened

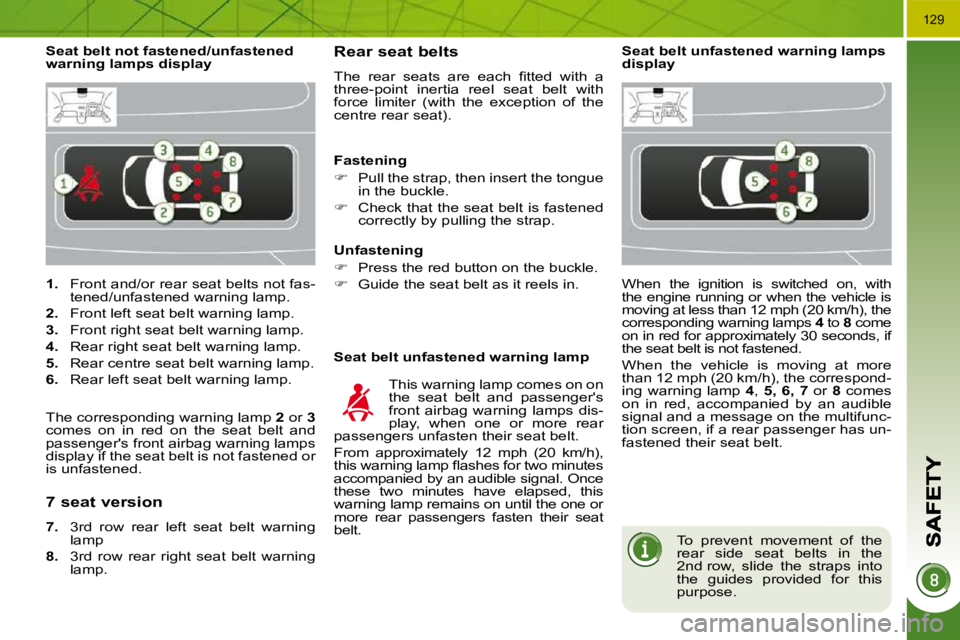

warning lamps display
Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
force limiter (with the exception of the
centre rear seat).
Seat belt unfastened warning lamp
This warning lamp comes on on
the seat belt and passenger's
front airbag warning lamps dis-
play, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the one or
more rear passengers fasten their seat
belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened.
7 seat version
7. 3 rd row rear left seat belt warning
lamp
8.
3 rd row rear right seat belt warning
lamp. Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or when the vehicle is
moving at less than 12 mph (20 km/h), the
corresponding warning lamps
4 to 8 come
on in red for approximately 30 seconds, if
the seat belt is not fastened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning lamp 4 , 5, 6, 7 or 8 comes
on in red, accompanied by an audible
signal and a message on the multifunc-
tion screen, if a rear passenger has un-
fastened their seat belt.
To prevent movement of the
rear side seat belts in the
2 nd row, slide the straps into
the guides provided for this
purpose.
Page 160 of 345
130
2 ndrow rear centre seat belt
Installation

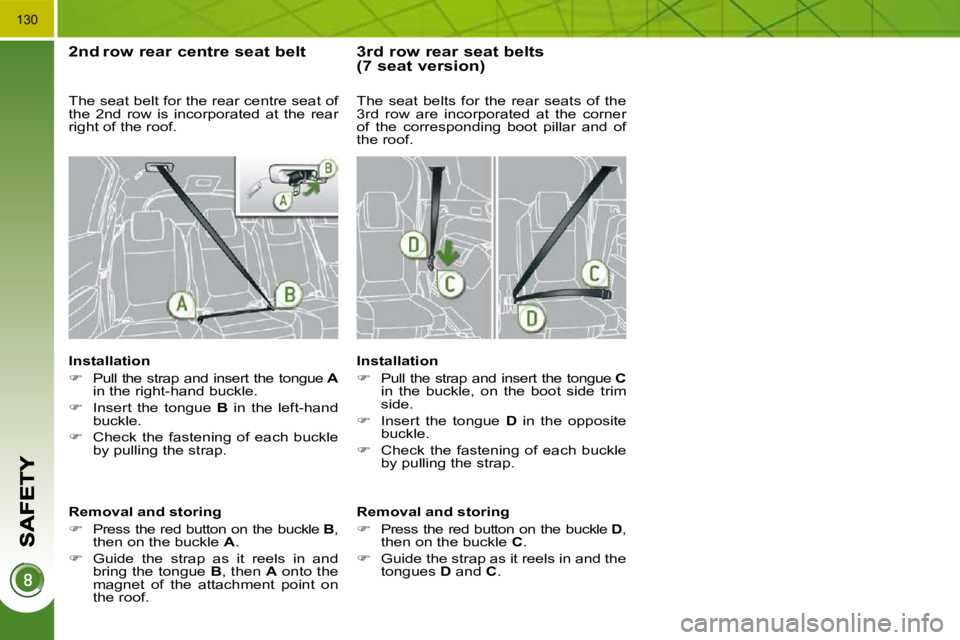

Pull the strap and insert the tongue A
in the right-hand buckle.
Insert the tongue B in the left-hand
buckle.
Check the fastening of each buckle
by pulling the strap.
Removal and storing
Press the red button on the buckle B ,
then on the buckle A .
Guide the strap as it reels in and
bring the tongue B , then A onto the
magnet of the attachment point on
the roof.
3 rd row rear seat belts (7 seat version)
Installation
Pull the strap and insert the tongue C
in the buckle, on the boot side trim
side.
Insert the tongue D in the opposite
buckle.
Check the fastening of each buckle
by pulling the strap.
The seat belts for the rear seats of the
3 rd row are incorporated at the corner
of the corresponding boot pillar and of
the roof.
Removal and storing
Press the red button on the buckle D ,
then on the buckle C .
Guide the strap as it reels in and the
tongues D and C .
The seat belt for the rear centre seat of
the 2 nd row is incorporated at the rear
right of the roof.
