FITTINGS
108
Roller load space cover To install the load space cover:
position one of the ends of the roller
in its support,
insert the second end in its support,
pivot the ends of the roller down-
wards to secure it,
reel out the load space cover to the
boot pillars,
insert the load space screen guides
in the rails on the boot pillars.
To remove the load space cover:
remove the load space cover guides
from the rails on the boot pillars,
reel in the load space cover in its
roller,
To store the load space cover, roller
u p p e r m o s t a n d fl a p f a c i n g t o w a r d s t h e
inside of the vehicle:
place the right-hand end in its housing,
slide the left-hand end into the guide
then into its housing,
pivot the ends of the roller upwards
to release it,
remove the roller from its support.
The roller has two rings for
fi x i n g t h e l u g g a g e r e t a i n i n g
net depending on its location.
If you use the 3 rd row seats
(7 seat version), it is essential
to store the roller in its housing.
secure the assembly by pivoting the
ends downwards.
Page 132 of 345
FITTINGS
109
High load retaining net To use it in row 1:
fold the rear seats,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 1 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding upper
fi x i n g 1 , then do the same with the
other end,
slacken the straps fully,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps on the corresponding Top
Tether ring 3 (located on the back of
the folded rear side seats),
tighten the straps,
check that the net is hooked and
tightened correctly. To use it in row 2:
roll up or remove the load space
screen,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 2 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding up-
p e r fi x i n g 2 , then do the same with
the other end,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps in the corresponding stowing
ring 4 ,
tighten the straps,
check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible
from the boot; this will make
slackening or tightening easier.
Hooked onto the special upper and low-
e r fi x i n g s , t h i s p e r m i t s u s e o f t h e e n t i r e
loading volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).
Page 133 of 345
FITTINGS
110
Luggage retaining net
Hooked onto the stowing rings on the
fl o o r a n d / o r o n t h e l o a d s p a c e c o v e r
roller, this enables you to secure your
luggage. There are 4 possible positions:
- fl a t a t t h e b o t t o m o f t h e b o o t ,
- horizontal, level with the load space
cover, - vertical at the back of the rear
seats,
- fl a t a t t h e b o t t o m o f t h e b o o t a n d v e r - tical at the back of the rear seats.
Page 134 of 345
FITTINGS
111
The hooks permit the securing of shop-
ping bags.
Hooks
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
Turn the key to the ignition position.
12 V accessory socket
Raise the concertina board to gain
access to the storage box.
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h i s
has areas for storing:
- a box of spare bulbs,
- a fi r s t a i d k i t ,
- a tyre repair kit,
- two warning triangles,
- ... Storage box (5 seat version)
Page 135 of 345
FITTINGS
112

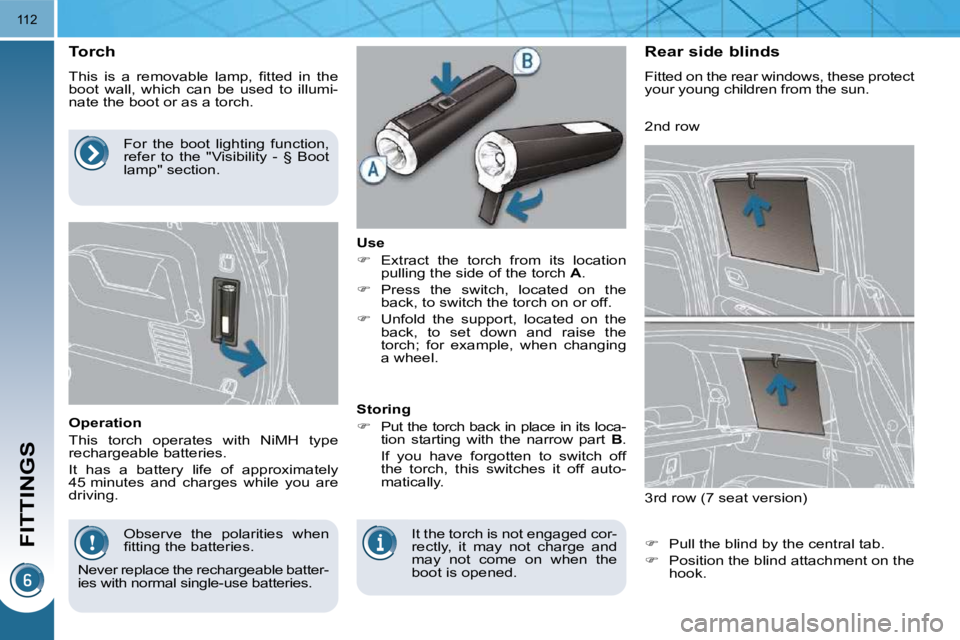

Torch
T h i s i s a r e m o v a b l e l a m p , fi t t e d i n t h e
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e b a t t e r i e s .
Never replace the rechargeable batter-
ies with normal single-use batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row
Page 136 of 345
FITTINGS
108
Roller load space cover To install the load space cover:
position one of the ends of the roller
in its support,
insert the second end in its support,
pivot the ends of the roller down-
wards to secure it,
reel out the load space cover to the
boot pillars,
insert the load space screen guides
in the rails on the boot pillars.
To remove the load space cover:
remove the load space cover guides
from the rails on the boot pillars,
reel in the load space cover in its
roller,
To store the load space cover, roller
u p p e r m o s t a n d fl a p f a c i n g t o w a r d s t h e
inside of the vehicle:
place the right-hand end in its housing,
slide the left-hand end into the guide
then into its housing,
pivot the ends of the roller upwards
to release it,
remove the roller from its support.
The roller has two rings for
fi x i n g t h e l u g g a g e r e t a i n i n g
net depending on its location.
If you use the 3 rd row seats
(7 seat version), it is essential
to store the roller in its housing.
secure the assembly by pivoting the
ends downwards.
Page 137 of 345
FITTINGS
109
High load retaining net To use it in row 1:
fold the rear seats,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 1 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding upper
fi x i n g 1 , then do the same with the
other end,
slacken the straps fully,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps on the corresponding Top
Tether ring 3 (located on the back of
the folded rear side seats),
tighten the straps,
check that the net is hooked and
tightened correctly. To use it in row 2:
roll up or remove the load space
screen,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 2 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding up-
p e r fi x i n g 2 , then do the same with
the other end,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps in the corresponding stowing
ring 4 ,
tighten the straps,
check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible
from the boot; this will make
slackening or tightening easier.
Hooked onto the special upper and low-
e r fi x i n g s , t h i s p e r m i t s u s e o f t h e e n t i r e
loading volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).
Page 138 of 345
FITTINGS
110
Luggage retaining net
Hooked onto the stowing rings on the
fl o o r a n d / o r o n t h e l o a d s p a c e c o v e r
roller, this enables you to secure your
luggage. There are 4 possible positions:
- fl a t a t t h e b o t t o m o f t h e b o o t ,
- horizontal, level with the load space
cover, - vertical at the back of the rear
seats,
- fl a t a t t h e b o t t o m o f t h e b o o t a n d v e r - tical at the back of the rear seats.
Page 139 of 345
FITTINGS
112
Torch
T h i s i s a r e m o v a b l e l a m p , fi t t e d i n t h e
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e b a t t e r i e s .
Never replace the rechargeable batter-
ies with normal single-use batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row
Page 140 of 345
CHILD SAFETY
113
PEUGEOT recommends that
children should travel in the
rear seats of your vehicle:
- "rearwards-facing" up to the
age of 2,
-
"forwards-facing" over the age of 2.

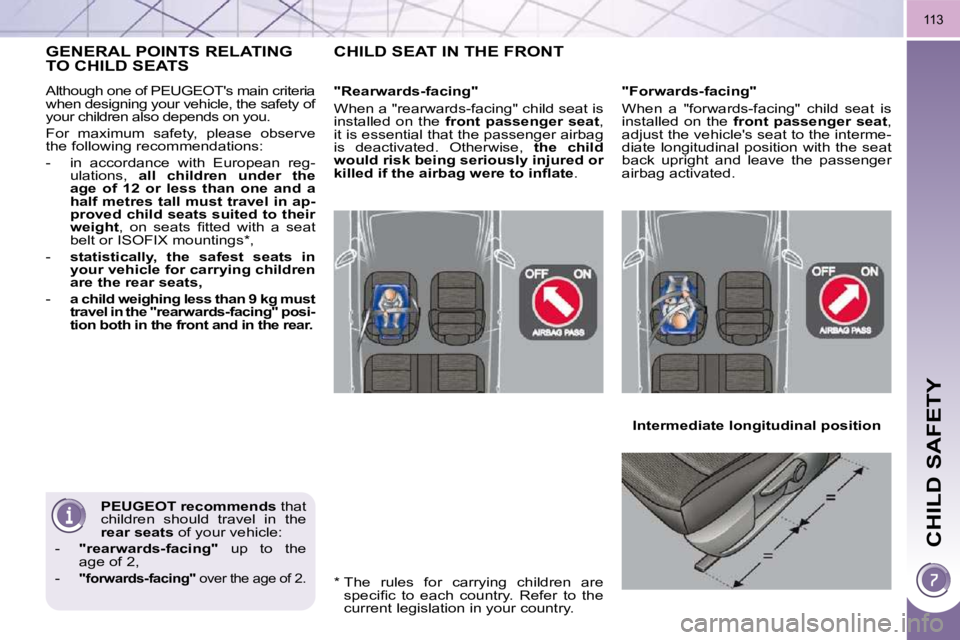

GENERAL POINTS RELATING TO CHILD SEATS
