PEUGEOT 5008 2010.5 User Guide

14
SEEING CLEARLY
Lighting
Ring A Lighting off.
Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or Front and rear foglamps.
Automatic illumination of
headlamps.
89
Direction indicators
Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long as
the stalk remains in this position.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads. 124
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"

 Press the stalk down and release it.
Switching off "AUTO"

 Push the stalk up and return it to
position "0" .
93
Ring B: rear wiper Park.
Intermittent wipe.
Wash-wipe. 94
88

Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

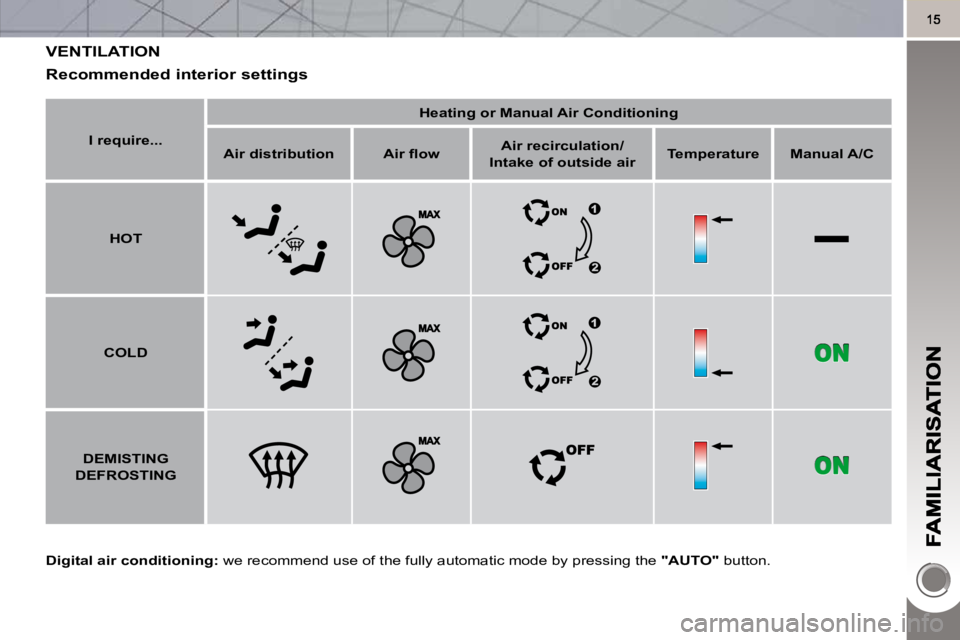

VENTILATION
Recommended interior settings

I require...
Heating or Manual Air Conditioning

Air distribution Air fl ow
Air recirculation/

Intake of outside air
Temperature Manual A/C

HOT


COLD

DEMISTING

DEFROSTING

16
MONITORING
Instrument panel

A. With the ignition on, the needle
should indicate the level of fuel re-
maining.

B. With the engine running, its associ-
ated low level warning lamp should
go off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low.
24
Warning lamps

1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
26
Switch panels
Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Parking space sensors. 162
78
160
126
123
144
124
146

B.
Interior protection alarm.

C. Visual and audible
parking sensors.

D. ESP OFF.

E. Child lock.

F. Head-up display.

G.
Hazard warning lamps.

H. Distance alert.

Lower

Central
74

I. Central locking.

17
PASSENGER SAFETY
Passenger's front airbag

1. Insert the key.

2. Select the position:
"OFF" (deactivation), with "rear fac-
ing" child seat,
"ON" (activation), with front passen-
ger or "forwards facing" child seat.

3. Remove the key keeping the switch
in the new position.
133
front airbag

A. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp.

E. Rear centre seat belt warning lamp.

F. Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivated
warning lamp.

H. Passenger's front airbag activated
warning lamp.
129
Child lock (locking of the rear doors)
Lighting of the indicator lamp indicates
the status of the corresponding function.
123

7 seat version (3rd row)

I.
Rear right seat belt warning
lamp.

J. Rear left seat belt warning
lamp.

18
ARRANGING YOUR SEATS
Rigid panel
Putting the seats back in place

 Raise the seat back and push it
rearwards until it locks.
From the boot

 Pull the strap B to release the seat
and push the seat back forwards
gently.
Folding the seats in the 2nd row

 Pull the strap A upwards fi rmly to re-
lease the seat and continue to pull
until the seat is fully folded.
Access to the 3rd row seats

 Close the aircraft style tables on the
2 nd row seats if they are open.

 Hold the control D up, the seat is
released and the seat base rises to
the seat back.

 Push the seat back forwards, hold-
ing the control D forwards.
68
67
68
7 SEAT VERSION

 After folding the seats, slide the
catch C .

19
ARRANGING YOUR SEATS (7 SEAT VERSION)
69,
108

 Pull the strap E and guide the seat
until the assembly locks.

 Fold the concertina boards forwards.
 Lower the head restraints and place
the concertina board in the vertical
position behind the seat.

 While pulling the strap F , push the
seat back forwards gently.

 Remove the load space screen from
its storage compartment and position
it behind the 2 nd row seats.

 Place the rigid panels of the 2 nd row
seats upright and lock them then fold
the concertina boards rearwards.

 Remove the load space cover and
store it in its housing.
Changing from 5 to 7 seats
69,
108

20
DRIVING SAFELY
Electric parking brake
Manual application/release
The parking brake can be applied
manually by pulling the control lever A .
When the ignition is on, the parking
brake can be released manually by

pressing the brake pedal and pulling
then releasing the control lever A . Automatic application/release
Press the accelerator, press and and re-
lease the clutch (manual gearbox), the
parking brake is released automatically
and progressively on acceleration.
With the vehicle stationary, when the

engine is switched off , the parking
brake is applied automatically. Before getting out of the
vehicle, check that the
braking warning lamp
(
red! ) and the warning
lamp P , located in the control lever A
are on fi xed (not fl ashing).
136
If this warning lamp is on in
the instrument panel, the auto-
matic application/release is
de-
activated , in this case use the
manual application/release.
When the door is opened with
the engine running an audible
signal is heard, apply the park-
ing brake manually.
Do not leave a child alone in the ve-
hicle with the ignition on, they could
release the parking brake. If you are towing a trailer or a
caravan or if the gradient is like-
ly to change (transport by ship,
lorry, towing, ...), apply the park-
ing brake manually to maximum force
(long pull on control lever A ) to immo-
bilise the vehicle.

21
Your vehicle is equipped with a system
which keeps it immobile for a short time
(approximately 2 seconds) to assist you
when starting on a hill, the time required
for you to move your foot from the brake
pedal to the accelerator pedal.
This system only operates:
- when the vehicle has been com-pletely stopped with your foot on the
brake pedal,
- on certain gradients,
- when the driver's door is closed.
Do not get out of the vehicle
during the hill start assist tem-
porary holding phase. 141
DRIVING SAFELY
Head-up display

1. Head-up display on/off.

2. Brightness adjustment.

3. Display height adjustment.
The adjustments must be
made with the engine running
and the vehicle stationary.
144
Distance alert

1. Distance alert on/off.

2. Alert value increase/decrease.
146
Hill start assist

22
DRIVING SAFELY
Speed limiter "LIMIT"

1. Limiter mode Selection/Off.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter On/Off.
The values must be set with
the engine running.
148
Cruise control "CRUISE"

1. Cruise control mode Selection/Off.

2. Programme a speed/Decrease the
programmed value.

3. Programme a speed/Increase the
programmed value.

4. Cruise control Off/Resume.
In order to be programmed or
activated, the vehicle speed
must be higher than 25 mph
(40 km/h), with at least fourth gear en-
gaged on the manual gearbox (second
gear for the 6-speed electronic gear
control gearbox or automatic gearbox).
150
Display in the instrument panel
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected. Cruise control
Speed limiter

23
153
DRIVING SAFELY
6-speed electronic gear control gearbox
This 6-speed electronic gear control
gearbox offers a choice between the
comfort of fully automatic operation or
the pleasure of manual gear changing.

1. Gear lever.

2. Button "S" (sport) .
Automatic gearbox "Tiptronic - Porsche system"
This six-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.

1. Gear lever.

2. Button "S" (sport) .

3. Button "  " (snow) .
Moving off

 Select position N and press the
brake pedal fi rmly while starting the
engine.

 Engage fi rst gear (position A or M )
or reverse (position R ) using the
gear lever 1 .

 Take your foot off the brake pedal
then accelerate.
 Select position P or N and press the
brake pedal fi rmly while starting the
engine.

 Select position R , D or M .

 Take your foot off the brake pedal,
then accelerate.

3. Steering mounted "-" paddle.

4. Steering mounted "+" paddle.
157
Moving off
