INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lamps.
Dials
1. Rev counter.
Indicates the engine speed (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Speedometer.
Indicates the current speed of the moving vehicle (mph or km/h).
5. Screen.
6. Display zero reset or service indi-
cator re-display button.
Resets the selected function to zero (trip distance recorder or service in-
dicator) or displays the service indi-
cator again.
7. Instrument panel lighting
dimmer
.
Adjusts the brightness of the light- ing of the instruments and controls,
if the vehicle lighting is on.
For more information, refer to
the paragraph relating to the
button or function and its as-
sociated display.
Page 22 of 345
25

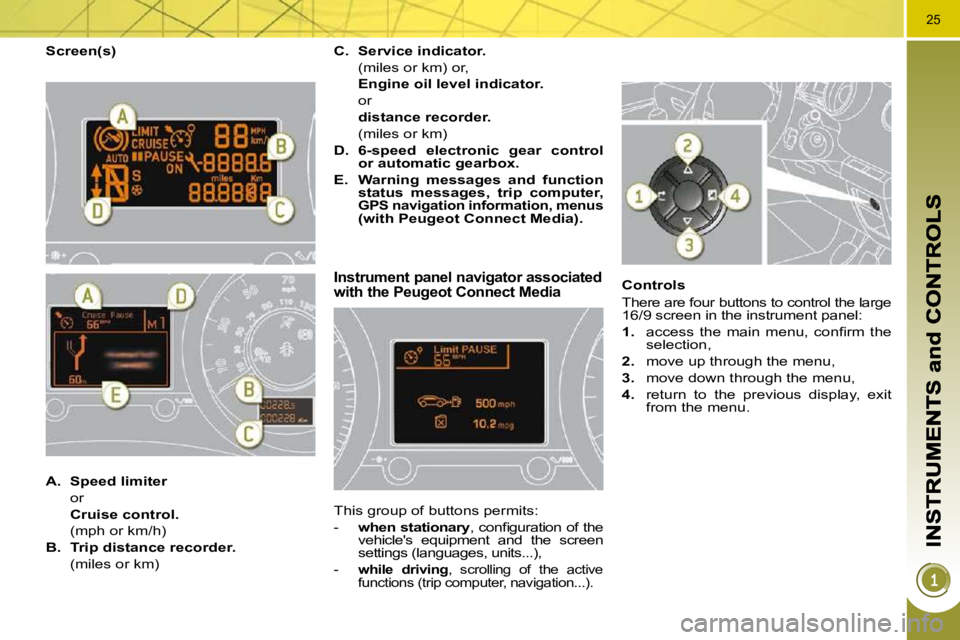

Screen(s)
Instrument panel navigator associated with the Peugeot Connect Media
This group of buttons permits:
- when stationary , c o n fi g u r a t i o n o f t h e
vehicle's equipment and the screen
settings (languages, units...),
-
while driving , scrolling of the active
functions (trip computer, navigation...).
Controls
There are four buttons to control the large
16/9 screen in the instrument panel:
1. a c c e s s t h e m a i n m e n u , c o n fi r m t h e
selection,
2. move up through the menu,
3. move down through the menu,
4. return to the previous display, exit
from the menu.
A. Speed limiter
or
Cruise control.
(mph or km/h)
B. Trip distance recorder.
(miles or km)
C. Service indicator.
(miles or km) or,
Engine oil level indicator.
or
distance recorder.
(miles or km)
D. 6-speed electronic gear control
or automatic gearbox.
E. Warning messages and function
status messages, trip computer,
GPS navigation information, menus
(with
Peugeot Connect Media
).
Page 23 of 345
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (l/100 km, mpg or
km/l).
Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .
The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via buttons
2 and 3 (refer to the "Trip computer"
paragraph).
Main menu
Press button 1 for access to the
main menu and select one of the fol-
lowing functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".
Press button 2 or 3 to move in the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection.
* According to country. Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should switch off.
If they remain on, before moving off,
refer to the information on the warning
lamp concerned.
Associated warnings
The switching on of certain warning lamps
may be accompanied by an audible signal
and a message on the multifunction screen.
The warning lamps may come
o n c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
Certain warning lamps may
come on in two different modes. Only
by relating the type of lighting to the
operating status of the vehicle can it
be ascertained whether the situation is
normal or whether a fault has occurred.
Page 24 of 345
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (l/100 km, mpg or
km/l).
Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .
The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via buttons
2 and 3 (refer to the "Trip computer"
paragraph).
Main menu
Press button 1 for access to the
main menu and select one of the fol-
lowing functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".
Press button 2 or 3 to move in the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection.
* According to country. Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should switch off.
If they remain on, before moving off,
refer to the information on the warning
lamp concerned.
Associated warnings
The switching on of certain warning lamps
may be accompanied by an audible signal
and a message on the multifunction screen.
The warning lamps may come
o n c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
Certain warning lamps may
come on in two different modes. Only
by relating the type of lighting to the
operating status of the vehicle can it
be ascertained whether the situation is
normal or whether a fault has occurred.
Page 25 of 345
27

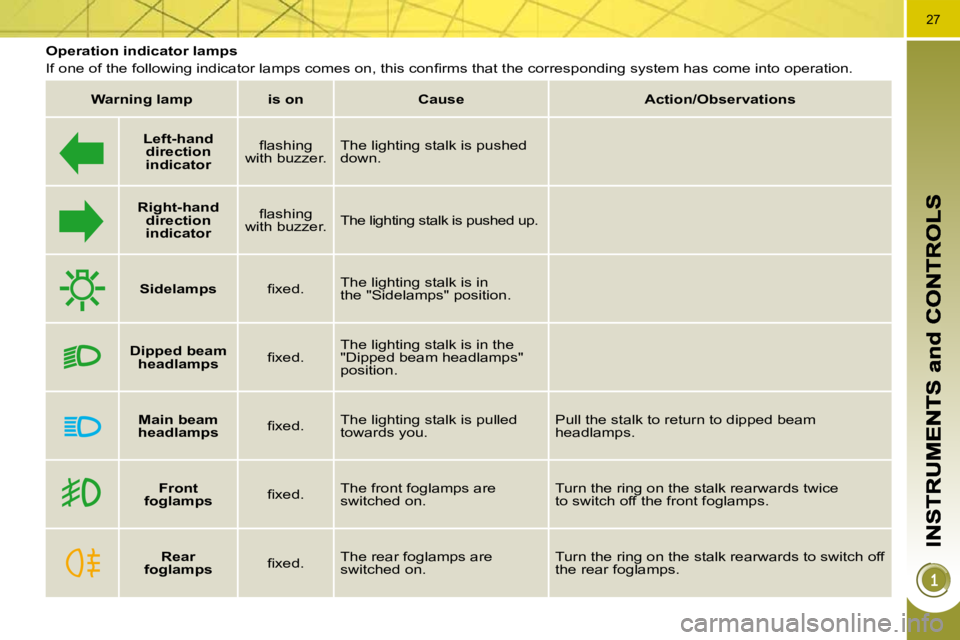

Left-hand
direction
indicato
r fl a s h i n g
with buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator fl a s h i n g
with buzzer. The lighting stalk is pushed up.
Operation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi
r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s c o m e i n t o o p e r a t i o n .
Warning lamp is on Cause Action/Observations
Sidelamps fi x e d . The lighting stalk is in
the "Sidelamps" position.
Dipped beam
headlamps fi x e d . The lighting stalk is in the
"Dipped beam headlamps"
position.
Main beam
headlamps fi x e d . The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
Front
foglamps fi x e d . The front foglamps are
switched on. Turn the ring on the stalk rearwards twice
to switch off the front foglamps.
Rear
foglamps fi x e d . The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.
Page 26 of 345
28
Warning lamp is on Cause Action/Observations
Diesel engine
pre-heating fi x e d . The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.
Electric
parking brake fi x e d . The electric parking brake is
applied. Release the electric parking brake to switch off
the warning lamp: with your foot on the brake
pedal, pull the electric brake control.
Observe the safety recommendations.
For further information about the electric parking
brake, refer to the "Driving" section.
Deactivation
of the
automatic
functions of the electric
parking brake fi x e d .
The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via
t h e v e h i c l e c o n fi g u r a t i o n m e n u o r c o n t a c t a
PEUGEOT dealer.
Foot on the
brake pedal fi x e d .
The brake pedal must be
pressed. Press the brake pedal to start the engine with
the 6-speed electronic gear control gearbox
(lever in position
N ) or automatic gearbox
(lever in position P ).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
fl a s h i n g . In the case of an electronic
gear control gearbox, if you
hold the vehicle on an incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.
Parking
space
sensors fi x e d .
The parking space sensors
function is active. Press the corresponding button to deactivate it.
fl a s h i n g .
The system is measuring the space.
Page 27 of 345
29
Deactivation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s b e e n s w i t c h e d o f f i n t e n t i o n a l l y .
This is may be accompanied by an audible signal and a message on the multifunction screen.
Warning lamp is on Cause Action/Observations
Passenger's
airbag system fi x e d . The control, located in the
glove box, is set to the
OFF
position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the
ON position to activate the
p a s s e n g e r ' s f r o n t a i r b a g . I n t h i s c a s e , d o n o t fi t
a child seat in the rear-facing position.
The passenger's airbag system is put into
service automatically when the vehicle is started
( ON position).
ESP/ASR fi x e d . The button, located at the
bottom right of the dashboard,
is pressed. Its indicator lamp
is on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR.
Its indicator lamp switches off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If it has been deactivated, the system is reactiva
ted
automatically from approximately 30 mph (50 km/h).
Page 28 of 345
30

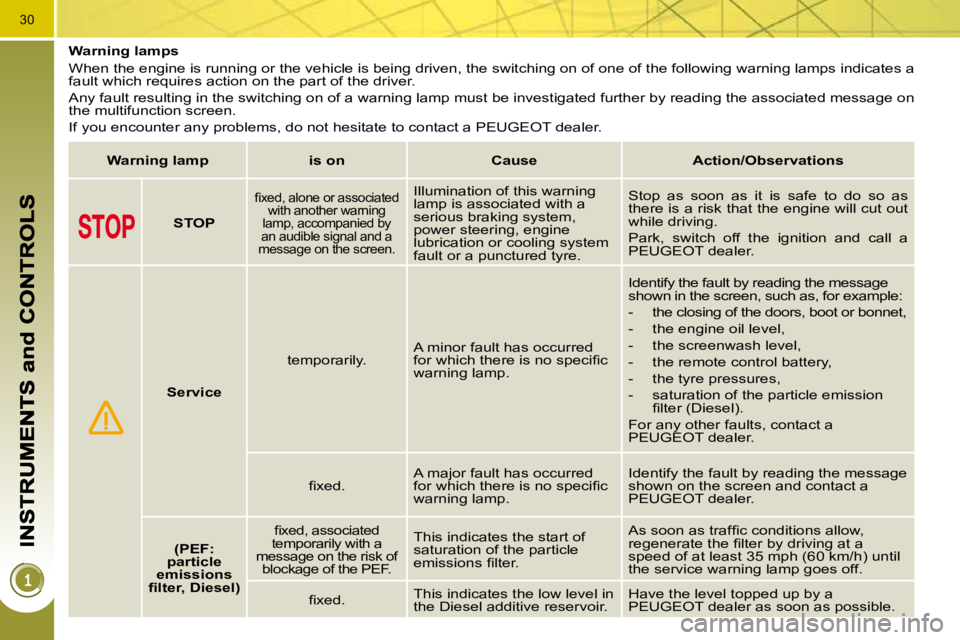

Warning lamps
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated further by reading the associated message on
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.
Warning lamp is on Cause Action/Observations
STOP
fi x e d , a l o n e o r a s s o c i a t e d
with another warning
lamp, accompanied by
an audible signal and a
message on the screen. Illumination of this warning
lamp is associated with a
serious braking system,
power steering, engine
lubrication or cooling system
fault or a punctured tyre. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and call a
PEUGEOT dealer.
Service temporarily.
A minor fault has occurred
f o r w h i c h t h e r e i s n o s p e c i fi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for example:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission
fi l t e r ( D i e s e l ) .
For any other faults, contact a
PEUGEOT dealer.
fi x e d . A major fault has occurred
f o r w h i c h t h e r e i s n o s p e c i fi c
warning lamp. Identify the fault by reading the message
shown on the screen and contact a
PEUGEOT dealer.
(PEF:
particle
emissions
fi l t e r , D i e s e l )
fi x e d , a s s o c i a t e d
temporarily with a
message on the risk of blockage of the PEF. This indicates the start of
saturation of the particle
e m i s s i o n s fi l t e r . A s s o o n a s t r a f fi c c o n d i t i o n s a l l o w ,
r e g e n e r a t e t h e fi l t e r b y d r i v i n g a t a
speed of at least 35 mph (60 km/h) until
the service warning lamp goes off.
fi x e d . This indicates the low level in
the Diesel additive reservoir. Have the level topped up by a
PEUGEOT dealer as soon as possible.
Page 29 of 345

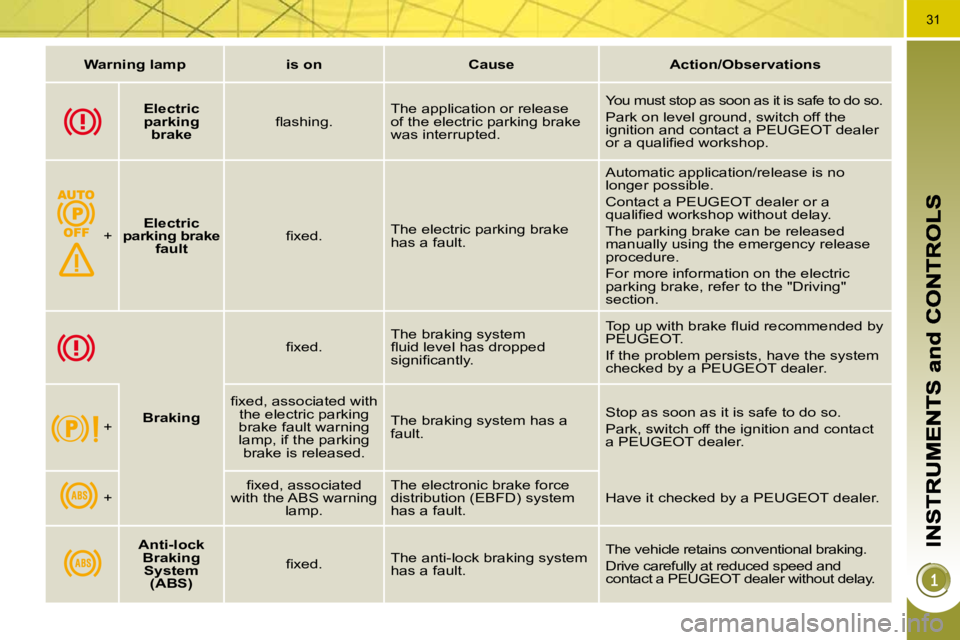

31
Electric
parking brake fl a s h i n g . The application or release
of the electric parking brake
was interrupted. You must stop as soon as it is safe to do so.
Park on level ground, switch off the
ignition and contact a PEUGEOT dealer
o r a q u a l i fi e d w o r k s h o p .
+
Electric
parking brake fault fi x e d .
The electric parking brake
has a fault. Automatic application/release is no
longer possible.
Contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p w i t h o u t d e l a y .
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.
Warning lamp is on Cause Action/Observations
Braking fi x e d .
The braking system
fl u i d l e v e l h a s d r o p p e d
s i g n i fi c a n t l y . T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
PEUGEOT.
If the problem persists, have the system
checked by a PEUGEOT dealer.
+ fi x e d , a s s o c i a t e d w i t h
the electric parking
brake fault warning lamp, if the parking brake is released. The braking system has a
fault.
Stop as soon as it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer.
+ fi x e d , a s s o c i a t e d
with the ABS warning lamp. The electronic brake force
distribution (EBFD) system
has a fault.
Have it checked by a PEUGEOT dealer.
Anti-lock
Braking System (ABS) fi x e d .
The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and
contact a PEUGEOT dealer without delay.
Page 30 of 345
32
Warning lamp is on Cause Action/Observations
Engine
autodiagnosis system fi x e d . The emission control system
has a fault. This lamp should switch off when the
engine is started.
If it does not switch off, contact a
PEUGEOT dealer urgently.
fl a s h i n g . The engine management
system has a fault.
Risk of destruction of the catalytic convertor.
Have it checked by a PEUGEOT dealer.
Low fuel
level fi x e d w i t h t h e n e e d l e
in the red zone. W h e n i t fi r s t c o m e s o n t h e r e
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every
time the ignition is switched on, until a
s u f fi c i e n t a d d i t i o n o f f u e l i s m a d e .
Fuel tank capacity: approximately
60 litres .
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.
Maximum
coolant
temperature fi x e d w i t h t h e n e e d l e
in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
PEUGEOT dealer.
Engine oil
pressure fi x e d . There is a fault with the
engine lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer.
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of
the vehicle.
fi x e d . Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty. Have it checked by a PEUGEOT dealer.
