PEUGEOT 5008 2010.5 Workshop Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 5008, Model: PEUGEOT 5008 2010.5Pages: 345, PDF Size: 22.77 MB
Page 51 of 345
54
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r r e n t f u e l
consumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption during the last few
seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset. Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on). Distance remaining to
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 52 of 345
52
Monochrome screen C
Instrument panel screen - Peugeot Connect Media
16/9 colour screen - Peugeot Connect Navigation
TRIP COMPUTER
System which provides current in-
formation concerning the trip (range,
consumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Information displays
Press the button, located at the end
of the wiper stalk , to display the
various trip computer tabs in suc-
cession. With the instrument panel screen
(Peugeot Connect Media)
Press the up and down arrows on
the navigator, associated with the
Peugeot Connect Media, to display
the various trip computer tabs in
succession.
With the screen C or the colour screen
( Peugeot Connect Navigation )
Page 53 of 345
53
Trip zero reset
With the screen C or the colour screen (
Peugeot Connect Navigation
)
When the trip required is displayed,
press the control for more than
two seconds.
With the instrument panel screen (
Peugeot Connect Media
)
When the required trip is displayed,
press the "OK" button on the navi-
gator, associated with the Peugeot
Connect Media, for more than
two seconds.
Trips "1" and "2" are independent but
their use is identical.
For example, trip "1" can be used for
d a i l y fi g u r e s , a n d t r i p "2" for monthly
fi g u r e s .
- The current information
tab with:
Page 54 of 345
54
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r r e n t f u e l
consumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption during the last few
seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset. Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on). Distance remaining to
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 55 of 345
55
HEATING AND VENTILATION
System which creates and maintains
good conditions of comfort and visibility in
the vehicle's passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to select the air vents used in the pas-
senger compartment by the combined
use of the associated buttons. T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation fan.
These controls are grouped together on
control panel
A on the centre console.
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Air distribution
1. Windscreen demisting/defrosting vents.
2. Front side window demisting/defrost-
ing vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Adjustable air vents for the rear pas-
sengers.
7. Air outlets to the rear footwells.
Page 56 of 345
56

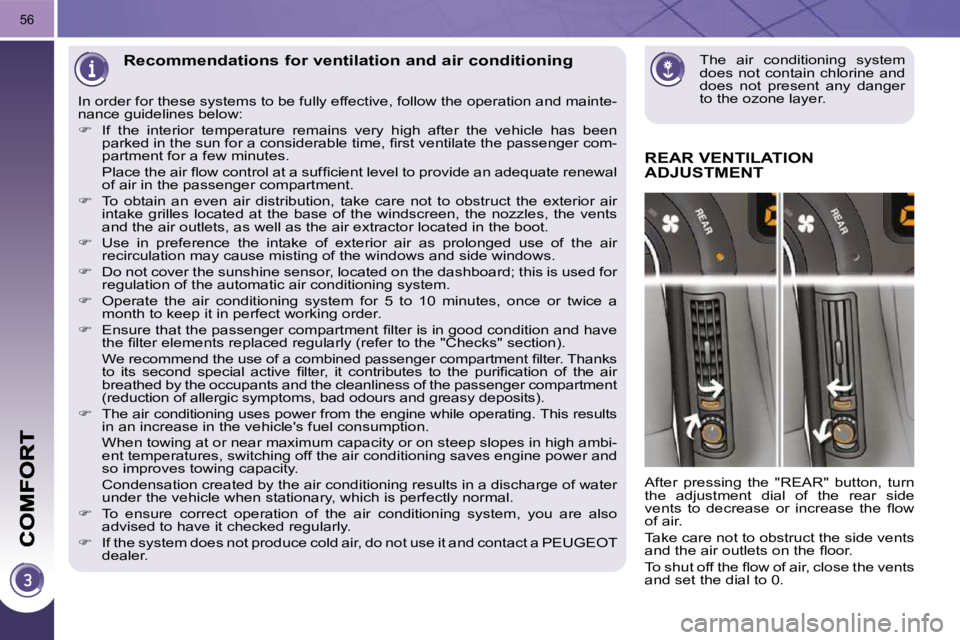

The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer. Recommendations for ventilation and air conditioning
REAR VENTILATION ADJUSTMENT
After pressing the "REAR" button, turn
the adjustment dial of the rear side
v e n t s t o d e c r e a s e o r i n c r e a s e t h e fl o w
of air.
Take care not to obstruct the side vents
a n d t h e a i r o u t l e t s o n t h e fl o o r .
T o s h u t o f f t h e fl o w o f a i r , c l o s e t h e v e n t s
and set the dial to 0.
In order for these systems to be fully effective, follow the o
peration and mainte-
nance guidelines below:
If the interior temperature remains very high after the vehicle has been
p a r k e d i n t h e s u n f o r a c o n s i d e r a b l e t i m e , fi r s t v e n t i l a t e t h e p a s s e n g e r c o m -
partment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e n e w a l
of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Use in preference the intake of exterior air as prolonged use of the air
recirculation may cause misting of the windows and side windows.
Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d h a v e
t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanliness of th e passenger compartment
(reduction of allergic symptoms, bad odours and gre asy deposits).
The air conditioning uses power from the engine w hile operating. This results
in an increase in the vehicle's fuel consumption.
When towing at or near maximum capacity or on steep slopes in h igh ambi-
ent temperatures, switching off the air conditioning saves eng ine power and
so improves towing capacity.
Condensation created by the air conditioning results in a d ischarge of water
under the vehicle when stationary, which is perfectly normal.
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer.
Page 57 of 345
57
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1
to position 5 to obtain a com-
f o r t a b l e a i r fl o w .
Windscreen, side windows
and front-rear footwells. Footwells, front-rear
(closing the vents increases
t h e fl o w t o t h e f o o t w e l l s ) .
Central, side and rear vents.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air limits misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and demisting performance.
I f y o u p l a c e t h e a i r fl o w
control in position 0 (de-
activation of the system),
the temperature is no
3. Air distribution adjustment
Press the button to recir-
culate the interior air. The
indicator lamp comes on to
c o n fi r m t h i s .
Press the button again to permit the
intake of exterior air. The indicator
l a m p g o e s o f f t o c o n fi r m t h i s .
longer maintained at a comfortable
l e v e l . H o w e v e r , a s l i g h t fl o w o f a i r ,
due to the movement of the vehicle,
can still be felt.
Page 58 of 345
58
Demisting/defrosting
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DEMIST/DEFROST
Switch off the demist/de-
frost of the rear screen and
door mirrors as soon as it
is no longer necessary as
lower current consumption
results in reduced fuel con-
sumption.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Press this button to demist/defrost
the rear screen and the door mirrors.
The indicator lamp associated with
the button comes on.
Switching off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 3 °C.
Switching on
Press the "A/C" button, the button's
indicator lamp comes on.
The air conditioning does not operate
w h e n t h e a i r fl o w a d j u s t m e n t c o n t r o l 2
is in position " 0 ".
The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:
place the air intake control 4 in the
"Exterior air intake" position (indica-
tor lamp off),
place the air distribution dial 3 in the
"Windscreen position",
p l a c e t h e a i r fl o w d i a l 2 in position 5
(maximum),
place the temperature dial 1 in the
red position (hot). Switching off
Press the "A/C" button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
Page 59 of 345
58
Demisting/defrosting
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DEMIST/DEFROST
Switch off the demist/de-
frost of the rear screen and
door mirrors as soon as it
is no longer necessary as
lower current consumption
results in reduced fuel con-
sumption.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Press this button to demist/defrost
the rear screen and the door mirrors.
The indicator lamp associated with
the button comes on.
Switching off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 3 °C.
Switching on
Press the "A/C" button, the button's
indicator lamp comes on.
The air conditioning does not operate
w h e n t h e a i r fl o w a d j u s t m e n t c o n t r o l 2
is in position " 0 ".
The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:
place the air intake control 4 in the
"Exterior air intake" position (indica-
tor lamp off),
place the air distribution dial 3 in the
"Windscreen position",
p l a c e t h e a i r fl o w d i a l 2 in position 5
(maximum),
place the temperature dial 1 in the
red position (hot). Switching off
Press the "A/C" button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
Page 60 of 345
59

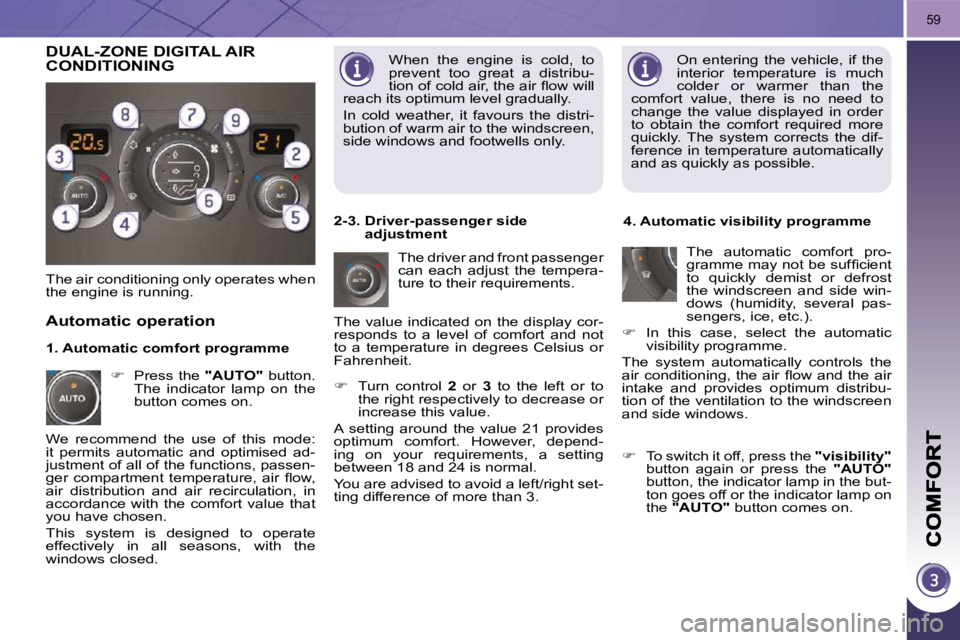

On entering the vehicle, if the
interior temperature is much
colder or warmer than the
comfort value, there is no need to
change the value displayed in order
to obtain the comfort required more
quickly. The system corrects the dif-
ference in temperature automatically
and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting
between 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The indicator lamp on the
button comes on.
DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate
effectively in all seasons, with the
windows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off or the indicator lamp on
the "AUTO" button comes on.
1. Automatic comfort programme
2-3. Driver-passenger side
adjustment When the engine is cold, to
prevent too great a distribu-
t i o n o f c o l d a i r , t h e a i r fl o w w i l l
reach its optimum level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.
