60
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6. Air distribution adjustment
Press one or more but-
t o n s t o d i r e c t t h e a i r fl o w
towards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
5. Air conditioning On/Off
- the windscreen and side windows (demisting or defrosting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l a m p s , b e t w e e n
the two fans, come on progressively
according to the value requested.
For maximum cooling or heat-
ing of the passenger compart-
ment, it is possible to exceed
the minimum value 14 or the maximum
value 28.
Turn control 2 or 3 to the left un-
til "LO" (low) is displayed or to
the right until "HI" (high) is dis-
played. Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C" button comes on.
Page 62 of 345
61
Switching the system off
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t
until all of the indicator lamps go off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no lon-
g e r g u a r a n t e e d b u t a s l i g h t fl o w o f a i r ,
due to the movement of the vehicle, can
still be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Avoid driving for prolonged
periods with the system off.
9. Rear ventilation (Rear)
Press this button to allow
the air to circulate towards
the rear. The temperature
will be equal to the left-hand
comfort value for the rear
left passengers and equal
to the right-hand comfort
value for the rear right pas-
sengers. The indicator lamp
in the button comes on.
8. Air recirculation
Press this button to recir-
culate the interior air. The
indicator lamp comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
As soon as possible, press this but-
ton again to return to the intake of
exterior air, and avoid misting. The
lamp in the button goes off.
Page 63 of 345
62
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
Raise the control and slide the seat
forwards or backwards. Driver's or passenger's seat height
adjustment
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. Seat back angle adjustment
Push the control rearwards.
Manual adjustments
Page 64 of 345
63
DRIVER'S ELECTRIC SEAT
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
Push the control forwards or rear-
wards to slide the seat. Seat cushion height and angle
adjustment
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
Tilt the front part of the control up-
wards or downwards to obtain the
required angle. Seat back angle adjustment
Tilt the control forwards or rearwards
to adjust the angle of the seat back. The electrical functions of the
driver's seat are active ap-
proximately one minute after
opening the front door. They are de-
activated approximately one minute
after the ignition is switched off and
in economy mode.
To reactivate them, switch on the
ignition.
Page 65 of 345
64
Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0: Off.
1
: Low.
2
: Medium.
3
: High.
Head restraint height and angle
adjustment
To raise the head restraint, pull it for-
wards and upwards at the same time.
To remove the head restraint, press the lug A and pull the head restraint upwards.
To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the
seat back.
To lower the head restraint, press the lug A and the head restraint at the
same time.
To adjust the angle of the head restraint,
tilt its lower part forwards or rearwards.
T h e h e a d r e s t r a i n t i s fi t t e d w i t h
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Manual lumbar adjustment
Turn the knob to obtain the desired
level of lumbar support. Additional adjustments
Page 66 of 345
65
Table position, front passenger seat
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Folding the seat backrest
Raise the armrest and fold up the
" a i r c r a f t " s t y l e t a b l e , fi x e d o n t h e
back of the seat.
Check that no object, either on or
underneath the seat, could hinder
its movement.
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).
I f y o u r v e h i c l e i s fi t t e d w i t h t h e v i d e o
pack, place the protective cover on
the head restraint.
Lift the control, located behind the
seat, then guide the seat back for-
wards. Returning the seat to the normal
position
Guide the seat backrest rearwards
until it locks in place.
When the seat backrest is in this po-
sition, only the 2 nd row passenger
seat located behind the driver can be
used.
Page 67 of 345
66
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to remain
in line with the seat back.
2 ND ROW SEATS
Forwards-backwards adjustment
Lift the control A , located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position
The three 2 nd row seats are independent
of each other and all the same width.
They all have a "comfort" position. Placing a seat in the "comfort"
position
Pull on the control B and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.
Returning the seat to the initial
position
Pull on the control B and allow the
seat to come forwards.
Always supervise any move-
ments of seats by children.
Never drive with the head re-
straints removed, they must
be in place and correctly ad-
justed.
Page 68 of 345
66
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to remain
in line with the seat back.
2 ND ROW SEATS
Forwards-backwards adjustment
Lift the control A , located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position
The three 2 nd row seats are independent
of each other and all the same width.
They all have a "comfort" position. Placing a seat in the "comfort"
position
Pull on the control B and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.
Returning the seat to the initial
position
Pull on the control B and allow the
seat to come forwards.
Always supervise any move-
ments of seats by children.
Never drive with the head re-
straints removed, they must
be in place and correctly ad-
justed.
Page 69 of 345
67

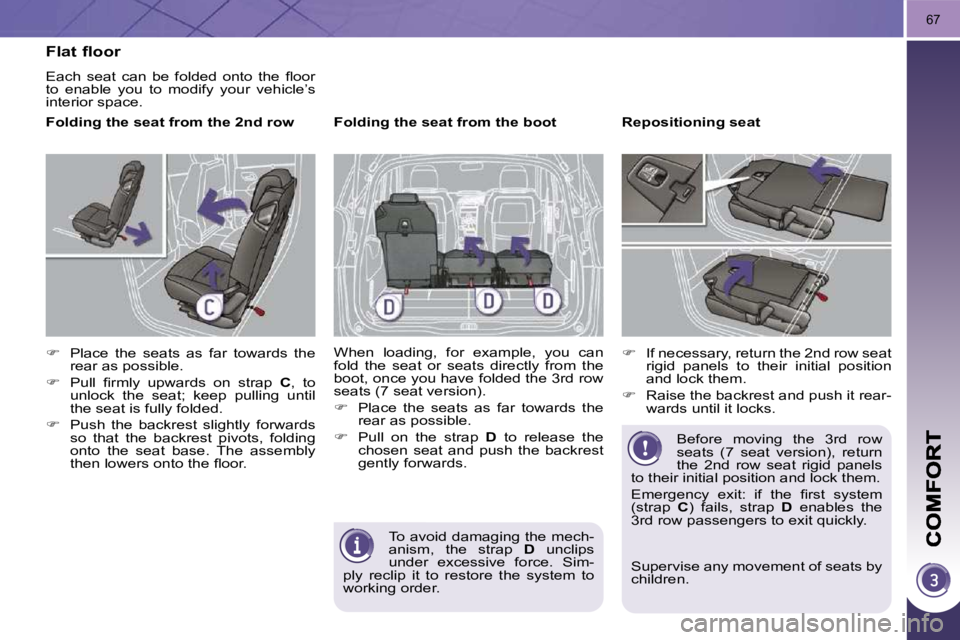

Flat floor
E a c h s e a t c a n b e f o l d e d o n t o t h e fl o o r
to enable you to modify your vehicle’s
interior space.
Folding the seat from the 2 nd row
Place the seats as far towards the
rear as possible.
P u l l fi r m l y u p w a r d s o n s t r a p C , to
unlock the seat; keep pulling until
the seat is fully folded.
Push the backrest slightly forwards
so that the backrest pivots, folding
onto the seat base. The assembly
t h e n l o w e r s o n t o t h e fl o o r . Folding the seat from the boot
When loading, for example, you can
fold the seat or seats directly from the
boot, once you have folded the 3 rd row
seats (7 seat version).
Place the seats as far towards the
rear as possible.
Pull on the strap D to release the
chosen seat and push the backrest
gently forwards. Repositioning seat
If necessary, return the 2 nd row seat
rigid panels to their initial position
and lock them.
Raise the backrest and push it rear-
wards until it locks.
Before moving the 3 rd row
seats (7 seat version), return
the 2 nd row seat rigid panels
to their initial position and lock them.
E m e r g e n c y e x i t : i f t h e fi r s t s y s t e m
(strap C ) fails, strap D enables the
3 rd row passengers to exit quickly.
To avoid damaging the mech-
anism, the strap D unclips
under excessive force. Sim-
ply reclip it to restore the system to
working order. Supervise any movement of seats by
children.
Page 70 of 345
68
Rigid panel
Each 2 nd row seat backrest has a rigid
panel attached.
This panel enables you:
- to have a continuous load surface in the boot, whatever the positions of
the seats,
- to avoid having objects sliding under the 2 nd row seats. 30 kg maximum
on each panel.
Releasing/Locking the rigid panel
Before deploying the rigid panels,
check that the 2 nd row seats are po-
sitioned as far towards the rear as
possible.
Slide the latch E on the panel up-
wards, to release it.
Return the panel to its initial position,
then slide the latch E downwards, to
lock it in place.
Entering/Exiting the 3 rd row (7 seat version) Repositioning the seat, from the outside, with the door open
If there are passengers seated in the
3 rd row (7 seat version):
Manually return the assembly as
far as possible rearwards; the seat
does not return as far as the maxi-
mum rearwards position so as to
retain leg space for the 3 rd row pas-
sengers.
Fold the seat base.
Raise the aircraft style table on the
2 nd row seat if it is down.
Hold the control F in the raised posi-
tion, the seat unlocks and the seat
base comes up against the backrest.
Push the seat backrest forwards,
holding the control F forwards.
