3 RD ROW SEATS (7 SEAT VERSION)
Concertina boards
Two rigid concertina boards, which can-
not be separated from the vehicle, cover
the two 3 rd row seats, when these are in
the folded position.
Folding the concertina boards
Pull on the control, the 3 sections of
the board will fold like a concertina.
When the 3 rd
row seats are upright,
these concertina boards can be left
either:
- fl a t b e h i n d t h e s e a t s ,
- in the vertical position,
thereby leaving a storage area available.
The two rigid boards can each support
a maximum of 100 kg.

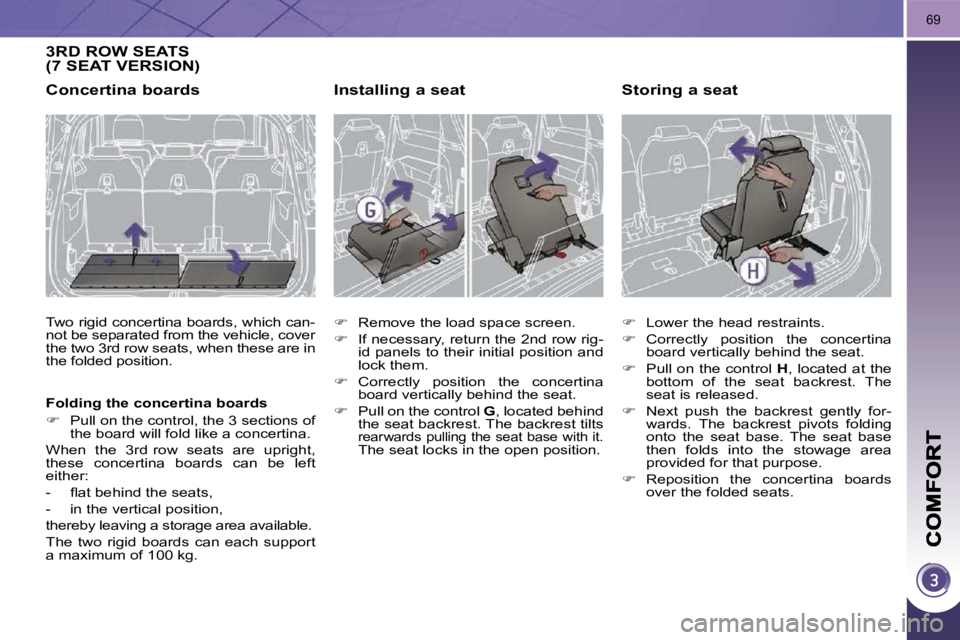

Installing a seat
Remove the load space screen.
If necessary, return the 2 nd row rig-
id panels to their initial position and
lock them.
Correctly position the concertina
board vertically behind the seat.
Pull on the control G , located behind
the seat backrest. The backrest tilts
rearwards pulling the seat base with it.
The seat locks in the open position.
Storing a seat
Lower the head restraints.
Correctly position the concertina
board vertically behind the seat.
Pull on the control H , located at the
bottom of the seat backrest. The
seat is released.
Next push the backrest gently for-
wards. The backrest pivots folding
onto the seat base. The seat base
then folds into the stowage area
provided for that purpose.
Reposition the concertina boards
over the folded seats.
Page 72 of 345
70

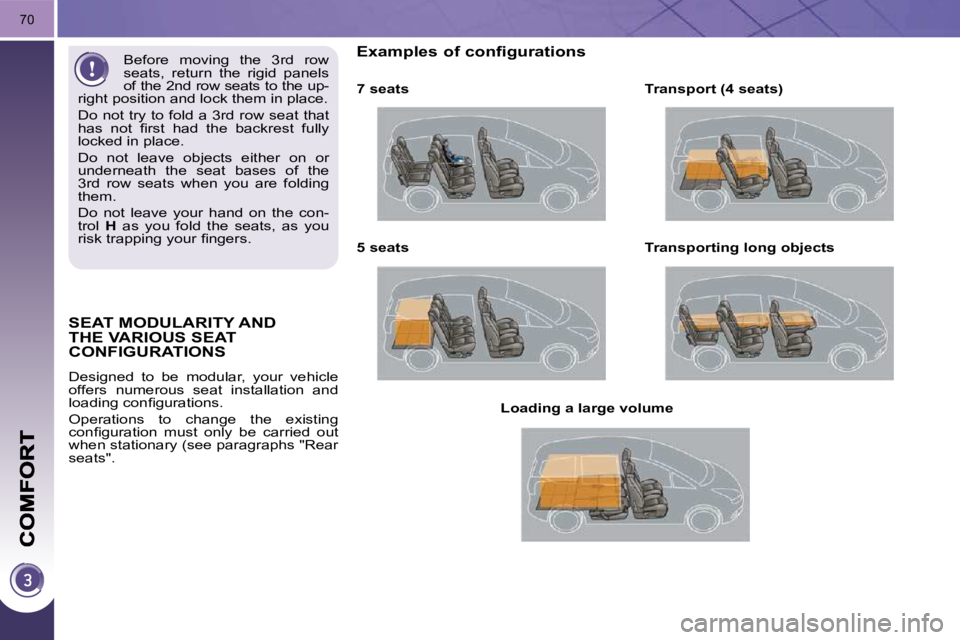

SEAT MODULARITY AND THE VARIOUS SEAT CONFIGURATIONS
Designed to be modular, your vehicle
offers numerous seat installation and
l o a d i n g c o n fi g u r a t i o n s .
Operations to change the existing
c o n fi g u r a t i o n m u s t o n l y b e c a r r i e d o u t
when stationary (see paragraphs "Rear
seats".
Examples of configurations
7 seats Transporting long objects
5 seats Transport (4 seats)
Loading a large volume
Before moving the 3 rd row
seats, return the rigid panels
of the 2 nd row seats to the up-
right position and lock them in place.
Do not try to fold a 3 rd row seat that
h a s n o t fi r s t h a d t h e b a c k r e s t f u l l y
locked in place.
Do not leave objects either on or
underneath the seat bases of the
3 rd row seats when you are folding
them.
Do not leave your hand on the con-
trol H as you fold the seats, as you
r i s k t r a p p i n g y o u r fi n g e r s .
Page 73 of 345
70
SEAT MODULARITY AND THE VARIOUS SEAT CONFIGURATIONS
Designed to be modular, your vehicle
offers numerous seat installation and
l o a d i n g c o n fi g u r a t i o n s .
Operations to change the existing
c o n fi g u r a t i o n m u s t o n l y b e c a r r i e d o u t
when stationary (see paragraphs "Rear
seats".
Examples of configurations
7 seats Transporting long objects
5 seats Transport (4 seats)
Loading a large volume
Before moving the 3 rd row
seats, return the rigid panels
of the 2 nd row seats to the up-
right position and lock them in place.
Do not try to fold a 3 rd row seat that
h a s n o t fi r s t h a d t h e b a c k r e s t f u l l y
locked in place.
Do not leave objects either on or
underneath the seat bases of the
3 rd row seats when you are folding
them.
Do not leave your hand on the con-
trol H as you fold the seats, as you
r i s k t r a p p i n g y o u r fi n g e r s .
Page 74 of 345
71
The objects observed are, in
reality, closer than they appear.
Take this into account in order
to correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS

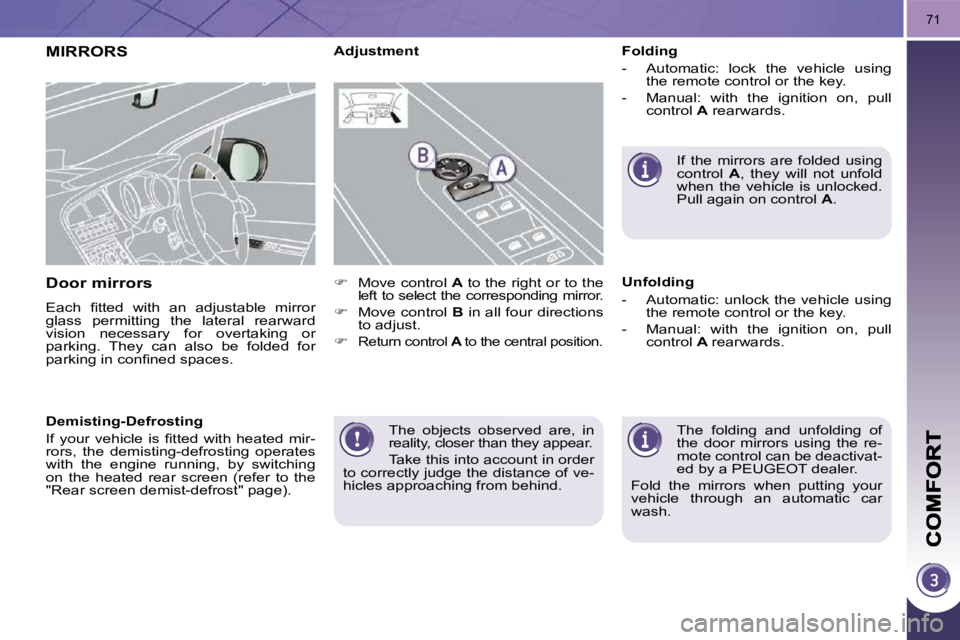

Door mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
glass permitting the lateral rearward
vision ne cessary for overtaking or
parking. They can also be folded for
p a r k i n g i n c o n fi n e d s p a c e s . Folding
- Automatic: lock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull control A rearwards.
The folding and unfolding of
the door mirrors using the re-
mote control can be deactivat-
ed by a PEUGEOT dealer.
Fold the mirrors when putting your
vehicle through an automatic car
wash.
Adjustment
Unfolding
- Automatic: unlock the vehicle using the remote control or the key.
- Manual: with the ignition on, pull control A rearwards.
If the mirrors are folded using
control
A , they will not unfold
when the vehicle is unlocked.
Pull again on control A .
Move control A to the right or to the
left to select the corresponding mirror.
Move control B in all four directions
to adjust.
Return control A to the central position.
Demisting-Defrosting
I f y o u r v e h i c l e i s fi t t e d w i t h h e a t e d m i r -
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).
Page 75 of 345
72
Adjustment

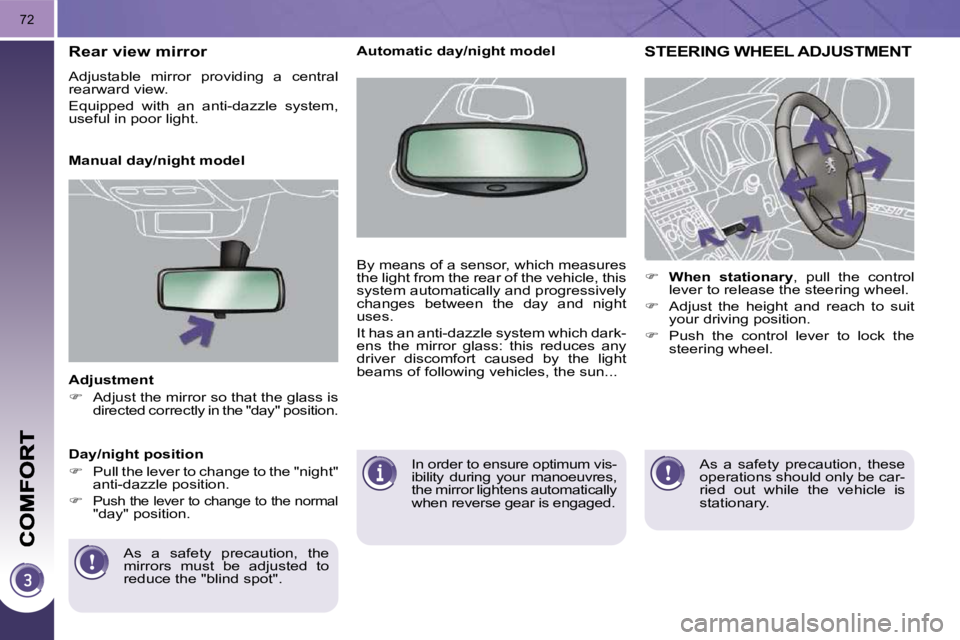

Adjust the mirror so that the glass is
directed correctly in the "day" position.
As a safety precaution, the
mirrors must be adjusted to
reduce the "blind spot".
Manual day/night model
Day/night position
Pull the lever to change to the "night"
anti-dazzle position.
Push the lever to change to the normal
"day" position.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beams of following vehicles, the sun...
STEERING WHEEL ADJUSTMENT
When stationary , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.
Page 76 of 345
73

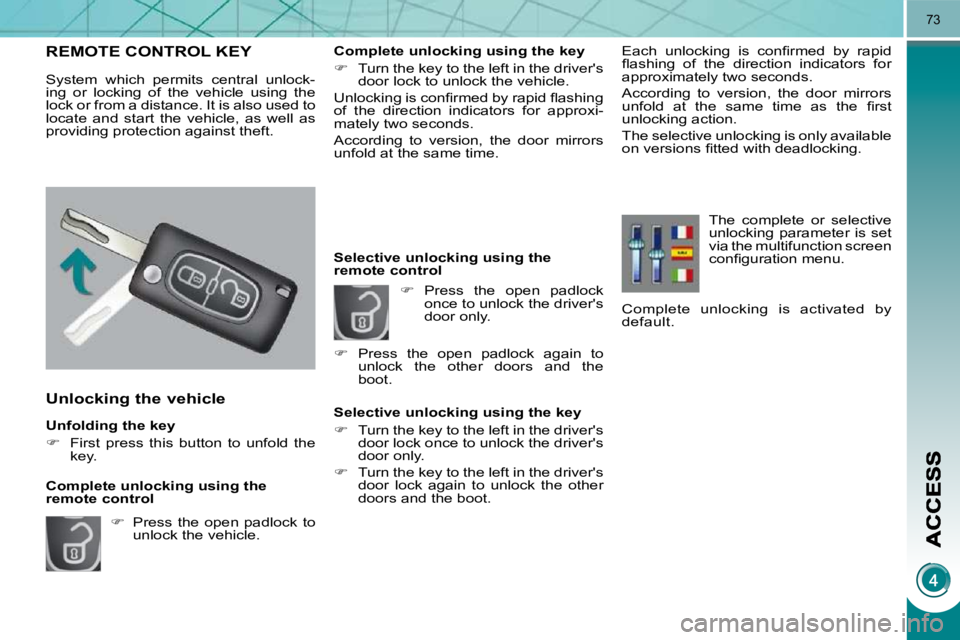

Unfolding the key
First press this button to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle.
Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft. Complete unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.
Press the open padlock
once to unlock the driver's
door only.
Press the open padlock again to
unlock the other doors and the
boot. E a c h u n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds.
According to version, the door mirrors
u n f o l d a t t h e s a m e t i m e a s t h e fi r s t
unlocking action.
The selective unlocking is only available
o n v e r s i o n s fi t t e d w i t h d e a d l o c k i n g .
The complete or selective
unlocking parameter is set
via the multifunction screen
c o n fi g u r a t i o n m e n u .
Complete unlocking is activated by
default.
Page 77 of 345
74
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direc-

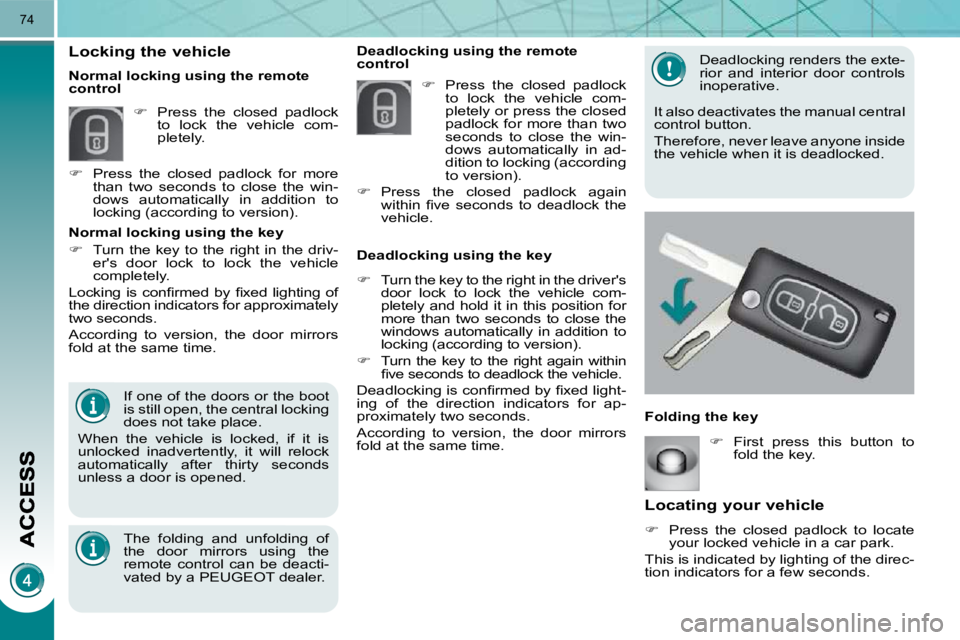

tion indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote
control
Deadlocking using the key
Folding the key
Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle.
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely and hold it in this position for
more than two seconds to close the
windows automatically in addition to
locking (according to version).
Turn the key to the right again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
Normal locking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of
the door mirrors using the
remote control can be deacti-
vated by a PEUGEOT dealer.
Locking the vehicle
Press the closed padlock
to lock the vehicle com-
pletely.
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).
Normal locking using the remote
control
First press this button to
fold the key.
Page 78 of 345
75
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible. For more information, refer

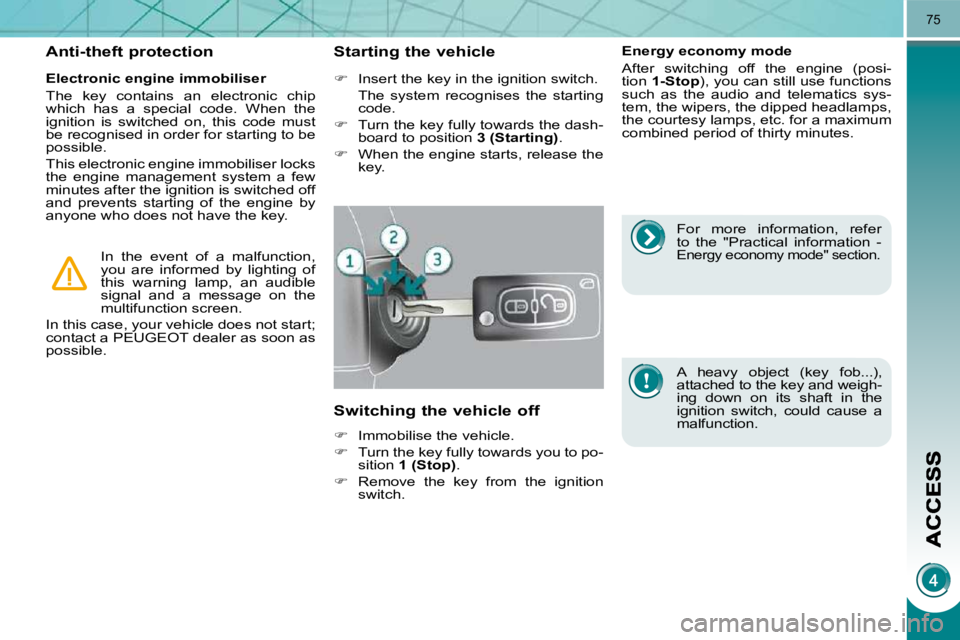

to the "Practical information - Energy economy mode" section.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
board to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Energy economy mode
After switching off the engine (posi-
tion
1-Stop ), you can still use functions
such as the audio and telematics sys-
tem, the wipers, the dipped headlamps,
the courtesy lamps, etc. for a maximum
combined period of thirty minutes.
A heavy object (key fob...),
attached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Page 79 of 345
76
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition
on
) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.

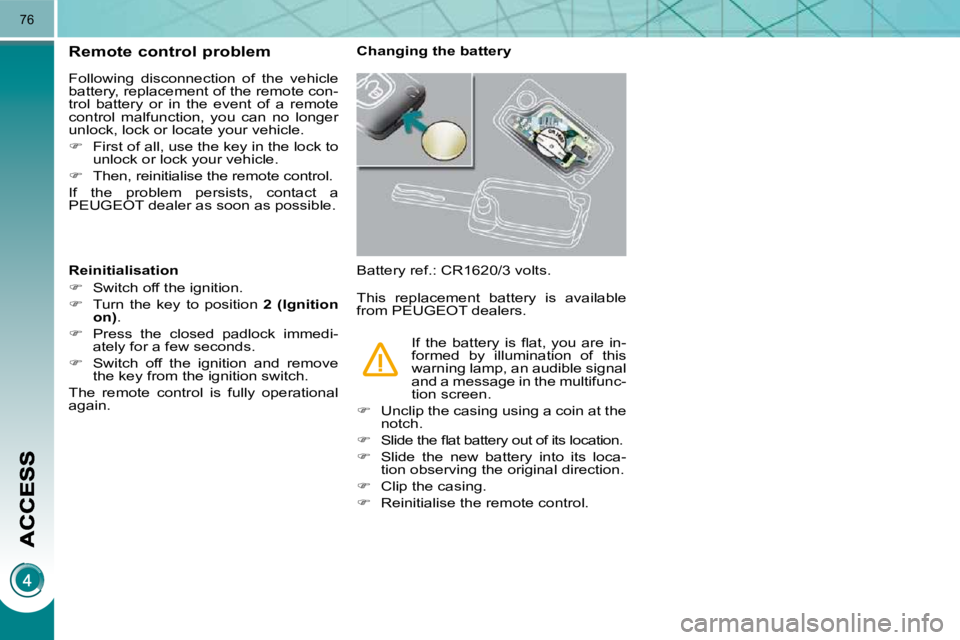

Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
This replacement battery is available
from PEUGEOT dealers.
Page 80 of 345
77

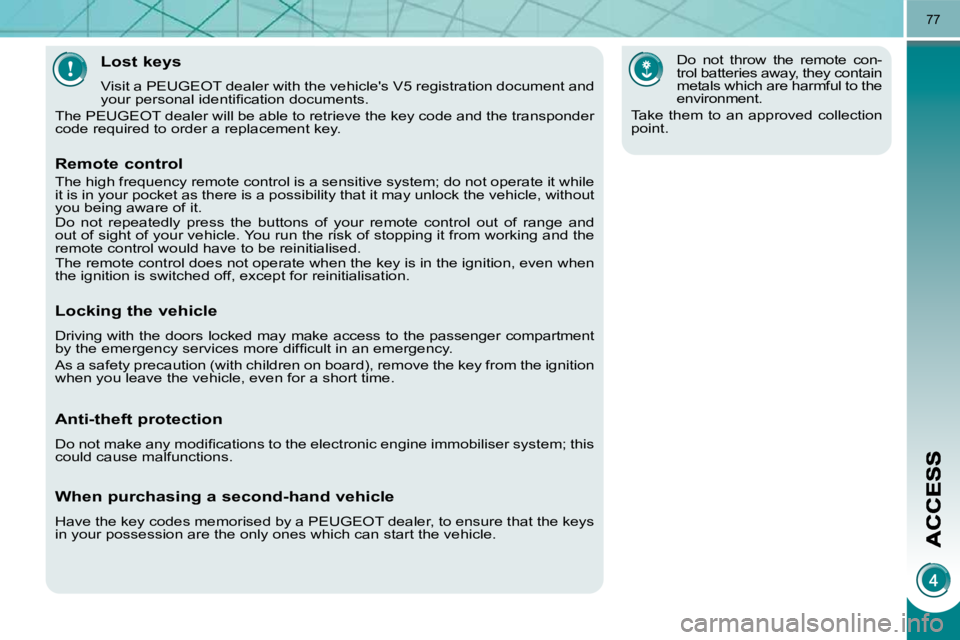

Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT dealer will be able to retrieve the key code and the transponder
code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while
it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when
the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ; t h i s
could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys
in your possession are the only ones which can start the vehicle.
