PEUGEOT 5008 2010 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 5008, Model: PEUGEOT 5008 2010Pages: 331, PDF Size: 23.41 MB
Page 151 of 331
124
TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install
a wheel which is not detected by
y o u r v e h i c l e ( e x a m p l e : fi t t i n g o f s n o w
tyres), you must have the system
reinitialised by a PEUGEOT dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer
t o t h e " I d e n t i fi c a t i o n m a r k i n g s " p a r a -
graph) to ensure that the optimum
dynamic performance of the vehicle
is maintained and prevent premature
wear of the tyres, particularly in ardu-
ous driving conditions (heavy load,
high speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of the
spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a s e n s o r .
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal, to
locate the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
U n d e r - i n fl a t e d t y r e The
STOP warning lamp
comes on, accompanied by
an audible signal and a mes-
sage on the multifunction
screen locating the wheel
concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c -
tion system is an aid to driving
which does not replace the
need for the driver to be vigilant or to
drive responsibly. Sensor(s) not detected or faulty
A message appears on the multifunc-
tion screen, accompanied by an audible
signal, to locate the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also dis-
played when one of the wheels
is away from the vehicle (be-
ing repaired) or when one or more
w h e e l s w i t h o u t a s e n s o r a r e fi t t e d .
Page 152 of 331
125
ELECTRONIC STABILITY PROGRAMME (ESP)
Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the electronic brake force distri-
bution system (EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Definitions
Anti-skid regulation (ASR)
The ASR system (also known as Trac-
tion Control) optimises traction in order
to avoid wheel slip by acting on the
brakes of the driving wheels and on the
engine. It also improves the directional
stability of the vehicle on acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.
Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
electronic brake force distribution
system (EBFD)
This system improves the stability and ma-
noeuvrability of your vehicle when braking
and offers improved control, in particular
on poor or slippery road surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The electronic brake force distribution
system manages the braking pressure
wheel by wheel. Operation
When this warning lamp
comes on, accompanied by a
b u z z e r a n d a m e s s a g e , i t i n d i -
cates that there is a malfunc-
tion of the ABS, which can cause a loss
of control of the vehicle when braking.
When this warning lamp comes
on, connected to the STOP
warning lamp, accompanied
b y a b u z z e r a n d a m e s s a g e ,
it indicates that there is a malfunction
of the electronic brake force distribution
(EBFD), which can cause a loss of con-
trol of the vehicle when braking.
Stop immediately.
In both cases, consult a PEUGEOT
dealer.
When changing wheels (tyres
and rims), make sure that
these are approved.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Anti-lock braking system (ABS) and
braking system (EBFD)
Snow driving assistance (Intelligent Traction Control)
Your vehicle has a system to help driving
on snow:
Intelligent Traction Control.
This automatic system continuously
c h e c k s f o r s i t u a t i o n s o f d i f fi c u l t s u r f a c e
a d h e s i o n t h a t c o u l d m a k e i t d i f fi c u l t t o
move off or make progress on deep
fresh snow or compacted snow.
In these situations, the Intelligent Trac-
tion Control system takes over from the
ASR system by optimising the amount
of wheel slip to provide the best trac-
t i o n a n d t r a j e c t o r y c o n t r o l , e v e n w i t h o u t
snow tyres and with or without chains.
In extremely severe conditions (snow
on top of ice, sand, deep mud…), it can
be useful to deactivate the ESP/ASR
systems to allow a degree of wheel spin
and so recover grip.
Page 153 of 331
126
Dynamic stability control (DSC) The DSC system offers excep-
tional safety in normal driving,
but this should not encourage
the driver to take extra risks or drive
at high speed.
The correct functioning of the system
depends on observation of the man-
ufacturer's recommendations regard-
ing the wheels (tyres and rims), the
braking components, the electronic
components and the PEUGEOT as-
sembly and operation procedures.
After an impact, have the system
checked by a PEUGEOT dealer.
Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the DSC system,
so that the wheels can move freely and
regain grip.
Press the "ESP OFF" button.
This warning lamp and the
indicator lamp on the button
come on: the DSC system no
longer acts on the operation of
the engine.
Reactivation
The system is reactivated automatically
each time the ignition is switched back
on or from 30 mph (50 km/h). Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, this indicates
a malfunction of the system.
Contact a PEUGEOT dealer to have the
system checked.
T h i s i s i n d i c a t e d b y fl a s h i n g
of this warning lamp on the in-
strument panel.
Activation
This system is activated automatically
each time the vehicle is started.
It comes into operation in the event of a
g r i p o r t r a j e c t o r y p r o b l e m .
Press the "ESP OFF" button again
to reactivate it manually.
Page 154 of 331
125
ELECTRONIC STABILITY PROGRAMME (ESP)
Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the electronic brake force distri-
bution system (EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Definitions
Anti-skid regulation (ASR)
The ASR system (also known as Trac-
tion Control) optimises traction in order
to avoid wheel slip by acting on the
brakes of the driving wheels and on the
engine. It also improves the directional
stability of the vehicle on acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.
Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
electronic brake force distribution
system (EBFD)
This system improves the stability and ma-
noeuvrability of your vehicle when braking
and offers improved control, in particular
on poor or slippery road surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The electronic brake force distribution
system manages the braking pressure
wheel by wheel. Operation
When this warning lamp
comes on, accompanied by a
b u z z e r a n d a m e s s a g e , i t i n d i -
cates that there is a malfunc-
tion of the ABS, which can cause a loss
of control of the vehicle when braking.
When this warning lamp comes
on, connected to the STOP
warning lamp, accompanied
b y a b u z z e r a n d a m e s s a g e ,
it indicates that there is a malfunction
of the electronic brake force distribution
(EBFD), which can cause a loss of con-
trol of the vehicle when braking.
Stop immediately.
In both cases, consult a PEUGEOT
dealer.
When changing wheels (tyres
and rims), make sure that
these are approved.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Anti-lock braking system (ABS) and
braking system (EBFD)
Snow driving assistance (Intelligent Traction Control)
Your vehicle has a system to help driving
on snow:
Intelligent Traction Control.
This automatic system continuously
c h e c k s f o r s i t u a t i o n s o f d i f fi c u l t s u r f a c e
a d h e s i o n t h a t c o u l d m a k e i t d i f fi c u l t t o
move off or make progress on deep
fresh snow or compacted snow.
In these situations, the Intelligent Trac-
tion Control system takes over from the
ASR system by optimising the amount
of wheel slip to provide the best trac-
t i o n a n d t r a j e c t o r y c o n t r o l , e v e n w i t h o u t
snow tyres and with or without chains.
In extremely severe conditions (snow
on top of ice, sand, deep mud…), it can
be useful to deactivate the ESP/ASR
systems to allow a degree of wheel spin
and so recover grip.
Page 155 of 331
127
Height adjustment
Front seat belt not fastened/
unfastened warning lamp
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
T o a d j u s t t h e a n c h o r a g e p o i n t ,
s q u e e z e t h e c o n t r o l A and slide it
u n t i l y o u fi n d a n o t c h .
When the ignition is switched
on, this warning lamp comes
on on the seat belt and pas-
senger’s front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their
seat belt.
From approximately 12 mph (20 km/h)
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible signal.
Once these two minutes have elapsed,
this warning lamp remains on until the
driver and/or the front passenger fastens
their seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in. SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so improving their protection.
Page 156 of 331
128
1. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.
2. Front left seat belt warning lamp.
3. Front right seat belt warning lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamps display
Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
force limiter (with the exception of the
centre rear seat).
Seat belt unfastened warning lamp
This warning lamp comes on on
the seat belt and passenger's
front airbag warning lamps dis-
play, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible signal.
Once these two minutes have elapsed,
this warning lamp remains on until the
one or more rear passengers fasten
their seat belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger’s front airbag warning lamps
display if the seat belt is not fastened or
is unfastened.
7 seat version
7. 3 rd row rear left seat belt warning
lamp
8.
3 rd row rear right seat belt warning
lamp.
Seat belt unfastened warning lamps display
When the ignition is switched on, with
the engine running or when the vehicle is
moving at less than 12 mph (20 km/h), the
corresponding warning lamps 4 to 8 come
on in red for approximately 30 seconds, if
the seat belt is not fastened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning lamp 4 , 5, 6, 7 or 8 comes
on in red, accompanied by an audible
signal and a message on the multifunc-
tion screen, if a rear passenger has un-
fastened their seat belt.
To prevent movement of the
rear side seat belts in the
2 nd row, slide the straps into
the guides provided for this
purpose.
Page 157 of 331
129

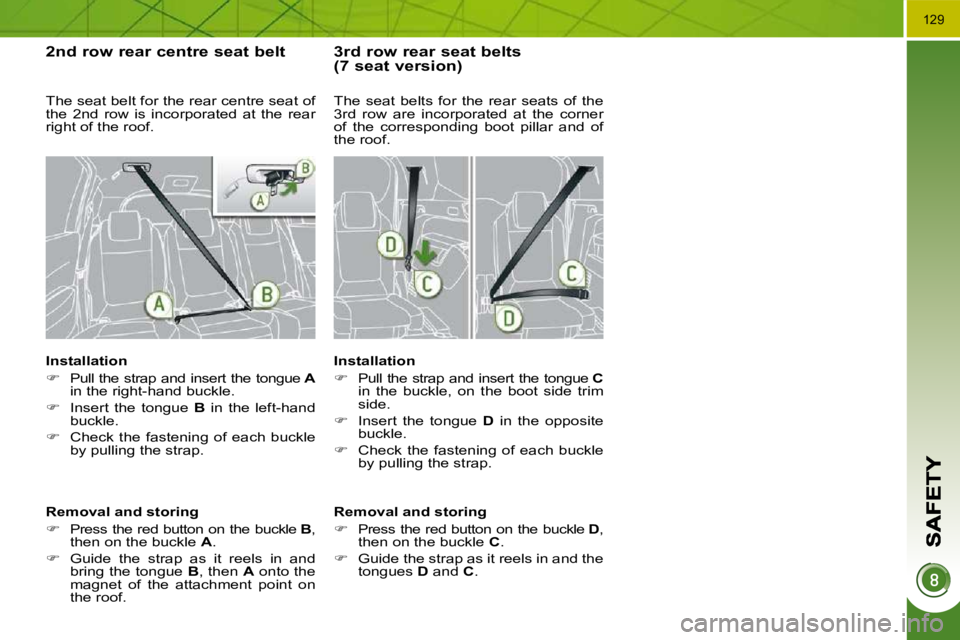

2 nd row rear centre seat belt
Installation
Pull the strap and insert the tongue A
in the right-hand buckle.
Insert the tongue B in the left-hand
buckle.
Check the fastening of each buckle
by pulling the strap.
Removal and storing
Press the red button on the buckle B ,
then on the buckle A .
Guide the strap as it reels in and
bring the tongue B , then A onto the
magnet of the attachment point on
the roof.
3 rd row rear seat belts (7 seat version)
Installation
Pull the strap and insert the tongue C
in the buckle, on the boot side trim
side.
Insert the tongue D in the opposite
buckle.
Check the fastening of each buckle
by pulling the strap.
The seat belts for the rear seats of the
3
rd row are incorporated at the corner
of the corresponding boot pillar and of
the roof.
Removal and storing
Press the red button on the buckle D ,
then on the buckle C .
Guide the strap as it reels in and the
tongues D and C .
The seat belt for the rear centre seat of
the 2 nd row is incorporated at the rear
right of the roof.
Page 158 of 331
130

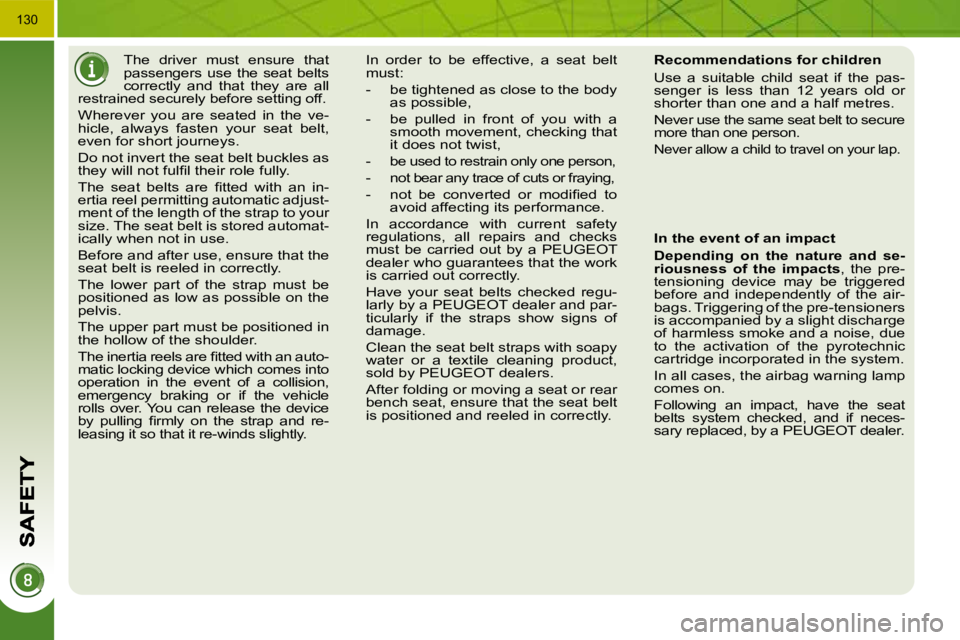

The driver must ensure that
passengers use the seat belts
correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
e r t i a r e e l p e r m i t t i n g a u t o m a t i c a d j u s t -
ment of the length of the strap to your
s i z e . T h e s e a t b e l t i s s t o r e d a u t o m a t -
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u t o -
matic locking device which comes into
operation in the event of a collision,
emergency braking or if the vehicle
rolls over. You can release the device
b y p u l l i n g fi r m l y o n t h e s t r a p a n d r e -
leasing it so that it re-winds slightly. In order to be effective, a seat belt
must:
- be tightened as close to the body
as possible,
- be pulled in front of you with a smooth movement, checking that
it does not twist,
-
be used to restrain only one person,
- not bear any trace of cuts or fraying,
- n o t b e c o n v e r t e d o r m o d i fi e d t o avoid affecting its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to secure
more than one person. Never allow a child to travel on your lap.
In the event of an impact
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 159 of 331
131
AIRBAGS
Triggering of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may re-
sult in a slight loss of hearing for a
short time.
Front airbags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
o f i n j u r y t o t h e h e a d a n d c h e s t .
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorporated
in the dashboard above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
f r o n t i m p a c t z o n e A , in the longitudinal
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l
plane and directed from the front to the
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e f r o n t
occupant of the vehicle and the dash-
board to cushion his forward movement.

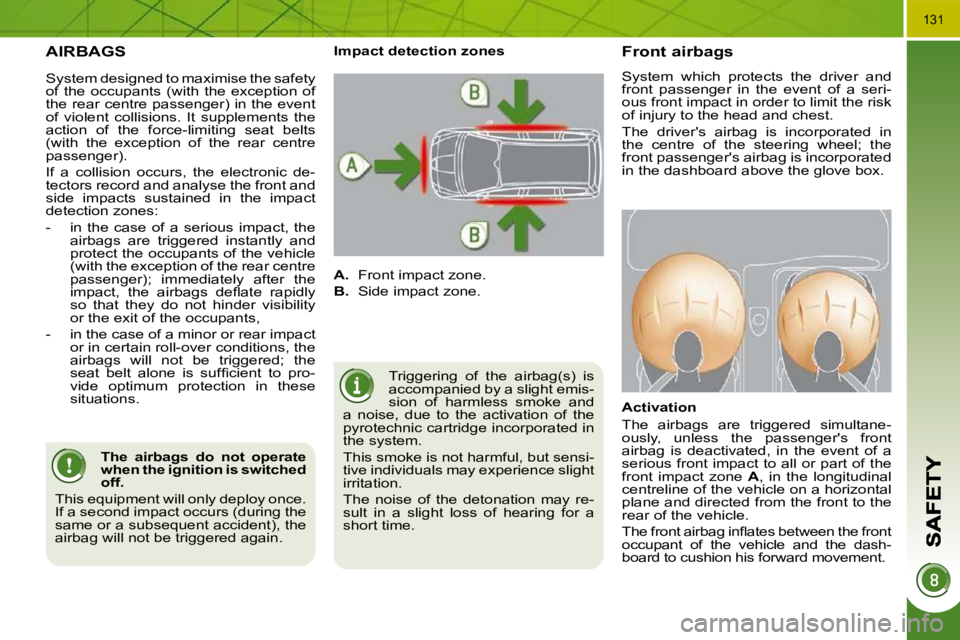

Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e .
The airbags do not operate
when the ignition is switched
off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be triggered again.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
d e t e c t i o n z o n e s :
- in the case of a serious impact, the
airbags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations.
Page 160 of 331
132

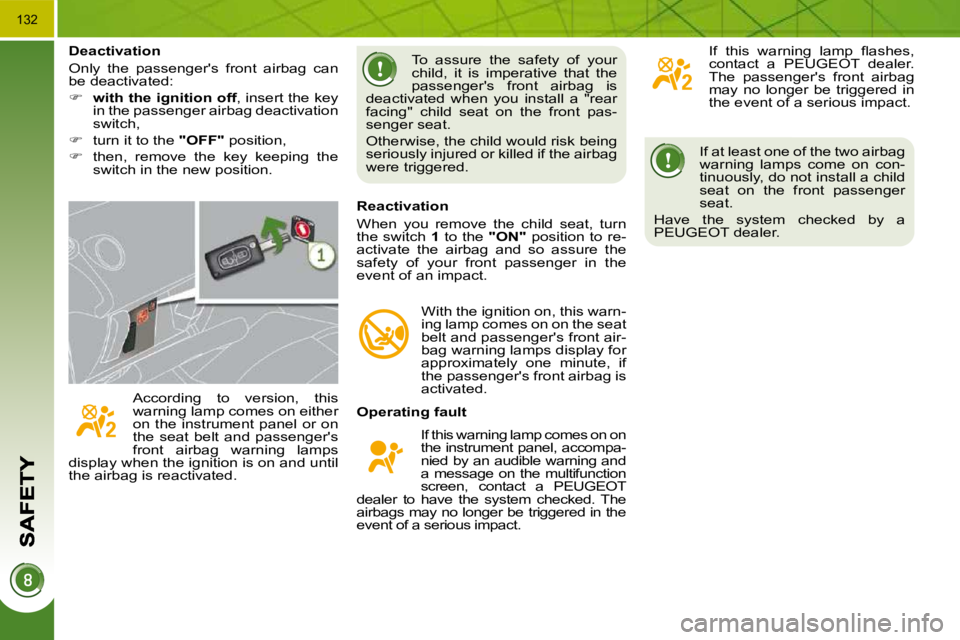

If at least one of the two airbag
warning lamps come on con-
tinuously, do not install a child
seat on the front passenger
seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault If this warning lamp comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
screen, contact a PEUGEOT
dealer to have the system checked. The
airbags may no longer be triggered in the
event of a serious impact.
Reactivation
When you remove the child seat, turn
the switch
1 to the "ON" position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact.
With the ignition on, this warn-
ing lamp comes on on the seat
belt and passenger's front air-
bag warning lamps display for
approximately one minute, if
the passenger's front airbag is
activated.
To assure the safety of your
child, it is imperative that the
passenger's front airbag is
deactivated when you install a "rear
facing" child seat on the front pas-
senger seat.
Otherwise, the child would risk being
s e r i o u s l y i n j u r e d o r k i l l e d i f t h e a i r b a g
were triggered.
According to version, this
warning lamp comes on either
on the instrument panel or on
the seat belt and passenger's
front airbag warning lamps
display when the ignition is on and until
the airbag is reactivated. I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front airbag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:
with the ignition off , insert the key
in the passenger airbag deactivation
switch,
turn it to the "OFF" position,
then, remove the key keeping the
switch in the new position.
