Page 161 of 331
134

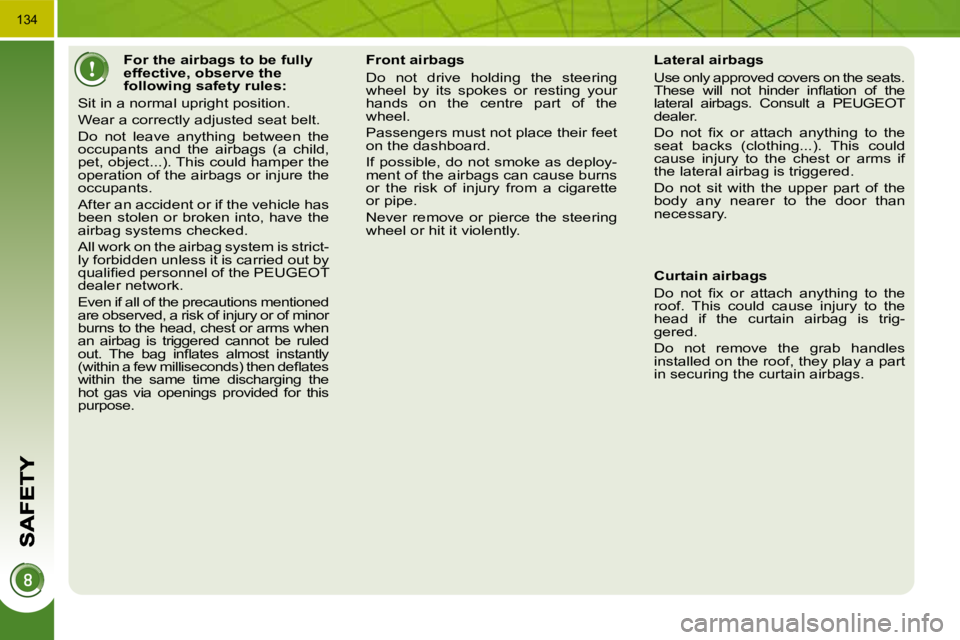

For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions mentioned
a r e o b s e r v e d , a r i s k o f i n j u r y o r o f m i n o r
burns to the head, chest or arms when
an airbag is triggered cannot be ruled
o u t . T h e b a g i n fl a t e s a l m o s t i n s t a n t l y
( w i t h i n a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s
within the same time discharging the
hot gas via openings provided for this
purpose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Lateral airbags
Use only approved covers on the seats.
T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT
dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
seat backs (clothing...). This could
c a u s e i n j u r y t o t h e c h e s t o r a r m s i f
the lateral airbag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e
head if the curtain airbag is trig-
gered.
Do not remove the grab handles
installed on the roof, they play a part
in securing the curtain airbags.
Page 162 of 331
133
Lateral airbags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
o f i n j u r y t o t h e c h e s t .
E a c h l a t e r a l a i r b a g i s fi t t e d i n t h e f r o n t , i n
the outer side of the seat back frame.
Activation
The lateral airbags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
z o n e B , perpendicular to the longitudinal
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l
plane and directed from the outside to-
wards the inside of the vehicle.
Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
r i s k o f i n j u r y t o t h e s i d e o f t h e h e a d .
Each curtain airbag is built into the pillars
and the upper passenger compartment
area. Operating fault
Activation
The curtain airbag is triggered at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
t o a l l o r p a r t o f t h e s i d e i m p a c t z o n e
B ,
perpendicular to the longitudinal cen-
t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l p l a n e
and directed from the outside towards the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the
vehicle or if the vehicle rolls
over, the airbag may not be
triggered.
In the event of a rear or front collision,
the airbag is not triggered.
Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e . If this warning lamp comes on
on the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen, contact a PEUGEOT
dealer to have the system checked. The
airbags may no longer be triggered in the
event of a serious impact.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door panel.
Page 163 of 331
134
For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions mentioned
a r e o b s e r v e d , a r i s k o f i n j u r y o r o f m i n o r
burns to the head, chest or arms when
an airbag is triggered cannot be ruled
o u t . T h e b a g i n fl a t e s a l m o s t i n s t a n t l y
( w i t h i n a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s
within the same time discharging the
hot gas via openings provided for this
purpose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Lateral airbags
Use only approved covers on the seats.
T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT
dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
seat backs (clothing...). This could
c a u s e i n j u r y t o t h e c h e s t o r a r m s i f
the lateral airbag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e
head if the curtain airbag is trig-
gered.
Do not remove the grab handles
installed on the roof, they play a part
in securing the curtain airbags.
Page 164 of 331
135
The electric parking brake combines
2 operational modes:
- Automatic application/release
Application is automatic when the engine stops, release is automatic
on use of the accelerator (activated
by default),
- Manual application/release
The parking brake can be applied/
released manually by pulling control A .
ELECTRIC PARKING BRAKE
Deactivation is recommended
in particularly cold conditions
(ice) and during towing (break-
down, caravan...).
Programming the mode
Depending on the country of registration
of the vehicle, the automatic application
when the engine is switched off and the
automatic release when you press the
accelerator can be deactivated.
If this warning lamp on the
instrument panel comes on,
the automatic mode is deac-
tivated. Activation/deactivation is
performed using the con-
fi g u r a t i o n m e n u , r e f e r t o
the "Multifunction screens"
section.
The parking brake is then applied and
released manually. When the driver's
door is opened, a beep is heard and a
message is displayed if the brake is not
applied.
Do not place any object (packet
of cigarettes, telephone, ...) be-
hind the electric brake control.
Page 165 of 331
136
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull on control A .
The application of the parking brake is
c o n fi r m e d b y :
- lighting of the braking warn-ing lamp and of the warning
lamp P on the control A ,
- display of the message "Handbrake on".
When the driver’s door is opened with
the engine running, a beep is heard and
a message is displayed if the parking
brake has not been applied, unless the
selector lever is in position P (Park) in
the case of an automatic gearbox.
Manual release
With the ignition on or the engine run-
ning, to release the parking brake,
press on the brake
pedal or the accel-
erator, pull then release control A .
The full application of the parking brake
i s c o n fi r m e d b y :
- extinction of the braking warn-ing lamp and of the warning
lamp P on control A ,
- display of the message "Handbrake off".
If you pull control A without press-
ing the brake pedal, the parking
brake will not be released and a
warning lamp will light up on the
instrument panel.
Manual application Maximum application
If necessary, you can utilise maximum
application of the parking brake. It is
obtained by means of a long pull on
control A , until you see the message
"Handbrake on" and a beep is heard.
In the case of towing, a loaded
vehicle or parking on a gradi-
ent, make a maximum applica-
tion of the parking brake then turn the
front wheels towards the pavement
and engage a gear when you park.
After a maximum application, the re-
lease time will be longer.
Before leaving the vehicle, check
that parking brake warning lamp
on the instrument panel is on,
n o t fl a s h i n g .
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the automatic
functions are activated but you are
applying the parking brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on a
ferry, in a lorry, during towing),
Page 166 of 331
137
Automatic application, engine off
With the vehicle stationary, the parking
brake is automatically applied when
the engine is switched off.
The application of the parking brake is
c o n fi r m e d b y :
- lighting of the braking warn-ing lamp and of the warning
lamp P on control A ,
- display of the message "Handbrake on".
Automatic release
The electric parking brake releases au-
tomatically and progressively when
you press the accelerator:
Manual gearbox: press down fully
o n t h e c l u t c h p e d a l , e n g a g e fi r s t
gear or reverse, press on the acce-
lerator pedal and move off.
Electronic gear control gearbox :
select position A , M or R then press
on the accelerator pedal.
Automatic gearbox: select posi-
tion D , M or R then press on the
accelerator pedal.
Before leaving the vehicle,
check that parking brake
warning lamp on the instru-
ment panel is permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake. - extinction of braking warn-
ing lamp and of the warning
lamp P on control A ,
- displaying of the message "Handbrake off".
A n o p e r a t i o n s o u n d w i l l c o n fi r m t o y o u
the application/release of your electric
parking brake.
Full release of the parking brake is con-
fi r m e d b y : engine running
With the engine running and the vehicle
stationary, in order to immobilise the ve-
hicle it is essential to manually apply the
parking brake by pulling on control A .
The application of the parking brake is
c o n fi r m e d b y :
- ighting of the braking war-ning lamp and of the warning
lamp P on control A ,
- display of the message "Handbrake on".
When the driver’s door is opened, a
beep is heard and a message is dis-
played if the parking brake has not been
applied, unless the selector lever is in
position P (Park) in the case of an auto-
matic gearbox.
Before leaving the vehicle,
check that parking brake
warning lamp on the instru-
m e n t p a n e l i s o n , n o t fl a s h i n g .
When stationary, with the en-
gine running, do not press the
accelerator pedal unneces-
sarily, as you may release the
parking brake.
In the case of towing, a loaded vehi-
cle or parking on a gradient, turn the
front wheels towards the pavement
and engage a gear when you park.
Page 167 of 331
138
Particular situations Emergency braking
In the event of a failure of the main ser-
vice brake or in an exceptional situation
(e.g. driver taken ill, under instruction,
etc) a continuous pull on control A will
stop the vehicle.
The electronic stability programme
(ESP) provides stability during emer-
gency braking.
If the emergency braking malfunctions,
one of the following messages will be
displayed:
- "Parking brake faulty".
- "Parking brake control faulty".
In certain situations (e.g. start-
ing the engine), the parking brake
can automatically alter its force. This
is normal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the parking
brake by pulling then releasing con-
trol A . The full release of the parking
b r a k e i s c o n fi r m e d b y t h e e x t i n c t i o n
of warning lamp on control A and of
the warning lamp on the instrument
panel and the displaying of the mes-
sage "Handbrake off".
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i s a l w a y s
possible. If a failure of the ESP system
is signalled by the lighting of
this warning lamp, then bra-
king stability is not guaranteed.
In this event, stability must be assured
by the driver by repeating alternate "pull
release" actions on control A .
The emergency braking must
only be used in exceptional
circumstances.
Page 168 of 331
139
Emergency release
For safety reasons, after this
manoeuvre it is essential to
contact a PEUGEOT dealer
urgently to replace the protective
cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency release has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on control A , or
stopping starting the engine while the
release device is engaged.
Take care not to allow moisture or
dust in the proximity of the protective
cover.
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
b y e n g a g i n g fi r s t g e a r ( m a n u a l g e a r -
box), position P (automatic gearbox)
or M or R (6-speed electronic gear
control gearbox).
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not action
the control and urgently contact a
PEUGEOT dealer.
Fetch the two vehicle blocks and
the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).
Immobilise the vehicle by placing
blocks at the front and at the rear of
one of the rear wheels.
Slide the front left-hand seat back
as far as possible.
L i f t u p t h e fl o o r p l u g B in the carpet
under the seat.
Pierce the protective cover C on the
tube D with the release device.
Place the release device in the tube D .
Turn the release device clockwise.
For safety reasons , it is essential
to continue turning the device as
far as it will go or until you hear a
knocking noise. The parking brake
is released.
Remove the release device and store
it with the blocks in the toolbox.
- The operation of the parking brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact a
PEUGEOT dealer.
- The subsequent time required for application may be longer than dur-
ing normal operation.
Front left seat moved back fully.
In the event of the electric parking brake
malfunctioning or the battery running
fl a t , a n e m e r g e n c y m a n u a l d e v i c e c a n
release the parking brake.
Page 169 of 331
140
HILL START ASSIST
System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist function cannot be
deactivated.
Operation
On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a brief moment when you release
the brake pedal:
- p r o v i d e d y o u a r e i n fi r s t g e a r o r n e u t r a l on a manual gearbox,
- provided you are in A or M on an
electronic gear control gearbox,
- provided you are in D or M on an
automatic gearbox.
On a descending slope, with the ve-
hicle stationary and reverse gear
engaged, the vehicle is held for a
brief moment when you release the
brake pedal.
Do not exit the vehicle while
it is being held in the hill start
assist phase.
If you need to exit the vehicle with
the engine running, apply the parking
brake manually then ensure that the
parking brake warning lamp and the
warning lamp P on the lever (of the
electric brake) are permanently on.
Operating fault
If a malfunction of the system occurs,
these warning lamps come on. Contact
a PEUGEOT dealer to have the system
checked.
Page 170 of 331
141

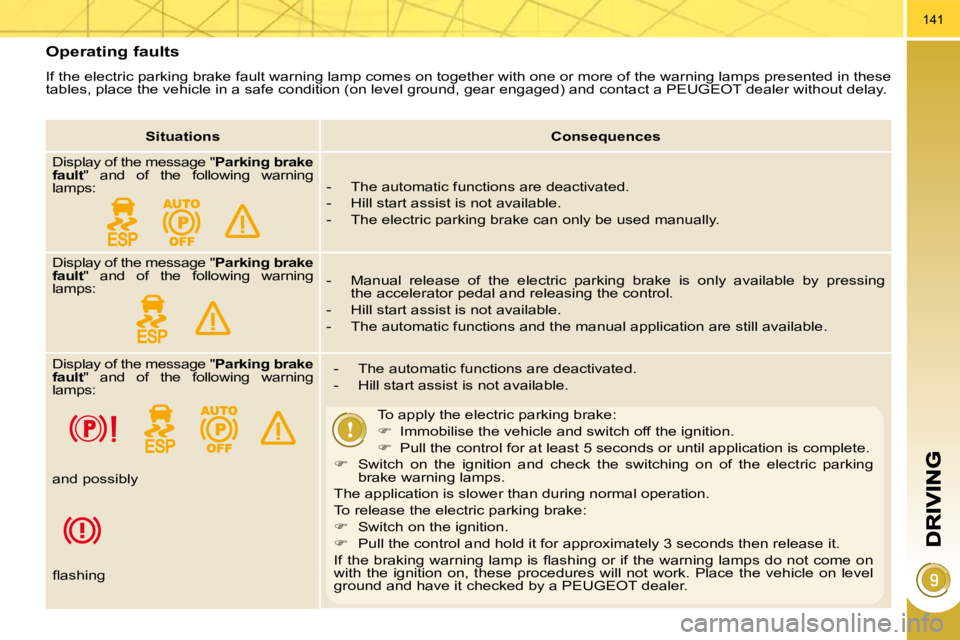

Operating faults
If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these
tables, place the vehicle in a safe condition (on level grou nd, gear engaged) and contact a PEUGEOT dealer without dela y.
Situations
Consequences
Display of the message " Parking brake
fault " and of the following warning
lamps: - The automatic functions are deactivated.
- Hill start assist is not available.
- The electric parking brake can only be used manually.
Display of the message " Parking brake
fault " and of the following warning
lamps: - Manual release of the electric parking brake is only availa
ble by pressing
the accelerator pedal and releasing the control.
- Hill start assist is not available.
- The automatic functions and the manual application are still available.
Display of the message " Parking brake
fault " and of the following warning
lamps: - The automatic functions are deactivated.
- Hill start assist is not available.
To apply the electric parking brake:
Immobilise the vehicle and switch off the ignition.
Pull the control for at least 5 seconds or until applicatio n is complete.
Switch on the ignition and check the switching on of the electric parking
brake warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:
Switch on the ignition.
Pull the control and hold it for approximately 3 seconds the n release it.
I f t h e b r a k i n g w a r n i n g l a m p i s fl a s h i n g o r i f t h e w a r n i n g l a m p s d o n o t c o m e o n
with the ignition on, these procedures will not work. Place the vehicle on level
ground and have it checked by a PEUGEOT dealer.
and possibly
fl a s h i n g
