PRACTICAL INFORMATION
198

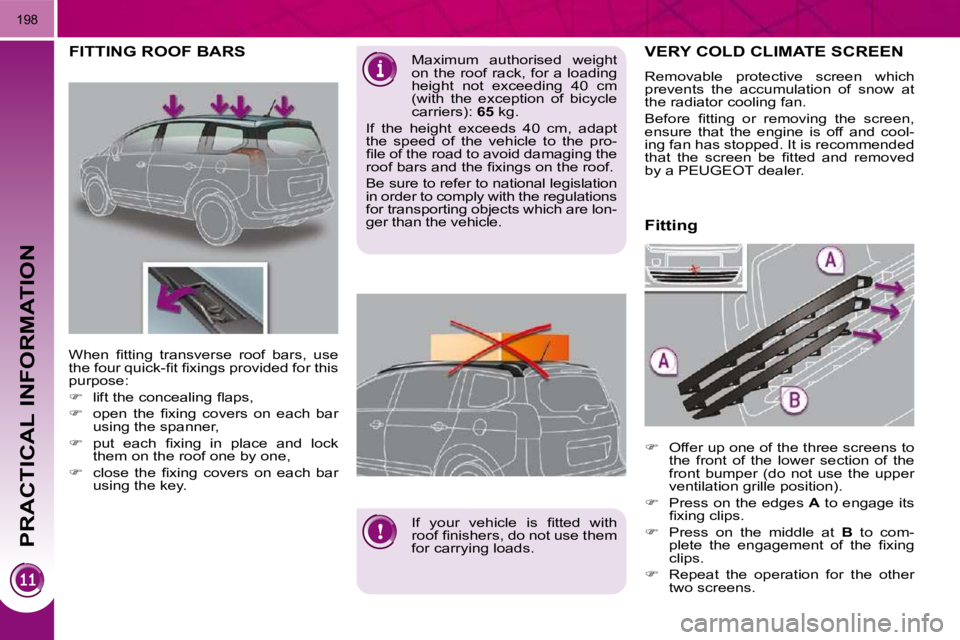

FITTING ROOF BARS M a x i m u m a u t h o r i s e d w e i g h t
on the roof rack, for a loading
h e i g h t n o t e x c e e d i n g 4 0 c m
( w i t h t h e e x c e p t i o n o f b i c y c l e
c a r r i e r s ) : 65 kg.
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legislation
in order to comply with the regulations
for transporting objects which are lon-
ger than the vehicle.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
p u r p o s e :
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
using the spanner,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
them on the roof one by one,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
using the key.
I f y o u r v e h i c l e i s fi t t e d w i t h
r o o f fi n i s h e r s , d o n o t u s e t h e m
for carrying loads. VERY COLD CLIMATE SCREEN
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
B e f o r e fi t t i n g o r r e m o v i n g t h e s c r e e n ,
ensure that the engine is off and cool-
ing fan has stopped. It is recommended
t h a t t h e s c r e e n b e fi t t e d a n d r e m o v e d
by a PEUGEOT dealer.
Offer up one of the three screens to
the front of the lower section of the
front bumper (do not use the upper
ventilation grille position).
Press on the edges A to engage its
fi x i n g c l i p s .
Press on the middle at B to com-
p l e t e t h e e n g a g e m e n t o f t h e fi x i n g
clips.
Repeat the operation for the other
two screens.
Fitting
Page 232 of 331
PRACTICAL INFORMATION
199
ACCESSORIES
"Protection": anti-theft alarm, window etch-
i n g , w h e e l s e c u r i t y b o l t s , fi r s t
aid kit, warning triangle, high
visibility jacket, stolen vehicle
tracking system, dog guard,
snow chains.

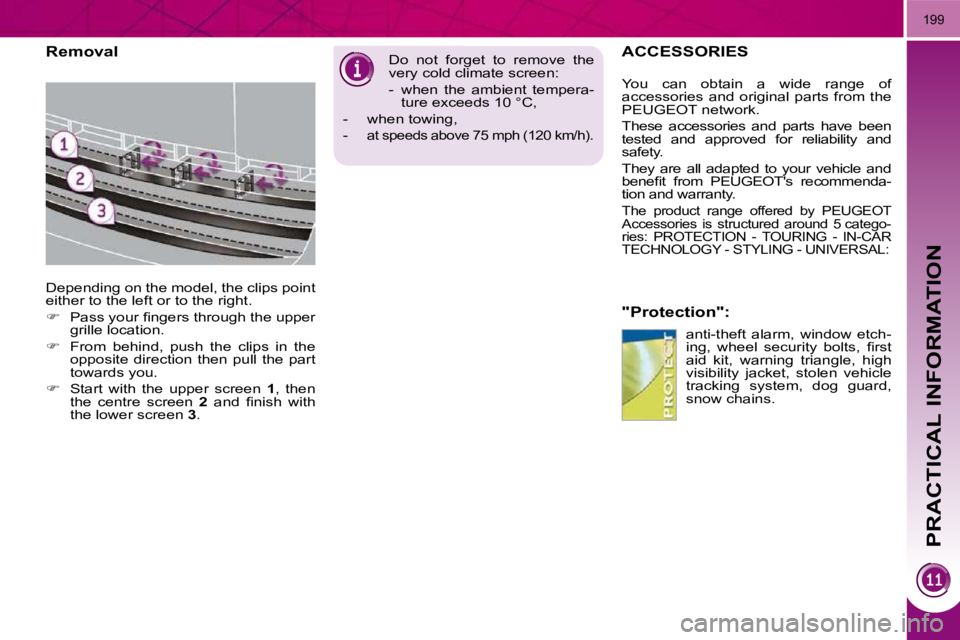

Removal
Do not forget to remove the
v e r y c o l d c l i m a t e s c r e e n :
- when the ambient tempera-
t u r e e x c e e d s 1 0 ° C ,
- when towing,
-
at speeds above 75 mph (120 km/h).
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
T E C H N O L O G Y - S T Y L I N G - U N I V E R S A L :
Depending on the model, the clips point
either to the left or to the right.
P a s s y o u r fi n g e r s t h r o u g h t h e u p p e r
grille location.
From behind, push the clips in the
opposite direction then pull the part
towards you.
Start with the upper screen 1 , then
the centre screen 2 a n d fi n i s h w i t h
the lower screen 3 .
Page 233 of 331
PRACTICAL INFORMATION
199
ACCESSORIES
"Protection": anti-theft alarm, window etch-
i n g , w h e e l s e c u r i t y b o l t s , fi r s t
aid kit, warning triangle, high
visibility jacket, stolen vehicle
tracking system, dog guard,
snow chains.
Removal
Do not forget to remove the
v e r y c o l d c l i m a t e s c r e e n :
- when the ambient tempera-
t u r e e x c e e d s 1 0 ° C ,
- when towing,
-
at speeds above 75 mph (120 km/h).
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
T E C H N O L O G Y - S T Y L I N G - U N I V E R S A L :
Depending on the model, the clips point
either to the left or to the right.
P a s s y o u r fi n g e r s t h r o u g h t h e u p p e r
grille location.
From behind, push the clips in the
opposite direction then pull the part
towards you.
Start with the upper screen 1 , then
the centre screen 2 a n d fi n i s h w i t h
the lower screen 3 .
Page 234 of 331
PRACTICAL INFORMATION
200
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories. Depending on the country in
which the vehicle is sold, it
is compulsory to have a high
visibility jacket, warning triangle and
spare bulbs available in the vehicle.
"Styling": "Universal":
You can obtain "Van" conversion kits to
convert a private vehicle into a van.
seat covers compatible with
lateral airbags, leather gear
lever knob, foglamps, door de-
fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, chrome-
plated door handle shells. s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
products.
"In-car technology":
a u d i o s y s t e m s , a m p l i fi e r s , s a t e l -
lite navigation systems, Bluetooth
hands-free system, CD changer,
s p e a k e r s , D V D p l a y e r , U S B B o x ,
front and rear parking sensors,
additional Bluetooth wireless
headphones, Bluetooth audio
headphones mains charger.
Installation of
radiocommunication
transmitters
It is advisable to contact a representa-
tive of the PEUGEOT marque before
installing accessory radiocommunica-
t i o n t r a n s m i t t e r s w i t h a n e x t e r n a l a e r i a l
on your vehicle.
The PEUGEOT network will provide
y o u w i t h t h e s p e c i fi c a t i o n s ( f r e q u e n -
c y b a n d , m a x i m u m o u t p u t p o w e r ,
aerial position, special installation
conditions) of the transmitters which
c a n b e fi t t e d , i n a c c o r d a n c e w i t h t h e
Vehicle Electromagnetic Compatibility
Directive (2004/104/CE).
"Touring":
m a t s * , b o o t t r a y , l u g g a g e n e t ,
fi x e d c o a t h o o k o n h e a d r e -
straint, stainless steel or carbon
door sills.
F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds, under shelf
storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
* T o a v o i d a n y r i s k o f j a m m i n g o f t h e p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
Page 235 of 331
TECHNICAL DATA
201

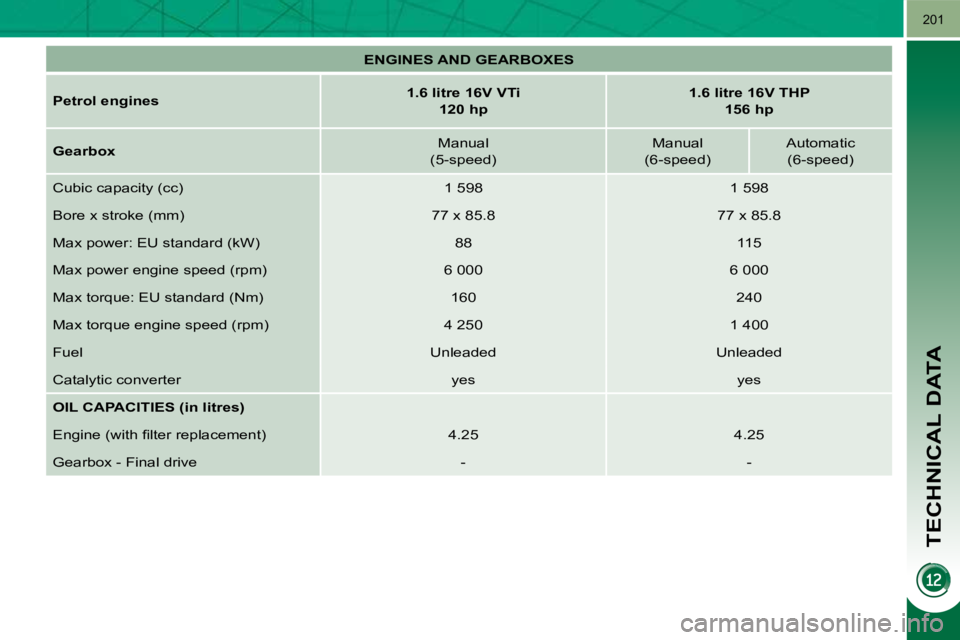

ENGINES AND GEARBOXES
Petrol engines
1.6 litre 16V VTi
120 hp
1.6 litre 16V THP
156
hp
Gearbox Manual
(5-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 115
Max power engine speed (rpm) 6 000 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter yes yes
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 4.25
Gearbox - Final drive - -
Page 236 of 331
TECHNICAL DATA
203
ENGINES AND GEARBOXES

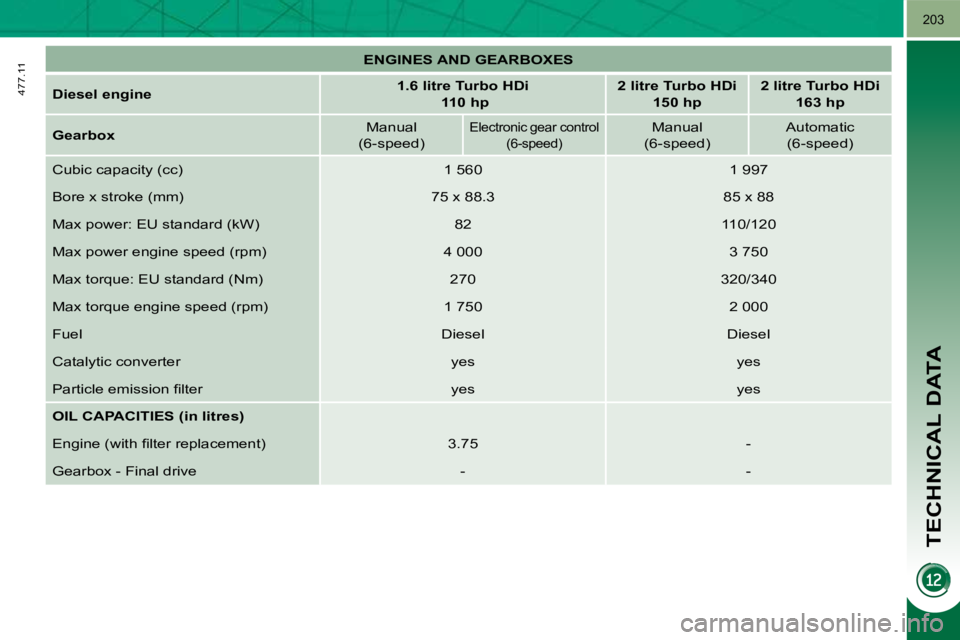

Diesel engine
1.6 litre Turbo HDi
110 hp
2 litre Turbo HDi
150
hp
2 litre Turbo HDi
163
hp
Gearbox Manual
(6-speed)
Electronic gear control (6-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) 82 110/120
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 270 320/340
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter yes yes
P a r t i c l e e m i s s i o n fi l t e r yes yes
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 -
Gearbox - Final drive - -
477.11
Page 237 of 331
TECHNICAL DATA
202
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

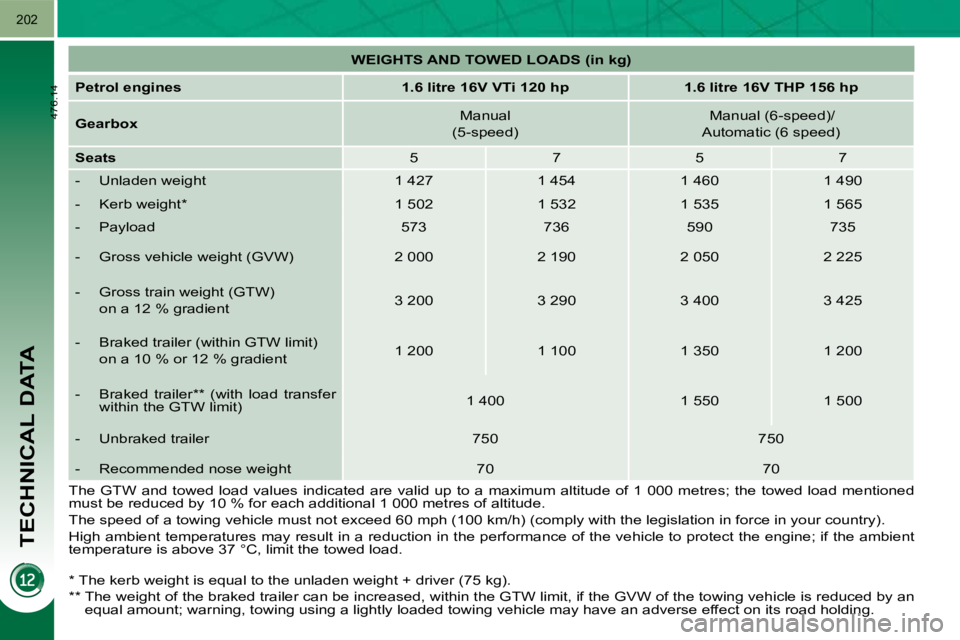

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.6 litre 16V VTi 120 hp 1.6 litre 16V THP 156 hp
Gearbox Manual
(5-speed)
Manual (6-speed)/
Automatic (6 speed)
Seats 5 7 5 7
- Unladen weight 1 427 1 454 1 460 1 490
- Kerb weight * 1 502 1 532 1 535 1 5 65
- Payload 573 736 590 735
- Gross vehicle weight (GVW) 2 000 2 190 2 050 2 225
- Gross train weight (GTW)
on a 12 % gradient 3 200 3 290 3 400 3 425
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 100 1 350 1 200
- Braked trailer ** (with load transfer within the GTW limit) 1 400 1 550 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
476.14
Page 238 of 331
TECHNICAL DATA
204

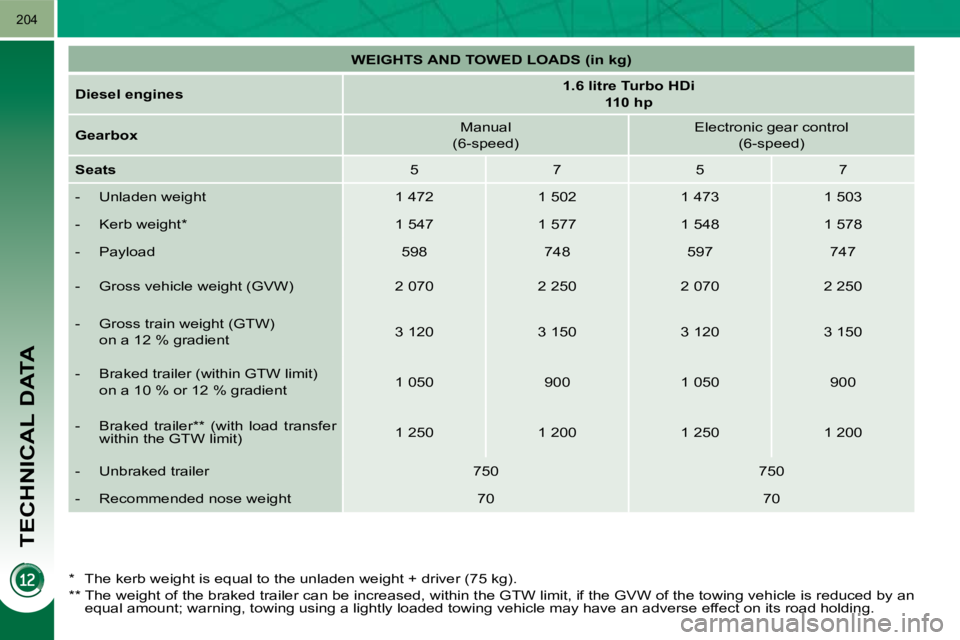

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDi
110 hp
Gearbox Manual
(6-speed) Electronic gear control
(6-speed)
Seats 5 7 5 7
- Unladen weight 1 472 1 502 1 473 1 503
- Kerb weight * 1 547 1 577 1 548 1 5 78
- Payload 598 748 597 747
- Gross vehicle weight (GVW) 2 070 2 250 2 070 2 250
- Gross train weight (GTW)
on a 12 % gradient 3 120 3 150 3 120 3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 050 900 1 050 900
- Braked trailer ** (with load transfer within the GTW limit) 1 250 1 200 1 250 1 200
- Unbraked trailer 750 750
- Recommended nose weight 70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 239 of 331
TECHNICAL DATA
205
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

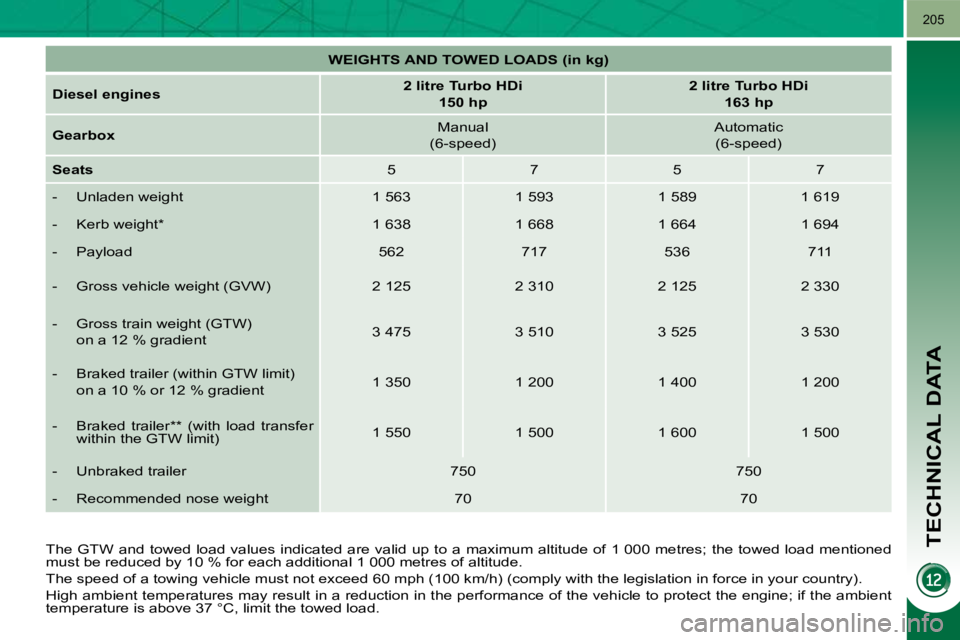

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
2 litre Turbo HDi
150 hp
2 litre Turbo HDi
163 hp
Gearbox Manual
(6-speed) Automatic
(6-speed)
Seats 5 7 5 7
- Unladen weight 1 563 1 593 1 589 1 619
- Kerb weight * 1 638 1 668 1 664 1 6 94
- Payload 562 717 536 711
- Gross vehicle weight (GVW) 2 125 2 310 2 125 2 330
- Gross train weight (GTW)
on a 12 % gradient 3 475 3 510 3 525 3 530
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 350 1 200 1 400 1 200
- Braked trailer ** (with load transfer within the GTW limit) 1 550 1 500 1 600 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70
Page 240 of 331
TECHNICAL DATA
206

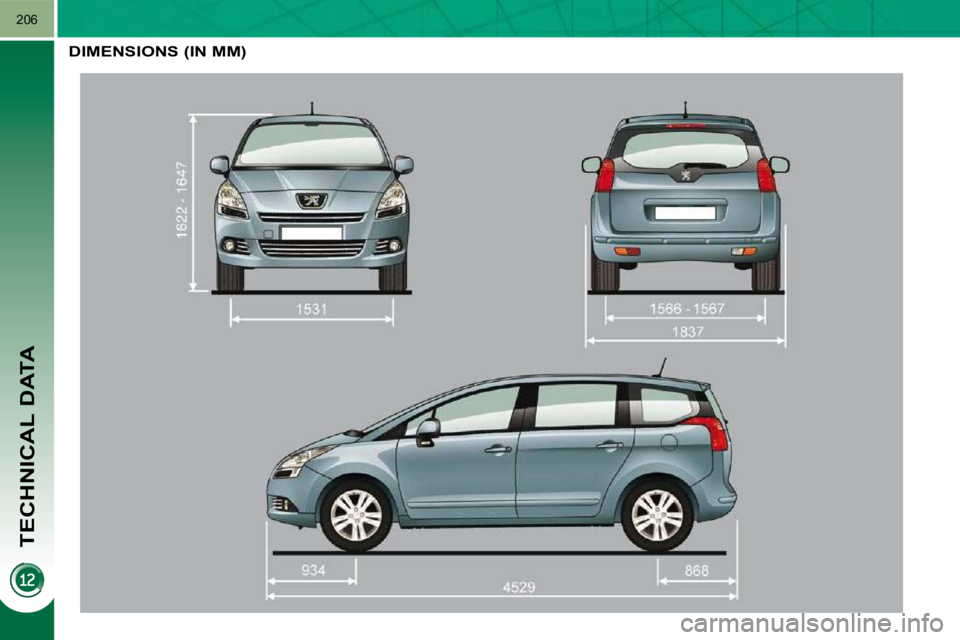

DIMENSIONS (IN MM)
