PEUGEOT 5008 2010 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 5008, Model: PEUGEOT 5008 2010Pages: 331, PDF Size: 23.41 MB
Page 221 of 331
PRACTICAL INFORMATION
189

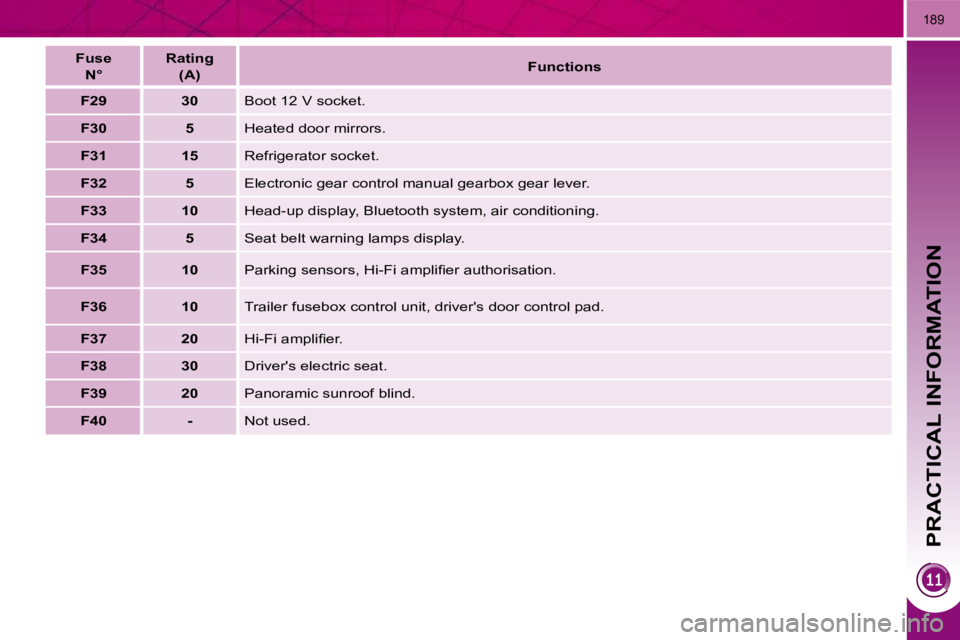

Fuse N° Rating
(A) Functions
F29 30 Boot 12 V socket.
F30 5 Heated door mirrors.
F31 15 Refrigerator socket.
F32 5 E l e c t r o n i c g e a r c o n t r o l m a n u a l g e a r b o x g e a r l e v e r .
F33 10 Head-up display, Bluetooth system, air conditioning.
F34 5 Seat belt warning lamps display.
F35 10 P a r k i n g s e n s o r s , H i - F i a m p l i fi e r a u t h o r i s a t i o n .
F36 10 T r a i l e r f u s e b o x c o n t r o l u n i t , d r i v e r ' s d o o r c o n t r o l p a d .
F37 20 H i - F i a m p l i fi e r .
F38 30 Driver's electric seat.
F39 20 Panoramic sunroof blind.
F40 - Not used.
Page 222 of 331
PRACTICAL INFORMATION
190

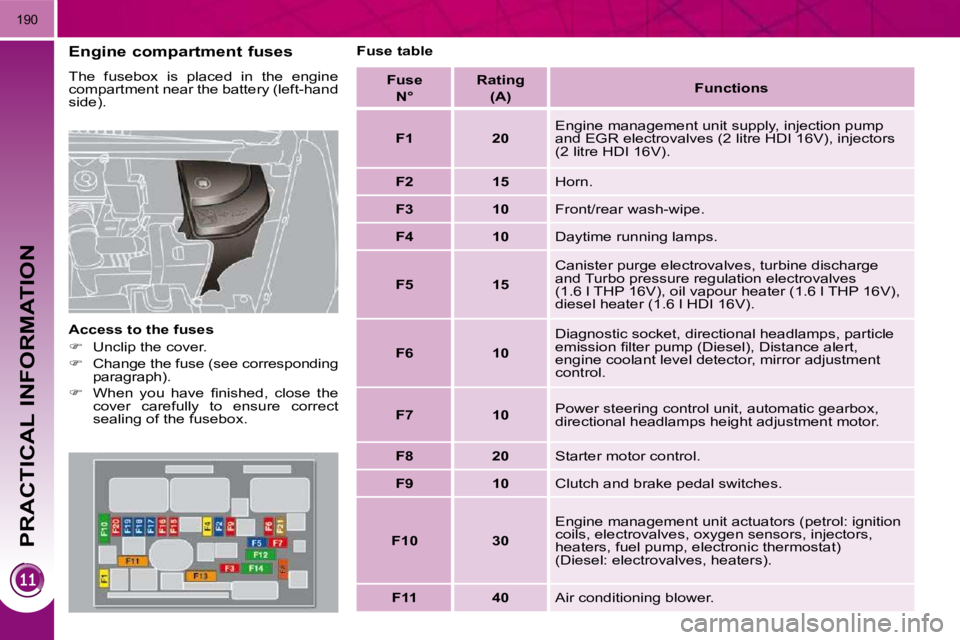

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
side).
Access to the fuses
Unclip the cover.
Change the fuse (see corresponding
paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure correct
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating
(A) Functions
F1 20 Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI 16V), injectors
(2 litre HDI 16V).
F2 15 Horn.
F3 10 Front/rear wash-wipe.
F4 10 Daytime running lamps.
F5 15 Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 l THP 16V), oil vapour heater (1.6 l THP 16V),
diesel heater (1.6 l HDI 16V).
F6 10 Diagnostic socket, directional headlamps, particle
e m i s s i o n fi l t e r p u m p ( D i e s e l ) , D i s t a n c e a l e r t ,
engine coolant level detector, mirror adjustment
control.
F7 10 P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
directional headlamps height adjustment motor.
F8 20 Starter motor control.
F9 10 Clutch and brake pedal switches.
F10 30 E n g i n e m a n a g e m e n t u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n
c o i l s , e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
heaters, fuel pump, electronic thermostat)
( D i e s e l : e l e c t r o v a l v e s , h e a t e r s ) .
F11 40 Air conditioning blower.
Page 223 of 331
PRACTICAL INFORMATION
191

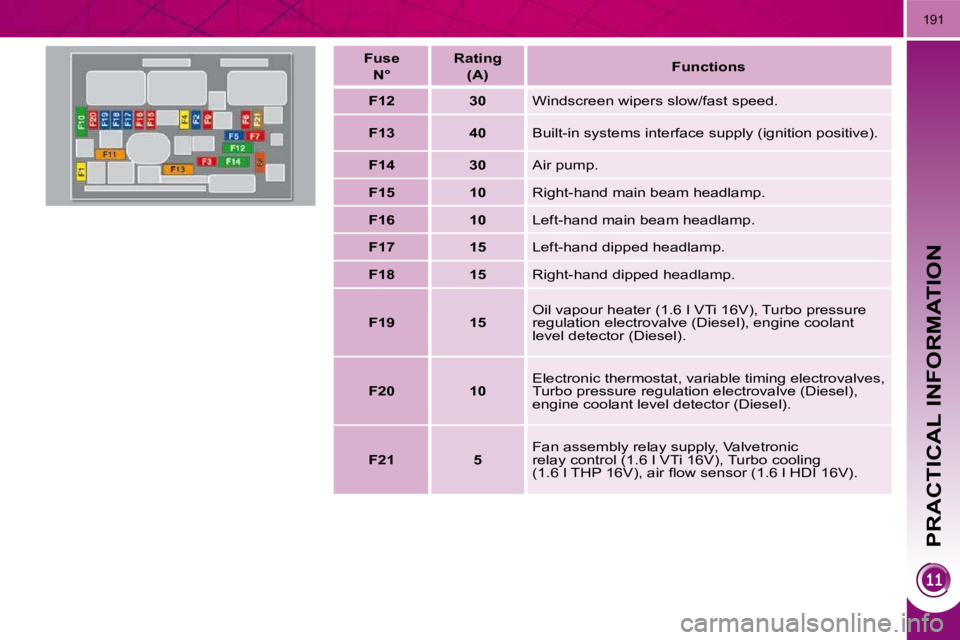

Fuse N° Rating
(A) Functions
F12
30 Windscreen wipers slow/fast speed.
F13
40 Built-in systems interface supply (ignition positive).
F14
30 Air pump.
F15
10 Right-hand main beam headlamp.
F16
10 Left-hand main beam headlamp.
F17
15 Left-hand dipped headlamp.
F18
15 Right-hand dipped headlamp.
F19
15 Oil vapour heater (1.6 l VTi 16V), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).
F20
10 Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).
F21
5 Fan assembly relay supply, Valvetronic
relay control (1.6 l VTi 16V), Turbo cooling
( 1 . 6 l T H P 1 6 V ) , a i r fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 224 of 331
PRACTICAL INFORMATION
192

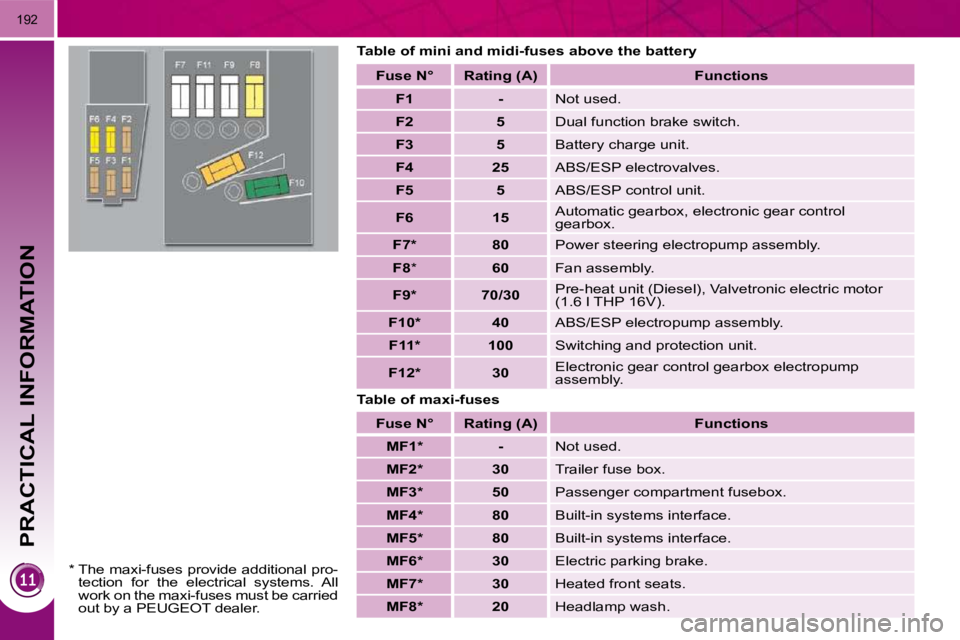

Table of mini and midi-fuses above the battery
Table of maxi-fuses Fuse N° Rating (A) Functions
F1 - Not used.
F2 5 Dual function brake switch.
F3 5 Battery charge unit.
F4 25 ABS/ESP electrovalves.
F5 5 ABS/ESP control unit.
F6 15 A u t o m a t i c g e a r b o x , e l e c t r o n i c g e a r c o n t r o l
g e a r b o x .
F7 * 80 Power steering electropump assembly.
F8 *
60 Fan assembly.
F9 * 70/30 Pre-heat unit (Diesel), Valvetronic electric motor
(1.6 l THP 16V).
F10 * 40 ABS/ESP electropump assembly.
F11 * 100 Switching and protection unit.
F12 * 30 E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p
assembly.
Fuse N° Rating (A) Functions MF1 * - Not used.
MF2 * 30 T r a i l e r f u s e b o x .
MF3 * 50 P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF4 * 80 Built-in systems interface.
MF5 * 80 Built-in systems interface.
MF6 * 30 Electric parking brake.
MF7 * 30 Heated front seats.
MF8 * 20 Headlamp wash.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o -
tection for the electrical systems. All
w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Page 225 of 331
PRACTICAL INFORMATION
BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to the earth point C
on your vehicle (engine mounting).
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior re-
l e a s e l e v e r , t h e n t h e e x t e r i o r s a f e t y
catch,
secure the bonnet stay,
remove the plastic cover to gain
access to the two terminals,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
battery, if necessary.
Page 226 of 331
PRACTICAL INFORMATION
194
Do not disconnect the terminals
while the engine is running.
Do not charge the batter-
ies without disconnecting the
t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x o r a n
a u t o m a t i c g e a r b o x .
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be dis-
posed of in accordance with regulations
and must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the negative
terminal (-).
Check that the terminals and con-
nectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them and
clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if prob-
lems remain following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding section,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation system.
Disconnecting the cables
Raise the locking tab fully.
Reconnecting the cables
Position the open clip 1 of the cable
on the positive terminal (+) of the
battery.
Press vertically on the clip 1 to posi-
tion it correctly against the battery.
Lock the clip by lowering the tab 2 .
Do not force the tab as lock-
ing will not be possible if the
clip is not positioned correctly;
start the procedure again.
Page 227 of 331
PRACTICAL INFORMATION
195
Let the engine run for the
d u r a t i o n s p e c i fi e d t o e n s u r e
that the battery charge is suf-
fi c i e n t .
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the "Battery"
paragraph). If the telephone is being used
a t t h i s t i m e :
- it will be maintained for 5 minutes with the hands-free kit of your
Peugeot Connect Sound or
Peugeot Connect Navigation,
- i t w i l l s t i l l b e p o s s i b l e t o fi n i s h t h e call with the Peugeot Connect
Media.
Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the en-
g i n e a n d l e t i t r u n :
- for less than ten minutes, to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
fi v e m i n u t e s ,
- for more than ten minutes, to use t h e e q u i p m e n t f o r u p t o a p p r o x i -
mately thirty minutes.
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
l a m p s , e t c . f o r a m a x i m u m c o m b i n e d
duration of thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 228 of 331
PRACTICAL INFORMATION
196
TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed under the
left-hand concertina board, in the boot
interior trim.
T o g a i n a c c e s s t o i t :
open the boot,
raise the concertina board,
remove the towing eye from the
holder. When towing with all four
wheels on the ground, always
use a towing bar.
When towing with only two
wheels on the ground, always use
professional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the electronic
g e a r c o n t r o l g e a r b o x o r a u t o -
m a t i c g e a r b o x ) .
Failure to observe this special condi-
tion could result in damage to certain
braking components and the absence
o f b r a k i n g a s s i s t a n c e t h e n e x t t i m e
the engine is started.
Page 229 of 331
PRACTICAL INFORMATION
197
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
is used.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
We recommend the use of
genuine PEUGEOT towbars
and their harnesses that have
been tested and approved from the
design stage of your vehicle, and that
t h e fi t t i n g o f t h e t o w b a r i s e n t r u s t e d
to a PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a P E U G E O T
d e a l e r , i t i s i m p e r a t i v e t h a t i t i s fi t t e d
using the electrical pre-equipment
installed at the rear of the vehicle, in
accordance with the manufacturer's in-
structions.
Page 230 of 331
PRACTICAL INFORMATION
198
FITTING ROOF BARS M a x i m u m a u t h o r i s e d w e i g h t
on the roof rack, for a loading
h e i g h t n o t e x c e e d i n g 4 0 c m
( w i t h t h e e x c e p t i o n o f b i c y c l e
c a r r i e r s ) : 65 kg.
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legislation
in order to comply with the regulations
for transporting objects which are lon-
ger than the vehicle.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
p u r p o s e :
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
using the spanner,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
them on the roof one by one,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
using the key.
I f y o u r v e h i c l e i s fi t t e d w i t h
r o o f fi n i s h e r s , d o n o t u s e t h e m
for carrying loads. VERY COLD CLIMATE SCREEN
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
B e f o r e fi t t i n g o r r e m o v i n g t h e s c r e e n ,
ensure that the engine is off and cool-
ing fan has stopped. It is recommended
t h a t t h e s c r e e n b e fi t t e d a n d r e m o v e d
by a PEUGEOT dealer.
Offer up one of the three screens to
the front of the lower section of the
front bumper (do not use the upper
ventilation grille position).
Press on the edges A to engage its
fi x i n g c l i p s .
Press on the middle at B to com-
p l e t e t h e e n g a g e m e n t o f t h e fi x i n g
clips.
Repeat the operation for the other
two screens.
Fitting
